Condition: good (used), Year of construction: 2005, functionality: fully functional, turning diameter over cross slide: 310 mm, turning length: 520 mm, turning diameter: 310 mm, travel distance X-axis: 210 mm, travel distance Z-axis: 610 mm, Sinumerik 810D Powerline with Shopturn CNC control 3-jaw chuck Schunk (diameter 210mm) 12-fold turret head (VDI 30 taper) C-axis driven tools tailstock coolant device chip conveyor Technische Daten / technical details: max. Umlaufdurchmesser über Bett / max rotary diameter over bed 600 mm max. Umlaufdurchmesser über Schlitten / max. rotary diameter over sledge 360 mm max. Drehdurchmesser / max. turning diameter 310 mm max. Drehlänge / max. turning length 520 mm Abstand zwischen den Spitzen / distance between centers 680 mm Planweg (x) / cross way (x) 210 mm Längsweg (z) / longitudinal way (z) 610 mm max. Stangendurchmesser / max bar diameter 65 mm Drehzahlbereich / spindle speed 0-4200 UpM /rpm Drehzahl angetriebene Werkzeuge / speed of driven tools 5000 UpM /rpm Werkzeugrevolver / turret head 12 fach /holes Eilgang x,z / rapid feed x,z 24,24 m/min Antriebsleistung Spindel / drive capacity spindle 18 kW Gbjdpfx Aoxvy Ahjh Sjw Gewicht der Maschine ca. / weight 3900 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: good (used), Year of construction: 2008, Ref. -No.: 10613 Manufacturer: GILDEMEISTER Type: GM 20 Year of construction: 2008 Type of control: NC Gjdpfoxvp Uyjx Ah Sebw Control: Gildemeister Storage location: Halberstadt/Hamburg Country of origin: Germany

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 500522, spindle speed (max.): 3,500 rpm, overall weight: 6,500 kg, spindle diameter: 140 mm, counter spindle speed (max.): 3,500 rpm, TECHNICAL DETAILS Main Spindle Bar capacity (collet): 90 mm Front bearing spindle diameter: 140 mm Gbjdpfxexvq Rps Ah Sjw Spindle nose ISO 702/1 (size): 8 Chuck diameter: 250/315 mm Max. turning diameter over slides: 270 mm Max. swing diameter: 590 mm Speed: max. 3,500 rpm Sub-Spindle Bar capacity (collet): 90 mm Front bearing spindle diameter: 140 mm Spindle nose ISO 702/1 (size): 8 Chuck diameter: 250/315 mm Speed: max. 3,500 rpm Min. collet spacing: 20 mm Rapid traverse: 22.5 m/min Tool Turret Number of tools: 12 MACHINE DETAILS Dimensions & Weight Floor area: approx. 8/10.5 m² Height: 2,150 mm Machine weight approx.: 6.5 t EQUIPMENT Tailstock Automatic loading and unloading system

Condition: used, Year of construction: 2002, turning diameter 340 mm turning length 600 mm turning diameter over slide 300 mm control Siemens 840 D spindle passage 55 mm Gsdoxvdrajpfx Ah Ssbw spindle nose ASA 6 number of spindle speeds 4000 U/min spindle motor 27 kW Number of tools 12 VDI 40 driven stations 12 VDI 40 rapid traverse 30 m/min power sub spindle 15 kw CNC- lathe with driven tools an subspindle Driven toolstation cannot be used due to cable breakage - chip conveyor - sub spindle - driven tool stations (not working) - tool measuring

Condition: used, Year of construction: 1994, turning diameter 570 mm turning length 2000 mm control Sinumerik 805 Siemens swing diameter over face slide 365 mm main spindle speeds: 3-2.500 U/min drive of main spindle 15/19 kW spindle bore 62 mm Gbodpfx Asu Sbkgoh Sjw spindle head DIN 55027 No.8 tailstock taper MT 5 quill stroke 190 mm pinole diameter 80 mm feed range - long. and cross 0,01-50 mm/u total power requirement 50 KVA weight of the machine ca. 5 t dimensions of the machine ca. m

Condition: good (used), Year of construction: 2007, Maximum cutting diameter 820mm, maximum cutting length 1500mm, C axis 0.0001 degrees, B axis -30/+210 degrees, 40 ATC, Godpfx Aeu Rb Snjh Ssbw spindle speed 1,600 rpm, Milling speed 10,000rpm., main spindle 37Kw, spindle taper din50, Y axis -/+ 250mm, Mazatrol Matrix control, swarf conveyor

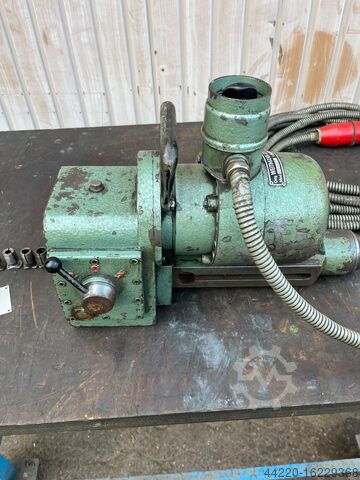

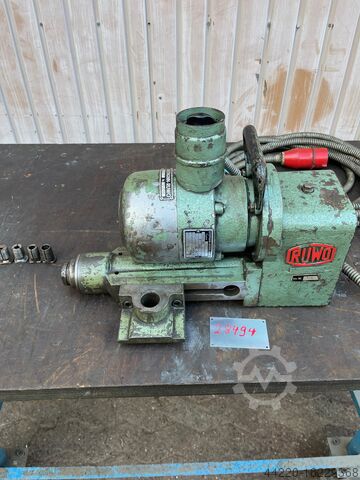

Condition: good (used), Support milling motor RUWO Weitmann Mod.SFE 20/G3 4 milling spindle speeds Motor 380 Volt 2800/1400 n1/min. 0,55 / 0,44 kw Accessories : 5 collets : 5-6-10-12-16 mm Gbsdpfxottk U Es Ah Ssw Transport dimension : L.500 mm W.250 mm H.350 mm Weight 48 kg

Condition: used, Year of construction: 2013, controller manufacturer: Siemens, controller model: 840 Dsl, _____ Description: Year of manuf. : 2013 Control : Siemens 840 Dsl Turning diam. : 340 mm Turning length : 1185 mm In General: Year of manufacture:2013 Control system:Siemens 840 Dsl Turning length:1,185 Swing diameter:540 mm Bar capacity:75 Main spindle: Technology:Direct drive spindle Speed:5,000 rpm Max. power:32 kW Max. torque:360 Nm Chuck:SMW KNCS -N 260-78 C-axis:0.001° Flush:Chuck flush Gbsdpexl Nfqefx Ah Ssw Sub spindle: Technology:Direct drive spindle Speed:5,000 rpm Max. power:32 kW Max. torque:360 Nm Chuck:SMW KNCS -N 260-78 C-axis:0.001° Flush:Chuck flush + flush through spindle Tool carrier I (X/Y/Z/B): Technology:Milling spindle on traveling column Milling spindle speed:12,000 rpm Max. power:22 kW Tool holder:Capto C6 X-axis:450 mm Y-axis:200 mm Z-axis:1,200 mm B-axis:+/- 110° Position sensors:Direct scales (glass scales) Tool carrier II (X/Y/Z): Technology:Tool turret on cross slide Tool drive:Direct drive Speed:10,000 rpm Power:14 kW Torque:34 Nm X-axis:195 mm Y-axis:80 mm Z-axis:1,200 mm Tool holder:VDI 40 Number of tool stations:12 Automation: Technology:Portal loader with stacking magazine Workpiece diameter:50 - 200 mm Max. workpiece height:230 mm Max. workpiece weight:15 kg Number of stacking attachments:20 Max. load capacity per stacking attachment:40 kg Equipment: Chip disposal:Chip conveyor Coolant supply:Internal coolant system, 80 bar Tool magazine:Chain magazine, 120 stations Workpiece measurement:Renishaw touch probe Tool breakage monitoring:Swivel wire Automation:Portal loader with stacking magazine Emulsion mist separator:Mechanical Setup operation:Electronic handwheel Workspace door:Automatic Chuck:2x SMW KNCS 260 Tool holders:Various Capto C6 holders

Condition: new, The Sinus 330/2000 D is a top-tier Conventional Horizontal Lathe within the Engine Lathes category, renowned for its robust design and superior precision. Built on a solid, one-piece cast bed, this machine ensures remarkable rigidity and stability even under heavy workloads. It features a manual multi-disc clutch for smooth operation and can handle large workpieces, with a turning diameter over the bed of 660 mm and a maximum workpiece length of 2,000 mm. Highlighted by its hardened guideways, the Sinus 330/2000 D operates quietly while providing high cutting power, making it ideal for machining large parts and flanges. Additionally, it includes a removable bed bridge for versatility, automatic lubrication for optimal performance, and a tapered turning device for enhanced functionality. With standard equipment that encompasses a three-axis position indicator, efficient coolant system, and rapid feed capabilities on both Z and X axes, this lathe stands out in both functionality and user safety. You can request a quote to explore how the Sinus 330/2000 D can meet your machining needs within the Engine Lathes product group. Gbjdpfx Asu E Nhgjh Sow

Condition: excellent (used), Year of construction: 1986, Heavy-duty lathe, turning machine, lathe, center lathe, center lathe -Manufacturer: Knuth, lead screw and feed screw lathe type PICATOR 215/1250 -Machine bed: hardened -Turning length: 1260 mm -Turning Ø over bed: 470 mm -Turning Ø without bridge bed: 600 mm -Turning Ø over support: 280 mm -Spindle bore: Ø 55 mm -Spindle speeds: 36 - 2000 rpm -Wedge bar chuck: Forkardt Ø 200 mm -Tailstock mount: MK4 -Drive: 3.6 kW -Accessories: 1x steady rest, Multifix tool holder, tools see photos Gbsdpswv Uvfefx Ah Sjw -Dimensions: 1020/2210/H1190 mm -Weight: 1200 kg

Year of construction: 1998, condition: used, bar max. 75 bar Gedpfx Ahju Sbcve Sebw piston stroke 0 mm revolutions per minute 0 U/min 2 pcs. available. Price is for 1 pc.

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, Lathe - cycle controled / Brand: SEIGER / Type: SLZ-1200 S x 8000 Year of manufacturing: 08/2000 The machine can be inspected by appointment under power. TECHNICAL DATA: Working area: - Peak width: 8.000 mm - Swing diameter over bed rail: 1.250 mm - Bed width: 900 mm Turning spindle: - Spindle head according to DIN 55027, size 15 - Spindle bore: 240 mm - Chuck diameter: 128 mm Permissible workpiece dimensions/weights: - between the tips without / with one steady rest: 5.000 / 7.000 kg - between the tips with with two steady rests: 8.500 kg Gedpfxsxvmygj Ah Ssbw EQUIPMENT: - CNC-Control: SINUMERIK 810D ManualTurn - 1 x faceplate, diameter: 1.000 mm - 2 x steady rests - 2 x chip conveyors - Documentation - CE marking Without guarantee of completeness and correctness of the technical information and the equipment. - Subject to prior sale - Detailed technical data sheet and information on equipment available on request.

Condition: excellent (used), Top support Heyligenstedt (28493) Height of clamping surface to steel support 103 mm Gsdpfxettk Smj Ah Ssbw Length 690 mm Width 250 mm Total height 240 mm Bolt circle diameter 225 mm Multifix basic holder size C Weight 56 kg

Condition: used, Year of construction: 2007, control MSX-850 III turning length 510 mm max. turning diameter 356 mm greates pass round over bed 923 mm swing diameter over slide rest 755 mm bar passage 65 mm Gbsdpfx Ahsxvdvls Sjw spindle tunring speed 5.000 U/min number of tool places 12 Pos. weight 5.800 kg In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: used, Year of construction: 2011, bar material dia. 32 mm spindle passage 38 mm turning length 320 mm turning speeds 8000 U/min c-axis 0,001 ° Grad gripping station 32 turning length 150 mm turning speeds 8000 U/min c-axis 0,001 ° Grad number of tools 4+7+6+10 =27 number of milling stations 4+4 control Mitsubishi M70 Number of axles 5+2x C Achse 7 St. chip conveyor ja/yes LNS total power requirement 7,5/5,5 kW weight of the machine ca. 3300 kg dimensions of the machine ca. 2,5 x 1,2 x 1,82 plus FMB m swiss type machine Citizen A32-VIIPL,built 2011, with Barloader FMB Turbo 3-36, Excellent conditions. Main spinle motor and spindle bearing are new. Gbodpfx Asw Ed Tfjh Ssw Attachment: all comes with. It is the only one in the production.

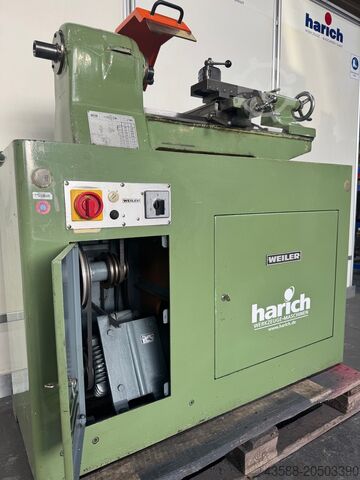

Condition: reconditioned (used), Year of construction: 1977, Engine Lathe Brand: WEILER Model: MDU 260 Year of manufacture: 1977 – workshop tested Machine no.: 14942 Centre height: 125 mm Spindle bore: 28 mm Accessories: - Electrically operated chuck guard Gjdpfsxv A I Tjx Ah Sjbw - 3-jaw chuck Ø 140 mm incl. set of turning jaws incl. set of boring jaws - 4-jaw chuck Ø 140 mm incl. set of turning jaws incl. set of boring jaws - Safety chuck key - Manual clamping device - Collet set W28 (366E) - Set (25 pcs.) collets W28 (366E) from 1.0-25.0 mm in 1.0 mm steps - Fixed centre for headstock W28 (366E) - Quick-change toolholder Body size A - Operating manual Used as seen, without warranty The machine is technically in accordance with the state of the art of its year of manufacture.

Condition: good (used), Year of construction: 2007, Mori Seiki NL2000SY/500 CNC Twin Spindle Multitasking Lathe With DMG MSX-850III Control & LNS Quick Load Barfeeder Maximum Swing Over Bed Ø923.8mm. Maximum Swing Over Cross Slide Ø755mm Maximum Turning Ø356mm. Maximum Turning Length 510mm. Maximum Bar Capacity Ø65mm. Axis Travel 'X'=260mm, 'Z'=590mm, 'Y'=±50mm, 'C'=0.001°(Minimum Increment), 'B'=624mm. Main Spindle With Hainbuch Collet Chuck (Main Spindle), Maximum Spindle Speed 5,000rpm (15kW Motor), Spindle Nose A2-6. Sub Spindle With ATS Workholding Collet Chuck, Maximum Spindle Speed 6,000rpm (11kW Motor), Spindle Nose A2-5. 12 Position Turret (12 Positions Driven). Maximum Driven Tool Speed 6,000rpm (5.5kW Motor). LNS Quick Load Servo 80 Barfeeder Length 2,000mm. S/No. NL201GH2033 (2007). With 10bar Coolant System, Chip Conveyor, Workpiece Unloader, Workpiece Conveyor, 2 Renishaw RP3 Tool Setting Arms, Foot Switches, Daikin Inverter Oil Chiller, Filtermist FX4002 Mist Extraction Unit, Signal Tower, Bar Feeder Liners & Manuals. Overall Dimensions L2,6955 x W2,000 x H2,120mm. Weight 5,800kg. Godpfxjxvz T Ue Ah Ssbw

Condition: refurbished (used), Year of construction: 2022, turning diameter over bed: 540 mm turning diameter over slide rest: 280 mm turning length: 1.500 mm turning diameter in the recess: 580 Gbsdpfsxvc Awsx Ah Sjw Working travel of the lower slide max. approx.: 415 mm adjustment of upper support, max. approx.: 140 mm turning speed range: 0 - 1.800 U/min diam. of main spinde: 135 mm spindle bore: 68 mm internal taper diameter: 73 mm bed width: 403 mm Equipped with: Three jaw chucks FORKARDT 250 Digital read out 3 axis fixed steady rest feed safety chip tray several tool holders, 6 chisel holders, 1 holder for clamping sleeve

Condition: excellent (used), CNC Lathe with y-axis DMG MORI - CTX BETA 800 4A MACH-ID 9282 Make: DMG MORI Gbedpfx Asxuqw Heh Sjw Type: CTX BETA 800 4A Control: Siemens 840 D-SL Year: 2012 Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, TAKISAWA TM-3000Y2 FANUC 0iTF PLUS. TOTALLY AS NEW. BUILT 2023 CNC MULTITASKING LATHE WITH UPPER & LOWER Y-AXES. 8 INCH + 6 INCH STANDARD CHUCK SIZE WITH:- Y-AXIS TRAVEL +45 -45 MM - LOWER TURRET (Y2 AXIS) Y-AXIS TRAVEL +45 -45 MM - UPPER TURRET (Y1 AXIS) CHIP CONVEYOR RIGHT SIDE DISCHARGE HINGE TYPE (MORETECH JAPAN) AIR BLOW SYSTEM - RH SPINDLE WORK PHASE POSITIONING FUNCTION (C-AXIS TORQUE SKIP FUNCTION) COOLANT DELIVERY PIPE ABOVE THE SPINDLE - LH & RH SPINDLE COOLANT PUMP - 400W - 3 OFF OIL SKIMMER (OIL / WATER SEPARATOR) OIL SEPERATOR BOX HYDRAULIC PRESSURE SWITCH LED LIGHTING AUTO LUBRICATION SYSTEM AND COLLECTOR MACHINE MANUALS & OPERATOR HANDBOOKS TURRET MOUNTED MACHINE LEVELLING PLATE AUTO POWER OFF SYSTEM TRANSFORMER - 415V / 3PH / 50HZ STANDARD TOOLING PACKAGE TURRET COVER (6 EA) X 2 SERVO TURRET (LOWER) Y2 AXIS - 12 STATION WITH DRIVEN TOOLS SERVO TURRET (UPPER) Y1 AXIS - 12 STATION WITH DRIVEN TOOLS 6" 3-JAW THRU-BORE HYDRAULIC CHUCK ~ KITAGAWA B-206 RH SPINDLE 8" 3-JAW THRU BORE HYDRAULIC CHUCK (KITAGAWA BR-08) - LH SPINDLE DIRECT DRAWING DIMENSION INPUT HELICAL INTERPOLATION FUNCTION RAKU-RAKU TOOL MONITORING SYSTEM 9 BAR HI PRESS COOLANT PUMP (NIHON) 2 OFF CALL LAMP (3 COLOUR) BAR FEEDER INTERFACE - MULTI BAR MAGAZINE TYPE REMAINING BAR DISCHARGE DEVICE UNLOADER WITH PARTS DISCHARGE CONVEYOR QUICK TOOL SETTING DEVICE - MANUAL TYPE BOTH TURRETS AXIAL DRIVEN TH, ER25 OUTPUT, 6000 RPM, 1:1 RATIO, EXT COOLANT - 4 OFF RADIAL DRIVEN TH, ER25 OUTPUT, 6000 RPM, 1:1 RATIO, EXT COOLANT - 1 OFF MACHINE FEATURES TWIN SPINDLE, TWIN TURRET Y-AXIS CNC TURNING CENTRE. 2 OFF 12 STATION HIGH ACCURACY SERVO TURRETS LEFT HAND SPINDLE - 4,500 RPM RIGHT HAND SPINDLE - 6,000 RPM UPPER & LOWER TURRETS - 6,000 RPM LIVE TOOLING SPEED UPPER TURRET Y1-AXIS (+ - 45 MM) LOWER TURRET Y2-AXIS (+ - 45 MM) 8” + 6” STANDARD CHUCK SIZE MACHINE CAPACITIES Standard Turning Dia. 215 MM Maximum Turning Dia. 215 MM Maximum Turning Length 620 MM Bar Capacity Left Spindle Ø 65 MM Bar Capacity Right Spindle Ø 42 MM AXIS TRAVELS Upper Turret Travel X1 190 / 90 MM Upper Turret Travel Y1 90 (± 45) MM Upper Turret Travel Z1 660 MM Lower Turret Travel X2 190 / 90 MM Lower Turret Travel Y2 90 (± 45) MM Lower Turret Travel Z2 660 MM Travel A (RH Spindle) 660 MM LEFT SPINDLE Chuck Size Ø (8”) 203 MM Spindle Speed (RPM) 4,500 RPM Min. Indexing Angle (C-Axis) 0.001 DEG Spindle Nose A2-6 Spindle Bore Ø 77 MM RIGHT SPINDLE Chuck Size Ø (6”) 152 MM Spindle Speed 6,000 RPM Min. Indexing Angle (C-Axis) 0.001 DEG Spindle Nose A2-5 Spindle Bore Ø 53 MM TURRETS - UPPER & LOWER Number of Tools (Upper & Lower) 12 Turning Tool Shank 25 MM Boring Bar Shank Diameter 32 MM Milling Shank Diameter 16 MM Driven Tool Speed 6,000 RPM Number of Driven Tools (Upper & Lower) 12 FEEDRATES Upper Turret Rapids X1 / Y1 / Z1 20 / 12 / 40 M / MIN Lower Turret Rapids X2 / Y2 / Z2 20 / 12 / 40 M / MIN Rapid Traverse Speed - A (Right Spindle) 40 M / MIN MOTORS Spindle Motor - LH 15.0 / 11.0 KW Spindle Motor - RH 11.0 / 7.5 KW Gjdpfxsxrpnrs Ah Sobw Turret Driven Tool Spindle Motor 5.5 / 3.7 KW Axis Feed Motors - X1 / Y1 / Z1 2.5 / 2.5 / 3.0 KW Axis Feed Motors - X2 / Y2 / Z2 2.5 / 1.2 / 3.0 KW Axis Feed Motor - (A) 2.5 KW SUPPLY 35 KVA MACHINE L 4,254 MM W 2,460 MM H 2,230 MM 8,300 KGS

Condition: used, Year of construction: 1976, turning diameter over bed 0300 mm turning diameter over slide rest 180 mm turning length 750 mm turning speed range 44 - 1300 U/min spindle bore 41,0 mm quill stroke 105 mm morse taper 3 MK bed width 245 mm Gbedpfxoxu Nrce Ah Sew total power requirement 2,2 kW weight of the machine ca. 1250 t dimensions of the machine ca. 2000 x 1200 x 1500 m

Condition: used, Year of construction: 2023, controller manufacturer: Siemens, controller model: 828D - ShopTurn, _____ Description: Gsdpfxjxv Nlle Ah Sjbw Year of manuf. : 2023 Control : Siemens 828D - ShopTurn Turning diam. : 395 mm Turning length : 450 mm Mainspindle: Technology:Belt-driven spindle Speed:4.500 rpm Power (max.):20 kW Torque (max.):169 Nm Bar capacity:67 mm Workpiececlamping:3-Jaw chuck, Samchully MH-208 BVI Subspindle: Technology:Motorspindle Speed:6.000 rpm Power (max.):7,8 kW Torque (max.):45 Nm Workpiececlamping:3-Jaw chuck, Samchully HS-06VI Movement in B:580 mm Rapid travers in B:24 m/min Toolcarrier I (X/Y/Z): Technology:Turret with 12 stations Taper:BMT55 Tooldive:5.000 rpm, 9,3 kW, 44 Nm Movement in X/Y/Z:235/105/580 mm Rapid travers in X/Y/Z:24/10/30 m/min Equipment/Accessory: Chipmanagement:Chip conveyor Coolingmanagement:Internal coolant pump with Oilskimmer and Highpressure, 10bar Toolmeasurement:Automatic Measuringarm Rawmaterialfeed I:Interface Barloader prepared Rawmaterialfeed II:Automatic Working Door and Interface Robot prepared Finsihedpartremoval:Part catcher with collecting box Setup operations:Electronic Handwheel Further Equipment:Trafo

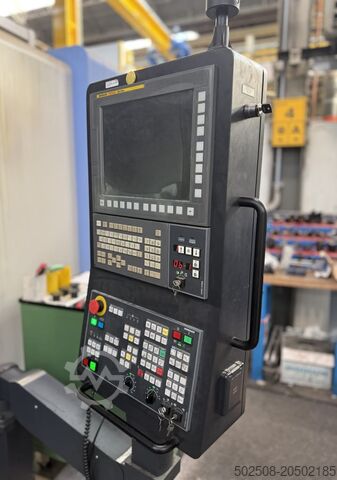

Condition: excellent (used), Year of construction: 2018, Doosan PUMA VTR 1620M CNC Vertical Turning Centre With Doosan FANUC i-Series Control Gbsdpjxvzzlofx Ah Ssw Maximum Swing Ø2,100mm. Maximum Turning Ø2,000mm. Recommended Turning Ø1,600mm. Maximum Turning Length 1,800mm. Maximum Table Load 10,000kg. Axis Travel 'X'=-800 To 1,000mm, 'Z'=1,200mm, 'W'=840mm (3 x 240mm Steps), 'C'=0.001° (Minimum Indexing Angle). Rapid Traverse 'X'=12m/min, 'Z'=10m/min. Ram Dimension 260 × 260mm. Spindle Speed 300 rpm. Spindle Motor Power 45/37kW. Spindle Torque 20,557Nm. Maximum Milling Tool Speed 3,000rpm. Ram Milling Tool Power 15kW (20 hp). Tool Turret Capacity 15 Tools. Maximum Turning Tool Length 500mm, Maximum Milling Tool Length 350mm, Turning Tool Shank 32 x 32mm, Boring Bar Sleeve Ø100mm. S/No. MT0055-000025 (2018/10) With Dual Chip Conveyors, Profluid High Pressure 0-70bar Coolant Filtration System, Losma Icarus Mist Extraction Unit, Kwangrim Oil Cooler, Hand Wheel, Signal Tower, Maintenance Access Ladder With Platform, Staging & Manuals. Machine Dimensions L6,500 × W4,240 × H6,303mm. Machine Weight 40,000kg. Note: No Tooling Included. Please note: Machine must be removed by Jan 2026.

Condition: used, Year of construction: 2008, functionality: fully functional, Turning / milling center with counter spindle with 10 CNC axes (X1, X2, Z1, Z2, Y1, Y2, B1, B2, C1, C2) Control: FANUC 31:iA Main Spindle Power: 15/11 kW bar material dia.: 51 mm spindle revolution: 5.000 min-1 Counter Spindle Power: 11/7,5 kW bar material dia.: 51 mm spindle revolution: 5.000 min-1 Turning and milling spindle Power: 7,5/3,7 kW Turning and milling spindle speed: 12.000 min-1 max. rotation length turret bottom: 1.005 mm Slide cross X1 / X2 / Z1 / Z2 / B2: 455 / 222,5 /1.090 / 1.005 / 1.008 mm Slide cross Y1 / Y2: +/- 70 / +20, -50 mm Swivel range B1 axis: +/- 95 ° Gedoxvcy Nspfx Ah Sebw Linear rack magazine incl. support robot CNC support steady rest Coolant cyclone filter system incl. 2 pcs. coolant pumping spindle oil cooler

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, machine/vehicle number: TJGP2065, TAKISAWA TM-4000Y2 FANUC 31i B2 - TOTALLY AS NEW BUILT 2023 CNC MULTITASKING LATHE WITH UPPER & LOWER Y-AXES 10 INCH + 8 INCH STANDARD CHUCK SIZE. WITH:- Y-AXIS TRAVEL -50 +70 MM - UPPER TURRET (Y1 AXIS) Y-AXIS TRAVEL -50 +30 MM - LOWER TURRET (Y2 AXIS) CHIP CONVEYOR - RIGHT SIDE DISCHARGE HINGE TYPE (MORETECH JAPAN) AIR BLOW SYSTEM - RH SPINDLE ABNORMAL LOAD DETECTION FUNCTION WORK PHASE POSITIONING FUNCTION (C-AXIS TORQUE SKIP FUNCTION) COOLANT DELIVERY PIPE ABOVE THE SPINDLE - LH & RH SPINDLE COOLANT PUMP - 400W - 3 OFF OIL SKIMMER (OIL / WATER SEPARATOR) OIL SEPERATOR BOX HYDRAULIC PRESSURE SWITCH LED LIGHTING AUTO LUBRICATION SYSTEM AND COLLECTOR MACHINE MANUALS & OPERATOR HANDBOOKS TURRET MOUNTED MACHINE LEVELLING PLATE AUTO POWER OFF TRANSFORMER - 415V / 3PH / 50HZ STANDARD TOOLING PACKAGE TURRET COVER (6 EA) X 2 SERVO TURRET (LOWER) Y2 AXIS - 12 STATION WITH DRIVEN TOOLS SERVO TURRET (UPPER) Y1 AXIS - 12 STATION WITH DRIVEN TOOLS 8" 3-JAW THRU-BORE HYDRAULIC CHUCK ~ KITAGAWA BR-08 RH SPINDLE 10" 3-JAW THRU BORE HYDRAULIC CHUCK (KITAGAWA BR-10) - LH SPINDLE DIRECT DRAWING DIMENSION INPUT HELICAL INTERPOLATION FUNCTION RAKU-RAKU MONITORING SYSTEM BAR HI PRESS COOLANT PUMP (NIHON) 2 OFF CALL LAMP (3 COLOUR) BAR FEEDER INTERFACE FOR MULTI BAR MAGAZINE UNLOADER WITH PARTS DISCHARGE CONVEYOR QUICK TOOL SETTING DEVICE - MANUAL TYPE BOTH TURRETS AI CONTOUR CONTROL II CHIP CONVEYOR UPGRADE (MORETECH JAPAN) AXIAL DRIVEN TH, ER32 OUTPUT, 6000 RPM, 1:1 RATIO, EXT COOLANT - 4 OFF RADIAL DRIVEN TH, ER32 OUTPUT, 6000 RPM, 1:1 RATIO, EXT COOLANT - 4 OFF MACHINE FEATURES TWIN SPINDLE, TWIN TURRET Y-AXIS CNC TURNING CENTRE. 2 OFF 12 STATION HIGH ACCURACY SERVO TURRETS LEFT HAND SPINDLE – 4,200 RPM RIGHT HAND SPINDLE - 5,000 RPM UPPER & LOWER TURRETS - 6,000 RPM LIVE TOOLING SPEED UPPER TURRET Y1-AXIS (- 50 + 70 MM) LOWER TURRET Y2-AXIS (- 50 + 30 MM) 10” + 8” STANDARD CHUCK SIZE MACHINE CAPACITIES Standard Turning Diameter Ø 215 MM Maximum Turning Diameter Ø 215 MM Maximum Turning Length 800 MM Bar Capacity Left Spindle Ø 82 MM Bar Capacity Right Spindle Ø 65 MM AXIS TRAVELS Upper Turret Travel X1 230 / 120 MM Upper Turret Travel Y1 120 (- 50 + 70) MM Upper Turret Travel Z1 800 MM Lower Turret Travel X2 210 / 80 MM Lower Turret Travel Y2 80 (- 50 + 30) MM Lower Turret Travel Z2 800 MM Travel A (RH Spindle) 900 MM LEFT SPINDLE Chuck Size Ø (10”) 254 MM Spindle Speed (RPM) 4,200 RPM Min. Indexing Angle (C-Axis) 0.001 DEG Spindle Nose A2-8 Spindle Bore Ø 94 MM RIGHT SPINDLE Chuck Size Ø (8”) 203 MM Spindle Speed 5,000 RPM Min. Indexing Angle (C-Axis) 0.001 DEG Spindle Nose A2-6 Spindle Bore Ø 77 MM Inner Bearing Dia.120 TURRETS Number of Tools (Upper/Lower) 12 Turning Tool Shank 25 MM Boring Bar Shank Dia. 40 MM Milling Shank Diameter 20 MM Driven Tool Speed 6,000 RPM Number of Driven Tools (Upper & Lower) 12 FEEDRATES Upper Turret Rapids- X1 / Y1 / Z1 20 / 12 / 30 M / MIN Lower Turret Rapids - X2 / Y2 / Z2 20 / 12 / 30 M / MIN Rapids on A (Right Spindle) 30 M / MIN MOTORS Spindle Motor - LH 18.5 / 15.0 KW Spindle Motor - RH 15.0 / 11.0 KW Turret Driven Tool Motor 7.5 / 3.7 KW Axis Feed Motors - X1 / Y1 / Z1 2.5 / 2.5 / 2.5 KW Axis Feed Motors - X2 / Y2 / Z2 2.5 / 1.2 / 2.5 KW SUPPLY 50 KVA MACHINE L 4,741 MM W 2,748 MM H 2,444 MM 9,370 KG Godpsxrnwlofx Ah Sebw
