Used precision turning lathes for sale (38)

Condition: reconditioned (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 341883, TECHNICAL SPECIFICATIONS Capacities: Maximum turning diameter 270 mm Maximum diameter above the cross slide 160 mm Center height above the cross slide 83 mm Maximum diameter above the machine bed 430 mm Turning length (depending on equipment) 630 mm Headstock: Standardized spindle nose, for the use of various chucks and mandrels with adapter accessories. Accessories for SCHAUBLIN chucks B45/F66 Maximum bar capacity, dia. 36 mm/60 mm Automatic chuck, standard dia. 210 mm Direct drive by AC motor, power at 100% / 50% duty cycle 15/18.5 kW Maximum torque at 100% / 50% duty cycle 135/165 Nm Maximum spindle speed 4000 min-1 Spindle positioning, increment 0.1° C-axis: Programmable increment 0.001° Spindle lock 80 Nm Pneumatic clamping cylinder 3400 daN Cross slide: Transverse travel, X-axis 230 mm Resolution along the radius 0.0005 mm Drive by AC motor, rated torque 3 Nm Ball screw, X-axis pitch 32 x 5 mm Dkodpfx Aezb U Epopdjn Longitudinal travel, Z-axis 720 mm Resolution 0.001 mm Drive by AC motor, rated torque 6 Nm Ball screw, pitch 32 x 10 mm Feeds: Working feeds, X/Z axes, stepless 0-5000 mm/min Rapid traverse rates, X/Z axes 8/10 m/min Feed force, X/Z axes 420/670 daN Turret system: Number of tool stations 12 Number of rotating tool stations 6 Drive by AC motor, intermittent duty power 3.7 kW Maximum intermittent torque 36 Nm Maximum drive speed 5000 min-1 Standardized tool holder 0VDI 30 Maximum cross-section of cutting tools 20 x 20 mm Integrated coolant system Indexing in both directions of rotation Coolant system: Tank capacity 120 liters Pump flow rate 10 l/min Pressure 5 bars Inventory 2230043 including: 1 Fanuc 18i control unit 1 A2-6 headstock 1 VDI 30 turret with 12 positions for 6 rotating tools 1 pneumatically operated steady rest 180-65.200 1 SCHUNK Rota-s 200-52 A2-6’’ 1x3 jaw chuck 1 Brucker CM5 rotating center 1 ESX-25 radial drilling and milling head, max speed 5000 min-1, without collet EX ref 4100.00552 1 ESX-25 axial drilling and milling head, max speed 5000 min-1, without collet EX ref 4100.00550 1 KENNAMETAL ESX-25 dito, without collet EX 1 EWS ESX-25 dito, without collet EX 4 radial tool holders, short, left-hand, Form B2 ref 4100.0100 1 ESX-25 tool holder, Form E3 with EX25 collet and Ø 5 mm collet 1 dito without EX25 collet 3 threading collets Ø 4.5 – 6 and 8 mm 1 tool holder for indexable insert drills, bore Ø 40 mm, Form E1 ref 4100.00124 1 dito bore Ø 32 mm ref 4100.00107 1 dito bore Ø 20 mm ref 4100.00105 1 boring bar tool holder, bore Ø 8 mm, Form E2 ref 4100.00108 1 dito Ø 10 ref 4100.0109 1 dito Ø 12 ref 4100.0110 2 dito Ø 16 ref 4100.0111 1 dito Ø 20 ref 4100.0112 1 dito Ø 25 ref 4100.0113 1 dito Ø 32 ref 4100.0115 1 dito Ø 32 GARANT, long 5 steel protection plugs, Form Z2 ref 4100.00130 1 axial tool holder, left-hand, force C4 ref 4100.00103 1 CM 5 pneumatically operated steady rest ref 180-65.200 1 separate support for microscope ref 180-60.005 1 coolant system OPTION 1 3-jaw hinged center for Ø 30 – 120 mm ref 180-70.200 CHF 2'500.-- + VAT Unless otherwise stated, the technical data is provided without guarantee.

Condition: excellent (used), The used SCHAUBLIN 120 VM precision parallel lathe is a medium/small sized Swiss manual lathe, 120mm center height, 600mm center distance, 25mm spindle hole. Complete machine with feeds and various equipment, already complete with electrical panel and safety devices; equipment and conditions as per photo. Dkedpfx Apewqxcfsdjn

Condition: excellent (used), The used SCHAUBLIN 102N bench lathe is a small, high-precision Swiss manual lathe with a center height of 102mm, a center distance of 400mm, and a spindle bore of 20mm. Dedpfx Apewqxcxjdokn One machine is available (with a long bed and gear head); it is already equipped with an electrical panel and has been repaired to meet current standards. Equipment and condition are as shown in the photos.

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, LOW USAGE - GE FANUC 20-T Dkodpfx Aey U Ntpjpdjn

Condition: excellent (used), Year of construction: 1978, functionality: fully functional, machine/vehicle number: BL278700, center height: 150 mm, turning diameter over cross slide: 177 mm, spindle bore: 40 mm, turning diameter: 340 mm, spindle nose: Camlock D 1-4, type of input current: three-phase, total length: 1,730 mm, total height: 1,300 mm, total width: 970 mm, spindle speed (max.): 3,000 rpm, spindle speed (min.): 55 rpm, empty load weight: 1,250 kg, overall weight: 1,250 kg, For sale is a Schaublin 150 precision lathe from Switzerland. It is considered one of the best conventional lathes ever built. The machine has been overhauled. The spindle has been fitted with new bearings. The bearing set was ordered directly from Schaublin. The slides have been scraped. Turning tests with 30mm round steel resulted in a cylindricity of 0.002mm over 200mm. A large amount of accessories is included with the machine: - Reishauer 3-jaw chuck, 2x - Original Multifix B Mivesa tool holder - Collet chuck with lever clamp - Schaublin B32 collet set, 2 to 28mm, complete in 0.5mm increments, with MK5/B32 reducing sleeve and draw tube. - Steady rests - Machine documentation with catalog - Complete standard set of change gears, plus special gears - Conventional tool holder from Schaublin - Fixed and live center - Albrecht drill chuck Dkjdpfey Uqx Hox Apdon - Coolant system - Digital readout The machine has not been used extensively in recent years and was only used sporadically. Extremely robust construction, suitable for hard turning. Center height: 150mm Distance between centers: 630mm Spindle bore: Ø40mm Spindle speed, continuously variable: 55-3,000 rpm Feed rate: 0.05-0.35 mm/rev Spindle taper: MK5 Tailstock taper: MK3 Swinging diameter over cross slide: Ø177mm Swinging diameter over bed: Ø340mm Motor: 4.5kW Dimensions: 1,730x970x1,300mm Weight: 1250kg The machine can be inspected and tested under power by arrangement in 5023 Salzburg.

Condition: like new (used), Year of construction: 1992, Lathe WEILER Precision center lathe in ergonomic design The Weiler Ergodor is the first German ergonomically designed lathe. It creates a more humane workplace and prevents health problems. The key feature is that the employee can operate this lathe while standing or sitting. Technical data Center width 470 mm Turning length 430 mm Center height 145 mm Rotation Ø over cross slide 160 mm Rotation Ø over bed 300 mm Spindle head, short taper flange Bayonet mounting DIN 55022 size 5 or Camlock clamping D 1-ASA-4 Spindle bore 36 mm DIN 55022 size 5 Spindle inner taper Spindle speeds Speeds 30 - 3550 rpm S Speeds 15 - 3550 rpm Brake motor 3 kW Brake motor 1.5/3 kW Face slide travel 150 mm Travel of the top slide 100 mm Feed rates and thread pitches on the gearbox switchable steps 30 Section 2 1.5/3 kW 38 Gear ratio in headstock 3 20 Long feeds 150 mm via change gears 100 mm via toothed belt Face feeds = 1/2 Longitudinal feed values Metric pitches 0.2 - 12 mm Module pitches 0.1 - 4 Dimensions 1450 x 640 x 1500 mm Dedpfxsvgqu He Apdokn Dimensions 1450 x 640 x 1500 mm Net weight 1000 kg Acceptance according to toolmaker's accuracy DIN 8605 20 Built according to the rules of occupational safety, official test no. A. EM 11 1545/80. Encombrement 1450 x 640 x 1500 mm

Condition: used, centre height 102 mm centre distance 450 mm spindle bore 25 mm Dkjdpfx Aowbi Hpjpdjn spindle speed: 220 - 2600 Accessories were not checked for completeness Cabinets are not included in the scope of delivery

Condition: good (used), functionality: fully functional, Type PM1-F-Z, data: Center height: 110 mm Center distance: 160 mm Spindle bore: 23 mm Dksdpfjy Smvpox Apdon 3 right-hand speeds and 3 left-hand speeds approx. 670 / 1140 / 2840 rpm

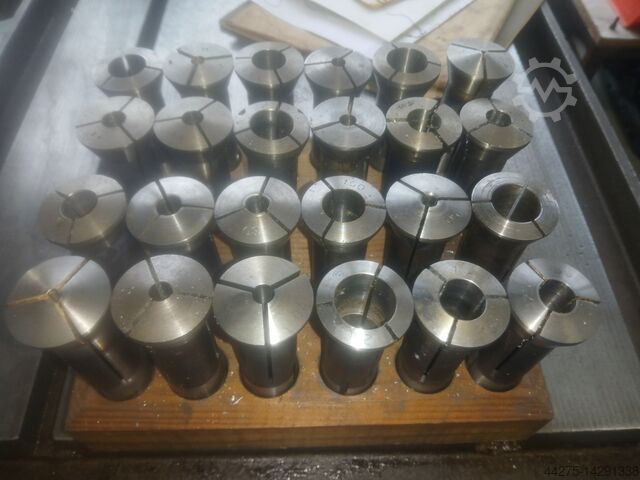

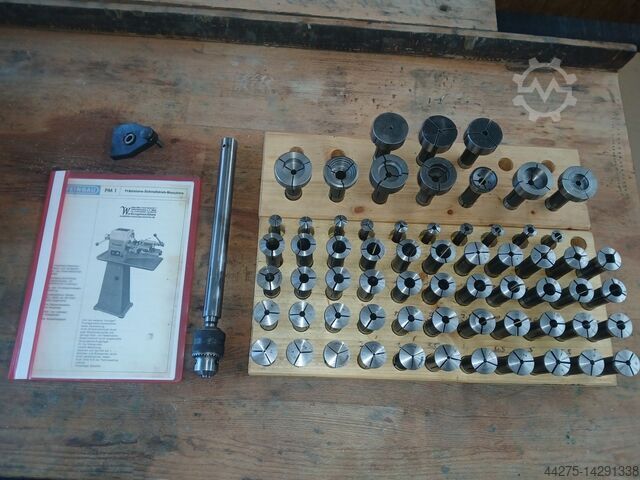

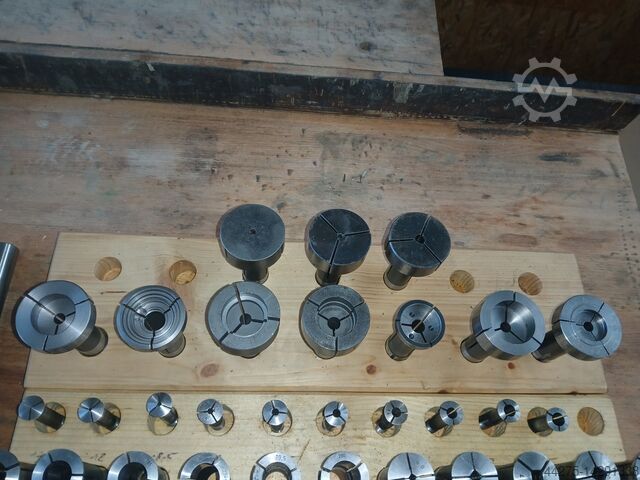

Condition: good (used), Year of construction: 1982, functionality: fully functional, Precision high-speed lathe make FEINBAU Machine No. 4891 Type PM1-FZB Year of manufacture 1982 Technical data : . Dedjy N Td Uspfx Apdjkn Maximum turning length 90 mm Swing diameter over bed 220 mm Swing diameter over support 110 mm Center distance 160 mm Bore 23 mm Drive motor 0.65 / 1 / 1.3 kW Space requirement , length x width 1.6 x 0.8 x 1.2 m Scope of delivery : Collet chuck device for collets : K23 DIN 6341 Collets Hand lever cross support with adjustable stops Hand lever boring vise, with 2 x MK1 holders and stops . .. Ongoing purchase of used German machines without NC or CNC control .

Condition: good (used), functionality: fully functional, pneumatic collet clamping device with collets Dkedpoy N N N Tefx Apdon

Condition: excellent (used), Year of construction: 2018, Maximum workpiece diameter 285mm, maximum workpiece length 280mm, Bar capacity 38mm, Djdswb A Hcspfx Apdjkn X axis stroke 480mm, Z axis stroke 285mm, spindle speed 6,000 rpm, power 5.5Kw, swarf conveyor.

Condition: excellent (used), For sale is a set of steady rests for a Schaublin 150 lathe. Very good condition. Includes a set of 3 roller jaws. Price is for the complete set. Shipping available or collection in 5023 Salzburg. Djdpfx Apoy Rdaiodokn

Condition: excellent (used), Year of construction: 1987, Schaublin 125 C precision lathe Year: 1987 Center height 125 mm Center width 500 mm Speed 45 - 3000 rpm Feed rate 4 - 260 mm/min Spindle nose Camlock D1-3" Tailstock cone MK 2 Turning diameter over bed 250 mm Dkjdpfxjy Avyxo Apden Turning diameter over face slide 120 mm Top slide travel 100 mm Cross slide travel 180 mm Dimension (W x D x H) 1500 x 850 x 1300 mm Weight approx. 950 kg Accessories/options: tool holders Röhm chuck 125mm documentations

Condition: good (used), Schaublin 102 N, machine number BL 329218, year of manufacture approx. 1998, center height 102 mm, center distance 375 mm, max. turning diameter over bed 200 mm, max. turning diameter over cross slide 120 mm, spindle speed up to 2,800 rpm, tailstock, accessories, Dedey Hip Ijpfx Apdokn

Condition: good (used), Schaublin 102 N - VM, Machine number BL 330699, Year of manufacture approx. 1993, Machine with leadscrew, Centre height 102 mm, Leadscrew: diameter 40 mm, hardened and thread ground. Dodpfx Apjy Hin Rsdekn Leadscrew pitch: 4 mm. Feeds: 8 longitudinal feeds from 0.02 to 0.3 mm/rev. Threading range: Metric: 20 pitches from 0.25 to 4 mm. Imperial (inch): 25 pitches from 80 to 6 tpi. Centre distance 450 mm, max. turning diameter over bed 200 mm, max. turning diameter over cross slide 120 mm, Spindle speed up to 2,800 rpm, Tailstock, Accessories,

Condition: good (used), functionality: fully functional, Technical data: Centre height 110 mm Centre width 160 mm Spindle bore 23 mm Motor power 1.7 kW Speed can be set via potentiometer from approx. 100 - 2,300 rpm 3 pre-selected speeds or 3 switching levels . Dkjdpfjy Egmhox Apdjn Scope of delivery, machine with: Operating modes: Manual + automatic Pneumatic clamping device Tilt tailstock with 2 sleeves for K 12 collets, with control switch for switching Hand lever cross support with 4 stops, consisting of cross and longitudinal support .

Condition: used, Manual lever lathe SCHAUBLIN Type 102 Precision mechanic lathe Machine no. 208322 Year of manufacture: approx. 1970 Total bed length: 650 mm Center height over bed: 102 mm Center height over carriage: 53 mm Medium spindle speed: approx. 2,800 rpm (3 speed stages) Drive motor: 0.37 kW, 2800 rpm Power supply: 380 Volt, 50 Hz - Manual lever parting and grooving slide with precisely adjustable stops - Tool holder with precise height adjustment - Collet chuck device (only one collet included) - Speed change by shifting the drive belt Space requirement with stand: L x W x H 1150 x 600 x 1200 mm Djdpfsw Iq Umox Apdokn Weight with stand: 130 kg Good condition

Condition: excellent (used), Year of construction: 1980, 1 x Second-operation Lathe Precision Construction PM 1-FZ Year of Manufacture: approx. 1980 Spindle newly mounted. Equipment: - Hand-lever compound slide rest with Multifix A quick-change system - Electric tailstock for drilling and thread cutting - Collet clamping with draw collets - Coolant system Technical Data: - Spindle bore: 23 mm - Spindle speeds: 700/1400/2800 (left/right) Dedpfxeqyfpmj Apdokn - Center height: 110 mm - Center distance: 160 mm - Max. swing over bed: 220 mm Accessories: 20 x draw collets 359 E K 23 (1 - 20 mm, increasing by 1 mm) 1 x draw collet in tailstock 319 E K 12 1 x Multifix A tool post with 1 cassette Operating manual (Copy) Additional accessories, such as collets with intermediate sizes, available in stock. Machine can be inspected under power.

Condition: new, schinfa Machinerevisie has been the specialist in revision for over 27 years. We do all this in-house. We can grind up to 2700 mm. We bring the machines far back within the DIN standard. Dkodpfxsfhnr Ie Apdjn We can overhaul a machine from you or deliver a machine from us.

Condition: good (used), functionality: fully functional, Center height 110 mm Center width 160 mm Spindle bore 23 mm 3 speeds for clockwise rotation Dksdpoywtd Dsfx Apdjn and 3 speeds for anti-clockwise rotation

Condition: used, Year of construction: 2014, INDEX C200 CNC Lathe 3 Turrets 2 spindles Fanuc Control: 31i-Model B Axial Motorized Switches: 6 pcs Radial Motorized Switches: 13 pcs Tool Holders: 11 pcs Dkjdjxxm Hfspfx Apdon Boring Bar Holders: 21 pcs Pin: 1 pcs Loader Bushings + Sleeves: Ø51/Ø46/Ø41 New MBL loader bushings: 2 sets 2 optical scales overhauled by HEIDENHAIN 1 Balluff Socket Gantry Arms Box with various sensors and proximity switches and cables Motorized Belts: 6 pcs Set of anti-vibration bushings for MBL loaders Start-up time: On time: 37946 Hydraulic hours: 37,500 Production time: 26,500 With MBL Bar Feed

Condition: excellent (used), Year of construction: 2005, Schaublin 102N-VM-CF high precision Swiss lathe Year: 2005 max. admitted diameter over the bed 200 mm max. admitted diameter over the slides 120 mm Height of centers 102 mm Distance between centers 450 mm Bed length 1000 mm Bed height 168 mm Power 4.2 KW Spindle speed 100 - 3000 RPM Spindle W25 Transverse stroke, X axis 100 mm Resolution, X axis (radius) 0,01 mm Longitudinal stroke, Z axis 90 mm Resolution, X axis (radius) 0,01 mm Lead screw - 8 longitudinal feeds - Larger feeds possible when using the thread control for turning Max. cross section of tool shank (Multifix system) 10x10 mm Bar holder (MULTIFIX system) diameter 20 mm Height and side-adjustable tailstock: Internal taper of the sleeve Mk2 Spindle OD 30 mm Spindle stroke 80 mm Coolant tank capacity 23 L Dodpfxjw N Rh Aj Apdjkn Electrical power supply voltage 400 V Overall dimensions: length x depth x height: 1500 x 510 x 1550 mm Accessories / options: - ACU-RITE digital readout unit, 3 axis X-Z-Z1 X resolution 0.001[mm] Z resolution 0.005[mm] Z1 resolution 0.005[mm] - Coolant system - Rear sheetmetal guard - Double Start/Stop pedal and spindle rotation direction inversion - Schaublin W25 collet set - Cast iron chuck W25 Ø110[mm] with jaws - Quick-change toolholder turret MULTIFIX-A with holders - Driving system for auxiliary equipment with BELT adjustable and swivelling belt-tensioning attachment drive device complete with motor belt Ø6x2’500[mm] - Tailstock - etc... Under power in our warehouse.

Condition: excellent (used), functionality: fully functional, High-Precision Leadscrew Lathe Schaublin 102N-VM Technical Data: >> Machine No. 283152 >> Centre height: 102 mm >> Centre distance: 450 mm >> Spindle bore: 25 mm >> Longitudinal feeds: 8 steps from 0.02 to 0.3 mm/rev >> Metric threads: 20 pitches from 0.25 to 4 mm >> Imperial threads: 25 pitches from 80 to 6 TPI >> Tailstock: Morse taper 2 >> Infinitely variable speeds from 270–3000 rpm >> Weight: approx. 700 kg Dksdowvq Tmepfx Apdjn Accessories: >> 3-jaw chuck, 2 sets of jaws >> Tool post with 6 tool holders >> Quick-clamping device, draw tube and 34 collets >> Coolant system >> Cutting tools, drill chuck (see images) >> Operating manual with spare parts list About the machine: For sale is a Schaublin 102VM leadscrew lathe in very good condition. The machine is, of course, fully functional. All slides operate smoothly and evenly. The 102VM runs quietly even at high speeds. The gear set for thread cutting is present, but is probably not complete. Take the opportunity to view and test the machine under power on site and see its good condition for yourself.

Condition: used, turning diameter over bed 250 mm turning diameter over slide rest . mm centre distance ca. 400 mm centre height ca. 125 mm turning speed range 80 - 3000 U/min number of speeds 18 spindle bore 24 mm tailstock quill taper MT 3 weight ca. 400 kg dimensions ca. 1200 x 650 x 1300 mm 4-jaw-chuck diameter 125 mm Dkedjwa Dz Ejpfx Apdon including Röhm four-jaw chuck, Ø 125 mm incl. drilling and turning jaws; collet chuck device incl. collets 1-20 mm with 1 mm gradient Multifix size A with 3 interchangeable holders; chuck protection with shutdown

Condition: good (used), Center height: 102mm Distance between centers: 450 mm Spindle bore: 32mm reduction gear left.- Right running 2-stage drive Vario Speed: 270-3000 U / min knee circuit Turning diameter over bed: 200 mm Spindle nose: W 20 Tailstock: MK 2 Dkjdpfocpznhjx Apdsn Dimension (LxWxH): approx 140x56x123 cm Weight: approx 550 kg Accessories available Guide available Different "Schaublin 102" models in stock!
