Used Facing lathes for sale (26)

Condition: used, faceplate diameter: 1500 mm turning diameter over support: mm turning length: mm center height: über Fundament: 1250 mm revolution per minute: 2,1 ... 96 / 12 step U/min feed min/max: 0,3 ... 2,5 / 18 step mm/min. Dpshhj spindle bore: Ø 82 mm tailstock adjustment - manual: quer: 55 mm tailstock quill stroke: 400 mm tailstock taper MT: 6 max. workpiece weight between centres: kg total power requirement: kW weight of the machine ca.: 15 t dimensions L x W x H: Spindelkasten: ca. 2,0 x 1,6 x 2,1 m dimensions L x W x H: Support: ca. 6,0 x 2,1 x 1,6 m Stand support with bed slide: -bed slide travel 4,300mm motorized -cross slide 1500mm -Cross slide 600mm -Top slide 250mm -Tool holder with clamping claw Bed guide dimensions LxW: 6000 x 1500mm 4 base plates each 6000x2050x200mm

Condition: used, Year of construction: 2018, turning diameter over slide rest 1.400 mm faceplate diameter 1.000 mm x-travel 740 mm z-travel 402 mm Control ManualPlus 620 Beiyr3Q Turning Speed - Range 1 1 - 250 U/min. Turning Speed - Range 2 1 - 710 U/min. power capacity at 60% / 100 % load 46 / 38 KW torque max. 6.000 Nm feed capacity X/Z 14 / 18 kN feed x/z-axis 1 - 8.000 mm/min max. workpiece weight -without tailstock 19.000 kg spindle taper DIN55027 Gr. 15 spindle bore 130 mm spindle diameter in front bearing 220 mm total power requirement 60,00 kW weight of the machine ca. 7,50 t dimensions of the machine ca. 4,00 x 2,50 x H2,50 m HEIDENHAIN ManualPlus 620 Hydraulic power clamping device 3-jaw chuck SMW Autobloc Ø 1000 mm 4-fold steel holder PARAT "manual"

Condition: used, Year of construction: 1952, turning diameter over bed 2500 mm turning diameter over slide rest 3000 mm turning length 5000 mm total power requirement 12 kW weight of the machine ca. 23 t dimensions of the machine ca. m Cccmyu0

Condition: used, faceplate diameter 900 mm turning diameter over slide rest 1100 mm turning length 3000 mm turning dia. over bed guideways 1200 mm control Siemens 840 D max. distance between faceplate and support 2100 mm clampable workpiece length 400 - 2100 mm max. workpiece weight with flying clamping (s=300mm) 2000 kg spindle headstock diameter of main spindle at the front bearing 210 mm main spindle bore 100 mm center point MK 6 main spindle turning range 1 - 1220 1/min drive capacity 60 kW max. torque on the faceplate max. 13000 Nm total power requirement 65 kW weight of the machine ca. 14 t dimensions of the machine ca. 7,5 x 3,5 x 3 m Reconditioned in 2018! Equipment/accessories: - Faceplate with diameter 900 mm - Quadruple head turret (electrically driven) - Edge length 400mm - Pivoting 4*90° - Permissible main cutting force 80 N - Tailstock upper part - Quill diameter 160 mm Dprdu2 - Displacement of quill (motorized) 320 mm - Manual quill displacement and clamping - Boring bar holder - Milling device (for mounting 4-fold head steel holder) - for adapters -Milling spindle diameter 100 / 80 mm - Drive power at 1500-5800 rpm 18.5 kW - Gear stages 2 - Torque max. 2100 Nm - Thermal stabilization of the headstock - Coolant system - Pump delivery rate 90 l/min - Delivery pressure 2 bar - Various torsion bar holders - with documentation

Condition: good (used), Year of construction: 1981, Functionality: fully functional, More detailed technical specifications are written in the attached document. This is Heavy Duty Vertical Turning and Boring Mill Table diameter 6000 mm Max. turning diameter 8500 mm Uj9H73Gcoh Max. distance between table top and tool holder of rail heads 3500 mm Cross rail elevating speed 300 mm/min Weight of machine 225000 kg

Condition: good (used), Functionality: fully functional, Renovated in 1992. Ufglwi8Suv

Condition: used, Year of construction: 1975, faceplate diameter: 3150 mm turning diameter over support: mm turning length: mm working area: Ø 4000 mm centre distance: 8000 mm turning diameter over bed: mm center height: 2240 mm spindle bore: 100 mm revolution per minute: 1,4 ... 71 U/min max. torque on the spindle: 6300 kpm / ca. 61.781 Nm kpm / Nm feed range: plan+längs: 0,355 ... 31,5 / 14 step / R20/3 mm/min rapid traverse speed: 2,0 m/min tailstock quill taper MT: Größe 100 tailstock travel: 400 mm Dpshkd max. workpiece weight between centres: 20.000 kg max. workpiece weight -without tailstock: 8.000 kg main drive motor: 34 kW weight of the machine ca.: 44,1 t space requirements approx. LxWxH: 8,0 x 4,7 x 2,72 m Delivery consists of the following components: Headstock with faceplate and main drive 2x support Tailstock Plate fields (3x3.0 meters in a row and 4 additional plate fields) 1x steady rest Ø approx. 350mm 1x steady rest Ø approx. 650mm Support travel (large) X=550mm and X0=220mm / Z=2600mm and Z0=400mm Support travel (small) X=170mm and Z=340mm i.D.

Condition: used, Year of construction: 1975, Various accessories for a face lathe Make: TADU Model: F 650 Year of manufacture: ca. 1975 - Complete bed slide unit feed range, stepless 0,006-8,59 mm/rev Bd3Vctz8 Price: 3.950,00 € - Main spindle ASA mounting A 1-8", spindle bore 60 mm price: 1.495,00 € - Headstock drive unit 8 - 42 and 40 - 200 rpm, 5,5 kW price: 2.280,00 € plus VAT Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 D - 44143 Dortmund - Wambel

Condition: used, Year of construction: 1953, turning length / mm turning diameter over plate // mm faceplate diameter / mm Plane disc diameter: approx. 3600mm Centre height above plate: approx. 1500mm Cjfh3M8Cc8 Turning diameter over plate: 2600mm Turning diameter in the pit: 3600mm Turning diameter over bed: 1300mm Turning length: approx. 2400mm Max. Workpiece weight: 22000kg Max. Torque on the faceplate: 5000 mkg Faceplate gear rim pitch circle diameter: 1900mm Main spindle bore: 120mm Speed range normal: 0.71-35.5 rpm increased: 1-50 rpm increased: 1.4-71 rpm Total power: 38kW Total weight: approx. 42.5 tonnes

Condition: new, Brand new, highly stable CNC head turning machine series from the KDB series. Whether you desire conventional or CNC-controlled precision, we offer you the optimally fitting solution with controls from Siemens, Fanuc, or Fagor. Choose from our extensive range of accessories, including the optionally available C-axis and much more. KDB 2000 available immediately. Further models with the following technical specifications available as CNC and conventional: TECHNICAL DATA: Faceplate diameter: 1600|1800|2000 | 3000 mm Turning diameter: 1600|1800|2000 |3000 mm Turning length: 700 mm Spindle bore: 230 mm Spindle nose: A2-15 Spindle speeds: L:10~50, M: 50~150, H: 150~400 1/min Spindle motor: 37 kW Travel - x: 900|920||1020 mm Travel - z: 1500 mm Servo motor X-axis: 1FK7101, 4.3 kW, 27 Nm Servo motor Z-axis: 1FT7105, 11.7 kW, 65 Nm Rapid traverse in X and Z directions: 5 m/min Machine weight approx.: 15 t Space requirement approx.: 4950mm (with conveyor: 6610mm) x 3100mm x 2750 mm - Conventional or with CNC control Siemens/Fanuc/Fagor - Optional with C-axis and additional extensive accessories Cjn8Hykshn - Bed longitudinal or transverse - Also available with tailstock and more. Are you interested in the brand new, highly stable CNC head turning machine series from the KDB series? Do not wait any longer and contact us today to find the optimal solution with controls from Siemens, Fanuc, or Fagor. Choose from our extensive range of accessories, including optional C-axes and much more. The KDB 2000 is available immediately, so do not hesitate! Send us your machine requirements, and we will adapt the machine to your needs. Take advantage of the favorable leasing and hire purchase conditions from our leasing partners. Just ask us about it! We are happy to organize the delivery free to your doorstep, including installation, commissioning, and turnkey handover with instruction. Do not hesitate and contact us now! Send us your machine requirements, and we will tailor the machine to your needs! Image shows KDB 2000 (turning diameter 2000mm) Take advantage of the favorable leasing and hire purchase conditions from our leasing partners: Inquire with us! We are also happy to organize the delivery free to your doorstep, including installation/commissioning and turnkey handover with instruction.

Condition: good (used), Turning diameter over cross slide: 1,600 mm, Turning diameter: 2,000 mm, Turning length: 3,700 mm, Manufacturer: ZERBST Type: DP1 S3 x 3700 Year of construction: 1992 4 chuck 1600 mm Heidenhain digital read out Steady rest 710 mm Powered tailstock Threath cutting Triple guide ways cast irion bed design For turbine rotors, electrical motor anchors, reactor vessels, cylinders, rope pullys, marine propulsion shaft, castings, shafts and cement industry Specifications Metric US Standard Turning length 3700 mm Turning diameter bed Ø 2000 mm Turning diameter slide 1600 mm Spindle bore 100 mm Spindle power 55 kW Quill stroke 210 mm Ccbr2A8 spindle speed 3.55 - 450 rpm Workpiece weight 12500 Dimensions (estimate) length 8500 mm width 3400 mm height 2060 mm weight 17400 kg Please note: The information on this page is given in good faith and to the best of our knowledge, and where possible, has been obtained from the manufacturer, but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

Condition: good (used), Functionality: fully functional, Renovated in 1998. Ufgeh2R8Sf

Condition: used, Year of construction: 1960, faceplate diameter: 1400 mm turning diameter over support: 1200 mm turning length: 2000 mm centre distance: 2000 mm turning diameter over bed: 1400 mm center height: über Bett: 710 mm spindle bore: 80 mm Bjootexlzw3 revolution per minute: 1,8 - 90 / 18 step U/min feed range: längs: 0,28-2,8 und plan: 0,18-1,8 mm/min tailstock quill taper MT: tailstock travel: mm bed guideways length: mm max. workpiece weight between centres: kg total power requirement: ca. 22 kW weight of the machine ca.: 15,0 t machine dimensions LxWxH: 6,0 x 2,0 x 2,0 m Facing Lathe / Heavy duty 3 bed lathe Design: Three-track bed with tailstock and headstock Faceplate made of gray cast iron 4-fold steel holder Tailstock with fixed center point Maximum workpiece weight with flying clamping: 2500kg largest workpiece weight between the centers: approx. 8000kg various accessories see photos Floor plates not in delivery scope, because not necessary for that type of machine. i.D.

Condition: good (used), Year of construction: 1995, Turning length: 4,000 mm, Turning diameter over cross slide: 890 mm, Turning diameter: 820 mm, Spindle motor power: 69 W, Drive power: 69 kW Milling and drilling unit: 22 kW Rotation diameter over bed: 890 mm Swing diameter over bed slide: 820 mm Turning length: 4000 Tmdkuu2Sk Heynuflex chain magazine: 36 places Year of construction: 1995 Control system: Siemen 840 c

Condition: good (used), Rotational speed (max.): 180 rpm, Power: 34 kW (46.23 HP), Overall weight: 21,000 kg, Distance between centres: 3000 mm / Swing: 1800 mm over bed 2800 mm in gap Weight workpiece: 8.000 kg max. Chuck: Ø 1800 mm Spindle speeds: 1,8 - 180 rpm Spindle bore: 220 mm 3-axis DRO: Easson ES-14 Featured with: - Engine powered tailstock - Various tools - User manual Blgu7Mjhpug Country of origin: Germany Motor power: 34 kW Machine weight: 21.000 kg

Condition: ready for operation (used), Year of construction: 1960, Used Ravensburg lathe Ctfy7Gdf Incl. digital readout

Year of construction: 1985, Condition: good (used), Make: ZERBST Type: DP 1/S2 Year: 1985 Specifications Metric US Standard DBC Turning Length F37Jukb 3000 mm Swing over bed Ø 2500 mm Swing over cross slide Ø 1500 mm Spindle bore 102 mm Dimensions (Estimate) Length 0 mm Width 0 mm Height 0 mm Weight 0 kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: good (used), Year of construction: 1968, Functionality: unexamined, Turning diameter: 1,500 mm, For sale: 1 used head lathe / facing lathe Manufacturer: Heyligenstaedt GmbH Werkzeugmaschinenfabrik type: 505ev/500 Tlw7Ye08 YEAR OF MANUFACTURE: 1968 Diameter face plate: 1.500mm incl. documentation The machine can be inspected in our warehouse in 09599 Freiberg.

Condition: used, faceplate diameter: 2000 mm turning diameter over support: 2000 mm turning length: 2340 mm center height: 1250 mm spindle bore: 98 mm max. workpiece weight between centres: 16000 kg total power requirement: 65 kW weight of the machine ca.: 36 t Bnptoequ space requirement approx.:: variable m The machine will be modernized. (electric, electric cabinet, main drive with frequency converter stepless adjustable and 4-axis digital readout system). axis travel support stand: - bed slide 1700mm (longitudinal) - intermediate slider 780mm - cross slider 640mm - upper slider 120mm equipment: - 1x steady rest dia.740mm - 1x roll attachment - 1x grinding device - 1x four times turning tool holder - 1x tailstock (can be moved electric) - 4x floor plates - turning length of 4000mm via repositioning possible! i.D.

Year of construction: 2009, Condition: used, turning diameter over slide rest 1400 mm faceplate diameter 1.000 mm x-travel 725 mm z-travel 400 mm Control ManualPlus 620 Turning Speed - Range 1 5 - 250 U/min. Turning Speed - Range 2 5 - 710 U/min. total power requirement 55 kW weight of the machine ca. 6,5 t dimensions of the machine ca. 4,8 x 2,5 x 2,1 m Hg3Jzyg 4-fold steel holder PARAT "manual" Manually operated faceplate ROEHM 4 jaws Ø 1000 mm

Condition: used, Year of construction: 2001, Functionality: fully functional, TECHNICAL DETAILS Swing diameter over bed: 1800 mm Turning diameter over bed: 1480 mm Clamping disk diameter: 1800 mm Control: Sinumerik 810D Speed: 6 - 200 rpm Sdtthmjh7L X-axis travel: 740 mm Z1-axis travel: 226 mm Z2-axis travel: 360 mm Distance multifix clamping disk: 500 mm MACHINE DETAILS Machine weight: approx. 5500 kg EQUIPMENT - Electronic handwheel - Multifix steel holder device

Condition: good (used), Facing lathe WMW Zerbst DP 4000...5000 with plate field and tailstock - face plate diameter: 4.420 mm - max. turning diameter at chuck: approx. 4.800 mm Cr3Chcaqdz - turning diameter over the whole length: 4.000 mm - turning length: 18.000 mm (or longer by additional plate fields) - 36 kW motor - speed 0,9 - 56 min-1 - max. workpiece weight between centers: 20 t - max. workpiece weight flying: 12,5 t - with 2 pcs. turning support - with roller support - with tailstock - with plate field Machine was partly overhauled in Italy in 2014 incl. completely new electrics (stepless spindle speed via FU, new control cabinets, new cables) and was not put into operation afterwards. Machine is disassembled, stored in Schleswig-Holstein and cannot be demonstrated under power, but can be inspected. We are the owner of the machine.

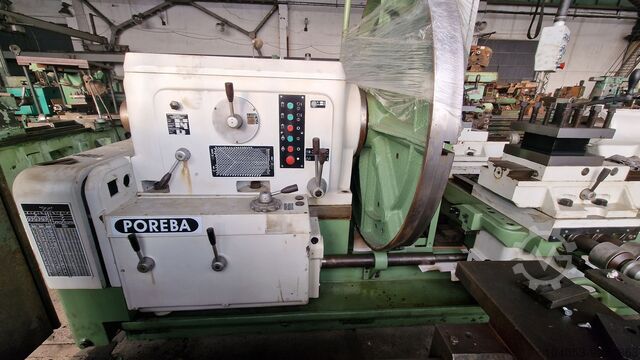

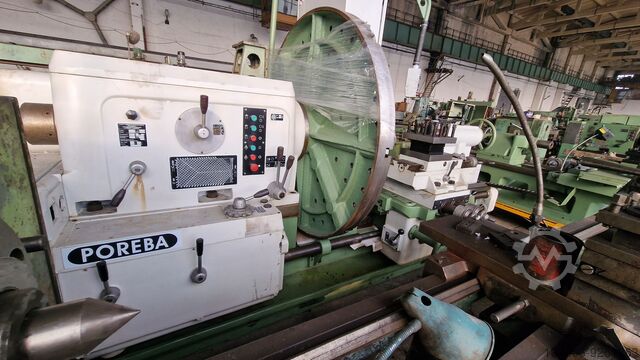

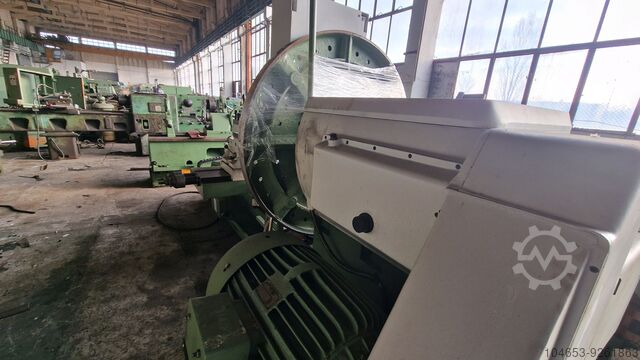

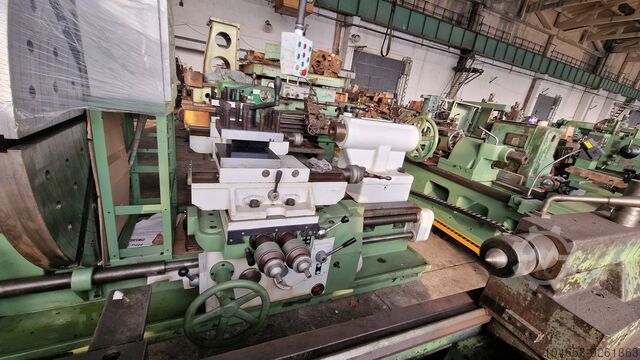

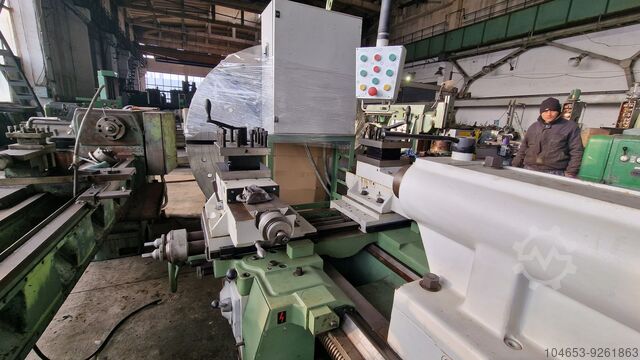

Condition: reconditioned (used), Year of construction: 2024, Functionality: fully functional, The face lathe machine POREBA TR-100C machine can be generally overhauled and modernized and will be available within 3 to 3,5 months, starting from the order. We give a full 12 months warranty for this machine (spare parts, material, electronic cabinet). Details of the overhaul and detailed specs see attached PDF-files. B9Hq3Qb8Ku

Year of construction: 1979, Condition: good (used), For sale comes: 1 piece used head lathe Manufacturer: WMW Niles Type: DP1/S2 BJ: 1979 Face plate diameter: 1.250mm Center height above foundation plate: 1.250mm Mass: 19t Connected load: 55Kw Max. Torque at the face plate: 31.500Nm Maximum workpiece mass between centers: 16.000Kg Dkvqh7 Speed range: 2,24 - 224rpm Documentation available incl. clamping plate 2.600 x 2.000mm Free location Saxony

Year of construction: 1976, Condition: used, Machine/vehicle number: 10-02541, Manufacturer: Alfing Type: E II special machine Machine No.: 10-02541 year of construction: 1976 Weight of the machine: approx. 43t General / technical data: connecting rod gauge: 400mm- 1.100mm spindle thickness: depending on tool up to Ø350mm footprint (l x w x h): approx. 6000 x 10000 x 3000mm power supply: 380V / 50Hz / 180kW Remark: ALFING special machine for fine spindle machining of connecting rod bearing seats for large engines. The machine has a clamping device which can be moved on the center bed. Machining is done on 2 sides. Station 01 D with laterally movable slide unit for adjusting the stitch size. The machine has a splash guard for wet machining. Connecting rods type 540 and type 528 were manufactured on the machine (Deutz engines up to 300 liters displacement and 4000 HP). Consisting of: - 1 machine bed - 2 slide units 630 x 800 - 1 slide machine unit 630 x 630 - 2 headstocks WS 200 x 250 x 6 and WS 220 x 250 x 8 - 2 facing devices - device for clamping BVM 540 and clamping BAM 528 Cgxv3Lgrng accessories: - 6 switch cabinets - 1 hydraulic aggregate - 1 central lubrication unit
