Presses offers
pressure:500 t
passage width:1100 mm
stroke:600 mm
weight of the machine ca.:ca. 22,8 t
Table area:1100 x 800 mm
Gut0k8r
ram surface:1100 x 800 mm
Daylight Opening:800 mm
Hydraulic:300 bar
closing speed:60-200 mm/sec
pressing speed:0 - 9,5 mm/sec
opening speed:28-200 mm/sec
Table height above ground level:900 mm
height over floor:5100 mm
workpiece weight max.:2000 kg
workpiece weight top:1000 kg
halls height:min. 6500 mm
Number of pressing cylinders:1 St.
number of driving cylinders:2 St.
:ca. 2...
5
This presss is part of a two automated production lines for automóviles pannels, each line consist of five presses, 1x1600 Ton, 2x1000 Ton, 2x500 Ton, plus robots an federes, we can del the complete Line as apackage or each Press individually, all are KOMATSU Stamping Class A.
Bl9zo3iw37
2
MAKE - NIAGRA
MODEL - SC2-75
TONNAGE - 75 TONS
Cdf0x7fvq2
4
Type: 74.30
Pxuhd
MultiBend control
Tools are quickcha
4
pressure 63 t
Clvk3ym3
serial number 10952
Discover more used machines
5
pressure 100 t
stroke 300 mm
table surface area 1070 x 260 mm
Pctcz
working width 1070 mm
pressing speed 5,0 mm/sec
feed speeds 8,0 mm/sec
return speed 10,0 mm/sec
total power requirement 5,5 kW
weight of the machine ca. 1,5 t
dimensions of the machine ca. 2,05 x 1,0 x 2,2 m
4
Clamping plate with T-slots and cross table, plate field, welding table, welding table, plate boring machine, T-slot plate, pallet changer
-T-grooved plate
-Width: 300 mm
Bivwyz89gh
-Length: 420 mm
-Height: 70 mm
-Groove width: 14 mm
-Weight: 52 kg
5
This presss is part of a two automated production lines for automóviles pannels, each line consist of five presses, 1x1600 Ton, 2x1000 Ton, 2x500 Ton, plus robots an federes, we can del the complete Line as apackage or each Press individually, all are KOMATSU Stamping Class A.
Hturdaga0
4
MAKE - RASKIN
Ym29iw7f
MODEL - 2010SA
TONNAGE - 200 TON
10
dayligth 240 mm
clamping table 335 x 405 mm
tool shank hole (depth x diameter) 70 x Ø 60 mm
press capacity 18,0 to
throat 185 mm
Do3pe00c
total power requirement man.
range L-W-H 800 x 800 x 1650 mm
Furnishing :
- heavy / robust manual hand spindle press
- separate support table
- Infinite stroke adjustment via hand wheel
- Machine base
pressure: 30 t
distance between columns: BxT: 600/450 mm
stroke: mm
daylight dimension : table/slide up: 650 mm
ram stroke: ca. 600 mm
table surface area: LxB: 500 x 700 x Ø 60 mm
surface area of ram: 650 x 800 mm
hydraulic-pressure: 170 bar
air pressure - required: 4 - 6 bar
7njvktcdr
total power requirement: 11 kW
weight of the machine ca.: ca. 2,0 t
dimension machine xH: 1,26 x 1,75 x 3,4 m
Possible application: can be used as a deburring press
further technical details:
- opening inside ...
4
pressure 110 t
throat 580 mm
stroke 100 mm
total power requirement 22 kW
weight of the machine ca. 11 t
dimensions of the machine ca. m
KOMATSU - MAYPRES
Double Walled Single Column Eccentric Press with automatic
Decoiler and Strip-Feeder. Model OBA 110
Year 1981, but partially reconditioned and modernized in 2010
Pressure force 110 to
Table clamping area 700 x 1.100 mm
Table Bore dia. 225 mm
Ram clamping area 600 x 450 mm
Mortise in ram dia. 50 x 110 mm
Mounting height max. 280 - 500...
Hydraulic press, two-column press, oil hydraulic press
-Press force ram: 65 to
-Hydraulic unit: max. 330 bar
-Clamping table: 440 x 250 mm
Dui07a
-Max. Insertion height: 295 mm
-Max. Width: 300 mm
-Max. Stroke: 220 mm
-with safety cage
-Max. Feed speed: 3 mm/sec
-Retraction speed: 6 mm/sec
-Dimensions: 1680/500/H2300 mm
-Weight: 980 kg
4
Stamping Press used in the fabricación of vehiclís, 2 fully automated lines, each consist of 5 preses, 1x1600 T, 2x1000 T, 2x500 T, with robots, can be sell as complete line or individually
Cagw7oi8
5
MAKE - AMADA PROMECAM, MADE IN FRANCE
Cde3ddycoa
MODEL - ITS2 50-20 UPSTROKING CNC PRESS BRAKE
YEAR - 1995
CONTROL - OPERATEUR 2
CAPACITY - 50 TONS
BENDING LENGTH - 2000.0 mm
THROAT DEPTH - 400.0 mm
MOTOR POWER - 6.5kW
WEIGHT - 3500 KG
PLUS
7 AXIS- Y, R1,R2,X1,X2,Z1,Z2
COLOURED GRAPHIC SCREEN
SICK OPERATOR SAFETY LIGHT GUARDS
GOOD RANGE OF TOOLING
Pressure total: 100 ton
Daylight: 1.400 mm
Table surface area : 1.300 x 1.000 mm
Slide area: 1.300 x 1.000 mm
Ejector Force: 35 kN
max. capacity of swivelling ram plate: 40 kN
Cvihtzns
Die Weight on table max.: 80 kN
max. capacity of tilting table: 50 kN
Oil volume: 200 l
Required power: 10 kW
Dimensions L x W x H: 3.95 x 2.3 x 4.5 m
Distance between the columns F - B: 1.050 mm
Weight of machine approx.: 11 ton
2
die cushion capacity: t
die cushion stroke: mm
die cushion area: mm
diameter of piston: Ø 160 mm
weight: 200 kg
dimensions: 0,6 x Ø 0,3 m
draw cushion for a WMW Erfurt Press type PYE 160
blankholder force 50Mp
ejector force 4 Mp
stroke up to 160mm
flange diameter 280mm
piston diameter 160mm
piston central drill hole M 16, fixing holes M 24, diameter 118mm
hydraulic connection 2x 1 inch
7nk3cl7pt
6

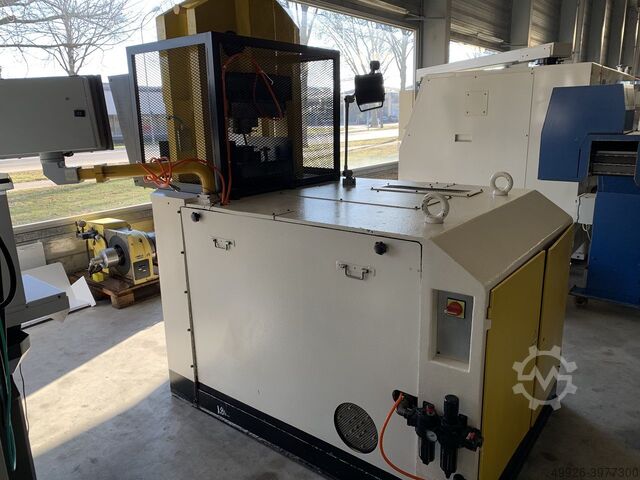

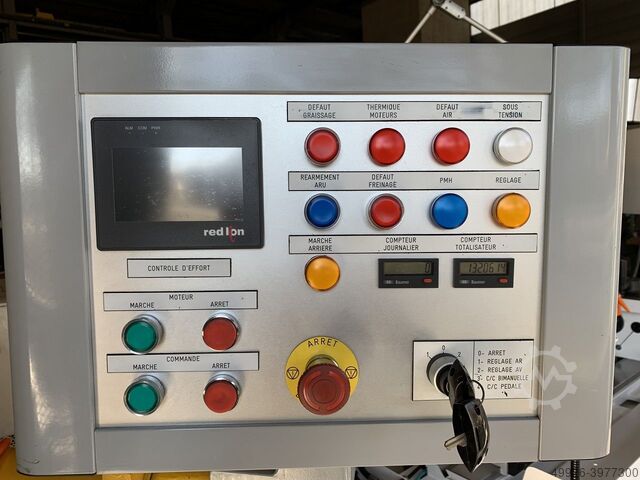

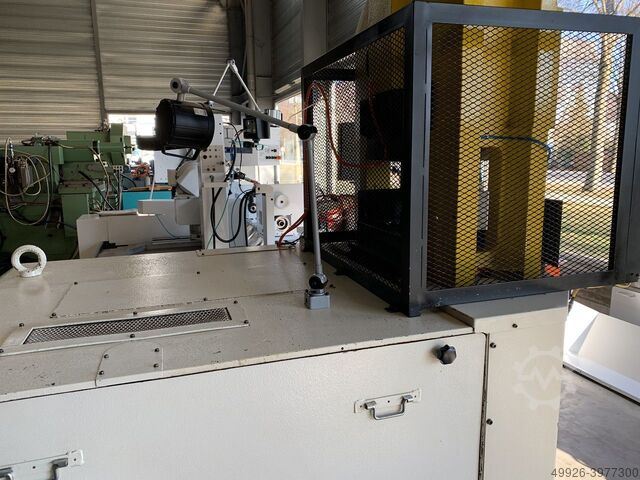

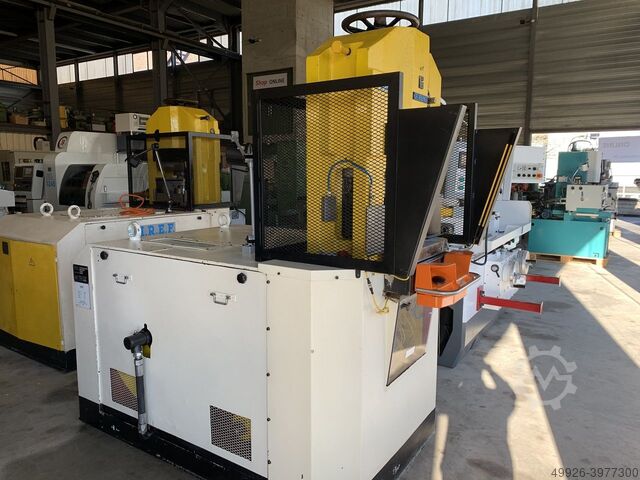

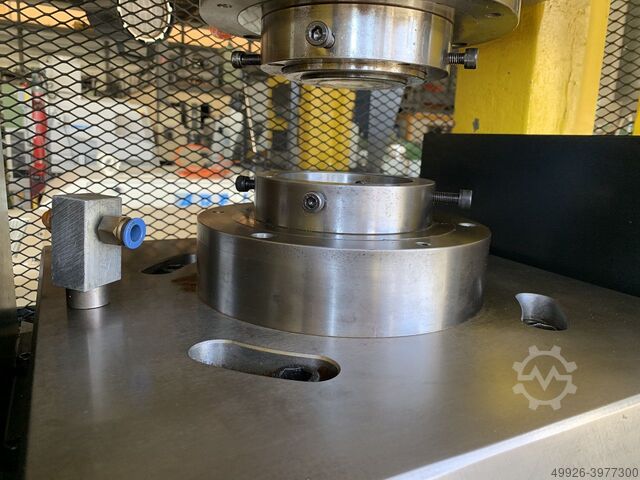

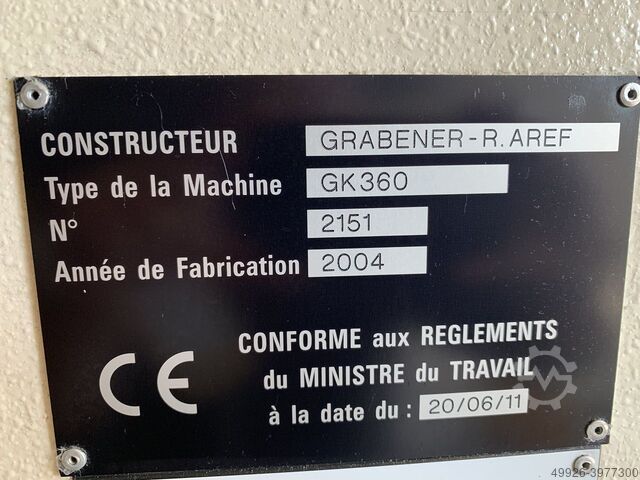

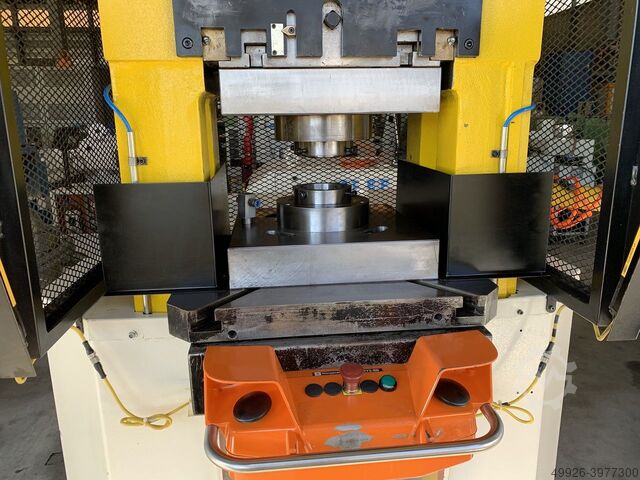

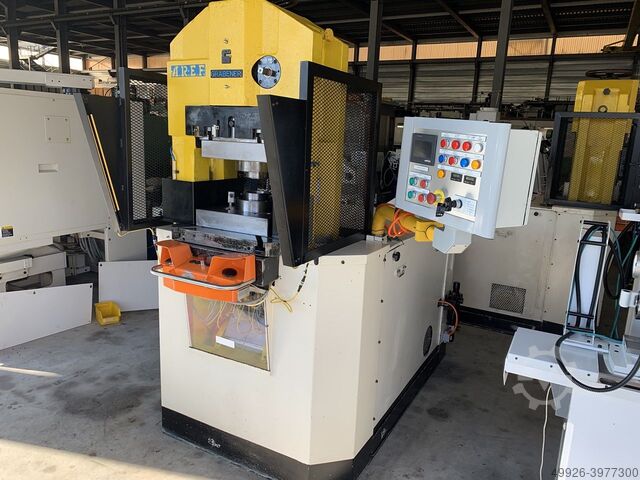

PRESS DESIGN
.. drive system: knuckle-joint
.. frame design: H-frame, monoblock
.. feedstock transport direction: left to right
SLIDE
Excr00bsc
.. total force (nominal): 250 to
.. stroke: 61 mm
.. stroke rate (max.): 60 /min
COUNTER RAM
.. nominal force: 75 to
.. stroke: 13 mm
V-RING
.. nominal force: 75 to
.. stroke: 15 mm
TOOL DIMENSIONS
.. lower table (left-right): 540 mm
.. lower table (front-back): 540 mm
.. upper table (left-right): 540 mm
.. upper table (front-back): 540 mm
.. shut...
5
Punch, hydraulic punch, punching machine, punching device, hole punching machine, row punch, punching unit, multi-head punch, punching system for form folding machine, profiling machine, profiling system, slat production, blind production
Ovxzh
-Transfer: in the current condition as seen
-The punch does not have a hydraulic unit but can be supplied at an additional cost
-Insertion tool
-2 punching stroke: mm
-both movable: 500 mm
-for small punching work
-Dimensions: 1230/2020/H1100 mm
-Weight:...
Pressure 080 t
throat 345 mm
stroke 20 - 160 mm
no. of strokes 65 /min
distance table/ram, max. stroke up, adjustment up 495 mm
table surface area 920 x 610 mm
table height over floor 800 mm
Hole in the table 280 mm
passage to the back 670 mm
ram surface 650 x 400 mm
ram adjustment 50 mm
power capacity 10,0 kW
weight 7,7 t
Dimensions (WxDxH) 1,5 x 2,2 x 3,15 m
Fn8f98x
permitted for manual put-in according to the German Safety Regulations (UVV)
with pneumatic clutch, hydraulic protection in ra...
10
dayligth 375 / 485 mm
diameter of pistons 50 x 50 mm
clamping table 400 x 450 mm
max. ram stroke 485 mm
press capacity ca. 5,0 - 10,0 to.
throat 225 mm
total power requirement man.
range L-W-H 980 x 550 x 1600 mm
Description :
- for pressing in and out of bearings, bushings, ...
- the body is made of high-quality gray cast iron
- suitable for bushing, straightening, bending, broaching, ...
- variably adjustable lever bar, depending on the required effort
Cx8xwtge
- ideal for repair shops and...
Pressure total: 280 ton
Stroke: 800 mm
Daylight: 1.600 mm
Table surface area : 2.000 x 1.200 mm
Slide area: 2.000 x 1.200 mm
Die cushion capacity in table: 65 ton
Die cushion stroke: 350 mm
Die cushion pad area: 1.705 x 920 mm
Hpogivt
Approach speed: 15 m / min
Working speed: 0,8 - 2,4 m / min
Return speed: 8,5 m / min
Required power: 2 x 37 kW
Height over floor approx.: 4.850 mm
Weight of machine approx.: 26 ton
4
Press which can be used for manufacturing seals /
Cbvxaaz3ok
13
Model: Eccentric press
Manufacturer:  Heilbronn
Type:  EP 100
Capacity: 100 ton
Ram-size: 500x350mm
Table size: 850x700mm
Height adjustmenst table: 80mm
Ehgz8xv
Stroke-adjustment: 8-119
Speed:  125  /min
Machine-dimensions: 1700x1300x2700mm
4
T-slot plate, clamping plate with T-slots, plate field, welding table, welding table, intermediate plate for hydraulic press, eccentric press, milling machine
-Dimensions: 930/700/H90 mm
Lqmbh
-Plate: massive
-Bore in the middle: Ø 100 mm
-Weight: 450 kg
5
pressure 260 t
Tsiy8bcn
distance between columns 360/270 mm
stroke 60 mm
Stroke rate 50 / min
Distance table/ram, max. stroke up, adjustment up 225 mm
Table surface area 340 x 380 mm
table height over floor 800 mm
Ram surface 230 x 220 mm
Ram adjustment 12 mm
Power capacity 4,5 kW
Dimensions (WxDxH) 2,0 x 1,55 x 2,6 m
Weight 4,5 t
Overhauled in 2012
permitted only for safe tools or fixed screen according to the German Safety Regulations (UVV)
6
pressure: 160 t
slide stroke: 500 mm
throat: 360 mm
drawing depth max.: 200 mm
table surface area: 900x600 mm
ram surface area: 450x750 mm
height over floor: 800 mm
biggest distance between table & ram: 1000 mm
speed up : 125 mm/sec
speed down: 200 mm/sec
force of ejector: 830 kN
total power requirement: 17 kW
weight of the machine ca.: 7,7 t
dimensions of machine: B:1,3xT:2,0H:3,7 m
Press has a deep drawing device with 200 mm drawing depth
- two hand control
accessories:
- on Ram installed ext...
10
pressure 250 t
distance between columns 3800 mm
stroke 1180 - 0 mm
stroke and adjustability on top 1180 mm
Guu20hz
table surface area 3500 x 1800 mm
daylight opening 1760 mm
operating pressure 250 bar
total power requirement 30 kW
weight of the machine ca. 38 t
dimensions of the machine ca. m
4
with 3 heated tables + 2 watercooled tables
Ehhbakn
max 2
Pressure total: 160 ton
Stroke: 500 mm
Daylight: 710 mm
Free frontal opening L-R: 820 mm
Free lateral opening F-B: 320 mm
Table surface area : 800 x 630 mm
Slide area: 800 x 630 mm
Table height over floor: 800 mm
Die cushion capacity in table: 63 ton
Nvopj
Die cushion stroke: 200 mm
Die cushion pad area: 630 x 450 mm
Approach speed: 400 mm / sec
Working speed: 17 - 45 mm / sec
Return speed: 230 mm / sec
Required power: 30 kW
Weight of machine approx.: 13,6 ton
Punch, hydraulic punch, punching machine, punching device, hole punching machine, row punch, punching unit, multi-head punch, punching system
-2 punching
-Punch movable: 215 - 2505 mm
-for: small punching work
Jvis8m
-Foot switch
-Dimensions: 3010/930/H1450 mm
-Weight: 570 kg
3
pressure 300 t
distance between columns 1640 mm
stroke 900 mm
Distance table/ram, stroke up 1200 mm
table surface area 1600 x 1300 mm
table height over floor 890 mm
ram surface 1600 x 1300 mm
Speed down 400 mm/s
Speed up 300 mm/s
Working speed 10 mm/s
Oil volume 1150 l
power requirement 42,5 kW
weight 25 t
dimensions (WxDxH) 2,8 x 2,5 x 5,0 m
year of manufacture 1994
overhaul 2003
permitted for manual loading according to the CE Regulations
with oil-hydraulic drive
Cagjtdc3cy
No foundation pi...
6
pressure 80 t
stroke 400 mm
total power requirement 3,0 kW
weight of the machine ca. 850 kg
dimensions of the machine ca. 1.550 x 850 x 2.350 mm
Producer: HIDROLIKSAN
YOM: neu
Type: HD 80
Thrust: 80 ton.
Stroke: 400 mm
Throat depth: 300 mm
Total power requirement: 3,0 kW
Distance between frames: 925 mm
Cylinder-Ø: 90 mm
Dimensions (LxWxH): 1.550 x 850 x 2.350 mm
Weight: 850 kg
Additional information:
solid, welded construction
Buvxuoyy
pressure cylinder lateral adjustable
operating...
pressure: 250 t
throat: 360 mm
distance table/ram: 800 / 300 mm
max. ram stroke: 500 mm
ram speed - reverse: 110 mm/sec. mm/sec.
ram speed - forward: 200 mm/sec. mm/sec.
table clamping surface:: 900x630x120 mm
passage opening in table: Ø 250 mm
surface area of ram: 450x750x90 mm
ram hole: Ø 65 mm
height over floor: 800 mm
D8ijfk9
operating pressure: 125 atü
total power requirement: ca. 22 kW
weight of the machine ca.: 8,5 t
dimension machine xH: 2,0 x 1,4 x 3,6 m
4
Hot press for manufacturing grinding wheels
Swaj3c
4
pressure 50 t
Nngtkzyf
throat 310 mm
stroke 17 - 51 mm
table surface area 650 x 500 mm
ram surface 400 x 300 mm
ram adjustment 60 mm
distance table-ram guide 290 mm
distance table/ram max. 270 mm
no. of strokes 93 Hub/min
tool hole in ram ø 40 x 75 mm
total power requirement 4 kW
weight of the machine ca. t
dimensions of machine L x W x H 1,77 x 1,1 x 2,66 m
5
Hydraulic press, single column high-speed cycle press, C-column press, oil hydraulic press
-Press force ram: 40 to
-Clamping table: 800 x 560 mm
-Insertion height: 750 mm
-Projection: 300 mm
-Max. Stroke: 350 mm
-Max. Feed speed: mm/sec
-Retraction speed: mm/sec
-Operation: two-handed
Ql8hk83se
-Dimensions: 1700/1350/H3200 mm
-Weight: approx. 5000 kg
1
pressure 315 t
distance between columns 2350 mm
distance table/ram, max. stroke up, adjustment up 1200 mm
distance between cutting impact cushioning 1600 mm
Distance table/ram, stroke up 1200 mm
stroke 800 mm
table surface area 2060 x 1260 mm
table height over floor 750 mm
Die cushion pressure in table 100 t
Die cushion stroke in table 400 mm
die cushion area 1250 x 1000 mm
side window 780 mm
ram surface 2200 x 1500 mm
Capacity of ejector in ram 63 t
speed down 500 mm/s
speed up 310 / 410 mm/s
w...
5
pressure 400 t
plate thickness 30 mm
no of strokes 55 Hub/min
-----
PRESS DESIGN
- frame design: H-frame, tie rod
SLIDE
- total force (nominal) 400 to
- stroke 225 mm
- stroke rate (max.) 55 /min
TOOL DIMENSIONS
- passline opening (free passage in side columns) 440 mm
STRIP-FEEDER
- feeder type: grip feeder
- sheet width max 430 mm
- sheet thickness max 30 mm
Tjewlnvz
- feeding step min. 0 mm
- feeding step max. 400 mm
- sheet length min 300...
6
pressure: 160 t
distance between columns: mm
stroke: mm
table surface area: 1.260 x 600 (vertical) mm
table plate diameter: 1260 x 600 x 70 (vertical) mm
ram surface area: 700 x 360 mm
throat: 300 mm
total power requirement: kW
Brl7mhbgon
weight of the machine approx.: 9000 kg
dimensions L x W x H: 3,7 x 1,5 x 2,2 m
distance base - ram: 1.000mm
mounted ram construction: L:660 x W:300 x H:370mm
rollers 1x on the right and 1x on the left with vertical adjustment 250mm. (Ø 80x300mm)
4
Capacity: 30 ton
Cbvw9eglsh
Passage between uprights: 420 mm
Capacity: 80 ton
Throat depth: 360 mm
Ram stroke: 8 - 160 mm
Slide adjustment: 80 mm
Shut height (stroke down, adjustment up): 412 mm
Height of the bolster plate: 100 mm
Table surface area : 900 x 630 mm
Slide area: 640 x 400 mm
Distance between the columns: 320 mm
Number of strokes: 52 / 78 s.p.m.
Weight of machine approx.: 7,5 ton
Standard configuration
Gfwz2bh
Press is equipped with safety stop device.2-Hand-control and foot switch.
Extended machine accessories
5
Clamping plate, measuring plate, measuring table, straightening plate, floating plate, transport plate, sliding plate
F30lc7r
-Manufacturer: Peiseler, floating plate
-Top: 520/400 / H40 mm
-Dimension box: 610/745 / H205 mm
-Weight: 71 kg
pressure 800 t
distance between columns 1050 mm
stroke 200 mm
no. of strokes 8 - 25 /min
distance table/ram, max. stroke up, adjustment up 1300 mm
Side window 550 mm
table surface area 1030 x 900 mm
Capacity of ejector in table 15 t
Stroke of ejector in table 85 mm
ram surface 1040 x 800 mm
ram adjustment 120 mm
Capacity of ejector in ram 12 t
ejector stroke in ram 80 mm
power requirement 36,0 - 112,6 kW
weight 65,0 t
Fgcacm000
Dimensions (WxDxH) 3,0 x 3,1 x 6,07 m
with hydraulic ejector in ...
4
Capacity: 30 ton
Qnr0b
Passage between uprights: 500 mm
pressure 40 t
distance between columns 930 mm
stroke 1100 mm
distance table/ram, max. stroke up, adjustment up 1035 mm
table surface area 900 x 1280 mm
table height over floor 665 mm
ram surface 900 x 1200 mm
side window 700 mm
max. tool weight 7,0 t
max. capacity of swivelling ram plate 3,5 t
Pzwhj
Speed down 0 - 50 mm/s
Speed up 0 - 34 mm/s
Working speed 0 - 10 mm/s
oil volume 140 l
power requirement 9,5 kW
weight 7,0 t
dimensions (WxDxH) 2,1 x 3,6 x 3,6 m
with swivelling ram, movable table...
