Condition: new, Year of construction: 2025, functionality: fully functional, NEWAY NL502 2 AXIS CNC LATHE WITH FANUC 0IT PLUS 3B YEAR OF MANUFACTURE - 2025 STANDARD INCLUDED FACTORY FITTED MACHINE OPTIONS  STD AIR - AIR GUN  STD CHIP - CONVEYOR SIDE HINGED WITH CHIP BOX  STD CHU - 10 INCH 3 JAW HOLLOW HYD CHUCK INC SET SOFT JAWS  STD CHU - STANDARD HYD CHUCKING CYLINDER - HOLLOW  STD CNC.OP - FANUC 0ITF 3B PLUS WITH 10.4 INCH COLOUR LCD DISPLAY & 8MB MEMORY  STD CNC.OP - MANUAL PULSE GENERATOR (MPG)  STD CS - COOLANT GUN  STD GUA - FRONT DOOR INTERLOCK  STD GUA - FULLY ENCLOSED SPLASH GUARDING SYSTEM  STD GUA - TELESCOPIC SLIDEWAY COVERS  STD HYD - STANDARD HYDRAULIC UNIT  STD LI - LED WORKING AREA LIGHTING SYSTEM  STD LI - PATROL LIGHT (3 COLOUR)  STD MISC - AIR CONDITIONING IN ELECTRICAL CABINET  STD MISC - BASIC MACHINE INSTALLATION PARTS  STD MISC - CE STANDARDS MACHINE CONFIGURATION  STD MISC - CENTRALIZED AUTOMATIC LUBRICATION SYSTEM  STD MISC - MACHINE MANUALS & OPERATOR HANDBOOKS  STD MISC - STANDARD ACCESSORIES  STD POW - TRANSFORMER (415V, 3PH, 50HZ)  STD SPGB TC - BELT DRIVE SPINDLE - 3,500 RPM - A2-6  STD SPGB TC - SPINDLE MOTOR FANUC 15.0 / 18.5 KW  STD TS - HYDRAULIC TAILSTOCK  STD TUR - 12 STATION SERVO TURRET MACHINE CONSTRUCTION & FEATURES  SOLID CAST IRON 45 DEGREE SLANT BED CONSTRUCTION  HARDENED & GROUND BOX GUIDEWAYS  12 STATION SERVO TURRET  10 INCH STANDARD CHUCK SIZE - 12 INCH & BAR CAPACITY UPGRADE OPTIONS  15.0 / 18.5 KW MAIN SPINDLE  HYDRAULIC TAILSTOCK MACHINE SPECIFICATION CAPACITY Max. Swing Diameter Over Bed Ø 600 MM Djdpfx Acoxt Nrmo Hjwd Max. Swing Diameter Over Saddle Ø 480 MM Max. Turning Diameter Ø 500 MM Max. Turning Length 570 MM Max. Bar Capacity Ø 74 MM X / Z AXIS TRAVEL X-Axis Travel 280 MM Z-Axis Travel 600 MM X / Z AXIS SERVO MOTOR TORQUE X-Axis Torque 10.5 NM Z-Axis Torque 10.5 NM SPINDLE HEADSTOCK STD Spindle Nose A2-8 Spindle Bore 86 MM Spindle Speeds 30 ~ 3,500RPM Chuck Size Ø 10” - 245 MM Spindle Power 15.0 / 18.5 KW FEEDRATES X-Axis Rapid Traverse Rate 16 M / MIN Z-Axis Rapid Traverse Rate 20 M / MIN Cutting Feed Rate 1 ~ 8,000 MM / MIN TURRET Number of Turret Stations 12 Turret Indexing Time 0.2 SEC / POS Tool Size - Turning 25 x 25 MM Tool Size - Boring Ø 40 MM TAILSTOCK Tailstock Quill Diameter Ø 100 MM Tailstock Quill Travel 100 MM Tailstock Quill Taper MT5 LIVE CENTER ACCURACY Positioning Accuracy (X / Z) 0.010 / 0.010 MM Repeatability (X / Z) 0.005 / 0.007 MM MISCELLANEOUS Power Requirement 35 KVA Power Supply 415V / 3PH / 50HZ Cutting Coolant Volume 240 L Machine Dimensions (L / W / H) 4,290 / 1,880 / 1,750 Machine Gross Weight 4,000 KGS

Condition: excellent (used), Year of construction: 2017, 533mm max. machining diameter, Dsdpfxsxugtks Ac Hswd 584mm cutting length, 3,200rpm spindle speed, 102mm bar capacity, 12 station turret, 4,000rpm milling speed, Y axis -/+ 51mm, 40Hp spindle motor, HAAS control, 254mm, 3 jaw chuck, tool setter, swarf conveyor, coolant, Tailstock, Magazine barfeed .

Year of construction: 1988, condition: ready for operation (used), Control Unit Brand FANUC Main Drive Number of axis 2 This NAKAMURA TMC-15 was manufactured in 1988. It's a horizontal turning machine featuring a hollow of 34 mm. If you are looking to get high-quality turning capabilities, consider the NAKAMURA TMC-15 machine we have for sale. Contact us for more information. Djdsxcb Rmopfx Ac Howd Application Types Turning

Condition: excellent (used), Year of construction: 2018, operating hours: 21,000 h, functionality: fully functional, machine/vehicle number: S4E184001, turning diameter over cross slide: 430 mm, turning length: 670 mm, turning diameter: 220 mm, spindle bore: 45 mm, spindle speed (max.): 6,300 rpm, overall weight: 4,300 kg, Used CNC hard turning lathe with counter spindle Manufacturer: EMCO Model: Emcoturn 45E Year of manufacture: 2018 Dwedpfew Rrvwox Ac Hed Few operating hours Control: Siemens 828D Number of tools: 12 driven units Max. speed: 0-6000 rpm

Condition: excellent (used), Year of construction: 2000, TECHNICAL DETAILS CNC control: MSG-501 Axis X mm: 215 Axis Z mm: 490 Axis Y mm: +40 / -30 Maximum turning diameter mm: C-Axis increment: 0.001° Maximum turning length mm: 510 Cutting feedrate mm/min X, Z, Y: - Swing over bed mm: Ø 300 Swing over cross slide mm: Ø Bar capacity mm: Ø 56 Max. rapid traverse X, Z m/min: 24 Main Spindle: Spindle speed rpm: 5,000 Spindle power kW: 7.5 Torque Nm: - Main spindle bore: - Main spindle nose: A2-5 Sub-Spindle: Dwsdpfxsxfv E Dj Ac Hjd Spindle speed rpm: 5,000 Spindle power kW: 7.5 Torque Nm: - Sub-spindle bore: - Sub-spindle nose: A2-5 Turret positions: 12 Number of powered tool stations: 12 Powered tool speed rpm: 6,000 Powered tool power kW: 5.5 EQUIPMENT Chip conveyor Bar feeder: LNS Quick Load Servo II Overhead gantry loader. CNC control system: MSG-501 (Fanuc) Set of fixed and powered tool holders 3-color status light Bar feeder interface Manuals MACHINE DIMENSIONS Length mm: 2,705 Width mm: 2,000 Height mm: 2,120 Weight kg: 5,800

Condition: good (used), Year of construction: 2018, functionality: fully functional, Technical details faceplate diameter 3500 mm swing diameter 3800 mm turning height 750 mm Control Siemens 840 D sl Additional information CNC vertical lathe with one turning spindle and two tool carriers on two cross slides The machine has been regularly serviced by the manufacturer and is in mint condition. Technical specifications: Max. swing diameter 3800 mm Max. working height 750 mm Slide travel X1 axis approx. 2800 mm Slide travel X2 axis approx. 3200 mm Slide travel Z axis 1000 mm Rapid traverse X/Z axis 32/20 m/min. Faceplate (turning spindle unit with motor spindle): Speed 100 rpm Torque 67,000 Nm at 40% duty cycle Drive power 200 kW at 100% duty cycle Load capacity (chuck, clamping jaws, and workpiece) 35,000 kg Tool carrier: Double tool holder, Capto C8 For internal and external machining Speed range up to 6000 rpm. Torque approx. 120 Nm at 100% duty cycle Direct coolant supply to the tool holders Double tool holder with swivel axis For turning and drilling (MFU) in conjunction with a tool magazine Equipment: Dsdpsxqn Nrefx Ac Hswd CNC control Siemens 840 D sl Chuck Röhm lever chuck KFG 3500/3/6/12 25-station tool magazine, left of the work area 41-station tool magazine, right of the work area Max. tool diameter 150 mm Max. tool weight 20 kg Tool length 400 mm Tool cleaning with air Chip conveyor Coolant system 6 bar, 80 l/min. Knoll paper belt filter High-pressure coolant pump 70 bar

Condition: used, Year of construction: 2019, turning diameter max. 356 mm turning length 705 mm control M730 UM Mapps CELOS greates pass round over bed 920 mm Swing dia. over traverse guideway 742 mm turning speed range - main spindle 4.000 min/-1 power capacity - main spindel 18,5 / 15 kW spindle nose JIS A2-8 spindle bore 91 mm C-Axis 0,001 ° Spindle speed range subspindle 6.000 min/-1 power capacity - Sub spindle 11 / 7,5 kW spindle nose JIS A2-5 Dwedpfxsxvdrgj Ac Hod spindle bore 43 mm C-Axis 0,001 ° x-travel 260 mm z-travel 795 mm Y - Axis +/-50 mm b - axis 734 mm rapid traverse ( X / Y / Z ) 30 / 10 / 30 m/min number of toolpositions 12 pos. Schank height for square tool 25 mm Drill shank diameter 50 mm turret change time 0,27 sec. Spindle speed - driven tools max. 10.000 min -1 power capacity - driven tools 5,5 / 4,2 kW max. Torque 40,5 / 16 Nm total power requirement 42 kVA weight of the machine ca. 6,4 t dimensions of the machine ca. 5,0 x 3,0 x 2,3 m CNC - Turning- and MillingCenter DMG MORI - NLX 2500 SY / 700 - Subspindle - Tool-Drive - C, Y-Axis - EtherNet/IP I/F - Robot I/F - Safety Fence I/F - Bar Feeder Interface (LNS) - Alternating Speed - Processingtime: only 1.604,4 h - extensive accessory package

Condition: ready for operation (used), Year of construction: 2007, operating hours: 6,615 h, functionality: fully functional, machine/vehicle number: R2EV3403, turning length: 310 mm, turning diameter: 220 mm, spindle speed (max.): 6,300 rpm, turning diameter over bed slide: 430 mm, bar passage: 45 mm, TECHNICAL DETAILS Work Area Swing over bed: 430 mm Max. turning diameter: 220 mm Max. turning length: 310 mm Max. bar capacity: 45 mm Distance between centers: 687 mm Carriage Travel X-axis travel: 160 mm Z-axis travel: 310 mm Main Spindle Spindle nose to DIN: 55026 KK5 Front spindle bearing diameter: 80 mm Hollow clamping cylinder max. through bore: 45 mm Max. chuck size: 160 mm Speed range (infinitely variable): 0–6,300 rpm Max. torque: 78 Nm C Axis (Rotary Axis) Dwodsxvrv Topfx Ac Hsd Resolution: 0.001° Spindle indexing (disc brake, for driven tools): 0.01° Feed Drives Feed force X: 4 N Feed force Z: 6 N Rapid traverse speed X: 20 m/min Rapid traverse speed Z: 24 m/min Acceleration time from 0 to rapid traverse X/Z: 0.2 s Positioning spread P₉ as per VDI 3441 in X/Z: 3 / 3 µm Tool System Tool holders to DIN: 69880 VDI30 Tool cross section for square shank tools: 20 x 20 mm Shank diameter for boring bars: Ø32 mm Number of tool stations / powered (option): 12 / 6 Turret indexing time: 0.14 s MACHINE DETAILS Total power requirement: 17 kW Dimensions & Weight Footprint: 2.25 x 1.63 x 1.94 m Machine weight: 3.3 t Operating hours: 6,615 h EQUIPMENT - Integrated holding brake for driven tools - Disc turret with direction logic - AC motors on X and Z axes

Condition: ready for operation (used), Year of construction: 2019, operating hours: 14,530 h, Control Unit Brand FANUC Model 31i-Model B Main Drive Number of axis 3 This 3-axis Star SR-20J N was manufactured in 2019. It's a Swiss type turning machine designed for precision and efficiency. Ideal for intricate machining tasks, this model offers robust performance in a compact footprint. If you are looking to get high-quality turning capabilities, consider the Star SR-20J N machine we have for sale. Contact us for more information. Application Types Turning Dwjdoxu Rwmspfx Ac Hed

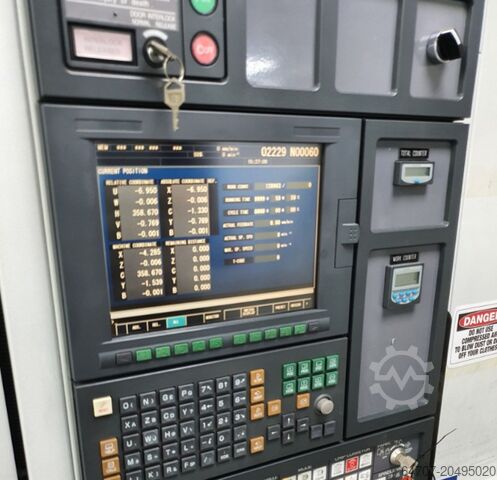

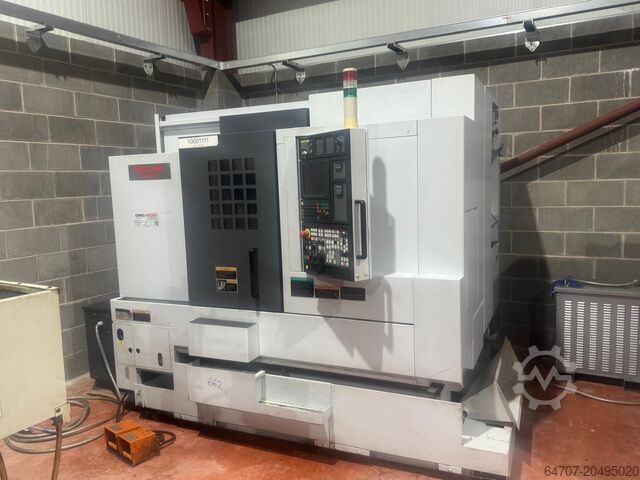

Condition: like new (used), Year of construction: 2009, MORI SEIKI NL2000/500 CNC TURNING CENTRE YEAR 2009 CONTROL MSX-850 III CONTROL COLLECT CHUCK DRIVEN TOOLING 4 AXIS Djdpfjxvrzpex Ac Howd 16 TOOL TURRET TAILSTOCK PARTS CATCHER TOOL SETTING PROBING SPINDLE SPEED MAX 6000 RPM MAX TURNING DIA 356 MM X TRAVEL 260 MM Y TRAVEL 100 (+ - 50) Z TRAVEL 590 MM C AXIS MOVEMENT 0.001 BAR CAPACITY 65 MM X-MEDICAL MACHINE - ONLY USED ON PLASITC FITTED WITH DUST EXTRACTION MACHINE DIMENSIONS: - Length: 2,705 mm - Width: 2,000 mm - Height: 2,120 mm - Weight: 5,800 kg

Condition: excellent (used), Year of construction: 2007, TECHNICAL DETAILS: Dwsdswdrfgopfx Ac Hod - CNC Control: MSX 803III - X Axis travel: 260 mm - Z Axis travel: 590 mm - Y Axis travel: +/- 50 mm - Maximum Turning Diameter: 356 mm - C Axis Indexing Increment: 0.001° - Maximum Turning Length: - Cutting Feed Rate X, Z, Y: - Swing Over Bed: - Swing Over Carriage: - Bar Capacity: Ø 65 mm (main spindle) - Max. Rapid Traverse X, Z: - Main Spindle 12” - Spindle Speed: 5,000 rpm - Spindle Power: 18.5 kW - Torque: - Main Spindle Bore: mm - Main Spindle Nose: A2-6 - Sub-Spindle - Spindle Speed: 6,000 rpm - Spindle Power: 11 kW - Torque: - Sub-Spindle Bore: mm - Sub-Spindle Nose: A2-5 - Turret Positions: 12 - Number of Driven Tool Stations: 12 - Driven Tool Speed: 6,000 rpm - Driven Tool Power: 5.5 kW EQUIPMENT: - Chip conveyor - 3-color status light - Fixed tool holders - Parts catcher MACHINE DIMENSIONS: - Length: 2,705 mm - Width: 2,000 mm - Height: 2,120 mm - Weight: 5,800 kg

Condition: good (used), Year of construction: 2008, Extensive partial overhaul since November 2023: - All ball screws including bearings overhauled: X1/X2/Y1/Z1/Z2 - All cylinders overhauled - All Siemens motors overhauled: main spindle, tailstock, magazine, tool 1+2, X/Z/Y/B/C/U/W - Siemens control panel replaced, control module and LT module repaired - Clamping elements/ATC renewed: Ortlieb collet, clamping package incl. pull rod - Tailstock quill renewed - All wipers replaced and covers reworked - Drive belts and safety windows renewed - Various cables renewed Technical details turning diameter 1000 mm turning length 1500 mm control Siemens 840 D swing over bed 1000 mm swing diameter over slide rest 800 mm max. workpiece weight between centres 2000 kg main spindle speeds: 2000 rpm main drive 62 kW transmission ratio 4 milling spindle drive 37 kW Dwedpfx Aexlq Iyjc Hjd milling spindle turning speed range: 25 - 10000 rpm total power requirement 82 kVA weight of the machine approx. 29,0 t dimensions of the machine approx. 8,2 x 5,3 x 3,6 m * CNC Control SIEMENS 840 D * Swivelling milling head at the top (B axis), interpolating, HSK-A 63 * Y axis * C axis * 8-station turret at the bottom, for driven tools * 60-station tool changer * NC-controlled tailstock, quill diameter 150 mm, max. quill stroke 180 mm * Hydrostatic longitudinal guide in the Z-axis * Coolant system with paper belt filter * Chip conveyor * Oil-cooler, make SCHIMPKE * Extraction system * Power chuck, make FORKARDT, diameter 500 mm

Condition: used, Year of construction: 2006, total height: 1,750 mm, total length: 2,790 mm, total width: 1,570 mm, Empty weight: 4.300 kg Price: On request - Year: 2006 - Documentation available: Yes - Serial number: GN08201038G - Drive system: CNC - Control system brand: Fanuc - Control system type: 0i-Mate TO - Power [kW]: 15.0 - Swing over bed [mm]: 250 Dwedpowfpaqsfx Ac Hod - Distance between centres [mm]: 460 - Spindle bore [mm]: 62 - Max. spindle speed [rpm]: 4500 - Options: Removable bed - Swing over removable bed [mm]: 460 - Transport dimensions: 2790mm x 1570mm x 1750mm (l x w x h) - Transport weight [kg]: 4300kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

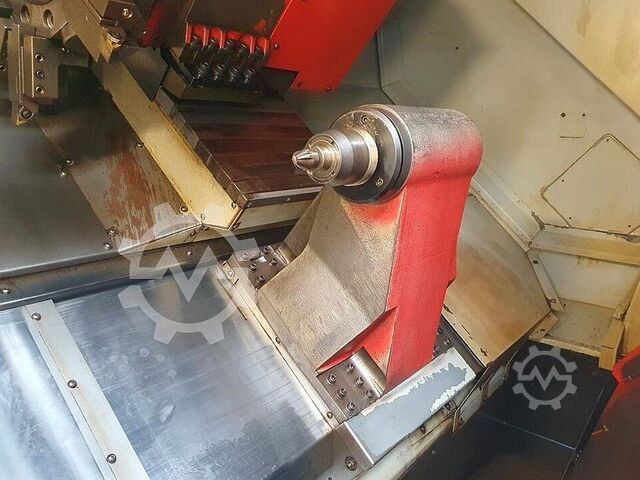

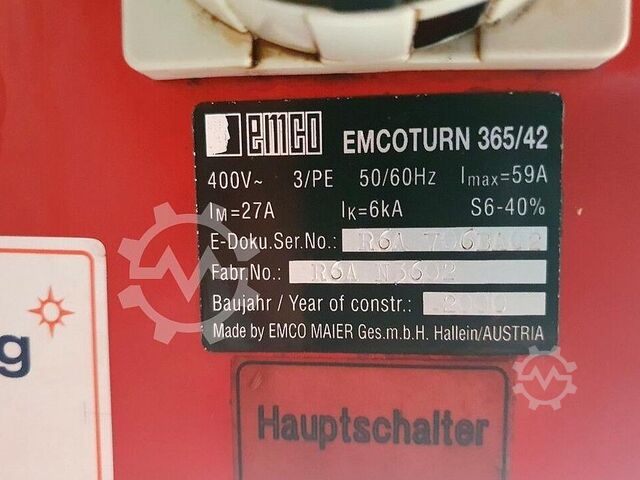

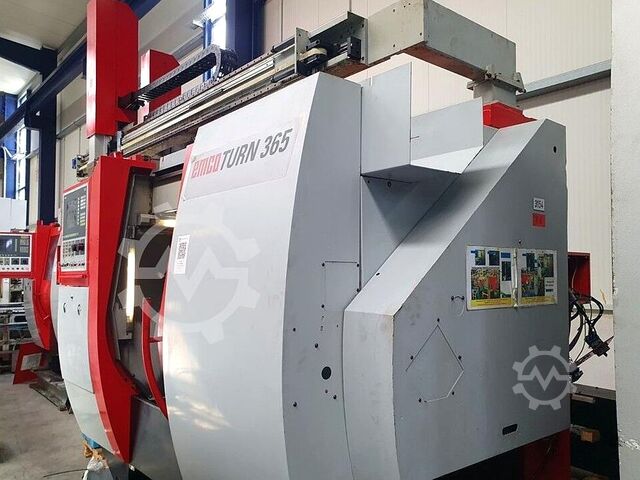

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: R6A N3602, turning length: 520 mm, turning diameter: 360 mm, overall weight: 3,800 kg, TECHNICAL DETAILS Turning diameter: 360 mm Turning length: 520 mm MACHINE DETAILS Dwsdoxvrruepfx Ac Hod Total power requirement: 20 kW Dimensions & Weight Required space: 3 x 2 x 2 m Machine weight: 3.8 t

Condition: new, Distance between centers 2000 mm Max. swing over bed 560 mm Max. swing over carriage 350 mm Djdsxu Erropfx Ac Howd Max. swing in gap 788 mm spindle bore 105 mm Spindle Taper Camlock D1-8 Spindle speed 25 - 1500 1/min Travel cross slide 326 mm Travel top slide 130 mm If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: excellent (used), Year of construction: 2020, operating hours: 3,744 h, functionality: fully functional, turning diameter over cross slide: 630 mm, turning length: 2,200 mm, turning diameter: 775 mm, spindle bore: 117 mm, SMEC Samsung Turning Centre Model SL4500XY Year 2020 Fanuc Series Oi-TF Control 775 mm swing over bed 630 swing over cross slide Dwsdpfx Asw T Rq Eec Hjd Max machining dia – 680 mm Max length to be confirmed – 2000 mm Bar working dia – 117.5 mm X travel 350 mm Chuck size 534 mm SMW Autoblok Type SLU-X-4-ZS Steady Live Tooling – 6 Driven tools Swarf Conveyor Swarf Skip A video can be sent of the machine running , everything is working as it should . came out of factory closer locally

Condition: good (used), Year of construction: 2007, functionality: fully functional, Technical details turning diameter 600 mm turning length 2000 mm control Siemens 840 D powerline main spindle speeds: 2500 1/min. total power requirement 72 kVA weight of the machine ca. 12 t Additional information 2-axis CNC universal lathe Dedsxrpgbopfx Ac Hewd Equipment: Siemens Sinumerik 840 D powerline CNC control Tailstock 12-station turret SMW AUTOBLOK steady rest Power chuck Chip conveyor IFS oil mist extraction system

Condition: used, total height: 2,500 mm, total length: 5,000 mm, total width: 2,200 mm, Empty weight: 5.500 kg Price: On request - Documentation available: Yes - CE marking present: Yes - Serial number: 12598 - Drive system: Teach-in - Control system brand: Fagor - Control system type: 8055 - Power [kW]: 15.0 - Centre height [mm]: 350 Dedpfxswnhm Is Ac Howd - Swing over bed [mm]: 700 - Carriage turning diameter [mm]: 425 - Distance between centres [mm]: 2000 - Bed width [mm]: 450 - Spindle bore [mm]: 105 - Min. spindle speed [rpm]: 310 - Max. spindle speed [rpm]: 2000 - Max. workpiece weight [kg]: 4000 - Options: Digital readout, Removable bed - Type of digital readout: Heidenhain Manualplus - Control: CNC - Transport dimensions: 5000mm x 2200mm x 2500mm (l x w x h) - Transport weight [kg]: 5500kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

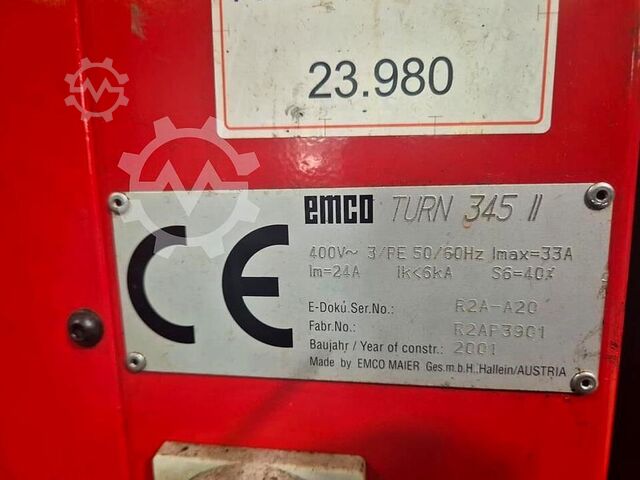

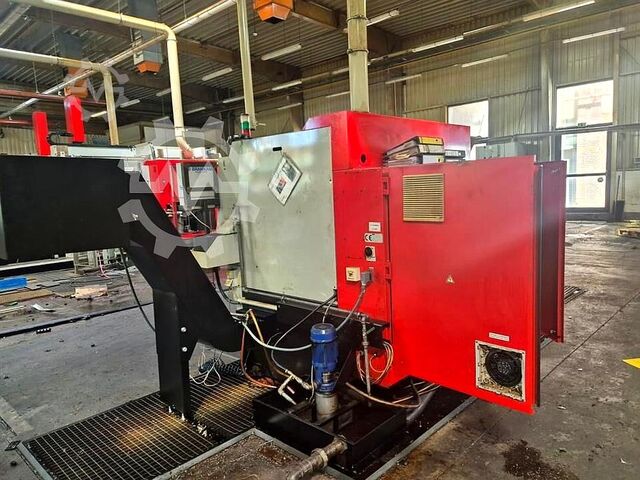

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: R2AP3901, turning length: 700 mm, turning diameter: 220 mm, travel distance X-axis: 160 mm, turning diameter over bed slide: 430 mm, workpiece length (max.): 510 mm, TECHNICAL DETAILS Dwodjxvrn Nepfx Ac Hed Turning diameter: 220 mm Turning length: 700 mm / 665 mm Swing diameter over bed: 430 mm Max. part length: 510 mm X-axis travel: 160 mm Spindle bore diameter: 45 mm MACHINE DETAILS Total power requirement: 17 kW Dimensions & Weight Required space approx.: 2.63 x 1.98 x 1.94 m Machine weight approx.: 2.6 t

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, DOOSAN PUMA 700LY HEAVY DUTY CNC TURNING CNETRE FANUC 32i A CONTROL YEAR 2014 Y AXIS C AXIS + DRIVEN TOOLS TRAVELS ON AXIS – 400 X / 200 Y / 3100 Z STANDARD TURNING 750 MM DIA SWING OVER BED 1140 MM SWING OVER SADDLE 1000 MM BORE 110 MM Dwedpexvqc Esfx Ac Hod 610 MM HYD CHUCK SPINDLE MAX RPM 3000 TOOL SETTER PRGRAMABLE TAILSTOCK TELBROOK MANUAL STEADY – STEADY RANGE 390 – 700 DIA 45 KW CUTTING HOURS – 3955 RUN TIME 4877 SWARF CONVEYOR OVERALL DIMS – 7350 MM X 2710 MM X 2590 MM WEIGHT 22 TON MORE PHOTOS TO FOLLOW VIDEO ON REQUEST

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, Technical details faceplate diameter 1800 mm swing diameter 2000 mm turning height 1270 / 1120 mm Control SIEMENS 840 D workpiece weight max. 5000 kg ram head dimension 250 x 250 mm table turning speeds 1 - 320 U/min cross rail - adjustment 400 mm ram head - cross travel (X) -2770 / +2275 mm ram head - vertical travel (Z) 1250 mm c-axis 360° (0,001°) deg milling drive 37 kW turning speed range - milling 10 - 3000 U/min power capacity - table 100 kW Torque 31784 Nm feed range (X/Z) 0,1 - 15000 mm/min weight of the machine ca. 55 t Additional information Used CNC vertical lathe for turning, drilling and milling First machine installation in the year 2011. Max. workpiece diameter: 2040 mm Max. workpiece height: 1270 mm Ram stroke: 1250 mm Max. workpiece weight: 5000 kg (per pallet/chuck) Table speed range: 1.0 - 320 rpm Table drive motor: 100 kW Drilling and milling spindle: 37 kW Crossbar travel: 2 steps of 200 mm each Total electrical connection value: 218 kVA CNC control: Siemens 840 D Number of NC axes: 4 (X, Z, C, crossbar adjustment) Travels: X-axis: -1650 to + 2165 mm Z-axis: 1250 mm Rapid traverse X- Z-axis: 15 m/min Number of tool magazine spaces: 80 spaces in the chain magazine, of which 60 x HSK 100 and 20 x Capto C6 Disc magazine 12-pos. for rotary holders and attachment heads Coolant system with filter and circulation unit Chip conveyor Oil-mist-extractor 1 pallet with jaws, diameter 1800 mm 1 hydraulic chuck with base jaws, diameter 1800 mm Various drilling and milling heads 2 measuring probes Several turning tool holders Special feature: Pallet changer with two stations, equipped with a face plate Ø1800 mm and a six-jaw lever compensation chuck with mechanical centrifugal force compensation Ø1800 mm. Note: The machine is in a pit. Dedew Hyd Aspfx Ac Hswd Condition description: The cross roller bearing on the Carnaghi was replaced about half a year ago. The Siemens components in the control cabinet were also completely replaced at the end of 2023. The machine also has a measuring probe for tool measurement and an external Renishaw measuring probe for workpiece measurement. As a special feature, the machine also has a measuring probe installed on the Z-axis (Z1-axis). This brings an advantage in terms of accuracy and time, as the tool does not have to be put down for measuring. However, it is currently shut down and should be overhauled when it is put back into operation. The machine also has a Rotomors six-jaw lever compensating chuck with centrifugal force compensation, which was completely overhauled in 2020/21. If you are interested, the machine can be demonstrated under power/chip.

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: S.1003825.001, faceplate diameter: 800 mm, workpiece length (max.): 800 mm, workpiece width (max.): 720 mm, TECHNICAL DETAILS Faceplate diameter: 800 mm Clamping diameter: 800 mm Dedpsxvrhvsfx Ac Hswd Max. workpiece dimensions: 800 x 720 mm Tool interface: Capto C6 Tool magazine positions: 2 x 80 MACHINE DETAILS Total power requirement: 110 kW Dimensions & Weight Approximate machine weight: 37,000 kg / total 52,000 kg Transport dimensions (machine): 5.07 x 2.98 x 3.90 m EQUIPMENT C-axis

Condition: good (used), Technical details tool taper VDI 40 DIN 69880 number 22 Stück Additional information A range of tool holders in good condition. Tool holder size: VDI 40, DIN 69880 Were used on a Gildemeister CTX 500 E CNC lathe. Quantity: 1 driven tool holder, angled design. 18 driven tool holders, straight design. 3 standard tool holders. Dwedpfsxdbuhsx Ac Hjd Only sold in a package!

Condition: good (used), Year of construction: 2008, functionality: fully functional, Technical details workpiece length - max. 3000 mm feed length - mm length - mm Djdpfjvn Rcmsx Ac Hjwd power capacity 2 kW Weight 1300 kg Additional information With control panel HBG 10 A guide channel, size of approx. 60 mm diameter

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, Technical details max. workpiece diameter 400 mm workpiece length - max. 300 mm Control SIEMENS 840Dsl swing diameter 520 mm chucking diameter 500 mm travel x / y / z 995/+,-30/580 mm Additional information Operating hours (total): 1848 hours 1.2.2 BASE TURRET UNIT AND Y-AXIS SLIDE UNIT The Y-axis slide unit is mounted on the side of the machine base. A fast-reacting, position-controlled, and maintenance-free servo motor is used for the axis drive. It drives the slide via a high-precision ball screw. A linear measuring system is built into the Y-axis. Positional accuracy: 2 µm. BASE TURRET UNIT Shortest swivel times thanks to direct swivel drive, cooled for consistent accuracy. MAIN SPINDLE 37.7 KW 1.2.3 HP TURRET DRIVE UNIT FOR DRIVED MACHINE TOOLS (C442) With internal coolant supply to the tool.* Max. speed 6,000 rpm Crosscut speed 3,200 rpm Torque at 100% duty cycle 54 Nm/18.1 kW Torque at 40% duty cycle 83.6 Nm/28.0 kW Torque at 10% duty cycle 100 Nm/33.5 kW 1.2.4 TOOL CARRIER UNIT FOR DRIVED TOOLS TOOLS, 12xBMT75 for BMT75 tool holders 1.2.6 ROTATING WORKPIECE TRANSPORT SYSTEM, O-TYPE Drag frame system for 10 workpieces Max. workpiece height (including workpiece pallet) 300 mm Max. workpiece weight 60 kg 1.2.7 SET (10 pieces) DRAG FRAME for O-type belt For workpiece diameters 150 - 400 mm 1.2.8 BLOW-OFF OF THE WORKPIECE AND THE CLAMPING DEVICE (PICK-UP) 1.2.10 COOLANT SUPPLY 15 bar Coolant pump flow rate approx. 80 l/min at 15 bar. COOLING UNIT (6.5 kW, water-air) A cooling unit (with dual-circuit technology) regulates the machine's thermal balance. The spindle drive, control cabinet, and turret are kept at ambient temperature (10°C - 40°C). Cooling capacity: 6.5 kW 1.2.11 COOLANT DOUBLE FILTER, MANUALLY SWITCHABLE Filter fineness 100 µm, with electrical and mechanical contamination indicator 1.2.12 CHIP CONVEYOR, HINGED BELT VERSION - REAR-FACING Chip discharge height 1100 mm. /With integrated coolant reservoir, capacity approx. 500 l. 1.2.13 EMULSION MIST EXTRACTION Extraction capacity approx. 800 m3/h 1.2.14 FLUSHING GUN 1.2.16 WORKPIECE MEASUREMENT with a measuring probe that is completely protected from chips and coolant outside the work area. 1.2.17 BLOW-OFF PROBE 1.2.19 ENGRAVING SOFTWARE PACKAGE 1.2.20 TOOL LIFE MONITORING - SISTER TOOL MANAGEMENT 1.2.21 TOOL BREAKAGE MONITORING TOOLINSPECT MCU - EUROPE (SIEMENS 840DSL, FANUC 31i/32i) 1.2.23 3-COLOR INDICATOR LIGHT 1.3.2 AXIAL DRILLING AND MILLING HEAD - BMT75 CC 1.3.3 ANGLE DRILLING AND MILLING HEAD 90° - BMT75 CC (i=1:1) 1.3.4 TOOL SET FOR OP10 + OP20 1.3.7 HYDRAULIC FULL-CLAMPING CYLINDER SIZE 150 - with 1 media feedthrough The coolant is supplied to the workpiece through the main spindle and the clamping device. 1.3.10 3-Jaw Power Chuck KNCS-N 500-155 Quick Change n max. = 2200 rpm (Recommended speed according to DIN 6386) - Set of hard base jaws - Set of soft top jaws Dwjdpfx Acjw Hxuao Hjd 1.3.11 Attachments for KNCS-N 500-155 Consisting of: - Chuck flange DIN 55026 A11 - Drawbar adapter with through-hole and shut-off valve for central air or coolant supply - Mounting screws 1.3.12 Irrigation nozzle in chuck bore Additional tool holders with tools
