Used CNC lathes 500-599mm turning diameter for sale (82)

Condition: good (used), Year of construction: 2005, Ref. -No.: 10475 Manufacturer: SPINNER Type: TC52-MC Year of construction: 2005 Type of control: CNC-Steuerung Control: Siemes 810 D ShopTurn Storage location: Halberstadt Country of origin: Germany Machine-No.: AN0XXXX Turning Speeds: 280/400 RPM Tool holder type: Stahlhalter 9 pcs. Turning Diameter: 280/400 mm Turning Length: 550 mm Tool Taper: VDI 30 Spindle Speed Max.: 5.000 RPM Turret places: 12 Pcs Hfelszc Dzvjhccqpjh Further information: Three-jaw chuck: Schunk brand Driven tool stations Oil mist extraction Coolant system Cabin, extraction Donaldson Tirit DCE Machine can be inspected under power by arrangement.

Condition: used, Year of construction: 2006, turning diameter 500 mm turning length 1300 mm control Fanuc 18i TB turning speed range - main spindle 0 - 3500 min/-1 drive capacity - main spindle 33 kW max. torque 800 Nm number of tool places 12 axial / 12 direkt Pos. tool taper VDI 40 output max. 8 kw max. torque 35 Nm turning speed range - driven tools 0 - 4000 U/min x-travel 318 mm z-travel 1360 mm y-travel -60 / +80 mm tailstock quill taper MT 4 In our opinion, the machine is in good used condition and can be inspected Hfslhccqjzawlcopjh under power by appointment. Accessories, tools and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Changes and errors in the technical data and information as well as subject to prior sale reserved!

Condition: ready for operation (used), Year of construction: 2005, turning diameter over cross slide: 570 mm, turning length: 2,000 mm, spindle bore: 62 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 3 rpm, workpiece weight (max.): 2,000 kg, Equipment: rotational speed infinitely variable, The VDF 560 DUS are the most popular teach-in lathes from VDF Boehringer in terms of turning diameter. With a standard chuck size of 315 mm or more, these machines offer optimal machining efficiency for the production of single parts and small series. This machine is currently on display in our showroom; an on-site inspection is possible! Scope of delivery: Includes drawer cabinet with various tools and Multifix holders. Specifications Manufacturer: VDF Boehringer Model: DUS 560 TI Year: 2005 Condition: Used Stock number: 00164 Maximum turning diameter: 570 mm Hfolhccjwv S Rtoqpjh Maximum turning length: 3000 mm Spindle bore: 62 mm Speed (min-max): 3 - 2500 rpm Spindle power: 19 kW Spindle mount: DIN 55 027 Gr. 8 Tool turret: Multifix Turret positions: 2 Tailstock taper: MK5 CNC control brand/type: Heidenhain Manual Plus 4110

Condition: new, neu ca. 6 Monate ab Auftragse Taiwan 87350 € 1650.92 € 540 mm 1500 mm 85 mm 310 mm 350 mm D1-8 1/20 MK 3 27 - 2250 1/min 5000 mm/min 8000 mm/min 280 mm 75 mm 5 MK 190 mm 9 / 13,5 (S1 / S6 40%) kW 0.02 mm 0.016 mm ISO3655 3340 mm 1905 mm 2235 mm 3400 kg THREE OPERATING MODES: CNC / TEACH-IN / MANUAL Siemens 828D CNC control • 12-inch colour screen • Linear interpolation • Circular interpolation Hfslozbvabehccqpeh • Helical interpolation • Skip function • Workpiece coordinate system • Coordinate system rotation • Rigid tapping • Mirror image, scaling and rotation • Turning cycle • ShopTurn software Large spindle bore, with precision bearings for high accuracy and consistent cutting stability. Precision ball screw Ø 40 mm (Class C5) on the Z-axis and ball screw Ø 25 mm (Class C3) on the X-axis. 2-axis AC servo motors 50-300 mm roller-type tailstock. Manual tailstock quill, diameter 75 mm (MK5), travel 190 mm. Programming and operating instructions. Electronic handwheel for X and Z axes Manual 4-station tool holder (25 x 25 mm) Automatic lubrication system Fully enclosed splash guard with sliding door and window Chip container with coolant tank Inspection report LED work light Coolant system Preparation for oil cooling system OPTIONS (PRICES ON REQUEST): Fagor control system instead of Siemens Manual or hydraulic chuck 8-station turret, optionally with driven tools Electrically rotatable 4-station tool holder Chip conveyor High-pressure coolant pump Further options on request ALTERNATIVE: FCL-2140 variant with 1000 mm centre distance FCL-2180 variant with 2000 mm centre distance

Condition: like new (used), Year of construction: 2022, operating hours: 259 h, turning diameter over cross slide: 790 mm, turning length: 2,124 mm, turning diameter: 550 mm, spindle bore: 102 mm, spindle speed (max.): 3,000 rpm, spindle speed (min.): 30 rpm, travel distance X-axis: 352 mm, travel distance Z-axis: 2,155 mm, spindle motor power: 35 W, rapid traverse X-axis: 16 m/min, rapid traverse Z-axis: 20 m/min, 2-axis CNC lathe "DOOSAN DNS mod. PUMA 4100LA" with DN Solutions-Fanuc i-Plus iHMI CNC Hjlhccoqrr Nwjqpofh

Condition: used, ROTATION DIAMETER 630 MM MAXIMUM TURNING DIAMETER 510 MM MAXIMUM TURNING LENGTH 1578 MM BENCH INCLINATION 45° MAXIMUM X AXIS TRAVEL 1590 MM MAXIMUM Z AXIS TRAVEL 290 MM RAPID 20 M/MIN SPINDLE BORE 105 MM ASA A2-8 CHUCK NOSE TAPER SPINDLE MOTOR POWER 18.5 - 22 KW SPINDLE SPEED 2500 RPM QUILL OF TAILSTOCK DIAMETER 125 MM TAILSTOCK TRAVEL 1590 MM TAPER QUILL CM 5 QUILL TRAVEL 120 MM CNC FANUC Oi-TC CHUCK DIAM. 380 MM ROTATION TURRET WITH 12 PLACES Hslhccsrzt Iqeqpsfh CHIP CONVEYOR YOM 2008 WEIGHT 8500 KG

Condition: excellent (used), Year of construction: 2018, operating hours: 2,300 h, functionality: fully functional, machine/vehicle number: KC1811242, turning diameter over cross slide: 325 mm, turning length: 1,285 mm, turning diameter: 570 mm, spindle bore: 80 mm, spindle speed (max.): 1,600 rpm, spindle speed (min.): 40 rpm, travel distance X-axis: 310 mm, travel distance Z-axis: 1,285 mm, spindle motor power: 7,500 W, rapid traverse X-axis: 6 m/min, rapid traverse Z-axis: 10 m/min, rotational speed (min.): 1,600 rpm, rotational speed (max.): 40 rpm, total height: 1,700 mm, total length: 3,070 mm, total width: 1,300 mm, quill travel distance: 150 mm, quill diameter: 75 mm, quill stroke: 150 mm, swing diameter over cross slide: 325 mm, turning diameter over bed slide: 570 mm, turning diameter over top slide: 325 mm, type of input current: three-phase, overall weight: 2,560 kg, swing diameter over bed slide: 570 mm, bar passage: 75 mm, chuck outer diameter: 300 mm, swing diameter over top slide: 325 mm, center height: 280 mm, bar diameter (max.): 75 mm, mount diameter: 32 mm, Equipment: documentation/manual, 2018 Dugard Lunan 570MF CNC Lathe – Excellent Condition 📍 Location: Ireland 🔧 Machine Type: CNC Lathe 🛠️ Manufacturer: Dugard 📅 Year of Manufacture: 2018 ⏱️ Machine Hours: Only 2,300 ✅ Condition: Very Good / Fully Functional 💡 Why Choose This Machine? The Dugard Lunan 570MF is a solid, well-built CNC lathe designed for medium to heavy-duty turning applications. With Siemens 828D control, only 2300 working hours, and a complete set of chucks, steadies, and accessories, this machine is ideal for general precision engineering, subcontractors, and educational/training use. It’s well maintained, ready to work, and represents excellent value. Buy a 2018 Dugard Lunan 570MF CNC Lathe in excellent condition. Featuring 570mm swing, Ø80mm spindle bore, 400mm chuck, and 7.5kW power. Available now from Used Machine Tools Ireland. International delivery available. 🧰 Machine Includes: Siemens 828D CNC Control System 320 mm 3-Jaw Chuck 400 mm 4-Jaw Chuck Travelling Steady Fixed Steady Coolant Equipment Tailstock Operator Manuals Selection of Tool Holders & Chuck Jaws 🔹 Technical Specifications Max Swing Diameter Over Bed: Ø570 mm Helhccqowv Sx Rspjfh Max Swing Diameter Over Slide: 325 mm Distance Between Centres: 1500 mm Span of X/Z Axis Guide Rails: 420 mm Max Turning Length: 1285 mm Center Height: • To Bed: 280 mm • To Ground: 1170 mm Spindle Bore Diameter: Ø80 mm Bar Capacity: Ø75 mm Spindle End Type: D8 Chuck Size: Ø300 mm or Ø400 mm Spindle Speeds: 3-Speed Manual Ranges: • 40–150 rpm • 130–470 rpm • 450–1600 rpm Taper of Spindle: Metric 90, 1:20 Turret: 4-Position Electric Turret Tool Size: 32 × 32 mm Tailstock: • Quill Diameter: Ø75 mm • Stroke: 150 mm • Taper: MT5 End Bracket: Hand-operated type Screw Model: • X-Axis: FFZD2504-3-P3 • Z-Axis: FFZD4008-5-P3 Rapid Traverse (X/Z): 6 / 10 m/min X-Axis Stroke: 310 mm Minimum Set Unit: 0.001 mm Main Motor Power: 7.5 kW Power of Main Supply: 12.5 kW Net Weight: 2560 kg Dimensions (L×W×H): 3070×1300×1700 mm 💡 Features & Benefits: Robust and versatile CNC lathe ideal for medium to heavy-duty turning High-torque spindle and large bore suitable for tough materials Reliable FANUC control system with user-friendly interface Well maintained and fully serviced – ready to run Ideal for sub-contract machine shops, tool rooms, and general precision engineering 🚚 Delivery Options Available We offer nationwide & International delivery Dugard Lunan 570MF CNC Lathe for sale Used Dugard CNC lathe Ireland 2018 Dugard Lunan CNC lathe CNC lathe Ø570mm swing Large bore CNC lathe used Heavy-duty CNC turning lathe CNC lathe with 80mm spindle bore 4-position turret CNC lathe CNC lathe with tailstock and 12.5kW power supply CNC lathe for shaft turning manual turret CNC lathe industrial CNC lathe for metal turning Notes: *Specifications are given in good faith but not guaranteed*

Condition: used, Year of construction: 2008, Technical details: turning diameter over bed: 400 mm turning dia. over face-slide: 400 mm turning length: 1155 mm max. turning diameter: Ø 350 mm travel -x axis: 205 mm travel -z axis: 620 mm control: Fanuc OI-TC max. tool weight: 235 (with Tailstock) kg Holjv Iplajhccqpjfh spindle passage: Ø 80 mm revolution per minute: steples U/min rapid traverse X-axis: 20 m/min rapid traverse Z-axis: 24 m/min tool turret - number of stations: 12 tailstock taper ISO: MK 4 mm tailstock quill stroke: 150 mm total power requirement: 45 kVA Weight approx.: 4,0 t dimension machine xH: 2,6 x 1,8 x 2,2 + Transformator m Equipment: -3-jaw chuck Ø 260mm with interchangeable jaws inside/outside -center point in tailstock -disk turret Ø 480mm -Hydraulic unit (40 liter capacity) -Coolant tray (80kg) -LOSMA exhaust air filter -Chip tray (30kg) -Chip conveyor (180kg) Operation via control panel and foot switch Accessories various bar sleeves Ø 78mm (outside) various clamping rods 1x 4-jaw lathe chuck Ø 200mm TOS various clamping jaws various clamping fixtures *

Condition: used, Year of construction: 2004, XYZ Proturn VL 355 ProtoTRAK CNC Gap Bed Centre Lathe ProtoTRAK SLX Control (2004) Max’ Distance Between Centres 1000mm Max’ Swing over Cross-slide 225mm Max Swing over Bed 360mm Spindle Bore 52mm Spindle Speeds 50 – 4000 rev/min Spindle Motor 5.75Kw Quick Change Tool Post Tailstock MT4 Tailstock Dia’ 75mm Tailstock Travel 160m Manufactured | 2004 Supplied with: 3 Jaw Chuck Interlocking Chuck & Main Guards 3 Toolholders TRAKing Constant Surface Speed Hfolozav N Tjhccqpoh Coolant Worklight Auto Lubrication For Sale with Jet Machinery Ltd Jet Machinery Stock No: #79196 Machine Serial Number: SL091 Cost: £13,950.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

Condition: used, Year of construction: 2023, operating hours: 647 h, functionality: fully functional, CNC lathe Hyundai WIA HD2600 – Year of manufacture 2023 – Top condition For sale is a CNC lathe Hyundai WIA HD2600 from 2023. Technical data: Manufacturer: Hyundai WIA Model: HD2600 Year of manufacture: 2023 Operating hours: only 647 h Condition: very good condition, almost new Chuck: SCHUNK Ø 400 mm Sale can include the chuck upon request The machine has been used very little and is in excellent technical and optical condition. It is ready for immediate use and can be inspected by appointment. Advantages: Very low operating hours Powerful and precise CNC lathe High-quality SCHUNK chuck Ø 400 mm Immediately available We are happy to provide you with further information, technical details or a customized offer. Parameter Value Max. turning diameter 460 mm Max. turning length 659 mm Diameter of rotation over bed 630 mm Diameter of rotation over slide 460 mm Spindle bore 91 mm Max. bar diameter 80–81 mm Hfelhccqezdcinepoh Spindle speed 3,500 rpm Spindle power 26 / 18.5 kW Spindle torque 734 Nm Spindle nose A2-8 X-axis travel 265 mm Z-axis travel 680 mm Rapid traverse X/Z 24 / 30 m/min Turret 10 stations Tool holder 25 mm / Ø50 mm Tailstock MK5 (Morse taper 5) Machine weight approx. 5,800 kg

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, turning diameter over cross slide: 310 mm, turning length: 2,000 mm, turning diameter: 540 mm, spindle bore: 85 mm, spindle speed (max.): 2,250 rpm, travel distance X-axis: 350 mm, travel distance Z-axis: 1,850 mm, total height: 2,235 mm, total length: 3,840 mm, total width: 1,925 mm, quill travel distance: 210 mm, quill diameter: 75 mm, overall weight: 4,200 kg, chuck outer diameter: 315 mm, center height: 270 mm, Equipment: documentation/manual, Siemens 828D control system with ShopTurn includes: 3-jaw chuck, Schunk Rota-S315, 2 steady rests, 2 Multifix holders, chip conveyor, and manuals. Hfolhccqozbvq Topoh

Condition: new, Year of construction: 2022, functionality: fully functional, HYUNDAI-WIA HD3100L FANUC 0IT PLUS CNC LATHE MACHINE CONSTRUCTION & FEATURES 12” STANDARD CHUCK SIZE. 30° SLANT BED ONE PIECE HEAVY DUTY CAST IRON CONSTRUCTION FOR HIGH ACCURACY & RIGIDITY. HARDENED & GROUND BOX GUIDEWAYS FOR HEAVY DUTY CUTTING. 10 STATION HIGH SPEED RIGID SERVO TURRET. 2,800 RPM 26.0 /18.5 KW HIGH POWER MAIN SPINDLE. 24 X 30 M/MIN RAPID TRAVERSE RATES – X & Z AXES. ERGONOMIC DESIGN FOR EASY ACCESS TO CHUCK & TURRET. MACHINE CAPACITIES Swing Over the Bed Ø 750 MM Swing Over the Carriage Ø 500 MM Maximum Turning Diameter Ø 500 MM Maximum Turning Length 1,300 MM Bar Capacity Ø 102 MM MAIN SPINDLE Chuck Size Ø 12” – 305 MM Spindle Bore Ø 115 MM Spindle Speed (rpm) 2,800 RPM Motor (Max/Cont.) 26.0 / 18.5 KW Torque (Max/Cont.) 1,123 / 657 NM Spindle Nose A2-11 FEED Travel X 265 MM Travel Z 1,350 MM Rapid Speed X 24 M/MIN Rapid Speed Z 30 M/MIN Slide Type HARDENED & GROUND BOX GUIDEWAYS TURRET Number of Tools 10 Tool Size - OD 25 MM² Tool Size - ID Ø 50 MM Indexing Time 0.15 SEC / STEP TAILSTOCK Type QUILL TYPE TAILSTOCK [PROGRAMMABLE TAILSTOCK] Taper MT5 [MT4] Quill Diameter Ø 100 MM Quill Travel 120 MM TANK CAPACITY Coolant Tank 220 L Lubricating Tank 1.8 L POWER SUPPLY Electric Power Supply 27 KVA Thickness of Power Cable Over 16 MM² Voltage 415V / 50Hz / 3Ph MACHINE Floor Space (L x W)4,405 x 1,978 MM Height 1,850 MM Weight 7,200 KGS INCLUDED FACTORY FITTED MACHINE OPTIONS CONVEYOR SIDE HINGED WITH CHIP BOX SMART GUIDE-I (CONVERSATIONAL PROGRAMMING) COOLANT GUN HIGH PRESSURE COOLANT SYSTEM 20 BAR IN LIEU OF STD BARFEED INTERFACE - MAIN SPINDLE PARTS CATCHER - MAIN SPINDLE TRANSFORMER - 415V 3PH 50HZ QUICK TOOL SETTER - AUTO STEADY REST PREPARATION - PROGRAMMABLE CLAMPING & TRAVEL PROGRAMMABLE TAILSTOCK IN LIEU OF STD QUILL TYPE TAILSTOCK - MANUAL TYPE MT#5 100 MM DIA QUILL, 120 MM QUILL TRAV STANDARD FACTORY FITTED OPTIONS CHUCK CLAMP FOOT SWITCH MAIN SPINDLE 12 INCH 3 JAW HYDRAULIC CHUCK STD INC SET SOFT JAWS - MAIN SPINDLE Hfjlhjx Tiggeccqpjh STANDARD HYDRAULIC CHUCKING CYLINDER - HOLLOW 15" MONITOR FOR FANUC FOR STANDARD CNC SPECIFICATION - SEE MANUFACTURER'S BROCHURE HW ENERGY SAVING SYSTEM (HW-ESS) MACHINE GUIDANCE (HW-MCG) COOLANT TANK (SIDE TYPE) STANDARD COOLANT SYSTEM (NOZZLE) STANDARD COOLANT SYSTEM 0.5 BAR FULL SPLASH GUARDING SYSTEM STANDARD HYDRAULIC UNIT 35 BAR (30 LITRES) CALL LIGHT (1 COLOUR) TOOLBOX STANDARD TOOLING PACKAGE - SEE MANUFACTURER'S BROCHURE STANDARD LIVE CENTER

Condition: used, Year of construction: 1998, operating hours: 38,856 h, functionality: fully functional, machine/vehicle number: 643, turning diameter over cross slide: 340 mm, turning length: 2,000 mm, turning diameter: 570 mm, spindle bore: 66 mm, rotational speed (min.): 1 rpm, rotational speed (max.): 2,500 rpm, total height: 1,750 mm, total length: 3,850 mm, total width: 1,815 mm, quill diameter: 80 mm, quill stroke: 200 mm, swing diameter over cross slide: 340 mm, turning diameter over bed slide: 570 mm, overall weight: 3,550 kg, center width: 2,000 mm, center height: 280 mm, bed width: 350 mm, For sale is a used/well-maintained WEILER lathe, model E 50. 2022 (Repairs/renovations performed by WEILER service technicians): - Bed slide disassembled, cleaned, and recoated - Hand grips re-covered and adjusted - Spindle bearings and timing belt of the X-axis replaced - Bearing unit of the Z-axis replaced Hfolhcozcv Egocqpsh - Scraper replaced - Reference points adjusted - Test run performed

Condition: used, Year of construction: 2017, operating hours: 11,298 h, functionality: fully functional, machine/vehicle number: LF 01, turning diameter over cross slide: 340 mm, turning length: 2,000 mm, turning diameter: 570 mm, spindle bore: 83 mm, rotational speed (min.): 1 rpm, rotational speed (max.): 2,500 rpm, total height: 1,800 mm, total length: 3,850 mm, total width: 2,400 mm, overall weight: 4,300 kg, swing diameter over bed slide: 570 mm, swing diameter over top slide: 340 mm, bed width: 350 mm, feed force X-axis: 10,000 N, feed force Z-axis: 12,000 N, spindle torque (max.): 1,300 Nm, For sale is a WEILER E 50HD x 2000 SL2 precision lathe in good/well-maintained condition. Sale due to business closure. Hfslhcozcvhnscqpoh Includes various accessories.

Condition: excellent (used), Year of construction: 2010, turning length: 995 mm, spindle bore: 80 mm, Max. turning Ø: 530mm X-Axis: 260mm Z-Axis: 995mm Spindle bore: 80mm Speedrange: 5000Rpm Spindle power: 22kW Subspindle speeds:6000Rpm Subspindle bore: 62mm Subspindle power:11kW Helhcox I Nbtecqpsfh ATC / revolver: 12 Speed live tools:6000Rpm Tool eye: yes Hours: 2800H Length: 3000mm Width: 1800mm Height: 1900mm Weight: 6350kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Year of construction: 2000, Year of manufacture: 2000 Control: Mazatrol 640 Documents included Chip conveyor TECHNICAL DATA – MAZAK INTEGREX 200SY Performance / Capacity Max. swing: Ø 540 mm Chuck size: 8" Max. machining diameter: Ø 540 mm Max. machining length: 1018 mm Max. outside diameter for bar material: Ø 51 mm Main spindle Spindle nose: JIS A2-6" Spindle bore diameter: Ø 61 mm Spindle speed: 35 – 5000 rpm (Standard) / 35 – 4500 rpm (Option: 5000)* Motor power (30 min. rating): 22 kW (18.5 kW*) Max. torque: 350 Nm (35.7 kgf·m) Sub spindle (counter spindle) Spindle nose: JIS A2-6" Spindle bore diameter: Ø 44 mm Spindle speed: 35 – 5000 rpm Motor power (10 min. rating): 7.5 kW Max. torque: 57 Nm (5.8 kgf·m) Turret / Tool data Turret type: With ATC, spindle turret External turning tool size: □ 25 mm Internal turning tool size: Ø 40 mm Milling tool: Max. Ø120 × 250 mm length Indexing time (90°): 0.5 s Milling spindle speed: 15 – 6000 rpm (Option: 10000) Milling spindle motor power: 7.5 kW Max. milling spindle torque: 62.29 Nm (6.35 kgf·m) Feed axes X-axis: Travel 530 mm / Rapid traverse 30,000 mm/min Z-axis: Travel 1065 mm / Rapid traverse 33,000 mm/min Y-axis: Travel 140 mm / Rapid traverse 15,000 mm/min Z2-axis: Travel 1005 mm / Rapid traverse 20,000 mm/min Media / Control Coolant tank volume: 250 L Power consumption (continuous): 32.7 kVA Hfelhcoyh E Irecqpeh Machine dimensions / Weight Overall length: 3485 mm Overall width: 2105 mm Overall height: 2416 mm Weight: 73,575 N (7,500 kgf)

Condition: used, Year of construction: 2004, turning diameter: 660 mm, spindle speed (max.): 5,000 rpm, spindle speed (min.): 35 rpm, travel distance X-axis: 580 mm, travel distance Y-axis: 160 mm, travel distance Z-axis: 1,045 mm, total height: 2,600 mm, total length: 3,820 mm, total width: 2,060 mm, overall weight: 10,400 kg, CNC Turning Milling centre with Second Spindle CNC Control Mazatrol PC Fusion CNC 640 MT PRO Turning diameter 550/660 mm Turning length 1016 mm Spindle bore diameter 65 mm Spindle speed 35-5000 R/min X-axis movement 580 mm Y-axis movement 160 mm Z-axis movement 1045 mm B-axis travel 225 ° mm C-axis indexing 360° Spindle nose A2-6 Hjlhccsy Nytpsqpefh Tool Taper Capto C6 Number of tools in magazine 40 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail.

Year of construction: 2006, operating hours: 19,067 h, condition: used, total length: 5,100 mm, total width: 2,800 mm, total height: 2,900 mm, Colour: Grey Empty weight: 13.700 kg Price: On request Turning and milling center Total: 9-axes, B-Axis, Y-Axis, C-Axis Automatic product feed with controlled arm from Pneumotec Automatic bar feeder from LNS Quick Load Servo III Sub-spindle VAC-MB11 4500 rpm Milling head with automatic tool changer and 44 ATC units Lathe turret: 12 ATC units Chip conveyor - Year: 2006 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No - Serial number: 122616 - Operating hours: 19067 - Drive system: CNC - Control system brand: OKUMA-OSP - Control system type: OSP P200L - Power [kW]: 22.0 - Swing over bed [mm]: 550 - Distance between centres [mm]: 1500 - Spindle bore [mm]: 80 - Options: Turret, Live tools, Bar feeder, Three-jaw chuck, Tool magazine, Chip conveyor, C-axis - └ Tool magazine [pcs.]: 44 - X-axis travel [mm]: 500 - Y-axis travel [mm]: 95 - Z-axis travel [mm]: 1650 - Tool holder: HSK-F63 - Type of bar feeder: LNS Quick Load Servo III - Transport dimensions: 5100mm x 2800mm x 2900mm (l x w x h) - Transport weight [kg]: 13700kg - Transport packages [pcs.]: 7 Financial information VAT: The price shown is exclusive of VAT Hfjlhccsy N Dt Hjqpoh VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, Year of construction: 1999, turning length: 1,000 mm, turning diameter: 500 mm, spindle bore: 80 mm, spindle speed (max.): 2,500 rpm, capacity: 1000 x 570 mm Hfelhccqsy E Hvvepsh spindle bore: 80 mm multi-tool turret Siemens control steady rest 3-jaw rotary chuck, 315 mm

Condition: good (used), Year of construction: 2016, spindle speed (max.): 3,500 rpm, overall weight: 6,000 kg, Equipment: documentation/manual, rotational speed infinitely variable, Main parameters: Controller: FANUC 0iD/31iA Chuck.: SAMCHULLY 10" Spindle bore: 86mm With jacket tube.:78mm Turret head: 12 main positions 12 secondary positions, BMT65 connection, Programmable hydraulic tailstock: MT5 Main spindle power: 22kW S1max=3500 1/min Living tool power: 5.5kw S2max=5000 1/min X movement range: 260mm Hslhccswtg Inoqpofh Z axis movement range: 830mm Y axis movement range: + - 52mm (104mm) C axis Maximum turning length: L=760 Largest turning diameter: D=376mm Fast travel speed: 30m/min Automatic tool measurement with probe arm Weight: 6000 kg

Condition: good (used), Year of construction: 2016, spindle speed (max.): 3,500 rpm, overall weight: 6,450 kg, Equipment: documentation/manual, rotational speed infinitely variable, Main parameters: Holhccqswtg R Ajpefh Controller: FANUC 0iD/31iA Chuck.: SAMCHULLY 10" Spindle bore.: 86mm With jacket tube.:78mm Revolver head.: 12 main positions 12 secondary positions, BMT65 connection, Sub-spindle: 4500 1/min Main spindle power: 22kW S1max=3500 1/min Living tool power: 5.5kw Tool speed max=5000 1/min X movement range.: 260mm Z axis movement range.: 830mm Y axis movement range: + - 52mm (104mm) C axis Maximum turning length: L=760 Largest turning diameter: D=376mm Fast travel speed: 30m/min Automatic tool measurement with probe arm Weight.: 6450 kg

Condition: excellent (used), Year of construction: 2017, XYZ SLX555 x 3m ProtoTRAK Control Gap Bed Centre Lathe ProtoTRAK SLX Control (2017) Max. Distance Between Centres 3000mm Max. Swing over Bed 560mm Max. Swing over Gap 935mm Max. Swing over Cross slides 350mm Max. Cross slide Travel 290mm Spindle Nose D1-11 Spindle Bore 104mm Spindle Speeds 30 – 1800rpm Spindle Motor 15Hp Quick Change Tool Post Tailstock MT7 Tailstock Dia’ 75mm Tailstock Travel 160m Helhccey R Rdheqpjfh Manufactured | 2012 Dimensions: L x D x H 5220 x 2150 x 1950 mm Weight 7400 kg Supplied with: 3 Jaw Chuck Indexing Toolpost Machine Handbooks TRAKing®. Constant Surface Speed. Rapid Traverse with Joy Stick. 3 Point Fixed Steady Travelling Steady Interlocking Guards Auto Lubrication. Coolant. Worklight We can offer delivery & installation, operator training and warranties. *For sale with Jet Machinery Ltd* Jet Machinery Stock No: #79001 Machine Serial Number: SLM00072 £55,000.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

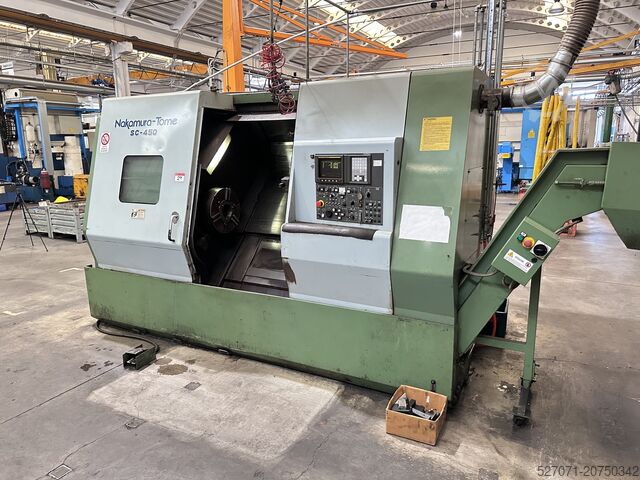

Condition: excellent (used), Year of construction: 1997, CN NAKAMURA-TOME Turning Center SC-450 Holhccqoy S Smtepjfh CNC: FANUC SERIES 21-T Year: 1997 Power: 45 kW with chip conveyor 5 tool holders GOUBARD tilting and forklift-compatible chip bin 1 inspection point

Condition: excellent (used), Year of construction: 2018, Hyundai vertical turning center, Type WIA LV500RM Hjlhccjy S Sihsqpofh Year: 2018 CNC: Fanuc Turret: BMT 75 Chip conveyor Tilting and fork-liftable chip bin (Goubard)

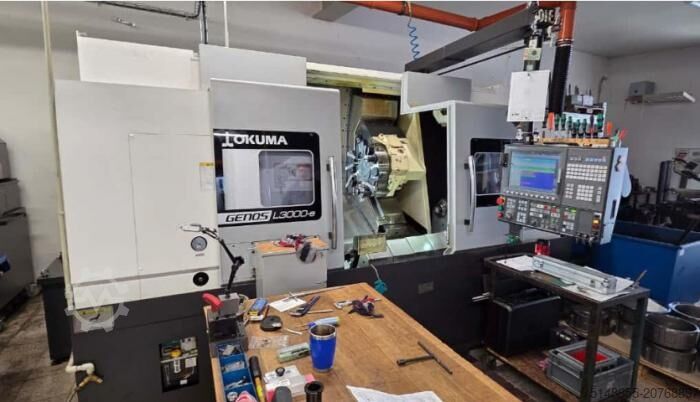

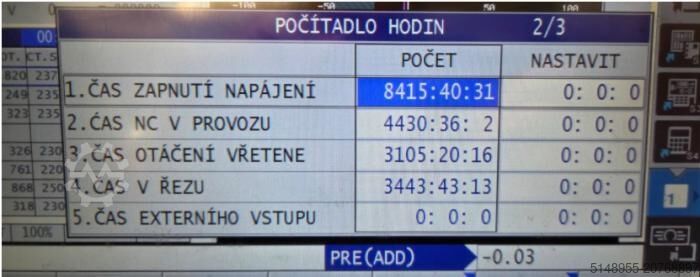

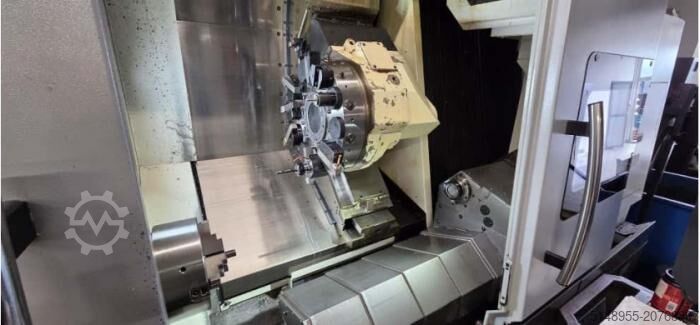

Condition: used, Year of construction: 2017, operating hours: 33,500 h, functionality: fully functional, machine/vehicle number: W6212-T63-280, We have a CNC lathe for sale, brand Okuma-Genos, which is ready for operation. The machine is fully functional and has been regularly maintained and serviced. - Y-axis - Main and sub spindle Hslhccew Np Uheqpefh - Tool probe - Parts catcher Spindle speed: 3800 rpm Spindle operating hours: 20,503 h A detailed description of the machine is included in the attachment. Technical condition: Good. The machine has been in our facility since new, purchased in 2017 and commissioned in the first quarter of 2018. The lathe is connected to power and currently in operation. Viewing and functional inspection possible under power in our workshop. Reason for sale: ongoing changes in our projects. Optionally, an LNS bar feeder may be purchased for €7,000 and an oil mist separator for €1,500 (both visible in the pictures).
