Used vertical turret lathes - single column - faceplate diameter 0-1000mm for sale (6)

Condition: used, Technical details: faceplate diameter: 1000 mm swing diameter: 1600 mm turning height: 1200 mm main drive: 75 kW faceplate speeds from - to: 7 - 800 U/min Hfodpfsvb Dcaex Ad Ajr milling motor: 25 kW milling head speed: 7 - 3000 U/min milling spindle - taper: ISO 50 cross rail adjustment - vertical: 800 mm ram head dimension: 240 x 240 mm weight of the machine ca.: 40 to dimensions of the machine ca.: 9 x 7,8 x 6,0 m Machine general overhould in 2004 and equiped with Siemens 840 D control - tool changer rack magazine - C-axis, live tooling, - Transmit function electronical Y-axis - angular milling head - complete splash housing - coolant device, chip conveyor *

Condition: good (used), Max. turning diameter: 1100 mm Faceplate turning diameter: 800 mm Maximum turning height over faceplate: 900 mm Max. table load: 2000 kg Maximum total cutting force at a diameter of 700 mm: 3400 kg 12 faceplate speeds: 12 - 200 rpm Number of feeds, horizontal and vertical: 8 Feed size, horizontal and vertical: 0.069 – 2.6 mm/rev Rapid traverse of slides: 2500 mm/min Drive power: 15 kW Dimensions (L x W x H): 2300 x 2100 x 2900 mm Weight: approx. 7,500 kg Accessories / Special Features: • 2-axis digital readout (new in 2024) • 5-position star turret • Emergency stop button • Chip guard for faceplate Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 Hodpfx Aexamgzjd Ajfr DE - 44143 Dortmund - Wambel

Year of construction: 2007, condition: good (used), Make: Okuma Type: LVT-300 M Control: OSP-P200L Year: 2007 X Travel 210 Z Travel 360 Power 22 kW Hfsdpfx Adjku Aaaj Aor Driven live tools 7.5 kw / 3000 Rpm In feed table Out feed table Package jaws Package tool holders Chip conveyor Coolant system 9 Bar Grundfos Specifications Metric US Standard Max. turning Ø 280 mm Table Ø 210 mm Horizontal movement support 360 mm ATC / revolver 12 Speeds / ranges 4000 Rpm C-Axis 360000 ° Dimensions (Estimate) There are no dimensions for this machine (yet). Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, TECHNICAL DETAILS - Number of axes : 2 - Number of turrets : 1 - Max. turning diameter : 220 [mm] - Maximum workpiece height : 175 [mm] - X/Z stroke : 660/300 [mm] MAIN SPINDLE - Spindle speeds : 4500 [rpm] - Spindle power : 27 [kW] - C axis indexing precision : 0.001 [°] TURRET - Tool type : VDI40 - Number of positions : 12 POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 36 [kW] WEIGHT & DIMENSIONS - Machine floor space : 3120/2266 [mm] - Machine height : 3200 [mm] - Machine weight : 7000 [kg] MACHINE HOURS - Number of hours under power : 74809 [h] - Number of spindle hours : 30521 [h] Hjdsxc N I Tepfx Ad Aofr EQUIPMENT - CNC : Fanuc 32i-A - Interface : Ethernet / RS232 / USB / PCMCIA - Coolant tank - Chips conveyor - Parts conveying strip - Chuck 3 jaws

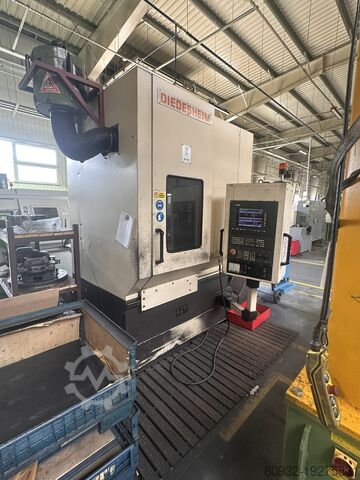

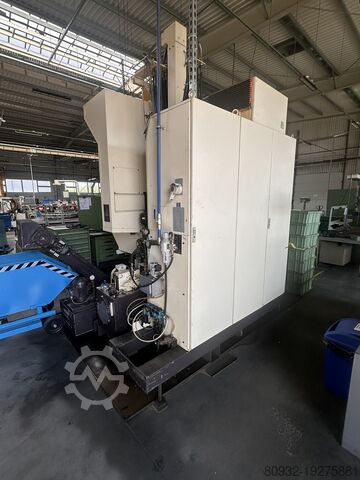

Condition: used, Year of construction: 1998, functionality: fully functional, machine/vehicle number: 22730, VDM55 No22730 Year 1998 Hfsdewpkdlepfx Ad Ajr Travel ranges axes X 900 Z 500 Turret Number of stations 8 Spindle speeds 1/min 1700 Control Sinumerik 840C Power kVA 110

Condition: good (used), Year of construction: 2003, functionality: fully functional, For sale used Mori Seiki VL-25A1 in excellent condition. Year: 2003 Hsdpjuf Tb Ujfx Ad Ajfr Mori Siki Mori Siki Mori Siki Mori Siki, 2003. Delivery parity: EXW Székesfehérvár. We can assist in disassembling and assembling the machine on request.
