Used Turning automatic lathes for sale (251)

Condition: good (used), Year of construction: 2007, operating hours: 27,896 h, Functionality: fully functional, machine/vehicle number: 2101-0171, turning diameter: 20 mm, rotational speed (max.): 10,000 rpm, torque: 14 Nm, No reserve price - guaranteed sale at the highest bid! TECHNICAL DATA Max. turning diameter: 20 mm Tool body diameter: 20 mm Spindle positioning resolution: 0.1° Main spindle Rated power: 3.7 kW Power: 5.5 kW Torque: 14 Nm Rated torque: 9.4 Nm Speed: 10,000 rpm Axis data Linear axis Z1 / X1 / Z1 – Stroke: 80 / 35 / 240 mm Bsljwcprnorakpiowl Linear axis Z1 / X1 / Z1 – Feed (max.): 40 m/min Linear axis Z1 / X1 / Z1 – Acceleration (max.): 10 m/s² Linear axis Z1 / X1 / Z1 – Rated force: 1,250 N Linear axis Z2 / X2 – Stroke: 180 / 230 mm Linear axis Z2 / X2 – Feed (max.): 40 m/min Linear axis Z2 / X2 – Acceleration (max.): 10 m/s² Linear axis Z2 / X2 – Nominal force: 1,250 N Tool holder Number of stationary tools (internal): 6 Diameter: 20 mm Number of stationary tools (external): 4 Tool shank size: 12 × 12 mm Number of rotating tools: 4 Collet type: ESX 16 MACHINE DETAILS Machine dimensions (L × W × H): 2,275 × 1,300 × 1,760 mm Weight: 2,600 kg Connected load: 21 kVA On-time: 85,620 h Program run: 27,896 h EQUIPMENT - FMB Turbo 3-36 bar loader / 4200 / A, built in 2007 - Coolant tank with chip conveyor - Central lubrication system - Handheld control unit - Documentation available

Condition: ready for operation (used), Year of construction: 2002, Functionality: fully functional, turning length: 130 mm, spindle speed (max.): 12,000 rpm, spindle bore: 17 mm, bar passage: 13 mm, feed length X-axis: 30 mm, feed length Y-axis: 135 mm, TECHNICAL DETAILS Control: Siemens Sinumerik 840D Configuration: Dual electrospindles, dual C-axis Main spindle and moving headstock Bar capacity: Ø 13 mm Spindle bore: Ø 17 mm Electrospindle (100/60%): 2.2 / 3.7 kW Spindle speed: 12,000 rpm Spindle stroke: 130 mm Counter spindle Bar capacity: Ø 13 mm Spindle bore: Ø 17 mm Electrospindle (100/60%): 2.2 / 3.7 kW Max. spindle speed: 12,000 rpm Max. workpiece length in the counter spindle: 95 mm Max. workpiece length with front ejection: 130 mm mm Bwslraowc R Ukokpisl Tool carrier Horizontal travel (X-axis): 2 × 30 mm Vertical travel (Y-axis): 135 mm Tool holder: 1 tool carrier Outside stations: 8 stations, 12 × 12 mm Inside tools: 3, mounting bore Ø 16 mm Driven tools Number of driven tools: 3 Tool holder: ER 11 / ET 1-12 Speed (2 stations): 6,000 rpm Speed (1 station): 2,000 rpm Threading: Rigid threading Workpiece output: via counter spindle MACHINE DETAILS Machine dimensions (L × W × H): 1,830 × 950 × 1,717 mm Machine weight: 2,000 kg Cooling Coolant tank: 120 l Flow: 63 l/min Pressure: 2 bar Pneumatics Operating pressure: 6 bar Connection: Ø 10 mm Electrical data Supply voltage: 3 × 400 V / 50 Hz Max. power consumption: 21 kVA Cable cross-section: 10 mm² Fuses: 32 A, type AM Bar loader Standard diameter: Ø 2 – 16 mm Max. bar length: 3.2 m EQUIPMENT - FMB bar loader magazine Minimag type 3200 / 1205 A, built in 2002 - Diameter range for bar loader: Ø 2 – 13 mm - Workpiece output via counter spindle - Rigid thread cutting function - 3 driven tools - Dual C-axis with electric motors for main and counter spindle

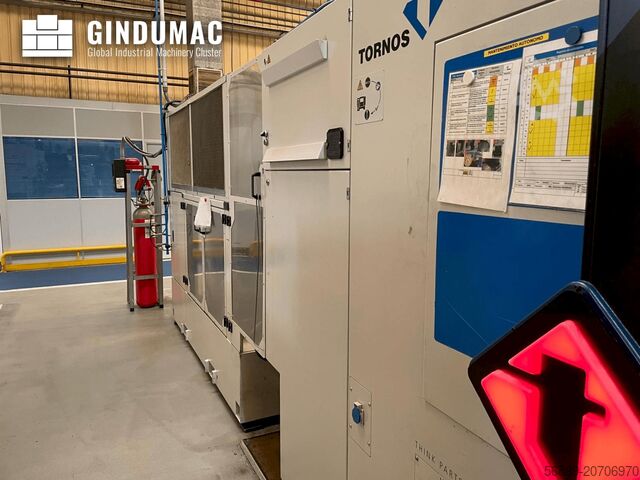

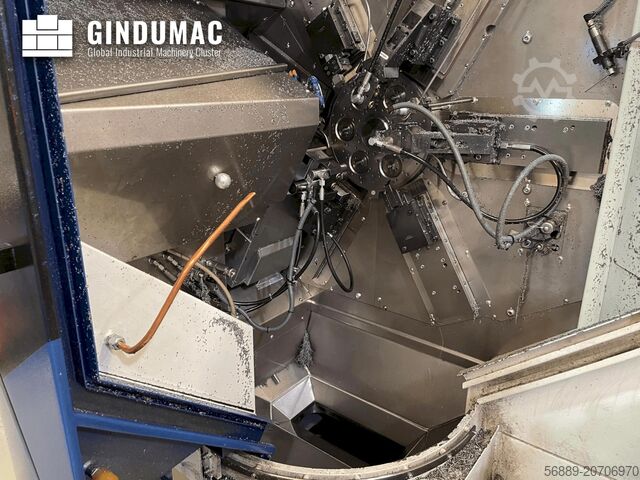

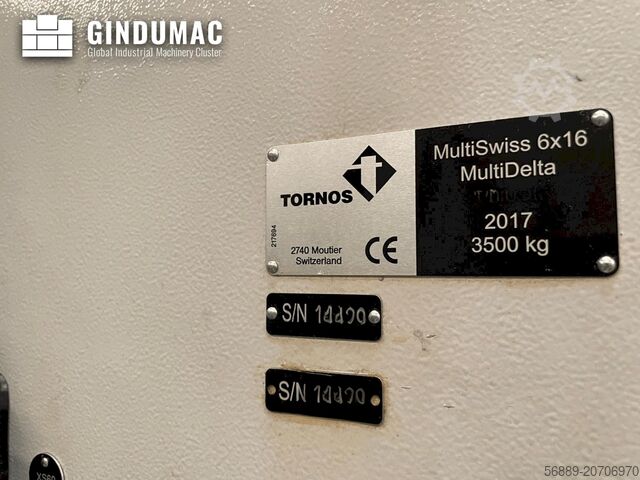

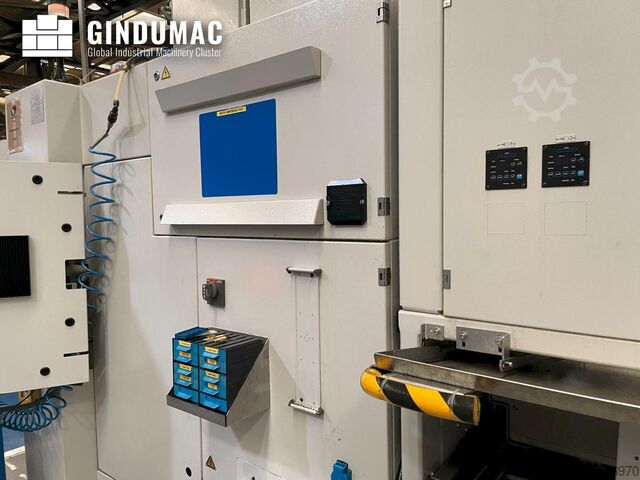

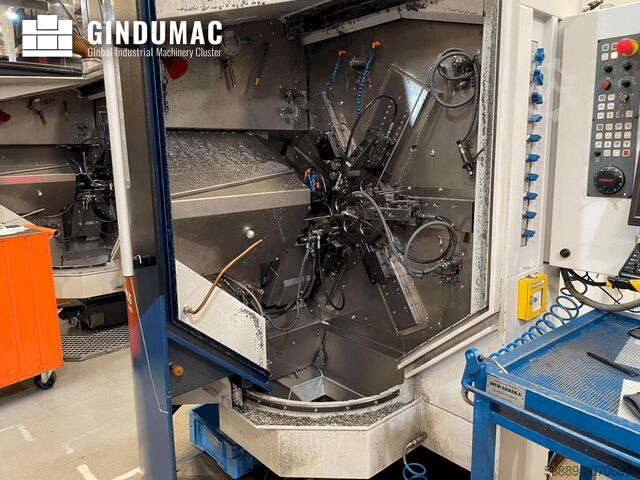

Condition: excellent (used), Year of construction: 2016, Tornos MultiSwiss 6x16 CNC Multi-Spindle Screw Machine Mfd. 2016 6 Spindles Diameter:16mm. Fanuc Control Equipped as pictured Bwolrakewb H Ttjpiol Run time: 41786 hrs Power on: 64,164 hrs Standard tornos bar feed (5ft) 6 Motorspindles 5,5 kW max. speed 8’000 RPM Spindle capacity 14 mm, Z 50mm stroke (max. parts 40mm). 6 slides X 40mm stroke 1 counter-operation slide, 75mm stroke. Counter spindle with integrated motor 6 kW Max. speed 8’000 RPM, 150mm stroke. Numeric control Fanuc 30i Integrated PC with screen 17” Programming system TB DECO (DCS version) (requires 3001) contact us for more detail

Condition: good (used), Year of construction: 2007, machine/vehicle number: 8580-20, Equipped with: Fanuc PNC Deco Whirler IEMCA GN120-37 Bar Feed Coolant Tank Chip Conveyor CE Mark Specifications: Sliding headstock (axis Z1/C1) Max. bar passage o 20 (25,4) mm Length of parts - guide bush turning 200 mm Programmable spindle rotation speed 100-10000 rpm Positioned indexing and stop, increments 0.1 degree Max. spindle power 3.7 (5.5) kW Guide bush holder (X1/Y1) (X2/Y2) Number of tools in the guide bush (fixed or turning) 2 x 5 Tool section 16 x 16 mm Number of cross millers/drillers in the guide bush 4 Programmable rotation speed 100-8000 rpm Max. power of turning spindles 1.5 (2.2) kW End unit (X3/Y3) Bjlraksrtrv Ispijwl Max. number of end tools (fixed or turning) 4 Programmable rotation speed 100-6000 rpm Max. power of turning spindles 1.5 (2.2) kW Counter-spindle and back-operation (X4/Y4/Z4/C4) Max. diameter clamping capacity 20 (25.4) mm Standard length of parts 200 mm Programmable rotation speed 100-10000 rpm Positioned indexing and stop, increments 0.1 degree Max. number of back-operations Number of fixed and turning spindles 7 Programmable spindle rotation speed 100-8000 rpm Max. power of turning spindles 1.5 (2.2) kW

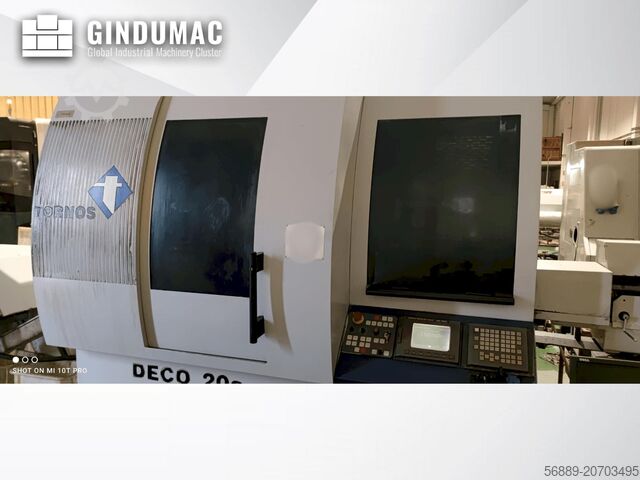

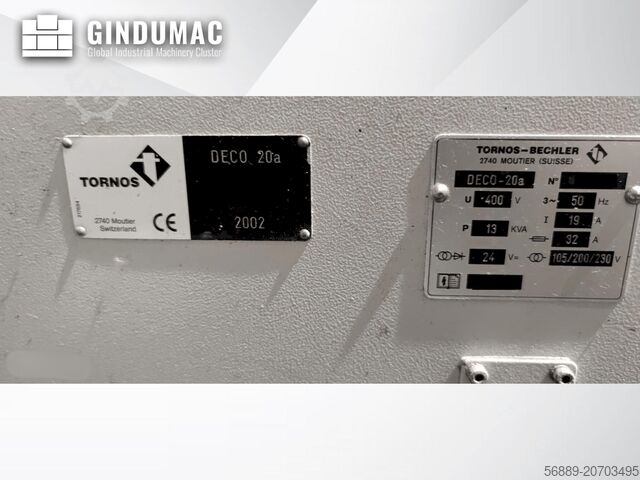

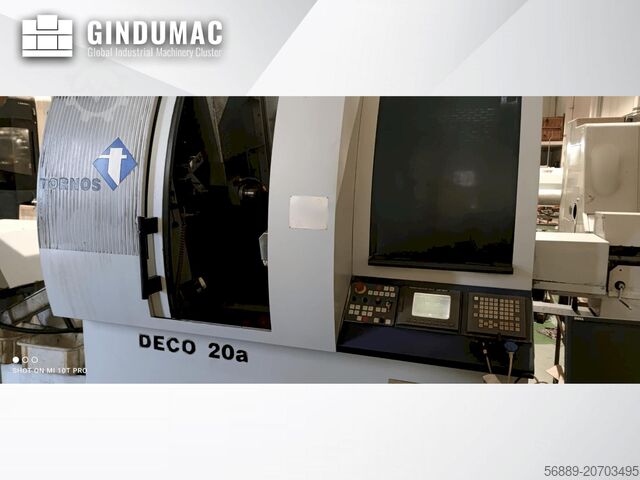

Condition: ready for operation (used), Year of construction: 2002, operating hours: 55,004 h, Control Unit Brand FANUC Main Drive Number of axis 8 Media Chip conveyor Yes Additional Equipment ROBOBAR SSF automatic bar loader Motorized tools Boljwgf Aqsrakpiswl Main spindle and sub-spindle Tool holders Collets This 8-axis Tornos-Bechler Deco 20a was manufactured in 2002. A Swiss type turning machine featuring a max turning diameter of 20mm, equipped with a Fanuc control system, motorized tools, main and sub-spindle, and a ROBOBAR SSF automatic bar loader. Includes tool holders and collets. A great opportunity to buy this Tornos-Bechler Deco 20a Swiss type turning machine. Contact us for further details regarding this Swiss type turning machine. Application Types Turning

Condition: excellent (used), Year of construction: 2013, Traub TNL 18-7B CNC Automatic Lathe Base machine: 2441 x 1396 mm Weight: 3800 kg Spindle height above floor: 3800 mm Connected power: 24 kW Main spindle Max. bar capacity: 18 mm Max. speed: 12,000 rpm Cross-cut speed: 5,000 rpm Z stroke: 205 mm Rapid traverse: 40 m/min Z measuring system resolution: 0.001 mm Feed force: 3000 N Spindle head / short taper: Traub short taper mount Max. clamping force: 1400 daN Max. clamping pressure: 40 bar Min. clamping pressure: 7.5 bar Piston area: 40 cm2 Total cylinder travel: 5 mm Clamping tube thread: M25 X 1 Counter spindle Workpiece diameter: 21 mm Workpiece clamping depth: 180 mm Max. speed: 12,000 rpm Strokes: X: 120 mm Y: -20/+40 mm Z: 250 mm Rapid traverse: X: 20 m/min Y: 20 m/min Z: 40 m/min Max. clamping pressure: 30 bar Min. clamping pressure: 10 bar Top tool turret with B-axis Number of stations: 8 Shank cross-section, turning tool: 16 x 16 mm Stroke: X: 120 mm Y: -25/+40 mm Z: 250 mm Rapid traverse: X: 20 m/min Y: 20 m/min Z: 40 m/min Chip-to-chip time: 0.5 sec Measuring system resolution: X: 0.0005 mm Y: 0.0005 mm Z: 0.001 mm Lower tool turret Number of stations: 7 + counter spindle Shaft cross-section, turning tool: 16 x 16 mm Stroke: X: 120 mm Y: -20/+40 mm Z: 250 mm Rapid traverse: X: 20 m/min Y: 20 m/min Z: 40 m/min Chip-to-chip time: 0.5 sec Measuring system resolution: X: 0.0005 mm Y: 0.0005 mm Z: 0.001 mm Tool drive for upper tool turret Number of driven stations: Max. 8 Drive power: 2 kW Max. speed: 12,000 rpm Torque: 3.9 Nm Tool drive for lower tool turret Number of driven stations: 7 + counter spindle Drive power: 3.4 kW Max. speed: 12,000 rpm Torque: 7.3 Nm Tool drive for the rear unit Number of stations: 7 Number of driven stations: max. 3 Pitch spacing: 46 mm Drive power: 2 kW Max. speed: 7,500 rpm Torque: 4.7 Nm Drive power: 2 kW Max. speed: 4,000 rpm Torque: 11.8 SCOPE OF OFFER INCLUDES (list is not exhaustive): Traub CNC lathe Bjlrakowg Takspiswl Tool holders, driven and non-driven High-pressure and belt filter system Oil mist separator Fire extinguishing system Chip conveyor Bar loader Operational documentation For the exact scope of offer, see the photo gallery No liability is assumed for the accuracy, completeness, or timeliness of the information provided.

Condition: good (used), Year of construction: 2013, Functionality: fully functional, Tornos Nano, from 2013 Belewgniyjrakpiswl Operating hours: 14,000 Meter bar feeder (homemade)

Condition: ready for operation (used), Year of construction: 2002, Functionality: fully functional, machine/vehicle number: 81154, turning length: 600 mm, turning diameter over cross slide: 300 mm, spindle speed (max.): 4,000 rpm, turning diameter: 360 mm, bar passage: 60 mm, TECHNICAL DETAILS Control: Siemens 840D Machining area Bar capacity: Ø 60 mm Spindle bore: Ø 66 mm Turning diameter (effective): 300 mm Permissible turning diameter: 360 mm Turning length: 600 mm Center distance: 870 mm Spindle Spindle mount: ISO-A6 Speed range: 0 – 4,000 rpm Power: 15 kW (S1) Tool turret Turret system: Baruffaldi VDI Tool stations: 12 Driven tools: 6 Travel paths X-axis travel: 190 mm Z-axis travel: 650 mm Rapid traverse speed X/Z: 18 m/min Tailstock Tailstock movement: manual via keystroke or M-code Condition and Special features Bolraewc Sa Uekpijwl Filter system: Mist extraction currently out of service EQUIPMENT - LNS Super Hydrobar hydraulic bar loader (Swiss made) - SMW-AUTOBLOK chuck type 210HYN-S - Tool package with clamping jaws and VDI tool holders - Turret with 6 driven tools - Programmable tailstock control

Condition: excellent (used), Year of construction: 2016, Tornos MultiSwiss 6x16 CNC Multi-Spindle Screw Machine Mfd. 2016 6 Spindles Diameter:16mm Fanuc Control Equipped as pictured Run time: 42,689 hrs Power on: 64,668 hrs Standard tornos bar feed (5ft) 6 Motorspindles 5,5 kW max. speed 8’000 RPM Spindle capacity 14 mm, Z 50mm stroke (max. parts 40mm). Bolrakowa D Tuspiswl 6 slides X 40mm stroke 1 counter-operation slide, 75mm stroke. Counter spindle with integrated motor 6 kW Max. speed 8’000 RPM, 150mm stroke. Numeric control Fanuc 30i Integrated PC with screen 17” Programming system TB DECO (DCS version) (requires 3001) contact us for more details

Condition: new, Year of construction: 2025, Functionality: fully functional, spindle motor power: 4,200 W, turning length: 180 mm, turning diameter over cross slide: 26 mm, turning diameter: 26 mm, spindle bore: 26 mm, overall weight: 2,400 kg, rotational speed (max.): 10,000 rpm, type of input current: three-phase, bar passage: 26 mm, feed length Z-axis: 180 mm, machining length: 180 mm, rapid traverse X-axis: 24 m/min, rapid traverse Y-axis: 24 m/min, rapid traverse Z-axis: 20 m/min, warranty duration: 12 months, Equipment: rotational speed infinitely variable, LINEAR LATHE ITWIN S Bwjlrakpjvb Hybsisl Additionally with swivel head With a total of 29 tools, complex parts can be machined externally, internally and on the circumference on the iTwin S. The counter spindle allows backworking in one set-up.12 driven tools, 2 C-axes as well as Y-axis offer additional flexibility. The machine is very well suited for machining from bar as well as for machining inserts. As iTwinS, the machine is additionally equipped with a swivel head (B axis) on the main spindle. For inclined machining, 12 driven tools are available. The B-axis makes it possible to use the driven tools flexibly on the face or shell surface (90° swiveling).

Condition: ready for operation (used), Year of construction: 2021, operating hours: 1,800 h, General Data Measurements width 1125 mm Measurements depth 1800 mm Measurements height 1700 mm Machine weight 2000 kg Control Unit Brand FANUC Model Oi-TF Main Drive Number of axis 5 Additional Equipment Tool Positions: 21 Live Tool Positions: 4 Barfeed Magazine: LNS Alpha 320 S3 This 5-axis TSUGAMI B0205E-III swiss type turning machine was manufactured in 2021. Ideal for precision and complex machining, it offers advanced functionality for high-quality turning operations. Consider the opportunity to buy this TSUGAMI B0205E-III swiss type turning machine. Contact us for more information. Bjlewf Smyjrakpiewl Application Types Turning

Condition: excellent (used), Year of construction: 2007, STAR ECAS 12 CNC Swiss-type lathe TECHNICAL DATA Maximum machining diameter: 13mm Max. headstock stroke: 205 mm Maximum drilling capability: Stationary tool: 10 mm Power driven tool: 8 mm Maximum tapping capability: Stationary tool: M8 x P 1.25 Power driven tool: M6 X P1.0 Maximum milling capability: 10mm Maximum die cutting capability: M8 x P1.25 Maximum slotting capability: 1.5 x 4 mm Feed rate: Z1, X1, Y1, Z2, X2, Z3, X3, Y3: 18,000 mm/min C1, C2: 194,400°/min Maximum turning feed rate: Z1, X1, Y1, Z2, X2, Z3, X3, Y3: 18,000 mm/min C1, C2: 194,400°/min Minimum input increment: X1, X2, X3: 0.001 mm Z1, Z2, Z3, Y1, Y3: 0.001 mm C1, C2: 0.001° Spindle speed: 12,000 rpm Belswf Aclsrakpijwl Indexing angle: 0.01° Dimensions: 2588 x 1150 x 1765 mm Center height: 1040 mm Weight: 3500 kg SCOPE OF OFFER INCLUDES (list not exhaustive): Star Ecas 12 CNC lathe Coolant tank / pump High-pressure system Transformer Operating documentation Exact scope of offer as shown in the photo gallery No liability is assumed for the accuracy, completeness, or timeliness of the information.

Condition: used, Year of construction: 1998, operating hours: 60,931 h, machine/vehicle number: IntNr231212, Star Bros. SR - 32 Year 1998 Operating hours 60931 IntNo231025 Control: CNC Fanuc 18i Tb Machining diameter: max. 32mm Maximum workpiece length: 125 mm Headstock travel: 310 mm C-axis: 1° Number of axes: 7 Drilling capacity fixed tool diameter: 13 mm Drilling capacity rotating tool diameter: 8 mm Tapping: M12 (with driven tool M6) Milling capacity: Ø 10 mm Spindle speeds: 350 - 7000 (driven and smooth tools) Coolant used in the machine: Oil CE declaration of conformity According to seller: Fanuc cross drive drive system defective and was deactivated by Star Micronics. Dimensions of the machine 1700x2512x1700 mm Weight of the machine 2900 kg Bar loading magazine FMB TURBO 5-42. Bar capacity 5-42 mm attachment variant "A" Hinged belt conveyor MAYFRAN Kraft and Bauer extinguishing system and CO2 extinguishing agent container (10 kg) Operating and maintenance manual Operating tools Machine dimensions: approx. 1700 x 2512 x 1700 [mm] Machine weight: approx. 2900 [kg] Loading magazine dimensions: approx. 4500 x 1000 x 1800 [mm] Weight of loading magazine: approx. 1800 [kg] Dimensions peripherals & accessories: approx. 1900 x 700 x 800 [mm] Weight of peripherals & accessories: approx. 200 [kg] The machine can be inspected by appointment. Changes and errors in the technical data and information as well as prior sale reserved! Used. Star SR - 32 Year 1998 Operating hours 60931 Control: CNC Fanuc 18i Tb Machining diameter: max. 32mm Maximum workpiece length: 125 mm Headstock travel: 310 mm C-axis: 1° Number of axes: 7 Drilling capacity fixed tool diameter: 13 mm Drilling capacity rotating tool diameter: 8 mm Tapping: M12 (with driven tool M6) Milling capacity: Ø 10 mm Spindle speeds: 350 - 7000 (driven and smooth tools) Coolant used in the machine: Oil CE declaration of conformity Operating and maintenance manual Operating tools According to the sender: Fanuc transverse drive system defective and was deactivated by Star Micronics. Bsljwfq Dwjrakpiswl Machine dimensions 1700x2512x1700 mm Weight of the machine 2900 kg Bar feeder FMB TURBO 5-42. Bar capacity 5-42 mm attachment variant "A" Hinged belt conveyor MAYFRAN Small extinguishing system Kraft and Bauer and extinguishing agent container CO2 (10 kg) Machine dimensions: approx. 1700 x 2512 x 1700 [mm] Machine weight: approx. 2900 [kg] Loading magazine dimensions: approx. 4500 x 1000 x 1800 [mm] Weight of loading magazine: approx. 1800 [kg] Dimensions peripherals & accessories: approx. 1900 x 700 x 800 [mm] Weight of peripherals & accessories: approx. 200 [kg] The machine can be inspected by appointment. Changes and errors in the technical data and information as well as prior sale reserved!

Condition: like new (used), Year of construction: 2023, operating hours: 320 h, Commissioning in 2024 prepared for emulsion removal of long parts main spindle extension Ø 23 mm max. headstock stroke 205 mm max. speed 8,000 rpm 6-way turning tool holder on linear slide 4-way drilling unit including drilling fixtures (front/rear) 4 driven tools for cross machining on linear slide 4 tools including drilling fixtures for rear machining with drive speed of driven tools 8,000 rpm Belroupi Hceakpiewl speed of counter spindle 9,000 rpm 7 axes bar loader IEMCA BOSS 338/32 HD

Condition: excellent (used), Year of construction: 2019, machine/vehicle number: 14974, Tornos MultiSwiss 6x16  CNC Multi-Spindle Screw Machine Mfd. 2019 6 Motorspindles  5,5 kW max. speed 8’000 RPM Spindle capacity 16 mm, Z 50mm stroke (max. parts 40mm). 6 slides X 40mm stroke 1 counter-operation slide, 75mm stroke. Counter spindle with integrated motor 6 kW Max. speed 8’000 RPM, 150mm stroke. Numeric control Fanuc 30i Integrated PC with screen 17” Programming system TB DECO (DCS version) (requires 3003) contact us for more details Bwelrajv S H Uyskpiel

Condition: reconditioned (used), Year of construction: 2011, Functionality: fully functional, turning length: 320 mm, spindle speed (max.): 8,000 rpm, turning diameter: 32 mm, overall weight: 3,500 kg, Equipment: rotational speed infinitely variable, Citizen M32-3M5, very good condition, machine partially overhauled - All servo axis amplifiers replaced - Spindle bearings completely replaced - X2 slides re-scraped - Z2 guideways replaced - Geometry completely adjusted Bolrajwdrp Sskpijwl - Complete cleaning performed Number of tool stations on turret: 12 Number of servo axes: 8 (Z1/X1/Y1/X2/Z2/Y2/Z3/X3) Y-axis on the turret Part removal unit Including FMB Turbo 3-36 bar loading magazine Including Müller Combi Stream chip conveyor/high-pressure combo system Including Kraft and Bauer fire extinguishing system Including 10 driven tool holders and 10 tool holders for the turret 1-year warranty on the replaced components Delivery and commissioning on-site available upon request

Condition: good (used), Year of construction: 2005, machine/vehicle number: 0741, spindle motor power: 2,200 W, turning length: 85 mm, turning diameter over cross slide: 16 mm, spindle speed (min.): 500 rpm, turning diameter: 16 mm, overall weight: 1,700 kg, 6-axis long lathe Manufacturer: Star + FMB Type: SA-16-RC + turbo 2- 16 Bjlrakswhc Tcepiewl Year of manufacture: 2005 Control: Fanuc Series 18i - TB Number of spindles 2 Turning diameter maximum 16 mm Drilling diameter max. 7 mm Thread diameter max. M 6 (metric) Spindle speeds: Continuously variable from 500 rpm to 12000 rpm Spindle power 2.2 kW Dplgq9 Counter spindle speeds: from 500 rpm to 9000 rpm Tapping diameter M 6 (metric) Workpiece length for counter machining max. 85 mm Speed of driven tools 7500 rpm Power of rotating tools 0.4 kW Drilling diameter max. 4 mm Tapping diameter M 3 (Metric) Tool shank cross-section 10 mm Collet holder type ER 11 Rapid traverse 20 m/min Cutting speed 10000 mm/min Connection 50 Hz 3x 400 volts Spindle motor 2.2 / 3.7 kW Power of the counter spindle 1.1 / 0.5 kW Connection to compressed air 5 bar Total power requirement 6 kVA Machine weight approx. 1700 kg Length of the bars for the bar loader: 3,200 mm

Condition: excellent (used), Year of construction: 2020, operating hours: 11,400 h, Functionality: fully functional, Technical Specifications: Max. workpiece diameter: 32 mm Max. workpiece length: 240 mm Main spindle: Max. speed range: 8,500 rpm Drive power: 7.5 / 5.5 kW Max. torque: 51.9 / 40.4 Nm Max. bar diameter: 32 mm Counter spindle: Max. speed range: 8,500 rpm Drive power: 3.7 / 2.2 kW Max. torque: 23.6 / 14 Nm Max. bar diameter: 32 mm Tool holder on slide 1: Fixed turning tools: 6-16 × 16 (8-12 × 12) Tools for front and back machining: 4-D.25 (5-D.20) Driven tools: 4-ER20 (6-ER16) Maximum Speed: 6,000-4,000 (6,000-3,815) rpm Power (S3 40% / S1): 1.9 / 1 kW Torque (S3 40% / S1): 3.5 / 3 - 5.25 / 4.5 Nm Tool holders on slide Y2: Fixed / driven tools for back machining: 4 / 0 Travel paths: Z1 travel (spindle stroke): 100 / 240 mm Tool holder 1: X1 / Y1 travel: 70 / 405 mm Counter spindle: X2 / Z2 travel: 300 / 200 mm Feed rates: Rapid traverse: (X1, Z1, X2, Z2) 40 / (Y1, Y2) 30 m/min Machine weight (incl. Coolant tank): 3.5 tons Operating hours: approx. 11,400 h Spindle hours: approx. 6,650 h Belrakswgynhjpiewl Technical features: - Number of linear axes + c-axes: 6 + 2 pcs. - Number of spindles: 2 pcs. - Number of Channels: 2 pcs. - 28 tool positions on 2 independent linear holders - Up to 10 driven tools - Flushing for counter spindle collet - Conversion kit for short-turning to long-turning - Kit for emulsions - Preparation for oil mist extraction - DMG Mori Netservice client Accessories: - Internal coolant supply, 600 l tank - Hinged belt chip conveyor - Main spindle reducer tube - Bar loader, make IEMCA BOSS 338/32 HD - Transformer from 400 V to 200 V / 16 kVA - Signal lamp, 4-color Several machines are available. The technical specifications and equipment of the various machines may vary. Please contact us for specific information. Accessories, tools, and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Subject to changes and errors in the technical data and information, as well as prior sale!

Condition: used, Year of construction: 2016, operating hours: 44,682 h, machine/vehicle number: IntNr231032, IntNo231032 HANWHA CNC sliding headstock lathe XD20 V (Y2), year 2016/10 CNC control FANUC 32i-B with 8 axes Operating hours: 44682 MAIN SPINDLE Maximum turning diameter: 20 mm Max. spindle bore diameter: 24 mm Maximum speed [rpm]: 10,000 Maximum power [kW]: 3.7 C-axis with 0.001° Stroke Z1 [mm]: 210 Synchronous guide bush unit Guide bush type: 22.001 / T223 Type of collet chuck: 145E / F25 COUNTER SPINDLE Maximum speed [rpm]: 8,000 Maximum power [kW]: 3.7 Maximum pick-up diameter [mm]: 20 max. part length ejection to the front [mm]: 80 C-axis with 0.001° stroke Z2 [mm]: 210 Type of collet chuck: 145E / F25 TOOLING OPTIONS Tool slide X1,Y1: - Tool holder plate for 6 external turning tools 12 x 12 mm Cross drilling/milling device: - Quantity: 5 driven drilling/milling spindles modular - (tools 2 x ER16 - 3 x ER11) - Power: [kW]: 1.0 (S6000) - Front drilling unit for 5 drilling quills Rear machining with Y2 axis - Tool carrier for 8 tools - 4 driven ER16 modular drilling/milling spindles - 4 stationary ER16 modular drilling/milling spindles Bjlrakpowfq A Heiswl Rapid traverse speeds m/min: 40m/min (X1,Z1,C1,Y1, Z2,C2,X2,Y2) Connected load [KVA]: 15 ACCESSORIES Alignment shoes with leveling elements Service tool set Work area light Signal lamp (3-color) Safety door switch with interlock Maintenance and central lubrication unit (1.8 liter lubricating oil volume) Coolant flow monitoring Pneumatic blow-out device for the pick-up spindle gripper Manual and documentation (Maintenance and operating instructions incl. parameter list and test report) LCD/MDI color monitor Automatic switch-off function PowerOff Program check function (test run possible via handwheel) Continuous thread cutting cycle Runtime display / parts counter CF card interface Tool radius compensation Absolute reference point Self-diagnosis function Interface for JBS Parts conveyor belt with collecting tray 1° indexing on pick-up spindle Chip conveyor with coolant pump Machine coolant: oil CE declaration of conformity Accessories Bar feeder FMB Turbo 2-20 2-23mm/3200mm attachment variant "A" HD high pressure system SFB M60 eco / 150bar. 24L/min 4valves, switch-over filter 2 x 40um Tank with approx. 280L Hinged belt conveyor Small extinguishing system Kraft and Bauer and CO2 extinguishing agent tank Machine dimensions: approx. 2460 x 1380 x 1730 [mm] Machine weight: approx. 2900 [kg] Loading magazine dimensions: approx. 4220 x 620 x 1800 [mm] Weight of loading magazine: approx. 600 [kg] Dimensions peripherals & accessories: approx. 1900 x 700 x 800 [mm] Weight of peripherals & accessories: approx. 200 [kg] Dimensions peripherals & accessories: approx. 1900 x 700 x 800 [mm] Weight of peripherals & accessories: approx. 300 [kg] HD system dimensions: approx. 1660 x 612 x 1500 [mm] Weight of peripherals & accessories: approx. 300 [kg] The machine can be inspected by appointment. Changes and errors in the technical data and information as well as prior sale reserved! Used. HANWHA CNC sliding headstock lathe XD20 V (Y2), year 2016/10 CNC control FANUC 32i-B with 8 axes MAIN SPINDLE Maximum turning diameter: 20 mm Max. spindle bore diameter: 24 mm Maximum speed [rpm]: 10,000 Maximum power [kW]: 3.7 C-axis with 0.001° Stroke Z1 [mm]: 210 Synchronous guide bush unit Guide bush type: 22.001 / T223 Type of collet chuck: 145E / F25 COUNTER SPINDLE Maximum speed [rpm]: 8,000 Maximum power [kW]: 3.7 Maximum pick-up diameter [mm]: 20 max. part length ejection to the fr

Condition: used, Year of construction: 2019, bar material dia. 32/38 mm spindle passage 44 mm turning length 320 mm turning speeds 200-8000 U/min c-axis 0,001 Grad gripping station 32/38 mm turning length 120 mm turning speeds 200-8000 U/min c-axis 0,001 0 number of tools 13 fix number of milling stations 4+5 driven control Mitsubishi Meldas Number of axles 5+2 St. total power requirement 7,5 kW weight of the machine ca. 2850 kg dimensions of the machine ca. 2,5 x 1,4 x 1,75 + Irco m CNC sliding headstock machine Citizen L32-1M8, built 01/2019 with barloader Bolrajuwv Tgekpiewl FMB turbo 3-36 equipped with swar- & coolant tank, fire distiguisher. ON/OFF 23.471h Running hours 21.495h GBL function (standard) LFV function: no

Condition: good (used), Year of construction: 2000, Tornos SAS16.6 Multi-Spindle Bwslrakpjthnhyoiel Mfd. 2000 6 Spindles 16.6mm Capacity Cleaned, inspected, and reconditioned Equipped as needed The attachments are not included

Condition: good (used), Year of construction: 1986, Sliding headstock automatic lathe STAR Type: JNC-16 Year 1986 with Fanuc OT control . Bar capacity max: 16 mm. Bwslraovbb U Hskpisl Further data see data sheets Machine documentation available .

Condition: good (used), Year of construction: 2005, machine/vehicle number: 0742, spindle motor power: 2,200 W, turning length: 85 mm, turning diameter over cross slide: 16 mm, spindle speed (max.): 900 rpm, spindle speed (min.): 500 rpm, turning diameter: 16 mm, overall weight: 1,700 kg, 6-axis long lathe Number of spindles 2 Length of bars for the bar loader: 3,200 mm Bslrowhc Sfeakpijwl Turning diameter maximum 16 mm Drilling diameter max. 7 mm Thread diameter max. M 6 (metric) Spindle speeds: Continuously variable from 500 rpm to 12,000 rpm Spindle power 2.2 kW Counter spindle speeds: from 500 rpm to 9,000 rpm Tapping diameter M 6 (metric) Workpiece length for counter machining max. 85 mm Speed of driven tools 7,500 rpm Power of rotating tools 0.4 kW Drilling diameter max. 4 mm Tapping diameter M 3 (metric) Tool shaft cross-section 10 mm Collet holder type ER 11 Rapid traverse 20 m/min Cutting speed 10000 mm/min Connection 50 Hz 3x 400 Volt Spindle motor 2.2 / 3.7 kW Power of the counter spindle 1.1 / 0.5 kW Connection to compressed air 5 bar Total power requirement 6 kVA Machine weight approx. 1700 kg Control: Fanuc Series 18i - TB

Condition: used, Year of construction: 2001, machine/vehicle number: IntNr230983, CNC sliding headstock lathe Citizen L520, year 2001 control, Cincom Mitsubishi Meldas, 7 axes (X1/Z1/Y1/C1/X2/Z2/C2, Bar Ø max. 20 mm, turning length max. 205 mm, Main spindle, max. speed 10,000 rpm, C-axis 0.001 degrees, Counter spindle, max. speed 10,000 rpm, C-axis 0.001 degrees, Tool holder for a total of 18 tools (linear tool holder, front attachment, rear machining), parts conveyor belt, FMB Turbo 3-26 loading magazine Machine dimensions (LxWxH): 2540x1450x1850 [mm] Machine weight : 1750 [kg] Loading magazine dimensions (LxWxH): 3900x900x1450 [mm] Machine weight : 850 [kg] Bolswfq Aterakpiswl The machine can be inspected by appointment. Changes and errors in the technical data and information as well as prior sale reserved! CNC sliding headstock lathe Citizen L520, year 2001 control, Cincom Mitsubishi Meldas, 7 axes (X1/Z1/Y1/C1/X2/Z2/C2, Bar Ø max. 20 mm, turning length max. 205 mm, Main spindle, max. speed 10,000 rpm, C-axis 0.001 degrees, Counter spindle, max. speed 10,000 rpm, C-axis 0.001 degrees, Tool holder for a total of 18 tools (linear tool holder, front attachment, rear machining), parts conveyor belt, FMB Turbo 3-26 loading magazine Machine dimensions (LxWxH): 2540x1450x1850 [mm] Machine weight : 1750 [kg] Loading magazine dimensions (LxWxH): 3900x900x1450 [mm] Machine weight : 850 [kg] The machine can be inspected by appointment. Subject to changes and errors in the technical data and information as well as prior sale!

Condition: good (used), Year of construction: 2007, machine/vehicle number: 0835, spindle motor power: 2,200 W, turning length: 85 mm, turning diameter over cross slide: 16 mm, spindle speed (max.): 900 rpm, spindle speed (min.): 500 rpm, turning diameter: 16 mm, overall weight: 1,700 kg, rotational speed (max.): 16 rpm, - 6-axis long lathe - with bar loading magazine/ - Number of tools - Driven tool stations - Rear side device - Max. clamping diameter - Max. part length - Spindle speed - Spindle drive - Max. drilling capacity - Max. thread cutting capacity - Equipment: - C-axis - Lighting Bwslrakswhc Rhjpiol - Hydraulic unit - Coolant system - Compressed air system - Central lubrication - Door monitoring - 4-spindle drilling app.
