Condition: new, The KNUTH Multi-Grind is a versatile tool grinder within the Tool Grinders category, designed to efficiently combine cylindrical, flat, and tool grinding in one machine. Its exceptional construction allows for external cylindrical grinding with workpieces either clamped on one side or supported by a robust tailstock. Additionally, the Multi-Grind includes an internal grinding device and is capable of light surface grinding tasks. This advanced machine features a custom three-point bearing for the grinding spindle, ensuring minimal temperature effects and consistent grinding quality. With hydraulic table feed capabilities and speeds of up to 300 min-1, the Multi-Grind can accommodate a variety of tools and applications. It's equipped with a central lubrication system and sturdy cast-iron construction to minimize vibration. The machine's extensive standard equipment includes a coolant system, die grinders, and various accessories. Experience precision and performance with the KNUTH Multi-Grind—request a quote today to enhance your grinding operations in the Tool Grinders product group. Godpfx Aheuyid Ro Ssbw

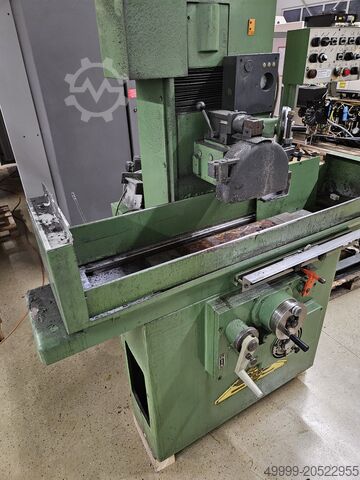

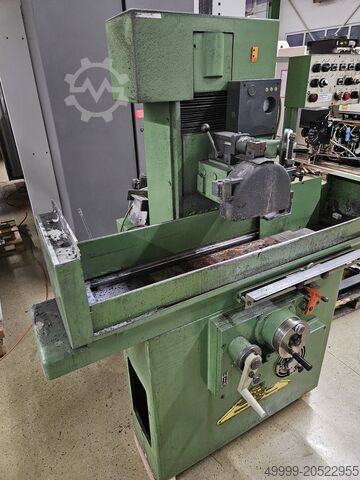

Condition: not inspected (used), Jung JHW 5 VA surface grinding machine Gbodpfoxwl Tnox Ah Sew

Condition: good (used), Year of construction: 2008, functionality: fully functional, Technical details grinding length 1250 mm grinding width 600 mm Control SIEMENS LC 200 / TP277 weight of the machine ca. 7,7 t Additional information CNC precision, surface and profile grinding machine CNC control SIEMENS LC 200 / TP277 Dresser - straight Table load maximum to the magnetic chuck 1200 kg Drives: X-axis drive hydraulic Y and Z-axis drive with servo drive and ball screw measuring system: X-axis rotary with rotary encoder Y and Z axis linear scale traverse paths X axis 1400mm Y axis 600mm Z axis 600mm Grinding length 1250 mm Grinding width 600 Distance between table and spindle center 700 mm Grinding wheel diameter 400 mm Grinding wheel width 100 mm Grinding wheel bore 127 mm Godpfoxftafsx Ah Sebw Note: Machine will be sold without a coolant device.

Condition: good (used), Year of construction: 2001, functionality: fully functional, Fully functional machine designed for precise regrinding of cutting tool heads made of carbide and high-speed steel (HSS). Equipped with CNC control on two axes, with the remaining axes operated manually. The stable construction and robust Ø50 mm spindle ensure reliable performance in production environments and tool rooms. Gjdpjwzw U Usfx Ah Ssbw

Condition: ready for operation (used), Year of construction: 2007, operating hours: 11,960 h, functionality: fully functional, machine/vehicle number: 2416, grinding length: 1,500 mm, overall weight: 24,000 kg, TECHNICAL DETAILS Grinding length: 1,500 mm Gbjdsxvxn Aspfx Ah Sow MACHINE DETAILS Dimensions & Weight Space requirement: 3,900 x 3,500 x 2,500 m Machine weight: 24 t Operating Hours Operating time: 21,727 h Production time: 11,960 h EQUIPMENT Hoffmann KSM filter system 2 spare measuring heads Marposs S/500 Prismatic supports

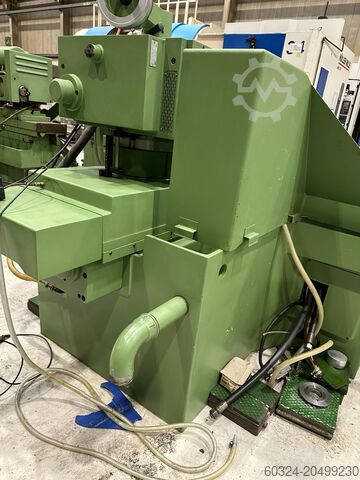

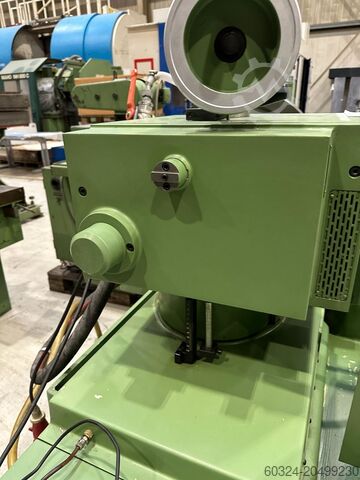

Condition: good (used), Year of construction: 1988, Ref. -No.: 10396 Manufacturer: KELLENBERGER Type: 600 U - Nr. 40 Year of construction: 1988 Type of control: Konventionell Control: N/A Storage location: Halberstadt Country of origin: Switzerland Distance between center: 600 mm Center height (standard): 125 mm Height of centers by lifting work blocks head and tailstock: 175 - 250 mm Swing diameter with lifting blocks max.: 350 - 500 mm Table swivel / each side: 10 ° Dwell time of the table reversal: 0 - 5 Sec Godpjxvw E Tefx Ah Ssbw Diameter / width / hole: 250 x 13 x 76 mm Speeds of the grinding wheel spindle: 1500/1700/2200/3600 Swiveling grinding wheel head: 360 ° Cross movement of the grinding wheel head: 285 mm Quickly pulling the wheel head back and forth: 40 mm Intermittent injection for each reversal of the table: 0,001 - 0,03 mm / dia Micro-corrector of the feed, 1 division of the dial: 0,001 mm / Ø Working speeds continuously adjustable (normal / special): 20-400/10-400 Max. Grinding length: 900 mm

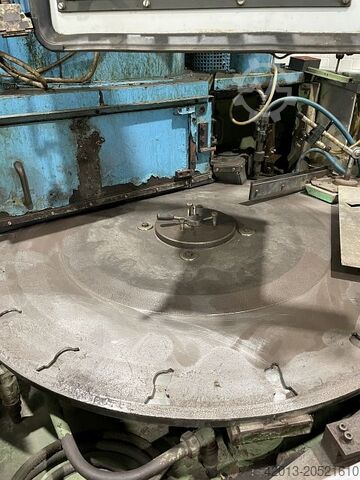

Condition: used, Year of construction: 1995, grinding wheel diameter: 750 mm, grinding width: 180 mm, controller manufacturer: SIEMENS, controller model: 810 T, CONTROLS .. CNC controls SIEMENS 810 T WORKING RANGE (DOUBLE DISC GRINDER) .. Grinding wheel diameter: 750 mm .. grinding width max. - throughfeed grinding: 180 mm .. material thickness max. - throughfeed grindin: 30 mm Gbsdpfsxwkymsx Ah Ssw .. grinding width max. - plunge cut grinding: 180 mm .. material thickness - plunge cut grinding: 30 mm COMPONENT-FEEDER .. Feeder Design: rotary Feeder ELECTRICAL SPECIFICATIONS .. total power consumption: 95 kW Scope of delivery: - Machine - div. flanges and used grinding wheels - Measuring control IONIC 17A Optional: - 270 pcs. grinding segments 22A 100 S 6 B20 - 289 pieces grinding segments 14C 80 L 10 B30 Machine is dismantled and stored

Condition: ready for operation (used), additional equipment features: yes, Besturing: Siemens Sinumerik 840 (achteraf ingebouwd) Siemens-aandrijving: 6SN1145-1BA00-OCAO Worklength with magnetic table: 1270 mm Longitudinal travel X-axis (autom.): 610 mm Cross-travel Y-axis (autom.): 1310 mm Travel Z-axis (autom.): 565 mm Gbedexuwxwepfx Ah Sow Dimensions of the table: 1215 x 1250 mm Dimensions magnetic table: 1250 x 500 mm Distance between table -- spindlecentre: 680 mm Spindlespeeds: rpm Motorpower: 15 kW Cooling system: yes

Condition: good (used), Year of construction: 1995, functionality: fully functional, Technical details internal diameter 800 mm grinding depth 500 mm swing diameter 850 mm weight of the machine ca. 6,4 t Additional information Used internal cylindrical grinding machine with face grinding device in special design with enlarged swing diameter and extended, hydraulic transverse movement Reconstructed and modernized 1995 in the Glauchau manufacturer’s plant, put into operation 1996 1. TECHNICAL DATA 1.1 Working area Grinding diameter in the workpiece guard internal grinding, min./max. mm 30/630(800) External grinding, max. mm 800 Grinding depth, up to approx. mm 500 Table stroke mm 800 Workpiece diameter, max. mm 800 Swing diameter in workpiece protection, max. mm 800 Gedjxfr Uuopfx Ah Sobw Without workpiece protection, approx. mm 850 Distance from workpiece spindle head to grinding spindle carrier, max. mm 1225 Adjustment of the internal grinding device on the table, max. mm 545 1.2 Workpiece headstock Cross shift, max. mm 650 Cross adjustment via gear motor and positioning device with HEIDENHAIN digital position display Swivel, max. degrees 15 Workpiece spindle Speeds rpm 16/22/32/ 45/63/90/ 125/18/250 Load capacity, max 1000 Spindle head (with bayonet flange) DIN 55021 size 11 Machine accessories: 2-axis digital displays made by HEIDENHAIN Coolant system with magnetic separator Fixators (machine shoes) Various grinding wheels Diamond dresser Large face plate Internal and face grinding device Halogen machine lamp Machine documentation

Condition: excellent (used), Grinding diameter capacity ~80 mm (Type 2H) Type 2HA variant ~120 mm Maximum in-feed grinding length ~200 mm Maximum through-feed grinding length ~300 mm (with normal guides) Grinding wheel diameter 400 mm Grinding wheel width 200 mm Grinding wheel bore 203.2 mm (8") Driving wheel diameter 254 mm Driving wheel width 200 mm Driving wheel bore 127 mm Main drive motor 11 – 22 kW Driving wheel motor ~1.1 kW Driving wheel speed Gbjdpfxoxrvgzj Ah Ssw ~10 – 200 rpm (continuously variable) Machine weight ~3,000 kg Footprint / Dimensions ~2,400 × 1,550 mm Voltage 380 V / 50 Hz / 3-phase Extras & Features Hydraulic dressing and trueing devices for both grinding wheel and driving wheel Variable speed drive on the regulating/driving wheel Base flange, support bridge, shims, and additional accessories included in many units The “2HA” variant extends capacity to 120 mm diameter parts. We have two of these machines available.

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 2352, center height: 200 mm, grinding length: 500 mm, grinding diameter: 55 mm, rotational speed (max.): 5,970 rpm, controller model: Siemens Sinumerik 840-D, TECHNICAL DETAILS Grinding diameter: 5–55 mm Grinding length: 500 mm Workpiece diameter: 5–55 mm Workpiece length: max. 500 mm Grinding wheel arrangement: right, 30° inclined Grinding wheel dimensions: 600 x 30 x 203.2 mm Gjdpfx Aoxvxl Ish Ssbw Drive power: 7 kW X/Z-axis drive: ball screw Travel speed: 0.01 – 10,000 mm/min Resolution: 1 µm Workpiece spindle runout: < 1 µm Spindle speed max.: 5,970 rpm Workpiece changing system: Fanuc robot Control system: Siemens Sinumerik 840-D MACHINE DETAILS Total power requirement: 44 kW Centre height: 200 mm Machine weight: 7,000 kg EQUIPMENT Tailstock Longitudinal adjustment: manual Rotating centre: Junker standard, diameter 75 mm Clamping pressure: adjustable via hydraulic system Tailstock dimensions: diameter 100 mm × 430 mm

Condition: used, Year of construction: 1998, centre height 125 mm centre distance 400 mm Control FANUC 21i Capstan diameter max. 406 mm wheel dimensions 406 x 127 x 40 mm workpiece weight 30 kg longitudinal slide -travel 483 mm cross slide - travel 254 mm total power requirement max. 20 kVA weight of the machine ca. 4,0 t dimensions of the machine ca. 3,0 x 2,0 x 2,1 m including 2 Pcs. internal grinding spindle incl. B axis 1° Hirt, controlled incl. C-axis incl. Quick-Set Probe including Sensitron including Magnetic Jaw including hydraulically foldable dresser including other small accessories including documentation Gbjdjxwdwfepfx Ah Sow without a coolant system, as it was previously connected to a central unit Power On hours approx. 71,000 h Spindle hours approx. 25,900 h

Condition: refurbished (used), Year of construction: 2025, operating hours: 36 h, functionality: fully functional, machine/vehicle number: 1024-54, Country of Manufacture: Switzerland Voltage: 380/50/3 Net weight: approx. 1600 kg Customs tariff: 8460.2920 Dimensions: 235 x 155 x 145 cm TECHNICAL FEATURES: MAIN DIMENSIONS: Centre height: 100 mm Distance between centres: 400 mm LONGITUDINAL SLIDE: Max travel: 420 mm Minimum automatic travel: 1 mm Table feed speed: 100–3500 mm/min Overtravel delay: 0–5 sec. Maximum table swivel (400/650 mm): 30°/15° CROSS SLIDE: Max travel: 170 mm Rapid traverse: 30 mm Plunge depth (diameter): 1.9 mm Feed rate 1: 0.03–1.5 mm/min Feed rate 2: 0.02–0.3 mm/min Plunge feed per impulse: 0.0005–0.025 mm WHEELHEAD: Grinding wheel (diameter x width x bore): 350 x 32 x 127 mm Drive power: 3 kW Peripheral speed: 30 m/s Spindle speeds: 1600/1975/2200 rpm Manual stroke: 120 mm Swivel to right: 15°/30° Optional wheel guard for wheel set max width: 50 mm WORKHEAD: Swivel range: 0°–90° Spindle speeds: 80/175/380/800 rpm Internal taper: Morse 4 Collet type: W-20 Drive power: 0.5 kW Maximum workpiece weight: 20 kg Load for in-the-air grinding: 12 Nm Optional stepless drive speed range I: 30–300 rpm Optional stepless drive speed range II: 120–1200 rpm TAILSTOCK: Internal taper: Morse 2 Quill travel: 20 mm GUARANTEED WORKING ACCURACY: Generator straightness: Between centres: 400 mm Measured over 400 mm: 0.002 mm Between centres: 650 mm Measured over 650 mm: 0.003 mm Roundness accuracy for in-the-air grinding: 0.0004 mm CONNECTION VALUES: Power consumption: max. 8 kVA Permissible voltage variation: –15% / +10% Permissible frequency variation: ±3% Gbsdpjw T Sc Nsfx Ah Sew Compressed air: 5 bar All technical specifications are given without obligation and subject to errors or omissions.

Year of construction: 2011, condition: used, Suitable for automatically brushing (rounding edges or deburring) the teeth on HM circular saw blades. Gbjdeu Dk Edepfx Ah Sjw Accessories: Sawblade holder, Stepless variable speed control of the sawblade drive, Pre-selectable timer. Circular saw blade diameter: 1600 mm Power of geared motor: 0,1 kW Brush motor performance: 0,75 kW Connected load approx.: 400 V / 50 Hz Weight approx: 310 kg Dimensions W x D x H approx.: 2400 x 850 x 1550 mm colour: blue/grey

Condition: good (used), Year of construction: 2008, functionality: fully functional, grinding length: 2,000 mm, grinding width: 850 mm, CNC Precision Surface and Profile Grinding Machine Technical Specifications: Grinding length 2000 mm Grinding width 850 mm Travel, transverse 750 mm Distance from table to spindle center 900 mm (or 800 mm with intermediate plate) Gsdpjxgryajfx Ah Ssbw Magnetic plate size 2000 x 700 mm Table load without magnet 3500 kg Table speed 60 m/min. Spindle drive 26 kW Grinding wheel dimensions 500 x 150 x 203.2 mm Grinding wheel peripheral speed 35 m/s control Siemens 840 D total power requirement 155 kVA weight of the machine ca. 15 t dimensions of the machine ca. 8815 x 4185 x 2963 mm

Condition: excellent (used), Jones & Shipman 624 Dominator CNC Surface Grinder Under power and working. Can be shown demonstrating at our premises in Burscough Gjdou D H Uhepfx Ah Sjbw Fanuc Series 210i-M CNC Control Table Length 600mm x 200mm width Wheel diameter 250mm Wheel width 25mm Max wheel speed 3200rpm Spindle power 5.6kw

Condition: ready for operation (used), Year of construction: 2001, operating hours: 87,310 h, functionality: fully functional, grinding wheel width: 400 mm, grinding wheel diameter: 600 mm, grinding diameter: 220 mm, overall weight: 13,000 kg, TECHNICAL DETAILS Maximum grinding diameter: 220 mm Regulating wheel width: 400 mm Maximum grinding wheel width: 400 mm Grinding wheel drive: 55 kW Maximum circumferential speed: 45 m/s Regulating wheel dimensions: 350 x 400 x 203 mm CBN grinding wheel dimensions: 500 x 400 x 304 mm Aluminum oxide grinding wheel dimensions: 600 x 400 x 304 mm Grinding spindle headstock Total stroke of grinding spindle headstock: 130 mm Speed of grinding spindle headstock: 150 m/min Rapid traverse adjustment max.: 150 m/min Minimum infeed of grinding spindle headstock: 0.0005 mm Gbsdsxvxhcspfx Ah Sow Preselectable infeed size of grinding spindle headstock: 0.0005–0.05 mm Grinding wheel dresser Dresser support speed: 15–900 m/min Maximum stroke of dresser supports: 430 mm MACHINE DETAILS Overall power requirement: 75 kVA Dimensions & Weight Space requirement approx.: 4.47 x 2.77 x 2.49 m Machine weight approx.: 13 t Operating hours: 87,310 h

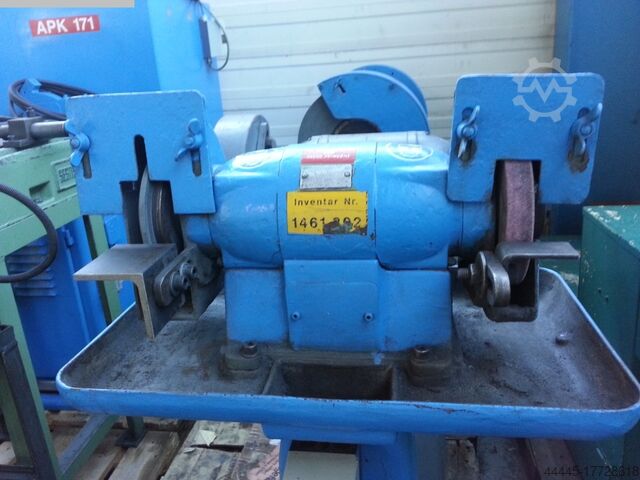

Condition: used, grinding wheel diameter 300 mm Gedpeu Sbdmsfx Ah Sebw no. of working stations 2 Stück connected load 1,5 kW grinding wheel width 30 mm double sided.

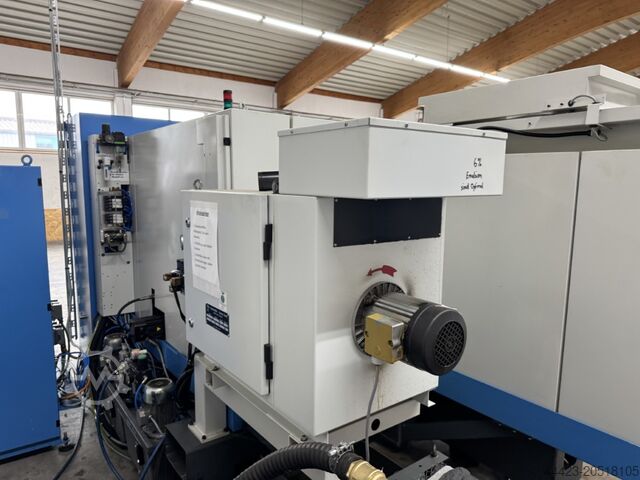

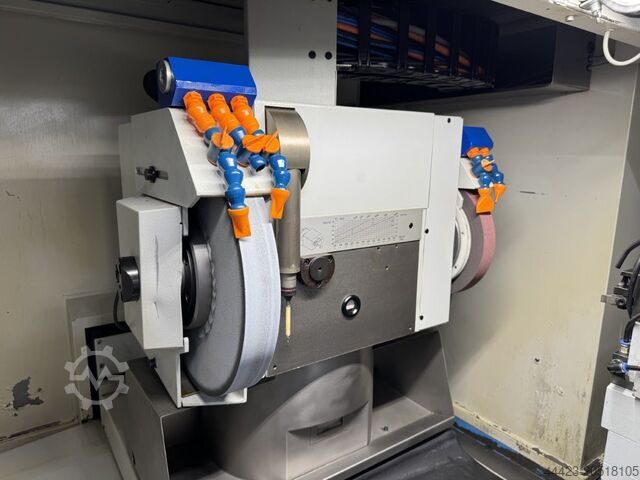

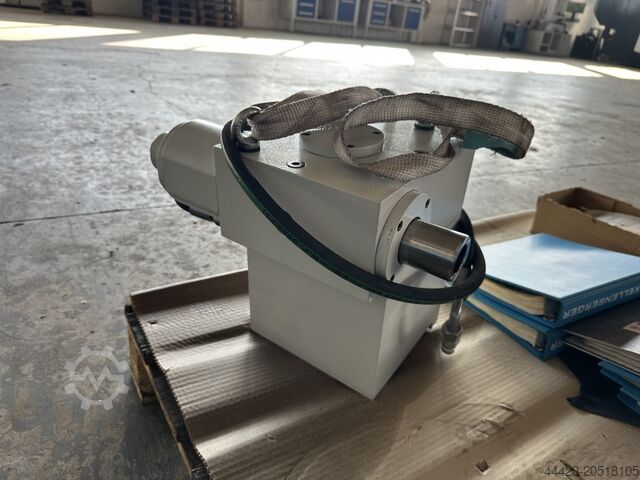

Condition: used, Year of construction: 2000, controller manufacturer: Heidenhain, controller model: Heidenhain 1830 M - KELCO 120, _____ Description: Year of manuf. : 2000 Control : Heidenhain Heidenhain 1830 M - KELCO 120 Grinding length : 1000 mm In General: YOM::2000 - Retrofit 2024 Controller:Heidenhain 1830 M - KELCO 120 Workpiece headstock: Swivelling range:-10°/+100° Speed:600 rpm Centre height:250 mm Internal mounting cone:MK5 Short taper outside:DIN 55026 Workpiece weight max.:150 kg Grinding headstock: Design:Tandem grinding headstock Gjdpfexwgh Hex Ah Sebw B-axis:-210°/+30° Internal grinding device:Internal grinding spindle Grinding table (X-axis): X-axis:320 mm Max. speed:7.5 m/min Resolution:0.1 μm Lower table (Z-axis): Centre distance:1,000 mm Z-axis:1,150 mm Max. speed:15 m/min Resolution:0.1 μm Equipment: Coolant supply:Coolant system with filter Emulsion mist separator:Mechanical Tailstock:MK4, stroke 50 mm Workpiece measurement:Marposs T25 :Tool measurement Marpos A 90 Set-up mode:Electronic handwheel Chuck:3-jaw chuck, magnetic chuck

Condition: used, Dear colleagues, We are urgently looking for an operating manual for a SCHNEIDER Jo1 hydraulic surface grinding machine. Gbjdoxvarcopfx Ah Sjw Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: used, Year of construction: 1953, grinding wheel dia. x width ca. 200 x 25 mm magnetic clamping plate ca. 450 x 170 mm cross feed of the table 200 mm revolutions of grinding spindle 3000 U/min grinding wheel hole diameter 51 mm weight ca. 1300 kg 0,001 - 0,013 mm grinding length 600 mm Gsdpfxexu Nw Es Ah Ssbw Surface grinding machine Includes extractor 1 additional grinding wheel holder Machine was in occasional use until recently

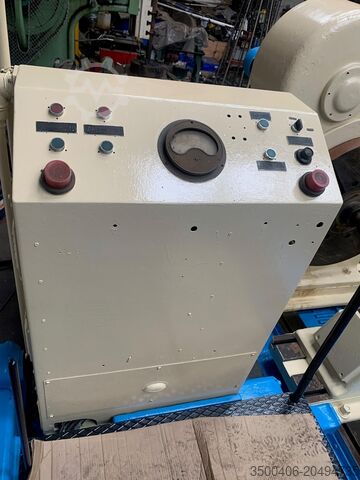

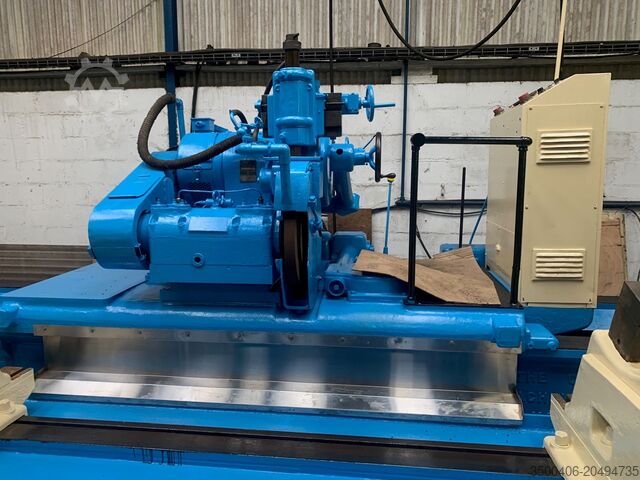

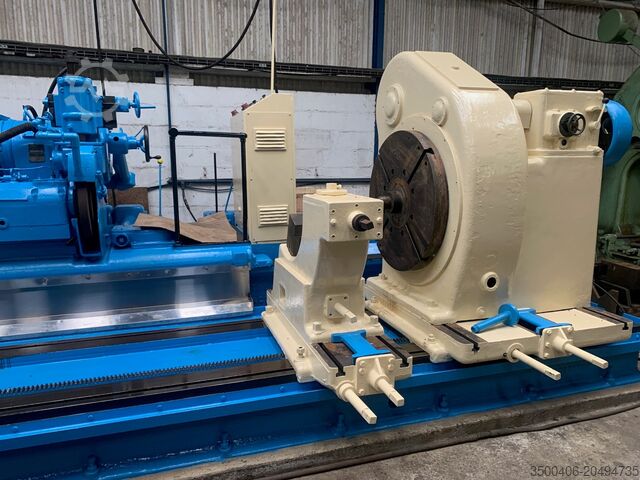

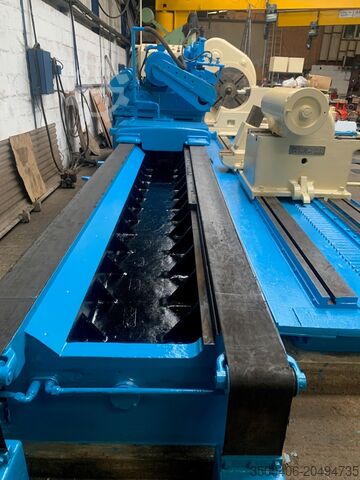

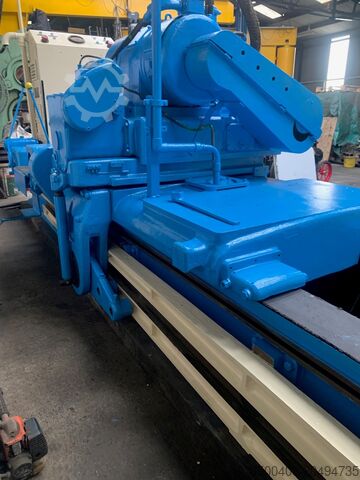

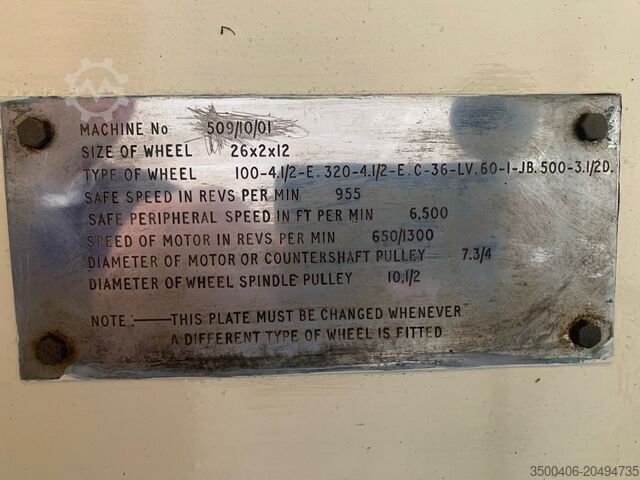

Condition: excellent (used), functionality: fully functional, machine/vehicle number: 11903, grinding length: 5,200 mm, grinding wheel diameter: 660 mm, grinding diameter: 1,600 mm, grinding wheel width: 50 mm, spindle speed (max.): 30 rpm, spindle speed (min.): 5 rpm, Churchill Roll Grinder Gbsdpfxoxvrpts Ah Ssw Swing 1600 mm Centres 5200 mm Cambering Wheel Size 26” x 2” Roll speeds 5-30 rpm Bed and table were re-ground and not much use since so both are perfect.

Condition: excellent (used), Year of construction: 1987, Grinding length: 500 mm Grinding width: 250 mm Max. workpiece weight: 250 kg Including magnetic chuck Gsdpfoxwl A Asx Ah Sebw Including dressing device FROM DRESS Including complete operating manual

Condition: used, Year of construction: 1970, grinding wheel diameter 300 mm no. of working stations 2 Stück connected load 1,5 kW grinding wheel width 30 mm weight 40 kg double sided. Gedpfxou Sbi Ao Ah Sjbw

Year of construction: 2008, condition: ready for operation (used), General Data Machine weight 12000 kg Movement X-Axis Movement 450 mm Z-Axis Movement 850 mm This STUDER S242 was manufactured in 2008, a cylindrical grinding machine known for its robustness and precision. It features a swing diameter of 180 mm, max workpiece weight of 20 kg, and grinding spindle speeds up to 50 m/s. The machine includes shaft automation, grinding wheels, and is still powered up and fully functional. Annual maintenance by Studer ensures reliability. For more information about this machine, please reach out to us. Application Types Gbodpfxoxvt Ane Ah Sow Grinding
