Burin grinding machines for sale
3
grinding wheel diameter / mm
no. of working stations / Stück
grinding wheel speeds / U/min
Cbwnzkb8
6
dia. of draw-in collets 4 - 24 mm
max. radius to grind 12 mm
grinding range 4 - 24 mm
grinding wheel-diameter 100 mm
total power requirement 0,4 kW
weight of the machine ca. 100 kg
dimensions of the machine ca. 1 x 0,6 x 0,4 m
Electric 380 Volt
Bhvskm2ihk
Base with drawer
Diverse collets
Draw-off device
Machine has 19 clamping devices 4-14 mm, 12 pieces of grinding wheels 100 mm,
puller for grinding wheel.
Machine dealer with own stock of 2500 m².
5

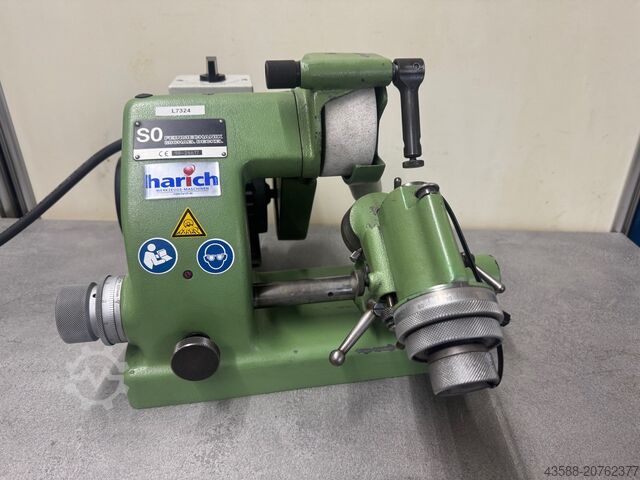

Graver grinding machine DECKEL S 0
grinding wheel diameter: 100 mm
grinding wheel speed: 4750 rpm
Motor power: 0.25 KW
B3vv2m2
4
Graver Grinding Machine
Make: Deckel
Model: S0
year of construction: 1983 - overhauled, new painted
RAL7035 light grey / RAL7012 basalt grey
machine no.: 83-21615
with warranty
Bsytltk2yu
accessories:
- Machine stand
- Grinding wheel with flange
- Operating instructions
- used, as seen -
5
Technical data U3 drilling and milling cutter.
Maximum clamping capacity Ø 30 mm
Maximum workpiece Ø 30 mm
Adjustable horizontal angle 0-180 °
Adjustable vertical angle from 0-45 °
Negative angle adjustable angle from 0 to 52 °
Motor 370 watts / 0.5 hp.
Speed 5200 rpm.
Longitudinal travel of the tool holder 140 mm.
Longitudinal travel bit holder micro position 18 mm.
Xdomaz3fy
Axis travel 6 mm in micro mode.
Diameter of grinding wheels 100 mm.
Housing dimensions 500 x 400 x 380 mm.
Weight 55 kg....
7
incl. pictured accessories
Gz3oemcd
3
graver grinding machine make DECKEL type SO
machine # 89-24422 Year of construction 1989
Technical data:
gr. radius to be ground 10 mm
gr. lateral displacement of the cutter holders 10 mm
gr. longitudinal displacement of the cutter holder 40 mm
gr. adjustable rear grinding angle 45°
gr. bore of the collet 17,5 mm
Grinding spindle speed 4500 rpm.
Drive power 0,25 kW
Dimensions L X W x H 500 x 420 x 1400 mm
Weight approx. 67 kg
with
Dwrnsa
- undercarriage
used, in good condition
9
For sale is a
Graver grinding machine
Ibmheoh
from HASBERG
TYPE : FSS
Accessories : collets, grinding wheels
You will receive a proper invoice
Self-collection or forwarding agency.
We are happy to organise a shipping company at a reasonable cost.
Company names and trademarks are the property of their respective owners.
owners and are used only for identification and description of the
products.
The design and the electrical connection of the machine / the
device, must be carried out by ...
2
max. bore of chuck: 1 - 20 Ø mm
max. boring diameter: 20 mm mm
M3kj2
cap washer diameter: 100 mm
cap washer rotation: ca. 4500 Upm
engine: 380 V, 0,25 kW
space needed: 600 x 450 x 1380 mm
4
Graver Grinding Machine
Make: HERZOG (AMA)
Model: Pregraph U2
Condition: New machine
with warranty
- for grinding of gravers,
pins, punches and round parts
- robust, durable construction
- versatile application possibilities
- motor protection and restart protection
accessories:
- Extraction tool, through axial adjustment
of the disc, the previous setting is
setting is retained
- Machine light
- Operating tool
D8hkuy9
- Grinding wheel with flange
- Operating instructions
4
Graver Grinding Machine
Offer number: 20049
make: DECKEL
type: SO
Machine-No: 80-20252
year of construction: 1980
Technical data:
- grinding wheel dimension approx. 100 x 50 x 20 mm
- largest grindable angle 0 - 180 °
- largest grinding length 90 mm
- largest grinding radius 10 mm
- largest bore of the collets 17,5 mm
- largest lateral displacement of the cutter holder 10 mm each
- largest longitudinal displacement of the cutter holder 40 mm
- Largest adjustable relief angle 45 °.
- c...
1
Special accessories for graver grinders DECKEL SO + SOE:
- as good as new collets for cutter special receptacle Ø 16, 18 and 20 mm, price: 145,00 €/pc. net
- collets as good as new □ 8, 10 + 12 mm, price: 99,00 €/pc. net
- 1 cup grinding wheel Ø 80 mm, as good as new, price: 40,00 € net
- 1 as good as new drill nitride cup grinding wheel Ø 75 mm, price: 165,00 € net
Cxkboss9
- 1 as good as new drill nitride cup grinding wheel Ø 100 mm, price: 195,00 € net
- 2 as good as new grinding wheel holder...
6
engraving and graver grinding machine make DECKEL type SOE
Machine # 87-6509 Year of construction 1987
Technical data:
largest grinding length 90 mm
largest grindable radius 10 mm
grinding wheel size 100 x 50 x 20 mm
Grinding spindle speed 4500 rpm
tool holder max. tool diam. 17,5 mm
Tool holder taper collets MK 1, MK 2, GA
Setting of the tool holder:
lateral displacement per 10 mm
longitudinal displacement 40 mm
longitudinal speed 24 m/sec.
Pivotability of the part head carrier 90
Fine adjustme...
1
1 used graver grinding machine
Fabr. Scripta
B8lde2mw
Type AL 34
Technical data:
Grinding wheel speed 4500 rpm.
gr. collet diameter 18 mm
Continuous spindle bore 14.5 mm
Engine speed 2800 rpm.
Length adjustment of the tool carrier 12 mm
lateral displacement of the cutter holder 14 mm
gr. adjustable relief angle 45°
grinding wheel adjustment 25 mm
max. Vert. of the tool carrier on the shaft 105 mm
Drive power 0,18 kW
Dimensions without base frame 630 x 560 x 320 m
Weight approx. 39 kg
7
Milling Graver Grinding Machine Michael DECKEL SOE
Machine No.: SOE /71-2060
Technical data
Power of drive motor 0,55 kW
Speed of the drive motor 2800 rpm.
Speed of the grinding spindle 4500 rpm.
Largest bore of the collet 17,5 mm
Bpxrvpxxxv
Inner taper of the taper sleeves Mk1-Mk 2 GA
Largest radius to be ground 10 mm
Largest lateral displacement of the cutter holder to both sides 10 mm each
Largest longitudinal displacement of the cutter holder 40 mm
Largest adjustable rear grinding angle 45 °...
4
Graver Grinding Machine
Make: Deckel
Model: S0E
year of construction: unknown - overhauled, new painted
RAL7035 light grey / RAL7012 basalt grey
Machine No.: 2740
with warranty
O8v99
Accessories:
- machine stand
- integrated dust extraction
- grinding wheel with flange
- extractor tool
- operating instructions
incl. installation of an on/off switch
with undervoltage coil
to realize the restart protection
z. e.g. in case of power failure or pulling the mains plug
incl. fabrication of a mounting a...
15
1 x graver grinding machine
Maba
Blcgeyha
FSS
Year of construction: 1989
on machine base with integrated dust extraction
Technical data:
Rear grinding angle max.: 45 degrees
Grindable radius max.: 20 mm
Collet diameter max.: 18 mm
Speed: 4600 rpm(rpm)
fine adjustment tool carrier max.: 10 mm
Displacement of the tool carrier max.: 120 mm
adjustment range of the tool clamping device: 35 mm
Adjustment path of the cross slide: 30 mm
Accessories:
11 x collet chuck
1 x additional device for grinding...
15
Internal article no.: 21007
Graver Grinding Machine
Cover SOE
Machine No.: 71-2184
Csr2ikaq
Incl. accessories
collets, machine lamp, suction filter cartridge, grinding wheels incl. holder)
Original paint!
4
Headstock with casting base stand of univ. S1 Tool grinding machine
C3ntxrpe
incl. grinding spindle (SPEED. 3750-7500 r / min d. Sp.)
Motor power: 0.37kW
1450 U / min 50 Hz
The basic body is of a DECKEL S 1
Sale noisy pictures, used condition in the warehouse can be demonstrated
3
Graver Grinding Machine
Make: Deckel
Model: S0E
year of construction: unknown - overhauled, new painted
RAL7035 light grey / RAL7012 basalt grey
Machine No.: 4182
with warranty
Accessories:
- machine stand
- integrated dust extraction
- grinding wheel with flange
- extractor tool
- operating instructions
incl. installation of an on/off switch
with undervoltage coil
Ookx7
to realize the restart protection
z. e.g. in case of power failure or pulling the mains plug
incl. fabrication of a mounting a...
4
Graver Grinding Machine
Make: Deckel
Model: S0E
year of construction: unknown - overhauled, new painted
RAL7035 light grey / RAL7012 basalt grey
Machine No.: 4460
with warranty
Accessories:
- Machine stand
- Microscope with carrier
- integrated dust extraction
- grinding wheel with flange
- extractor tool
- instruction manual
incl. installation of an on/off switch
with undervoltage coil
Btwx0jpsu0
to realize the restart protection
z. e.g. in case of power failure or pulling the mains plug
incl. ...
4
Graver Grinding Machine
Make: Deckel
Model: S0E
year of construction: unknown - overhauled, new painted
RAL7035 light grey / RAL7012 basalt grey
Machine No.: 2886
with warranty
Accessories:
Btwydhs2ny
- machine stand
- integrated dust extraction
- grinding wheel with flange
- extractor tool
- operating instructions
incl. installation of an on/off switch
with undervoltage coil
to realize the restart protection
z. e.g. in case of power failure or pulling the mains plug
incl. fabrication of a mount...
3
Graver Grinding Machine
Make: Machine factory Baden-Baden
Model: FSS
year of construction: 1985 - overhauled, new painted
RAL7012 basalt grey
Machine no.: 2992
with warranty
Accessories:
Bzrj3odmbb
- Grinding wheel with flange
- Instruction manual
- used, as seen -
2
Stylus grinding machine
Make: OPTigrind
Model: GH 20 T
Art.Nr.: 3100125
Condition: new machine
Speed: 5.000 rpm
Clamping range: 1-12 mm
equipped as standard with:
-Collets 385E, size 4 / 6 / 8 / 10 / 12 mm
-Corundum pot wheel
-Diamond Cup wheel
2dok8ncjr
-Device for the Regrinding of chisel
-Device for the sharpening of cutters
-Apparatus for the grinding of twist drills
-Manual
