Used Sawblade sharpening machines for sale (39)

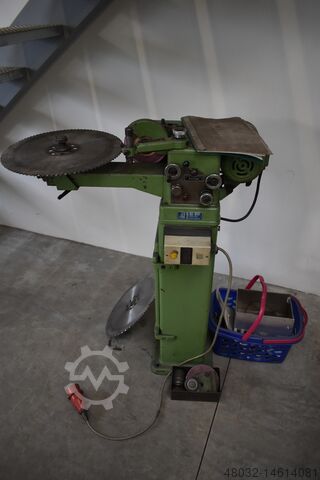

Condition: good (used), Year of construction: 1975, Schmid saw blade sharpening machine Saw blade sharpening machine type AS 4 for circular saw blades diam.: 20 - 400 mm for circular cut-off saws up to diam.: 550 mm tooth pitch up to: 22 mm with dividing disk: 28 mm Saw blade width up to: 6.0 mm Grinding wheel diam.: 150 mm Dnjx0B Grinding wheel speed: 3500 rpm. Infinitely variable speed control: 70 - 200 rpm. Drive power: 0.55 kW - Base frame - Grinding wheel - accessories used

Condition: used, Year of construction: 1985, Saw blade grinding machine WMW Werkö SWSK 400, year of manufacture: 1985, connected load 50 Hz, 380 V, 2.0 kW, weight 475 kg, with dust extraction fan Pulsnitz STO5/125-1, flow rate 400 m³/h Qgzm0Hmgq Note: The sale takes place in an online auction against the highest bid. Please follow the link for further information.

Condition: refurbished (used), Year of construction: 1997, Digital machine for face and back grinding of carbide circular saw blades Working range: manual loading from 80 to 850 mm, bore from 10 mm Work range with loader: 250 to 450mm Teeth: all shapes, including special teeth Main features : - Industrial PC, with standard Siemens PLC - Electrostatic oil mist extractor Mm3Xo7F - Software for all gear types, including special gearing Sold as is, refurbished in 2021

Condition: excellent (used), Year of construction: 1997, operating hours: 27,000 h, Functionality: fully functional, grinding wheel diameter: 125 mm, total width: 1,980 mm, total length: 2,405 mm, total height: 2,040 mm, type of input current: three-phase, year of last overhaul: 2022, overall weight: 2,200 kg, feed length X-axis: 280 mm, feed length Y-axis: 280 mm, feed length Z-axis: 330 mm, QW72P CNC machine for machining PCD-tipped tools using the disk erosion process. Tools: a- Milling cutters up to 250mm outer diameter and cutting length up to 100mm. Dqw9J9 b-Shaft tools up to 100mm outer diameter and cutting length up to 100mm c-Disc-shaped tools up to 450mm outer diameter, cutting length up to 20mm, tangential clearance angle up to 6°, radial clearance angle -10-6° Rotating electrode a-Outer diameter for face machining 125mm b-Outer diameter for peripheral machining with graphite electrode 200mm Processing ranges of the CNC axes a-W-axis travel 0.001-50mm b-X-axis travel 0.001-280mm c-Y-axis travel 0.001-280mm d-Z-axis travel 0.001-330mm e-A-axis travel 0.00066-360° f-D-axis travel 0.001-315° The machine was software-optimized in 2022 by the company Vollmer updated. All CNC axes overhauled. The machine was connected to a Transor system. The dielectric was constantly cleaned. VOLLMER CAD-CAM system is available. This allows the customer to load path curves from the server via DNC operation. Profiling of the wheel with CAD-CAM. Hardware and software package for special dressing path. 4-saw program with main programs, dressing programs and measuring programs. Main program for spherical tools. The machine is in TOP condition and can be used immediately.

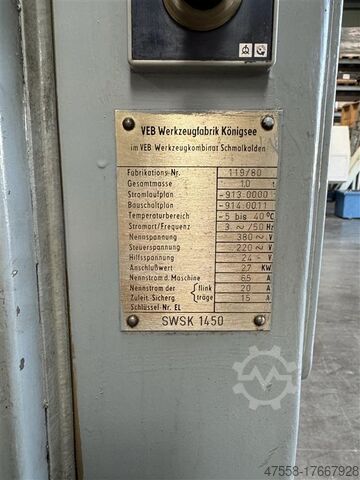

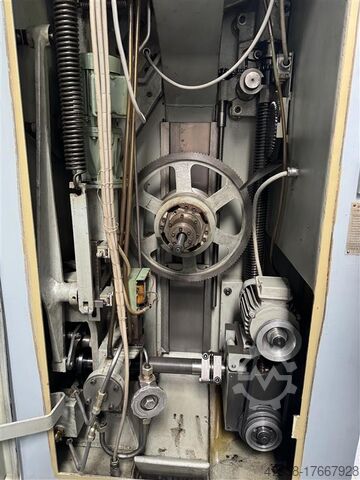

Condition: used, Year of construction: 1980, Technical details: rpm spindle (continous): 2000 - 2500 U/min double strokes/min.: 25; 37; 50; 75; 100 H/min. Grinding-wheel diameter: Ø 250 mm work height max.: 1350 mm Bsg3Obet20Y total power requirement: 2,7 kW weight of the machine ca.: 1,0 t dimension machine xH: 0,85 x 1,0 x 1,8 m Use for medium to larger metal circular saws from 250 - 1450mm. Saw blade attachment Ø 60 to Ø 80mm and shaft Ø 31,5mm Tooth pitch up to 42mm Tooth depth adjustment via scale Front cutting tooth: can be chamfered on both sides up to 45° and overcut at pitch 0.02mm *

Condition: used, Year of construction: 1989, Suitable for automatic, double-sided tooth flank grinding on carbide-tipped circular saw blades. Accessories: Coolant system, Dqpjjp Manual central lubrication, 2 grinding wheel holders. Circular saw blade outer diameter: 80 to 1270 mm Circular saw bore diameter: 10 - 220 mm sheet thickness: up to 14 mm tangential relief angle: up to 8° Tooth pitch: 6-120 mm grinding path: max. 16 mm rake angle : -15° to +40° Radial clearance angle: -6° to +6° Tangential clearance angle: 0 to 5° grinding speed: 0.5 to 6 mm/s grinding wheel diameter: 125 mm Connected load approx.: 3.6 kW (400 V / 50 Hz) radial relief angle: -10° to 6° Dimensions W x D x H approx.: 1980 x 1455 x 2000 mm Grinding wheel bore diameter: 32 mm Weight approx: 1300 kg colour: green RAL 6011 Grinding path: up to 16 mm Grinding wheel diameter: 80 to 100mm peripheral speed: approx. 18-27 m/s Circumferential speed: approx. 18-27 m/s

Condition: refurbished (used), Schmidt Tempo EC 500 saw blade sharpening machine for SHARPENING and RE-SHARPENING of HSS and segmental circular saw blades incl. Chamfering of the teeth top/bottom. Diameter: approx. 20 - 500mm Saw blade thickness: max. 6 mm Working speed: approx. 40-120 strokes / min. Grinding wheel diameter: max. 200mm Number of teeth: 20-999 (electronically preselectable) Tooth shapes: Angled tooth A, AW, curved tooth B, BW and C according to Din 1840 (electronically preselectable) Setting options: - Tooth shape (electronically preselectable) - Number of teeth (electronically preselectable) - Automatic infeed - Automatic honing device - Free grinding (electronically preselectable) - Pendulum grinding (electronically preselectable) - Cylindrical grinding (electronically preselectable) - Determination of the direction of rotation (electronically preselectable) E0Aarsex - Halving the number of teeth (electronically preselectable) for chamfering the teeth - Setting the tooth height difference - With LED display - Error message display Accessories: - Noise protection hood - Operating tool - several grinding wheels, new + used - small, medium, large saw blade holder - small, large grinding wheel holder - 1 set of standard reduction rings - Dressing diamond setting gauge - Saw blade support - Operating instructions, circuit diagrams Weight: 880 kg Connected load: 2.5 kW Supply voltage: 400 V Paint finish: RAL 5014 Machine has been completely disassembled, repainted, operating oils renewed and mechanical / electrical wear parts replaced / renewed and can be inspected / tested under power. Machine is sold with 100 % functional guarantee! Spare parts / accessories available if required.

Condition: ready for operation (used), Year of construction: 1997, machine/vehicle number: 132, For sale Vollmer CA200 in good working condition together with Vollmer N170. Bsbsis80Zhs

Condition: like new (used), Year of construction: 2004, Brand: Walter Year of construction: 2004 Condition: fully overhauled, used 8-axis CNC face, back and gouge with 3-station linear loader. Diameter range: 80 to 850 mm - Indexing cross table 0L72Dst - Standard measuring probe for recording and managing grinding parameters - SIEMENS 840 Di numerical control - All tooth geometries. - Loading capacity up to 120 blades (or more) depending on blade diameter and thickness. - Windows XP - Loader working range from 100 to 750mm Options available on request Non contractual photos

Condition: good (used), operating hours: 19,680 h, Price to be slightly negotiated, we also have a shrouded saw reamer in the set. Cjn7Nq08Sc

Condition: used, Year of construction: 1974, Technical details: total power requirement: 1,65 kW weight of the machine approx.: 620 kg Saw Blade Sharpening Machine Machine not complete - grinding spindle motor missing! for sale as spare part dispenser! Cqmo8Fqx *

Condition: used, Year of construction: 1997, Suitable for manual grinding of tooth flanks on carbide-tipped circular saw blades. Accesories: wet grinding device, 1 locating bolt, 1 set of centering rings, 1 stop finger Circular saw blade diameter: 60 - 700mm circular saw blade bore diameter: 10 - 150mm Tooth pitch: from 8 mm Br2Iqvindrk rake angle: 0° to 30° tangential relief angle: 0°- 17° radial relief angle: 0 -3° grinding path: up to 15 mm Grinding wheel diameter: 100 mm Connected load approx.: 0.75 kW ( 400 V / 50 Hz) Weight approx: 105 kg Dimensions W x D x H =: 800 x 700 x 580 mm

Condition: refurbished (used), grinding wheel diameter: 150 mm, year of last overhaul: 2024, compressed air connection: 5 bar, Machine has been completely dismantled, wearing parts replaced, repainted! Main features: -For resharpening and re-toothing HSS segmental CV and solid carbide saws using the CBN deep grinding process Tooth form A, B, Bw and C according to DIN1840 - Grinding of Variozahn - Grinding of special teeth - Freely variable tooth geometry - Grinding of repair segments for segment teeth - Chamfering alternately top/bottom or on the same side - Infinitely variable rake and clearance angle - Further developed machine protection hood including pneumatic opening and closing of the hood ! Significant advantages: - short sanding times with high surface quality thanks to stable machine design with adapted clamping flanges for the saw blades and high drive power. - Consistent, repeatable quality thanks to CNC control - Powerful grinding wheel drive - Fully digital servo drives (2 CNC axes) Technical data: - Saw blade diameter 20-550 mm - Maximum saw blade thickness 6 mm - Number of teeth 20-999 - Working speed 3-75 teeth / minute - Cooling approx. 5 bar at 40 l/min. - Grinding wheel drive 2.2 kw - Dimensions LxWxH approx. 1750x1200x1800mm - Weight net/gross approx. 800/980kg - Paint finish pigeon blue H0Soi3Klnn Accessories: - Software for grinding curved tooth,angle tooth,solid carbide tooth,vario tooth,cylindrical grinding (software extensions possible on request) - Saw blade holders diameter 300,215,140,90mm - Reducing rings diameter 16x22,27,32,40,50mm - Basic holder for saw blade holders - Mechanical power clamping nut - Coolant system incl. High-pressure pump, mist extraction and magnetic separator, designed for cooling with emulsion. - Automatic central lubrication with lubrication pressure monitoring (linear guides + ball screw drive) - Operating instructions incl. circuit diagrams A trade-in of your possibly existing used ECE 45 is possible.

Condition: used, Year of construction: 1984, saw blade diameter 120 - 630 mm workpiece-spindlehead motor 0,5 kW grinding wheel diameter 125 x 32 mm Ukvpo2L939 total power requirement 0,5 kW weight of the machine ca. 250 kg dimensions of the machine ca. 1 x 1 x 1,5 m No. 1251 Saw blade grinding machine VOLLMER, type CHHT 20 H Coolant device Weight approx. 200 kg For further product information see data sheet

Condition: ready for operation (used), Year of construction: 1999, Brand: Walter Diameter range: 80 to 850 mm - Standard measuring probe for recording and managing grinding parameters - MMC 103 SIEMENS numerical control - All gear geometries. - Windows 95 - Stable, vibration-limiting cast-iron construction Bsij20Shzss - Automatic detection of sharpening length and tooth pitch -Mist extractor 60,000Tr fixed-mount gouge system Sold as is

Condition: excellent (used), Saw blade diameter to be ground up to max. 200 mm Grinding wheel diameter 150 mm, many accessories (holders for saw blades, discs for different tooth pitches) Clxopemn Good, well-maintained condition Machine manual is available

Condition: used, Technical details: grinding wheel diameter: 240 mm saw blade diameter: 600 mm total power requirement: 1,1 + (0,37 kW) kW weight of the machine approx.: 600 kg Saw Blade Sharpening Machine Machine performs grinding process automatically saw blade continue to move automatically grinding wheel diameter: max.: 240 mm driving motor for feed (0,37 KW) * Coq2Taqd

Condition: used, Year of construction: 2007, Suitable for automatic grinding or re-toothing and chamfering of HSS and segment saw blades as well as solid carbide saws with ceramic grinding wheels and deep grinding using CBN or diamond grinding wheels. Accessories: Full cladding, Saw blade magazine with 3 saw blade stacks, each with a stack height of 250 mm (for approx. 35 saw blades each) #9007511, Device for automatic chamfering of saw blades from Ø 145 mm, Automatic threading of the grinding wheel, Automatic central lubrication, Coolant system 400 L with coolant tank with filter system & cooling unit, Electrostatic suction, Integrated machine lighting, Oil drip tray, 3 saw blade mandrels (loader). Saw diameter: 40-710mm 7Fkxgvr saw diameter: 40-710 mm Tooth pitch: 1 - 55 mm Number of teeth: 2 - 998 number of teeth: 2 - 998 Saw blade thickness: max. 8 mm saw blade thickness: max. 8 mm Grinding wheel diameter: 200 x 32 mm Connected load: 10 kW (400 V / 50 Hz) mass: approx. 3200 kg Dimensions: L x W x H = 1198 x 1750 x 2015 mm colour: gray RAL 7045/7047

Condition: like new (used), Year of construction: 2023, Functionality: fully functional, Vollmer HM sanding and leveling machine Type CHX840 Year 2023 Total operating hours 545 Car operation 140 hours Type CHF840 Year 2018 B7Mobxoefa Total operating hours 1598 hours Car operation 697 hours

Condition: ready for operation (used), saw blade diameter - mm workpiece-spindlehead motor 0,18 kW grinding wheel diameter ? mm Uirwnh20Vf total power requirement 0,18 kW weight of the machine ca. 200 kg dimensions of the machine ca. 0,8 * 0,5 * 1,6 m

Condition: good (used), Year of construction: 1963, machine/vehicle number: 30769, saw blade diameter: 300 mm, input frequency: 50 Hz, input voltage: 380 V, Heller Brothers SA 315 -WKG 972 On offer here is an automatic saw blade grinding machine from Gebrüder Heller. Technical data: Bei2Lum Saw blade diameter: 300 mm Clamping angle: 20 ° Lateral displacement: 73 mm Power supply / connected load: 380 Volt 50 HZ Factory No.: 30769 Rated current: 2 A

Year of construction: 1992, Condition: used, Vollmer Saw blade shearing machine Gt72Srsee type NS 700 Year 1992

Condition: used, Year of construction: 1996, Circular saw blade diameter: 80 - 700mm Circular Saw Bore Diameter: 10-105mm Tooth pitch: from 8 mm rake angle: 0° to 30° tangential relief angle: 0 - 5° radial relief angle: 0 -3° grinding path: up to 15 mm Grinding wheel diameter: 100 mm Grinding wheel bore diameter: 32 mm Connected load approx.: 0.49kW (400V/50Hz) Weight approx.: 82 kg Dimensions W x D x H: 500 x 700 x 650 mm colour: green Bdv7Ioi9 Suitable for manual grinding of tooth flanks on carbide-tipped circular saw blades. Accessories: Coolant device 1 locating bolt

Condition: used, saw blade diameter 20-200 / 30-300 mm workpiece-spindlehead motor 0,3 kW grinding wheel diameter - mm total power requirement 4 kW weight of the machine ca. 1,2 t dimensions of the machine ca. 4 x 2,5 x 1,5 m No. 1532 Workbench system with 7 saw blade grinding machines and integrated grinding Dprtef dust extraction system Working width: 20-200 / 30-300 mm Drive power: 0.25/0.3 kW Workbench with base cabinets and various tools Integrated dust extraction for each workstation in the workbench Weight approx. 1100 kg

Condition: used, Year of construction: 1998, Circular saw blade diameter without robot: 80 -840mm Circular saw blade diameter with robot: 100 - 630mm Circular Saw Bore Diameter: with robot from 10 -180 mm Qizbr8Gcht Circular saw bore diameter without robot: from 10 mm Circular saw bore diameter with robot: with robot from 10 -180 mm Sheet thickness without robot: up to 14 mm Sheet thickness without robots: up to 14 mm Sheet thickness with robot: up to 5 mm Tooth pitch: 6 - 120mm rake angle: -35° to +40° Bevel grinding on the tooth back: up to 45 ° clearance angle: 5° - 45° Bevel grinding on the negative tooth face: up to 30° Working speed for breast and back grinding: up to 12 teeth/min., Bevel cut on the back of the tooth: up to 45 ° Bevel cut on the negative tooth face: up to 30° Working speed for front and back grinding: up to 12 teeth/min., weight machine: 2000 kg Weight loader: 1450 kg Grinding path and grinding speed per machining surface on the tooth: infinitely adjustable Dimensions loader L x W x H =: 2316 x 1860 x 2058 mm Dimensions machine L x W x H =: 2295 x 1743 x 2050 mm Weight machine: 2000 weight loader: 1450 Connected load approx.: 4.4 kW (400 V / 50 Hz) colour: telegrey RAL 7045/7047 Suitable for automatic grinding of tooth face and tooth back on carbide-tipped circular saw blades in one setup. All known tooth geometries (flat, alternating, trapezoidal tooth, etc.) can be ground automatically and in one pass. Accessories: Handling system for saw blades ND 230 including data input station and 3 loading trolleys Loader ND 230 Full cladding Saw positioning device, Automatic central lubrication, Wet grinding device, Extraction, Halogen lamp, 1 saw blade mounting bolt including magnet holder Oil collecting tray
