Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, Klingelnberg ZW 301 Gear Measuring Machine with Evaluation Computer Double-flank gear measuring machine with 4-position indexing table - Spur gear - Internal gear - Gear shaft - Computer (evaluation via industrial PC with fully automatic parameter calculation, quality determination, and classification) Itedev Ic R Ajpfx Af Sor Workpiece data: Table load including fixture, max. 100 kg Load on support plate/vertical slide including fixture, max. 80 kg Workpiece knife with counterholder on measuring and feed slide, max. 300 mm Workpiece knife with counterholder on machine bed, max. 300 mm Device data: Heidenhain LIF 101 position measuring system Center distance min./max. 45/300 mm Table diameter 150 mm Table height above floor 950 mm Measuring pressure min./max. 5/30 daN Total connected load of the test device: 0.75 kVA Total space requirement: LxWxH 1900 x 1200 x 2200 mm Net weight: 750 kg PC, as well as some master wheels with common modules. Weight: 750 kg

Condition: repair required (used), Year of construction: 2008, functionality: not functional, machine/vehicle number: 06-13633, Technical characteristics: Work Area - Elevation: 160 mm - Minimum center distance between table axis and spindle: -30 mm - Maximum center distance between table axis and spindle: +150 mm - Minimum distance between table surface and cutter spindle: 275 mm - Maximum distance between table surface and cutter spindle: 345 mm - Manual transverse movement of the column: ±20 mm - Maximum workpiece external diameter: 250 mm - Bore diameter: 100 H7 mm Workpiece Specifications - Maximum nominal module (for steel with an approximate tensile strength of 600 N/mm²): 3 mm - Minimum pitch diameter (internal gearing): 60 + d0s mm, where d0s is the external diameter of the cutter (in mm) - Maximum external diameter (internal gearing): 280 mm - Maximum band (toothed area) width: 42 mm - Maximum stroke length for toothing: 50 mm - Maximum spindle travel: 70 mm Itjdpfxexwl Tzj Af Ssr Load Capacity - Maximum load supported by the table (including fixtures): 150 kg - Maximum force exerted by the tailstock: 1,500 kg - Maximum attainable helix angle (with hydrostatic guide): ~45° Cutter Spindle - External diameter: 85 mm - Cutter holder bore: 45 H3 mm Electrical Equipment - Operating voltage: 400 - 480 V - Control voltage: 24 V - Magnetic voltage: 24 V - Cable cross-section: 16 mm² - Connected power: 15 kW - Protection: 50 A Dimensions - Overall dimensions: Length = 2980 mm, Width = 1650 mm, Height = 2165 mm - Weight: 5700 kg Main Features and Capabilities: - Vertical Design: Optimized for chip evacuation and easy loading/unloading - Control: Siemens Sinumerik 810D/840D - High Precision: Positioning accuracy via Heidenhain linear scales - Measurement system: Marposs T25 (for angle alignment or zero-point rotation definition) - Oil filtration and cooling system - Magnetic chip conveyor Machine Status: NOT WORKING: NC does not start

Condition: excellent (used), Year of construction: 2006, operating hours: 53,244 h, functionality: fully functional, Technical Data – Gleason Phoenix II 600HC (CNC Hypoid Gear Cutting Machine) Working Area Max. workpiece diameter: Ø 600 mm Max. tooth depth: 24.6 mm Max. gear width: 110 mm Number of teeth: 1–300 Cutterhead size face milling (FM): 18" diameter Cutterhead size hobbing (FH): 210 mm radius Iodpfoxwzu Iex Af Setr Max. cutter spindle speed: 600 min⁻¹ Work Spindle Front taper diameter: Ø 203 mm Taper bore diameter: Ø 181 mm Bore depth: 884 mm Max. work spindle speed: 600 min⁻¹ Dimensions and Weight Footprint L × W × H: 4.4 × 3.5 × 3.5 m (incl. peripherals) Machine weight: 26,000 kg Connection Data Total connected load: 139 kVA Main fuse: 200 A Operating voltage: 400 V Mains frequency: 50 Hz Control voltage: 24 V DC

Condition: excellent (used), Year of construction: 2009, Base of a Höfler 900 Rapid gear grinding machine with dimensions: L425 x W230 x H79.5 cm Weight: 20 t Ijdpfx Afoxcwa Ro Sstr

Condition: used, Year of construction: 2001, max. wheel diameter 400/500 mm CNC-Control GE FANUC Series 160i-M pinion diameter - max. 400 mm crown gear diamter max. 500 mm x-axis +/- 70 mm y-axis 200 mm z-axis 200 mm axis angle 90 Grad Ijdevxwxcspfx Af Sstr speeds: R T min rated current 30 kVA weight of the machine ca. 6,2 t dimensions of the machine ca. 3,2 x 2,5 x 2,3 m

Condition: used, Year of construction: 1954, total height: 2,000 mm, total width: 1,600 mm, total length: 2,400 mm, Empty weight: 1.000 kg Price: On request Chuck: 700mm  Itjdpfx Afjxbq U Se Sor Workpiece maximum height: 550mm  X axis displacement: 450mm - Year: 1954 - Documentation available: No - CE certificate present: No - Transport dimensions: 2400mm x 1600mm x 2000mm (l x w x h) - Transport weight [kg]: 1000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: ready for operation (used), Year of construction: 1963, functionality: fully functional, wheel diameter: 900 mm, workpiece diameter (max.): 150 mm, overall weight: 8,200 kg, rotational speed (max.): 80 rpm, workpiece length (max.): 750 mm, TECHNICAL DETAILS Max. wheel diameter: 900 mm Max. module: 10 Iedpfx Asxvr Ensf Setr Max. cutter diameter: 190 mm Max. cutter length: 320 mm Cutter speeds (stepless): 13–80 rpm Max. workpiece length: 750 mm Max. workpiece diameter: 150 mm MACHINE DETAILS Machine weight approx.: 8,200 kg Note: The arbor for the counter-support is missing.

Condition: good (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: 06-13795, Technical characteristics: Work Area: - Elevation: 160 mm - Minimum center distance between table axis and spindle: -30 mm - Maximum center distance between table axis and spindle: +150 mm - Minimum distance between table surface and cutter spindle: 275 mm - Maximum distance between table surface and cutter spindle: 345 mm - Manual transverse displacement of the column: ±20 mm - External diameter: 250 mm - Bore diameter: 100 H7 mm Workpiece: - Maximum nominal module (in steel with tensile strength approx. 600 N/mm²): 3 mm - Minimum pitch diameter (internal gearing): 60 + d0s mm - Maximum external diameter (internal gearing): 280 mm - Maximum width of the toothed band: 42 mm - Maximum stroke length for tooth cutting: 50 mm - Maximum spindle travel: 70 mm Load Capacity: - Maximum table load (including fixtures): 150 kg - Maximum force exerted by the tailstock: 1,500 kg - Maximum achievable helix angle (hydrostatic guide): ~45° Cutter Spindle: Isdpfxjxwlmuj Af Sstr - External diameter: 85 mm - Cutter holder bore: 45 H3 mm Electrical Equipment: - Operating voltage: 400 - 480 V - Control voltage: 24 V - Magnetic voltage: 24 V - Cable cross-section: 16 mm² - Connected power: 15 kW - Protection: 50 A Dimensions: - Overall dimensions: Length = 2980 mm, Width = 1650 mm, Height = 2165 mm - Weight: 5700 kg Main Features and Capabilities: - Vertical design: Optimal chip evacuation and easy loading/unloading - CNC control: Siemens Sinumerik 810D/840D - High precision: Positioning accuracy via Heidenhain linear scales - Measuring system: Marposs T25 (for angular alignment or rotation zero-point definition) - Oil filtration and cooling system - Magnetic chip extraction conveyor Machine status: Operational (WORKING)

Condition: good (used), Year of construction: 1975, max. wheel diameter 630 mm gear width 425 mm table hole 125 mm clamping table 550 mm max. module 10 axial-feeds 0,40 - 6,80 mm/U radial feeds 0,10 - 1,76 mm/U dist. cutter spindle - workpiece spindle 50 - 425 mm no. of teeth min. 8 milling cutter dia. x width 192 / 215 mm shifting 200 mm main drive motor 7,5 kW total power requirement 22,5 kVa weight of the machine ca. 8,2 t Machine equipment: - Universal milling head with tangential displacement - Pressure reducing valve for counterholder - Magnetic chip transport --> Working range Largest module to be milled (in steel 600 N/mm²): 10 mm --> Straight gear teeth: --> Largest workpiece diameter: 630 mm --> Largest axial slide travel (Z-axis): 425 mm --> Smallest number of teeth to be milled: 8 --> Dimensions Diameter of workpiece table: 550 mm --> Diameter of table bore: 125 mm --> Diameter of workpiece mandrel: 36 mm --> Largest milling cutter that can be clamped: --> Diameter: 192 mm --> Width: 220 mm --> Diameter of milling cutter mandrels: 32 mm --> Centre distance between milling cutter and workpiece: --> Maximum distance: 425 mm --> Minimum distance: 50 mm --> Drive taper for cutter mandrels: Morse taper 5 Iedpfx Asw A Am Sjf Sstr --> Maximum cutter displacement: 200 mm --> Speeds and feeds Cutter speeds: 45 - 280 rpm --> Axial feed (Z axis): 0.40 - 6.30 mm/rev --> Radial feed (X axis): 0.10 - 1.60 mm/rev --> Tangential feed (Y axis): 0.14 - 2.24 mm/rev Translated with (free version)

Condition: like new (used), functionality: fully functional, workpiece weight (max.): 3 kg, feed length X-axis: 100 mm, feed length Y-axis: 100 mm, feed length Z-axis: 200 mm, workpiece diameter (max.): 180 mm, milling length: 200 mm, overall weight: 5,000 kg, rotational speed (max.): 3,000 rpm, rotational speed (min.): 400 rpm, tool diameter: 80 mm, Equipment: documentation/manual, rotational speed infinitely variable, This machine is completely dismantled and rebuilt from the ground up. During the overhaul, it undergoes comprehensive modernization with state-of-the-art technology and the latest premium-quality components. Following refurbishment, the machine is presented in a technical and visual condition equivalent to new – reliable, high-performance, and future-proof. The equipment and configuration can be tailored individually to your requirements, ensuring maximum productivity in your production environment. Itedpfx Afex Af A Ho Sjr

Condition: good (used), max. wheel diameter 1600 mm gear width 250 mm max. module 30 min. module 8 range of tooth size 58 mm tooth width 250 mm weight of the machine ca. 42,3 t dimensions of the machine ca. 4,45 x 6,00 m - Cone spacing in mm. for spiral angle 30° minimum: 150 maximum: 800 - Taper angle, in degrees minimum: 5 maximum: 85 - Tooth angle minimum: 0° maximum: 45° - Number of teeth to be cut minimum: 10 maximum: 150 Ijdpfxeu Dbucs Af Sotr The machine is complete, fully functional and in good condition. Equipment / accessories: - complete set of change wheels - 4 pcs. cutter heads - various milling cutters - Operating instructions in English

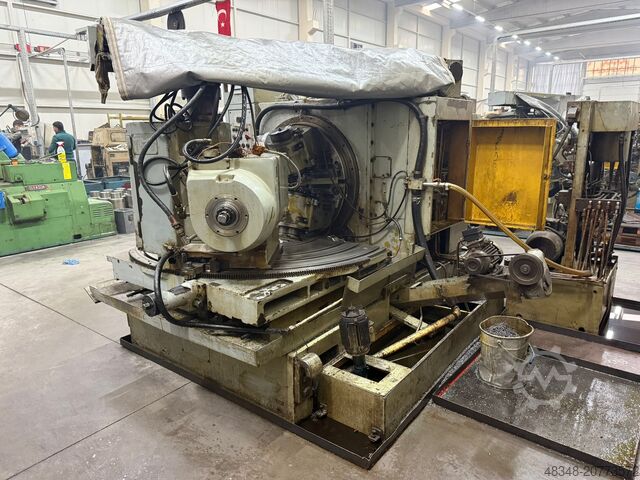

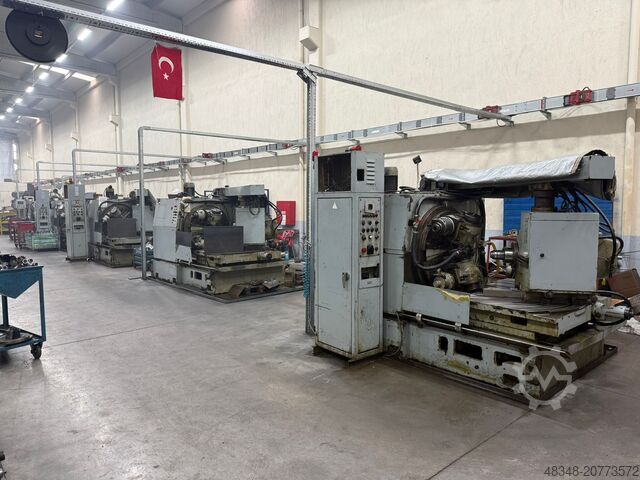

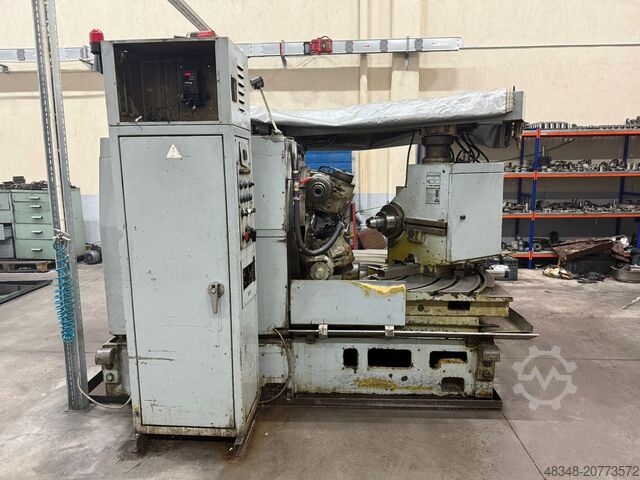

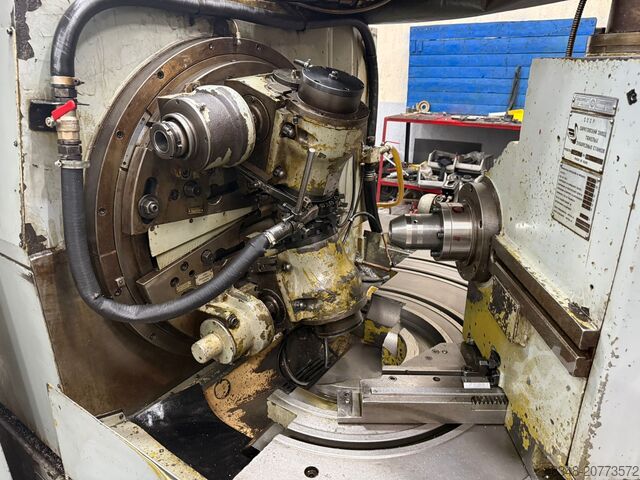

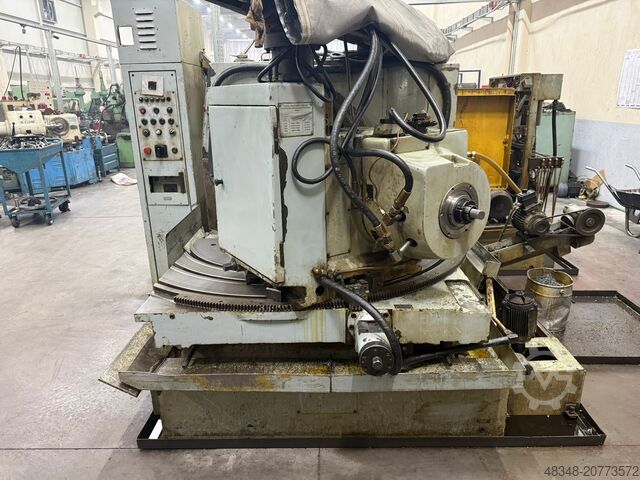

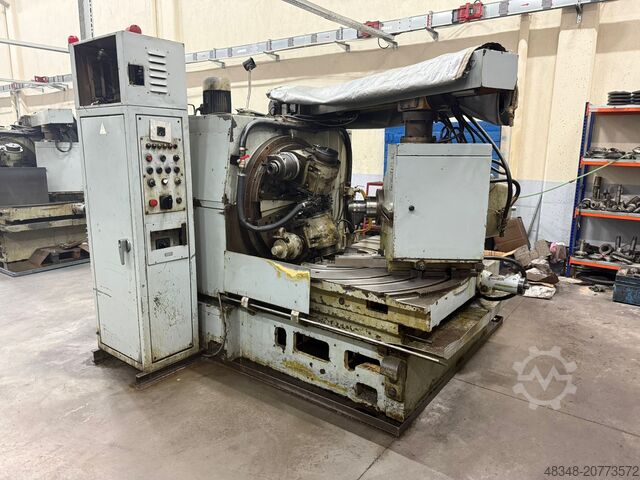

Condition: used, Year of construction: 1990, functionality: fully functional, wheel diameter: 250 mm, gear diameter: 250 mm, We have a total of 6 machines, of which 4 units are available for sale. All machines are in very good condition and are currently in active operation at our factory. Buyers are welcome to visit our facility to inspect the machines under working conditions and to carry out test production.; The machines are offered complete with the following accessories and equipment: Ijdpfxox H T Afe Af Sjtr – Change gears – Tool cabinet – Catalog – Computer software for calculation purposes – Electrical control panel – Hydraulic unit

Condition: ready for operation (used), Year of construction: 1972, functionality: fully functional, machine/vehicle number: 32300-16, grinding wheel diameter: 400 mm, grinding wheel width: 104 mm, overall weight: 1,500 kg, TECHNICAL DETAILS Grinding wheel diameter: 400 mm Max. grinding wheel width: 104 mm Grinding worm diameter: 270 - 400 mm Max. grinding worm width: 62/84/104 mm Grinding worm speeds during profiling: 18/35/70 rpm Max. module: 7 Itodoxvr A Tjpfx Af Sjr Min. module: 0.5 Pressure angle: 10 - 30 degrees Longitudinal travel of dressing unit: 156 mm MACHINE DETAILS Electrical data Total connected load: 3 kW Electrical specification - voltage/frequency: 380 V / 50 Hz Dimensions & Weight Space requirement approx.: 1.5 x 1.4 x 1.3 m Machine weight approx.: 1,500 kg

Condition: good (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 06-13796, Technical characteristics: Work Area - Elevation: 160 mm - Minimum center distance between table axis and spindle: -30 mm - Maximum center distance between table axis and spindle: +150 mm - Minimum distance between table surface and cutter spindle: 275 mm - Maximum distance between table surface and cutter spindle: 345 mm - Manual transverse displacement of the column: ±20 mm - External diameter: 250 mm - Bore diameter: 100 H7 mm Workpiece - Maximum nominal module (in steel with a tensile strength of approximately 600 N/mm²): 3 mm - Minimum pitch diameter (internal gearing): 60 + d0s mm - Maximum external diameter (internal gearing): 280 mm - Maximum width of the toothed band: 42 mm - Maximum stroke length for tooth cutting: 50 mm - Maximum spindle travel: 70 mm Load Capacity - Maximum load on the table (including fixtures): 150 kg - Maximum force applied by the tailstock: 1,500 kg - Maximum achievable helix angle (hydrostatic guide): approx. 45° Cutter Spindle - External diameter: 85 mm - Cutter holder bore: 45 H3 mm Electrical Equipment - Operating voltage: 400 - 480 V, Control voltage: 24 V, Magnetic voltage: 24 V, Cable cross-section: 16 mm² - Connected power: 15 kW, Protection: 50 A Dimensions Isdpfx Afsxwl N Ae Sjtr - Overall dimensions: Length = 2980 mm, Width = 1650 mm, Height = 2165 mm - Weight: 5700 kg Main Features and Capabilities: - Vertical design: Ensures optimal chip evacuation and easy loading/unloading. - Control: Siemens Sinumerik 810D/840D - High Precision: Positioning accuracy by Heidenhain linear scales - Measuring system: Marposs T25 (for angular alignment or zero-point rotation definition) - Oil filtration and cooling system - Magnetic chip extraction conveyor

Year of construction: 2015, condition: excellent (used), Polygon and surface machining, gear and spline shaft machining, gear tooth pointing, shift stop machining, chamfering and deburring, SCUDDING See document Itjdoxupg Tepfx Af Sor

Condition: ready for operation (used), functionality: fully functional, Used gear grinding machine Niles ZSTZ 630i. The machine is fully functional; a video can be provided upon request. Iodpfsxzfugex Af Sstr

Condition: used, max. wheel diameter 300 mm gear width 200 mm Isdpfx Ajxu Nttef Sjtr max. module 12 min. module 0,5 total power requirement 2 kW weight of the machine ca. 1 t dimensions of the machine ca. 0,8 x 1,2 x 1,5 m

Condition: used, The Modul KF 250 HSC bevel gear milling machine was designed as a universal machine for flexible machining of gears and is used by manufacturers of gear and transmission technologies for the milling process of bevel gears. Technical data: Gear diameter: 300 mm Max. module: 10 Tooth width: 60 mm Space required approx.: 4.2 x 2.6 x 2.2 m Itsdexz Eg Aepfx Af Ssr Machine weight approx.: 11,000 kg *The image shows the machine in its current condition as a used machine. Upon request, it can be offered partially modernised or as a complete retrofit, fully modernised with new CNC control (SIEMENS ONE).

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 73866, workpiece weight (max.): 60 kg, rotational speed (max.): 2,300 rpm, overall weight: 5,000 kg, TECHNICAL DETAILS Module, max.: 7 Grinding worm diameter: 280–350 mm Grinding worm width: 84–104 mm Ijdpfx Afsxvrzie Sotr Grinding worm speed (grinding): 1,100–2,300 rpm Grinding worm speed (profiling): 50–95 rpm Number of teeth, min.: 6 Number of teeth, max.: 600 Maximum permissible outside diameter: 360 mm Maximum workpiece weight: 60 kg Maximum grinding stroke: 175 mm Workpiece speed (grinding): max. 250 rpm MACHINE DETAILS Machine weight approx.: 5 t Electrical Data Mains connection: 3 × 400 V 50 Hz Machine voltage: 3 × 400 V 50 Hz Control voltage: 1 × 230 V 50 Hz / 1 × 24 V DC Contactor voltage: 1 × 24 V DC Solenoid valve voltage: 1 × 24 V DC

Condition: excellent (used), Year of construction: 2007, max. wheel diameter 400 mm Isdpoxvdryjfx Af Sotr weight of the machine ca. 4 t

Condition: excellent (used), Year of construction: 2011, operating hours: 49,000 h, functionality: fully functional, KLINGELNBERG OERLIKON G 27 – Bevel Gear Grinding Machine Manufacturer: KLINGELNBERG AG Brand: KLINGELNBERG OERLIKON Series / Model: G 27 Year of Manufacture: 2012 Type: Bevel Gear Grinding Machine Condition: Excellent – all tolerances within manufacturer's specifications Location: Bavaria, Germany Nearest Airport: Munich Application Areas - Spiral and hypoid bevel gears - Planetary gears - Passenger car and commercial vehicle transmissions - Agricultural and forklift drive systems - Special gear units - Helicopter gearboxes - ...and many other precision applications Technical Specifications - Max. gear diameter: 300 mm - Max. module: 8 - Min. module: 0.7 - CNC control: Siemens Sinumerik 840D Solution Line - Software: KIMoS5 (Klingelnberg Integrated Manufacturing of Spiral Bevel Gears) - Min./max. bevel angle: −90° / +90° - Workpiece spindle bore: 127 mm - Grinding wheel diameter: 50 – 230 mm - Grinding spindle speed (stepless): up to 7,500 rpm Iedpfsxuwmnox Af Sotr - Workpiece spindle speed: up to 700 rpm - Connected load: 146 kW - Machine weight: approx. 21 t - Machine dimensions (L × W × H): approx. 9.5 × 3.6 × 3.1 m - Integrated probe unit at grinding head - External grinding spindle cooling - ELBARON oil mist extraction system (integrated) - HOFFMANN coolant filtration system

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, CNC Gear Hobbing Machine Horizontal . no tailstock, just for chuck parts Isdpoqaf U Tjfx Af Setr . max. gear diameter: 90 mm . max gear width (b): 50 mm . max module: 3

Condition: used, The Samputensili S 500 B bevel gear cutting machine was designed as a universal machine for flexible machining of gears and is used by manufacturers in gear and transmission technology for the milling of bevel gears. Iodpjxz Ef Sofx Af Sotr Technical data: Gear diameter: 500 mm Module – max.: 5 Tooth width: 100 mm Space requirement approx.: 4.5 x 3.2 x 2.4 m Machine weight approx.: 13,000 kg *The illustration shows the machine in its current used condition. Upon request, it can be supplied partially modernised, or as a completely retrofitted and modernised machine with new CNC control (SIEMENS ONE).

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, spindle speed (max.): 3,000 rpm, travel distance X-axis: 90 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 400 mm, spindle bore: 40 mm, TECHNICAL DETAILS Travel Distance X-Axis: 90 mm Travel Distance Y-Axis: 80 mm Travel Distance Z-Axis: 400 mm Maximum Permissible Head Circle Diameter: 140 mm Milling Arbor Diameter: 22 mm Maximum Gear Cutting Length: 160 mm Angles Maximum Swivel Angle of Milling Head +A Direction: 45° Maximum Swivel Angle of Milling Head -A Direction: 118° Workpiece Spindle Outer Diameter: 105 mm Bore: 40 mm Rapid Traverse X-Axis: 7,500 mm/min Y-Axis: 5,000 mm/min Z-Axis: 15,000 mm/min Rotational Speeds Tool: 50 to 4,000 rpm Workpiece Spindle max.: 3,000 rpm MACHINE DETAILS Operating Hours: 29,790 h Cycle Time: 6,654 h Electrical Connection Mains Connection: 400 V (AC) Supply Voltage: 400 V (AC) Control Voltage: 24 V (DC) Frequency: 50 Hz Connected Load: 13 kVA Isdpfx Ajxvrarof Sjtr Cable Cross-Section: 16 mm² Fuse Rating: 63 A Dimensions & Weight Space Requirement: 5.25 x 4.06 x 2.94 m Machine Weight: 8 t EQUIPMENT Industrial Filter IFS EC1500 Sediment Separator Knoll KF200/640 Integrated Chip Conveyor with Magnetic Separator Machine Automation for Loading and Unloading Workpieces Robot Automation Güdel KTB-31/62, Year Built: 2018 with Station for Part Remover

Condition: used, Year of construction: 1999, Technical details: max. wheel diameter: 5 - 260 mm gear width: 400 mm max. module: 15 min. module: 0,5 gear hobbing diameter - internal: 30 mm max. helix angle: > 85 ° Aussenverz. max. helix angle: > 45° Innenverz. Testing Range vertical: 400 mm dist. between centers: 5 - 600 mm table diameter: 260 mm max. table load: 100 kg speeds: 30 1/min Itodpfx Afoqvcnne Ssr total power requirement: 1,6 kVA weight of the machine ca.: 900 kg dimensions of the machine ca.: 200 x 1300 x 2150 mm CNC Gear Tester in good condition, out of OEM Test Lab. For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.) *
