Condition: used, Year of construction: 2020, Technical details: max. wheel diameter: 100 mm Knodpfsxz Ahkjx Af Sef total power requirement: 13 kW weight of the machine ca.: 8 t dimensions of the machine ca.: 3,30 x 4,70 x 3,50 m diameter of milling arbor: 22 min max. length of teeth cutting: 165 mm Hob lenght max. : 219 mm slide travel radial ( X-axis ): 90 mm slide travel tangential ( Y-axis ): 160 mm slide travel axial ( Z-axis ): 320 mm 1 Gleason 100PSic rolling/peeling machine, year of manufacture 2020 with integrated IFS EC1500 industrial filter, 1 external Knoll KF200/640 sediment separator, year of manufacture: 2017 1 integrated chip conveyor with magnetizing separator 1 machine automation system for loading and unloading workpieces *

Condition: good (used), Year of construction: 1979, gear dia. 360 mm Kjdpfoqy Hytox Af Senf

Condition: good (used), Year of construction: 1962, gear diameter 150 mm Kjdpfxex Iflus Af Sjnf

Condition: used, Year of construction: 2012, max. wheel diameter 300 mm gear width 320 mm max. module 10 min. module 0,5 ical angle 45 ° frequency 50 Hz Knedjvxwtgopfx Af Sef voltage 400 V main fuse 125 A x-axis 270 mm y-axis 250 mm z-axis 320 mm A - axis +/- 45 ° B - axis 360 ° C-axis 360 ° total power requirement 89 kW weight of the machine ca. 23,5 t dimensions of the machine ca. 11,2 x 5,5 x 2,9 m automated Oil slinger station EWAB workpiece storage Hoffmann coolant filter system HSF 100 SE/K Minimax fire extinguishing system W+W air filter system Promot Automation "Cellmaster" (3 cells) year 2019

Condition: used, Year of construction: 1975, REISHAUER gear flank grinding machine AZO with balancing device AM10 Knodpfxsx Eza Ao Af Sef

Condition: excellent (used), Year of construction: 1999, operating hours: 67,760 h, functionality: fully functional, General Machine Information Manufacturer: Hurth / Modul Machine Type: CNC Gear Hobbing Machine (High-Precision) Control Unit (CNC): Siemens SINUMERIK 840C Year of Manufacture: 1999 Machine Weight (Approximate): 11 000 kg (11 tonnes) Total Connected Load (Approximate): 30 kVA Workpiece and Machining Capacity Maximum Workpiece Diameter: 315 mm Maximum Module (Nominal for Steel): 6 mm Kjdpfxsx Ez Ero Af Sonf Maximum Hobbing Length (Axial Travel, Z-Axis): 400 mm Maximum Workpiece Weight (Table Load): 500 kg Workpiece Table Diameter: 320 mm Table Speed (Max.): Up to 250 rpm Hobbing Tool Spindle Hob Spindle Taper: SK 40 or similar high-precision taper Maximum Hob Diameter: 130 mm Maximum Hob Length: 280 mm Maximum Hob Spindle Speed: 1500 rpm Hob Spindle Drive Power (S6): Up to 25 kW Hob Head Swivel Angle (B-Axis): ±45 degrees Axes Travel and Feed Rates Radial Travel (X-Axis / Cutter Infeed): 350 mm Axial Travel (Z-Axis / Hob Slide): 400 mm Maximum Shift Travel (V-Axis / Tangential): 240 mm Maximum Rapid Traverse Rate (X/Z): 15 000 mm/min Feed Rate (Axial/Radial): 0.1 to 10 000 mm/min

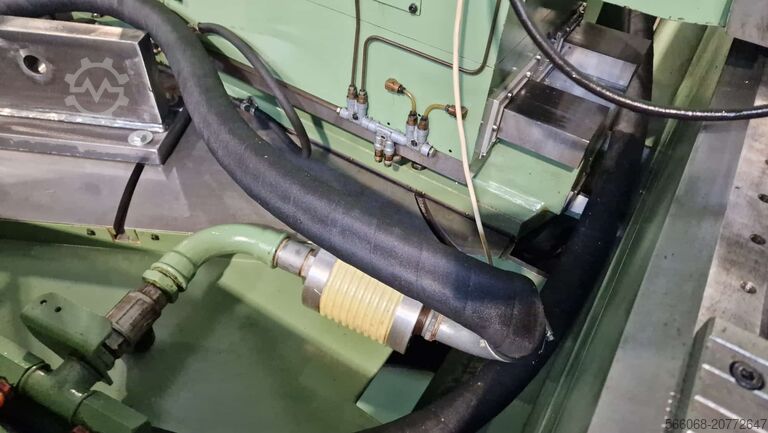

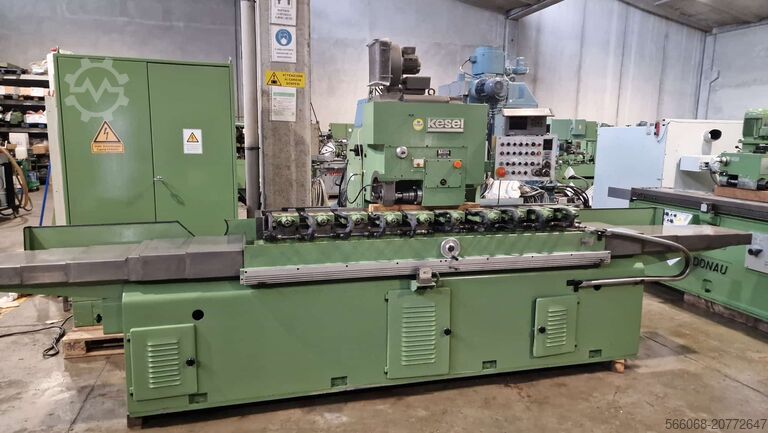

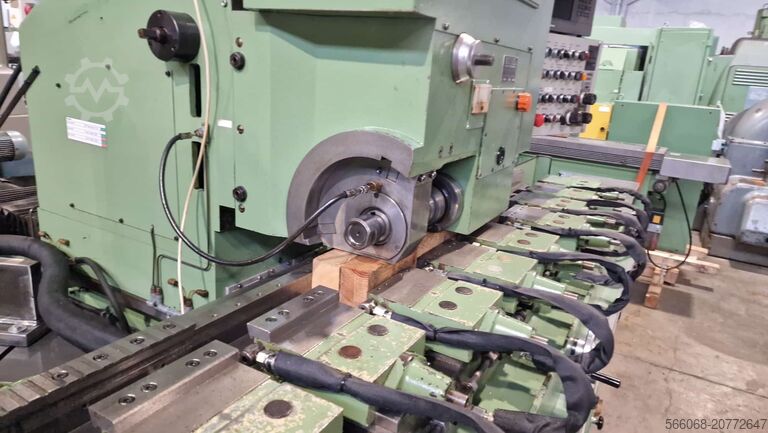

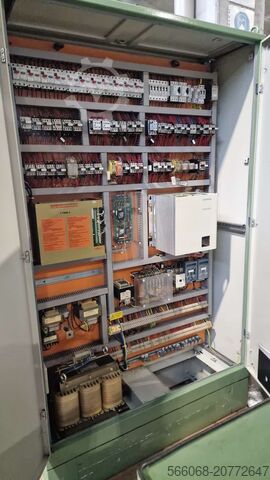

Condition: like new (used), Year of construction: 1986, Manufacturer: KESEL Model: L79/2100 Year: 1986 Max. module: 12 Machine weight: 4,700 kg Max. cutter diameter: 250 mm Maximum height adjustment: 250 mm Swivel range: 30° Max. stroke: 380 mm Knsdpfx Aex H S Hijf Sof

Condition: used, STRAUSAK HS 30 is a Hobbing machine engineered for precision work, offering high accuracy and reliability. Workpiece Ø 0.2–35 mm; max module 1.00; max cutting length 22 mm; teeth 2–390; cutter Ø 6–24 mm. Cutter speeds stepless 400–13,000 t/min. Voltage 50 Hz, 3x380 V; weight ≈600 kg; dimensions L800×W800×H1450 mm. Fitted with PLC control, loading attachment, parts catcher, lamp and coolant system. Delivers tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical. Knsdpjxyxxijfx Af Ssf

Condition: good (used), Year of construction: 1987, gear diameter 800 mm, module 16 Kodpfx Afox Ifkdj Sonf

Condition: used, Year of construction: 2002, crown gear diamter max. 500 mm distance crown gear spindle - front pinion spindle 150 - 350 mm distance pinion spindle - front crown gear spindle 120 - 340 mm control GE FANUC Series 160i-M 70 mm pinion turning speeds max. 0 - 3.000 mm crown gear turning speeds max. 0 - 2.600 U/min inner taper pinion spindle Ø 99,2 mm inner tape crown gear spindle Ø 99,2 mm rated current 30 A weight of the machine ca. 6,40 t dimensions of the machine ca. 2,40 x 2,20 x 2,10 m Own lapping system included Was also operated at a lapping center Kodpfx Aovxwpuof Ssnf

Condition: repair required (used), Warehouse clearance Kjdpfx Asx E Uz Tsf Sonf 2 gear hobbing machines for sale as parts donors. Price: 600.00 / for both

Condition: excellent (used), functionality: fully functional, Year of construction: 2002, General Machine Information Machine Type: CNC Gear Hobbing Machine (Abwälzfräsmaschine) Control Unit (CNC): Siemens SINUMERIK 840D (Digital) Year of Manufacture: 2002 Machine Weight (Approximate): 9500 kg (9.5 tonnes) Total Connected Load (Approximate): 25 kVA – 35 kVA Workpiece and Machining Capacity Maximum Workpiece Diameter: 150 mm Maximum Module (Nominal for Steel): 3 mm (up to 5 mm possible depending on conditions) Maximum Workpiece Length (Axial Travel): 450 mm Maximum Workpiece Weight (Table Load): 15 kg Workpiece Table Diameter: 145 mm Table Speed (Max.): Up to 800 min⁻¹ (rpm) Hobbing Tool Spindle Maximum Hob Diameter: 90 mm (Often cited as 80 mm max in some configurations) Maximum Hob Length: 220 mm (Often cited as 200 mm max in some configurations) Maximum Hob Spindle Speed: 4500 min⁻¹ (rpm) or up to 6000 min⁻¹ Hob Spindle Drive Power (S6-60%): Up to 19 kW (or up to 23 kW depending on configuration) Hob Head Swivel Angle (B-Axis): ±45 degrees Axes Travel and Feed Rates Axial Travel (Z-Axis / Hob Slide): 250 mm or 400 mm (Depending on configuration) Radial Travel (X-Axis / Cutter Infeed): 10 mm (minimum distance) to 200 mm (maximum distance) Maximum Shift Travel (V-Axis / Tangential): 180 mm (Shift travel for hob) Knjdpfjx Ezyvox Af Sof Maximum Rapid Traverse Rate (X/Z): 17 000 mm/min or up to 40 m/min Felsomat FZ 250 Loader / Automation Loader Type: Felsomat FZ 250 (Typically an integrated ring loader or swivel loader) Workpiece Change Time (Chip-to-Chip): Often less than 4 seconds (With high-speed automation) Loader Gripper Type: Typically double grippers for simultaneous unloading/loading Maximum Workpiece Weight (Loader): Up to 15 kg

Condition: good (used), Year of construction: 1998, spindle diameter 90 mm control Siemens SINUMERIK 840 C voltage 400 V stroke position adjustment 100 mm table hole 150 mm no. of strokes 100-1200 Hub/min weight of the machine ca. 8,0 t Key data Normal module: 6 mm Max. workpiece pitch circle diameter: 250 mm Max. tooth width (straight teeth): 60 mm Helix angle adjustment: 45° to +0.5° Axis angle: 0° to 90° Center distance workpiece/jigging spindle: –80 mm to +320 mm Stroke position, stroke length Max. stroke position range (depending on stroke length): 0 mm to 80 mm Stroke position adjustment range: 0 mm to 80 mm Kedpfx Ajxyadtef Sonf Stroke drive Stroke rates infinitely variable Standard: 100 to 1200 DH/min Motor for stroke drive: 9 kW Maximum cutting speed: 150 m/min Feeds Rotation axes (tool C1, workpiece C2 axis): Feed stepless relative to 100 mm pitch circle diameter: 1.0 to 9420 mm/min Radial axis (column slide X1 axis): Feed continuously variable: 1.0 to 9420 mm/min, rapid traverse corresponds to maximum feed rates Connected load / weight Total connected load: 26 kVA Total weight (standard version): approx. 9,000 kg

Condition: like new (used), Year of construction: 2020, operating hours: 18,000 h, functionality: fully functional, As-new Gear Grinding Machine KLINGELNBERG VIPER 500 W All-inclusive machine equipped for internal and external gearing Equipped with a special converter from EUR kW to US standard connection (simplified global connection) Available due to restructuring at a high-tech family-run company (no automotive production) Working Area and Capacities Max. workpiece diameter: 500 mm Max. grinding stroke: 500 mm Working area over table (min.–max.): 300 – 800 mm Distance between spindle center and table (min.–max.): 442 – 1042 mm Module (generating grinding module): 0.5 – 22 Swivel angle (min.–max.): –180° to +45° Grinding System Grinding wheel diameter (min.–max.): 221 – 350 mm Grinding worm diameter (min.–max.): 221 – 350 mm Max. grinding wheel width: 75 mm Max. grinding worm width: 150 mm Grinding spindle power: 37 kW Max. grinding wheel speed: 6000 rpm Table and Feeds Table diameter: 400 mm Table bore Ø × depth: 100 × 500 mm Max. table speed: 1000 rpm Max. axial feed: 20,000 mm/min Max. radial feed: 12,000 mm/min Max. tangential feed: 20,000 mm/min Connections and Dimensions Total connected load: 60 kVA Machine dimensions (L × W × H): 4220 × 3120 × 2526 mm Filter unit dimensions (L × W): 3490 × 2250 mm Net weight approx.: 19,300 kg Machine Configuration – VIPER 500 W Base Machine and Options VIPER 500 W base machine Preparation for internal grinding arms Internal grinding unit V5 for straight or helical internal gears Knjdpfxoxx T N To Af Ssf Measuring system for profile, lead, and pitch of external gears Measuring system for profile, lead, and pitch of internal gears V5 Touch Trigger Phasing System Power supply with ESR voltage drop compensation 100 mm table adapter Preparation for hydraulic clamping devices Hydromechanical unit for drawbar clamping systems Grinding oil filtration system with band filter 100 Fire extinguishing system Automatic work area door Cleaning system with spray gun Crane/hoist integrated into enclosure Isolation transformer Voltage stabilizer and isolation transformer Signal light/beacon tower Software Packages Gear PRO software Software for grinding of spline shafts Software for testing of spline shafts BIAS control software for gear grinding CBN grinding wheel software ADI dressing process optimization DLC lifetime monitoring for dressing tools Flexible profile correction for grinding operations Consumables Endless filter band Assembly/disassembly aid for filter band 100 Diamond dressing rollers CVD dressing roller D200 R1 for profile grinding CVD special dressing roller for generating grinding Grinding wheels Grinding wheel D350 B60 for profile grinding Grinding wheel D350 B45 for profile grinding Profiled grinding wheel D350 B150 for generating grinding Distance rings/intermediate plates 4 intermediate plates B100 22 intermediate plates B60 30 intermediate plates B45 37 intermediate plates B30 Additional Components Grinding wheel flange without intermediate plate Set of standard probes / measuring probes Additional Options Warranty extension from 12 to 24 months Closed Loop 1.0 basic version Interface for external automation

Condition: used, Year of construction: 2001, Technical details: max. wheel diameter: 50 mm gear width: 20 mm Kodpfx Afexxl Sgj Sjnf max. module: 4 mm min. module: 0,1 mm total power requirement: 12,5 kW weight of the machine ca.: 4000 kg dimensions of the machine ca.: 2,2 x 2,5 x 2,3 m workpiece length - max.: 300 mm

Condition: used, Year of construction: 2008, ratio of transmission 10:1 min. number of teeth 3 max. number of teeth 200 range of tooth size 20 mm tooth width max. 58 mm spindle speeds (infinitely variable) 6000 U/min work piece spindle speed 1200 U/min diameter of tools max. 230 mm diameter of tools min 69,85 mm Knedpfx Aevxwmtof Sef x-axis 325 mm y-axis 350 mm z-axis 470 mm b-axis + 90,1 / - 1 ° work piece table - Ø 212,71 mm Control SIN 840 D SIEMENS total power requirement 75 kW weight of the machine ca. 10.000 Kg dimensions of the machine ca. 6,10 x 4,40 x 3,30 m Internal probe Renishaw LP2 (axis X2;Y2) Hoffmann coolant filter system HSF 100SE/K (built in 2008) Tank capacity 2500L VT oil mist filter system

Condition: used, WAHLI W 92 is a Hobbing machine offering precision, high accuracy and reliable operation. Work capacity: max diameter 10 mm, max module 0.5, workpiece length max 35 mm, max gear width 15 mm, number of teeth 6-180; distance between workpiece and tool 0-28 mm; gear hob max Ø 24 mm; milling cutter speeds 6 steps from 850 to 4500 t/min. Main specs: 50 Hz 3x 380 V supply, power 0.32 CV; machine weight approx. 350 kg; dimensions L630×W530×H1350 mm. Equipment: PLC control, Loader Wahli W20, parts catcher, deburring device, coolant system, central lubrication. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical. Knodpfoxx U Ahex Af Ssf

Condition: good (used), Year 2003 Processing machine for machining splines and sprockets on crankshafts or shaft-like components Liebherr PC-NC control system for disk cutting wheels in the range 180-300mm for hobbing Vertical machining with straight shaping head and synchronization Clamping in chuck in the machine bed and tailstock as counterholder Integrated ring loader between machining and loading position Automatic loading hatch from above with loader interface The machine is currently still in series production and can be inspected under power Front screen of the monitor defective, display undamaged after visual inspection Fuse for controls and drives included - free location Availability after consultation, warranty excluded Year of Production:2003 Shaping machine for producing splines and sprockets onto crankshafts and Control Liebherr PC-NC For shaping tooling in range of 180-300mm for Hobbing Vertical machining with straight cutting head and Synchronization Clamping in Jaw on the machine bed and tailstock as counterpart integrated Ring-load between Machining and loading position automatic Gantry door for overhead loading and corresponding interface Machines are actually in serial production and can be inspected upon request front glass of Monitor damaged, screen itslef seems unharmed on first glance safeguarding of control and drives included - free location availability on agreement, no warranty possible Knedpfx Aot Utdpsf Sef

Condition: ready for operation (used), Year of construction: 1978, operating hours: 4,500 h, functionality: fully functional, workpiece weight (max.): 2,000 kg, rotary table diameter: 1,020 mm, table diameter: 1,020 mm, feed rate X-axis: 8 m/min, feed rate Y-axis: 4 m/min, feed rate Z-axis: 2 m/min, total length: 4,500 mm, gear diameter: 1,550 mm, total height: 3,300 mm, total width: 2,100 mm, input current: 50 A, input frequency: 50 Hz, workpiece diameter (max.): 1,580 mm, milling spindle length: 380 mm, type of input current: three-phase, milling length: 600 mm, spindle speed (max.): 200 rpm, spindle speed (min.): 28 rpm, grinding spindle motor power: 11,000 W, outer diameter: 1,580 mm, overall weight: 16,000 kg, rotational speed (max.): 200 rpm, rotational speed (min.): 28 rpm, table load: 2,000 kg, mount diameter: 235 mm, helix angle: 45 °, tool diameter: 235 mm, Gear Hobbing Machine MODUL ZFWZ 1250 The MODUL ZFWZ 1250 is a heavy-duty gear hobbing machine designed for high-precision cutting of large spur and helical gears. Manufactured by VEB Werkzeugmaschinenkombinat “7. Oktober” Berlin – Kombinatsbetrieb MODUL (Germany), this machine is renowned for its robust construction, long service life, and reliable performance in demanding industrial applications. The machine is upgrated for machining gears with a maximum workpiece diameter of 1550 mm. It features a gear hobber diameter of 235 mm, with a cutting width of 600 mm, and supports gear modules from 2 to 16, making it suitable for a wide range of gear sizes. The hobbing spindle operates with infinitely variable speed control between 28 and 200 rpm, allowing precise adjustment to different materials and cutting conditions. The machine is equipped with a tilting stand (left/right ±45°) for machining helical gears. The main drive motor is inverter-controlled with a power of 11,000 W (11 kW), supported by a 12.5 kW rapid traverse motor, ensuring both high cutting performance and efficient non-cutting movements. The large rotary table with a diameter of 1020 mm provides excellent stability for heavy workpieces. With a total machine weight of approximately 16,000 kg and rigid cast-iron construction, the ZFWZ 1250×14I delivers excellent vibration damping and machining accuracy. Power supply is 3-phase AC, 380 V, 50 Hz. Knsdpfsx I Ntpox Af Sef Key Features -Gear hobbing for spur and helical gears -Maximum gear diameter: 1550 mm -Gear hobber diameter: 235 mm -Module range: 2–16 -Cutting width: 600 mm -Infinitely variable spindle speed: 28–200 rpm -Tilting stand: ±45° -Heavy-duty industrial design -Extended driven shaft for large gears -Inverter-controlled main motor (11 kW) -Expanded set of change gears Applications: -Heavy gear manufacturing -Large transmission components -Industrial gear production and refurbishment

Condition: used, TECHNICAL DETAILS - Part diameter : 100 [mm] - Nominal module * gear hobbing : approx. 3.0 [mm] * endless screw milling : approx. 5.0 [mm] - Max. axial movement : 320 [mm] - Cutting head orientation : -45 / + 115 [°] - Main mill max. diameter : 118 [mm] - Max. cut out length of the mail mill : 180 [mm] - Max. mill movement (Shifting) : 160 [mm] - Max. part-holder spindle speed : 3000 [t/mm] - Min./max. distance between axes : 10/100 [mm] - Cutting head motor power : 14 [kW] - Main mill speed : 50-12000 [t/mm] Knedpfxex Ed A Re Af Sof - Weight : 5000 [kg] EQUIPMENT - CNC Siemens 840D - Cooling tank - Chip conveyor

Condition: excellent (used), Year of construction: 1963, functionality: fully functional, machine/vehicle number: 1434, wormracks Kollmann HZF II Kjdpfx Afequr H Eo Sjnf

Condition: ready for operation (used), Year of construction: 1977, 2 x STANKO 5B150 Knedpsx Iun Eefx Af Sef Table diameter: 800mm Max. diameter: 1000mm Max. stroke: 200mm Max. module: 12

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, Reishauer RZ 362A with approx. 60 sets of diamond wheels Grinding worm dimensions: Min/Max. outside diameter: 280/350 mm Width: 84/104 mm Kodpjxb Ufuofx Af Sjnf Max. module with restrictions: MOD 8.0 (DP 3.2) Number of starts: with restrictions up to 3 Max. usable width (axial shift): 90 mm For detailed technical information, please refer to the attached PDF file. Accessories: Dressing device Approx. 60 sets of diamond wheels Grinding stones Turbo separator

Condition: ready for operation (used), Year of construction: 1982, operating hours: 120 h, functionality: fully functional, machine/vehicle number: 572, wheel width: 32 mm, helix angle: 45 °, type of input current: three-phase, workpiece weight (max.): 200 kg, stroke length: 160 mm, rotational speed (min.): 50 rpm, rotational speed (max.): 280 rpm, grinding wheel speed: 1,920 rpm, grinding spindle motor power: 1,500 W, grinding wheel bore: 127 mm, grinding wheel diameter: 350 mm, overall weight: 8,000 kg, grinding wheel width: 32 mm, rotary table diameter: 280 mm, stroke adjustment: 160 mm, table diameter: 280 mm, table load: 200 kg, wheel diameter: 350 mm, Gear Grinding Machine Stanko 5M841 / 5A841 The Stanko 5M841 (5A841) is a heavy-duty gear grinding machine designed for precision finishing of cylindrical gears with straight and helical teeth. This machine is widely used in industrial gear production and is known for its robust construction, reliability, and long service life. The machine is capable of grinding gears with helix angles up to ±45° and supports workpieces weighing up to 200 kg. Grinding is performed using disc-type grinding wheels with a diameter of 260–350 mm and a width of 16–32 mm, ensuring high accuracy and consistent surface quality. The grinding wheel spindle operates at 1920 rpm and is driven by a 1.5 kW motor. The reciprocating stroke of the grinding slide is infinitely adjustable from 20 to 160 mm, with a variable stroke rate of 50 to 280 double strokes per minute, allowing precise adaptation to different gear sizes and grinding conditions. The machine is equipped with a rotary work table (Ø 280 mm) and is designed for continuous industrial operation. Power supply is 3-phase, 380 V, 50 Hz. With an overall machine weight of approximately 8000 kg, the 5M841 offers excellent stability during grinding operations. Key Advantages: -Suitable for straight and helical gears -Helix angle up to ±45° -Heavy, rigid cast-iron construction -Infinitely adjustable grinding stroke -Reliable mechanical design, easy maintenance -Ideal for medium and heavy industrial applications Typical Applications: -Precision gear finishing Kjdex I Ncdjpfx Af Senf -Gear manufacturing and refurbishment -Mechanical engineering and heavy industry

Condition: ready for operation (used), Year of construction: 1966, operating hours: 100,000 h, functionality: fully functional, workpiece weight (max.): 11,500 kg, feed length X-axis: 483 mm, feed length Y-axis: 381 mm, feed length Z-axis: 521 mm, rotary table diameter: 737 mm, table diameter: 737 mm, total length: 3,960 mm, gear diameter: 914 mm, total height: 2,300 mm, total width: 2,130 mm, input frequency: 50 Hz, workpiece diameter (max.): 914 mm, type of input current: three-phase, spindle speed (max.): 200 rpm, spindle speed (min.): 50 rpm, grinding spindle motor power: 7,500 W, overall weight: 8,000 kg, rotational speed (max.): 300 rpm, rotational speed (min.): 65 rpm, Machine Description — Churchill U/PH 3615 Gear Hobbing Machine The Churchill U/PH 3615 is a heavy-duty gear hobbing machine designed for the precise and efficient production of spur and helical gears. Built with a robust and rigid structure, this machine delivers excellent stability and high cutting performance, even under demanding industrial conditions. This machine features a vertical gear hob spindle with infinitely variable spindle speed, allowing operators to optimize cutting speed for various gear sizes and materials. The solid construction minimizes vibration and ensures consistent gear quality throughout extended production runs. The hobbing machine is capable of handling large workpieces up to 914 mm in diameter and supports a wide range of gear widths, making it suitable for both medium and heavy machining tasks. The machine’s substantial rotary table (762 mm diameter) and extended travel ranges offer flexibility for different gear configurations. Powered by a 10 HP (≈7.5 kW) main drive motor, this unit provides reliable power for stable cutting. The horizontal travel of the worktable is 483 mm, while the vertical travel of the tool slide is 381 mm, allowing precise movement control in X and Y axes. The hob slide offers 127 mm travel in the Z axis, enabling effective depth control during gear cutting. The hob spindle speed is continuously adjustable between 50 and 200 rpm, making it adaptable to different hobbing conditions. Vertical feed rates range from 0.38 to 5 mm per revolution, allowing smooth and controlled engagement of the hob with the workpiece. Constructed in 1966 and designed for durability, the Churchill U/PH 3615 remains a reliable and fully functional machine capable of handling large industrial gear production. Its sturdy frame, accurate drives, and flexible feed options make it a preferred choice for workshops seeking dependable gear manufacturing performance. Overall, the Churchill U/PH 3615 offers: -Heavy-duty, industrial-grade build quality -Large part capacity and flexible travel ranges -Adjustable spindle speeds and feed rates -Reliable operation for continuous gear production Kjdpfox Itfisx Af Ssnf
