Year of construction: 2002, condition: used, max. wheel diameter 275 mm gear width 55 mm max. module 6 min. module 1,5 control Sinumerik 840C tooth width 5,5 mm spiral angle 0/60 ° max. number of teeth 120 min. number of teeth 5 transmission ratio max. 1:10 Ijdpfxjgtvbpe Af Sjik transmission ratio min. 1:1 spindle speeds max. 110 mm blade head turning speeds 20-110 1/min total power requirement 100 kW weight of the machine ca. 16700 kg dimensions of the machine ca. 5200x2300x2400 mm

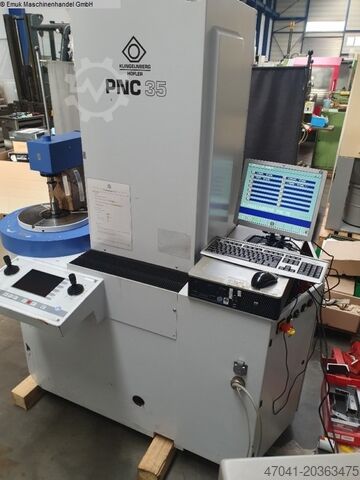

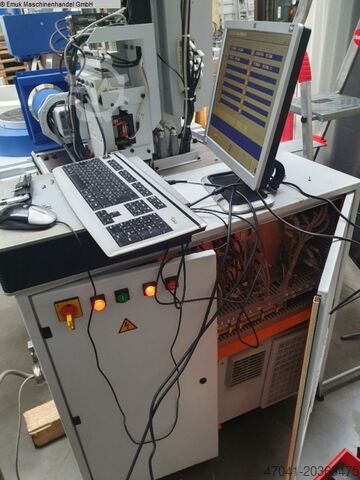

Condition: excellent (used), max. wheel diameter 400 mm gear width 400 mm max. module 15 min. module 0,5 Control Klingelnberg workpiece weight 300 kg ical angle 0 - 90 ° centre distance 15 - mm weight of the machine ca. 1,9 t dimensions of the machine ca. 2,3 x 1,8 x 2,4 m Fully automatic CNC-controlled gear measuring center for spur gears and other gears depending on the software. Equipment for internal gears. Software: - Spur gear, hob measuring, worm checking Iisdpfxjxqrhxe Af Ssk

Condition: used, Year of construction: 2002, Technical details: Iisdpfx Afex Iumnj Sek max. wheel diameter: 200 mm gear width: 250 mm max. module: 3 min. module: 0,5 total power requirement: 45 kW weight of the machine ca.: 6,5 t dimensions of the machine ca.: 4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation *

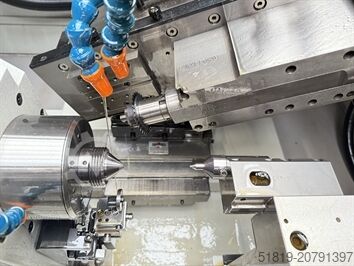

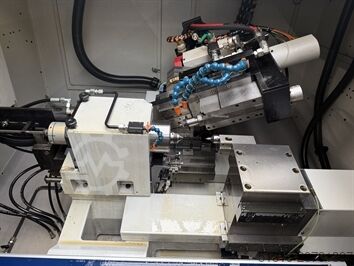

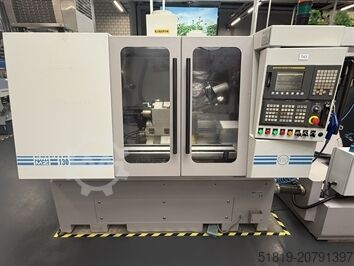

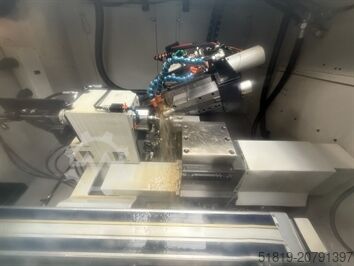

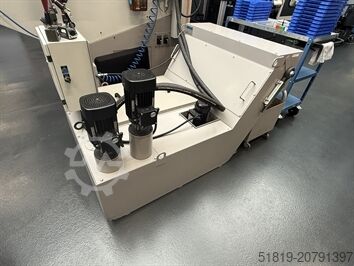

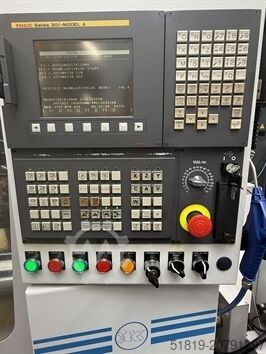

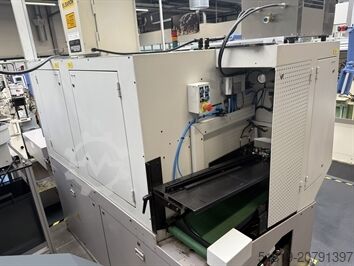

Condition: used, MONNIER + ZAHNER MZ 130 is a Worm gear cutting machine designed for high precision, excellent accuracy and reliable performance. Capacities: workpiece diameter 2–55 mm; module max. 1.5/2.0 mm; workpiece length max. 300 mm; max. cutting length 230 mm; cutter diameter 16–40 / 53–100 mm; max. cutter travel 60 mm; swivel head +/-45°; axes X70 Y30 Z250 mm. Key specs: milling spindle speed max. 8000 t/min; workpiece spindle speed 950 t/min; collet attachment 25 W; voltage 50 Hz 3x400 V; machine weight ≈3500 kg; overall L2200 x W1800 x H1850 mm. Delivers tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors. Isdpfx Ajx Iudgjf Sjik

Year of construction: 1963, condition: used, max. wheel diameter 2000 mm gear width 0 mm max. module 0 Weight ca 700 kg dimensions of the machine ca. 2x1,2x1,5 m Iijdjd Ngrpepfx Af Sek uncomplete machine body with drive motor. drive unit fully functional. Without grinding unit.

Condition: used, Year of construction: 2007, max. wheel diameter 500 mm Hypoid adjustment ±70 mm axial cross angle 90 ° Distance Y- 150 - 350 mm Distance Z-axis 120 - 340 mm turning speed range - stepless 0 - 5000 U/min max. torque on the spindle 57 Nm Cone 99,2 mm Isdpfoukitxox Af Sjik Pull-in force Tool clamping 23000 N Braking torque max. 93 Nm total connected load 20 kVA total power requirement 15 kW weight of the machine ca. 6 t dimensions of the machine ca. 2,35 x 2,24 x 2,5 m

Condition: used, Year of construction: 2005, Technical details: weight of the machine ca.: 8 t dimensions of the machine ca.: 2,95 x 1,6 x 2,36 m chucking diameter: 250 mm swing diameter: 265 mm Iodpeizlh Hefx Af Ssik x-travel: 170 mm z-travel: 200 mm spindle turning speed range: 1.500 U/min spindle bearing diameter: 100 mm Pick-up machine *

Condition: used, used grinding spindle with wear marks. Iedpfxed Ihblj Af Seik

Condition: used, Year of construction: 1997, max. wheel diameter 275 mm gear width 150 mm max. module 6 min. module 1.5 max. workpiece diameter 275 mm tooth width max. 5.5 mm spiral angle 0 - 60 ° number of teeth 5 - 120 transmission ratio min. 1:1 transmission ratio max. 1:10 milling drive motor 20 kW workpiece drive 14.5 kW total power requirement 62 kVA weight of the machine ca. 12 t dimensions of the machine ca. 4,7 x 4,387 x 2,45 m Tool spindle (D-axis) - workpiece spindle speed (infinitely) 60 to 350 r.p.m. Tool positioning axis (E-axis) - swivel range 0 to 360° - swivel speed max. 19.5°/s Workpiece spindle (B-axis) - mounting diameter outer cone (1: 4) 140 mm - standard internal cone (1:20) 99.218 mm - workpiece spindle speed max. 300 r.p.m. - workpiece spindle passage 90 mm Workpiece positioning axis (Y-axis) - travel 870 mm - speed max. 4.5 m/min Roller rotation axis (A-axis) - swivel range 315° - swivel speed max. 40°/s Axis intersection (Z-axis) - travel range max. +/- 50 mm - speed max. 0.657 m/min Workpiece swivel axis (C-axis) - swivel range -8.5 to 98° - swivel speed max. 21.5 °/s Milling depth axis (X-axis) Iodped Il R Ajfx Af Sjik - travel from -25 to 640 mm - max. speed 6 m/min Machinen distance (V-axis) - travel 150 mm - speed max. 1.6 m/min - 13 milling cutters included -

Condition: used, Technical details: max. wheel diameter: 46 mm max. module: 1 weight of the machine ca.: 0,5 t Iisdpfx Afjx H Swbo Sok

Condition: used, max. wheel diameter 0 mm gear width 0 mm max. module 40 min. module 1 Iiedpfovn Unyox Af Sok weight of the machine ca. 0,05 t dimensions of the machine ca. 0,5x0,3x0,3 m pitch and run-out tester unit for gear measuring machines.

Year of construction: 2007, condition: used, max. wheel diameter 400 mm gear width - mm max. module - workpiece dia. 36-300/400 mm axis distance 135-290 mm spindle turning speed - stepless 3000 1/min dist. between centers 100-550 mm Control weight of the machine ca. 4000 kg dimensions of the machine ca. 2000x3055x2788 mm Test method: - Single flank rolling test - Double flank rolling test - Structure-borne noise test - Heli testing in two-flank contact. Features: - Use of up to 6 test slides - Highest testing accuracy and repeatability Iiodpegr Harofx Af Sjk - Machine table with workpiece drive - Swiveling pneumatic unit - Spray oil lubrication (type: Vogel) - Oil mist extraction (type: Elbaron)

Condition: used, Year of construction: 2000, Technical details: max. wheel diameter: 130 mm max. module: 3 total power requirement: 15 kW weight of the machine ca.: 6 t dimensions of the machine ca.: 2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Iisdpfowv Uhbox Af Ssk Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm * 2500 mm * 2170mm Accessories : Hydraulical workpiece clamping Automatic loading system Magnetic chip conveyor *

Condition: used, change gear bolt Iedpfx Asd Ihbmof Sjik

Condition: used, Year of construction: 1971, hobbing length 1750 mm milling width 260 mm max. module 10 mm table size incl. water gutter 460 x 2100 mm table clamping surface: 250 x 1850 mm cutter width - max. 100 mm feed of the milling slide, stepless 0 - 500 mm/min. Iiodovu E Spspfx Af Sjk rapid traverse feeds 3000 mm/min milling head -swivable +/- 30 ° Rotation speed range of milling head, in 9 steps 29 - 178 rpm Milling head swivable 2 sides helical gearcutting 30 ° weight of the machine ca. 4 t dimensions of the machine ca. 4 x 1,85 x 1,85 m Equipment/accessories - 7 vices - change wheels - Clamping devices - Documentation

Year of construction: 2014, condition: used, inclination 0,5 - 6,3 ° speed 700 m/min stroke 100 mm max. diameter 270 mm pitch angle +/- 45 ° Cutter Spindle Diameter 68,23 mm table height over floor 930 mm weight of the machine ca. 3 t dimensions of the machine ca. 1,35 x 1,75 x 2,2 m Iisdpfxjxukrwo Af Sok

Condition: used, Year of construction: 2006, max. wheel diameter 2 - 45 mm gear width 250 mm max. module 1,5 mm min. module 0,5 weight of the machine ca. 2,2 t control Fanuc 18i-MB max. workpiece length 250 mm weight of the machine ca. 2200 kg Milling cycles: - straight, helical, crowned gearing - radial, radial-axial, climb and conventional milling, roughing, finishing Ijdevq Sfzepfx Af Ssik - worm wheels, straight-toothed bevel wheels, face gearing (option: only in partial process) Technical Details: - maximum workpiece length 250 mm - maximum toothing length 150 mm - maximum module in steel 1 mm (gear hobbing) - maximum module in steel 1.5 mm (worm milling) - maximum module in steel 0.5 mm (bevel gear hobbing) - milling cutter diameter 16-32 mm (gear hobbing) - milling cutter diameter 40-63 mm (worm milling) - maximum setting angle of milling head ±45 deg. (Rolling) - maximum setting angle of milling head ±30 deg. (worm milling) - Shift travel 34 mm (CNC axis) - Collet / retraction mandrel W20 - maximum speed of the workpiece spindle 770 rpm. - milling spindle drive 0.55 kW - Maximum speed of the milling spindle 8000 rpm. CNC axis drives: -X-axis = plunge travel 80 mm -Z-axis = longitudinal feed travel 190 mm -C-axis = workpiece axis 360 deg. -Rapid traverse X/Z 6 m/min. -Hydraulic unit 0.37 kW -Dimensions 2100 x 1440 x 1700 (LxWxH) Options: -CNC shift axis 34 mm -Adjustment angle with CNC axis -Deburring device Accessories: - spiral conveyor

Condition: used, Year of construction: 2003, max. wheel diameter 600 mm gear width 92 mm Iijdovzhflspfx Af Sek max. module 8 mm max. ram stroke 100 mm table diameter 400 mm workpiece dia. 600 mm Shockable standard module max. 8 mm angle adjustable from - to -0,5 / +0,5 Grad stroke range 80 - 1200 Hübe/min feed radial axis machine column 1 - 3750 mm/min Accessories: - Various stop blade holders - Various clamping devices

Condition: used, Year of construction: 1969, max. wheel diameter 160,175 mm gear width 355 mm Iijdpfxovzhf Se Af Ssk max. module 4,5 spindle bore 75 mm centre distance 410 mm min. number of teeth 2, 3 cutter diameter max. 115 mm cutter length max. 105 mm axis distance between cutter and workpiece - max. 138 mm axis distance between cutter and workpiece - min. 30 mm milling head -swivable 120 ° milling spindle speeds 70 - 400 U/min axial-feeds 0,25 - 4,0 mm/U radial feeds 0,09 - 1,5 mm/U total power requirement ca. 9,5 kW weight of the machine ca. 3,5 t dimensions of the machine ca. 1730x1400x1440 mm Equipment/accessories: - Interchangeable wheels - Milling arbors - Clamping devices - Documentation

Condition: used, Year of construction: 1992, max. wheel diameter 175 mm gear width 710 mm max. module 4,5 min. module 0,5 weight 4,5 t total power requirement 10,5 kW Iodpfsvzhfrjx Af Seik Equipment/accessories: - Milling arbors - Clamping devices - Documentation

Year of construction: 2007, condition: used, gear hobbing diameter - external 1200 mm gear hobbing diameter - internal 1200 mm gear hobbing width -max. 260 mm control Liebherr PC-NC max. workpiece diameter 1500 mm table diameter 900 mm table bore diameter 320 mm max. table load 95 kN power capacity 30 kW coolant pump 120 l/min Axial distance between thrust spindle - table 0-820 mm Shaping spindle diameter 125 mm Iedpfxsw Rf S Es Af Sjik tool taper SK 45 DIN weight of the machine ca. 26 t dimensions of the machine ca. 8,073 x 6,183 x 4,375 m Strokes: - Stroke length min./max. - 0 mm / 270 mm - Stroke length adjustability - 270 mm - Stroke rate (double strokes) - 10 to 270 DH/min Equipment/accessories: - Chip conveyor - Cutting wheel holder SK 45 DIN - Cooler - Technical documentation

Condition: used, Year of construction: 2008, tip circle diameter 650/800 mm workpiece length - max. 1100 mm max. module 20 (25) mm min. module 0,5 mm control Siemens Sinumerik 840 D Iijdpfsw Rrbyex Af Sok total connected load 62 kVA helical angle -45 / + 120 ° weight of the machine ca. 10 t

Year of construction: 2009, condition: used, gear hobbing diameter - external 1200 mm gear hobbing diameter - internal 1200 mm gear hobbing width -max. 260 mm control Liebherr PC-NC max. workpiece diameter 1500 mm table diameter 900 mm table bore diameter 320 mm max. table load 95 kN power capacity 30 kW coolant pump 120 l/min Axial distance between thrust spindle - table 0-820 mm Shaping spindle diameter 125 mm tool taper SK 45 DIN weight of the machine ca. 26 t dimensions of the machine ca. 8,073 x 6,183 x 4,375 m Strokes: - Stroke length min./max. - 0 mm / 270 mm - Stroke length adjustability - 270 mm Ijdpfx Aow Rf R Usf Seik - Stroke rate (double strokes) - 10 to 270 DH/min Equipment/accessories: - Chip conveyor - Cutting wheel holder SK 45 DIN - Cooler - Technical documentation

Condition: used, Year of construction: 2007, x-travel 900 mm y-travel 300 mm z-travel 1000 mm control Siemens Sinumerik 840D max. workpiece diameter 1600 mm max. module 20 mm tip circle diameter 350 mm Milling arbour diameter 375 mm Total closing value 80 kVa weight of the machine ca. 33,5 t dimensions of the machine ca. 10,530 x 6,375 x 4,680 m Feed rate: - X-axis 1 to 3000 mm/min - Y-axis 1 to 3000 mm/min - Z-axis 1 to 4000 mm/min Spindle speeds in rpm: - Tool 26 to 265 - Workpiece table 0 to 8 Iodpfx Ajw Rrb Hsf Soik Equipment/accessories: - M 2 motor milling head - Milling mandrels - Oil cooler - Technical documentation

Condition: used, Year of construction: 2007, max. workpiece diameter 800 mm profile depth 100 mm control Siemens Sinumerik 840 D x-travel 650 mm y-travel 300 mm z-travel 1300 mm spindle turning speed - stepless 400 - 4000 U/min table turning speeds 0 - 10 U/min total power requirement 110 kVa dimensions of the machine ca. 9,48 x 6,13 x 5,00 m weight of the machine ca. 24,5 t Tool: - Largest grinding wheel diameter 450 mm - Largest grinding wheel width 160 mm Feed rates: - X-axis 1 to 3000 mm/min - Y-axis 1 to 5000 mm/min - Z-axis 1 to 6000 mm/min Iisdpfx Afsw Rrcks Sjk Equipment/accessories: - Counterholder - Grinding oil treatment system - Oil mist extraction - Measuring probe - Dresser - Technical documentation
