Used manual spindle presses for sale (17)

Condition: good (used), Year of construction: 1974, Hand screw press, arbor press, screw press, hand screw press, compression press, balance compression press -Manufacturer: Kalisz, manual screw press type YB-1 with solid base -Pressure: max. 10,000 kg -Stroke: 200mm -Intermediate size: 320 mm -Spindle holder: Ø 20 mm -Table size: 290 x 250 mm, slot width 14 mm -Dimensions: 1160/860/H1750 mm -Total weight: 350 kg Dkodpfx Asigwdweitsp

Condition: good (used), Year of construction: 1974, Hand spindle press, mandrel press, spindle press, hand spindle press, printing press, balance printing press Dodeypvtkspfx Aitokp -Manufacturer: NEHER, manual spindle press type SPPG-40/100 -Pressure: max. 40,000 kg -Stroke: 600 mm -Intermediate dimension: 715 mm -Spindle mount: Ø 40 mm -Table size: 1100 x 600 mm, groove width mm -Table bore: Ø 120 mm -Dimensions: 1800/1800/H2400 mm -Weight: 1940 kg

Condition: used, Year of construction: 1980, functionality: fully functional, Spindle press from Hiller & Lutz Year of manufacture: 1980 Fully functional In good used condition. Price reduced. Technical data available on Gemini-Google: The Hiller & Lutz HP71 is a classic, robust hand spindle press (often also referred to as a piercing press), which is primarily used in locksmith shops, workshops, and the metalworking industry for tasks such as straightening, bending, pressing, or punching. Here are the typical technical specifications for this model: Dedpfx Aiswxyn Eotskp Technical details (approximate values) Since these machines were manufactured over decades, details may vary slightly depending on the year of manufacture: Pressing force: approx. 20 to 25 tons (The designation "71" often refers to the frame size/frame width, and the force results from the spindle pitch and the flywheel diameter). Spindle diameter: approx. 70 – 80 mm Stroke: approx. 200 – 300 mm (depending on the spindle length) Overhang: approx. 250 – 300 mm (distance from the center of the spindle to the stand) Table area: approx. 500 x 400 mm Through-height: max. approx. 400 – 500 mm (with the spindle fully raised) Flywheel diameter: approx. 1,000 – 1,200 mm Machine features Design: Solid cast iron stand in a C-shape for high rigidity. Drive: Manual, via the large flywheel; the energy is generated by the inertia of the wheel as it is screwed down. Table: Usually equipped with a central through-hole and T-slots for tool mounting. Weight: The weight typically ranges between 700 kg and 950 kg, which guarantees a stable position (usually requiring bolts to the foundation). Gemini says The dimensions of the Hiller & Lutz HP71 depend heavily on whether you are considering only the body or the total space required, including the flywheel overhang. Here are the specific dimensions for this model: Machine base dimensions (body) Height: approx. 1,800 mm to 2,100 mm (depending on the position of the spindle). Width (stand): approx. 500 – 600 mm. Depth (base): approx. 800 – 1,000 mm.

Condition: used, Year of construction: 1971, pressure capacity max. 80 t Stroke 500 mm table surface area 960 x 810 mm spindle pitch 72 daylight between the columns 950 / 540 mm passage 640 mm machine weight ab. 4500 kg dimensions of the machine ca. 2,0 x 2,0 x 3,85 m Hydraulic quick adjustment 500mm Flywheel Ø2000mm Dkjdpovxwzksfx Aitjp 4 prism bases for straightening waves different support frames

Condition: ready for operation (used), Design: vertical press with four columns. The vertical press platen is driven by an electric motor, the lower platen can be pulled out with the tool. -Dimensions: 2100x1600x3000mm -plate size: 950x1120mm Dkodpfx Ajtty Nkjitjp -Electrical data: 380V; 43A; 22kW

Condition: good (used), Hand-operated spindle press, homemade, from a training center Pressing force: approx. 5-10 tons Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 Dkjdszcqmlopfx Aitsp DE - 44143 Dortmund - Wambel / Germany

Condition: used, Year of construction: 1973, pressure 28 t distance between columns 510 mm dayligth 380 mm stroke 260 mm weight of the machine ca. ca. 750 kg Dsdpfjv Svc Tox Aitekp

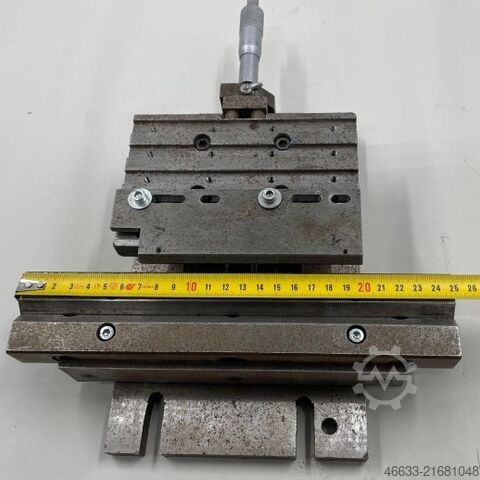

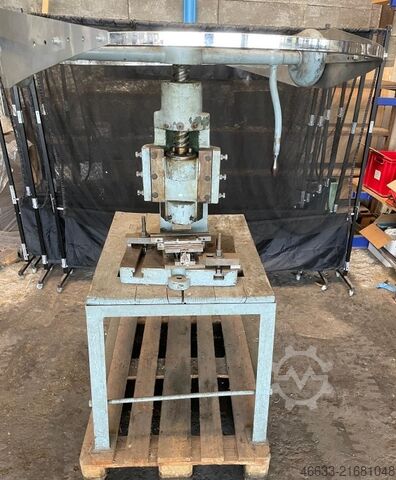

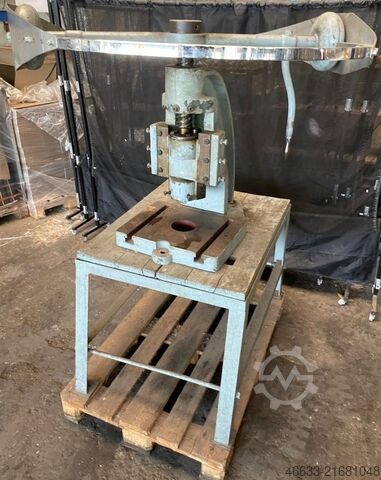

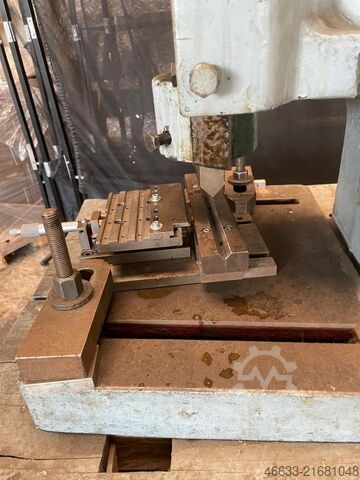

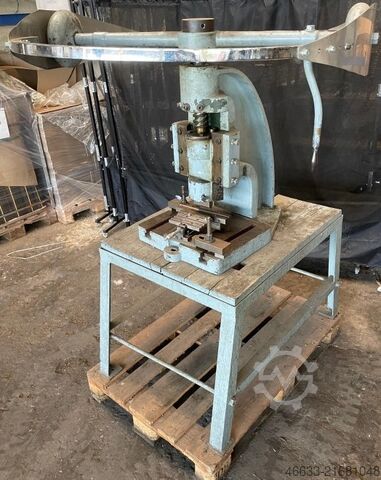

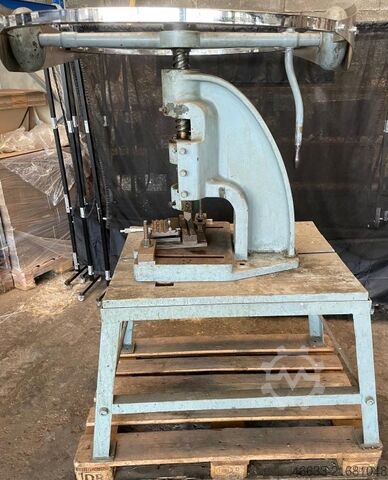

Condition: used, functionality: fully functional, pressing force: 10 t, stroke length: 115 mm, table width: 470 mm, table length: 360 mm, throat depth: 190 mm, distance table to ram: 210 mm, total length: 1,470 mm, total width: 1,400 mm, total height: 1,800 mm, overall weight: 430 kg, Manual spindle press with C-frame Pressing force: 10 tons Clamping area: 470 x 360 mm Maximum installation height between table and ram: 210 mm Throat depth: 190 mm Spindle stroke: 115 mm Table bore: Ø 100 mm Pin bore: Ø 32 mm Weight: 430 kg Dimensions: Width: 1470 mm (ring diameter) Depth: 1400 mm Height (including Euro pallet): 1800 mm Year of manufacture: unknown Included accessories: - 10 pins Ø 32 mm - 2 clamping claws - 1 bending die base with adjustable micrometer stop - 4 bending punches Dkodpfx Aioyzy R Eotop The press has been rarely used and is therefore in very good condition. The hand-scraped, adjustable dovetail guides are also in excellent condition. The spindle shows no signs of wear. Sale is due to impending retirement. Inspection possible during our business hours or by appointment.

Condition: good (used), Year of construction: 1987, Equipment:  Pressing force: 160 kN / 16 MPa  Spindle diameter: 60 mm  Spindle pitch per revolution: 32 mm  Clearance between columns: 410 mm  Max. clear height between table and ram: 270 mm  Table area: 410 x 280 mm  Weight: 335 kg Condition: good, little use Djdpfx Asy S Syajitokp

Condition: used, Year of construction: 1960, pressure 10 t Dedpewl N Sajfx Aitekp distance between columns 260 mm dayligth 210 mm table surface area 275 x 260 mm

Condition: ready for operation (used), Four-column press SP60/670 - Achtermann & Co. Stuttgart - Pressing force: 60 tons - Distance between columns: 670 mm - Distance between columns / laterally: 400 mm - Table size: 900 x 750 mm Dedpfx Aijzcxhwetskp - Vertical clearance: 520 mm - 6 x T-slots in the upper platen - 6 x T-slots in the table Dimensions: L x W x H 2 x 1.5 x 2 meters / Weight 3000 kg Subject to errors and omissions.

Condition: used, Year of construction: 1964, pressure:80 kN Dkedpfx Aiscxxpuetjp distance between columns:650 mm table-size:600 x 500 mm stroke:300/400 mm :465 mm dimensions of the machine ca.:2,10 x 1,20 x 1,20 m

Condition: good (used), Year of construction: 1963, Stroke = 250 mm Dkedpfx Aiey H Ic Hstsp On request, transport and loading can be organized across Europe at an additional cost. Prices excl. VAT Inspection possible by appointment. Contact us – our team will be happy to assist you. Machinery Purchase / Sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES, MACHINE TOOLS, ETC. Do you need a high-quality yet affordable machine for your production? Or do you want to sell your equipment? For further information or contact options, please use the contact form.

Condition: used, Year of construction: 1970, pressure 1 t Stroke 315 mm Dedpov Td Erofx Aitekp

Condition: excellent (used), Year of construction: 1963, functionality: fully functional, pressing force: 28 t, manual spindle press 28 tons in very good condition Dkjdpfx Aoquqpaoitep

Condition: ready for operation (used), Year of construction: 1984, Travel X/Y/Z: 1600mm/1000mm/1100mm, workpiece carrier (pallets) X/Y: 800mm/800mm-1000mm, change time: 38s, table rotation range: 360°, max. table load capacity: 2000kg, feed rate: 10m/min, rapid traverse: 15m/min, spindle power: 32kW, tool positions: 50, spindle taper: ISO50, speed: 4500rpm. Machine dimensions X/Y: 5800mm/5200mm, weight: approx. 25000kg. Documentation available. An on-site inspection is possible. Dksdpfx Aijxl Elyjtsp

Condition: good (used), Year of construction: 1991, functionality: fully functional, - Normal pressure force kN (Mp) 160 (16) - Maximum achievable pressure kN (Mp) 200 (20) Djdjvnbrxepfx Aitskp - Spindle diameter 60mm - Spindle pitch per revolution 32mm - Number of guide columns 2 - Clear width between columns 410mm - Max. clear installation height between table top and ram 270mm - Ram stroke 210mm
