Condition: good (used), MITRE COLD CIRCULAR SAW MACHINE Type: KKS 400 H Year of manufacture: 1982 Equipment: Lodpfx Afoxnmn Ue Seak - Infeed roller conveyor 1000 mm, left - Outfeed roller conveyor with length stop, 2000 mm, right - Saw blade diameter: 370 mm - Hydraulic clamping cylinder with 8 mm stroke, handwheel for pre-setting - Documentation Condition: good, workshop inspected

Condition: used, Year of construction: 2016, Technical details: cutting diameter: 330 mm saw band length: 4680 mm sawing motor: 4 kW cutting speed: 15 - 100 m/min square: 330 x 500 mm cutting length min.: 10 mm cutting lenght max.: 850 (-9999) mm total power requirement: 7,7 kW weight of the machine ca.: 5,5 t space requirements approx. LxWxH: 2,7 x 2,35 x 1,7 m Automatic horizontal bandsaw, hydraulic, material dimension max.: dia 330 mm, rectangular 330 mm x 500 mm, dimension of bandsaw 4680 x 34 x 1,1 mm, Lodpfex A D Nlsx Af Sjak incl. roller track *

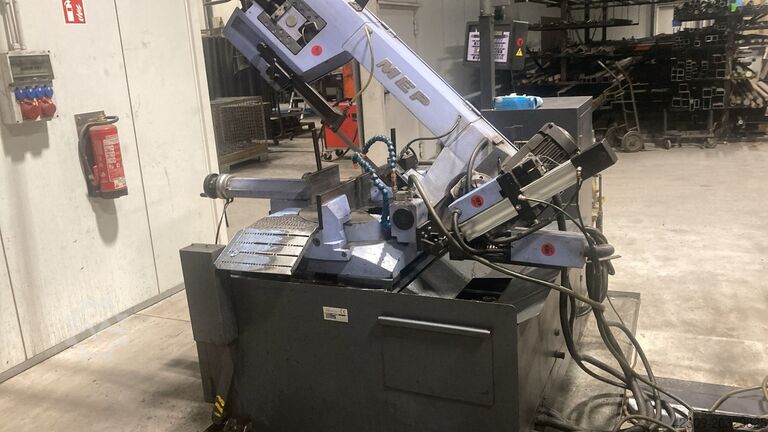

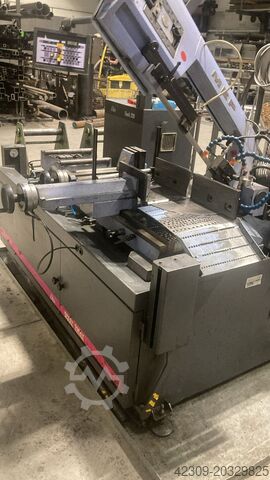

Condition: good (used), Automatic metal band saw, Metal Band Saw Shark 320 AX Saw blade dimensions: 3150x25.4x0.9 mm Band speed: 36/72 m/min Cutting capacity at 90°: round 260 mm Cutting capacity at 90°: square 250 mm Cutting capacity at 90°: flat 320x200 mm Cutting capacity at 45°: round 230 mm Cutting capacity at 45°: square 210 mm Cutting capacity at 45°: flat 240x200 mm Vise opening: 325 mm Working height: 970 mm Total power consumption: 6 kW Machine weight: approx. 890 kg Price plus VAT. Lodpfoxpqnbsx Af Seak

Year of construction: 2019, operating hours: 1,650 h, condition: ready for operation (used), Additional Equipment Spray unit capacity: approximately 12 liters / Hydraulic oil capacity: approximately 5 liters / Coolant capacity: approximately 180 liters This MEBA MEBAmat 434 Metal Band Saw was manufactured in 2019. It features a band saw drive power of 7.5 kW and a cutting speed of up to 150 m/min. The machine can handle round material up to Ø434 mm and square material up to 434 × 434 mm. Weighing approximately 4000 kg, it's designed for robust performance with a hydraulic clamping system. If you are looking to get high quality cutting capabilities consider the MEBA MEBAmat 434 machine we have for sale. Contact us for more information. Lasdpfx Ajx D Irtsf Sek Application Types Sawing

Condition: new, cutting diameter 250 mm saw band length 2950 mm cutting width 280 mm dimensions of saw-band 2950 x 27 x 0,9 mm capacity 90 degrees: flat 280 x 200 mm capacity 90 degrees: square 230 mm capacity 45 degrees: round 190 mm capacity 45 degrees: flat 180 x 180 mm capacity 45 degrees: square 180 mm capacity 60 degrees: round 120 mm capacity 60 degrees: flat 110 x 110 mm capacity 60 degrees: square 110 mm total power requirement 1,5 / 1,8 kW weight of the machine ca. 0,4 t Powerful miter band saw for cuts from 0 ° to 60 ° left -CCS (CutControlSystem) for automatic cutting. (Stepless regulation of the Feed and switch-off at the end of the cut) Description: -Manual cutting cycle -AUTOMATIC CUT: (via selector switch) with stepless settings of the Lowering speed and adjustment of the cutting pressure via compensating spring -Stable, torsion-resistant and low-vibration saw frame made of cast steel -Vice with quick release - Carbide band guides for maximum cutting precision -Large dimensioned deflection discs, adjustable made of cast steel -Hydraulic unit for the saw band tension and monitoring with display on Manometer (belt tension = 900 kg) -Clearly arranged control panel with all controls -Electric coolant pump for cooling and lubricating the saw band -Schipping brush for cleaning the saw band Lodjxz Hhzspfx Af Ssak

Condition: refurbished (used), Year of construction: 2002, functionality: fully functional, Fully automatic metal band saw with NC control, single mitre 90° – 45° – 30° Used machine – fully functional, refurbished Standard features: • NC control with digital display (99 programs with 99 sets each) • Torsion-free cast iron saw frame, hydraulically operated • Infinitely variable feed rate adjustment via control valve at the operator panel • Powerful band drive via industrial electric motor; 2 band speeds for optimal cutting results • Operating sequences (including fault messages) are digitally displayed • Hydraulic feed, single stroke feed length 600 mm; max. feed length 9999.9 mm • Hydraulic clamping of the workpiece via short-stroke cylinder (preset via handwheel) • Floating feed vice to compensate for material irregularities • Large-diameter band wheels and three-sided carbide band guides and band guide rollers ensure long service life of the saw bands • Electric band tension monitoring with saw blade breakage control • The machine operates with a 27 mm saw blade, available in various versions for processing a wide range of materials • Saw band is tensioned manually • Sturdy base frame with coolant tray and coolant pump • Coolant pump with dual supply to the band guides, individually adjustable • The machine is equipped with a high-performance hydraulic unit • All electrical/electronic controls operate at low voltage in accordance with EU directives! Scope of delivery includes: • Electronic height adjustment Laedpfx Aex I A Iysf Sjk • Cutting pressure regulation • Bi-metal saw band M 42 • Rotating chip removal brush Technical data: • Cutting range: 90° round: 240 mm ; rectangular: 290 x 240 mm ; square: 240 mm 45° right round: 200 mm ; rectangular: 200 x 240 mm ; square: 200 mm 30° right round: 110 mm ; rectangular: 140 x 110 mm ; square: 110 mm • Drive power 1.1/1.5 kW / 400 V / 50 Hz • Total connected load 4.9 kVA • Band speed 40 and 80 m/min • Saw band 2910 x 27 x 0.9 mm • Remnant piece length 80 mm • Smallest Ø 5 mm • Material support height 770 mm • Dimensions 1980 x 1750 x 1470 mm • Weight 651 kg

Condition: good (used), Year of construction: 1976, functionality: fully functional, Cold circular saw with automatic feeder Year of manufacture: approx. 1976 Ljdpfx Aewtdi Ajf Soak Equipment: - Standard accessories - Automatic feeder, cutting length 1700 mm - Various saw blades - Coolant system - Infeed roller conveyor 2400 mm, split (2 x 1200 mm) - Outfeed roller conveyor 500 mm - Documentation Condition: good, workshop tested

Condition: excellent (used), Year of construction: 1999, O F F E R We can offer you, subject to prior sale and errors excepted, the following ex stock, without obligation: EISELE Circular Sawing Machine for Straight and Mitre Cuts Model: VMS 370 Year of manufacture: 2000 Max. saw blade Ø: 370 mm Cutting capacity: - Pipes approx. up to 130 mm - Flat material: 200 x 100 / 140 x 100 mm - Solid material (square): 120 mm Note: For mitre cuts, cutting capacities may be somewhat reduced—up to max. 140 mm. Saw carriage stroke, manual, vertical approx.: 200 mm Saw blade speeds: 17–34 rpm Saw blade drive approx.: 2/2.6 kW Total drive approx.: 3 kW – 380 V – 50 Hz Weight approx.: 500 kg Accessories/Special features: • Adjustable saw head for mitre cuts at 30° / 45° / 90° via scale • Pole-changeable three-phase motor with max. 2.6 kW drive • Manual feed of saw carriage with long, adjustable lever • Manual workpiece vice, jaw width approx. 120 mm • Integrated coolant system with chip collection tray • Roller conveyor material feed approx. 2,000 mm • New saw blade installed, 2 spare saw blades included • Electrical system recently overhauled Ideal machine for locksmithing and metalworking shops. Lodpfx Afsx A H Rrs Soak Condition: Very good – ready for demonstration – very smooth running Delivery: Ex stock, as inspected Payment: Net, strictly after receipt of invoice We look forward to your order. We also have larger EISELE cold circular saws and other (band/hacksaw/cold circular) saws in stock. Further saw machines always available—please enquire.

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: 22512.08, saw band length: 4,240 mm, saw band speed: 1,767 mm/s, remaining piece length: 90 mm, controller model: Mitsubishi E1032, TECHNICAL DETAILS Saw cut length: 3 mm - 9,999 mm Cut length in automatic operation: unlimited Remnant piece length in automatic operation: 90 mm Material feed per stroke: 950 mm Material support height: 850 mm Saw blade dimensions: 4,240 x 34 x 1.1 mm Band speed: 17 – 106 m/min MACHINE DETAILS Lasdpsx Hz Hrjfx Af Sjk NC program control: Mitsubishi E1032 PLC control: Mitsubishi Coolant tank: 50 l Dimensions & Weight Dimensions (L x W x H): 2,000 x 2,580 x 2,000 mm Net weight: 2,300 kg Gross weight with pallet: 2,350 kg Power Supply Input: 400 V Frequency: 50 Hz Input protection: 20 A Drives Saw motor: 4.0 kW Hydraulic motor: 1.1 kW Coolant pump: 0.09 kW Electrical Power Total installed electrical capacity: 4.19 kW Control transformer: approx. 250 VA EQUIPMENT High-performance bandsaw Heavy-duty hydraulic production bandsaw Parallel feed carriage system on profile guideways Siko incremental encoder Material feed with ball screw spindle Hydraulic material clamping with long-stroke cylinder Material clamping with double vice before and after the saw blade Roller conveyor 6 m

Year of construction: 2008, condition: ready for operation (used), General Data Machine weight 1800 kg This SCHÜCO PDG SET was manufactured in 2008. A robust circular metal saw featuring a motor speed of 2800 rpm and a saw blade diameter of 500 mm. Weighing 1800 kg, it is fully functional and has been regularly maintained. Available for viewing under power on site. Contact us for further details regarding this machine. Application Types Laodpfx Afex D H Tio Ssk Sawing

Condition: excellent (used), Year of construction: 2016, Cutting Capacity 0° round (tube): 300 mm Cutting Capacity 0° round (solid material): 180 mm Cutting Capacity 0° rectangular horizontal (hollow section): 320 x 290 mm Cutting Capacity 0° bundle (tube): 320 x 160 mm Cutting Capacity -45° round (tube): 300 mm Cutting Capacity -45° round (solid material): 110 mm Cutting Capacity -45° rectangular horizontal (hollow section): 300 x 280 mm Cutting Capacity -60° round (tube): 200 mm Cutting Capacity -60° round (solid material): 80 mm Cutting Capacity -60° rectangular horizontal (hollow section): 190 x 200 mm Cutting Capacity +45° round (tube): 270 mm Cutting Capacity +45° round (solid material): 110 mm Cutting Capacity +45° rectangular horizontal (hollow section): 270 x 200 mm Table height, material feed: 800 mm Main motor: 2.6 kW Cutting speed, stepless: 20 - 100 m/min Saw blade size: 3660 x 27 x 0.9 mm Machine dimensions (L x W x H): approx. 1800 x 950 x 1400 mm Net weight: 585 kg Accessories / Special features: • Semi-automatic swing-frame metal band saw • After the cutting cycle is started, the vice clamps automatically – after completion, it returns to its starting position • For mitre cuts from +60° to -45° with frequency inverter • Suitable for cutting stainless steel, tool steel, hollow profiles, and solid materials • Fully hydraulically controlled sawing functions • Saw drive with low-maintenance, oil-lubricated worm gear • Robust three-phase motor • Motor equipped with overload protection • Ball-bearing turntable Ljdpsxz Dqmsfx Af Seak • Saw arm inclined at 25°, resulting in longer saw blade service life • Saw arm swivels from +60° to -45° • Chip removal brush for optimal saw blade cleaning and maintenance • Frequency inverter: allows stepless adjustment of saw blade speed from 20 - 100 m/min • BRP – Saw band monitoring • Hydraulic vice with manual quick-release for lateral adjustment • Limit switches control upper and lower saw arm positions • No need to set the upper end point • Length stop with scale, left-side removal 3 m • Cut detector • Swivelling control panel • Micro-spray device • 2 x roller conveyors: 3 m discharge left, 6 m feed right • CE compliant Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Year of construction: 2025, condition: refurbished (used), REVISED by RSA in 2025 Revised & Cleaned & Repainted Replacement of wear parts Tested in our facilities in production prior to shipment Round: Ø 8 – 90 mm Rectangular: 10×10 – 75×75 mm Square: 10×15 – 70×80 mm Cutting & deburring lengths : 100 – 1.000 mm One heavy duty RSA cutting unit model NC2001 with : -Bundle loader, size approx. 600 x 600 mm, usable length approx. 6.200 mm and maximum bundleweight 3.000 Kg -Double feeding rolls -Heavy-duty cutting motor and gear box, with 5,5 kW motor; cutting motor speed 30-250 rpm -CNC movement up/down for precision cutting. (new version, NO hydraulics) -Hydraulic regulation in clamping units -1 Full automatic adjustable length control with CNC stopper One deburring unit RASAPLAN 1000 with : -Automatic length adjustment according to cut length -Synchronised chain transport -Integrated dust exhaust unit Laodpfxjvtpd Te Af Sok Electric : -Program for short lengths -Special program module for calculation of swivelling discharge -Operator panel Siemens OP 17 -Combined cooling through spray mist & jet cooling -Servo axes Revised: 2024 Round: 8 – 90 mm Rectangular: 10×10 – 75×75 mm Square: 10×15 – 70×80 mm Cutting & deburring lengths: 100 – 1.000 mm

Condition: new, Year of construction: 2025, Saw Diameter: 500 mm Motor Power: 4 kW Cutting Range of the 500 mm Diameter Circular Saw Cutting Capacity 0° (square) for solid material: 170 x 170 mm Cutting Capacity -45° (square) for solid material: 160 x 160 mm Cutting Capacity +45° (square) for solid material: 160 x 160 mm Cutting Angle: -67.5°, -45°, -30°, -22.5°, -15°, 0°, 15°, 22.5°, 30°, 45° Dimensions (without feeders): Width 825 mm x Depth 1074 mm x Height 1397 mm Saw Speed: 3000 rpm Motor: 4 kW, 50 Hz, 400V AC, three-phase (3PPE) power supply Machine weight: 220 kg Laodpfx Afjxdciao Sek Cutting disc diameter: 500 mm Cutting disc bore diameter: 32 mm Operating pressure in the pneumatic system: 6–8 bar Cooling system: The machine is equipped with an oil mist system to cool the cutting blade, which increases the tool's durability and performance. Note: A coolant tank is not included and must be installed by the customer.

Condition: used, Year of construction: 2022, 1 unit metal band saw OPTIMUM S275NV with roller conveyors OPTIMUM 5x MSR 10, length approx. 340cm, 1x MSR7, length approx. 190cm Manufacturer: OPTIMUM Laedpox A A Hvefx Af Sok Model: S275NV Color: grey Dimensions: 100x50x140 Year of manufacture: 2022 Location: production hall Condition: used

Condition: refurbished (used), Year of construction: 1999, functionality: fully functional, Semi-automatic vertical miter bandsaw Berg & Schmid VGS 500 HA-I Fully refurbished & fully functional + 4m infeed roller conveyor RS 400 + Measuring stop with roller conveyor LM 110 DH (digital & handwheel) Cutting ranges: - 90°: round: 330 mm; square: 330 mm; flat profile: 330 x 160 mm / 320 x 300 mm; upright profile: 160 x 160 mm; rectangular: 500 x 330 mm - 45° left: round: 300 mm; square: 300 mm; flat profile: 330 x 160 mm / 320 x 300 mm; upright profile: 180 x 160 mm; rectangular: 300 x 330 mm - 45° right: - 45° left: round: 300 mm; square: 300 mm; flat profile: 330 x 160 mm / 320 x 300 mm; upright profile: 160 x 160 mm; rectangular: 300 x 330 mm Technical data: - Motor: 2.0 kW / 400 V - Saw band speed: 18 - 110 m/min steplessly adjustable - Saw band dimensions: 4,140 x 34 x 1.1 mm - Weight: 1050 kg - Dimensions: 1900 x 2000 x 2200 mm Features: Lajdpfx Afsxqfmne Sok - Semi-automatic bandsaw with microprocessor control and hydraulic movement of the saw frame - Cuts in semi-automatic mode with variable angle up to 45° left or right, manual adjustment of the saw frame - Hydraulic vise - Electronic frequency inverter for stepless band speed - Automatic detection of cutting start and end - Saw arm feed rate adjustment via feed regulator - Mechanical blade tensioning monitored by microswitch

Year of construction: 2007, condition: ready for operation (used), This MEP SHARK 330 NC eco was manufactured in 2007. A robust metal band saw, it features a maximum vise opening of 335 mm and can handle round materials up to 300 mm, square materials up to 250 mm, and flat materials up to 330 x 250 mm. It operates with a 0.75 kW motor at 380 V and weighs 52 kg. Contact us for more information about this machine. Application Types Sawing Laodpfx Aex Enl Sof Sek

Condition: good (used), Year of construction: 1982, Cutting capacity 90° round 320 mm square 320 x 320 mm Lajdpfx Afsxztfas Ssk rectangular 540 x 200 mm Cutting capacity 45° round 175 mm square 175 x 175 mm rectangular 150 x 270 mm Main motor 1.5 kW Cutting speed, stepless 17 - 120 m/min Saw blade size 3660 x 27 x 0.9 mm Dimensions L x W x H 1900 x 1000 x 1200 mm Net weight 410 kg Accessories / Special Features: • Semi-automatic version • Raising and lowering of the saw frame • Hydraulic saw pressure regulation • Hydraulic material clamping • Automatic opening and closing of the clamping jaws • Cutting speed steplessly adjustable between 17 - 120 m/min • Automatic cutting pressure regulation • Material stop length 500 mm • Coolant system • Mitre swiveling device: The entire machine can be easily and quickly swiveled steplessly The workpiece clamping cylinder and the cutting pressure regulator have been newly resealed by us. Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Year of construction: 2018, condition: refurbished (used), Flying cutoff unit TCC 120/168, made by OTO MILLS Recently revamped Complete flying cutoff unit including: - Accelerator (carriage transmission) - Main carriage motor - Cutoff unit TCC120 with base with linear guides, cutting head, clamping unit and support for tube at exit side - Control panel RENEWED - Electrical cabinet RENEWED - Hydraulic group - Cable chain - All existing documentation, manuals, drawings Specifications: - Type of saw : Friction - Material thickness : 1 –6 mm Ljdpfevtpp Njx Af Sjak - Standard tube length : 3 –12 m - Diameter range : 42 –168 mm - Square tubes : 40x40 –130x130 - Rectangular tube : 50x30 –180x80 - Max. speed : 120 m/min - Length tolerance : +/-2 mm Round tube diameter: 42 – 168 mm Square tube diameter: 40×40 – 130×130 mm Rectangular tube diameter: 50×30 – 180×80 mm Material thickness: 1 – 6 mm Tube length: 3 – 12 m Type of saw: Friction Length tolerance: +/-2 mm Max. speed: 120 m/min

Condition: new, Year of construction: 2025, S275 Metal Cutting Machine Motor Type - 3-phase induction motor Electrical connection - 400V 50/60Hz Power supply: 400V (three-phase) Protection - IP54 Power - 1.5 HP 1.1 kW Rated current - 400V - 3.6 Amp Speed ​​(RPM) - 50Hz - 2840/1420 Gearbox Transmission ratio - 50Hz - 1:30 Band saw Saw blade dimensions - 2480x27x0.9x6-10mm Blade guide wheel diameter - 293mm Saw blade speed - 50Hz - 45/90mm (m/min) Cooling System Pump Type – 230V 100W Pump Rated Current – ​​0.3 (Amp) Speed ​​– 50Hz-2840 (rpm) Tank Capacity – 10 liters Lasdpjxdbzbjfx Af Sek Mechanical Data Dimensions with base – 1560x990x1665 (mm) Dimensions without base – 1320x510x755 (mm) Shipping Dimensions – 1380x570x890 (mm) Weight – Net – 185 (kg) | Gross – 200 (kg) Noise Level – 70 (dB) Fuse – max. 16 (Amps) Ambient Temperature – 5-35 (°C) Ambient Humidity – 25-80% General: Cutting Angle Adjustment: Via Swivel Arm Saw Blade Guides: Ball Bearing Guide Rollers Saw Arm Lift: Manual Feed: Continuously Adjustable Saw Blade Tension: Manually via Handwheel Band Guides with Bearings and Carbide Tiles Height from Floor to Vice: 910 mm

Condition: new, Year of construction: 2025, – Length 300 cm – Touchscreen – Easy installation on machinery – Height adjustable – Emergency stop – 230V (The saw shown in the photo is available at an additional cost) Ledpfx Aex Hq D Tef Soak

Condition: used, Metal band saw Hans Schreiner MBS270FH, very good condition, 1.5 kW, 260 mm cutting length, 140 mm cutting length, 227 kg Ledpfx Afox H Ui Te Ssak Prices subject to change without notice. Errors, misprints, and typographical mistakes excepted.

Year of construction: 2014, condition: ready for operation (used), This RALC ITALIA CUTTING LINE LYBRA was manufactured in 2014. It features an automatic circular blade for cutting metal tubes, including solid, tubular, and profiled types. Key components include a bar loader up to 6500 mm, multiple cutting capabilities, and a Siemens PLC for enhanced control. Ideal for high precision metal cutting. Contact us for more information about this machine. Ledpex D Ivxofx Af Ssak Application Types Sawing

Condition: good (used), Year of construction: 2009, Cutting Capacity 0° 350 mm Diameter 570 x 260 mm Rectangle 350 mm Square +45° 350 mm Diameter 460 x 180 mm Rectangle 350 mm Square Standard Features Saw Blade 34 Inverter Roller Table Metarial Limit Shaft Securty Switch Control Panel Height Adjustment Switch Hydromechnic Blade Tension Laodpsrkz E Hefx Af Ssk Coolant Pump Saw Blade Brash Heavy Duty Gearbox

Condition: good (used), Capacities: Capacity 360 mm diameter , Rectangular 704 x 360 mm at 90 degrees or 340 mm diameter , Rectangular 400 mm x 340 mm at 45 degrees. Input 415/3/50 4kw approx. Speeds 20-120 meters per min. Swivel frame 0-45 degrees. Vice opens 710 mm. Measuring Head. Infeed / Outfeed powered rollers. Infeed / Outfeed Cross transfers Lasdpfx Afjig T Abj Sjk

Condition: good (used), Year of construction: 2010, KBS 1051 SAW HORIZONTAL AND VERTICAL CLAMPING AUTOMATIC FEED CONTROL Automatic adjustment of saw band angle 2010 KALTENBACH KBS1051 CNC SAWING LINE. 15 METRES INFEED. 12250 mm OUTFEED. INFEED CROSS TRANSFERS. OUTFEED CROSS TRANSFERS. Technical Data: Working range max. [mm] 90° 1050mm x 500mm. + 70° 980mm x 500mm Laodpfx Aexmvrgjf Sok -70° 960mm x 500mm +60° 900mm x 500mm -60° 880mm x 500mm +45° 740mm x 500mm -45° 700mm x 500mm +40° 680mm x 500mm -40° 635mm x 500mm +30° 525mm x 500mm Working range min. [mm] 30mm x 10mm Drive power [kW] 12.9 Cutting speed [m/min] 15 - 150 Saw band feed [mm/min] 0 – 600 Rapid feed and return [mm/min] 6000 Saw band material Bimetal and carbide Saw band dimensions (L x W x H) [mm] 8900 x 1.6 x 54 Saw band inclination Degrees 1,5-10 Machine weight [kg] 6000 Machine dimensions (L x W x H) [mm] 4370 x 1435 x 2650
