Used frame presses for sale (63)

Condition: used, Year of construction: 2003, Working height: 2300 mm, Working width: 3500 mm, Motor: 1.5 kW, 3 pressure cylinders from above, 2 from the side, Pressure per cylinder: 3000 kg, Cylinder stroke: up to 200 mm, Hydraulics: 10-150 bar, Space required: 3950 x 900 x 2550 mm, Weight: 670 kg Storage location: Nattheim Cjdpfx Aisvvkmbetoha

Condition: new, Heavy duty splicing press for producing long lengths of timber Simple to use Top and bottom plates press simultaneously Very quick cycle time 35 tonne capacity hydraulic pack Chsdpfx Aiopahmhjtea 7.5Kw motor Pneumatically operated head Maximum timber section 75 x 300mm Two hand control unit Manual eccentric side clamping Optional 2m infeed and outfeed tables

Condition: used, Year of construction: 1999, functionality: fully functional, total length: 8,120 mm, total height: 2,300 mm, Vertical Hydraulic Press FAMAD HSKG 6m – Number of loading zones: 3 Csdpfx Aisyuylnsteha Dimensions of a single loading zone: – Loading height: 1140 mm – Length of battens in one zone: 1530 mm – Maximum batten width: 150 mm – Maximum length of glued elements: 3120 mm – Installed power: 3 kW – Number of cylinders per zone: - 3 pcs 50x100 mm - 3 pcs 80x100 mm – External dimensions (L x W x H): 8120x1000x2300 mm – Machine weight: 4800 kg

Condition: good (used), Code: 0454 Codpfx Aieznnfzjtsha Brand: CASOLIN - ITALY Model: EASY - CE Standard Hydraulic automatic single-bar clamp press for window and door frames – CE Standard Technical data: Min/max working length mm 250/3000 Min/max working height mm 340/1900 Min/max nominal vertical thrust pressure 880/8800 kg Min/max nominal horizontal thrust pressure for cylinder 280/2800 kg Horizontal pistons stroke 200 mm Pump power 3 Kw Width of the bars 120 mm The upper mobile bar is guided through its its movement by a unit composed by 2 gears and 2 racks positioned on the rear of the machine The regulations of the oil pressure of the vertical and horizontal cylinders are separate and adjustable by through the use of two handwheels The lower press bar can work in 2 positions Control button panel in ergonomic position with pensile arm Overall dimensions mm 3870 x 1040 x 2900 h Overall dimensions for transport mm 3870 x 1040 x 2690 h Weight kg 1800

Condition: excellent (used), Year of construction: 2026, functionality: fully functional, Equipment: CE marking, TECHNICAL SPECIFICATIONS Maximum mounting hole dimensions: 3500 x 2500 mm Minimum mounting hole dimensions: 250 x 350 mm Vertical cylinders: 2 pcs, ø 65/40 mm, stroke 1300 mm Total lifting capacity of vertical cylinders: 7.4 tons Horizontal cylinders: 2 pcs, ø 50/30 mm, stroke 1500 mm Total lifting capacity of horizontal cylinders: 2 tons Hydraulic unit 1.5 kW *The maximum size of the workpiece will be smaller than the maximum operating range of the press, depending on the type of joint (dovetail or pin) and the method of positioning the workpiece in the machine (pre-assembled or unassembled). Codpsznv A Usfx Aitoha PRESS DESCRIPTION • 3 positions for the lower beam • Pressure is adjusted directly from the hydraulic unit using a knob; the current pressure is displayed on an indicator during operation. • All electrical components are manufactured in accordance with European standards; each component has a code corresponding to the marking on the electrical diagram. • Hydraulic unit with a pump in an oil bath for better noise reduction and lubrication. A 1.5 kW motor is installed on the oil tank. • The rack and pinion system allows for precise movement of the upper beam. • The supporting structure is made of welded iron elements, Fe 430 grade. • Control panel: - Button for vertical movement of the beam - Button for vertical clamping - Button for opening the horizontal clamping corners - Button for horizontal clamping of the corners - Additional button for two-handed activation of the press functions Warranty: 12 months on spare parts

Condition: used, Year of construction: 1992, Second-hand machine Year of manufacture: 1992 Features and technical specifications: Electrically and oil-hydraulically controlled frame press Pressure up to 1,200 kg Two movable longitudinal pressure beams are mounted on double ball bearings and guide rails These rails allow for continuous height adjustment of the cylinders The press cylinders are adjusted using a quick-adjustment pressure lever with self-locking mechanism Two electric-hydraulic control valves (with 3 operating stages) are operated by hand levers This allows you to press with precision and assemble even the most complex frame constructions Working height x working length: 2000 x 3000 mm with 3 vertical pressure cylinders with 2 horizontal pressure cylinders Pressure cylinder stroke 120 mm Csdezk Nl Uepfx Aitsha Three-phase motor 1.3 kW Pressure control unit/press pressure adjustable 0–60 atü Dimensions: 3950 x 900 x 2550 mm Weight approx. 620 kg Availability: at short notice Storage location: Flörsheim

Condition: used, Second-hand machine Second-hand pneumatic frame press from Maweg MNo.: 7004124588 Pressing area: Length approx. 3500 mm / Height approx. 2450 mm 2 horizontal press cylinders 3 vertical press cylinders Availability: by arrangement Location: Röllbach Chedpfjzk Nwkjx Aitoa

Condition: used, Year of construction: 1997, Second-hand machine Year of manufacture: 1997 Features and technical specifications: Electro-hydraulic drive Vertical press cylinders: 3 Vertical cylinder stroke: approx. 130 mm Chodpfxszk Nkds Aitoa Vertical cylinders adjustable via a perforated grid Horizontal press cylinders: 2 Stroke of horizontal cylinders: approx. 130 mm Horizontal pressing force: approx. 2,000 kp Medium-pressure beam: 1 unit Control: manual via hand lever Pressing area: 3,000 × 2,100 mm (L × H) Dimensions: 3,500 × 800 × 2,100 mm Weight: approx. 1,500 kg The information provided is subject to change until the machine arrives at our warehouse. Availability: at short notice Location: 63934 Röllbach

Condition: good (used), Code: 0422 Brand: VILMAR Model: 970 Hydraulic press for moulds, frames, furniture elements, solid wood doors, plastic materials, composite materials and various Work surface dimensions mm 970 x 500 Opening mm 350 N° 3 pistons Hydraulic power unit Overall dimensions mm 1630 x 1300 x 2100 h Chedpezkqk Esfx Aitoa Machine to be reconditioned

Condition: good (used), Frame press, gluing press -operated: hydraulically -Working area up to: 3500 x 2400 mm -Wood clamping: pneumatic -Display dimensions: 4200/1100/H3700 mm Codpfx Aijb A H Dhjteha -Transport dimensions: 4200/1200/H2300 mm -Weight: approx. 3500 kg

Condition: like new (used), functionality: fully functional, working width 3000 mm working height 2500 mm year of manufacture 1995 engine power 7 kW Chjdpfx Aozn Iqwjitoa weight 2500 kg power supply 380 V side cylinders and gearboxes adjustable from the control panel safety switch – shear pin CE marking

Condition: excellent (used), functionality: fully functional, Working width 3200 mm year of manufacture 1992 Csdpfx Aoypg Rmeitsha motor power 7 kW pressing time adjustment automatic opening emergency stop switch - pull cord

Condition: used, Year of construction: 1983, machine/vehicle number: HL 2100 5083044, Working area: 3000 x 2250 mm (length x height) Csdpfjzl Rugjx Aitoha 3 vertical pressure bars 2 horizontal pressure bars Electric height and width adjustment with automatic sensing Machine in good condition.

Condition: excellent (used), functionality: fully functional, Stromab STA 2500 pneumatic assembly press Working length: 2500 mm Chodpfjzhv Tyjx Aitea Working width: 1200 mm Clamping force at 8 bar: 2600 kg 2x side clamping Pneumatic control CE certified

Condition: used, Year of construction: 1991, Used frame press pneumatic Working size 3500 x 2500 mm with center pressure beam absolute angular accuracy without correction comfortable working height due to adjustable press corners Chedpfxjw I Un Re Aitoa operation of the working cylinders via 2 compressed air valves all press corners are adjustable pressure adjustable from 0-15 bar Availability: short-term Storage location: Röllbach

Condition: used, Year of construction: 1993, Used machine Year of construction 1993 Automatic frame press Working area 3550 x 2400/2600 mm pressure range 120 bar Pressure per 21000 N/kp Cylinder stroke vertical 250 mm, horizontal 20 or 80 mm Automatic control Electrical connection with medium pressure bar Special equipment: Impulse "Open press" Vertical positioning device Width compensation allowance for 1 MB 1 additional horizontal pressure cylinder Spring weight compensation Work safety device pull rope Installation dimensions 5150 x 1500 x 3340 mm Weight 2500 kg Cjdpfx Aiew I Ui Uoteha Electrical connection 3.5 kW Compressed air connection R 3/8" max 8 bar Availability: short term Location: Röllbach

Condition: good (used), Year of construction: 2011, Condition: used, in working condition The robust frame construction and press beams ensure precise frame assembly and gluing. The press guarantees accurate squareness while preventing frame distortion or warping. Thanks to the long stroke of the hydraulic cylinders, the lower beam and the clamping jaws require less frequent adjustment. The lower beam features automatic lifting and locking. Technical Specifications • Maximum frame size: 3000 × 2000 mm • Minimum frame size: 250 × 340 mm Csdpfozlyv Tex Aiteha • Hydraulic pump power: 3 kW • Maximum total pressing force on the horizontal and vertical beams: 19 tonnes • Vertical hydraulic cylinder stroke: 1100 mm • Horizontal hydraulic cylinder stroke: 1200 mm • Lower beam adjustable to three heights: 380, 680 and 980 mm • Adjustable vertical and horizontal pressing pressure • Two horizontal fences with quick-adjustment system • Horizontal and vertical movements are controlled by lever-operated valves mounted on the machine frame • CE-compliant design • Pendant push-button control unit Specifications are provided for information only. This machine is offered for sale on behalf of a customer. Viewing is available by prior arrangement. Please contact us through the platform's messaging system for further information and the relevant technical contact details.

Condition: used, Technical specifications: Chedpszikz Uofx Aitoa Max. dimensions of the glued component: 2900 x 1900 mm 3 vertical clamps 2 horizontal clamps Hydraulic clamps Power supply: 400 V Motor power: 1.5 kW Motor speed: 1410 rpm Overall dimensions: Length: 3500 mm Width: 1000 mm Height: 2600 mm

Condition: used, Technical specifications: Max. dimensions of the glued component: 2500x1200 mm 2 vertical clamps 2 side clamps Csdpfsziacnjx Aitjha Maximum clamping force: 2700 kg Pneumatic clamps Overall dimensions: Length: 2600 mm Width: 1600 mm Height: 2100 mm

Condition: used, Technical specifications: Maximum dimensions of the glued component: 1800x3000 mm 3 vertical clamping units - top 2 horizontal clamping units - side Hydraulic clamping units Power supply: 400 V Motor power: 2.5 kW Overall dimensions: Codjzh U Shopfx Aitjha Length: 3750 mm Width: 1200 mm Height: 2500 mm

Condition: used, Year of construction: 1995, Technical details: punching pressure: 25 (250kN) t pass through width: 1800 (1660 nutzbar) mm Chedpju Szfuofx Aitea daylight between the columns: max./min.: 155 / 25 mm stroke: Stanzhub: 130 mm total power requirement: 5,0 kW weight of the machine ca.: 2,0 t Dimensions (LxWxH): 2,3 x 1,0 x 2,2 m Hydraulic trolley beam punch hydrl. pressure 250 bar Punching table area = 1830 x 500 mm Punching trolley/plate = 500 x 500 mm; travel speed = 800 mm/sec.; punching stroke = 63 mm/s, forward/return 125/125 mm/sec. Operation via control panel and pressure switch/control lever Equipment: 2x feed rollersØ 120 x 1630mm pneumatic close/open *

Condition: good (used), Code: 0119 Brand: KOLMAG - ITALY Model: PGP 600 F Hydraulic press for moulds, frames, furniture elements, solid wood doors, plastic materials, composite materials and various Press modular structure with heavy thick plates without weldings and worked by tool machine Oleodinamic plant with pistons prefilling system in order to have a quick opening and closing of the platens Dimensions of massive steel platens mm 1600 x 500 - Thickness mm 60 with electric resistances - Max temperature 260°. N° 3 pistons diameter mm 240 Pressure kg/cm2 56 Thrust Tonn 450 Safety photocells Hydraulic power unit Kw 7,5 Power absorbed heating platens 31 Kw Control board with pressure control gauge - Timer for platens opening - Telethermometer to regulate upper platen temperature - Telethermometer to regulate lower platen temperature - Switches for opening and closing of the platens - Emergency push button Overall dimensions mm 2250 x 1700 x 3300 h Weight kg 9000 Cjdpowk Ntzofx Aitjha

Condition: used, Year of construction: 2008, functionality: fully functional, Equipment: CE marking, For sale: a window and door press from the Italian company Casolin, model Junior. Baling press. Year of manufacture: 2008. Increased working area: 3000 mm x 2500 mm (exact dimensions in the photos – showing the press fully extended). Cedjzhil Nopfx Aitsha The press is in good working order. We have the instruction manual in English. There is a minor issue with the joystick – it is functional and operational, but its base is likely damaged, and it has partially sunk inside. (photo attached). Export price – domestic price plus VAT. Transportation is the responsibility of the buyer; loading is the responsibility of the seller.

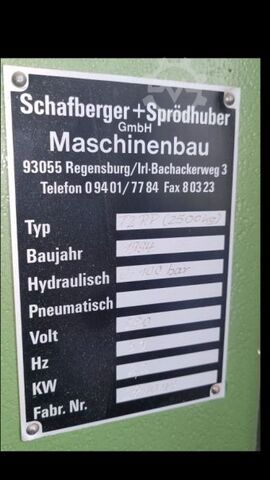

Condition: excellent (used), Year of construction: 1986, functionality: fully functional, Frame press T2 RP Year of manufacture: 1986, 2.2 kW Electro-hydraulic 3 vertical and 2 horizontal press cylinders Pressing pressure adjustable 0 – 2000 kg Pressing dimensions: 2500 x 3000 mm Required space: 4000 x 950 x 2600 mm Transport available at extra cost! Chsdpfx Aou Rp Eioitoa Due to the age of this used machine, warranty is excluded when selling to commercial customers.

Condition: excellent (used), Year of construction: 1985, functionality: fully functional, The machine is fully operational and in good condition. Chjdpfxsxmr Rxo Aitsa Working dimensions: 3200 x 2200 mm Dimension adjustment is electrically controlled from the control panel. Powered by a hydraulic unit.
