2 column linear guided
Capacity at 90°: cyl 335 mm , flat 500x335 mm
Capacity at 45°: Cyl 330 mm; flat 320x335 mm
Capacity at 30°: cyl 200 mm; flat 200x335 mm
sawing speed 15-150 m/min
feed length 1 fold / manyfold 600 mm / 6000 mm
length of rest manual/ automatic ca 70 mm / 110 mm
sawing blade 4400x34x1,1 mm
mitre up 30 degree
main drive 3,0 kW
carbide steel guide for sawing blade
hydraulic feed pressure
Heavy-duty, fully hydraulic NC automatic bandsawing machine
for automatic and economical cutting of solid and
and profile material. The machine is also suitable for
execution of single cuts.
- Cutting area round 380 mm or flat 400 x 380 mm.
- Only 50 mm min. rest piece length in automatic mode
- Double vice clamping on both sides of the saw band
for almost burr-free cuts
- Material feed via large-dimensioned, maintenance-free hydraulic cylinder
Pegas Gonda 360x500 GH-LR /Gravitational band saw machine, year of manufacture 2016; the machine is fully functional, Serial number: 3600222059
Working movement of the arm is caused by the weight of the arm itself, speed is regulated by a choke valve and hydraulic cylinder.
The machine is designed for cutting of material in vertical and angle cuts, angle cuts are possible to set fluently from 0 to 60 grades to the right and from 0 to 60 grades to the left. Change of angle using quick clamping h...
BEHRINGER band saw machine HBM-370-A
Cutting range max (Wxh): 440x370mm
Cutting capacity min (Wxh): 12x12mm
AC main drive: 5,5KW
Belt speed 13-130 m / min
Band saw blade 6600 x 41 x 1,3 mm
Control: B & R
Expansion: chip conveyor
Vertical clamping device
Table height 1000 mm
Band saw double miter
Cutting range 90° Round 320 mm
Flat 500 x 100 mm
Flat 430 x 300 mm
Miter right 45° Round 320 mm
Flat 310 x 310 mm
Miter right 30° Round 200 mm
Flat 200 x 180 mm
Miter left 45° Round 280 mm
Flat 300 x 230 mm
Length insertion 0 - 600 mm Single stroke
0 - 999 mm multiple stroke
Cutting speed 18 to 115 m/min infinitely variable
Lowering speed 0 to 300 mm/min infinitely variable
saw band dimension 4.200 x 34 x 1,1 mm
machine weight approx...
1 USED BAND SAW KASTO HBA 360 AU
- Serial N° : 6016 109 120
- Year : 1995
- Cutting diameter : 360 mm
- Speed variation of rotation of the blade : from 20 to 130 m/min
Equipped with :
- Clamping in pack
- Automatic feeding
- 1 Chips conveyor
- Counting and deducting of parts
Cutting diameter 360 mm
Saw band length 3830 mm
Cutting width 27 mm
cutting capacity - square 360 x460, 265x305 mm
Cutting speed 20-90 m/min
Cutting capacity - round 45° - 305 mm
total power requirement 1,1 kW
Machine weight approx. 0,8 t
space requirement approx. 2,20 x 1,25 x 1,65 m
max. round: Ø 380 mm
max. square: 380 x 380 mm
with single stroke: 10 - 510 mm
with multi stroke: max. 4590 mm
dimensions LxWxH: 3100 x 2200 x 1850 mm
weight: 3.100 kg

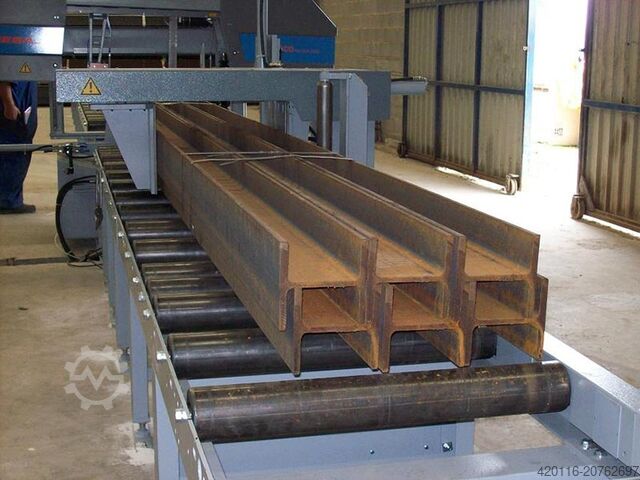

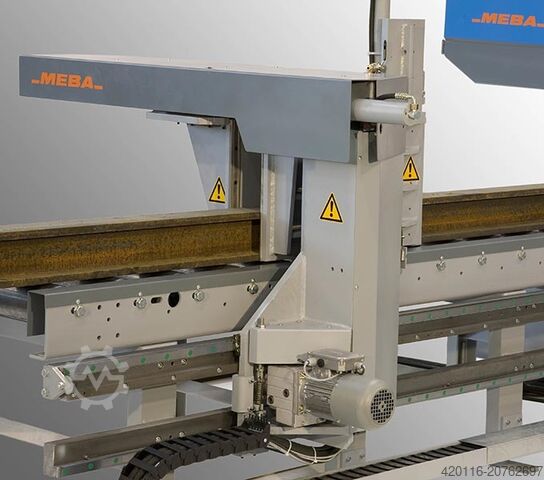

MEBA ECO 410 DGA-130 CNC

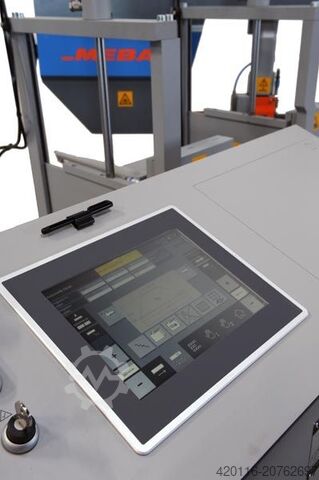

-control by siemens (any settings possible
-cutting diameter 410mm
-feed max 1300mm x 999(times)
(more data on one of the pictures)
-double cooling system (spray + coolant pump)
-package docking system
-automatic chip conveyor
weight about 3 t
-possibility to transport in any bowl in the country
-price includes 10 pieces of original German belts + some new service parts (bearings, belts, pinions, brushes, cle...
precise saw cuts due to torsion-resistant cast iron saw frame
long saw blade service life due to low-vibration, generously dimensioned cast iron saw frame and specially designed saw blade guide
exact lifting and lowering of the saw frame by two synchronous lifting cylinders
Overload protection by combined saw feed system via flow control valve and cutting pressure control
low wear due to hardened and ground vice guides, clamping plates and material supports
easy operation due to SPS control and ...
KASTO - Fully Hydraulic Horizontal Bandsawing Machine
PBA 320/460 U ( 420mm /Ø 460 mm) Ø320mm 320- 460 mm
Fully hydraulic high performance bandsawing machine in heavy duty design, with horizontally
saw band, for cutting of profiles, tubes and solid material in all qualities, including extremely
including extremely difficult to cut material (e.g. titanium, Inconel, Hastelloy)
suitable for the use of bi-metal and carbide saw bands.
Sawing unit made of polymer concrete in a fully solid design...
Cutting capacity diameter: 360 mm
Arch of cut on two columns
Blade development: 4.870 mm x 41 h
Clamping capacity min: 10 mm
Max clamping diameter: 360 mm
Min cutting speed: m / min 11
Max cutting speed: m / min 110
Year of construction: 1994
band sawing machine brand FORTE mod.SBA 361 S+CNC
used, overhauled, guaranteed. Year 2002
cutting capacity diam.520 mm.
cutting arc on two columns
CNC controlled automatic bar feed
very short residual bar end
payment one year
German band saw machine TrennjaegerPegas 380 A NC
-cutting diameter 380mm
-max. dimensions 380x500
-max. turning up to 60 degrees
- cutting band 5140x34x1.1
-feed roller 4 m (original)
-weight approx. 2 tons
- double cooling system (liquid pump and oiling)
- belt speed adjustable with inverter
- dimensions for transport 260x210x150 cm
The machine is in perfect condition, ready for operation with original technical documentation.
you can see it in (Głoskowo 05-503)
the indicated net price
300 x 300 mm
saw band length 3920 x 34 x 1,1 mm
table height 780 mm
band speed 20 - 100 m/min
total power requirement 3,7 kW
weight of the machine ca. 1,7 t
dimensions 2,0 x 2,05 x 1,7 m
we are Taiwan factory in Chinese mainland.
NC automatic band sawing machine H-360NC
Capacity ● 360 mm
■ 360 x 360 mm
Bundle Cutting: Width280mm, Height:160 mm
Blade Speed 15 to 80 m/min. (INVERTER)
Motor Blade Drive 4 kw
Hyd. Pump 1.5 kw
Coolant Pump 0.1 kw
Blade Size 4420 x 34 x 1.1 mm
Blade Tension Hydraulic
Single feed stroke 400 mm
Machine Weight 2100 kg
Floor Space (L x W) 2500 x 2100 mm
1. Shuttle type automatic feed.
2. User frie...
Powerful. Clean. Consistent.
Industrial first high precision band saw
powered completely with electrical drives
• MEBA power package
• Lifting and lowering of the saw frame with a
frequency regulated lead screw drive, with
automatic cutting pressure and feed regulator
• Rapid lowering of the saw frame via button until
material edge by height sensing
• Electric material clamping on main- and in-feed
vice by servo-regulated spindle drive
• Automatic adjustment o...
