Used other drilling machines and boring mills for sale (53)

Condition: good (used), Year of construction: 2003, NAGEL MODEL TBT M320-6 6 SPINDLE CNC HORIZONTAL GUN DRILL, 2003 Equipped with: Panel Mate Power Pro Control Counter Rotation Cross Drilling High Pressure Coolant System Auto Loader Magnetic Chip Separator Hydraulic System Chiller Specifications: Hfodortrztjpfx Achji Maximum Drill Depth (Approx): 16" Maximum Drill Length: 36" Number of Drill Spindles: 6 Spindle Motors (3): 7.5HP HP Per Spindle: 3.75 Drill Head Slide Stroke: 16.9" Maximum Diameter Mild Steel: 0.750"

Year of construction: 2014, condition: ready for operation (used), travel distance X-axis: 1,600 mm, total width: 1,250 mm, total height: 3,437 mm, spindle motor power: 5,500 W, product length (max.): 3,080 mm, spindle speed (max.): 1,600 rpm, number of axes: 3, This 3-axis M+A RB 63/20 W drilling machine was manufactured in 2014. It features a maximum drilling diameter of 63 mm in steel and 80 mm in cast iron, with a maximum reach from the column of 2000 mm. The machine includes a robust cube table measuring 800 x 630 x 500 mm. If you are looking to get high-quality drilling capabilities, consider the M+A RB 63/20 W machine we have for sale. Contact us for further details. Hfjdpfx Acozk Ivxjhei - Maximum drilling diameter in steel (600 MPa): 63 mm- Maximum drilling diameter in cast iron (250 MPa): 80 mm- Maximum reach from column: 2000 mm- Minimum reach from column: 450 mm- Column diameter: 450 mm- Minimum distance between spindle nose and baseplate: 400 mm- Maximum distance between spindle nose and baseplate: 1600 mm- Spindle inner taper: MT 5- Maximum spindle stroke: 400 mm- Vertical adjustment of drill head: 800 mm- Horizontal adjustment of drill head: 1550 mm- Baseplate length: 2900 mm- Baseplate width: 1250 mm- Baseplate height: 260 mm- Number of spindle speeds: 16 (hydraulically set)- Spindle speed range: 20 to 1600 rpm (20, 32, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400, 500, 630, 1000, 1600 rpm)- Number of spindle feeds: 16- Spindle feed sizes range: 0.04 to 3.2 mm/rev- Maximum permissible torque at spindle: 980 Nm- Main drive motor power: 5.5 kW (1500 rpm)- Arm elevating motor power: 2.2 kW (1500 rpm)- Clamping motor power: 0.75 kW (1500 rpm)- Coolant pump power: 90 W / 0.09 kW (3000 rpm, Flow rate: 25 l/min, Head: 4 m)- Machine total power: 8.45 kW- Operating voltage: 400 V / 50 Hz- Required connection current: 16 A- Maximum load capacity/weight: Approx. 7000 kg- Machine overall dimensions: 3080 x 1250 x 3290 mm (Max height up to 3437 mm)- Noise emission level: ≤ 85 dB (A)

Year of construction: 2009, operating hours: 3,093 h, condition: ready for operation (used), travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,800 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 320, overall weight: 8,900 kg, total width: 3,400 mm, total height: 3,160 mm, product length (max.): 5,800 mm, spindle speed (max.): 1,600 rpm, table load: 2,500 kg, number of axes: 5, This 5-axis MSC Chemnitz BFT90/5 MSC boring machine was manufactured in 2009. It features a substantial table size of 1000 x 1120 mm with a maximum table load of 2.5 t. The machine offers impressive feed rates of 4000 mm/min and a spindle speed range of 4 – 1600 rpm. If you are looking to get high-quality boring capabilities, consider the MSC Chemnitz BFT90/5 MSC machine we have for sale. Contact us for further details. • Table size: 1000 x 1120 mm • B axis (table rotation): 360° • Feed rate (X/Y/Z): 4000 mm/min • Spindle diameter: 90 mm • W axis travel: 710 mm • Control cabinet dimensions (L x W x H): 2.0 x 0.75 x 2.0 m • Temperature range: 15–40 °C • Electrical: 3-phase/50 Hz; 380 V rated voltage; 24 V control voltage • Connected load: 40 kW • Fuse rated current: 100 A • Typical power consumption: approx. 7.5 kW • Spindle running time: 3069 h • Power-on hours: 10402 h • General overhaul: 2009 General Information Retrofit Retrofit includes: • Control system: TNC 320 • New drives in all axes • New table • New clamping system • New media units • New hand control unit • New coolant system • New hydraulic unit • 30 measuring scales (linear measurement systems) • Control manufacturer: SK 40 • CNC control: TNC 320 • Complete electrical retrofit • New wiring throughout the machine • Integration of CNC system (TNC 320) • New inputs and outputs (I/O) • New sensors and measuring systems • Updated control circuits and safety circuits • Modern CNC control system • Improved accuracy due to new measuring systems • Higher reliability • Better performance due to new drives • Reduced downtime due to new auxiliary units • New electrical documentation • Updated schematics Hjdpjy Hvgtofx Achjfi • Includes systems for power supply, control, machine interface, operator panel, and drivesMachine base remains:MSC Chemnitz table boring machineType: BFT 90/5 MSC – 5 axes Technical Specification Taper Size SK 40

Year of construction: 1985, condition: used, spindle diameter 110 mm x-travel 900 mm y-travel 600 mm z-axis 200 mm table length 1020 mm table width 860 mm taper MK 40 Table size, approx. 1,020 x 860 mm Max. weight of workpiece 800 kg Table travel, longitudinal, max. (X) 900 mm Boring head travel, cross, max. (Y) 600 mm Boring spindle stroke (Z) 200 mm Vertical travel of cross beam (W) 635 mm Vertical distance between table and boring spindle 15 - 850 mm Distance between columns 950 mm Spindle Ø 110 mm Spindle taper internal/external ISO 40 18 spindle speeds 10 - 2,500 rpm Milling feeds of table, infinitely variable 1 - 6,000 mm/min 4 milling feeds of boring head 30 - 180 mm/min 6 boring feeds 0.01 - 0.39 rpm Accuracy of all 3 axes when the machine was new 0.003 mm Quick feeds for table, boring head slide, and boring spindle, max. 6,000 mm/min Spindle drive 6.2 kW Weight, approx. 9,000 kg Total electrical load 15 kW - 380 V - 50 Hz Accessories / Special Features - BOSCH CNC Control, Model MICRO 8, in 3 axes, with monitor. Program input is either manual or via cassette, or via interface entry. - Digital display for Z Axis. Hfsdpet Hwyxofx Achei - Separate switch cabinet. - Various tools. - Oil cooler for spindle lubrication.

Condition: excellent (used), Year of construction: 1986, functionality: fully functional, Technical details spindle diameter 135 mm x-travel 1000 mm y-travel 700 mm z-travel 300 mm cross rail adjustment - vertical 780 mm distance between table/spindle 1000 mm table surface area 1100 x 842 mm distance between columns 1100 mm table load 1500 kg tool taper SK 45 spindle turning speed range 2400 U/min spindle drive 5,9 kW feed range 1 - 6000 mm/min weight of the machine ca. 10,6 t Additional information Retrofit / overhauling in May 2005 (with geometric measurement): - New Heidenhain iTNC-530 control - New electronics - New Siemens servomotors - Heidenhain glass scales - Revision of drilling spindle unit (total costs 118,436.00 EUR) Equipment: Infrared measuring probe m&h 38.10-MINI Electron. Handwheel Various tool holders Hodpjzil U Aofx Achefi Transport dimensions: - Machine (LxWxH) 3500 x 2600 x 2750 mm - Control cabinet (LxWxH) 2300 x 600 x 2300 mm - Hydraulic (LxWxH) 800 x 600 x 1000 mm

Year of construction: 2007, condition: ready for operation (used), travel distance X-axis: 3,500 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,220 mm, number of axes: 5, This 5-axis TOS Varnsdorf WHN130 was manufactured in 2007. It features a horizontal boring and milling machine with a table size of 1600 × 1800 mm and a spindle diameter of 130 mm. The machine includes a rotary table and is controlled by an NCT-104 system. Consider the opportunity to buy this TOS Varnsdorf WHN130 boring machine. Contact us for more information. • Control system: NCT-104 Spindle • Spindle diameter: 130 mm • Taper: ISO 50 (7:24) • Spindle speed range: 10 – 1500 rpm • Max spindle torque: approx. 2350 Nm • Main motor power: 37 kW Axis Travels • X-axis travel: 3500 mm • Y-axis travel: 2000 mm • Z-axis travel: 1220 mm • W-axis (spindle quill travel): 570 mm Table • Rotary table size: 1600 x 1800 mm • Max workpiece weight: 12,000 kg • T-slots: 22 x 9 x 160 mm • B-axis table feed: 0.03 – 1.5 rpm Feed Rates • Rapid traverse (X / Y / Z / W): 2000 mm/min Power Hfedpfx Aox Imtaechei • Total power requirement: approx. 80 – 83 kVA

Condition: ready for operation (used), A conventional Gillardon multi-spindle drilling machine is available. Drilling units: 4, spindles: 4, drilling capacity in steel: 25mm, tapping capacity: M20, drilling stroke: 150mm, speed: 3000rpm/1400rpm. An on-site inspection is possible. Hodpfx Ajzipg Aschjfi

Year of construction: 1971, condition: ready for operation (used), Offered is a special drilling and thread-cutting machine Frielingsdorf, equipped with four Ayen drilling units. Machining directions: 3×side, 1×top, setup: rotary indexing table, speed of side drilling units: 960rpm, speed of drilling unit from above: 1400rpm, motor power per drilling unit: approx. 0.73kW, control: conventional. Machine dimensions X/Y/Z: approx. 2600mm, 1500mm, 2600mm, footprint without side lines/containers: approx. 3.5m², weight: approx. 1500kg. Inspection possible by arrangement. Hodpfxjzidkps Achjfi

Year of construction: 2007, condition: like new (used), FICEP 601 DZB CNC DRILLING LINE with 4 way SCRIBING FACILITY I-Beams (without camber): Web height minimum 60mm maximum 610mm. Flange width minimum 30mm maximum 310mm. Hfsdpfx Aeh N Taajchoi UNP Channels (web downwards): • Web height minimum 60mm maximum 610mm. Flange width minimum 30mm maximum 300mm. Angles • Flange height (unequal flanges as well) minimum 50 x 50 x 5mm maximum 250 x 250 x 40mm. Flats • Width minimum 100nn maximum 610mm. Square tubes • Size minimum 60 x 60mm maximum 300 x 300mm. Rectangular tubes • Size minimum 60 x 30mm maximum 600 x 300mm. All beams • Maximum thickness that can be drilled 50mm. Maximum length (infeed) 12000mm.

Year of construction: 2012, condition: excellent (used), 3 Spindle. 21 Metres of In‐feed rollers. 21 Metres of Out‐Feed Rollers. 1.25 metres Sections. Roller Feed measuring. Hedpfjh Rrxpjx Achofi Cross Transfers.

Year of construction: 2007, condition: good (used), Danobat CNC Drilling / Sawing Line – Year 2007 Single Rotating Spindle. 18 metres In- Feed Rollers. 12 metres Out- Feed Rollers. Pincher Unit Feed. Infeed Cross Transfers. Outfeed Cross Transfers. 750mm Capacity. Sawing Capacity: Round cutting capacity(without vertical jaws, angle 0 degrees) 520 mm. Rectangular cutting capacity (without vertical jaw, angle 0 degrees) 700mm X 500 mm. Hfodpeig T Amefx Achei Maximum capacity with vertical jaws 700 X 500 mm. Round cut capacity with 45 degree turn, 450 mm. Rectangular cutting capacity with 45 degree turn, 450 X 500 mm.

Year of construction: 2007, condition: good (used), ■ V600 Drilling machine (moveable drilling cabinet, executed with 1 horizontal drilling unit and automatic tool changer) ■ Drilling table with power rail length 15 metres, effective length 12 metres ■ Hardware and software (includes VACON 110 machine control) Hjdpfx Acoq Hgg Ujhofi ■ Safety devices (safety bumpers) ■ Year of construction 2007

Year of construction: 2010, condition: good (used), Main Technical Specifications Profiles to be processed Hfedsig T Axjpfx Achji • Max. section volume mm 1100 x 1100 • Bar length max. metres 12 Drilling Capacity • Drill heads no. 1 • Spindles per vertical drill head no. 1 • Drilling diameter max. mm 31.75 • Drilling diameter (with reduced feed) max. mm 40 • Power per head (a.c.) kW 5,5 • Program controlled spindle rotation speed with continuous variation RPM 180 - 1000 Other Specifications • X axis positioning speed (portal) mt/min. 20 • Y axis positioning speed (drill head) mt/min. 4

Year of construction: 1987, condition: used, bore diameter 620 mm spindle diameter 130 mm bore depth 320 mm feed stepless 0 - 12 mm/min Hfedot I D Swspfx Achsi turning speeds 10 - 70 U/min voltage 380 V / 50 Hz total power requirement 4 kW weight of the machine ca. 1,6 t dimensions of the machine ca. 2,0 x 1,2 x 1,3 m transportable drilling out work, completely ready for connection gear of drill spindle runs over LENZE planetary drive advanced feed with LENZE direct current motor, output: 160 watt clockwise and counterclockwise with tool holder for Ø 420 x 620 mm, tool holder for tooling equipment fabri. LENZ LPAS 3, diverse turning steel

Year of construction: 1987, condition: used, bore diameter 550 mm Hjdpfx Acstv Ihwjhofi Spindle diameter 100 mm bore depth 320 mm turning speeds 10 70 U/min feed stepless 0 - 12 mm/min voltage 380 V / 50 Hz total power requirement 3 kW weight of the machine ca. 1.35 t dimensions of the machine ca. 1,0 x 2,5 x 1,0 m Transportable boring mill, completely ready for connection, Drilling spindle drive via LENZE planetary gear, feed drive with LENZE DC motor, power 100 watts, left and right rotation, with tool holder for Ø 420 and Ø 550 mm, tool holder for facing tool, make LENZ LPAS 3, various turning steels,

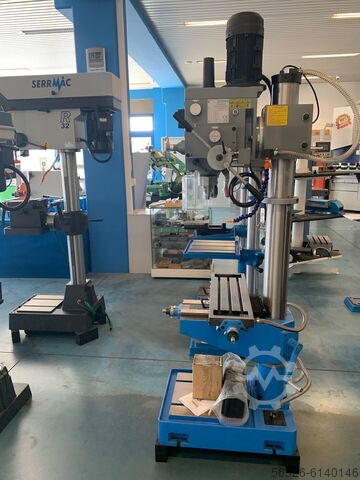

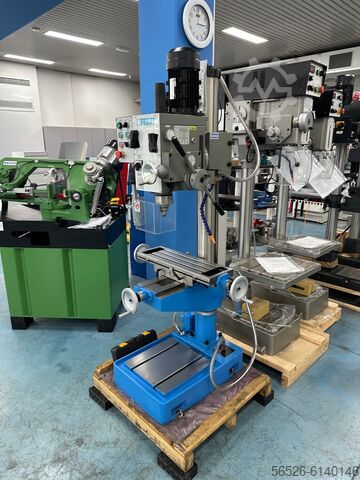

Condition: new, functionality: fully functional, Fervi T047/400VDA geared drill and milling machine, tapping function, 400V, 1.5kW NEW, “CE” certified. Promotional price – limited availability, subject to prior sale. The machine can be used for the following operations: Milling Drilling Tapping. Hedpfx Acjg Npiwshefi Drilling capacity in cast iron with pre-drilled hole: ø 40 mm. Maximum drilling capacity in steel with pre-drilled hole: ø 32 mm. Milling capacity with insert cutter: ø 80 mm. Milling capacity: ø 25 mm. Tapping capacity: Ø 22 mm. Taper attachment: CM 4. Spindle stroke: 130 mm. Spindle housing: ø 76 mm. Column: ø 115 mm. Head tilt: ± 60°. Spindle speed: (12) 75 ÷ 3200 rpm. Three-phase motor: 400 V 50 Hz 1.1 – 1.5 kW. Table dimensions: 585 x 190 mm. T-slot: 12 mm. Base dimensions: 648 x 412 mm. Overall dimensions: 740 x 790 x 1960h mm Weight: 390 Kg.

Condition: good (used), Year of construction: 2004, functionality: fully functional, PEDDINGHAUS TDK 1000/9 DRILLING MACHINE 9 SPINDLES MAXIMUM PROFILE 1000 X 420mm MEBA 1020 DGP SAWING MACHINE cutting diameter: 510 mm capacity 90 degrees: round: 510 mm capacity 90 degrees: flat: 1020 x 510 mm capacity 60 degrees: round: 500 (400) mm Hedpfx Aszc I Iyschjfi capacity 60 degrees: flat: 500 (400) x 510 mm capacity 45 degrees: round: 510 mm capacity 45 degrees: flat: 750 (670) x 510 mm

Year of construction: 1953, condition: good (used), functionality: fully functional, machine/vehicle number: 46, Condition & Origin: We are offering a former toolmaking machine – a SIP Hydropik H-6 gauge drilling machine in excellent condition. The machine has been used very little and has been out of operation for approximately 2 years. It is immediately available for use in precision manufacturing, mold making, or repair work. Equipment & Features: Rotoptic rotary table (original, including transport crate) – for highly accurate swiveling and indexing operations Hfedozb A Tuepfx Achji All original documents (operating manual, wiring diagrams, test reports, etc.) are available Guide rails in very good condition – no discernible wear due to low operating time Machine from a controlled toolmaking environment, not mass production Technical specifications (briefly): Type: SIP Hydropik H-6 Year of manufacture: 1953 Total weight approx. 10 tons including rotary table Organization & Loading: The machine must be loaded on-site – we do not have our own forklift of suitable size. If desired, we can arrange for an external forklift for a flat-rate fee. If the machine is picked up by the buyer, the loading must be carried out by the buyer themselves. Inspection: Possible at any time by arrangement. The machine can be inspected and demonstrated while powered.

Year of construction: 1988, condition: used, throat - mm tool adaptor - power requirement - kW 23 mm Hfodpfx Acstqqkxehei spindle distance max. 400 mm 1200 U/min total power requirement kW weight of the machine ca. t dimensions of the machine ca. m

Condition: used, Year of construction: 1990, Type/Designation: 307-153/714-750 Serial Number: 82/293 Country of Manufacture: Made in West Germany (before 1990) Technical Data (approximate, for this type of CHIRON machine from the 1970s/80s): Machine Type: Column drill / single-station drilling machine for metal Motor Power: typically from 1.5 kW to 3 kW (three-phase, 380 V) Spindle Speeds: 100 – 4000 rpm (mechanically or electrically switched) Max. Drilling Diameter in Steel: approx. 20–25 mm (depending on the version) Spindle Taper: usually MT2 or MT3 Feed: manual or mechanical (some models equipped with automatic feed) Weight: several hundred kilograms (approx. 300–600 kg) Intended Use: serial production in industry (precise hole drilling, light milling operations in metals, use in production lines) Machine Table: cast iron, capable of securing workpieces Full control panel – variable speed adjustment available 2. Key Working Head Parameters (important for riveting): Press Force (kN) – if specified on the cylinder label or in the electrical box (often 10–30 kN for this size) Spindle/Slide Stroke (mm) – measure from top to bottom position Daylight (working clearance: distance between tool tip and table at top position) Throat Depth – from spindle axis to column (working reach) Max. Rivet Diameter / Work Range – specify based on tests or prior use Voltage: usually 380/400 V, 50 Hz 3. Dimensions and Logistics: L×W×H (of base/overall, in cm) Electrical Supply: 3×400 V, protection e.g. C16–C20 (indicate according to power rating) Weight (weigh with pallet jack with scale or estimate) Hsdpfjw T U Ubjx Achjfi

Year of construction: 2013, condition: ready for operation (used), travel distance X-axis: 5,000 mm, travel distance Y-axis: 2,500 mm, travel distance Z-axis: 2,200 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC530, spindle speed (max.): 3,000 rpm, table load: 16,000 kg, number of axes: 5, This 5-axis TOS WHQ 13 CNC boring machine was manufactured in 2013. It features a working spindle diameter of 130 mm, a transverse table travel of 5000 mm, and a table load capacity of 16,000 kg. The machine is equipped with a HEIDENHAIN iTNC530 control system and includes an automatic tool change system. If you are looking to get high-quality boring capabilities, consider the TOS WHQ 13 CNC machine we have for sale. Contact us for further details. • Working spindle diameter: 130 mm • Clamping: ISO 50 • Spindle extension (W): 800 mm • Table clamping surface: 2500 x 3000 mm • Control: HEIDENHAIN iTNC530 + handwheel • Motors and drives: SIEMENS • Scope of repair 2026: • Cleaning the machine • Checking and adjusting machine geometry • Checking machine functionality • Revision of electrical equipment • Revision of hydraulics and lubrication • Adjustment of clearances and optimization of drives Hfedpfey D R D Ijx Achji • Replacement of guide surface wipers • Repair of telescopic machine cover • Replacement of balancing ropes • Repair of the platform • Revision of CHOV-K 20 bar cooling • Revision of automatic tool changer AVN60 • Machine with guarantee – please contact us for more information Additional equipment • CNC table – fully controlled B axis • CHOV-K 20 bar spindle axis cooling (emulsion / through-spindle coolant) • AVN60 automatic tool changer • CE platform and fence (guarding) • Chip conveyor

Year of construction: 2018, condition: ready for operation (used), A CNC radial drilling machine overhauled in 2018 is offered. Working range X/Y: 1050mm/1800mm, drilling capacity steel: 40mm, drilling capacity cast iron: 50mm, thread cutting: M36-M45, tool holder: SK40, speed range: 15rpm-2800rpm, quill stroke Z: 200mm, column stroke W: 410mm, table clamping surface X/Y: 1800mm/600mm, feed speed: 5mm/min-2000mm/min, rapid traverse X/Y: 7.5m/min, control: CNC control. Equipped with 360° swivel device, motorized tool clamping, three-jaw chuck for round parts, modernized LCD monitor, extensive tooling package. Weight: approx. 2900kg, overall dimensions X/Y/Z: approx. 2600mm/1900mm/2950mm. Inspection possible by arrangement. Hfedpfx Asy Tn Ntschei

Condition: used, Year of construction: 1977, functionality: fully functional, travel distance X-axis: 3,600 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,000 mm, spindle diameter: 160 mm, spindle speed (min.): 2 rpm, spindle speed (max.): 560 rpm, table length: 1,800 mm, table width: 2,000 mm, Manufactured by Union WMW (Germany) Year of manufacture 1977 Spindle diameter, mm 160 Face plate diameter, mm 950 Spindle speed range, rpm 2.8 – 560 X Axis Travel, mm 3600 Y Axis Travel, mm 3000 Z Axis Spindle Travel, mm 1000 W Axis Longitudinal Column Travel, mm 500 Rotary table size, mm 2000 x 1800 Rotary table longitudinal movement, mm 1250 Spindle motor, kW 22 Floor plate size, mm 3500 x 2000 (2 units) UNION BFP 160 is a heavy-duty floor type horizontal boring and milling machine manufactured by UNION Gera, Germany. Equipped with a 160 mm spindle, the machine is designed for precision machining of large and heavy workpieces in metalworking, energy, mining, and heavy industry applications. Hodpfx Acey Uw Afshjfi The borer is under power, fully complete and equipped with some tools.

Year of construction: 2004, condition: ready for operation (used), travel distance X-axis: 1,200 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 700 mm, controller manufacturer: HEIDENHAIN, controller model: 430M, total width: 5,350 mm, total height: 4,020 mm, spindle motor power: 18,500 W, product length (max.): 5,150 mm, spindle speed (max.): 6,000 rpm, tool weight: 3,500 g, number of axes: 6, This 6-axis IXION AUERBACH IA2 TLF-1200.4 drilling machine was manufactured in 2004. It features an impressive X-axis travel of 1,200 mm, Y-axis travel of 1,200 mm, and Z-axis travel of 700 mm. The machine includes a robust rotary table surface of 1,000 x 1,000 mm and a maximum workpiece weight capacity of 7,000 kg. If you are looking to get high-quality drilling capabilities, consider the IXION AUERBACH IA2 TLF-1200.4 machine we have for sale. Contact us for further details. • Axes travels: • W (deep hole drilling/milling unit, horizontal): 1,200 mm Hfjdoyzgvuepfx Achei • A (swiveling deep hole drilling/milling unit): +25° / -15° • B (NC rotary table): 360° • Rotary table: 1,000 x 1,000 mm, 5 T-slots • Max. workpiece weight: 7,000 kg • Max. torque: 115 Nm • Deep drilling capacity: • Max. depth (single pass): 1,200 mm • Diameter range: 3 – 25 mm (up to 36 mm with ELB in reinforced version) • High-pressure coolant system: 100 bar at 42 l/min (upgrade option 001b to 95 l/min) • Tool changer: 24 stations • Max. tool length: 300 mm • Max. tool diameter: 90 mm (160 mm with free adjacent pockets) Additional equipment • Full enclosure with roof • Oil mist extractor • Chip conveyor • 2 traveling steady rests • Deep drilling start package: tool holders and Botek Type 110 tools for various diameters Technical Specification Taper Size ISO 40

Condition: good (used), ERLO SG- 18 tapping drill Hedpfstrdimox Achefi CEE Table with casters Instruction booklet
