Used deephole boring machines for sale (67)

Condition: refurbished (used), Year of construction: 2017, BUCK TBFZ 3000 CNC incl. tools and clamping wedges The machine has been comprehensively overhauled and modernized. Conversion to Heidenhain iTNC530 including completely new control cabinet Travel: X-3000 mm, Y-1.500 mm, Z-1500 mm Z1: 500 mm A-axis: +/- 20° Depth of drilling in a single pass Z: 1.500 mm Drill depth by readjusting Z1: 2.000 mm Drilling performance with single-lip internal thread drilling tools: 3-40 mm diameter Gusdpfx Ahez Ntr Ijdeh NC rotary table 360° B-axis: 2.500 x 2.300 mm max. Tischladung: 25.000 kg Internal coolant supply (IKZ): 70/100 bar Spindle drive power at 60%: 20.5 kW Express travel X/Y/Z: 15.000 mm/min Spindle speed: 0-6,000 RPM Control: Heidenhain iTNC530 tool holder: SK50 Space requirements: approx. 8.5 m x 8.5 m x 3.5 m machine weight: approx. 24,000 kg max. table load: 25.000 kg

Condition: excellent (used), Year of construction: 2003, Degen FS 2550 Surface Grinding Machine Degen FS 2550 surface grinding machine, manufactured in 2003, in SUPER condition with approximately 100 operating hours. CE compliant!! Gedpfxjz Rla Hs Ahdjuh The machine comes from the Richard-Hartmann School (vocational school) in Chemnitz. Technical data: Year of manufacture: 2003 Clamping area / table size: 500 x 250 mm Max. grinding area: 500 x 250 mm Max. travel (X / Z): 600 x 280 mm Max. distance between spindle nose and table: 490 – 500 mm Max. workpiece weight: 320 kg Dimensions of magnetic clamping plate: 500 x 250 x 80 mm Grinding spindle & feed Grinding wheel dimensions: 355 x 25 x 127 mm (standard) Spindle speed: 1,500 rpm (at 50 Hz) / 1,800 rpm Spindle motor: 2.2 kW (3 HP) Longitudinal feed (X-axis, hydraulic): continuously variable 1 – 25 m/min Transverse feed (Z-axis, automated): 0.1 – 10 mm/ About the machine: Offered is a Degen FS 2550 surface grinding machine, manufactured in 2003, in SUPER condition with approximately 100 operating hours. This universal surface grinding machine is in very good original condition. It comes from a vocational school where it was used only sparingly for training purposes. It has a very easy-to-use control system. A grinding travel of 500 mm in the longitudinal axis and a transverse travel of 250 mm make it suitable for toolmaking, fixture construction, and small-series production. Its extensive standard equipment and ease of operation are characteristic of this series. The stable design of the spindle head and the guide principle with double V-guides in the longitudinal and transverse axes guarantee lasting precision. The intuitive operation of the controls simplifies operation and significantly increases productivity. The guides are regularly lubricated by the central lubrication system. The Degen has been mechanically and electrically tested by us. Take advantage of the opportunity to inspect and test the Degen on-site while it is powered up. You can find more surface grinding machines from well-known manufacturers on our website.

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, drilling depth: 1,600 mm, feed length X-axis: 3,000 mm, feed length Y-axis: 2,100 mm, feed length Z-axis: 1,500 mm, overall weight: 50,000 kg, feed rate X-axis: 10,000 m/min, feed rate Y-axis: 10,000 m/min, feed rate Z-axis: 10,000 m/min, spindle speed (max.): 4,500 rpm, drill diameter: 40 mm, table length: 2,100 mm, table width: 1,900 mm, CNC Heidenhain iTNC 640 AXES OF MOVEMENT Maximum drilling depth in a single operation (V axis): mm 1,600 Table travel, horizontal movement (X axis): mm 3,000 Vertical movement (Y axis): mm 2,100 Column approach movement (milling) (Z axis): mm 1,500 Drilling slide tilting (resolution 0.001°) (A axis): +30° / -15° Table rotation (resolution 0.001°) (B axis): 360° Max axis feed rate: mm/min 10,000 DEEP HOLE DRILLING AND MILLING SPINDLE – ISO 50 Solid drilling capacity: mm 5 – 25 Maximum drilling diameter: mm 40 Adjustable spindle speed: rpm 1 – 4,500 Spindle power S1: kW 17 Spindle torque: Nm 324 Standard drilling tool holder: mm Ø 25 x 70 Maximum internal spindle pressure: bar 120 Taper type: ISO 50 DIN 69871/A Coolant system: Yes ROTARY TABLE Rotary table dimensions: mm 1,900 x 2,100 Table rotation (resolution 0.001°) (B axis): 360° Table load capacity in rotation: kg 20,000 T-slots: mm 22 OIL SYSTEM Hydraulic pump motor power: kW 4 – 7.5 Self-regulated oil pressure: bar 15 – 120 Self-regulated oil flow rate: l/min 5 – 80 Oil tank capacity: L 800 – 1,000 Cooled oil temperature: 25 – 32 °C Filtration grade: micron 16 MACHINE DIMENSIONS AND WEIGHT Width x Length x Height: mm 7,000 x 7,900 x4,700h Machine weight: kg 50,000 DRILLING CAPABILITIES WITH GUN DRILLS Maximum depth: mm 1,600 Maximum rotation speed: rpm 4,500 Minimum drilling diameter: mm 6 Maximum drilling diameter: mm 40 THREADING HEAD “IMSASISTEM” WORKING FEATURES Max rotation speed: rpm 4,500 Maximum threading on C40 steel: M36 Gusdpfxsywnr Ns Ahdeh Machine equipped with: • Remote electronic handwheel Heidenhain • ISO 50 tool changer magazine with 40 positions • Fume extraction system 4,000 m³/hour • Through-spindle air/oil system • M24 threads on table side • Various tools and equipment • Tool rack with assorted gun drills • User and maintenance manual and CE declaration of conformity

Condition: refurbished (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: 106357-11, total length: 3,140 mm, total width: 1,800 mm, total height: 2,470 mm, overall weight: 3,500 kg, type of input current: AC, input voltage: 400 V, The machine was equipped with a new machine control system in 2024 and underwent a complete mechanical overhaul in 2025. The extensive overhaul involved the replacement of almost all essential components. As a result, the machine is in almost new condition technically. New control system in 2024: - SIMATIC S7-1500 PLC control system - SINAMICS S120 drive system Mechanical overhaul in 2025: - New tailstock housing, drill bush holder, and spindle housing - New workpiece support and tool support - 2x high-frequency spindles - 2x tool holders - 2x rotating collet chucks - Quill, including bearing - Ball screw drive, including bearing - Linear guides - Radial piston pump - Water cooler - 2x drilling oil supply - Flow divider - Pipelines and hoses replaced - Various filters replaced - Complete repainting Optional: - Chip conveyor can be retrofitted Oil mist extraction: - Connections are available Tool accessories: - Individual design possible according to customer requirements/customer workpiece. The deep hole drilling machine uses the single-lip drilling process. Information on the drilling unit: - Drilling diameter min/max: 1-12 mm based on ST 60 - Drilling depth: approx. 400 mm - Number of spindles: 2 - Spindle spacing: 120 mm - Spindle drive: 2 x 3.5 kW - Spindle speed, continuously variable: 1000 - 20000 1/min - Feed rate, continuously variable: 10 - 15000 mm/min - Rapid traverse: 15000 mm/min - Slide stroke (nominal): 800 mm - Center height (above table): 100 mm - Coolant supply: Deep hole drilling oil Machine frame: - Welded construction with integrated coolant tank - Top of the frame with continuous linear guide rails Spindle unit: Gjdpfjz Irfvsx Ahdjuh - Motor spindles with frequency-controlled, continuously variable speed control. - Spindle head with connection for tool holder. Drill bush holder: - In cast design, fixed on the machine bed. - Holder for tool guidance system with Ø50 mm - Holder for sealing housing and immersion sleeves with bayonet lock Rotating tailstock: - With drive for rotating workpiece - Clamping quills with workpiece length compensation Inspection of the machine and further information are available on request.

Condition: good (used), Year of construction: 2004, Deep-hole drilling machine TBT Varioflex MD 30-1, serial no. 106254-11, year of manufacture 2004, 70 kW, SIEMENS 840D control system, tool changer, chip conveyor, paper band filter system, with a comprehensive set of drilling tools, drilling slide stroke 2,200 mm, drilling depth 1,500 mm, weight approx. 15,000 kg. Gsdpfx Aoz Iccfshdeuh

Condition: excellent (used), Year of construction: 2014, feed length X-axis: 300 mm, feed length Y-axis: 300 mm, feed length Z-axis: 500 mm, General Aspects MAIN MOVEMENTS Maximum drilling depth - Z-axis: 500 mm Table, longitudinal movement - X-axis: 300 mm Table, vertical movement - Y-axis: 300 mm Drilling slide, piece support - W-axis: 50 mm DRILLING SPINDLE Drilling diameter without pre-drill, optimal: 3 – 12 mm Distance between the bits: 250 mm Drilling spindle, rotation speed min - max: 0 - 6.000 rpm Drilling spindle motor power: 7.5 kW (S1) Cannon drill holder, for diameters less than 6 mm: Ø 10 x 40 mm Cannon drill holder, for diameters greater than 6 mm: Ø 25 x 70 mm CLAMPING TABLE Fixed clamping table, surface dimensions: 500 x 600 mm Maximum load capacity of the fixed table: 1.000 kg Standard type clamping slots: 18 mm OIL Cutting oil flow rate: 50 lt./min Cutting oil pressure: 90 bar Guodpeu Au Dujfx Ahdsh Hydraulic pump motor power: 7.5 kW Hydraulic pump motor capacity: 600 lt Adjustable temperature: 27°-30°C DIMENSIONS AND WEIGHTS Width x length: 4.450 x 3.000 mm Approximate weight: 2.210 Kg POWER SUPPLY Electrical power supply: 400 V/3-phase/50-60 Hz Compressed air: 6 bar Total installed power: 25 kW

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, IMSA DRILLING MACHINE Model MF1100BBLL 6P Guedpfxez An Tno Ahdsh Year 2010 Control unit: SELCA 4045 X-axis travel: 2200 Y-axis travel: 1000 Table length: 1000 Table width: 1200 Maximum workpiece size (length x width x height): D.2100 x H.1300 Table surface: Tapped holes Maximum workpiece weight: 10000 Spindle speed: 4000 Spindle connection: ISO 40 Torque (continuous / 10 min): 1200 Nm Number of tools: 108 6-position pallet changer MACHINE EQUIPPED WITH A LANCE CHANGER AND TOOL CHANGER FOR MILLING HEAD MACHINE IN EXCELLENT CONDITION AVAILABLE FOR INSPECTION WHILE IN OPERATION

Condition: like new (used), Year of construction: 2022, functionality: fully functional, drilling depth: 1,250 mm, feed length X-axis: 1,700 mm, feed length Y-axis: 800 mm, feed length Z-axis: 600 mm, workpiece weight (max.): 6,000 kg, travel distance X-axis: 1,700 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 600 mm, spindle speed (max.): 4,200 rpm, drilling capacity: 30 mm, Equipment: rotational speed infinitely variable, - HEIDENHAIN TNC 620 control unit - Electronic handwheel - Table dimensions: 1000 x 1000 mm - Manual table changing system with ZERO POINT table - Table rotation around B-axis: 360,000 positions/revolution - Table tilt around A-axis: +/- 22.5° Guedpszixyrefx Ahdoh - Deep-hole drilling spindle: 11 kW / 6000 RPM - Milling spindle: ISO 40 / 13 kW / 6000 RPM - Tool changer: ISO 40, 24 positions - Smoke extraction system: AR FILTRAZIONI - CE marking

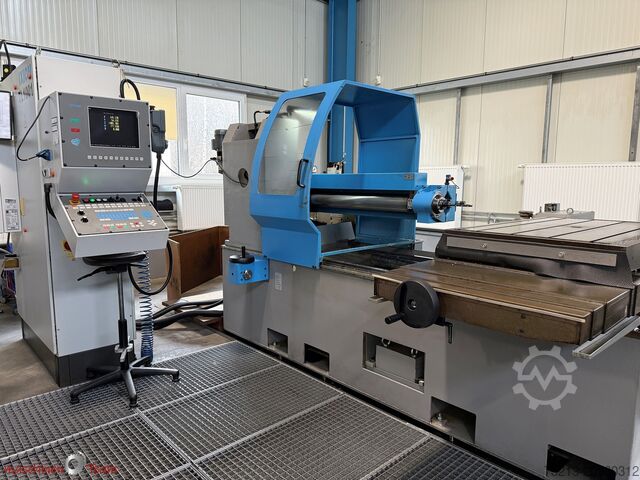

Condition: used, Year of construction: 2002, Technical details: x-Travel: 600 mm table cross travel (Y-axis): 500 mm w-axis: 250 mm control: Ixion TL-1 x-travel: 600 mm y-travel: 500 mm z-travel: 350 mm drilling depth in one stroke: 600 mm number of spindle speeds: 300 - 6000 /100 - 1600 U/min drill capacity in steel: 3 - 25 mm table surface area: 900 x 500 mm table load: 2000 kg connected load: 10 kVA weight of the machine ca.: 4 t dimension machine approx.LxWxH: 2,0 x 2,8 x 1,9 m The AUERBACH IXION AX1-TL is an industrial CNC deep-hole drilling machine designed for the precise machining of workpieces, particularly for producing deep holes with small to medium diameters. The machine is equipped with a powerful high-pressure coolant system and is designed for deep-hole drilling with single-lip carbide drills from Ø 3 to 25 mm. The coolant system has a tank capacity of 600 litres, a maximum coolant pressure of 90 bar and a maximum flow rate of 40 l/min. This ensures reliable cooling and efficient chip removal even during deep-hole drilling operations. The worktable measures 900 × 500 mm and is designed for a maximum table load of 2,000 kg. Four longitudinal T-slots provide flexible and secure workpiece clamping. The main spindle is driven by a 4.0 kW AC motor. Two belt-driven speed ranges provide programmable spindle speeds of 300–6,000 rpm and 100–1,600 rpm, allowing the machine to be adapted to different tool diameters and machining requirements. Guedpfxsz Dt Sie Ahdjh *

Condition: ready for operation (used), Year of construction: 1976, functionality: fully functional, drilling depth: 1,500 mm, feed length X-axis: 2,030 mm, feed length Y-axis: 1,800 mm, feed length Z-axis: 1,700 mm, table length: 2,200 mm, table width: 1,800 mm, table load: 12,000 kg, Deep hole drilling machine Ixion (drilling depth 1500mm, X 2030mm, Y 1800mm, Z 1700mm) The base machine is a PEGARD drilling machine AF 13 (year of manufacture 1976, machine weight approx. 32 t) 1996: Retrofit and conversion to a deep hole boring machine (the conversion was carried out by ROTTLER Maschinenbau GmbH - Mudersbach) 2024: Overhaul (spindle bearings renewed, drill bushing holder/coolant supply disassembled and cleaned, hydraulics for tool clamping repaired, coolant system and hydraulic unit cleaned and inspected, etc.) Working ranges: - X-axis (longitudinal) 2030mm - Y-axis (drilling unit vertical) 1800mm - Z-axis 1700mm - Drilling depth in one operation 1500mm - B-axis (rotary table) 0-360° Drilling unit: - Main spindle ISO40 - Spindle speed 60-6000 rpm - Drive power at 100% ED 7.5kW NC rotary table (B-axis) - Table surface 2200x1800mm - Rotary axis 0-360° - Max. table load 12,000kg - Positioning accuracy +/-15 sec Coolant system/chip conveyor - Tank size approx. 1000l - Coolant pressure max. 80 bar - Flow rate max. 46 l/min - Paper band filter - Scraper conveyor/chip conveyor CNC control - Mitsubishi M325 with 14" color screen Guodpfx Ajy Rhzwjhdsh - Integrated tool breakage monitoring by querying the torque of the main spindle - Real-time process variable visualization of torque - Deep hole drilling technology programs - Portable electronic handwheel

Condition: like new (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: 106882-11, total length: 4,400 mm, total width: 1,700 mm, total height: 2,700 mm, overall weight: 7,000 kg, The drilling process of the deep hole drilling machine utilizes the single-lip drilling method. Drilling Unit Information: - Drilling depth: 200 mm - Min./max. drilling diameter: 1–12 mm based on ST 60 - Number of spindles: 2 - Spindle distance: 200 mm - Spindle drive: 2 x 2.4/4.2 kW - Infinitely variable spindle speed: 1,000–20,000 rpm - Infinitely variable feed rate: 10–25,000 mm/min - Rapid traverse: 25,000 mm/min - Slide travel (nominal): 650 mm - Slide width: 460 mm - X-axis slide travel: 200 mm, rapid traverse: 25,000 mm/min - Y-axis slide travel: 200 mm, rapid traverse: 25,000 mm/min Fluid Information: - Coolant supply: deep hole drilling oil - Tank capacity: 500 liters - 1x automatic filter, filter performance: 50 l/min - 1x monitoring filter - 2x ELB drilling oil supply lines - 1x flow divider - 1x air cooler with recirculation pump - 1x electrostatic oil mist extraction unit - 1x scraper belt chip conveyor - 1x hydraulic unit and pneumatic unit/equipment - 1x sump pump - 3x submersible pumps - 1x radial piston pump with remote adjustment: Delivery rate: 1–38 l/min Pump drive: 7.5 kW Spindle Unit: - Motorized spindles with frequency-controlled, infinitely variable speed regulation - Spindle head with connection for tool holder - 2 x tool holders for collet sleeves according to VDI 3208 SE10x60, permanently bolted to the spindle head of the motorized spindle Drill Bushing Carrier: - The drill bushing carrier is positionable via the NC axis - Cast iron design, mounted on linear guideways - W-axis drive via AC servomotor and ball screw with indirect, absolute position measurement system Workpiece Slide: - The workpiece slide is designed as a cross-slide for vertical and horizontal positioning of the workpiece, for mounting clamping plates or special fixtures - Base unit in cast iron design with linear roller guideways - X and Y axes driven by AC servomotors and ball screws - Direct, absolute position measurement systems. Table plate with clamping or alignment grooves Clamping Table with NC rotary indexing device for positioning: - With rotary and swivel axes - Hydraulic clamping in rotary and swivel axes Technical Data: - Swivel range: 270º Godpfx Ahjwh Rp Eedeuh - Rotary range: 360º - Center height: 25 ± 0.02 - Spindle distance: 200 ± 0.005 - Indexing accuracy: rotary axis ± 15" / swivel axis ± 30" Electrical Equipment Information: - 1x drilling process monitoring - 1x CNC control 840D (Solution Line) Connection Data: - Operating voltage: 3AC 400V ± 10% - Frequency: 50 Hz - Control voltage: 24 V DC - Total rated power: 25 kW Additional Machine Equipment: - 2 x holders for resilient drill bushing holders, arranged on the drill bushing carrier - For max. drilling Ø18 mm.

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, drilling depth: 1,000 mm, overall weight: 20,000 kg, travel distance X-axis: 1,250 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 380 mm, drill diameter: 40 mm, rotational speed (max.): 4,200 rpm, table length: 1,000 mm, table width: 800 mm, table load: 9,500 kg, number of spindles: 2, feed length W-axis: 500 mm, Equipment: rotational speed infinitely variable, IMSA DEEP HOLE DRILLING MACHINE, MODEL MF 1000 BB TRAVEL: LONGITUDINAL AXIS 1250 TRANSVERSE AXIS (MILLING SPINDLE) 380 mm TRANSVERSE TRAVEL OF THE HEAD 500 mm VERTICAL TRAVEL 1000 mm Guedpfx Aheyft Haedsh ROTARY TABLE DIMENSIONS 1000x800 TOTAL MACHINE WEIGHT 20,000 KG MAXIMUM WEIGHT OF ROTATING WORKPIECE 4000 KG MAXIMUM WEIGHT OF STATIONARY WORKPIECE 9000 KG TILTING ROTARY TABLE TOOL CHANGER, 20 POSITIONS MAXIMUM DRILLING DEPTH 1000 mm MAXIMUM DIAMETER OF DEEP HOLE DRILLING 40 mm MAXIMUM SPINDLE SPEED FOR DRILLING 4200 RPM MILLING SPINDLE DIMENSION ISO 40 MAXIMUM SPINDLE SPEED FOR DRILLING 4000 RPM MAXIMUM FEED RATE WITH MILLING SPINDLE M 40 MAXIMUM MILLING CUTTER DIAMETER 65 mm SPINDLE TRAVEL 380 mm

Condition: good (used), Year of construction: 2018, drilling depth: 1,250 mm, total length: 8,100 mm, total width: 6,300 mm, total height: 4,300 mm, workpiece weight (max.): 7,000 kg, overall weight: 31,000 kg, travel distance X-axis: 1,600 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,100 mm, spindle speed (max.): 6,000 rpm, drill diameter: 36 mm, drill spindle length: 1,250 mm, spindle motor power: 23,000 W, table length: 1,500 mm, table width: 1,100 mm, feed length W-axis: 1,600 mm, 4 side complete machining Swiveling drilling and milling unit DCM Dynamic Collison Monitoring CAM-Model QCK ( Quick Check Kinematics) Transfer bore cycle (380-382) Gsdpfx Asz Ayqfjhdeuh 90 Bar IKZ Coolant system Extra ATC Tower 24 position (4 x 6) HSK 63 Double ballscrew construction Clear tank 1650 L and Waste tank 1300 L Chip conveyor Max. drill Ø steel: 36mm Drilling depth: 1250mm X - Travel: 1600mm Y - Travel: 1250mm Z - Travel: 1100mm W - Travel: 1600mm Table load: 7000 Table size L x W / or ø:1500 x 1100mm Spindle taper: HSK-63Mk Power on spindle: 23kW Speeds / ranges: 6000Rpm Length: 8100mm Width: 6300mm Height: 4300mm Weight: 31000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: good (used), functionality: fully functional, drilling depth: 1,000 mm, FOR SALE: TBT T 30 – 1000 KT Deep Hole Drilling Machine Gusdpoy Rvc Aofx Ahdjh High-quality German engineering for precision drilling Overview: Available for purchase is a robust and reliable deep hole drilling machine from the renowned German manufacturer TBT Tiefbohrtechnik. As a global leader in deep hole drilling technology, TBT machines provide unmatched precision for long-hole operations. Technical Specifications: Model: T 30 – 1000 KT Year of Manufacture: 1977 Max Drilling Depth: 1000 mm Drilling Diameter: approx. 4 – 30 mm Rated Power: approx. 20 kW Operating Voltage: 380 V / 50 Hz Machine Type: Knee-table (KT) design for flexible clamping. Key Benefits: Solid Construction: German heavy-duty build ensures superior stability and accuracy. High Performance: The 20 kW motor provides ample power for various metal alloys. Versatile Application: Ideal for drilling shafts, molds, and other long workpieces.

Condition: excellent (used), Year of construction: 2013, 4mm Dia. - 16mm Dia Range of Drilling; Up to 3,000mm Length of Component; Double Axis; Overall Length Approx 11 Metres x 900mm Wide, Gusdpfx Ahsy Ey E Rjdjh (2) Sections - Headstock Bed Length Approx 5 Metres, Drilling Length Bed Approx 6 Metres; (1) 500mm Dia 4-Jaw Chuck, 120mm Bore with Troyke DL-20-B, 4th Axis, 500mm Dia. Precision Rotary Table; Pendant Control; Stand Alone Electrical Cabinet (Dimensions Approx 3,000mm x 500mm x 1,900mm High); Technidrill Coolant Filtration System consisting of LNS 'Turbo HB' Swarf Conveyor, FSI 'CBFP 11' Filter System & Oil Tank with High Pressure Delivery Pumps; Stand Alone Dimplex Koolant Koolers Chiller Unit with Controls (Dimensions Approx 700mm x 1,300mm x 1,850mm High, 2012);

Condition: excellent (used), TBT T30 SERIES TABLE TYPE GUN DRILLING MACHINE Model T30-1000KTN Serial number 410.364.016 Year of manufacture, approx. 1980 Number of spindles 1 Drilling range in steel 4 - 30 mm (solid) Counter boring 40 mm Nominal drilling depth 1000 mm Slotted table size 850 long x 750 wide mm Table size overall 1100 long x 1000 wide mm Table cross movement 800 mm (approx.) Table vertical movement 400 mm (approx.) Drilling slide longitudinal travel 1450 mm Slideway width 250 mm Spindle speeds to approx. 9000 rpm Spindle motor 25 kW Total load 41 kW Supplied with: 2 off Whip guides. Ballscrew feed. 2 Axis DRO to table Cross and Vertical, DRO to drill slide. Gsdpszuxp Rjfx Ahdsuh TS25-1000 Coolant tank. Drill bushes. For Sale with Jet Machinery Ltd Jet Machinery Stock No: #27033 Machine Serial Number: 410 364 016 Cost: £17,500.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

Condition: used, Year of construction: 1971, core drilling diameter max. 50-355 mm bore depth 4000 mm swing diameter 1000 mm centre height 500 mm full boring 18-100 mm main spindle bore 163 mm turning speeds 56-710 U/min workpiece weight 6,3/10 t Tailstock 70-600 mm Drill pipes, guide block, drill head, rolling steady rest, support bearing Guodeyt Rz Dspfx Ahdoh drill heads, jaws 21- 240 mm, Holder, tools, shelves, cupboards The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: excellent (used), Year of construction: 1985, Drilling depth 750 mm Solid drilling in steel approx. 30 mm Maximum spindle speed 5,700 rpm Clamping table 1280 x 420 mm Gujdpfszwhkvsx Ahdeh Cross-slide table Coolant tank Various accessories (drills, bushings)

Condition: good (used), functionality: fully functional, drilling depth: 600 mm, workpiece weight (max.): 2,000 kg, travel distance X-axis: 750 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 300 mm, spindle speed (max.): 3,000 rpm, drill diameter: 35 mm, drill spindle length: 600 mm, spindle mount: MK 2, spindle stroke: 600 mm, number of spindles: 1, Equipment: rotational speed infinitely variable, Driling capacity: Ø 35 mm Driling depth: 600 mm X-axis: 750 mm Y-axis: 630 mm Z-axis: 300 mm Spindle speeds: 0 - 3000 rpm Tabel size: 1100 x 650 mm Load on table: 2000 kg max Turning table: 360° Controller: Degen AE30 Gsdpfx Aozu Sp Rohdsuh Including: - Cabinet + pallet with drills - Coolingunit - Machine manuals Country of origin: Germany Motor power: 11,2 kVA Machine LxWxH: 350 x 120 x 175 cm Machine weight: 1300 kg

Condition: used, functionality: fully functional, machine/vehicle number: 106341-11, Year of construction: 2005, overall weight: 8,000 kg, total height: 2,700 mm, total length: 5,660 mm, total width: 3,956 mm, The drilling method of the deep hole drilling machine is single-lip drill deep hole drilling. Drilling Unit Information: - Number of spindles: 1 - Infinitely variable spindle speed: 300 – 8000 rpm - Spindle drive power: 7.5 kW - Max. drilling depth: 800 mm - Drilling diameter min/max: 3 – 25 mm based on ST 60 - Max. twist drilling: 25 mm - Max. thread tapping: M24x3 - Milling material removal rate: 150 cm³/min Travel Paths: Gedpfxew E H E Ro Ahdeuh - X-axis travel: 800 mm - Y-axis travel: 400 mm - Z-axis travel: 630 mm - W-axis travel: 800 mm Travel Speed: - X-axis speed: 15,000 mm/min - Y-axis speed: 15,000 mm/min - Z-axis speed: 15,000 mm/min - W-axis speed: 15,000 mm/min Fluid Information: - Coolant supply: deep hole drilling oil - Tank capacity: 800 liters - 1x scraper belt chip conveyor - 1x hydraulic unit and pneumatic system/equipment - 1x submersible pump: Pumping capacity: 200 l/min - 1x low pressure pump: Pumping capacity: 100 l/min Pump drive: 1.7 kW - 1x compact belt filter: Filtration capacity: 120 l/min for processing steel/non-ferrous metals - 1x radial piston pump with remote adjustment: Pumping capacity: 2 – 94 l/min Pump drive: 7.5 kW Spindle Unit: - Cartridge spindle design with drive housing and spindle drive with gearbox. Spindle bearing with precision angular contact ball bearings and lifetime grease lubrication. Milling and Drilling Spindle Unit: - For conventional machining - Spindle head with HSK 50 tool holder Drill Bush Holder: - Design as 2-position turret with electric swivel mechanism - Locating position via Hirth coupling - Turret head with fixtures for: Guide bushes for deep hole drilling Milling and drilling spindle unit for conventional machining Pickup Tool Changer: - For conventional tools and drill bushings - Disc magazine design with 20 stations including feed stroke Automatic Tool Changer for Deep Hole Drilling Tools: - Fixed ELB column magazine for at least 5 tools including automatic tool clamping for HSK holders Clamping Table with W-Axis and NC Rotary Table: - Length/width: 800 x 600 mm - Positioning accuracy: B-axis +/- 30" - Centric payload: 1,500 daN Workpiece Clamping Device: - 1x tailstock with manual clamping movement - 1x NC dividing unit (A-axis) with manually operated two-jaw chuck for workpiece clamping - 1x base plate for mounting and clamping drill bushings + supporting prisms Electrical Equipment Information: - 1x CNC control Sinumerik 840D (digital complete system), including PLC S7-300 Connection Data: - Operating voltage: 3AC 400V ±10% – Frequency: 50 Hz - Control voltage: 24 V DC - Total connected load: 25 kW

Condition: excellent (used), Year of construction: 2009, drilling depth: 350 mm, workpiece weight (max.): 1,600 kg, table load: 1,600 kg, Deep hole drilling machine Mollart - LD8 - 150 Pellet Die Number of Spindles 8 Gun Drilling Diameter Range 1.5mm-10mm (Per Spindle) Maximum Drilling Depth 150mm Drill Spindle Stroke 350mm Gsdpfx Ahjyilgdedeuh Pellet Die Diameter 500mm-1550mm B-Axis Accuracy +/- 6 Arc Seconds Y-Axis Vertical Travel 400mm Gun Drill Speed Range 0-14,000 RPM Max. drill Ø steel 1.5 - 10 mm Drilling depth 350 mm Table load 1600 Speeds / ranges 14000 Rpm Dimensions (Estimate) Length 4500 mm Width 4500 mm Height 2300 mm Weight 12000 kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: good (used), Year of construction: 2007, functionality: fully functional, drilling depth: 1,150 mm, overall weight: 12,000 kg, drill diameter: 32 mm, Heidenhain iTNC530 cnc control 12-fold tool changer Technische Daten / technical details: Gsdpfswcldajx Ahdjuh Wege: / travels: X-Achse längs (Tisch) / X-axis longitudinal (table) 1800 mm Z-Achse quer (Ständer) / Z-axis cross (column) 1700 mm W-Achse quer (Bohreinheit) / W-axis cross (drilling unit) 1150 mm Y-Achse senkrecht (Bohreinheit) / Y-axis vertical (drilling unit) 1200 mm B-Achse (Rundtisch) / B-axis (rotary table) 360 ° A-Achse (Bohreinheit) / A-axis (drilling unit) -25 - +15 ° Bohrbereich-Tiefbohren (ELB): / drilling area-deep drilling (ELB): Durchmesserbereich / diameter range 6-32 mm max. mögliche Bohrtiefe / max. drilling depth 1150 mm Antriebsleistung / drive capacity 40 kW Gewicht der Maschine ca. / weight ca. 12000 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding. For more technical details please look at the photos

Condition: good (used), Year of construction: 2007, • Maximum possible drilling depth: 1200 mm • Maximum hole diameter: 32 mm • Minimum drilling diameter: 6 mm • Longitudinal travel (X-axis) table: 1800 mm • Cross travel (Z-axis) column: 1700 mm • Cross travel (W-axis) drilling head: 1150 mm • Vertical travel (Y-axis) drilling head: 1200 mm • Clamping surface NC table: 1500 x 1000 mm • Maximum table load: 10 t • Rotary axis (B-axis) rotary table: 360° • Rotary axis (A-axis) drilling head: -25°/+15° • Feed rate: 1-15 m/min (Y-axis: 1-10 m/min) • Rapid traverse speed in all axes: 15 m/min (Y-axis: 10 m/min) • Maximum spindle speed: 6000 rpm • Minimum spindle speed: 60 rpm • Tool holder: SK 40 • Tool clamping: OTT • Rated power main drive (100% ED, S1/40% ED, S6): 9/13 kW • Coolant tank capacity: 1000 l • Maximum coolant pressure: 100 bar • Low-pressure external and high-pressure internal coolant supply Gusdpjxyf E Nsfx Ahdsh • Power supply: 3x 400 V; 50 Hz • Required installation space (L x W x H): 6550 x 5350 x 4130 mm • Machine weight: 12,000 kg Deep Hole Drilling Machine Equipment • CNC control: HEIDENHAIN iTNC 530 • Interpolated rotary table with minimal backlash, dimensions 1500 x 1000 mm • Swiveling drilling head +15°/-25° • Shank drilling head • Handwheel HR520 • Fixed supports (2 units) • Tool magazine: ELB tools: 12 pcs (max. diameter: 32 mm / max. length: 1550 mm) Standard tools: 12 pcs (max. diameter: 140 mm / max. length: 400 mm) • Direct measurement and positioning system in X, Y, and Z axes • Collision monitoring system for supports and drill sleeves • Oil cooler • Coolant flow control system • Adjustable coolant nozzles • Cooling unit for electrical cabinet • Enclosed upper cover (roof) • Drip tray for machine and tank facility (tray height 30 mm) • Extraction system • Infrared touch probe • Drilling depth extension 1200 mm (retrofit) • Chip conveyor

Condition: excellent (used), drilling depth: 1,000 mm, overall weight: 20,000 kg, travel distance X-axis: 1,250 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 380 mm, drill diameter: 40 mm, rotational speed (max.): 4,200 rpm, table length: 1,000 mm, table width: 800 mm, table load: 9,000 kg, feed length W-axis: 500 mm, Equipment: rotational speed infinitely variable, IMSA DEEP HOLE DRILLING MACHINE, MODEL MF 1000 BB TRAVELS: LONGITUDINAL AXIS 1250 TRANSVERSE AXIS (MILLING SPINDLE) 380 mm TRANSVERSE HEAD TRAVEL 500 mm VERTICAL TRAVEL 1000 mm MAXIMUM DRILLING DEPTH 1000 mm MAXIMUM DRILLING SPINDLE SPEED 4200 RPM MAXIMUM DRILLING DIAMETER 40 mm MAXIMUM MILLING SPINDLE SPEED 4000 RPM MAXIMUM THREADING SIZE M 40 MAXIMUM MILLING DIAMETER 65 mm SPINDLE TRAVEL 380 mm Gjdpoytff Dsfx Ahdsuh ROTARY TABLE DIMENSIONS 1000x800 MAXIMUM WEIGHT WITH STATIONARY TABLE 9000 KG MAXIMUM WEIGHT WITH ROTATING TABLE 4000 KG TOTAL MACHINE WEIGHT 20,000 KG

Condition: refurbished (used), Year of construction: 2019, TECHNICAL DETAILS Drilling depth: 1,400 mm Full drilling range: 40 mm Spindle speed: 670 - 3,560 rpm Center height over bed: 380 mm Center height over floor: 1,400 mm Table length: 1,200 mm Table width: 1,200 mm Cross table travel: 2 x 400 mm Center height over table: 250 – 600 mm Z-axis Feed rate: 0-7,000 mm/min W-axis - 400 mm Feed rate: 0-7,000 mm/min X-axis - 800 mm Gujdew Ekfuepfx Ahdeh Feed rate: 0-2,000 mm/min Y-axis - 350 mm Feed rate: 0-3,000 mm/min Rapid traverse speed: 3.5 m/min Motor nominal speed: 8,000 rpm Motor rated output: 18.5 kW MACHINE DETAILS Operating voltage: 380 V Frequency: 50 Hz Connected load: 40 kW Total length: 6,500 mm Total width: 3,500 mm Total height: 2,900 mm Weight: 8 t EQUIPMENT Manufacturer: Siemens Sinumerik 840 Dsl Including 1,700 l coolant system 20 solid carbide single-lip drills, diameters 6 mm to 20 mm, lengths 1,200 mm to 1,750 mm
