Used radial drilling machines 1000-1299mm arm length for sale (66)

Condition: used, Year of construction: 1970, bore capacity in steel (diameter) 50 mm arm length 1250 mm workpiece height max. ca. 1150 mm bore capacity in cast iron 60 mm spindle taper MK 5 spindle turning speed range 25 - 2000 U/min feeds 0,06 - 0,5 mm/U Lhjdpfx Abovh Nbho Djp crossrail adjustment vertical 620 mm column diameter 350 mm total power requirement 7,5 kW weight of the machine ca. 4,6 t dimensions of machine L x W x H 2,50 x 1,08 x 2,50 m Accessories: box table 1100 x 700 x 550 mm, coolant pump

Condition: as good as new (ex-display), Year of construction: 2024, Optimum OPTIdrill RD 6 Precise, solid radial drilling machines of top quality. Ideal for versatile use in single-part and series production. • Versatile application range, such as drilling, reaming, and threading • Electrically braked motor • 24V DC electrical system and 2-channel safety chain according to DIN EN 12717 • Heavy, solid, high-quality cast iron • Wide reach thanks to horizontally adjustable machine head • Clearly arranged control panel • Smooth-running swivel and travel axes • Elaborately machined column swivel with optimized clamping for maximum stability and minimal clamping offset • Robust, torsion-resistant boom construction • Boom height adjustment via powerful motor drive and lifting spindle • Drill head gear running in an oil bath • Boom guideways hardened and precision-ground • Chrome-nickel steel gears, hardened and precision-ground, ensuring quiet and smooth operation • Drill head and column can be clamped together or separately or loosened • Right-left rotation • Solid, precise drilling table, generously dimensioned • Hardened and ground clamping table with parallel T-slots • Machine light • Overload protection • Thick-walled cast iron column ensures smooth operation and stability • LED lamp Lhodpfx Aswa Tc Seb Dop • Coolant system with coolant tank in the machine base RD 6 / RD 7 • Column is hydraulically clamped Dimensions and Weights Column diameter 320 mm Length approx. 2670 mm Width/Depth approx. 1120 mm Height approx. 2760 mm Weight approx. 3200 kg Extension arm Rotation angle 180° Drilling capacity Drilling capacity steel (S235JR) 50 mm Continuous drilling capacity steel (S235JR) 45 mm Drilling table T-slot size 14 mm T-slots Number: 4 T-slot spacing: 180 mm Maximum distance between spindle and drilling table: 1420 mm Clamping table length: 630 mm Clamping table width: 500 mm Clamping table height: 500 mm Clamping table T-slot size: 22 mm Number of T-slots on the clamping table: 3 Clamping table T-slot spacing: 150 mm Min. distance between spindle and clamping table: 0 mm Max. distance between spindle and clamping table: 910 mm Min. distance between spindle and drilling table: 465 mm Speed range: Speed range: 44 – 1023 rpm Number of speed ranges: 12 Electrical data: Total power consumption: 6.5 kW Connection voltage: 400 V Mains frequency: 50 Hz Machine base: Working surface length: 2550 mm Working surface width: 970 mm Motor(s) Spindle motor drive power: 4 kW Drive power Cantilever arm lifting motor 1.5 kW Coolant pump power of drive motor 90 W Hydraulic clamp drive 0.75 kW Spindle Quill stroke 270 mm Spindle mount MT5 Quill feed speed 0.06 – 0.2 mm/rev Quill feed speeds 3 Travel path Drill head travel (horizontal) 1250 mm Arm stroke (vertical) 680 mm Maximum spindle-column distance 1600 mm Minimum spindle-column distance 350 mm

Condition: used, Year of construction: 1974, Bohrleistung in Stahl (-Ø 35 mm throat 1000 mm workpiece height max. 200 - 1400 mm height adjustment 745 mm base plate surface area 1200 x 930 mm Bohrspindel-Ø/ Aufnahme 90 mm / MK 4 bore spindle stroke 350 mm turning speed range 60 - 1850 U/min feed range 0,09 - 1 mm/U power capacity 3,7 kW weight of the machine ca. 3,7 t dimensions of the machine ca. 2,1 x 0,9 x 3,3 m Cube table 800 x 800 x 650 mm Lhjdpfetv Igtex Ab Dep Coolant device

Condition: ready for operation (used), functionality: fully functional, feed length X-axis: 1,015 mm, feed length Y-axis: 600 mm, drilling capacity: 40 mm, spindle speed (max.): 2,000 rpm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Drill holder mount: MK 4 Drilling capacity: 40 mm Table size: 1,445 mm x 810 mm X-axis: 1,015 mm Y-axis: 600 mm Spindle speed: 2,000 rpm MACHINE DETAILS Space required (LxWxH): 0.82 m x 2.01 m x 2.5 m Machine weight: 2,815 kg Ledpfowrr Nnex Ab Dshp

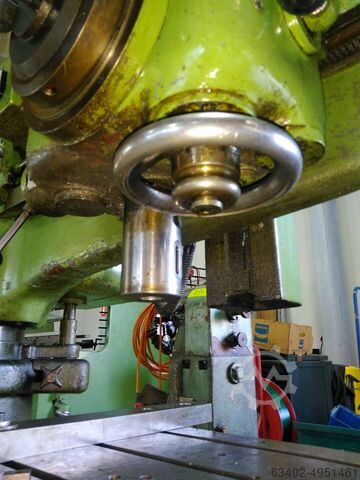

Condition: good (used), KOLB radial drilling machine NKR 43 spindle diameter 80 mm spindle stroke 325 mm Projection 1250 mm 5.5 KW Lhodpfxef Ddqge Ab Djp rpm 50 - 2100 Angle bracket LxWxH 610x500x530 mm Dimensions LxWxH 2420x920x2850 mm Weight approx. 3,5 to

Condition: good (used), Year of construction: 1983, Stock number: 3005 Manufacturer: HKS Singen Year of manufacture: 1983 Machine number: 401044 Model: HKS 40 Drilling capacity: 40 mm Spindle taper: MK 4 Speed range: 26 to 1,940 rpm Feed: 0.05 to 0.45 mm/rev Table: 1,520 x 740 mm Clamping surface: 1,370 x 610 mm Outreach min/max: 400 / 1,120 mm Stroke: 200 mm Swiveling range: 360° Vertical adjustment of arm: mm Horizontal adjustment of arm: 720 mm Accessories: Connection: 6.5 kW Footprint: 1,500 x 1,100 mm 2nd plate: 1,500 x 1,000 mm Dimensions: 1,800 x 1,600 x 2,700 mm Lhodpfx Aswu Ilweb Dsp Weight: 2.3 t

Condition: used, Year of construction: 1991, bore capacity in steel (diameter) 50 mm arm length 1100 mm workpiece height max. ca. 1000 mm bore capacity in cast iron 60 mm spindle taper MK 5 spindle turning speed range 28 - 2500 U/min feeds 0,05 - 2 mm/U quill stroke 300 mm distance basic plate - spindle nose 630 - 1380 mm crossrail adjustment vertical 750 mm total power requirement 6 kW Ljdpou Sblwsfx Ab Djhp weight of the machine ca. 4 t dimensions of machine L x W x H 2,74 x 1,14 x 2,59 mm - with thread cutting attachment - Accessories: box table 550 x 550 x 550 mm, vice, coolant

Condition: used, Year of construction: 1976, functionality: fully functional, machine/vehicle number: 2791, throat depth: 1,300 mm, drilling capacity: 50 mm, We are selling our radial drilling machine, which is still in use and in working order. Weight approximately 2.5 tons. Will be gladly loaded to the buyer; shipping/transportation costs are borne by the buyer. Lhsdpfxewku H Ts Ab Djp

Condition: good (used), Year of construction: 1985, functionality: fully functional, total height: 3,300 mm, drilling capacity: 60 mm, total width: 2,100 mm, total length: 900 mm, spindle speed (max.): 1,200 rpm, spindle speed (min.): 20 rpm, spindle mount: MK 5, clearance between the columns: 1,100 mm, overall weight: 3,000 kg, spindle stroke: 400 mm, height adjustment type: mechanical, Radial drill BR 40/2 x 1250. Prod. Heckert (GER). Year 1985. Max drilling diameter in steel (mm) - 60 mm Max threading diameter in steel - M24 Max workpiece height - 1100 mm Lhedpfx Abjwazbvo Dsp Spindle stroke - 400 mm Arm length - 1250 mm Arm rotation - 360 Drill attachment - MK5 Rotation speed range (rpm) - 20-1200 rpm Feed range - 0.063-0.63 mm/rev Base plate mounting surface - 1400 x 800 mm Table dimensions - 650 x 650 x 500 mm Machine dimensions width x depth x height - 2100 x 900 x 3300 mm Motor power - 3.7 kW Weight - 3 tons

Condition: used, Radial drilling machine F 32-1000 Arm length 1 m Morse taper 4 Lodpfxjww E Nle Ab Dshp

Condition: ready for operation (used), functionality: fully functional, Wirtartka in very good technical condition. Drive transmission on gears and not belts. Lhsdpfx Abowmk Dmo Djp

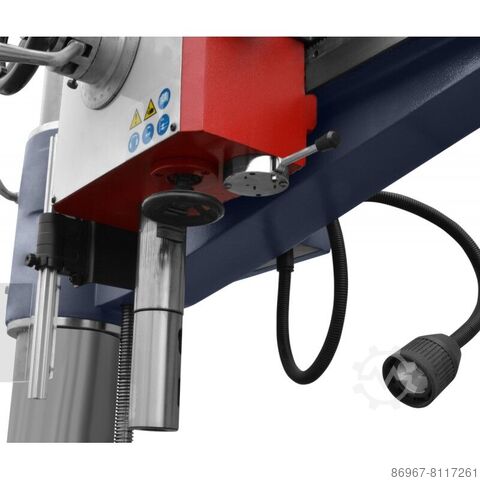

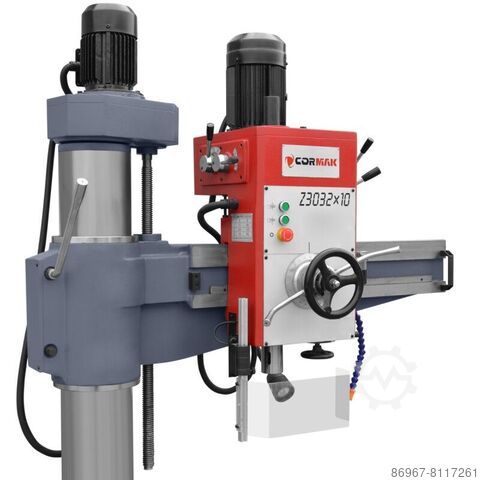

Condition: new, Year of construction: 2025, A large and stable radial drilling machine with a large range of revolutions which ensures precise and fast machining. Machine features Large weight and sturdy design ensure stability and vibration-free operation Cube table provides adjustability and easy fixture of workpiece Lodoi D Daqopfx Ab Dehp Control panel located at the front of the machine for improved convenience Ground column surface provides easy, precise arm travel Machine equipped with manual head and column arm limiter Large speed range for accurate and quick machining Technical data Maximum drilling diameter 32 mm Distance from spindle to base 340–1125 mm Distance from spindle axis to column surface 330–890 mm Spindle extension 215 mm Spindle taper MK4 Spindle speed 75–1200 rpm Spindle speed ranges (6): 75, 130, 240, 380, 660, 1200 rpm Spindle feed (3) 0.10; 0.16; 0.25mm/turn Horizontal plane rotation angle 180° Main motor power 2.2 kW Worktable dimensions 500×330×294 mm Machine dimensions 1400×660×2100 mm Weight 950 kg The price is a net price. Price does not include shipping costs. For more information, please contact us by phone or e-mail. We invite you to familiarize yourself with the offer on our website.

Condition: used, Year of construction: 1980, bore capacity in steel (diameter) 50 mm arm length 1250 mm distance spindle/base plate 1350 mm bore capacity in cast iron 60 mm spindle taper MK 5 spindle turning speed range 12,5 - 1000 U/min feeds 0,06 - 0,5 mm/U crossrail adjustment vertical 620 mm column diameter 350 mm total power requirement 7,7 kW Lhjdpfxevh Nbzo Ab Dsp weight of the machine ca. 4,6 t dimensions of machine L x W x H 2,53 x 1,15 x 2,82 m Accessories: swivelling box table, coolant - additional column guide at the end of arm -

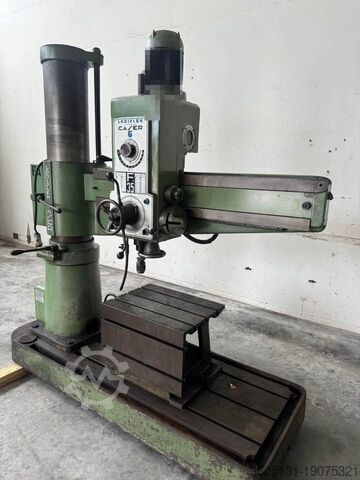

Condition: ready for operation (used), functionality: fully functional, FOR MORE INFORMATION CONTACT US LODIFLEX F35 RADIAL DRILL PERFECTLY WORKING ARM LENGTH 150CM Lsdpfxjwhfi Ho Ab Djhp

Condition: used, Year of construction: 1965, bore capacity in steel (diameter) 45 mm arm length 325 / 1000 mm workpiece height max. ca. 1000 mm spindle taper MT 4 spindle turning speed range 40 - 1700 U/min feeds 0,125 - 1,25 mm/U distance spindle/base plate 385 / 1400 mm quill stroke 325 mm crossrail adjustment vertical 700 mm 360 ° boring head horiz. adjustable 675 mm base plate surface area 1300 x 800 mm Lodpfx Abovh Nb Ie Dshp total power requirement 6,2 kW weight of the machine ca. 3,8 t dimensions of machine L x W x H 2,30 x 0,98 x 2,82 m - autom. feed - right-/left spindle run Accessories: box table 1000 x 750 x 500 mm, hydr. vice, width of jaws 200 mm, coolant

Condition: good (used), Year of construction: 1996, Radial drilling machine type Reform RB50x12 for sale in good condition. Capacity: Max. 50mm in steel. Arm lenght: 1250mm Spindle distance to column min: 350mm Taper: MK5 Stroke: 315mm Spindle speeds: 25 – 2000 rpm, in 16 steps Feed rates: 0.04-3.2 mm/rev Main motor 3kW Weight: 3000kg Dimensions: 2150x1060x2840mm Lhsdpfx Abjxftk Ro Djp Machine clamps hydraulically, equipped with emergency stop. Under power in our warehouse.
