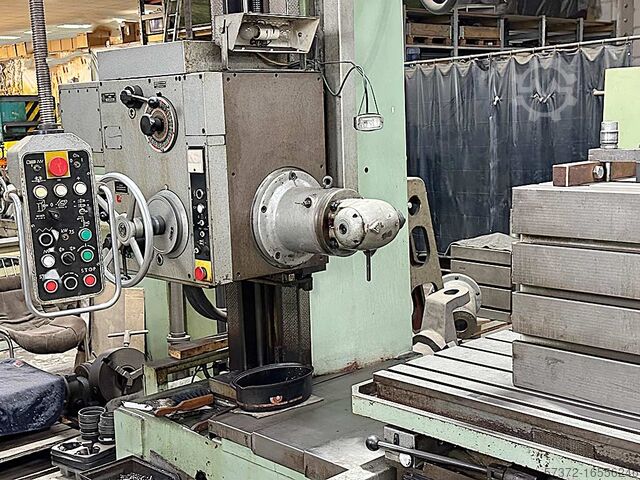

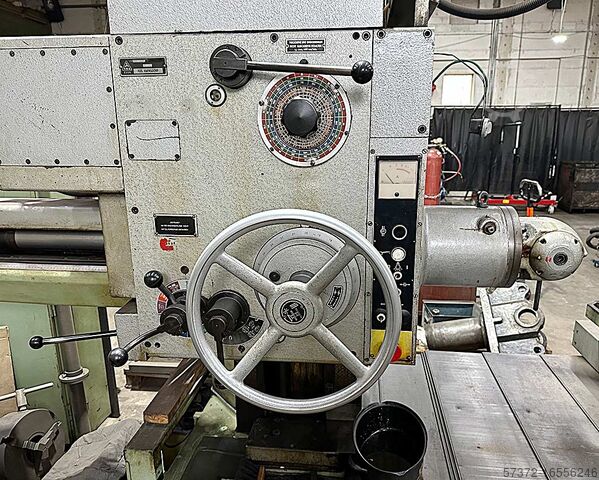

Horizontal Drilling Machine

TOS Varnsdorf W9A

Condition: used, Technical details: table diameter: 4500 mm faceplate diameter: 4500 mm operating hours: 0 h swing diameter: 5000 mm turning diameter: 5000 mm workpiece height max.: 2500 mm control: Sinumerik 840D SL x-axis: 300 Hub/ram Slide mm x-axis: 2850 Hub / ram travel mm x-axis: 2850 working without tool mm x-axis: 5000 with tool changer mm w-axis: 1800 Querwegelevating cross rail mm tool holder / places: 12 tool taper: HSK 100 (spindle) workpiece weight: 100 t table speed: 1 - 50 U/min T-slots: 8 Stück (36 H12) stroke speed: fräsen ram speed: 4000 U/min rapid power traverse in X-and Z direction: 8000 mm/min Torque: fräsen: 100.000 Nm Torque: drehen: 200.000 Nm total power requirement: 80 (2x40) kW weight of the machine ca.: 140 t dimension machine xH: 11,5 x 6,6 x 8,4 m CNC vertical lathe - vertical - NEW ( It is a demonstration machine on the photos) Application of the manufacturing processes: Turning, such as external longitudinal turning, internal and external facing and profile machining. Grooving, such as internal and external Drilling, such as short hole drilling and deep hole drilling Milling, such as face-corner profile and T-slot milling Thread cutting But also suitable for roughing and end machining. The machine bed, designed with a welded construction, absorbs extreme cutting forces. The table is made of high-strength meehanite cast iron. To withstand heavy loads, the part weight is supported by two high-precision tapered roller bearings. Furthermore, the table is equipped with hydrodynamic support for the workpiece. other features: Pjdpsu Ix H Defx Af Sjha automatic tool change jaw chuck (8 pieces with power clamping spindle and hardened jaws) incl. cooling system 40bar with filter unit hydraulic and lubrication equipment ATOS and Dropsa with measuring system of axes Heidenhain Renishaw NEW - with guarantee & service via WWM AG *

Condition: used, Year of construction: 1976, turning diameter over bed 0560 mm turning diameter over slide rest 350 mm Pjdpfx Afst Tqgxj Ssha turning length 1500 mm spindle bore 65 mm spindle turning speed range 16- 1250 U/min feeds - longitudinal 0,050-24,0 mm/U feeds - cross 0,039-18,86 mm/U total power requirement 9 kW weight of the machine ca. 4,5 t

Condition: good (used), Year of construction: 1986, 1 used universal cylindrical grinding machine Phjdoul Agbopfx Af Ssa type SA 5 /630 year of construction 1986 center height 140 mm Circulation over bed 280 mm Center width 630 mm Table speed 0.05 - 6 m / minute Coolant system Weight 4.5 tons Technical data Errors excepted

Condition: ready for operation (used), Distance between centers: 4000 mm Center height: – over bed 650 mm – in bridge area: 800 mm Swing diameter: – over bed 1200 mm – over cross slide 1000 mm – in bridge area 1600 mm Platform: 1200 mm Bore diameter: 140 mm Speed: 2–800 rpm Bed: – bed width 650 mm – longitudinal slide length 820 mm – total cross slide travel: 600 mm – upper slide travel: 300 mm GIVI 3-axis digital readout Electric motor 28.5 kW Dimensions: 6325 x 1400 mm Psdoxq E D Topfx Af Seha

Condition: ready for operation (used), functionality: fully functional, turning diameter over cross slide: 620 mm, spindle bore: 160 mm, turning diameter: 1,600 mm, turning diameter over bed slide: 900 mm, center height: 450 mm, turning length: 2,500 mm, total length: 4,000 mm, total width: 1,250 mm, total height: 1,600 mm, spindle speed (max.): 700 rpm, spindle speed (min.): 9 rpm, Parallel lathe with movable bed Tacchi model FTA 40 featuring: - Center height: 450 mm - Distance between centers with bed closed: 1500 mm - Distance between centers with bed open: 2500 mm - Useful bar passage: 160 mm - Rotating tailstock - Position readouts Phodpfexl R U Hsx Af Sja - Motorized longitudinal bed movement - Standard accessories Free deferred payment over 12/24 months.

Condition: like new (used), MACHINE DATA Phjdpfx Afsd Tm D Ee Ssa TORNI TACCHI FTC model 51 OVERALL DIMENSIONS Center distance 4000 m/m Height 1550 m/m Width 1400 m/m Length 6200 m/m Weight 10.000 Kg Swing over bed 1120 m/m Swing over carriage 810 m/m Swing over gap 1350 m/m Hole through spindle 123 m/m Number of speeds 18 Range of speeds 7-550 / 1’ Horsepower of motor 25HP Morse taper № 6 Metric threads – inch – module – pitch 3 jaw chuck 450 m/m Face plate 850 m/m Extra face plate 1420 m/m Good condition

Condition: excellent (used), Year of construction: 1987, turning diameter over cross slide: 1,000 mm, turning diameter: 720 mm, turning diameter over bed slide: 1,000 mm, turning length: 3,000 mm, Lathe Geminis GE 1000S Max. turning diameter over cross slide: 1000 mm Max. turning diameter over support: 720 mm Turning length: 3000 mm D.R.O. Heidenhain Phsdouv Ehqjpfx Af Ssa

Condition: ready for operation (used), Year of construction: 1978, travel distance X-axis: 4,500 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, spindle speed (max.): 2,066 rpm, table width: 1,000 mm, table length: 6,100 mm, overall weight: 19,000 kg, 3-axis Newall display with variable feed rate 50-speed head with continuously variable spindle speeds, max. 1,500 rpm 6100 x 1,000 mm table 4500 x 1,000 x 1,000 mm stroke 19-ton weight Pedpfx Aevz Aydsf Ssha

Condition: used, functionality: fully functional, Year of construction: 1989, roller (top) diameter: 200 mm, side roll diameter: 150 mm, sheet thickness (max.): 6 mm, working length: 3,000 mm, Working length 3000 mm Bending capacity 6 mm Phjdsuzm Ayepfx Af Sja Bending capacity 4 mm Top roller diameter 200 mm Diameter of side rollers 150 mm Hydr. folding bearing

Condition: like new (used), turning diameter: 1,500 mm, MAXIMUM WORK DIAMETER : 1600 mm. MAXIMUM WORKING LENGTH : 3000 mm. Phjdjr Ui R Nopfx Af Soa DIAMETER OF LANTERN SHAFT : 83 mm. OUR MACHINE IS ACTIVE WITHOUT ANY PROBLEMS ALL REVOLUTIONS AND AUTOMATICS ARE IN VERY GOOD CONDITION
