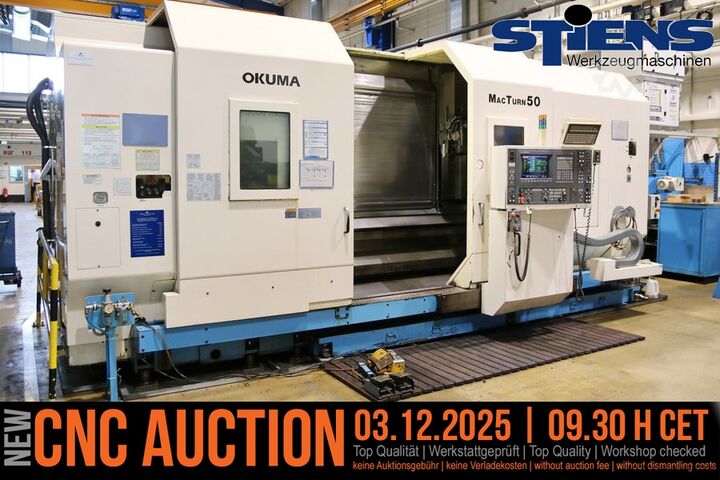

CNC turning-milling Center

Okuma MacTurn 50

Condition: used, Year of construction: 2000, max. turning diameter 580 mm turning length 1500 mm Hedpfx Adoxmaf Rj Nefb control OSP 7000 L greates pass round over bed 610 mm swing diameter over slide rest 580 mm turning speed range - main spindle 12 - 2.800 min/-1 spindle bearing diameter 150 mm spindle bore 110 mm spindle nose JIS A2-11 power capacity - main spindel 37 (30) kW C-Axis 0,001 ° x-axis 598 mm y-axis 230 mm z-axis 1.660 mm rapid traverse X / Y: 12.000 mm/min rapid traverse Z: 20.000 mm/min rapid traverse C: 100 min/-1 cutting feed speed X / Z / Y: 0,001 - 1.000 mm/U type H2 ATC number of toolpositions 2 (1x L-Tool / 1x M-Tool) pos. driven statition stufenlos / stepless Spindle speed - driven tool stations 40 - 3.000 min -1 tool shank height 25 mm Boring bar shank diameter 50 mm diameter of quill 120 mm quill stroke 170 mm taper of center MT 5 number of toolpositions 50 pos. tool taper MAS BT 50 max. tool diameter 170 mm max. tool length 350 mm max. tool weight 20 kg drive of magazin 3,2 kW total power requirement 53 kVA weight of the machine ca. 18,5 t dimensions of the machine ca. 6,0 x 3,2 x 3,0 m CNC - Turning- and MillingCenter OKUMA - MacTurn 50

Condition: used, Year of construction: 1956, machine/vehicle number: 17179, Heavy duty lathe, lathe, lathe, center lathe and lathe, center lathe -Manufacturer: Meuser, master and feed spindle lathe type M3A -Turning length: 1400 mm -Swivel Ø over bed: 550 mm Hfedoh Uuzyepfx Ad Nsb -Rotating Ø without bed: 800 mm -Rotating Ø over support: 300 mm -Spindle bore: Ø 58 mm -Spindle speeds: 15 - 810 rpm -Three-jaw chuck: Röhm Ø 250 mm -Faceplate: 500 mm -Accessories: incl. tool holder/tools see photos -Tailstock mount: MK5 -Dimensions: 2770/1070/H1310 mm -Weight: kg

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, machine/vehicle number: 0014, turning length: 1,500 mm, turning diameter over cross slide: 610 mm, travel distance X-axis: 598 mm, travel distance Y-axis: 230 mm, travel distance Z-axis: 1,660 mm, TECHNICAL DETAILS Travel Distances X-axis travel: 598 mm Y-axis travel: 230 mm Z-axis travel: 1,660 mm C-axis: 0.001 Turning Length: 1,500 mm Swing diameter over cross slide: 610 mm Swing diameter: 580 mm Hedoxqyikopfx Ad Nsfb Spindle Spindle motor power: 30,000 W Spindle speed (min.): 14 rpm Spindle speed (max.): 3,200 rpm Spindle bore: 90 mm Spindle bearing diameter: 130 mm Spindle nose: JIS A2-11 Rapid Traverse Rapid traverse (Z-axis): 20 m/min Rapid traverse (X/Y): 12,000 mm/min Rapid traverse (C): 100 min^-1 Cutting feed rate X/Z/Y: 0.001 - 1,000 mm/rev Tools Tool magazine positions: 32 pos. Tool holder: MAS BT 50 Max. tool diameter: 170 mm Max. tool length: 350 mm Max. tool weight: 20 kg Turret type: H2 ATC Tool stations: 2 (1x L-Tool / 1x M-Tool) Driven tool stations: stepless Spindle speed – driven tool stations: 40 - 3,000 rpm Tailstock Quill diameter: 120 mm Quill stroke: 170 mm Centre taper: MT 5 MACHINE DETAILS CNC Control: OSP 7000L Total power requirement: 53 kVA Dimensions & Weight Dimensions (L x W x H): 5.3 x 3.2 x 3.0 m Machine weight: 18,500 kg EQUIPMENT Chip conveyor

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 0082, turning length: 1,500 mm, turning diameter: 580 mm, travel distance X-axis: 598 mm, travel distance Y-axis: 230 mm, travel distance Z-axis: 1,660 mm, TECHNICAL DETAILS Max. turning diameter: 580 mm Turning length: 1,500 mm Swing diameter over bed: 610 mm Swing diameter over cross slide: 580 mm Travels X-axis: 598 mm Y-axis: 230 mm Z-axis: 1,660 mm Main spindle Speed range – main spindle: 12 – 2,800 rpm Spindle bearing diameter: 150 mm Spindle bore: 110 mm Spindle nose: JIS A2-11 Drive power – main spindle: 37 (30) kW C-axis: 0.001° Feeds Rapid traverse X / Y: 12,000 mm/min Rapid traverse Z: 20,000 mm/min Hfsdsxb Awfopfx Ad Nob Rapid traverse C: 100 min⁻¹ Cutting feed rate X / Z / Y: 0.001 – 1,000 mm/rev Tool turret Type: H2 ATC Number of tool stations: 2 (1x L-Tool / 1x M-Tool) Driven stations: infinitely variable Speed range – driven tool stations: 40 – 3,000 rpm Tool shank height: 25 mm Boring bar diameter: 50 mm Tailstock Quill diameter: 120 mm Quill stroke: 170 mm Tailstock taper: MT 5 Tool magazine Number of tool stations: 50 Tool holder: MAS BT 50 Max. tool diameter: 170 mm Max. tool length: 350 mm Max. tool weight: 20 kg Magazine drive: 3.2 kW MACHINE DETAILS Control: OSP 7000 L Space requirements & Weight Approx. footprint: 6.0 x 3.2 x 3.0 m Approx. machine weight: 18.5 t Electrical data Total connected load: 53 kVA Rated voltage: 400 V Number of phases: 3 P Frequency: 50 Hz EQUIPMENT Chip conveyor Central coolant system High-pressure coolant Signal lamp Hydraulic unit Steady rest Three-jaw chuck Schunk - ROTA NC 400-120 Electronic handwheel 44 assorted tool holders

Condition: good (used), Year of construction: 2013, CNC Lathe with y-axis Okuma - LT2000EX Length:4200mm Hfsdjxpg Ecopfx Ad Nsb Width:2200mm Height:2700mm Weight:10000kg

Condition: used, Year of construction: 2008, x-travel 800 mm y-travel 700 mm z-travel 600 mm control SIN 840D Powerline spindle turning speed - stepless 1 - 8.000 U/min power capacity at 40 % load 28,00 kW spindle diameter in front bearing 80,00 mm spindle taper HSK-A100 Hodpew Df A Sjfx Ad Nsfb B-axis 187 ° feed X/Y/Z-axis 15.000 mm/min rapid traverse X/Y/Z 50,00 m/min feed force X/Y/Z axis 10.000 N rapid traverse B-axis 11,20 U/min size of pallet 800 x 630 mm table load 0,80 t c-axis 360,000 x 0,001 ° table turning speeds 1 - 500 U/min toolpiece magazine: chain magazine 120 Stück tool diameter 100 mm tool diameter with 2 vacant positions 160 mm tool length - max. 350 mm weight of tools max. 10,00 kg total power requirement 60,00 kW weight of the machine ca. 13,00 t dimensions of the machine ca. 7,40 x 5,30 x H3,50 m With Siemens SIN840D control, tool taper cleaning, tool breakage monitoring, coolant system, 2 pressure levels (40bar / 80bar), chip conveyor, operating mode 4, exhauster.

Condition: used, Seriennummer: 0419 Hfjdjwm Rrdspfx Ad Njb

Year of construction: 1985, condition: used, Used HUGH SMITH 1000 Ton Hydraulic 4 Post Downstroking Press for sale Operating Speeds 50 mm/sec. Gravity approach. 6 mm/sec. Pressing. 50 mm/sec. Return. Working Height 1060 mm. Press Weight 102 tons total. Towler Hydraulics. Machine originally upstroke (see original drawing attached) but converted to downstroke and refurbished in 1985 (see updated drawing attached) with new electrics. Brand new c, h and d frame hydraulic presses for sale – can quote at competitive prices and built to your specification. Hfedpfxef A R Uze Ad Njb New 1000ton hydraulic presses available for sale upon request

Year of construction: 2001, condition: good (used), CNC lathe Manufacturer: OKUMA Type: LB-250T Model: OSP-U10L YEAR OF MANUFACTURE: 2001 2-axis CNC lathe with robotized loading Description: two-axis X-Z lathe for short workpieces and with a robotized workpiece magazine Hfjdek Hz Iwepfx Ad Nsb X-AXIS: 180 mm Z-AXIS: 325 mm Spindl: 4500 1/min Coolant system and chip conveyor

Condition: ready for operation (used), Slideway grinding machine SFBZ 1800x4000 Length of grinding max, mm 4000 Width of grinding max, mm 1800 Dstance between column mm 2200 Height of grinding max, mm 1250 Table size, mm 4000 x 1800 Hfodpfx Adouug A Es Njb Grinder wheel size max, mm 630 x 100 x 305 Weight of workpiece max, kg 15000 Weight of machine, kg 56.000
