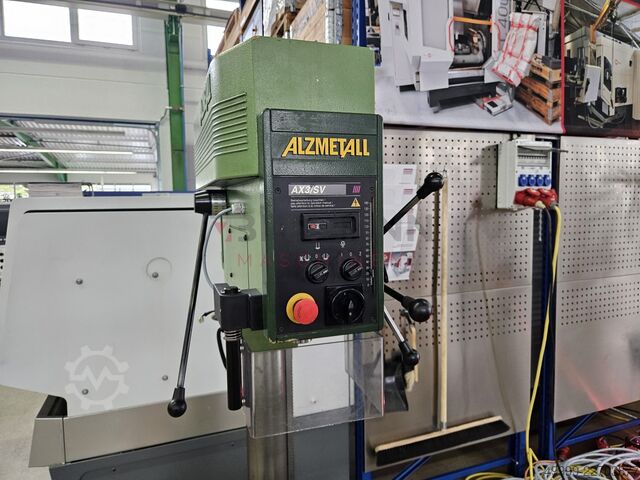

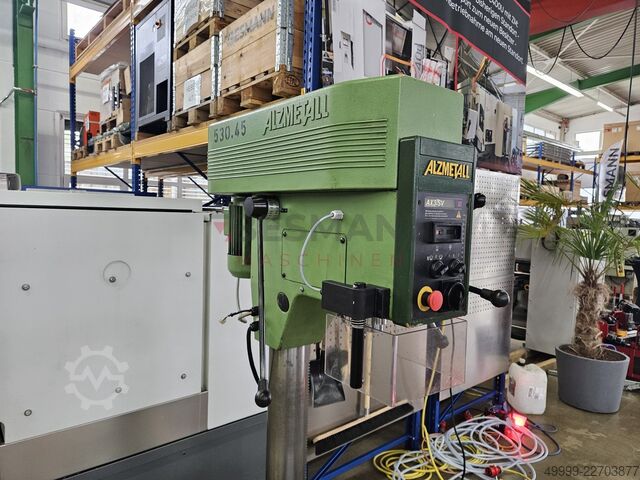

Saulenbohrmaschine

ALZMETALL AX 3/SV

Condition: as good as new (ex-display), Year of construction: 2025, Functionality: fully functional, ALZMETALL AX 4 / SV pillar drilling machine 3KW Manufacturer: Alzmetall Type: AX 4 / SV Condition: NEW Year of manufacture: 2025 Drilling capacity steel E335 (St 60) 55 mm Thread cutting Steel E335 (St 60) M 42 Cast EN-GJL-200 M 56 Short spindle MK 4 Spindle stroke 140 mm Usable projection 300 mm Column diameter 145 mm Machine table, usable support 615 x 430 mm Distance spindle-table min./max. 150/735 mm T-slots, number x width x distance 2 x 14 x 224 mm B8Txk7Wbo3 Feed 0.1 + 0.3 mm/rev Machine height approx. 1850 mm Net weight approx. 380 kg Drive stepless Motor 1500 rpm Power 3.0 kW Spindle speed rpm 70-2400 Standard equipment: Main switch with motor protection switch, lockable Mushroom push button (latching) for EMERGENCY STOP Speed adjustment stepless Speed display digital Feed overload protection Protection class IP 54 Spindle protection with electrical protection Paint: DD structural paint signal white RAL 9003, PANTONE 7545c, black Machine oil: initial filling; Container supplied loose Available options: - LED machine light - Thread cutting device with soft start (from 2025) - Coolant device in the base - Digital drilling depth display - Drilling depth fine adjustment 0.1 mm

Condition: good (used), Year of construction: 1987, Functionality: fully functional, machine/vehicle number: 5742, - Drilling capacity in St 60, 30 mm - Short spindle MK 3 - Spindle stroke 120 mm - throat depth 293 mm - Table support 420 x 300 mm, 2 T-slots - Machined base plate 320 x 329 mm, 2 T-slots - Distance base plate - drill chuck 1000 mm - Feed via turnstile - Weight 220 kg - Spindle speed 160 - 2250 rpm - Operating voltage 380 V-50Hz - Infinitely variable speed adjustment by means of adjustment lever - Motor speed in 2 stages, 700/1435 rpm - Tapping device with direction of rotation changeover after reaching the end stops - Coolant system completely installed. - Coolant tank in machine base Bvmdre0F - Work light with LED - RÖHM drill chuck 1 - 16 mm - New precision machine vice (test winner)

Condition: used, Year of construction: 2004, machine/vehicle number: 33692, Lg.Nr. 24581 Technical data: Drerrt - Drilling capacity in steel ST 60 32 mm - Drilling capacity in steel ST 60 40 mm - Long spindle MK 3 - Drilling spindle speeds continuously adjustable - Level 1 160 - 1125 rpm - Level 2 320 - 2250 rpm - Drilling spindle stroke 120 mm - Feeds 0.1 + 0.2 mm/rev - Throat 293 mm - Column diameter 115 mm - Table size 300 x 300 mm - Max. distance spindle - table 640 mm - Emergency stop button - Electric foot switch - Machine vice - Coolant system - Drive 400 V / 1.45 / 1.9 kW - Space requirement approx. W 500 x H 1850 x D 900 mm - Weight approx. 270 kg

Condition: new, Year of construction: 2025, bore capacity in steel (diameter) 40,0 mm throat 293 mm bore stroke 120 mm morse taper 3 MK table: 514 x 360 mm turning speeds 80 - 1.125 U/min engine output 1,0 / 1,6 kW column diameter 115 mm thread M24 ST60 thread M30 GG20 feed 0,10 + 0,20 mm/U weight 270 kg Machine height 1840 mm NEW ALZMETALL MODEL RANGE 7 "TFT - LCD display with touch function: * Spindle speed setpoint * Actual speed display * Integrated drilling depth display * with touch zero point transfer * Virtual drilling depth scale in the display * Machine status displays and warnings in the display * Service information * Selectable user language: DE / EN / FR / ES / IT / NL / RU. Furnishing: - Thread cutting device * for thread cutting with a stop * max. 6 threads / min (thread cutting performance depends on the spindle speed) * Thread depth adjustable via depth stop * in the TFT - LCD display (3 tools). - Infinitely variable speed setting by means of an adjusting lever - automatic spindle feed with feed overload protection - Spindle protection with electrical fuse - Three separate buttons for clockwise rotation - counterclockwise rotation - stop - Mushroom pushbutton (latching) for EMERGENCY STOP - Main switch, lockable - Right and left rotation by contactor control - Control voltage 24 volts - Protection class IP 54 - Paint: DD textured paint signal white RAL 9003, PANTONE 7545c, black - Machine oil first filling: oil bottle, loose delivery including special accessories: - 25. Coolant system B. Bb3Atxkcls

Year of construction: 1977, Condition: good (used), drilling capacity steel/GG: 28/32 mm spindle taper: 3 MK arm length: 250 mm table size: 400 x 415 mm spindle sleeve stroke: 120 mm Kqfnlsv9 spindle turning speed range: 140 - 2000 rpm engine: 380 V, 1,1/1,3 kW space needed: 830 x 420/600 x 1790 mm weight: 210 kg

Condition: new, bore capacity in steel (diameter) 40.0 mm throat 293 mm bore stroke 120 mm morse taper 3 MK table: 515 x 360 mm turning speeds 160 - 2250 U/min column diameter 115 mm thread M 24 ST60 thread M 30 GG20 feed 0.10 + 0.20 mm/U distance spindle /table 117 / 701 mm engine output 1.0 / 1.6 kW weight 270 kg Machine height 1840 mm NEW ALZMETALL MODEL RANGE 7 "TFT - LCD display with touch function: * Spindle speed setpoint * Actual speed display * Integrated drilling depth display * with touch zero point transfer * Virtual drilling depth scale in the display * Machine status displays and warnings in the display * Service information Dpekdr * Selectable user language: DE / EN / FR / ES / IT / NL / RU. Furnishing: - Thread cutting device * for thread cutting with a stop * max. 6 threads / min (thread cutting performance depends on the spindle speed) * Thread depth adjustable via depth stop * in the TFT - LCD display (3 tools). - Infinitely variable speed setting by means of an adjusting lever - automatic spindle feed with feed overload protection - Spindle protection with electrical fuse - Three separate buttons for clockwise rotation - counterclockwise rotation - stop - Mushroom pushbutton (latching) for EMERGENCY STOP - Main switch, lockable - Right and left rotation by contactor control - Control voltage 24 volts - Protection class IP 54 - Paint: DD textured paint signal white RAL 9003, PANTONE 7545c, black - Machine oil first filling: oil bottle, loose delivery including special accessories: - 25. Coolant system B.

Condition: like new (used), Year of construction: 2017, Functionality: fully functional, ALZMETALL AX 3/SV pillar drilling machine (2017) Manufacturer: Alzmetall Type: AX 3/SV pillar drilling machine Year of manufacture: 2017 Condition: used Drilling capacity 40 mm Short spindle MK 3 Spindle stroke 120 mm Usable projection 293 mm Column diameter 115 mm Machine table 515 x 360 mm Distance spindle-table 117/701 mm T-slots 2 x 14 x 224 mm B8Tsv7Ke7K Feed 0.1 + 0.2 mm/rev Machine height 1840 mm Net weight approx. 270 kg Drive continuously variable Spindle speed rpm 160-1125 rpm Standard equipment Main switch with motor protection switch, lockable Mushroom push button (latching) for EMERGENCY STOP Speed adjustment stepless Digital speed display Protection class IP 54 Spindle protection with electrical fuse Special options: – Digital drilling depth display – Combination drilling table Scope of delivery: – Documentation – Drill chuck

Condition: new, Column drilling machine Make: ALZMETALL Model: AX 3 iTRONIC-V Year of manufacture: 2023 Condition: New machine Speed 80 - 1.125 rpm. standard equipped with: - 7" TFT - LCD display with touch function: Manual input spindle speed setpoint, Speed display actual value, Integrated drilling depth display with Touch zero point transfer, Virtual drilling depth scale in the display, Machine status displays and warnings in display, service information, Selectable operator language: DE/EN/FR/ES/IT/NL/RU. - Thread cutting device - Speed adjustment, stepless, by means of lever - Speed display, digital - Three separate buttons for clockwise rotation - counterclockwise rotation - stop Bscj7Lkwo - clockwise and counter-clockwise rotation via contactor control - automatic drill feed with feed overload protection - spindle protection - operating instructions other important technical data: - 40 mm drilling capacity in ST 60 - 120 mm quill stroke - spindle cone MK 3 - 115 mm column diameter - feed rate 0,1 + 0,2 mm/rev - 1,45 / 1,9 kW Motor power - 515 x 360 mm Table dimension with the following options: - LED machine light - foot switch, complementary to the threading device - Technology calculator in the display - Drilling depth fine adjustment and fixed stop

Year of construction: 1987, Condition: used, 1 pillar drilling machine ALZMETALL AX 3SV, serial no. 5739, year of manufacture 1987 Cjnyxudvi8

Condition: new, bore capacity in steel (diameter) 40.0 mm throat 293 mm bore stroke 120 mm morse taper 3 MK table: 515 x 360 mm turning speeds 80 - 1125 U/min column diameter 115 mm thread M 24 ST60 thread M 30 GG20 Dpekdh feed 0.10 + 0.20 mm/U distance spindle /table 117 / 701 mm engine output 1.0 / 1.6 kW weight 270 kg Machine height 1840 mm NEW ALZMETALL MODEL RANGE 7 "TFT - LCD display with touch function: * Spindle speed setpoint * Actual speed display * Integrated drilling depth display * with touch zero point transfer * Virtual drilling depth scale in the display * Machine status displays and warnings in the display * Service information * Selectable user language: DE / EN / FR / ES / IT / NL / RU. Furnishing: - Thread cutting device * for thread cutting with a stop * max. 6 threads / min (thread cutting performance depends on the spindle speed) * Thread depth adjustable via depth stop * in the TFT - LCD display (3 tools). - Infinitely variable speed setting by means of an adjusting lever - automatic spindle feed with feed overload protection - Spindle protection with electrical fuse - Three separate buttons for clockwise rotation - counterclockwise rotation - stop - Mushroom pushbutton (latching) for EMERGENCY STOP - Main switch, lockable - Right and left rotation by contactor control - Control voltage 24 volts - Protection class IP 54 - Paint: DD textured paint signal white RAL 9003, PANTONE 7545c, black - Machine oil first filling: oil bottle, loose delivery including special accessories: - 25. Coolant system B.

Condition: new, bore capacity in steel (diameter) 40.0 mm threading M 24 throat 293 mm bore stroke 120 mm morse taper 3 Kurzspindel MK table: 515 x 360 mm turning speeds 80 - 1125 U/min feed 0.10 + 0.20 mm/U column diameter 115 mm distance spindle /table 117 / 701 mm total power requirement 1.0 / 1.6 kW weight 270 kg height of the machine 1840 mm Furnishing: - Lockable main switch with motor protection switch - Mushroom pushbutton (latching) for EMERGENCY STOP - Infinitely variable speed adjustment - Digital speed display - Feed overload protection - Protection class IP 54 Dpd9Z2 - Spindle protection with electrical fuse - Operating instructions in German including special equipment: - Thread cutting device pos. 20.0 (Thread cutting with stop) - Coolant device "B" pos. 25.

Condition: new, bore capacity in steel (diameter) 55.0 mm threading M 30 / M 42 throat 300 mm bore stroke 140 mm turning speeds 70 - 1200 U/min table: 615 x 430 mm bore spindles - Morse Taper 4 Kurzspindel MK column diameter 145 mm feed 0.10 + 0.30 mm/U distance spindle /table 150 / 735 mm weight 380 kg Machine height 1850 mm Bprrf9Rsrm Furnishing : - automatic feed - Feed device 0.1 + 0.3 mm / rev - stepless speed adjustment - digital speed display - Feed overload protection - Spindle protection with electr. validation including special equipment: - Coolant device mounted in the foot pos. 24. - Thread cutting device pos. 20.0 (Thread cutting with stop) - LED machine light pos. 12.

Condition: ready for operation (used), Year of construction: 1989, Functionality: unexamined, machine/vehicle number: 1441, spindle speed (max.): 3,000 rpm, spindle speed (min.): 200 rpm, total height: 1,500 mm, total width: 560 mm, total length: 800 mm, table width: 240 mm, table length: 250 mm, overall weight: 250 kg, With 2 grooves, including frequency converter for stepless speed use. Drgfvd

Condition: new, Alzmetall Alzstar 40/SV pillar drilling machine Manufacturer: Alzmetall Type: Alzstar 40/SV Condition: new Technical data: Column diameter: 115 mm Machine table (usable support): 514 x 360 mm T-slots (number x width x distance): 2 x 14 x 224 mm Distance spindle-table (min./max.): 117 / 701 mm 2 feeds: 0.1 + 0.2 mm/rev Height (mm): approx. 1840 Drilling capacity St 60 (mm): 40 Drgcwx Spindle stroke (mm): 120 Thrust (mm): 293 Motor (kW): 1.45 / 1.9 Speed range (r/min): 160 - 2250 Weight (kg): 285

Condition: good (used), Manufacturer: ALZMETALL Type: AB40 SV Year of manufacture: 2006 Stepless spindle regulation Digital spindle speed display Electro magnetic feed clutch Indexing table by hand Specifications Metric US Standard Drf2Eh Max. Drill Ø steel 50 mm Max. Drill Ø iron 46 mm Max. Tap diameter M36 M Travel quill 160 mm Thrust 300 mm Stand diameter 145 mm Table length 615 mm Table width 430 mm Power 2.9 kW Max. distance spindle - table 688 mm Table / installation surface 720 x 450 mm Dimensions (estimate) Length 900 mm Width 700 mm Height 1900 mm Weight 510 kg Please note: The information on this page has been compiled to the best of our knowledge and belief, and as far as possible, obtained from the manufacturer.The information is given in good faith, but accuracy cannot be guaranteed. Accordingly, they will not constitute a representation and contractual terms.We recommend that you check all important details.

Condition: used, Year of construction: 1975, bore capacity in steel (diameter) 35.0 mm bore capacity in cast iron 40.0 mm throat 300 mm bore stroke 180 mm turning speeds 65 - 1750 U/min table-size 425 x 500 mm column diameter 155 mm feed 0.1-0.2-0.3 m/min spindle taper MT 4 MK engine output 0.9 / 1.5 kW weight 450 kg Drdl0N range L-W-H 800 x 650 x 1850 mm Machine from a vocational school good / well-maintained condition (!!) Equipment: - robust motor-driven pillar drill with VARIO drive (V-belt) - electro-automatic spindle feed - pole-changing motor - stepless speed adjustment (VARIO drive) - adjustable drilling depth stop - machine table with 2x T-slots * height adjustable via hand crank - 1x used machine vice - machined base plate - coolant device - connection cable + connection plug - original operating instructions

Condition: excellent (used), Year of construction: 2008, As good as new pillar drill from Alzmetall ALZMETALL AB40/SV pillar drill Year of manufacture 2008 Current 400V 16A Motor power; 1.8 / 2.9kW 2 gears Continuous speed approx. 100 - 1600 rpm electrically adjustable Digital speed display Electromagnetic feed clutch with overload protection and electrical cross-grip switch Feed 0.1 / 0.2 / 0.3 / 0.4 Spindle mount MK4 Spindle stroke 160mm Thrust 300mm Support surface machine table approx: 615mm x 430mm Drilling capacity steel E335 (St 60) 50mm (continuous operation 40mm) Thread cutting steel E335 (St 60) M30 Foot pedal Coolant device with pump Total height approx. 186cm Total weight approx. 450kg B0Hnn7Yn3K Fully functional Very good condition. See pictures New price currently approx. 20,000 euros gross Inspection and Collection possible Shipping Germany (excluding islands) 140.00 euros net The goods can be inspected at the location 59379 Selm by appointment. You will receive an invoice with VAT shown. Payment information: Payment by bank transfer before delivery of the goods. Or cash on collection.

Year of construction: 1999, Condition: excellent (used), Drilling capacity (steel): 18mm Drilling capacity (cast): 23mm Thread cutting (steel): M14mm Spindle holder: MK 2 Spindle stroke: 100mm Extension: 250mm Csmzn2Ubxv Column diameter: 90mm Power: 0.55 kW Spindle speed: 125 – 2400 RPM / 225 – 4300 RPM

Condition: used, Year of construction: 1984, bore capacity in steel (diameter) 30/35 mm Ctf3Ahbn throat 300 mm bore stroke 140 mm table-size 700 x 500 mm spindle taper MT 3 number of spindle speeds 65 - 1750 UpM total power requirement 1,7 kW weight of the machine ca. 0,7 t dimensions of the machine ca. 1 x 1 x 2 m Pillar drilling machine.

Condition: new, ALZMETALL AX3/SV pillar drilling machine NEW Manufacturer: Alzmetall Type: AX3 SV Condition: New Drilling capacity steel 40 mm Thread cutting steel M24 Drgcvp Cast M30 Short spindle MK 3 Spindle stroke 120 mm Usable projection 293 mm Column diameter 115 mm Machine table 515 x 360 mm Distance spindle-table 117/701 mm T-slots 2 x 14 x 224 mm Feed 0.1 + 0.2 mm/rev Machine height approx. 1840 mm Net weight approx. 270 kg Drive continuously variable Motor 750/ 1500 rpm Power 1.0 / 1.6 kW Spindle speed rpm 80-1125 Additional equipment: - Reversing switch - Machine light LED - Thread cutting device - Coolant device B Available immediately from stock

Condition: used, Year of construction: 1978, bore capacity in steel (diameter) 40 mm Drd8Mp throat 345 mm bore stroke 200 mm table surface area 720 x 5 mm

Condition: used, Year of construction: 1999, bore capacity in steel (diameter) 36 mm throat 300 mm bore stroke 160 mm 4 speeds 100 - 1600 U/min Bqgto7Vmxu column diameter 145 mm table-size 500 x 370 mm total power requirement 2,2 kW weight 440 kg dimensions 1200 x 800 x 2300 mm Column drilling machine OPTIdrill DP 33V promotion set / 3020680SET With an electronically controllable drive in a modern design * Industrial engine * Quiet running spindle thanks to new spindle design * Machine operation with safety electronics in 24 V direct current * Guaranteed concentricity = 0.02 mm in the measured drilling spindle * Clockwise/counterclockwise rotation * Precision spindle bore * Control panel with user-friendly, dirt and water resistant * Membrane keyboard * RPM display * Separate emergency stop button * Tapping function * Precisely crafted, stable drill table with diagonal T-slots with all-round cooling water channel, can be tilted sideways by ±45° and rotated by 360° * Drilling depth stop * LED machine light integrated in the drill head * V-belt cover with safety switch * Thick-walled steel column for high power absorption and stability * Solid, large base plate with T-slots * Execution of the entire machine Scope of delivery: - Keyless drill chuck 0 - 16 mm - T-Nuts -expectors - Operating tool - BMP 160 machine vice

Condition: used, Year of construction: 1983, bore capacity in steel (diameter) 30 mm weight of the machine ca. 0,3 t Bptxbha930 dimensions of the machine ca. 0,6*1*2,3 m

Condition: used, Year of construction: 1999, Technical details: bore capacity in steel (diameter): 32 mm throat: 293 mm bore stroke: 120 mm Cno2F0Dm0O bore capacity in cast iron: Ø 38 mm spindle taper MT: MK 3 spindle throat: 293 mm spindle speed:: 160 - 2250 / seples U/min feed: 0,10 - 0,20 / manuell+automatisch mm/U Distance spindle/table max.: 55 - 642 mm table clamping surface:: 300 x 300 mm drill table adjustment: ja mm column diameter: 115 mm distance spindle center to floor plate:: 1207 mm total power requirement: 1,9 kW weight of the machine ca.: 280 kg dimension machine xH: 0,7 x 1,0 x 1,9 m Column drilling machine with infinitely variable speed adjustment and automatic feed. Tapping with changeover switchEquipment: RÖHM 3 - 16 mm chuck, operation by foot switch left/right *

Condition: refurbished (used), Functionality: fully functional, throat depth: 345 mm, spindle speed (max.): 720 rpm, spindle speed (min.): 80 rpm, total height: 1,970 mm, spindle mount: MK 4, 1.) Alzmetall AB4/SV Speed range 80-720 rpm Feed rate 0.09/0.16/0.28 mm/rev Spindle taper MT4 Throat: approx. 345 mm Drive power: approx. 1.8 kW Column diameter: approx. Ø 160 mm Drill quill stroke: approx. 180 mm Table clamping area: approx. 730 x 560 mm with 14 mm T-slots Dimensions: 1000 x 500 x 1970 mm Weight approx. 600 kg Price: €2,700 net plus VAT Ujyvorzlht 2.) Gillardon GB30 Speed range 60-1600 rpm Spindle taper MT3 Throat: approx. 320 mm Drive power: 1.1/1.6 kW Column diameter: approx. Ø 130 mm Drill spindle stroke: approx. 175 mm Table clamping area: approx. Ø 500 mm with 14 mm T-slots Table swivel range: approx. +/- 90 degrees Dimensions: 1000 x 500 x 1970 mm Weight: approx. 400 kg Price: €2,300 net plus VAT
