Milling machine

Elumatec KF78/60

Year of construction: 2006, condition: ready for operation (used), Three smaller machines for window and profile processing purposes are available. 1) Profile gluing machine Ruchser RU-FE, year of manufacture: 2003, film width range: 30mm-250mm, film inner/outer diameter: 75mm/270mm, profile thickness range: 30mm-100mm. 2) Rubber inserting machine Ruchser RU-EV-HS, year of manufacture: 2006, profile width range: 20mm-100mm. 3) 2-head profile milling machine Elumatec KF 78/60, year of manufacture: 1993, vertical milling X/Y/Z: 290mm/100mm/120mm, horizontal milling X/Y/Z: 270mm/70mm/120mm, speed: 6000rpm/12000rpm. An on-site inspection is possible. Fgsdjxn S S Espfx Ac Hsi

Condition: good (used), Year of construction: 2009, Double welding and cleaning line URBAN consisting of 2 four-head welding machines AKS 6910/4 - 30 /40, one with right-hand stop, one with left-hand stop, WINDOWS control, each with a URBAN TBA transport/cooling belt, transverse table with motor for removal of individual elements, URBAN SV 815 cleaning automatic with two heads, with infeed table and rotatable outfeed table, additional station for processing of corner and scissor bearing drillings as well as milling of elements with varying widths, buffer rack with tiltable shuttle table and two additional outfeed tables. Fedpfxew Niqpj Ac Hjgi

Condition: excellent (used), functionality: fully functional, 2 - Urban AKS 1200 head welding machine - Welding length max. 2500 mm - Weld bead limit: 2 mm - Burn-off: 6 mm - Set of support arms Fjdsv Rmm Tepfx Ac Hjgi

Year of construction: 2018, condition: excellent (used), For machining aluminium and steel profiles Fully functional, in very good condition Year of manufacture: 2018 Machining length: 7,200 mm 3-axis control with 15" monitor Tool changer: 8 positions / turret 8 pneumatic horizontal material clamps Autonomous clamp positioning Two separate work zones, suitable for pendulum operation 2 pneumatic material stops 8 tool positions / BT30 turret Barcode scanner Handheld control unit Safety light curtain at the front and lateral safety fence Minimum quantity lubrication system Centralised lubrication system Thread cutting without compensating chuck Easy programming via hand control unit High-speed spindle up to 18,000 RPM Includes 3 angle heads X-Axis [mm]: up to 7,200 / 7,200 Y-Axis [mm]: up to 485 / 310 Z-Axis [mm]: up to 340 / 260 Traverse speed X/Y/Z-Axis [m/min]: 60/60/60 Max. milling cutter diameter: 25 mm Max. saw blade diameter: 180 mm Max. tool length: 200 mm (tool + holder) Max. spindle speed: 6,000 RPM Spindle power: 6 kW Weight: approx. 5.5 t Total operating hours: 30,844 h Fgodpfx Acowynito Hsi Total spindle hours: 11,583 h

Condition: excellent (used), Year of construction: 2015, Complete robot welding cell with rotating table and enclosure Robot: KUKA KR 150 R2700 extra Load capacity: 150kg reach: 2.090mm with welding gun (Dalex, new in 2018) with cooling device (water cooling in circuit) complete second welding gun (make ARO) included own cooling unit built in the machine automatic rotary table with 10-fold division (at present for running product only 5-fold built up) Workplace for parts insertion or disposal well illuminated and protected by light barriers Control of the complete line by means of Siemens SPS, provided by company HS Automation Fgjdpfxsnr E Eno Ac Hji Siemens control panel for system operation at the insertion station mounted on a swivel arm All together in an enclosure with safety door. Plant can still be visited in operation.

Condition: used, Year of construction: 2013, 3D-Venjakob Perfect Air Jet painting line: - Manufacturer: Venjakob - Year of construction: 2013 - Working width: 1.300mm - Max. part length 6.500mm Fgjdpfsu Afu Rjx Ac Hei - In U-shape with angle transfer Consisting of: 1. loading belt, length 3,050mm 2. free space für Sanding machine (only optional, not included in the price) 3. spraying machine VEN SPRAY PERFECT, length 5.510mm 4. flash-off dryer OIR, length 6,000mm 5. nozzle dryer VEN DRY AIR JET, length 4,160mm 6. angle transfer 180 degrees, with nozzle dryer 7. nozzle dryer VEN DRY AIR JET, length 5,160mm 4pcs. IR tubes 8. nozzle dryer VEN DRY AIR JET, length 5,160mm 4pcs. IR tubes 9. nozzle dryer VEN DRY AIR JET, length 5.160mm 4 pcs, IR tubes 10. 3D UV dryer, VEN DRY UV, GA + HG 11. removal area, belt of the UV dryer Further information: On request

Condition: new, Cutting range: round 0°: 170 mm square 0°: 150 x 150 mm flat 0°: 150 x 190 mm round 45°: 125 mm square 45°: 95 x 120 mm working height : 870 mm cutting speeds : 40 / 80 m/min saw band: 2080 x 20 x 0,9 mm coolant pump: 100 W saw motor: 0,75 kW connection: 400 V dimensions L x W x H, approx.: 1340 x 810 x 1320 mm Weight, approx.: 146 kg Features: - Saw bow can be tilted up to 45°. - With 2 saw blade speeds for optimum adaptation to the workpiece - Ideal for cutting tubes, profile material as well as solid material made of VA, iron, etc. - Generously dimensioned saw arm for low-vibration work - Lowering of the saw arm via hydraulic lowering cylinder Fgsdeilk H Topfx Ac Hsi - Low noise level due to stable design - Switch-off after end of cut by micro limit switch - Quick-action vice for simple and fast workpiece clamping - Precise, adjustable saw blade guide for optimum cutting results - Coolant system with pump - Incl. base frame - CE/IEC, German documentation and German service Scope of delivery: - BiMetal saw band 2080 x 20 x 0.9 mm, 6/10 ZpZ - Band tension adjustable via manometer - quick clamping vice - material stop - Coolant device with pump - Hydraulic lowering cylinder - Motor protection switch - Automatic limit stop after end of cut - underframe

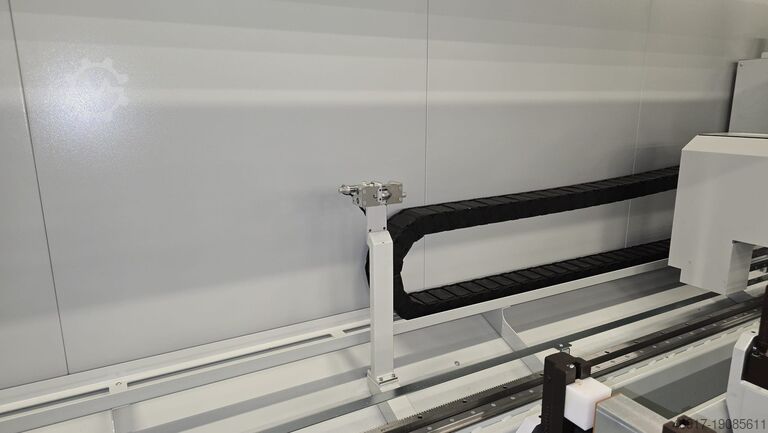

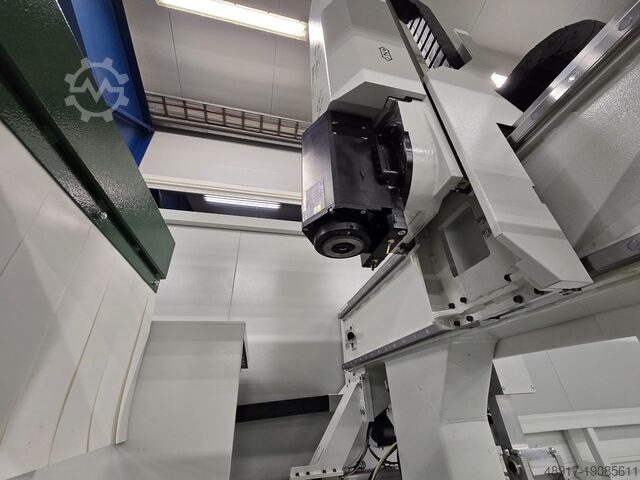

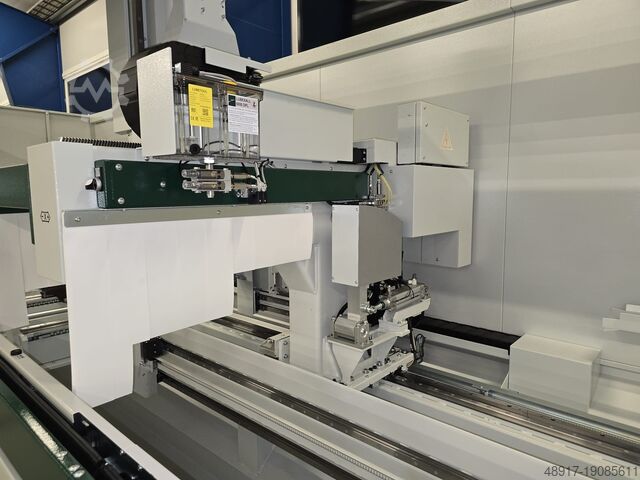

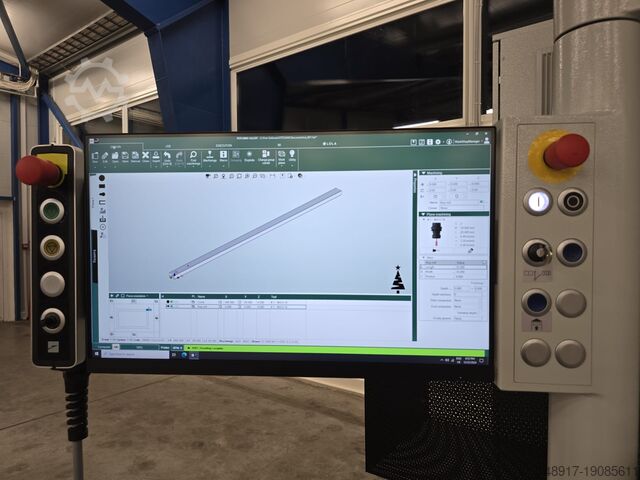

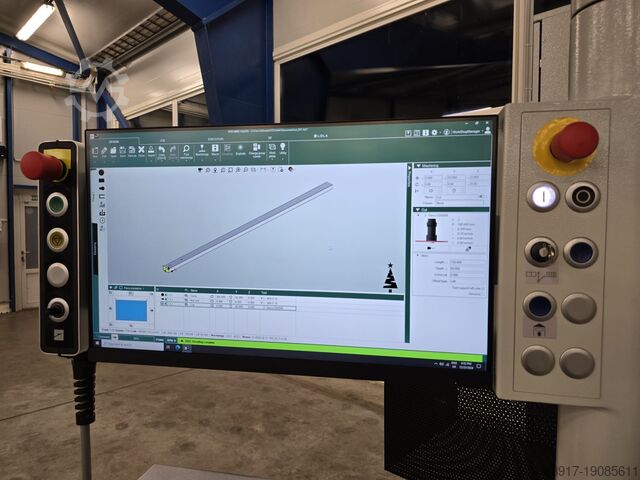

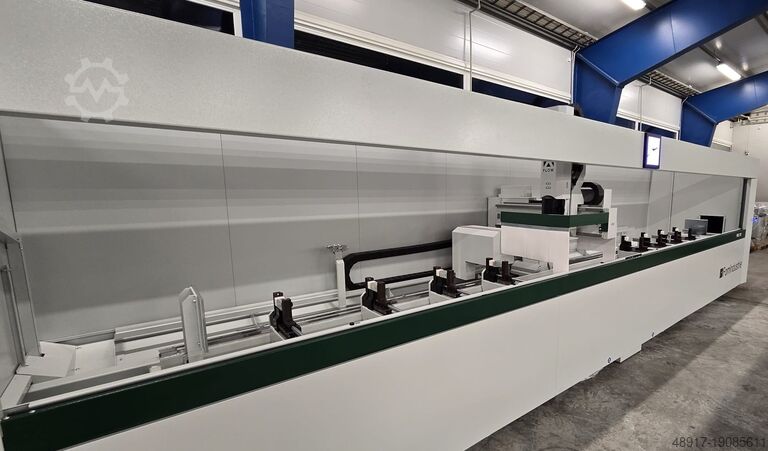

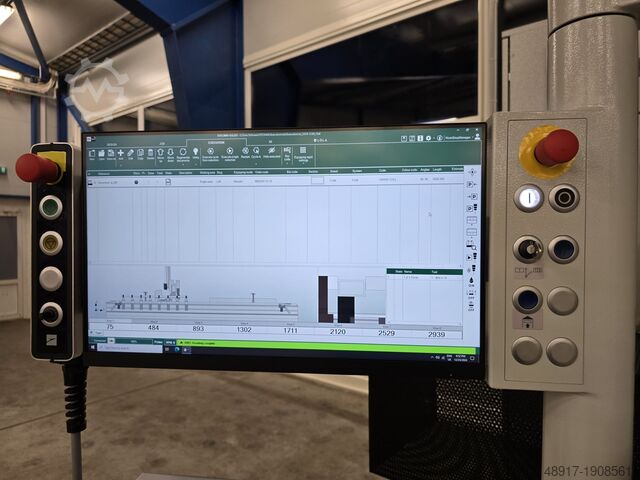

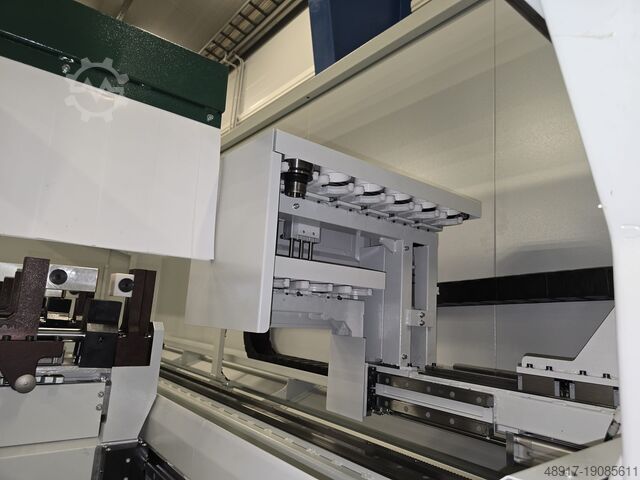

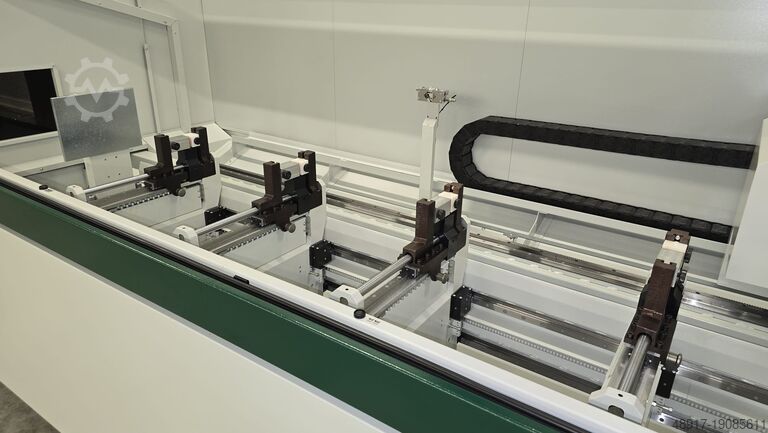

Condition: new, Year of construction: 2025, XX100405 CNC Machining centre with 4 controlled axes FOM INDUSTRIE FMC 370 Machine in stock Standard configuration: - Liquid-cooled electrospindle 7 kW, 20,000 rpm (HSK-F63) - 9 location tool magazine on head (HSK-F63) - No. 2 pairs of pneumatic vices with positioning through the travelling column - No. 2 pairs of low profile jaws for clamping wide profiles Fjdpfx Acewhrlns Hegi - Left pneumatic reference stop - Minimum quantity lubrication (MQL) with pure oil - Chip and waste collection tank in base - Perimeter guard system with automatically opening, front retractable doors - X FLOW (automatic orientation of lubricant nozzles) - Control: POWER-D - Movable control console - 24” display - FST CAM 4 program Optional equipment installed on the machine: - PR205249 One pairs of additional vices with independent positioning and vises modification: • Transformation of four standard vices to vices with independent positioning • Transformation of standard vices into extra clamping vices - PR205258 Pendular (2 working areas, 2 pieces) and oversides profiles machining: • Second X-FLOW • Right pneumatic fixed stop • Software to manage pendular machining • Safety devices for pendular machining • Tunnel for oversized profile machining • SW to manage oversized machining operations - PR205253 Device to measure profile length - PR205227 Device for integrity and measure of the tool - PR202971 Data import software in accordance to FOM protocol and wireless optical bar code and QR code reader - ZP715059 3D custom milling Module for FST CAM 4 - ZP715010 Module for rigid tapping and chase tapping - PR205268 Rear chip collection tanks for FMC 370 - PR205271 Centralised automatic lubrication system - PR203389 Rear chip collection tank - PR202975 Tool set A3/HSK F63 (8 holders HSKF63, 8 collets and 8 HM milling cutters) - PR204497 Holder HSKF63 with cutter Ø 200 x 6mm - PR203785 Holder HSKF63 with blade Ø 200 mm

Condition: excellent (used), Year of construction: 2008, Horizontal conveyor belt URBAN - TBA26/38 HQR 7 pieces for sale Sale also possible individually Fgodpfx Acetr Eqfs Hoi

Condition: used, Year of construction: 2001, functionality: fully functional, Year: 2001 Fjdpfx Aotr Dukec Hsgi - technically efficient, ready to work (directly from the client) - corner cleaning machine SV 494 CNC - for-head welding machine AKS 6110 - turning station - cooling station - flash limitation: 0.2 - 2 mm
