Used Tool milling machines - univ.conv. 700-999mm X-axis travel for sale (28)

Condition: reconditioned (used), Deckel FP5 NC Toolroom Milling Machine Model: FP5 NC Original Year of manufacture: 1986 Control: DECKEL DIALOG 4 Table Area: 1000 x 550mm 'X' axis Travel: 710mm 'Y' axis Travel: 600mm Ielhjwhwhbeccqmjat 'Z' axis Travel: 500mm Spindle Taper: SK 40 Spindle Speeds: 18 - 6300 RPM Spindle Power 7.5 kw 380V - 3 PHASE Machine Weight = Approx 3665 kg's Control cabinet = Approx 460 kg's Splash Cabinet = Approx 300Kg.s The machine is in very good working order. The splash cabinet is included and has been partially restored. New Linear bearings have been fitted for all the door rails & some of the internal panels have been Re-Powder coated. This machine has not had a lot of run hours for its years and still quite a very nice machine. Note: Machine Is currently fitted with Vertical spindle Head. Machine has capability for use with Horizontal milling attachment, however the Horizontal Spindle support arm is not included. The Horizontal Spindle arbors and spacers are however included.

Condition: used, X-AXIS MOVEMENT: 800 MM X-AXIS WORK FEED RATE: 10-600 MM/MIN X-AXIS RAPID TRAVEL: 1500 MM/MIN Y-AXIS MOVEMENT: 450 MM Y-AXIS WORK FEED RATE: 10-600 MM/MIN Y-AXIS RAPID TRAVEL: 1500 MM/MIN Z-AXIS MOVEMENT: 250 MM Z-AXIS WORK FEED RATE: 10-600 MM/MIN Z-AXIS RAPID TRAVEL: 1500 MM/MIN TABLE EXTERIOR LENGTH: 800 MM Iaolhcswg Trgecqmot EXTERIOR WIDTH: 300 MM TSLOT SIZE: 12 MM NUMBER OF TSLOTS: 6 DISTANCE BETWEEN: 50 MM MAXIMUM DISTANCE BETWEEN THE VERTICAL SPINDLE AND THE TABLE: 365 MM

Condition: reconditioned (used), Year of construction: 1988, Universal tool milling machine Make: DECKEL Model: FP 3 L Active Year of manufacture: unknown - overhauled, repainted, RAL7035 light gray / RAL7012 basalt gray RAL5008 gray-blue Mach. no.: 2302-2319 Milling head type: 2271 Milling head number: 700-0883 with guarantee geometric acceptance with test report Accessories: Iaoljh Rv U Eshccqmet - 3-axis active digital display HEIDENHAIN TNC 111 - Universal table 1000 x 520 mm (T-slot: 16 mm) - Vertical milling head SK 40 with Tightening thread S 20 x 2 - Central lubrication, electric - Coolant system - Operating instructions - Drill grinding device with diamond disk -used, as seen-

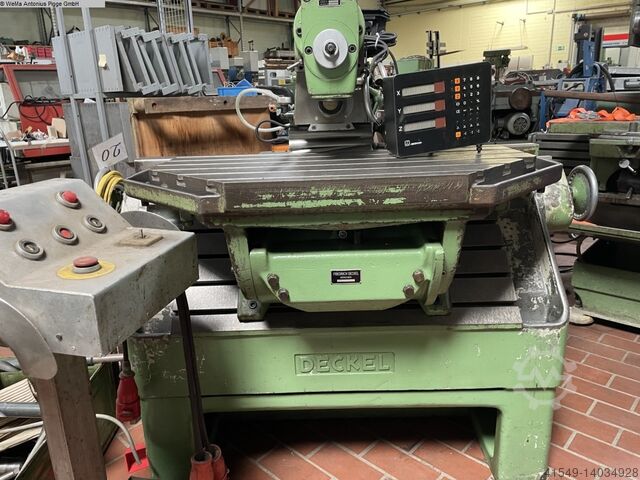

Condition: used, We are offering a Deckel FP2L with a 3-axis Heidenhain digital readout for sale. Technical specifications: Spindle mount: SK40 Speed: 40 - 2000 X travel: 1000 mm Iajlhcjv Hc U Ejcqmot Y travel: 320 mm Z travel: 400 mm Table size: 1000 x 400 mm The machine has automatic feed in all axes.

Condition: excellent (used), Working travels 700 x 400 x 400 mm Iaelohctcgshccqmet Spindle taper ISO40 Spindle speeds 50-2'500 rpm Active Digital read-out Misc. accessories MARCELS MASCHINEN CH

Condition: good (used), Year of construction: 1997, x-travel 600 mm y-travel 450 mm z-travel 400 mm Control Heidenhain 430 ITNC tool taper SK 40 spindle turning speed - stepless 13465 U/min Ijlhccqewbi A Dsmeat voltage 400 V control voltage 24 V weight of the machine ca. 6 t

Condition: used, Universal Milling Machine ERNAULT SOMUA HES ZHV1 Iolhccowff Dfsqmsat Travel X : 700 mm Travel Y : 250 mm Travel Z : 350 mm Rotation : from 40 to 2000 RPM Table size : Length 1200 mm x Width 300 mm Vertical/horizontal universal swivel head Scale 3 axes EAE Rapid 3 axes Voltage380 V Width: 2000 mm Depth: 1800 mm Total height in height: 1600 mm Weight: approx 1,5 T

Condition: good (used), Year of construction: 1972, Table size 2,000 x 450 mm X-axis 1,250 mm Y - axis 400 mm Z - axis 400 mm Iasljtqmhmjhccqmjt Spindle speed 18 - 1,400 rpm Spindle run-up ISO 50 Incl. coolant device Incl. counter bearing

Condition: used, Year of construction: 1965, x-travel 700 mm y-travel 350 mm z-travel 450 mm table surface area 940 x 510 mm spindle taper SK 40 spindle turning speed range 32 - 1600 U/min feed - longitudinal/cross 8 - 400 mm/min Iaolevzhh Tohccqmst feeds vertical 4 - 200 mm/min total power requirement 4,5 kW dimensions of machine L x W x H 1,85 x 1,62 x 1,83 m Accessories: vertical head with quill retraction, univ. table, counter bearing, coolant

Condition: used, Year of construction: 1998, Technical details: x-travel: 980 mm y-travel: 340 mm z-travel: 440 mm spindle taper ISO: SK 50 (vertikal) distance table/horizontal spindle: max. 440 mm cross rail adjustment - horizontal: 700 mm range of revolution per miute: 32 - 1600 / 18 step U/min spindle taper: SK 50 (horizontal) swival range +/-: Fräskopf: bei 90° = 360° und bei 45° = 360° Grad clamping surface area: 1120 x 320 mm table swivable approx.: 45° rechts/links total power requirement: 10 kW dimension machine xH: 2,4 x 2,1 x 1,8 m The machine is currently in the technical department. Equipment: 2x counter bearing Ø 56 mm 3-way measuring system ACU-RIDE Iolhccovbf Dfjqmeat Cooling water system with pump Chip/oil drip tray Hand crank *

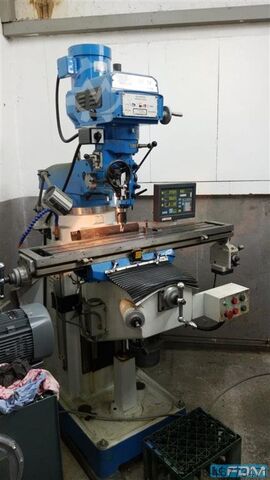

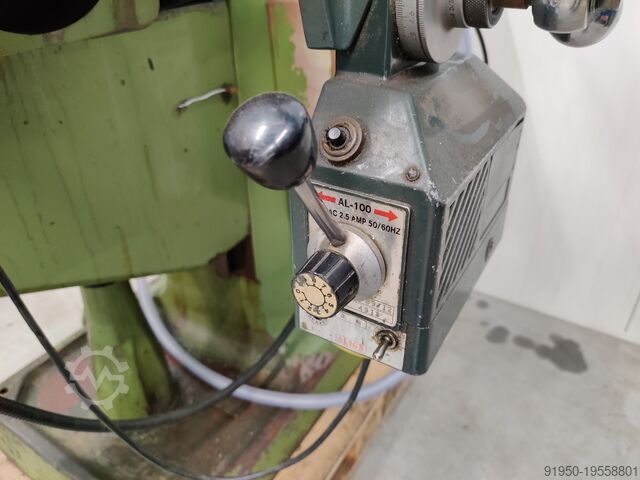

Condition: used, Year of construction: 1987, Milling machine TAKANG Type: TKM-2V year 87 with 2-axis digital readout Travel: X760mm Y305mm Z406mm Working table: 1245X230mm Spindle holder: ISO 30 Iaolhccqsqutczjmst Spindle speeds: 70-3,000 rpm with many accessories

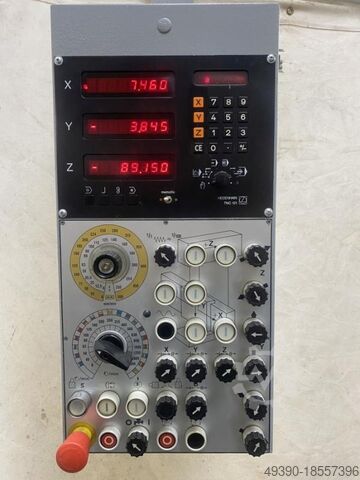

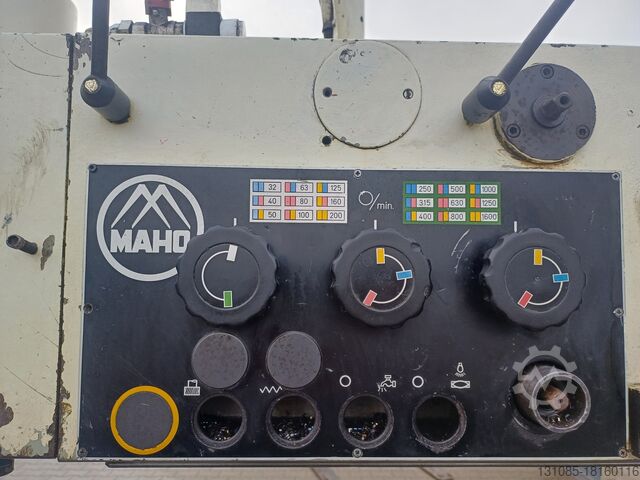

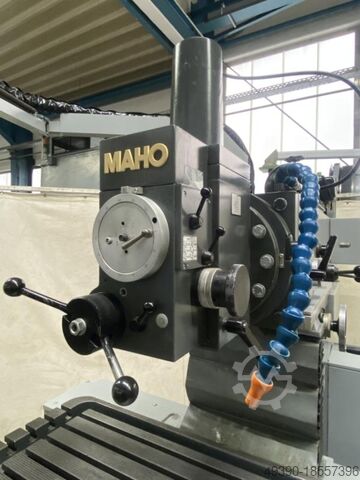

Condition: used, Universal tool milling machine MAHO type MH 800 P with digital display and HEIDENHAIN TNC 121 path control . 8 built in 1982 Machine overhauled by MMD in 2008, then rarely used in the workshop by an electronics company. Travel paths X: 700 mm, Y: 450 mm, Z: 500 mm Table size 1050 x 627 mm Spindle mount ISO 40 Spindle speed rpm 18 levels Feed rate X, Z axis 10-500 mm/min. continuously variable Feed rate Y axis 5-250 mm/min. continuously variable Rapid traverse X, Z axis 1.4 m/min. Rapid traverse Y axis 0.7 m/min. Vertical spindle displacement 100 mm Iaolhccqsv Amryjmet Vertical spindle feed 0.02 / 0.03 / 0.05 / 0.08 / / mm/rev Horizontal spindle displacement 100 mm Spindle drive 5.5 kW Mains connection 380 Volt, 50 Hz, 10 kW - NC path control HEIDENHAIN TNC 121 - Vertical milling head with automatic. Quill feed 0.02 - mm/rev (6 levels) - Hydro-mechanical tool clamping - Coolant device in the machine base - Universal built-in rotary table, 360° rotatable, 30° swivel and tiltable, 225 mm transverse adjustment - Rotary table with direct division 72 x 5° and indirect division via perforated disk 1:120 = 1 rev. = 3° - Swiveling control panel - Central lubrication - Operating instructions, - Machine mounted on a steel plate L x W x H 1400 x 1000 x 50 mm = 550 kg Space requirement L x W x H 2650 x 2000 x 2450 mm Weight 3700 kg + 550 kg steel plate Weight 4250 kg (weighed) very good condition

Condition: good (used), Machine number: Table clamping surface: 1,000 x 400 mm Travel: 800 - 300 - 400 mm Iaslsf Dqumshccqmjt Speed range: 50 to 2,500 rpm Feed rate: 5 to 500 mm/min Rapid traverse: 1,500 mm/min Mounting: SK40 Condition: good, ready for use Accessories: Connection: 3 kW Weight: 2,5 t Dimensions: 2,000 x 1,900 x 1,900 mm

Year of construction: 1986, Condition: excellent (used), machine/vehicle number: 12024, table mounting size: 290 x 1250 mm Iolhccqsf Tc R Uomeat table movement x: 800 mm table movement y: 360 mm table movement z: 450 mm milling head swivelling by: 90/45 ° spindle taper: ISA 40 spindle turning taper: 56 - 4500 rpm tailstock stroke: 125 mm tailstock carriages: 0,035; 0,14; 0,7 mm/min spindle drive: 1,8/2,4 kW space needed: 2000 x 1900 x 2300 mm weight: 1700 kg

Condition: used, x-travel 800 mm y-travel 400 mm z-travel 300 mm digital readout Heidenhain Iolheqpl Uujccqmsat table surface area 1000 x 520 mm turning speed range 40 x 2000 U/min spindle taper SK 40 total power requirement 2,2 kW weight of the machine ca. 2,2 t dimensions of the machine ca. 1700 x 1600 x 1800 m

Condition: used, Year of construction: 1998, Technical details: Ielhcjva Ei Sscqmjat x-travel: 820 mm y-travel: 280 mm z-travel: 410 mm spindle taper ISO: SK 40 distance table/horizontal spindle: min. 30 / max. 440 mm cross rail adjustment - horizontal: 650 mm range of revolution per miute: 40...2000 / 18step U/min swival range +/-: bei 90°: 360° und bei 45°: 360° Grad clamping surface area: 1120 x 250 mm table swivable approx.: 45° rechts / links feed:: X/Y: 12,5 - 830 + Z: 5,2 - 260 mm/min rapid traverse: X/Y: 2500 und Z: 1040 mm/min. total power requirement: 10 kW machine weight approx.: 2000 kg dimension machine xH: 2,2 x 1,8 x 1,7 m Ausstattung: 2x Gegenlager Ø 55mm Kühleinrichtung: Pumpe und Zuführung Bedienung über 3-Wege Messsystem ACU-Ride und Bedientafel Maschinenfüße *

Condition: used, x-travel 800 mm y-travel 300 mm z-travel 400 mm General overhaul in 1997 total power requirement 3 kW weight of the machine ca. 2,5 t dimensions of the machine ca. 2*2*1,8 m Iaelhccqeuynlmomjt Factory overhauled by DMG in 1997

Condition: used, x-travel 400 mm y-travel 300 mm z-travel 380 mm table length 710 mm table width 380 mm spindle turning speed range 45 - 2240 U/min spindle taper SK 40 quill stroke 90 mm pinole diameter 90 mm total power requirement 7,5 kW weight of the machine ca. 1,9 t dimensions of the machine ca. 1,7 x 1,7 x 1,9 m Tool milling machine - Digital display - Horizontal milling device - Universal milling head with spindle sleeve Islhcevu Ha Uecqmoat - 2nd milling head (small) - Tailstock - Coolant system - Machine light - Chip tray - Emergency stop device - Documentation

Condition: good (used), Table clamping surface: 1,000 x 400 mm Travel paths: 800 – 300 – 400 mm Speed range: 50 to 2,500 rpm Feed: 5 to 500 mm/min Rapid traverse: 1,500 mm/min Holder: SK40 Condition: good, ready for use Accessories: Heidenhain digital display, various holders See pictures Iajlhccsvmnlcjqmet Connection: 3 kW Weight: 2.5 t Dimensions: 2,000 x 1,900 x 1,900 mm

Year of construction: 1971, Condition: not inspected (used), FRITZ WERNER HF 1.6 table 1650x310 mm Ielhcjiz S Nkscqmoat clamping surface 1000x310 mm year of manufacture 1971 Dimensions 1850x1650x2250 mm LxWxH Weight 1800 kg

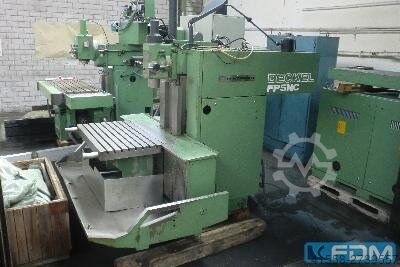

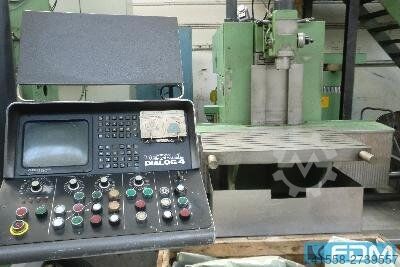

Condition: used, machine/vehicle number: 2806-0743, x-travel:800 mm y-travel:550 mm z-travel:500 mm table surface area:(B x T )1000x550 mm spindle turning speed - stepless:0 - 5000 U/min feed speeds - directly programable:2- 6000 mm/min rapid traverse:6,0 m/min quill stroke:80mm mm Tool bore:SK40 total power requirement:12 kW weight of the machine ca.:3,9 t Islhcocxxngecqmsat dimensions of the machine ca.:(LxBxH) 2200x2800x2400 mmxmmxmm Deckel FP5 NC Universal Milling Machines - CNC - Swivelable left or right) 90 ° & Tilting Vertical Spilndle Head - Rigid Fixed Table: 1100 x 550 mm (Max. Load 450 kg) - High RPM on Both vertical and Horizontal Spindles - Powerful 9,0 kw AC drives for Main Spindle - Equipped with Electronic handwheel and handheld rapid travel attachement - Dialog 4 - 3D Path Control System. - Seperate Power cabin, Chip tray

Condition: repair required (used), Year of construction: 1980, x-travel 800 mm y-travel 300 mm Ijlhouynl Toccqmjat z-travel 400 mm total power requirement 3 kW weight of the machine ca. 2,,2 t dimensions of the machine ca. 2,5*2*2 m

Condition: used, Year of construction: 2008, x-travel 800 mm y-travel 300 mm z-travel 400 mm table length 1350 mm table width 320 mm spindle turning speed range 58 - 1710 U/min spindle taper SK50 Iajlhcsvn U I Tocqmot total power requirement 4,0 kW weight of the machine ca. 2,3 t dimensions of the machine ca. 2,0 x 1,7 x 2,1 m Tool milling machine - Digital display - Coolant system - Machine light - Chip tray - Emergency stop device

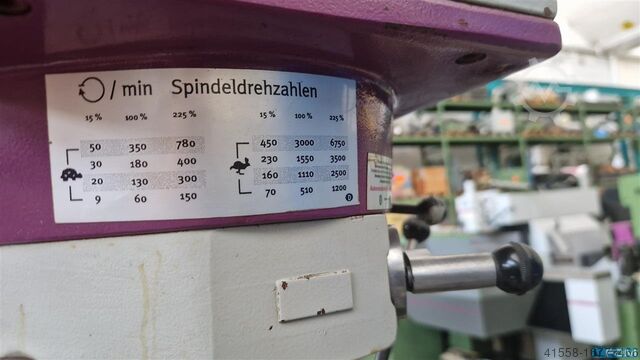

Condition: used, Year of construction: 2003, x-travel:930 mm y-travel:400 mm z-travel:406 mm turning speeds:9-6750 1/min table::1370 x 254 quill stroke:127 mm quill feed:(3) 0,04; 0,08; 0,15 mm/U bore capacity in steel:32 mm feed range:19 - 890 (x) mm/min spindle cone:SK 40 column arm:200 - 680 mm total power requirement:4 kVA weight of the machine ca.:1,15 t Iaslhcst U Rm Iecqmot dimensions of the machine ca.:1,5 x 1,45 x 2,2 m 3-axis RSF-electronic Z503 digital display, swivelling vertical head +/- 90°, all 3 axes with Feeds, spindle quill (60 mm), switchable spindle brake, coolant system, bore-feed 0.03; 0.12; 0.06 mm/rev. machine light, angled table, extensive accessories (counter bearing, milling spindles with distance rings, tool holders etc.)

Condition: used, x-travel 780 mm y-travel 220 mm z-travel 410 mm table length 1100 mm table width 270 mm spindle turning speed range 40 - 960 U/min spindle taper SK 40 total power requirement kW Ielsupxxnjhccqmeat weight of the machine ca. 1,7 t dimensions of the machine ca. 1,8 x 1,6 x 1,8 m
