Tool Room Milling Machine - Universal

DECKEL FP2 LB

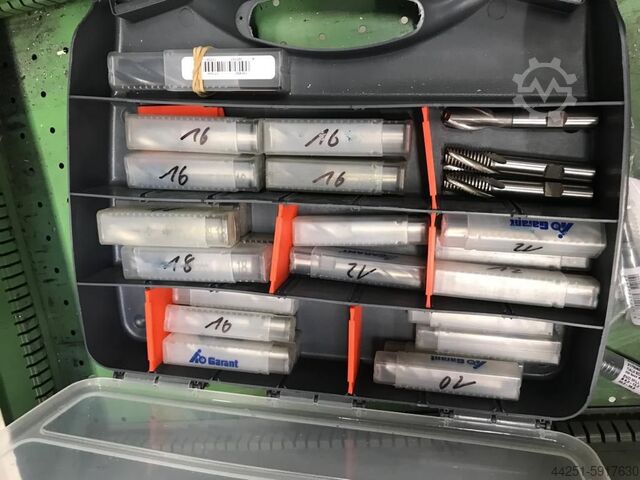

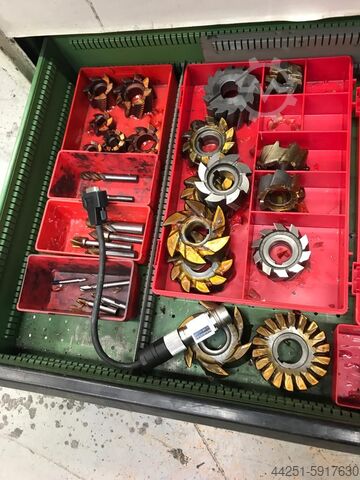

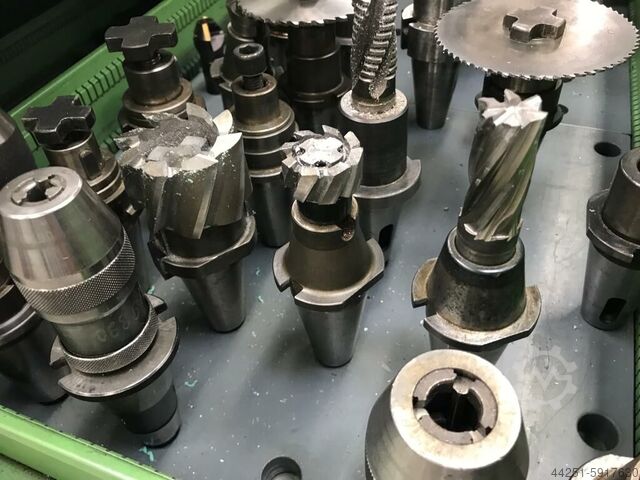

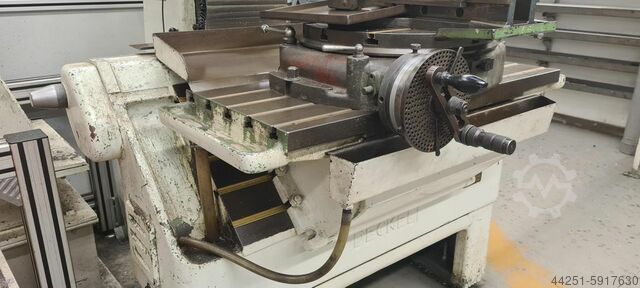

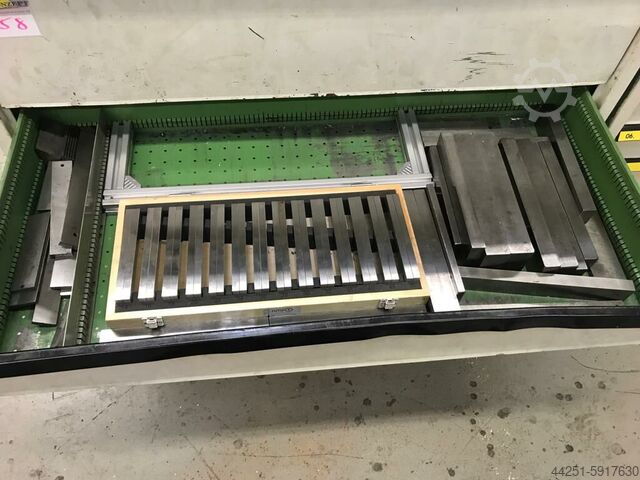

Condition: good (used), Friedrich Deckel FP 2 LB Tool Milling Machine The accessories are not included in the scope of delivery but can be purchased in another auction at this link. Lot of Milling Tools The universal milling machine Deckel FP 2 LB is characterized by its extremely stable base and is designed as a floor-standing machine. This means that the machine retains its precision even when machining heavy workpieces weighing up to 1000 kg. Another feature is the 45-degree inclined bed. After removing the universal table, this design allows for direct clamping and machining of V-engine blocks with a 90-degree cylinder angle, such as American V8 engines. Furthermore, the long travel of 800 mm is advantageous in this application. Technical data: Deckel Universal Milling Machine FP 2 LB Digital display: 3-axis digital display Heidenhain Travel X-axis: 800 mm Travel Y-axis: 300 mm Travel Z-axis: 400 mm Tool holder: SK 40 clamping thread S 20 x 2 Milling head type: Vertical milling head Speed range: 40 - 2000 rpm Number of steps: 18 Table type: universal swivel/tilt table (± 45° / ± 15°) Table clamping surface: 1000 x 520 mm T-slot size: 16 mm Vise 160 mm Connected load: 9.5 kVA Gjdpfx Ajgyw S Tohdjbu Weight: approx. 1900 kg Dimensions: approx. 1570 x 1675 x 1850 You can find more new and used items in our shop! International shipping costs available upon request!

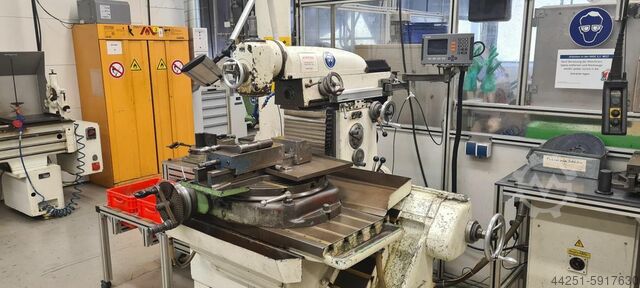

Condition: good (used), Year of construction: 1995, Macmon M 100 E tool milling machine with 3-axis Elesta-Heidenhain digital display from the training department, rigid table, SK 40 spindle mount. Good working condition, can be demonstrated under power by arrangement. Gbjdpfx Ahov Azb Njdou

Condition: ready for operation (used), Tool milling machine DECKEL FP 2 LB incl. 3-axis digital control (ACU-RITE) -Travel ranges X/Y/Z 795x300x400mm -Automatic longitudinal / transverse / planar feeds -Rapid traverse in all three axes -Spindle speeds 40 - 2000 rpm -Table clamping area 1000x440mm -Tilting table -Digital display, 3-axis (ACU-RITE) -Vertical - horizontal milling attachment -Vertical head with drilling quill -Tool holder ISO 40 -Coolant system -Machine lamp -Various tool holders -Machine documentation Gsdpfx Ahszu Nhwsdebu Dimensions: L x W x H 2.5 x 2.3 x 1.8 meters / Weight 2200 kg Errors and omissions excepted.

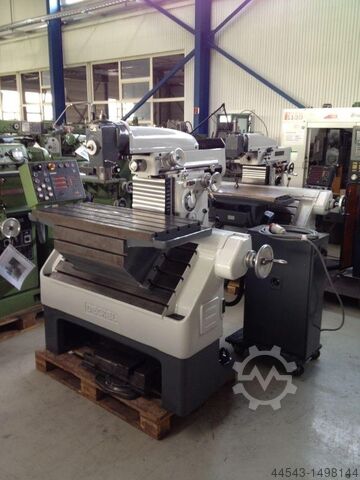

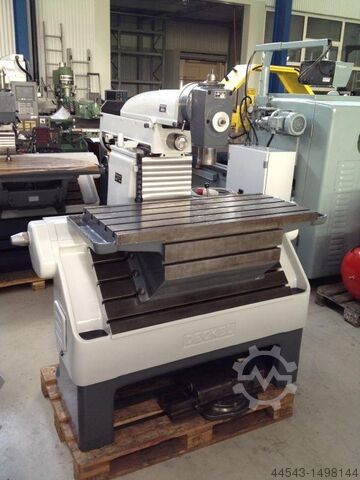

Condition: refurbished (used), Year of construction: 1968, travel distance X-axis: 800 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 40 rpm, quill travel distance: 80 mm, total length: 1,000 mm, table width: 520 mm, table length: 1,000 mm, table load: 2,000 kg, overall weight: 2,500 kg, input voltage: 400 V, workpiece weight (max.): 2,000 kg, We are offering this refurbished DECKEL FP2LB milling machine, year of manufacture 1968. Manufacturer: DECKEL Model: FP2LB Year of manufacture: 1968 Gsdjx Sdxzspfx Ahdobu Condition: refurbished Machine type: milling machine If you have any questions or need further information, please feel free to send us a message or give us a call.

Condition: used, x-travel 1550 mm y-travel 400 mm z-travel 500 mm table-size 1850 x 350 mm spindle taper ISO Sk 50 spindle turning speed range 40 - 1800 U/min total power requirement 7,5 KW weight of the machine ca. 2,8 t dimensions 2,4 x 2,2 x 2,1 m Universal Milling Machine - 3-axis digital readout Gbsdpfx Aoy Umbqehdou - Central lubrication system - Coolant system - Machine lamp - Machine leveling feet - Chip guard - Emergency stop device - Mobile workbench incl. tools

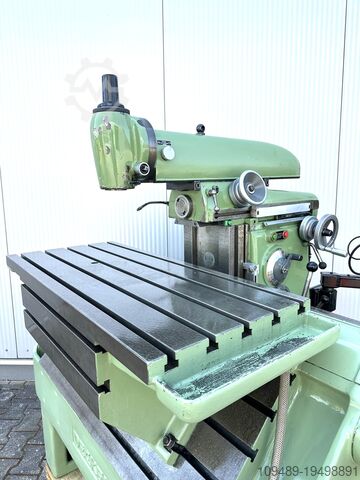

Condition: used, machine/vehicle number: 0736, x-travel:800 mm y-travel:300 mm z-travel:400 mm work table::1000 X 440 Gbedpfx Ahecxxyhsdeu spindle turning speed range:40 - 2000 RPM/min turning speeds steps:18 feed range:10-500 mm/min feed steps:18 rapid traverse:1,50 m/min inner taper of milling spindel:SK40 total power requirement:2,2 kW weight of the machine ca.:2 t dimensions of the machine ca.:1,57 x 1,68 x 1,85 m Deckel FP2 LB Universal Milling Machine - Spilndle Head can be swiveled left or right (90°) - Rigid Angular Table: 1000 x 440 mm - Quick lever for Rapid Feed Travese Seperate Power cabin and has a Chip tray for clean safe working Area.

Condition: ready for operation (used), DECKEL FP 2LB, including a 3-axis digital display, from a university, in well-maintained original condition. Gbsdpfxozbi I Es Ahdou - 3-axis digital display "ACURITE" - Travel distances X/Y/Z: 795x300x400mm - Automatic feeds (18 speeds) / rapid traverses in all 3 axes - Spindle speed range: 40 - 2000 RPM (18 speed levels) - Vertical/horizontal milling capability - Swiveling vertical head with drilling quill - ISO 40 tool holder - Table surface (angular table): 1000x440mm - Table clamping surface with additional table: 1000x770mm - Coolant system - Various tool holders - Machine light - Documentation Dimensions: L x W x H: 2.5 x 2.4 x 1.8 meters / Weight: 2200 kg Errors and omissions excepted.
