Used tool milling machines - univ.conv. 0-399mm X-axis travel for sale (127)

Condition: good (used), Year of construction: 1986, x-travel: 710 mm y-travel: 600 mm z-travel: 455 mm Control: Dialog 4 Colhccjz Iy Daeqkshc Speed: 6300 rpm Tool holder: SK40 Quill stroke: 80 mm Table size: 550 x 1000 mm Table load: 0.6 t Total power requirement: kW Machine weight approx.: 4 t

Condition: ready for operation (used), Year of construction: 1995, Available immediately ex-yard: CNC tool milling machine, Deckel Type FP 5 – 80 Year of manufacture 1995 Chslhccqjz Ixi Uokoc CNC control: Dialog 12 Universal table: 750 x 520 mm Travel distances X / Y / Z: 800 / 550 / 500 mm Drive power: 9 kW Spindle quill stroke: 80 mm Electronic handwheel Spindle speeds: 32 – 5000 rpm Feed rates: 0 – 6000 mm/min Weight: 4.5 tons Price: Euro 2,500.00 (plus VAT), ex-yard.

Condition: ready for operation (used), Year of construction: 1990, functionality: fully functional, machine/vehicle number: DC55-031, feed length X-axis: 1,000 mm, feed length Y-axis: 800 mm, feed length Z-axis: 800 mm, travel distance X-axis: 1,000 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, spindle speed (max.): 6,000 rpm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, mount diameter: 175 mm, position of the milling head: 150 Achse Y, type of input current: three-phase, rotational speed (max.): 6,000 rpm, overall weight: 15,000 kg, table load: 1,000 kg, input voltage: 400 V, space requirement width: 4,000 mm, space requirement length: 6,000 mm, space requirement height: 3,000 mm, year of last overhaul: 2025, workpiece weight (max.): 1,000 kg, Equipment: documentation/manual, rotational speed infinitely variable, The machines are equipped with spindle speeds of 0-6000 rpm and SK 50 spindles. The first gear stage, 0-1000 rpm, can be switched to a lower gear ratio, providing very high drive power even in the low speed range, suitable for heavy machining. The pallet changer handles 2 pallets; a total of 8 pallets are available and compatible with both machines. The tool changer has 40 positions. Cslhcoz D Tp Ujcqkehc Additional equipment: Internal cooling system Chip conveyor Paper band filter system Separate oil cooler Various tool holders 1x Double angle plate 800 x 800 mm, manufacturer Kelch 3x Double angle plate 800 x 600 mm, manufacturer Kelch 4x NC vise Almatic Type NC 200 with 2 base plates (can be assembled as a clamping tower) Optionally, a second machine of the same type is available. Disassembly of the machine is possible after costs have been covered, with self-disassembly preferred.

Condition: excellent (used), functionality: fully functional, The dividing head is equipped with an SK40 spindle and has a spindle bore of 25mm. It can be swiveled from right to left up to 90° each. The dividing head spindle can be tilted 6°/15° from and towards the machine. It is suitable for all Deckel FP series milling machines and their "licensed machines," such as the Macmon M100. The distance from the spindle axis to the tailstock guide is 100mm. Direct division is possible using a 360° division circle or 24 x 15° indexing. The distance from the dividing head center to the tailstock center is 400mm. Indirect division is achieved with a worm gear of 40:1, using a scale disk with 1' division or three different hole disks (A: 27; 31; 34; 41; 43 – B: 33; 38; 39; 42; 46 – C: 36; 37; 40; 58). Also included are a Röhm four-jaw chuck, a three-jaw chuck (possibly Röhm) with adapter rings, and a two-jaw chuck, as well as a tailstock with a tailstock bearing. The dividing head, which was originally non-functional, along with all accessories, has been disassembled into individual parts, refurbished, made fully functional, and painted in two colors (RAL 7035 light gray / RAL 5004 dark blue). The dividing head is not in use and can be delivered immediately. Minor signs of wear from previous use are visible to a small extent. A single-use transport crate, with a total weight of 109 kg, has been prepared for transport. Celhccez Hyyfsqkehc A manual compiled from Deckel descriptions is also included in the scope of delivery.

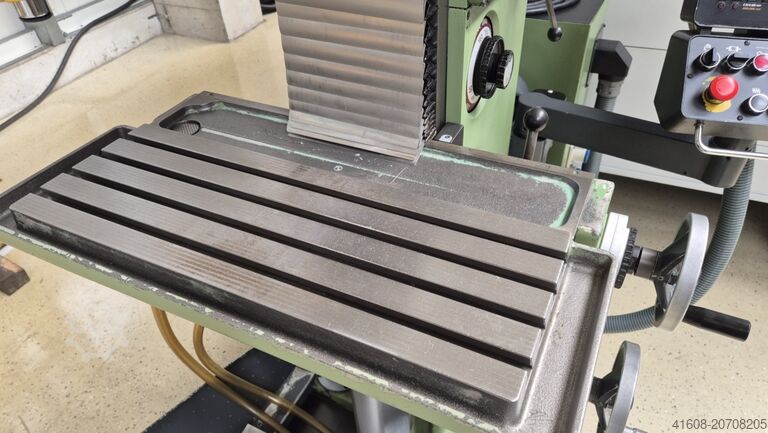

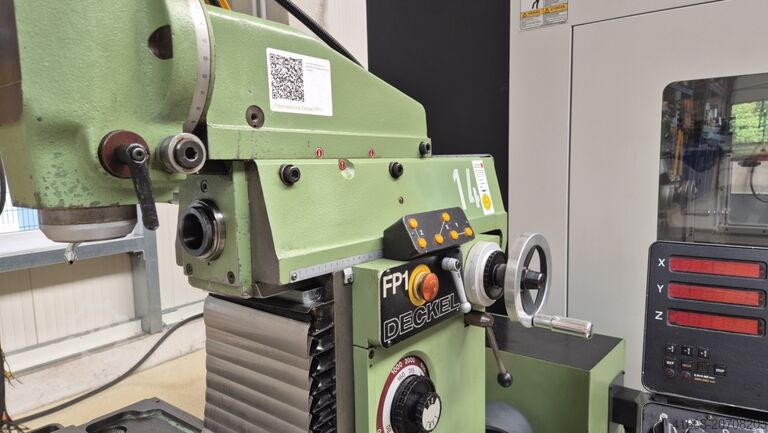

Condition: good (used), functionality: fully functional, overall weight: 700 kg, For sale is a used Deckel FP1 milling machine in good working condition. The machine has feed in the X and Z axes. Travel ranges XYZ: 300x150x340mm Tool holder: SK40 S20x2 Spindle speeds: 40-2000 rpm Quill with 60mm stroke Ideal machine for toolmaking or prototype production. Already the new version of the FP1 with selector dials for speed and feed selection. Celhsz Aa Ideccqkehc Included: - High-quality hydraulic vise - Chip tray Milling cutters and tool holders can also be included upon request. Loading options (forklift) are available. Shipping is also possible upon agreement. Inspection under power and collection in 5023 Salzburg.

Condition: excellent (used), Year of construction: 1985, functionality: fully functional, spindle speed (max.): 2,000 rpm, spindle speed (min.): 80 rpm, type of input current: three-phase, input voltage: 400 V, Equipment: rotational speed infinitely variable, Universal milling machine Deckel FP1 – Very good condition For sale is a Deckel FP1 universal milling machine in very good, well-maintained condition. The machine is equipped with a 3-axis digital display Heidenhain TNC 113 and stepless feed in all three axes. The Deckel FP1 is known for its precision, reliability and durability and is ideal for toolmaking, single-part production, repair work and training companies. Technical data Manufacturer: Deckel Model: FP1 Year of manufacture: 1985 Machine number: 15082 Spindle speed: 80–2,000 rpm Drive power: 1.6 / 2.0 kW Stepless feed in X, Y and Z axis Rapid traverse in all three axes Travel ranges (X/Y/Z): 300 / 160 / 340 mm Fixed angular table Vertical milling head on spindle head, adjustable by 100 mm Vertical and horizontal spindle with SK40 collet Clamping system: S20x2 Spindle brake Space requirement: 1.30 m x 1.10 m x 1.60 m (L x W x H) Machine weight: approx. 850 kg Equipment Celhcozlnmmocqkohc - 3-axis digital display Heidenhain TNC 113 - Hydraulic vise - Coolant system - Operating manual The machine is in very good technical and optical condition and is ready for immediate use. An inspection and a test run can be arranged at any time by appointment.

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, DECKEL FP 4 MK Csljzxwz Tjhccqkehc Year of manufacture: 1992, with TNC 113 active digital control with positional programming Spindle speeds: 50 - 2500 rpm Travel ranges: X 500, Y 400, Z 400 Feed rate: stepless + rapid traverse Hydraulic tool clamping system SK 40 Hydraulic machine vice Allmatic 125 Universal table Central lubrication, electric, lighting, machine feet, coolant system. Condition: original, not repainted Smooth and quiet operation at all spindle speeds Guideways and axis movements are in perfect condition. Weight approx. 1500 kg Can be inspected while powered on. Free loading D - 88433 Schemmerhofen

Condition: excellent (used), Year of construction: 1994, functionality: fully functional, Deckel FP 1 MK with TNC 123, year of manufacture 1994, with CE marking. Spindle speeds: 40 - 2000 rpm, SK 40. Travel distances: X 300, Y 160, Z 340. Stepless feed rate + rapid traverse in all axes. Weight: approx. 880 kg. Accessories: Universal table, electric central lubrication system, coolant system, collet set, 5 tool holders, Röhm machine vise, swarf drawer. Condition: Original, not repainted, smooth operation at all spindle speeds and axis movements, and flawless guidance. Cjlhccozx Ep Ssqkjhc Can be inspected while powered on. Free loading at D-88433 Schemmerhofen.

Condition: like new (used), functionality: fully functional, Tool milling machine Deckel FP 4 MK Type 2203 Equipped with a hydraulic tool clamping system and central lubrication. Cslhccqszvxlhokehc

Condition: good (used), Year of construction: 1987, Mikron WF2SA machining center with a 3-axis Heidenhain Aktiv digital control system. Fixed angular table, SK 40 spindle mount. Ready for operation. Machine can be demonstrated under power by arrangement. Chslhccjzvyh Deqksc

Condition: excellent (used), Year of construction: 1982, functionality: fully functional, Universal milling machine Deckel FP1 with 3-axis digital display, Heidenhain active control, and continuously variable feed. Technical data: >> Year of manufacture: 1982, Machine no. 2101-1995 >> Fixed angular table >> Speed: 40 - 2000 rpm >> Continuously variable feed in 2 axes >> Rapid traverse in 2 axes >> Drive power: 1.5 / 1.9 kW >> Spindle brake >> Travels X/Y/Z: 300/160/340 mm >> Vertical milling head, adjustable by 100mm on the spindle head >> Vertical quill and horizontal quill - SK40 >> Clamping system S20x2 >> Weight approx. 800 kg Accessories and equipment: Chelhcszrn Tyscqksc >> 3-axis digital display Heidenhain >> Coolant system >> Operating manual, parts list About the machine: Offered is a Deckel FP1 universal milling machine in very good original condition. The machine has very little backlash and all spindles move easily. Even at maximum speeds, the milling machine runs smoothly. The FP1 was in a training workshop at a university and was used very little. This newer FP1 model has continuously variable feed in two axes, and the machine also has rapid traverse in these axes. A major advantage is the active 2-axis digital display. With this Heidenhain positioning control, you can enter dimensions that the machine will automatically approach. An oil change has been carried out. Mechanically and electrically inspected. The Heidenhain digital display makes working easier and even more precise. Take advantage of the opportunity to inspect and test this machine on-site while it is powered up.

Condition: used, Various clamping tables/angle tables are continuously in stock. Cjlhcsz Hpc Nocqkohc

Condition: excellent (used), functionality: fully functional, Equipment: documentation/manual, For sale: a DECKEL FP1 milling machine with a comprehensive range of accessories and the original operating manual, in very good condition. Chjlhccjzr E D Njqkjc

Condition: used, Year of construction: 1987, Deckel FP1 with active 3-axis Heidenhain digital display, 3-axis active, fixed table, SK40 S20x2 spindle mount. Central lubrication, operating manuals. Good, ready-to-use condition. Can be demonstrated under power by arrangement. Chelezbykwohccqksc

Condition: excellent (used), Year of construction: 1979, Deckel FP2 Aktiv tool milling machine with 3-axis Heidenhain TNC 111 Aktiv digital readout. The machine is in very good condition and comes from a state training department. Fixed table, SK 40 spindle taper. Accessories: various collets and arbor holders, tailstock. Very good, ready-to-operate condition. Can be demonstrated under power by arrangement. Cholhjxyhmvsccqkjc

Condition: used, Year of construction: 1989, x-travel 400 mm y-travel 400 mm z-travel 400 mm table surface area 700 x 460 mm spindle taper SK 40 spindle turning speed range 31,5 -5000 U/min spindle drive 5,5 kW quill stroke 80 mm vertical head swivelling +/- 90 ° control DIALOG 11 feeds x/y/z -stepless 3000 mm/min rapid traverse 6 m/min total power requirement 13,8 kVA Cjlez Ekzkehccqkohc weight of the machine ca. 2 t dimensions of machine L x W x H 2,73 x 2,0 x 2,0 m Accessories: solid table, vertical head with hydr. tool clamping and quil retraction, dividing unit HOFFMANN, RW/NC 125 L, coolant

Condition: good (used), Year of construction: 1981, Deckel FP3L Active with 3-axis Heidenhain Active digital display, rigid table, vertical milling head, SK 40 S20x2 spindle mount. Good working condition. Ready for live demonstration upon request. Cslhccowg S Nkoqkohc

Condition: excellent (used), Year of construction: 1987, operating hours: 800 h, Deckel milling machine FP 5 A Contour, in excellent condition, with numerous accessories. It has not been in operation for the last 20 years. Cholhcoz Afdwjcqkjc

Condition: used, Macmon M 100 E – Universal milling machine -Travel ranges X / Y / Z: 310x340x170 mm -Spindle speed range: 50 - 2500 rpm Chslhcszzymqjcqkjc -Automatic feeds and rapid traverses in all 3 axes -Tool holder: ISO 40 -Swiveling vertical head -Tilting table: 600x220 mm -Total power consumption: 2.5 kW -Documentation Dimensions: L x W x H: 1.5 x 0.7 x 1.5 meters / Weight: 900 kg Errors and omissions excepted.

Condition: excellent (used), Deckel FP 4 MK Deckel FP 4 MK machining center with Heidenhain TNC 113 control, manufactured in 1990. Fully overhauled by FPS in 2021. Excellent condition, CE compliant!! The machine comes from the prototype construction department of Castwerk Technologies. Technical data: Year of manufacture: 1990 Fully overhauled by FPS in 2021 Digital display: 3-axis active digital display HEIDENHAIN TNC 113 Travel in X-axis: 500 mm Travel in Y-axis: 400 mm Travel in Z-axis: 400 mm Tool holder: SK 40 hydraulic tool clamping, DIN 2080 Milling head type: Vertical milling head Spindle speed range: 50 - 2,500 rpm, 18 steps Table type: Tilting table Table clamping surface: 800 x 490 mm T-slot size: 14 mm Weight: approx. 1,450 kg Dimensions: approx. 2,500 x 2,700 x 2,100 mm Accessories and equipment: Heidenhain TNC 113 control Hydraulic clamping, vertical and horizontal Automatic central lubrication Spindle brake Chjlezy U E Eshccqkjc Technical documentation, spare parts diagrams, operating instructions for the control and programming examples Handwheels Coolant system About the machine: Offered is a Deckel FP 4 MK machining center with a Heidenhain TNC 113 control. This universal milling machine is in very good original condition. It comes from a company where it was only used for training purposes. It has a very easy-to-use control system. Furthermore, the machine has hydraulic clamping in both vertical and horizontal positions. Switching from vertical to horizontal is very easy by folding down the vertical head. The guides are regularly lubricated by the central lubrication system. The Deckel has been mechanically and electrically inspected by us. Take the opportunity to inspect and test the Deckel on site while it is powered on. You can find more milling machines from well-known manufacturers on our website.

Condition: good (used), – ISO40 – 50–2500 RPM – Table 600 × 220 mm – Automatic feed – Rapid traverse – Digital position display – Swiveling milling head – Protective cover – Emergency stop – Tool Cslezxmc Tohccqkehc – Lighting – 400V

Condition: ready for operation (used), DECKEL FP 1 / 3 - Axis Active Digital TNC 113 -CE marking -Travel ranges X / Y / Z: 300x160x340mm -Heidenhain TNC 113 / Linear control -Spindle speed range: 40 - 2000 RPM -Feed rates continuously adjustable in all three axes -Rapid traverse in all three axes -Swiveling vertical head & drilling quill -Vertical & horizontal milling capability -Tool holder: ISO 40 -Drive power: 1.5 / 1.9 KW -Fixed angular table -Chip tray -Coolant system -Work light -Documentation Cslhccjzvcbgsqkehc Dimensions: L x W x H: 1.3 x 1.2 x 1.8 meters / Weight: 950 kg Errors and omissions excepted.

Condition: good (used), Deckel FP1 milling machine with 3-axis Heidenhain digital display, fixed angular table, and SK 40 spindle mount. Accessories: counter supports, various collets. In good, operational condition. Can be demonstrated under power by arrangement. Chelhccozy Hnljqksc

Condition: good (used), Year of construction: 1990, Deckel FP 4 MK Tool Milling Machine Deckel FP 4 MK with Heidenhain TNC 113 Control System, Year of Manufacture 1990, Completely Overhauled in 2014, Excellent Condition, CE Compliant! This machine comes from the training workshop of Continental. Chjlsyalcpohccqkjc Technical Data: Year of Manufacture: 1990 Completely Overhauled: 2014 Digital Readout: 3-axis active digital readout HEIDENHAIN TNC 113 X-Axis Travel: 500 mm Y-Axis Travel: 400 mm Z-Axis Travel: 400 mm Tool Holder: SK 40 hydraulic tool clamping DIN 2080 Milling Head Type: Vertical milling head Speed Range: 50 - 2,500 rpm, 18 steps Table Type: Swivel table Clamping Surface Table: 800 x 490 mm T-slot Size: 14 mm Weight: approx. 1,450 kg Dimensions: approx. 2,500 x 2,700 x 2,100 mm Accessories and Equipment: Heidenhain TNC 113 control Hydraulic clamping vertical and horizontal Automatic central lubrication Spindle brake Technical documentation, spare parts diagrams, control manual, and programming examples Hand wheels Coolant system About the machine: Offered here is a Deckel FP 4 MK tool milling machine equipped with a Heidenhain TNC 113 control unit. This universal milling machine is in excellent original condition, having only been used for training purposes in a facility. The control is very user-friendly. Additionally, the machine features hydraulic clamping for both vertical and horizontal operations. Switching between vertical and horizontal milling is straightforward thanks to the tilting vertical head. The guides are regularly lubricated via the central lubrication system. The Deckel has been mechanically and electrically tested in our facility. You are welcome to inspect and test the Deckel under power on-site. You will find more milling machines from renowned manufacturers on our website.

Condition: good (used), functionality: fully functional, Internal article number: 26054 Universal milling machine Deckel FP1 + Heidenhain digital display Travel distances: X300 / Y160 / Z340 mm Spindle stroke: 60 mm Power consumption: 1.9 kW Cholhccqezx T Agokec Number of spindle speeds: 16 Speed range: 40-2000 rpm Tool holder: SK40 The machine comes from an educational institution and is in good condition. You are welcome to inspect the machine while it is running, in our heated warehouse covering an area of over 500 m².
