3
Notching machine
Hhufsw3je
-automatic hydropneumatic milling feed
-Cutter max.: Ø 250 mm
1
Router f. transom profiles
SMA-REF-6954
Type: window construcion (PVC) moulders
Manufacturer: Graule
Model: AKF 6/250
Year: 1994
Spindle: 4.500 rpm
Working range:
Milling width: 305 mm
Milling depth: 80 mm
Condition:
ready for action
under power
Bauo7gaq
Location: Northern Germany
Availability: on demand
5
revolution per minute: 1390 U/min
Gfu370h
capacity: 0,75 kW
weight of the machine approx.: 360 kg
2 pcs drilling and milling spindle with electric cabinet.
On sale as is.
Profile height: 150 mm max Profile width: max. 300 mm Milling area: 365 x 230 mm Pneumatic workpiece clamping Minimum quantity spraying device 2 pneumatic copying pins with copying pin 5/8/10 mm
Bxc29pdi9g
6

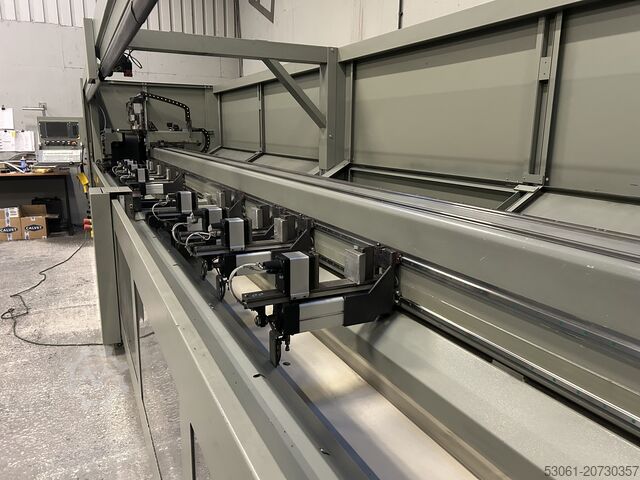

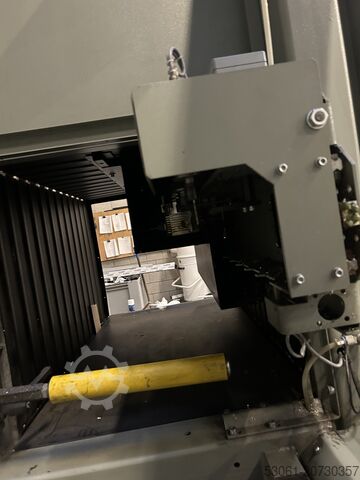

Emmegi machining centre year 2003
3 axis machining centre for machining aluminium profiles.
This machine is equipped with an electronic spindle.
B0pfcadz0c
Suitable for machining aluminium and steel profiles. Milling, flow drilling and thread cutting are possible.
The lateral machining can be done by means of an angle head, which can be
which can be used with different tools on both sides by means of a turning device.
The machine has a tool changer with 4 tools, 2 material stops and 4 automatica...
1
The Tekna TK425-1 machining centre is designed for drilling and conventional milling processes and also for copy-milling operations on aluminium extruded profiles and other materials, including steel profiles up to 3 mm thick, steel reinforced PVC, and various other plastics or wood. More pictures to follow shortly.
L9yhuulv
5
Double notching machine
-Operating voltage: 380 volts
-Workpiece clamping: pneumatic
-Speed of the motors: 2970 rpm 3 kW per motor
-Material length: min. 400 mm
27c9wlfx
-Material length: max: 2000 mm
-Milling path: max. 400 mm
-Max. Milling cutter: Ø 245 mm
-Milling holder: Ø 30 mm
-Dimensions: 2950/1700/H1300 mm
-Weight: approx. 1200 kg
1
Profile machining center (6.000 mm)
SMA-REF-6537
Pwnvl
Type: window construcion (metal) milling machines
Manufacturer: TEKNA
Model: TK 427/6
Year: 2001
Working range:
X: 6.000 mm
Y: 500 mm
Z: 220 mm
Features: Tool changer
Condition:
in use
ready for your test
Location: Western Germany
Availability: on demand
Template-free copy router SLK 118, date of construction 12/ 2008, in excellent condition, only about 2800 operating hour, 500 spindle hour !
Equipped with the latest controller, which was used for this type.
The PC of this machine was replaced with a new PC in September 2016. (See Elumatec service report in the appendix).
Convenient operation and programming of the machine via Windows interface
- Copy router with 3-axis control.
- The ideal machine for efficient door manufacturing.
- For manu...
6
Milling cutter diameter 300 mm Milling width: 375 mm Milling depth: 105 mm Pneumatic material clamps Manual feed Weight: approx. 230 kg
Ccutoih
15
FEATURES
Used for lock, handle, hinge and latch slot and channel opening processes without rotating the profile on 3 surfaces of aluminum and plastic profiles.
• Copy assembly matching the process
• Ability to open various channels independently of the copy assembly with profile gauges
• Pneumatic clamps
• Triple grip slot punching system
• Independently operating motors
B07nkfg0na
• Independent milling process on 3 different surfaces
Standard Equipment
• Cooling system
• 5 mm milling cutter
• P...
Copy Router Machine Rotor KF 451
B0078drmgv
4
Gear cutters, module cutters, tooth form cutters, module milling heads
Qlykwgtkl
-1x milling cutter: Ø 52/170 mm
-Diameter: 22 mm
-Weight: 2 kg
9
Technical specifications:
Working area X - 3850 mm, Y - 350, Z - 280 mm
Ly3pm3a
Electric spindles 6 kW - max. 21000 rpm
Tool holder HSK -63 F
Spindle hours 4860 h
Tool changer 1 x angle head, 5 x tools
Work table 5 clamps with positioning (manual)
Pneumatic clamping operation
USB port
Operating software: Windows XP Embedded
Production software- EluSoft, EluCAM
Numerical control Ferrocontrol gateway
Total connected load 10 kW
Photoelectric barrier
Mobile operator terminal
Protection fence left an...

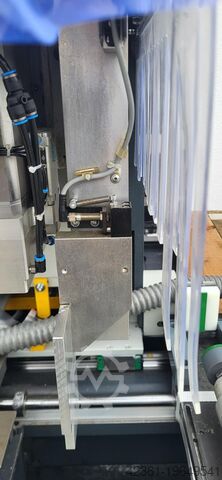

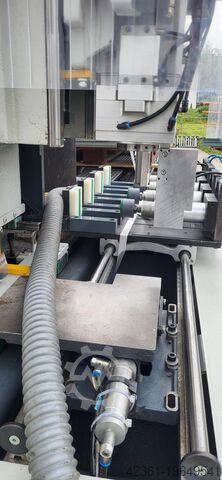

3-axes control profile machining centre Elumatec SBZ 122/33, year of construction 2014, 3,80 m/ windows version, eluCam, two machining zones, automatic tool changers for 5 tools each and one angle head 4x 90°, in very good condition, about 2.000 spindle hours, machine is available at short notice
Description of the machine:
The profile machining centre 122/33 is designed for the working of profiles on five sides in automatic door manufacturing with single or multiple locking along with other i...
Milling cutter diameter: 300 mm Max. Notch width: 350 mm Max. Notch depth: 110 mm Max. Profile height: 150 mm Feed length: 500 mm Stop between 20 ° - 90 ° - 20 ° Pneumatic workpiece clamps Minimum quantity spraying device, hydropneumatic feed via foot switch, infinitely adjustable Pneumatically adjustable material stop Weight: approx. 350 kg
Bymzk2x7qb
6

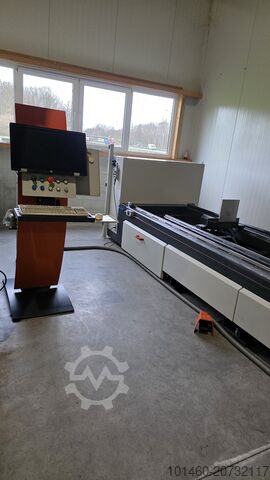

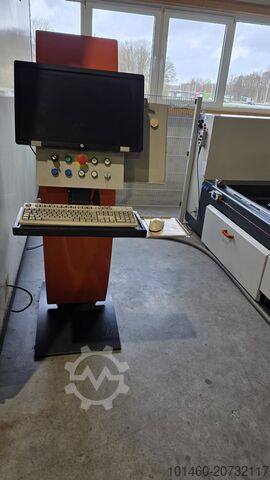

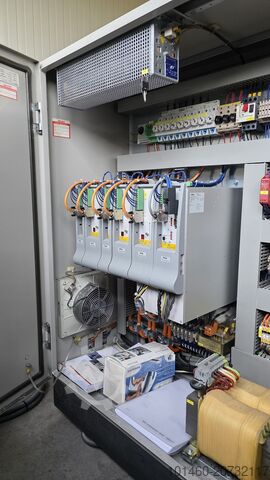

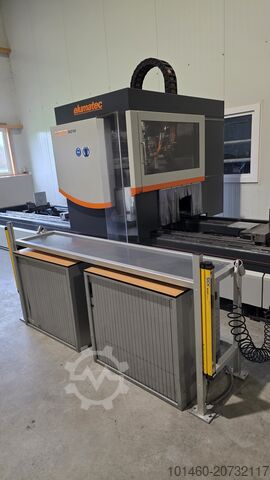

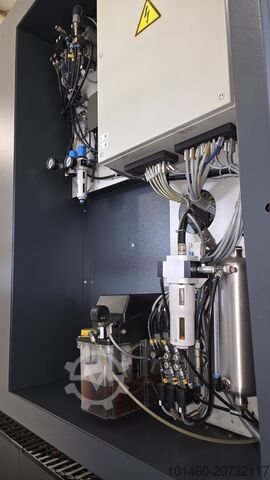

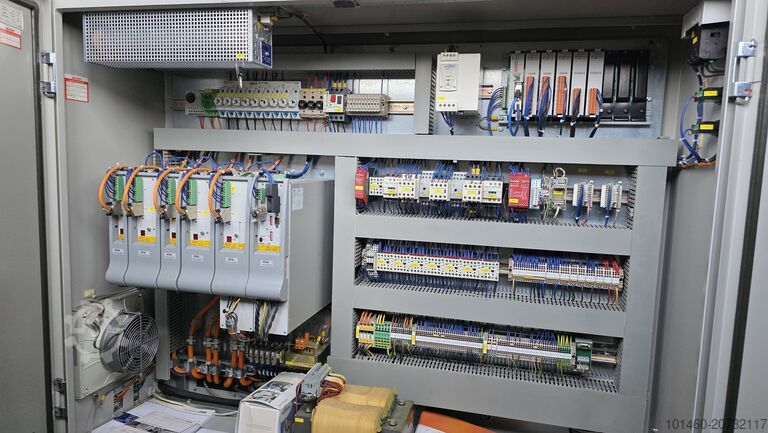

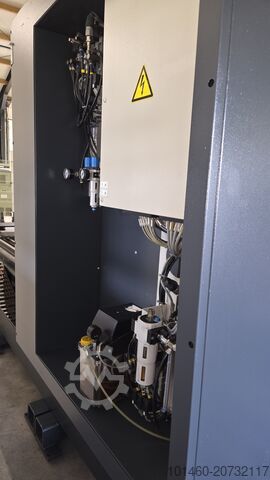

Machining center Elumatec SBZ 140 7.6 m (4 axes)
2010 year
Maximum length of the processed profile 7600/7480 mm
Y axis feed range 850 mm
Z axis feed range 650 mm
11 kW spindle
Tool holder set HSK63 (5 collets + 8 collets)
Rotary angle head
Pvigj
Program:
Windows, eluCAm, eluCad, Data import for ECW, NCW and V6 files - package
The machine has been fully inspected, the spindle has been regenerated.

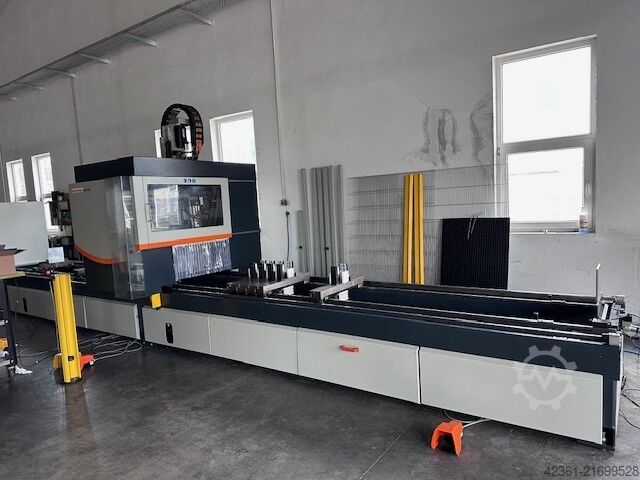

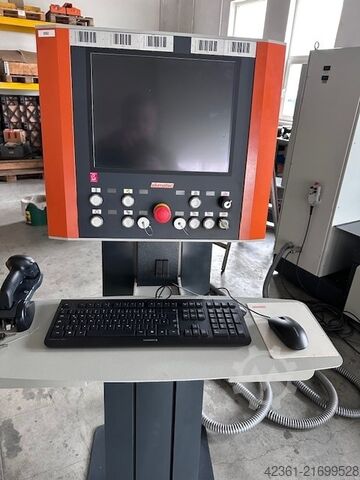

4-axis profile machining centre Elumatec SBZ140 bj 2013
Bzb3drpamg
5
Gear milling cutter, module milling cutter, tooth form milling cutter, module milling head
-1x milling cutter from: 650.054.06 A SPAN. < 5 ° EV 4 CO
-Diameter: 22 mm
-Weight: 0.6 kg
Fzxdn0h
5
New computer and windows 10, 7 auto tools!
Mkyywkm
4
Make: STRIFFLER
Ulalqdy
Type: 2766
Year of construction: 1982
Dimensions: approx. 0.8 x 0.8 x 1.2 m
All information without guarantee.
A demonstration is in our showroom at any time
4
For reworking profiles that have been sawn too long, in both aluminum and plastic. Swiveling material stop Motor speed: 712 rpm Milling cutter diameter: 250 mm
B0scgtaek
9
Shipping eu 300euro
Horizontal cutting range using a stop 300 x 120 mm
Dj7htp0im
Horizontal cutting range using a copy template 285 x 110 mm
Spindle speed 12,000 rpm
Clamping range for profiles 150 x 130 mm, adjustable up to 400 mm
Travel 105 mm
Power supply 230/400 V, 3~, 50 Hz
Power output 0.74 kW
Compressed air supply 7 bar
Air consumption per working cycle 12 l without spraying, 24 l with spraying
Length 780 mm, depth 790 mm, height 1,545 mm, weight 210 kg
10
Machining centre with 4 axes and travelling 8-fold tool changer for 5-sided machining of aluminium profiles without the use of an angle head.
The machine is equipped with 8 clamping elements and can also work in pendulum mode due to the split protective hood.
The software Camplus, Shape and a driver for Schüco, Orgadata etc. is included in the machine price.
incl. barcode reader
approx. 1600 operating hours
By2nzxqnx8
4
Water slot cutter
-for the simultaneous milling of 2 offset slots in aluminum profiles with: -electropneumatic switching
-pneumatic workpiece clamping
-Fine adjustment by spindles and handwheels
-1 milling motor: 0.6 kW
-2 milling motors: 0.5 W.
-2 support tubes: with stops
-Speed: 17,200 rpm
Hhpqsk9jq
-Weight: 200 kg
4
Simple and very robust notching cutter for right-angled notching of aluminum window and door profiles.
Bhz8cjjs
Milling depth and milling height can be adjusted by means of hand wheels.
The machine is still built and sold today by Graule in the same design.
Please contact us by mail.
4
Max length profiles : 6.1meter - max height : 270mm
Jxfkna
13
Max. Machining length: 2,600 mm Max. Transverse stroke: 440 mm Max. Vertical stroke: 200 mm Milling spindle speed continuously adjustable between 2,800 and 12,000 revolutions per minute Rotatable support table between 0 ° and 180 °, thus 3-sided machining in one clamping 3 pneumatically controllable copier pens 4 pneumatic material clamps Minimum quantity spraying device
Bzz3rewcct
7
End milling machine Pressta Eisele AKF
shipping EU ~300euro
Bpratfl8ge
2
Water slot milling Fabr. ROTOX type FWS 386
Fabr.# 3866160, built in 1993
Gy9uda0q8
for 2 simultaneous milling profiles put slits in ALU
Technical data:
1 milling motor 0,6 KW
2 milling motor 0.5 KW
Weight approx. 200 kg
Speed 17200 UpM.
with
-Cooling lubrication
used, in good condition
5
Notching machine, notching machine, window construction
-Frontal milling: of transom and post ends on PVC and aluminum profile bars
-for milling: of transom and base designs
-Drilling: of -fixing holes in one operation
-Drive: 1.1 kW
-Speed: 2810 rpm
9ghtayyu7
-Support: Ø 27 x 140 mm
-Max. Workpiece width: 223 mm
-Max. Workpiece height: 160 mm
-Dimensions: 1300/570/H1200 mm
-Weight: 228 kg
3-axes control profile machining centre Elumatec SBZ 122/64 year of construction 2013, in the long version with 6,70 m/ windows version, eluCam, two machining zones, two automatic tool changers for 5 tools each and one angle head 4x 90° each, excellent condition, about 3.500 spindle hours, This machine received a new spindle in September 2021, machine is available at short notice
Description of the machine:
The profile machining centre 122/64 is designed for the working of profiles on five sid...
10
3-axis bar machining center
Description:
The economical entry into automatic machining of aluminium and steel profiles.
With its robust and yet compact design, the machine can be used in the various applications in window, door and facade construction as well as in industry.
The very stable workpiece clamping device supports machining from 3 sides even with large workpieces.
When machining from above, profiles up to a size of 230 x 220 m can be clamped. Thanks to the large traverse path of the Z...
4 controlled axes for profile machining X-axis travel: 6,300 mm Y-axis travel: 600 mm Z-axis travel: 405 mm A-axis rotation: 0 ° -180 ° Speed range: 0-24,000 rpm. Tool changer with 8 places Automatic tensioner shift Windows user interface approx. 5300 operating hours Weight: approx. 5,000 kg Machine dimensions: approx. 8700 x 2300 x 2100 mm
Bbgla9v3
12
Electrical connection 230/400 V, 3~, 50 Hz
Compressed air connection 7 bar
Shipping EU 300euro
Bzggvhtsbd
4
movements x/y/z: gross/klein 6500/300 mm
spindle turning speed range: 5400 rpm
number ob tool positions: 8 pieces
carriages: x/y u. z 60/30 mm/miin
spindle drive: max. 5,5 kW
Ptvbci7
The machine is sold as a spare part carrier because the controller is defective.
electrical connection: 400 V kW
space needed: 8600 x 2270 x 2150 mm
weight: ca. 5000 kg
5
Copy milling machine, copy milling machine, hand lever milling machine, hand lever milling machine
-Copy router: Wegoma SK6
-Copy router: swiveling
-with support rail length: 1910 mm
-Motor: 220 V 1.4 kW
-Spindle speed: 22000 rpm
-Dimensions: 500/460/H1530 mm
Bjszpd3r
-Weight: 46.5 kg
7
Horizontal end milling machine with electropneumatic feed and automatic machining cycle. Excellent condition
Technical description:
- Horizontal end milling machine with electropneumatic feed and automatic machining cycle.
- Milling of intermediate angles, +45° / 90° / -45°.
- Variable speed of tool rotation with electronic inverter for improved quality machining on painted profiles and at intermediate angles.
- Quick cutter change with pneumatic control.
- Scratch-proof work table.
- Fully...
5
Italmac spring
is a profile machining center for 3 meter long parts with 4 axes.
S3 X travel distance 3000mm
Workpiece dimensions at
3 axis machining 220x230x3,000 mm
Workpiece dimension at
Udhfeuyj
4 axis machining 150x230x3,000 mm
Fully automatic end milling machine with punch from LESCHER
SPS controlled
incl. disc cutter
fully functional
Nlru2fk
400 Volt and compressed air are needed
6
GRAULE AKF 250
Bl7bp2ak
Fräser-Ø 250 mm
shipping EU ~300euro
2
2 fraes motors from above, 1 fraes motor from below
Speed: 17200 rpm
Drive power each: 0,5 kW
D0p30m9ta
electr. connection: 220 V
space requirement incl. workpiece supports: 1650 x 850 x 1500 mm
weight: approx. 200 kg
5
Copy milling machine, copy milling machine, hand lever milling machine, hand lever milling machine
Mvvosw
-For machining: of aluminum and steel profiles
-with 1 vertical and 1 horizontal milling motor
-per motor: 0.74 kW 12,000 rpm
-Installation dimensions 2800/1100/H1630 mm
-ransport dimensions 800/1200/H1630 mm
-Weight: 270 kg
15
5 axes sawing, drilling and milling - portal machining centre with 9 meter machining length (alternatively shorter - 7 or 4 meter machining length) for all profile and pipe materials - aluminium - steel - stainless steel - plastics - fibre composite plastics such as GFK and CFK - drilling + tapping, flow drilling, milling + thread milling in free angle - for example sawing steel profiles up to 15 mm wall thickness - glass or carbon fibre materials up to 25 mm wall thickness
Largest saw blade dia...
3
Technical data:
-the milling of PZ - holes and lock, to mill, etc.
-Operation via two lever - material clamping by pneumatic cylinder
-Workspace - x (cross) 250 mm
-y (longitudinal) 90 mm
-z (vertical) 120 mm
-max. Profile height 130 mm
-max. Tread depth 100 mm - spindle speed approx. 12000 RPM
-Pneumatic connection 8 bar
-Left + right stop positioning Rails 2000 mm
-Drive 400 V / 1,5 kW
Mmbqr
-Space requirement approx. B 650 x H 1550 X 850 mm
-Weight approx. 300 kg
7
Electropneumatic copy router FOM INDUSTRIE CALCO, new
Technical specifications:
- Spindle speed 12.000 rpm
- Horizontal vices with safety valves
- System of milling cutter lubrication
- Spindle slides cemented and round guide-ways with movement along recirculating ball bearings
- Pneumatic tracers
- Possibility of machining with copying jigs or mechanical stops
- Milling tool shank clamping size: from 5 to 8 mm (with change of collet)
- Safety valves for clamps
- Double working pressure servo-co...
9
GRAULE AKF 6/250
Dydkbq
Fräser-Ø 250 mm
shipping EU ~300euro
1
for cutter Ø up to max .: 300 mm
Saw stroke adjustable by hand: 550 mm
Infeed by hand via spindle: 150 mm
Height adjustment by hand via spindle approx .: 130 mm
Ytgxak
Table semicircle Ø: 500 mm
Saw blade drive: 380 V, 2.2 kW
Saw blade speed: 2700 rpm
Space requirement approx .: 1000 x 900 x 1300 mm
Weight approx .: 100 kg
Copy milling machine, copy milling machine, hand lever milling machine, hand lever milling machine, milling machine, engraving milling machine, engraving machine
-Manufacturer: Deckel, engraving and copy milling machine type GK 21
-Motor: AEG 0.65 / 1 kW
-Spindle speed: 475 to 20000 rpm
-Travel: X-axis 175 mm / Z-axis 350 mm
-Clamping table: 360 x 200 mm / 520 x 320 mm
-3 axis digital display: Heidenhain
-Dimensions 1210/1000 / H1600 mm
-Weight: 658 kg
Byao2p3cam
Fraeser-O: 200mm
Byg9sgkaew
