Used Bernardo Msb 1100 H for sale (200)

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, total width: 850 mm, total length: 1,850 mm, total height: 1,250 mm, overall weight: 660 kg, working height: 650 mm, power: 1.6 kW (2.18 HP), For sale is a used, fully functional, fully automatic bandsaw with roller feed, featuring the following technical specifications: Dedpfsyfta Hox Af Doun - Round cutting area at 90°: 320 mm - Flat cutting area at 90°: 320 x 300 mm - Square cutting area at 90°: 300 x 300 mm - Working height: 650 mm - Infinitely variable cutting speed: 20 - 100 m/min - Saw band dimensions: 3660 x 27 x 0.9 mm - Coolant pump: 120 W - Motor power: 1.5 kW - Machine dimensions (L x W x H): 1850 x 850 x 1250 mm - Weight: approx. 660 kg Operation note: Enter the material length or specify the quantity. Then press Start. The job will be executed automatically with the specified number of pieces. A viewing appointment for the machine can be arranged in advance and demonstrated under power. The price stated here is net.

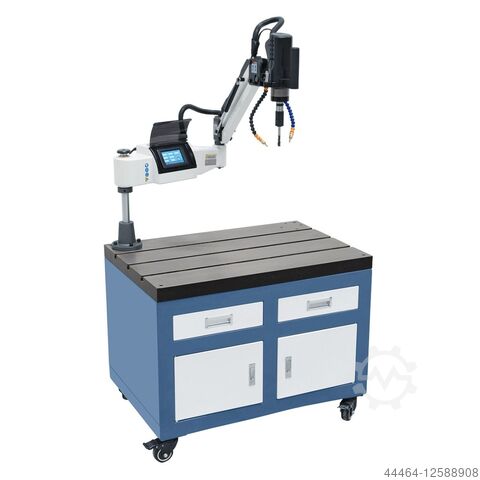

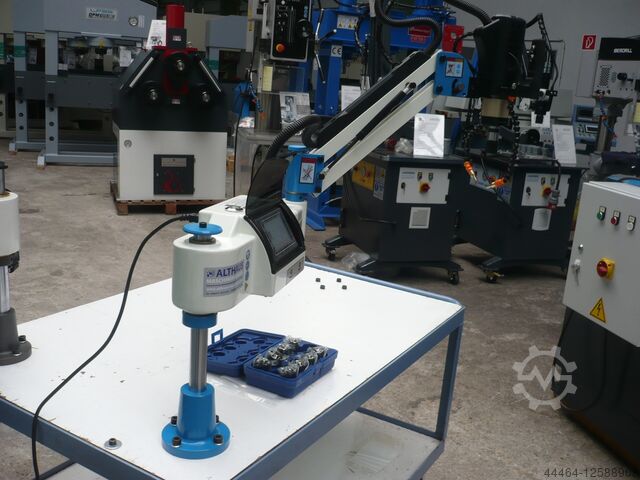

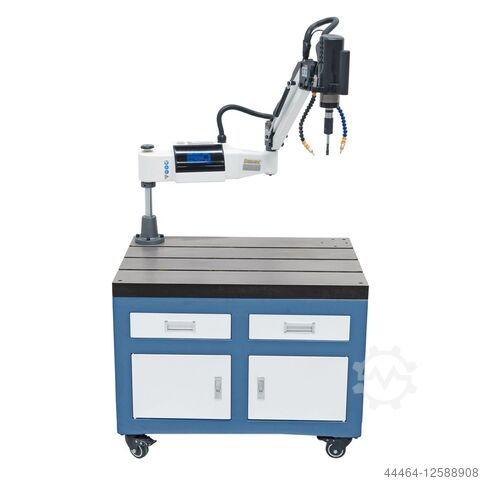

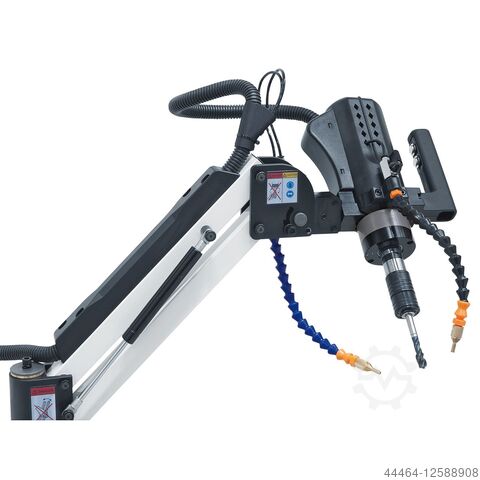

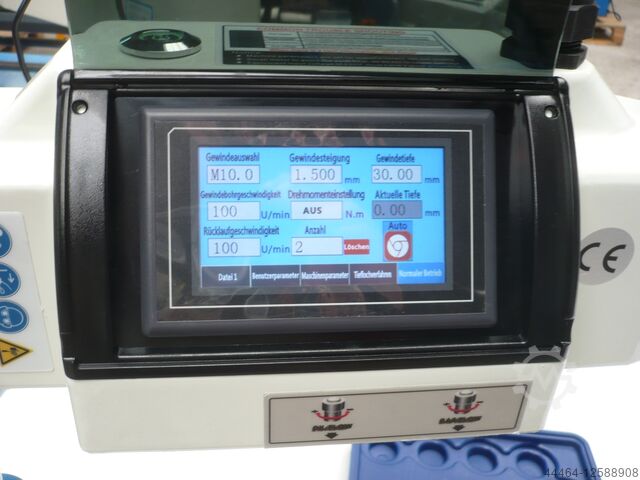

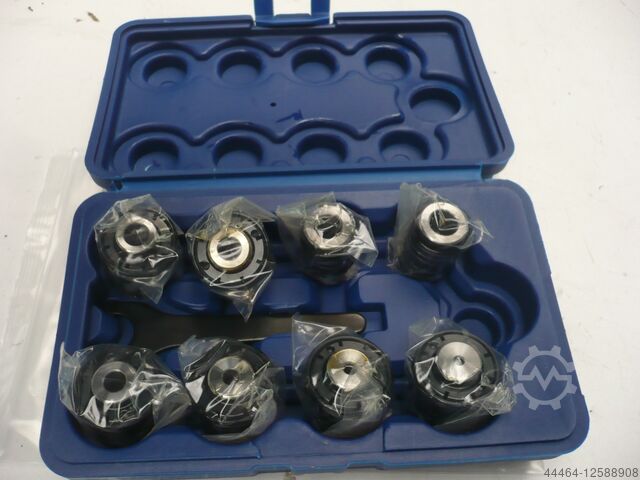

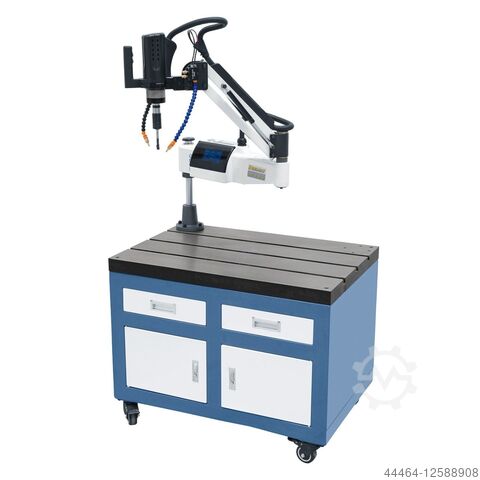

Condition: new, Bernardo TM 16 BLO/ R 1100 Electric thread cutting machine Technical specifications Tapped holes* M3 - M16 Speed max. 120 - 325 rpm Dusdpfxjpag Npe Af Den Adjustable angle 0° - 90 Max. Working radius R 1100 mm Quick change chuck DIN 371: M3 / M4 / M5-6 / M8 / M10 DIN 376: M12 / M14 / M16 Motor power 600 W Voltage 230 V weight approx. 26 kg * Material strength 400 N / mm2 Scope of delivery Operation via touch screen Digital drilling depth display Micro spray system Blow-out device Quick change chuck Quick change chuck according to DIN Electric motor 90° angle adjustment Mounting flange Features Standard with micro-spray system for constant cooling and minimal cooling lubricant consumption Including blow-out device for removal of chips, thus optimal view of the drill hole Including quick-change chuck for the use of taps for through and blind holes Swiveling motor unit for tapping at any desired angle between 0° and 90 Higher accuracy compared to manual tapping, thread is guaranteed right angle (90°) High productivity, significant time savings compared to manual thread cutting Quick-change chuck with integrated slip clutch prevents tap breakage Including swivel arm with large radius for easy positioning of the tap on the workpiece For tapping in steel, stainless steel, aluminum and non-ferrous metals Price: Base 900 x 600 mm with 2 drawers for TM series 830,00

Condition: new, Bernardo manual metal circular saw CS 315 H Technical specifications Saw blade diameter of 315 x 40 mm Speed 19 / 38 U/min Vice opened Max 150 mm Working height 920 mm S1 motor power output 100% 0,75 / 1,5 kW Djdod Id Ugjpfx Af Dsun Motor power S6 40% 1.0 / 2,1 kW Voltage 400 V Machine dimensions (W x D x H) 530 x 1000 x 1740 mm Weight 235 kg Round solid material 90°: 80 mm 45°: 70 mm Round tube 90°: 80 mm 45°: 70 mm Square shaped tube 90°: 80 x 80 mm 45: 70 x 70 mm Solid material square 90°: 80 x 80 mm 45: 70 x 70 mm Square tube rectangular 90°: 90 x 80 mm 45: 80 x 70 mm Rectangular solid material 90°: 90 x 80 mm 45: 80 x 70 mm Properties Gear head for slot working left and right 90 ° swiveling Removable coolant tank in the robust base integriergt Gearbox with hardened and ground Auger and bronze worm wheel Security guard opens automatically when the cutting Precise, 4 guided, self-centering double clamping vise Ergonomically shaped handle with push button for fatigue-free cutting Low speed of the saw blade (19 / 38 RPM) optimal for cutting of full materials Reduction gear low noise running in an oil bath Scope of delivery Coolant system with filter Self centering Vice Base

Condition: new, Compressive force: 30 to Duedpfx Afjb Ibdlo Djn Piston stroke: 150 mm table width: 185 mm passage (E): 535 mm passage (F): 140 mm distance cylinder - table (F1): 40 mm distance cylinder - table (F2): 1100 mm cylinder movable (M): 200 mm width (A): 800 mm depth (B): 700 mm Height 1 (C):1770 mm height 2 (D): 1800 mm Weight: approx. 168 kg Equipment: - Two adjustable speeds for piston feed by means of hydraulic pump. - Powerful workshop presses for craftsmen and repair shops - Optimal price-performance ratio due to rational design - The standard foot pedal leaves the hands free for the workpiece - Increased range of application due to the optionally available pressure mandrel set (10 pcs.). - Pressure cylinder with integrated return spring for piston retraction - Welded steel frame for heavy duty and high stability - Versatile use due to pressure cylinder that can be moved to the left and right

Condition: ready for operation (used), Year of construction: 2018, Width: 1860mm, depth: 800mm, height: 1900mm, weight: approx. 2.3t Rectangular notchers: 57 x 100mm, triangular notchers: 5 x 5 x 7.5mm. Notching station width: 330mm, working height: 915mm Dodpfx Ajrxflcjf Deun

Condition: new, Bernardo Hydraulic Guillotine Shear HST 1300 x 6 Technical Specifications Cutting length: 1300 mm Max. sheet thickness*: 6 mm Cutting angle: 2° Motorized backgauge: 0 – 700 mm Strokes / min: 16 Number of hold-downs: 1 pc. Table height: 850 mm Support arms: 3 pcs. Oil tank: 60 liters Motor power: 5.5 kW Length: 2070 mm Depth: 2040 mm Height: 1365 mm Weight: approx. 2020 kg * Material strength: 400 N/mm² Features • High reliability, safety, and cost-effectiveness • Robust, welded steel frame for torsion-free operation • Precise work thanks to integrated cutting line illumination with shadow outline • High operator safety via protective cover and photocells at the rear of the machine • Efficient cutting of various materials such as steel sheet, brass, aluminum, copper, etc. • Cutting via foot pedal, keeping hands free for optimal sheet positioning • Front support arms for easy handling of large plates • Simple gap adjustment via side-mounted lever • Table support surface with integrated rollers, ideal for large workpieces • Automatic hold-down device for fixing the sheet Scope of Delivery Duedpfx Afoyg Hxfo Den • Cutting gap adjustment • Cutting line illumination • Motorized NC backgauge • Front sheet supports • Table support with integrated rollers • Side stop • Protective guard with photocells • NC control E21S • Foot pedal with emergency stop • Tool steel blades

Condition: new, Bernardo Hydraulic Guillotine Shear HST 1300 x 4 Technical Specifications Cutting length: 1300 mm Max. sheet thickness*: 4 mm Cutting angle: 2° Motorized backgauge: 0 – 700 mm Strokes / min: 16 Number of hold-downs: 1 pc. Table height: 850 mm Support arms: 3 pcs. Oil tank: 60 liters Motor power: 5.5 kW Length: 2070 mm Depth: 2040 mm Height: 1365 mm Weight: approx. 1,970 kg * Material strength 400 N/mm² Features • Machines offer high reliability, safety, and cost-effectiveness • Sturdy welded steel construction ensures torsion-free operation • Precise working due to integrated cutting line illumination with shadow outline • High operator safety provided by protective guard and rear photoelectric sensors • Designed for efficient cutting of various materials, such as steel sheet, brass, aluminum, copper, etc. • Cutting via foot pedal allows hands-free sheet positioning • Front support arms for easy handling of large plates • Simple adjustment of the cutting gap via side-mounted lever • Table support surface with integrated rollers, ideal for large workpieces • Automatic hold-down for sheet fixing Djdpfx Ajyg Hwnof Deun Scope of Delivery • Cutting gap adjustment • Cutting line illumination • Motorized NC backgauge • Front sheet supports • Table support surface with integrated rollers • Side stop • Safety guard with photo sensors • NC controller E21S • Foot pedal with emergency stop • Blades made of tool steel

Condition: excellent (used), functionality: fully functional, Year of construction: 2023, machine/vehicle number: PWA-230114, control type: manual, degree of automation: manual, actuation type: manual, sheet thickness steel (max.): 2 mm, table height: 765 mm, back gauge adjustment: manual, back gauge: 600 mm, overall weight: 500 kg, total length: 2,000 mm, total width: 1,040 mm, total height: 1,600 mm, Good day, We hereby offer you, subject to prior sale, a used manual guillotine shear (sheet metal shear), Bernardo, type HLS 1050 x 2.0. Manufacturer: Bernardo, PWA Handels Ges. m.b.H. Type: HLS 1050 x 2.0 Year of manufacture: 05/2023 Machine no.: PWA-230114 Cutting length: 1050 mm Max. sheet thickness (steel 400 N/mm²): 2.0 mm Back gauge adjustment: 0 to 600 mm Table fence adjustment: 95 to 450 mm Table size: 1300 x 600 mm Working height: approx. 765 mm Machine dimensions: 2000 x 1040 x 1600 mm Transport dimensions: 1900 x 1050 x 1120 mm Machine weight: 500 kg Included optional accessories: 600 mm back gauge Quick-clamping hold-down device Note: The above technical data is taken from the manufacturer’s brochures or other sources. We cannot guarantee the accuracy or completeness of this information. Scope of delivery: 1 used Bernardo manual guillotine shear, type HLS 1050 x 2.0 Application and condition: The machine was occasionally used in a factory workshop for shearing sheet metal. It is fully functional and in good condition. We would be pleased if this machine is of interest to you. Dsdpfx Aeygm S Eof Djun Your service team, Mertens & Frowein GmbH

Condition: new, pressure 30 t Dujdpjxabg Nsfx Af Don stroke 150 mm table surface area 185 mm Breite column travel between the guideways 530 mm weight of the machine ca. 162 kg dimensions of the machine ca. 800 x 700 x 1805 mm

Condition: new, 6.0 mm ST 40 3.0 mm VA 30 - 140 Grad blade length 200 x 200 mm table: 900 x 990 mm work height max. 940 mm Punching capacity 35.0 in 6.0 mm ST 40 Throat / punching unit 135 mm engine output 4.0 kW weight 1020 kg range L-W-H 900 x 990 x 1200 mm Characteristics : - Notching with a burr-free cut, without deformation of the cut edges Dodpoxcuybjfx Af Doun - Blades made of surface-hardened tool steel - Operation by means of a foot pedal, so both hands are free for the workpiece - Large dimensioned work table with built-in scales - T-slots for precise guidance of the swiveling stops - Protective cover in front of the cutting blade for high security scope of delivery - hydraulic Notching machine with adjustable angle & punching station - 1 set of cutting knives - Round punch with die 12 mm - 2 swiveling material stops - Plexiglas protective cover - Foot pedal with emergency stop

Condition: new, sheet width 1050 mm plate thickness 2,0 mm distance between columns 1050 mm down holder 1 Stück fence Tisch 80 - 480 mm fence Breiten 0 - 600 mm table-size 1300 x 600 mm work height max. 760 mm total power requirement manuell kW weight of the machine ca. 413 kg. range L-W-H 2,0 x 1,04 x 1,6 m - Including adjustable stop on the work table for miter cuts - The knife can be lifted easily thanks to the counterweight on the back - Large work table for safe placement of the sheet metal plates - Sheets can be pushed through, i.e. longer sheets can be cut - Handwheel on the front to adjust the back gauge - Comes with a robust cast iron base as standard - Long service life thanks to knives made of quality steel - Standard with hold-down device including quick-release clamp - Robust machine construction for high stability Furnishing: - manual lever shears - stable execution - hold-down bars - Side scale with unit of measurement Djdpfx Ajxabdhjf Djun - Table stop / width stop

Condition: new, 6,5 mm ST 40 3,5 mm VA 90° Grad blade length 250 x 250 mm table: 810 x 750 mm work height max. 950 mm engine output 4,0 weight 630 kg range L-W-H 810 x 750 x 1150 mm Characteristics : - Notching with a burr-free cut, without deformation of the cut edges - Blades made of surface-hardened tool steel - Operation by means of a foot pedal, so both hands are free for the workpiece Dujdpfsxcux Dox Af Den - Large dimensioned work table with built-in scales - T-slots for precise guidance of the swiveling stops - Protective cover in front of the cutting blade for high security scope of delivery - 1 set of cutting knives - 2 swiveling material stops - Plexiglas protective cover - Foot pedal with emergency stop

Condition: new, pressure 20,0 t stroke 185 mm table surface area 170 mm Breite column travel between the guideways 510 mm weight of the machine ca. 112 kg dimensions of the machine ca. 1630 x 560 x 730 mm Furnishing: - Standard with pressure cylinder that can be moved to the left and right - For aligning, pressing, bending, assembling gears, discs, etc. - Standard with foot pedal and hydraulic hand pump for piston delivery - Standard with support prism for aligning shafts - With automatic piston retraction by integrated return spring as standard - Height-adjustable press table with locking bolts - Large manometer for reading the compressive force - Including two-stage hydraulic pump - Robust construction with welded steel frame Djdjxaapcjpfx Af Doun

Condition: new, bore capacity in steel (diameter) 50.0 mm throat 370 mm bore stroke 250 mm morse taper 4 MK table: 600 x 500 mm threading M 42 Stahl turning speeds 40 - 2100 U/min feed 0.1 - 0.4 mm/U column diameter 200 mm distance spindle /table max. 600 mm distance spindle/base plate max. 1190 mm total power requirement 2.2 / 2.8 kW weight 670 kg range L-W-H 1020 x 750 x 2340 mm Scope of delivery - Keyed drill chuck 1 - 13 mm / B 16 - Drill chuck arbor MK 4 / B 16 - Reducing sleeve MK 4 / 3, MK 4 / 2 - Motorized table stroke - Coolant device Dodpfxsxaay Ij Af Dsun - Electromagnetic spindle feed - Thread cutting device - Automatic tool ejector - LED machine light - Initial filling with Shell Tellus 46 - Digital speed display - Digital drilling depth display - Height-adjustable protective cover

Condition: new, cutting diameter 225 mm saw band length 2480 mm table height 910 mm capacity 90 degrees: flat 245 x 150 mm capacity 90 degrees: square 200 x 200 mm capacity 45 degrees: round 160 mm Duedexaa Tbopfx Af Djn capacity 45 degrees: square 160 x 160 mm capacity 60 degrees: round 100 mm capacity 60 degrees: square 100 x 100 mm turning speed range: 45/90 m/min dimensions of saw-band 2480x27x0,9 mm total power requirement 1,5 kW weight of the machine ca. 200 kg dimensions of the machine ca. 1430x720x1700 mm Scope of delivery : - saw band - workpiece stop - underframe - Manometer for belt tension - Vice with quick lock - coolant device - Hydraulic lowering cylinder - Motor protection switch - Automatic limit switch-off

Condition: new, turning length 3000 mm turning diameter 660 mm turning dia. in gap 870 mm turning diameter over slide 420 mm turning speeds 36 - 1600 U/min quill: 5 MK quill travel 150 mm spindle bore 105,0 mm engine output 7,5 kW spindle taper DIN 55029 D 1-8 weight of the machine ca. 3990 kg. dimensions 4500 x 1280 x 1650 mm Scope of delivery - Slip clutch - Rapid traverse longitudinal and planar - LED machine light - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck PS3-315 mm / D8 - Clamping disk 630 mm - Fixed steady rest - passage diameter max. 250 mm - Follow-on steady rest - passage diameter max. 110 mm - 1 centering point / 1 follow-on punch point - Motor with magnetic brake in accordance with CE standard Dusdpfx Afoxabyco Dsn - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Reducing sleeve - Chip back wall - Operating tool

Condition: new, bore capacity in steel (diameter) 25.0 mm throat 255 mm bore stroke 120 mm morse taper 3 MK turning speeds 105 - 2900 U/min table: 395 x 420 mm column diameter 100 mm threading max. M10 voltage 400 / 50 Hz V weight 140 kg Dsdpfx Asxaa Daef Doun range L-W-H 500 x 570 x 1100 mm Furnishing : - Keyless chuck 1 - 16 mm / B 16 - Drill chuck arbor MK 3 / B 16 - Reducing sleeve MT 3/2, MT 3/1 - Digital drilling depth display - Automatic tool ejector - Right-left rotation device - Height-adjustable protective cover

Condition: new, bore capacity in steel (diameter) 28,0 mm throat 320 mm Duodpfoxaba Aex Af Don bore stroke 150 mm morse taper 3 MK table: 500 x 350 mm turning speeds 75 - 3010 U/min total power requirement 1,35 / 1,7 kW weight 290 kg range L-W-H 600 x 700 x 1900 mm Description: - Standard with automatic quill feed (0.04 - 0.3 mm / rev) - Helical gear for optimal power transmission - High efficiency and smooth running thanks to helical gears - in combination steel against reinforced fiber material - Automatic quill feed - is deactivated when the set drilling depth is reached - Direction of rotation switch for clockwise and counterclockwise rotation for thread cutting - Stable and polished steel column, designed for heavy use - Quality ball bearings ensure high concentricity - 8 switchable speeds through powerful 2-stage drive motor - Adjustable drilling depth stop with mm scale Scope of delivery: - Keyless chuck 1 - 16 mm / B 16 - Drill chuck arbor MK 3 / B 16 - Reducing sleeve MT 3/2, MT 3/1 - Automatic tool ejector - Right-left rotation device - Height-adjustable protective cover

Condition: new, tube diameter 1/2 - 2.0 Zoll wall strength 2.75 - 4.5 mm ST Duedpfx Ajxaac Nsf Dsn pressure 10.0 t weight of the machine ca. 46.0 kg With a hinged bending frame for efficient work - Various bending dies included - Universally applicable for gas, boiler, and water pipes - Fast work thanks to rapid feed - With a tripod stand for safe work - Also ideal for copper and coated pipes - Bends up to 90° can be created Features: - Bending dies: ½" - ¾" - 1" - 1 ¼" - 1 ½" - 2"

Condition: new, Bernardo Production Lathe Goliath 660 x 3000 incl. 3-Axis Digital Readout Technical Specifications Centre distance: 3000 mm Centre height: 330 mm Swing over bed: 660 mm Swing over gap*: 870 mm Swing over cross slide: 420 mm Dedpjxxaxnjfx Af Dsun Bed width: 400 mm Spindle bore: 105 mm Spindle mounting: DIN 55029, D1-8 Speed range (16 steps): 36 – 1600 rpm Longitudinal feed range (65 steps): 0.063 – 2.52 mm/rev Cross feed range (65 steps): 0.027 – 1.07 mm/rev Metric threads (22): 1 – 14 mm Inch threads (26): 2 – 28 TPI (G/1") Quill diameter: 75 mm Quill travel: 150 mm Quill taper: MT 5 Motor power: 9.0 kW (12.0 HP) Machine dimensions (W x D x H): 4500 x 1280 x 1650 mm Approx. weight: 3990 kg * Removable bed gap: 240 mm Features • Versatile applications in general engineering, production, single-part manufacturing, etc. • The one-piece cast machine bed offers extremely high rigidity and low vibration, fulfilling a key requirement for precision turning • Modern headstock bearing with precision angular contact ball bearings • Central, user-friendly control for feeds and threading, with lead and feed screws • Rapid traverse (longitudinal and cross) as standard to minimize non-productive times • Large-dimensioned, hardened, and precision-ground gears • Removable gap bridge enables machining of large-diameter workpieces • Adjustable tailstock for taper turning, handwheel with adjustable fine scale (0.02 mm) • Electromechanical foot brake to reduce non-productive times • Excellent machining performance even during facing operations Scope of delivery • Slip clutch • Rapid traverse (longitudinal and cross) • LED machine lamp • 3-axis digital readout ES-12 V with LCD display • 3-jaw chuck PS3-315 mm / D8 • Face plate 630 mm • Fixed steady rest – max. bore diameter 250 mm • Travelling steady rest – max. bore diameter 110 mm • 1 live centre / 1 revolving centre • Motor with magnetic brake according to CE standard • Foot pedal with brake function to CE standard • Factory fill with Shell Tellus 46 • Coolant device • Quick-change toolpost with 4 holders • Safety guard for quick-change toolpost • Reducing sleeve • Chip guard (swarf back panel) • Operating tools

Condition: new, Special offer price for stock items. Only while stocks last. Price ex warehouse, plus VAT. Workshop press WK 50 FH Pro Pressure force: 50 t Piston stroke: 200 mm Table width: 260 mm Passage (E): 730 mm Passage (F): 205 mm Distance cylinder - table (F1): 75 mm Distance cylinder - table (F2): 1050 mm Cylinder movable (M): 240 mm Width (A): 1040 mm Depth (B): 800 mm Height 1 (C): 1835 mm Duedob Elguspfx Af Dsn Height 2 (D): 1880 mm Weight approx.: 287 kg Features: - With cable winch for easy height adjustment of the support table - Self-regulating hydraulics for energy-saving piston feed - Powerful workshop presses for craft and repair businesses - Optimum price-performance ratio thanks to rational design - The standard foot pedal keeps your hands free for the workpiece - Increased application area thanks to the optionally available pressure mandrel set (10 pieces). - Pressure cylinder with integrated return spring for piston return - Welded steel frame for heavy use and high stability - Versatile use thanks to pressure cylinder that can be moved to the left and right SPECIAL PRICE from the Mindelheim warehouse. Only for stock items. While stocks last.

Condition: new, Special offer price for in-stock items! Only while supplies last! Price net ex-works, freight prepaid. The machine does not include a base frame. BF3 Deluxe base frame is available separately under item no. 56-1017. Drilling capacity in steel: 32 mm Drilling capacity in cast iron: 40 mm Max. cutter head diameter: 80 mm Throat: 220 mm Spindle speed: (12) 75 - 3200 rpm Spindle mount: MT 4 Quill stroke: 125 mm Table size: 800 x 240 mm Travel (x / y): 555 / 225 mm Milling head swivel range: -90° to +90° Distance spindle to table: 60 - 485 mm Milling head height adjustment: 425 mm T-slot size: 14 mm Motor power output S1 100%: 1.1 / 1.5 kW (400 V) Motor power input S6 40%: 1.5 / 2.2 kW (400 V) Machine dimensions (W x D x H)*: 1140 x 770 x 1500 mm Weight approx.: 287 kg * without base frame Features: - Easy and quick speed changes using the gear selector switch - Versatile applications such as drilling, milling, threading, etc. - Extremely smooth operation thanks to ground gears running in an oil bath - Forward and reverse rotation for threading - Spindle adjustment via handle, fine adjustment via handwheel - Dovetail guide for the x-, y-, and z-axes, adjustable via V-shaped guides - Milling head pivots on both sides for angle drilling, milling chamfers, etc. - Large, solid cross table with precise surface finish - Optimal price-performance ratio for the cost-conscious user Scope of delivery: Djdpfx Aodh Hbcjf Dsun Keyless drill chuck 3-16 mm / B 16 Drill chuck arbor MK 4 / B 16 M 16 drawbar spindle MK 4/3 reduction sleeve MK 4/27 mm combination milling arbor Height-adjustable protective cover Thread cutting device LED machine light Digital spindle stroke indicator Lamellar protective cover Longitudinal measuring scale Operating tool

Condition: new, The machine does not include a stand. The BF3 Deluxe stand is available separately under item no. 56-1017. Technical specifications: Drilling capacity in steel: 32 mm Drilling capacity in cast iron: 40 mm Max. cutter head diameter: 80 mm Throat: 220 mm Duodpsv N Uyrsfx Af Dsn Spindle speed: (12) 75 - 3200 rpm Spindle mount: MT4 Quill stroke: 120 mm Quill feed: (3) 0.10 / 0.18 / 0.26 mm / rev Table size: 800 x 240 mm Travel (x / y): 555 x 205 mm Milling head tilting: -60° to +60° Distance spindle to table: 95 - 485 mm Milling head height adjustment: 390 mm T-slot size: 14 mm Lifting motor: 90 W Motor power output S1 100%: 1.1 / 1.5 kW (400 V) Motor - Input power S6 40%: 1.5 / 2.2 kW (400 V) Machine dimensions: 1140 x 970 x 1460 mm Approx. weight: 322 kg Scope of delivery: - 3-axis digital readout ES-12 V with LCD display - Keyless drill chuck 3 - 16 mm / B 16 - Drill chuck arbor MT 4 / B 16 - Drawbar spindle M 16 - Reducing sleeve MT 4 / 3 - Combined milling arbor MT 4 / 27 mm - Height-adjustable protective cover - Automatic spindle sleeve feed - Lifting motor for milling head - LED machine light - Digital spindle sleeve stroke display - Thread cutting device - Lamellar protective cover - Longitudinal measuring scale - Operating tools Without base frame

Condition: new, Special offer price for stock items. Only while stocks last. Price ex stock, plus VAT. Round bending machine HRM 610, Bernardo roll length: 610 mm Max. sheet thickness (400 N / mm2): 2,0 mm Roll diameter: 60 mm length: 1200 mm Duodohmbpqspfx Af Don Depth: 550 mm Height: 1030 mm Weight approx.: 166 kg Features: - Top roller with horizontal insertion groove for producing tight radii. - Convenient pre-bending due to asymmetric roller arrangement - Easy removal of the finished workpiece due to swing-out upper roll - Lower and rear roller equipped with wire insertion groove as standard - Optimal price-performance ratio, standard with base frame - Roller drive by means of a solid gear transmission - Inclinable rear roller for conical rounding - Bending rolls made of high quality steel - For the production of cones, tubes, cylinders,.... Scope of delivery. - Conical bending device - Bottom and back rolls with wire insertion grooves - Underframe

Condition: new, Bernardo Frame Press HRP 3000 Robust and torsion-resistant hydraulic frame press with high-quality pressure cylinders. Whether it is used for furniture or door production, block or frame gluing, the high pressing force of 2,000 kg per cylinder and precise, angle-accurate pressing of large-sized components enable all tasks to be carried out effortlessly. Technical Specifications Working length: 2,400 mm Working height: 1,550 mm Cylinder stroke: 95 mm Pressing force: 2,000 kg Dusdpfx Afsxrnvbo Djn Vertical hole pitch: 50 mm Horizontal hole pitch: 160 mm Overall length: 3,250 mm Overall height: 2,070 mm Frame depth: 925 mm Weight: approx. 315 kg Features • Versatile use, e.g. for frame, window, and door production • Robust frame press with solid steel construction • Centralized control of the hydraulic cylinders including pressure gauge • Efficient gluing thanks to hydraulic design • Pressure cylinders equipped with rocker plates as standard Scope of Delivery • 4 movable pressure beams, each with one vertical hydraulic cylinder and counter support • 1 movable pressure beam with two horizontal hydraulic cylinders • 1 movable, adjustable pressure yoke
