Used Elumatec Sbz 140 for sale (13)

Condition: ready for operation (used), Year of construction: 2010, travel distance X-axis: 850 mm, travel distance Z-axis: 650 mm, spindle speed (max.): 24,000 rpm, spindle motor power: 11,000 W, number of axes: 4, This 4-axis Elumatec SBZ-140 was manufactured in 2010. It features a maximum profile length of 7600 mm and a Y-axis travel of 850 mm, making it suitable for machining aluminum and thin-walled steel profiles. The machine includes an air-cooled spindle with a maximum speed of 24,000 rpm and a tool magazine capacity of 8 positions for efficient operation. If you are looking to get high-quality machining capabilities, consider the Elumatec SBZ-140 vertical machining centre we have for sale. Contact us for further details. • Application: Machining of aluminum and thin-walled steel profiles • Operating system: Windows • Machining capabilities: Milling, drilling, tapping, end machining • Continuous machining range: 0°–180° • Working area: Bodpfx Aozaq Eisn Uslh • Max. profile length with end machining: 7480 mm • Max. profile length without end machining: 7600 mm • Axis travels: • A-axis rotation: 0°–180° • A-axis programming increment: 0.1° • Axis speeds: • Y-axis: up to 60 m/min • Z-axis: up to 60 m/min • Spindle: Air-cooled • Tool magazine: 8 positions, co-moving for fast tool changes, expandable system • Machine features: Stationary profile machining, fast automatic tool changes, suitable for aluminum and thin-walled steel profiles, two machining zones (optional) • Pneumatic system: 7 bar required, approx. 180 l/min air consumption (with spray system) • Electrical data: 400 V / 3-phase / 50 Hz, main connection 63 A • Control panel: 15” color display, USB interface, LAN connection Additional equipment • Angle head set (0°, 90°, 180°, 270°) for end machining and double profiles • Pendulum mode / 2 working zones (optional configuration)

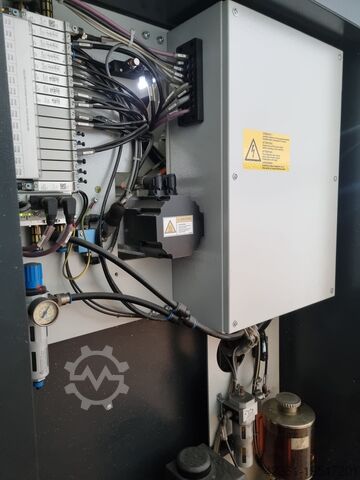

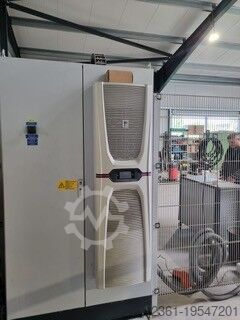

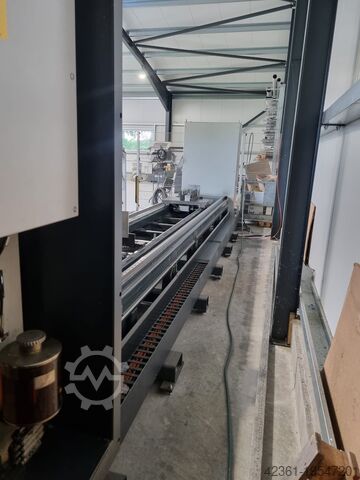

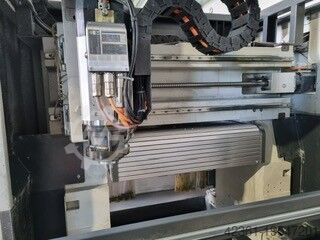

Year of construction: 2003, condition: used, 4-axis machining center with 8-way tool changer for aluminum or PVC profiles Max. Processing length: 6,400 mm Y-axis travel: 850 mm Z-axis travel: 650 mm Swivel angle A-axis: 0° - 180° Max. Speed 21,000 RPM Windows operating system minimum quantity spraying Tensioner detection and automatic displacement Chip conveyor belt in bed fume extraction Pendulum operation through two light barrier areas Loading is included in the price Weight: approx. 4,500 kg Very good condition Blsdpfx Ansuwq S Do Uoh

Year of construction: 2014, operating hours: 9,544 h, condition: excellent (used), functionality: fully functional, machine/vehicle number: 1400040735, Machining length max. 7,720 mm without face machining Machining length max. 7,600 mm with face machining Travel range X-axis 7,720 mm, feed rate max. 63 m/min Travel range Y-axis 845 mm, feed rate max. 60 m/min Travel range Z-axis 620 mm, feed rate 60 m/min Swivel range A-axis -90° 0° +90° Machining direction top/front/rear/ (left/right) Positioning accuracy +/- 0.1 mm Spindle power 11 kW; S1, water-cooled Spindle speed Max. 24,000 rpm Blodeza D Scopfx An Ush Tool interface HSK 63 F Tool changer automatic Tool storage locations in magazine 8 slots Automatic tool changer for angled head 1 slot Disc milling cutter diameter 120 mm Tool length (from taper) 150 mm Clamp displacement automatic Clamps 8 pieces Operating system Windows Production software EluSoft, EluCAM Compressed air connection 7 bar Electrical connection 400 V, 3-phase, 50 Hz, 25 A Air consumption per minute Approx. 185 l with spray Space requirement L x W x H 11,240 mm x 3400 mm x 2950 mm Weight 8200 kg

Condition: ready for operation (used), Year of construction: 2018, Max. profile length for 3 side machining: 7600mm, Y axis: 845mm, Z axis: 620mm, max. travel speed X axis: 63m/min, max. travel speed Y axis: 60m/min, max. travel speed Z axis: 60m/min, swivel range A axis: −90°, 0°, +90°, max. spindle speed: 24,000/min, spindle power: 11kW S1, machining direction: top/front/rear/left/right, positioning accuracy: 0.1mm/m, tool holder: HSK-63F, disc milling cutter diameter: 120mm, saw blade diameter: 180mm, software: eluCam, connected load: 30kVA, compressed air connection: 7bar, compressed air consumption: approx. 180l/min, length: 10,775mm, width: 3430mm, height: 2950mm, weight: 4.9t, operating hours reading: 1550h, standby: 6300h. Accessories: length measurement for profile bar, HSK-63F tool holder set, five chucks, eight collets, 2 layer length machining with second light barrier, camera system, additional stationary tool magazine for eight tools, barcode scanner for reading orders/machining operations and documentation. Was serviced regularly, an on-site inspection is possible. Bedozbb Rropfx An Uolh

Year of construction: 2010, condition: used, functionality: fully functional, machine/vehicle number: 1400040505, 4-axis workingcenter usefull length: 7.6 m Bledpfx Anoy R R Iys Uoh 12 pneumatic clamps 2 working zones

Condition: good (used), Year of construction: 2009, functionality: fully functional, Elumatec SBZ 140 Extended Length Version: 7.6 meters Approximate weight: 5,000 kg Automatic tool changer 2-section clamping system 2 pneumatic stops Safety hood Light curtains Automatic clamp detection Central lubrication Coolant spray system Chip trolley Conditioning unit Max spindle speed: 24,000 rpm Tool holder: HSK-63F, 8-position tool changer Max milling diameter: 80 mm Max saw blade diameter: 200 mm Blodpex E Ahzsfx An Ujh Compressed air: 7 bar The SBZ 140 is a 4-axis profile machining center (axes: X, Y, Z + A). Designed for aluminum and thin-walled steel profiles. 4-axis CNC machining center (X/Y/Z + tilt/rotation axis A) X-axis: approx. 7,900 mm travel Y-axis: approx. 850 mm travel Z-axis: approx. 650 mm travel A-axis (rotation/tilting): Freely programmable angle, –90° to +90° Axis traverse speed: X-axis up to approx. 65 m/min, Y- and Z-axis up to approx. 60 m/min (varies with configuration) Control: 4-axis CNC system, PC control, color display, USB & network connectivity. Software: eluCam. Automatic material clamps; automatic positioning via index pins Pendulum/shuttle operation (two work zones), improving production throughput time. In addition to milling and drilling, also tapping, sawing, and profile machining—all with stationary clamped profiles. Please note: The information on this page has been obtained and compiled to the best of our knowledge, but its accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend verifying all relevant details. Financial information VAT/margin: VAT: The price shown is exclusive of VAT (VAT deductible for business customers).

Year of construction: 2014, condition: excellent (used), functionality: fully functional, machine/vehicle number: 1400040685, Special Features: Retrofit to WIN10 – NEW – with 6 months warranty on computer and UPS Water-cooled spindle, 9.5 kW S1 3-layer machining possible Carefully cleaned and overhauled – excellent condition Description: Graphical operator guidance and graphical service support A-axis for stepless machining from above – swivel angle 180° HSC milling spindle for speeds up to 24,000 rpm Large machining width Standard with clamping detection and automatic clamp positioning 8 tool stations Complete profile machining with stationary profile bar Rapid basic positioning of the machining unit (up to 64 m/min) on the X axis Robust, low-wear direct drive Protective hood Digital axis controllers for all 4 axes with high-resolution measuring system 4-axis industrial PC control 2 1/2 D interpolation 15" TFT color screen Network connection RJ45 10/100 MBit Bledjy Ah Tkspfx An Ujh Hard disk Full PC keyboard Remote maintenance via TCP/IP (requirement: internet access) Technical Specifications: Max. machining length without frontal machining: 7,600 mm Max. machining length with frontal machining: 7,500 mm (tool-dependent) Travel X-axis: 7,700 mm Travel speed X-axis: 65 m/min Travel Y-axis: 850 mm Travel speed Y-axis: 60 m/min Travel Z-axis: 650 mm Travel speed Z-axis: 60 m/min Swivel angle A-axis, freely programmable in 0.1° increments: 0 - 180° Positioning accuracy: X-axis: +/- 0.1 mm / 1 m Y-axis: +/- 0.1 mm Z-axis: +/- 0.1 mm A-axis: +/- 0.1° Max. spindle speed: 24,000 rpm Max. spindle power: 9.5 kW S1 Tool holder: HSK F 63 Max. cutter diameter: 80 mm Max. milling cutter diameter: 200 mm Compressed air connection: > 7 bar Voltage: 400 V, 3 PH, 50 Hz Fuse: 35 A 8 tool stations Included Accessories: Tool setting gauge 8 pneumatic material clamps Automatic clamp detection Dosing spray device Protective hood Front light barrier Side safety fences (left and right) Central chip extraction 2 pneumatic material stops 3-circuit clamping system Length measurement for profile bar Barcode scanner with wireless transmission Special version with light barrier Additional options available on request: Programming software (office) eluCad, incl. hotline contract for 6 months 3D import license for one machine of category "L" Data import license package for one machine of category "L" CSV import license for one machine of category "L" Macro hashing license for one machine of category "L" Other information: The machine is delivered ready for transport, including transport locks, loaded onto truck Additionally, we optionally offer the following services on request: Installation and commissioning Machine training 4/5-axis training package for machine and eluCad

Condition: ready for operation (used), A 4-axis CNC bar machining center Elumatec is available. Version: 7.8m, travel X/Y/Z: 7720mm/845mm/620mm, max. machining length face/non-face: 7720mm/7600mm, positioning accuracy: +/-0.1mm/m, max. spindle speed: 24000rpm, tool holder: HSK-63F, tool stations: 8, clamping devices: 8, machine dimensions X/Y/Z: approx. 11250mm/3400mm/2950mm, weight: approx. 7400kg, operating hours according to production planning system: approx. 42200h. The machine has no hour counter. Documentation available. An on-site inspection is possible. Bljdey Aafxjpfx An Uoh

Year of construction: 2010, condition: used, 4-axis machining center with 8-way tool changer for aluminum or PVC profiles Maximum machining length: 3,100 mm Y-axis travel: 850 mm Z-axis travel: 650 mm Swivel angle A-axis: 0° - 180° Max. speed 21,000 rpm Weight: approx. 3,000 kg Blsdsxvp Nkspfx An Ujh Windows 7 operating system Minimum quantity spraying Clamp detection and automatic repositioning 6 pneumatic material clamps Loading is included in the price

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 1400040164, workpiece length (max.): 7,900 mm, spindle speed (max.): 21,000 rpm, The spindle motor was completely factory overhauled a few years ago and has only operated for approximately 100 hours since. TECHNICAL DETAILS Workpiece length: 7,900 mm Speed: 21,000 rpm Bledpfxexy Hcij An Uoh MACHINE DETAILS Pneumatics Pressure: 8 bar Electrical Data Connection type: 3/PEN Voltage: 400 V Frequency: 50 Hz Current: 24 A

Condition: excellent (used), Year of construction: 2011, The machine in a very good condition. 7,6 meters long, 2 working places. Possible to give a warranty up to 6 month. Bljdpfxeyia Ezo An Ueh

Condition: ready for operation (used), Year of construction: 2013, operating hours: 1,280 h, functionality: fully functional, travel distance X-axis: 4,200 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 650 mm, spindle speed (max.): 24,000 rpm, swivel angle A-axis (max.): 180 °, TECHNICAL DETAILS Max. machining length without end face processing: 4,200 mm Max. machining length with end face processing: 4,080 mm Travel distances X-axis travel: 4,200 mm Y-axis travel: 850 mm Z-axis travel: 650 mm Traverse speeds X-axis traverse speed: 65 m/min Y-axis traverse speed: 60 m/min Z-axis traverse speed: 60 m/min Swivel range A-axis: 0° - 180° Positioning accuracy X-axis positioning accuracy: ± 0.1 mm Y-axis positioning accuracy: ± 0.1 mm Z-axis positioning accuracy: ± 0.1 mm A-axis positioning accuracy: ± 0.1° Bledpfxow Svmis An Ueh Max. spindle speed: 24,000 rpm Spindle rated power: 7 kW S1 Tool holder: HSK-F63 Max. cutter diameter: 80 mm Max. saw blade diameter: 200 mm MACHINE DETAILS Air consumption: approx. 180 l/min Machine weight: 4,200 kg Operating hours Spindle hours: 1,280 h Machine hours: 13,066 h

Year of construction: 2016, operating hours: 10,900 h, condition: excellent (used), functionality: fully functional, The machine is in very good condition and fully operational. We don't need it anymore so it is for sale. It is regularly maintained. Dismantling and load on truck are included in price. Some other informations: 4-axis profile machining centre Designed for flexible and efficient machining of aluminium Autonomous clamp positioning Bodjwwtylepfx An Uelh Max. working lenght: 7.600 mm 8 pneumatic clamps Tool magazine with 8 tools capacity Spindle working hours 5100h Additional tehnical specifications available on request
