pressure: 6 t
distance between columns: - mm
stroke: 130 mm
table surface area: 1200x550x30 mm
throat: 500 mm
total power requirement: 1,1 kW
weight of the machine approx.: 400 kg
space requirements of the machine approx.: L:1,8xB:0,9xH:0,9 m
- operation through keyboard
- operating pressure: 10 to 600bar stepless adjustable
- work piece clamping area is adjusted through manual screwing of slide-counter holding plate
- sizes of counter holding plate: L: 500xW:300xH:35mm
universally usable due to double adjustable punching body
for corner angles with groove dimensions of 25 - 60mm and profile chamber offset
0 - 40mm
steplessly height-adjustable feelers, punching knives and backer inserts
stylus and punching body are provided with scales
retractable abutment for easy insertion of profiles,
self-adjusting when moving forward against the profile
hydraulic locking of the backer
pneumatic pressing operation via a lever system
ensures a synchronous punching...
Aluminium Corner Crimping Machine
Corner joining process by pressing the corners of aluminum profiles in large sizes and at high quality standards
The machine is easy to install and operate
Thanks to the magnetic blade adjustment system, easy blade adjustment can be made.
It has the possibility to change the blades simply and quickly.
High pressing power with hydropneumatic system
Opportunity to work according to different profile sections
Small frames can be joined thanks to the specially desi...

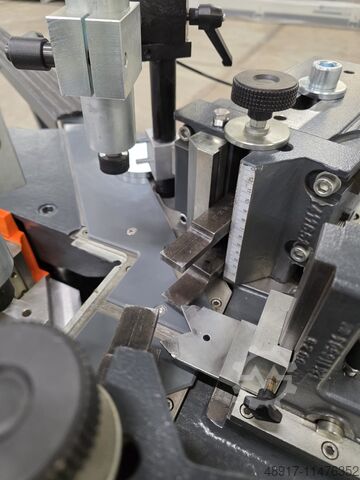

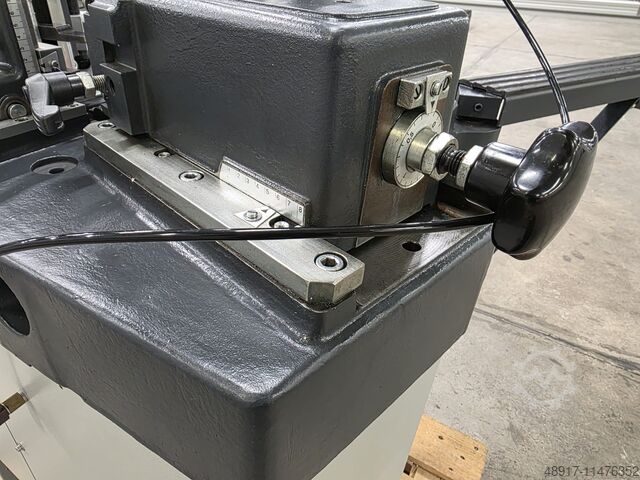

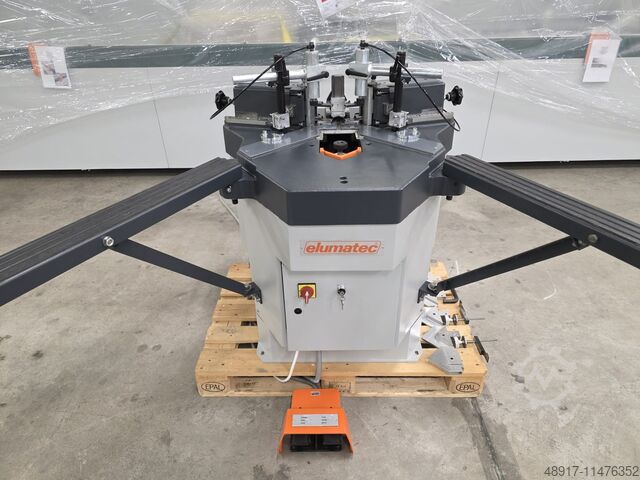

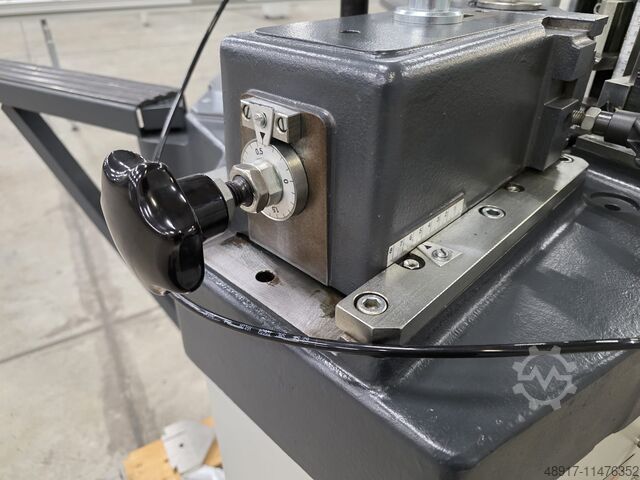

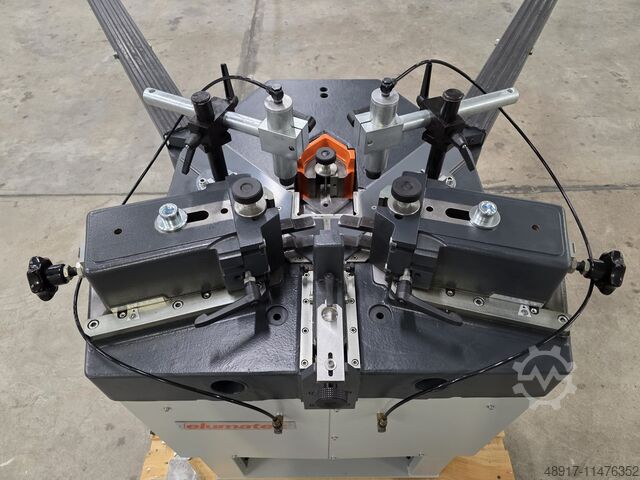

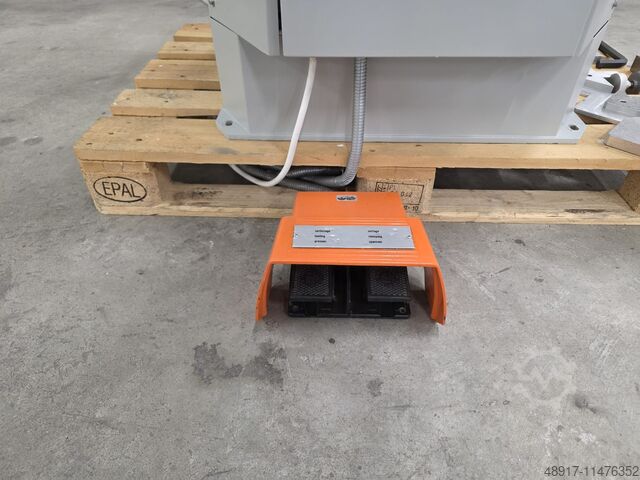

Corner crimper EP-124
Pressing height 140 mm
Pressing force 70 kN (7 t)
Power supply 230 V, 1~, 50/60 Hz
Compressed air supply 7 bar
Air consumption per work cycle 35 l
Length 1,100 mm, depth 950 mm, height 1,230 mm, weight 534 kg
Pressta-Eisele corner joining machine Pressta 5000 year 2013.
For high aluminum profiles in window and facade construction.
Profile height up to 190 mm under hold-down.
Punching height up to 150 mm.
Punching point for corner angle groove dimensions adjustable from 25 - 60 mm. Retractable two-part self-compensating abutment with max. 120 mm contact height.
Abutment stroke with hydraulic locking.
1 set of standard punching knives, infinitely adjustable in height.
Corner Crimping Machine EV175
Stable and exact corner connections. The EV175 combines economy with high corner stability. Also available as an H version for profiles up to 160 mm (otherwise 120 mm). The optimal machine for all commercially available profiles and corner angles.
- Robust design with large capacity for all commercially available profiles and corner angles
- Easy to set and convert according to scales
- Abutment that can be lowered into the work table
- Free ...
Max. Profile height: 120 mm Max. Press height: 105 mm The machine works as a pure corner connection press (see video). However, the hoses for the adhesive unit are closed due to a longer standstill and would have to be replaced if you want to use the function.
Spełnia normy CE.
It is a corner press machine designed for 90-degree joining machining of aluminum profiles.
2 Pieces of upper press and blade movement are pneumatic.
A mm ruler system is available for the height and progression of the blades.
The centering mitre wedge is automatic.
An evacuation button is available for precise adjustment.
For tightening the profile of pneumatic presses, 2 pedals are used.
In order not to damage the profile surfaces, there is polyamide solder.
Window Corner Crimper Precise and rational mitre assembling of window and door profiles.
Well proven machines with sturdy construction and high precision components.
Robust, reliable, many years of troublefree performance
Fast and secure mitre assembling without tedious adjustments
Suitable for most commercial profiles
High economic efficiency and accuracy
2 holding-down clamps
2 extending ar...
Press height 140 mm Pressing force 70 kN (7 t) Hydropneumatic drive Compressed air connection 7 bar Air consumption per work cycle 35 l Length 1,100 mm, depth 950 mm, height 1,230 mm Weight 550 kg
Crimping machine is designed for the digital crimping of aluminium profiles.
Controlled by 14 axes servo motors and 10’’ lcd screen.
Automatic positioning with the unique button for all series of profiles, diferently from similar crimping machines.
Automatic adjustment with servo motors of the knives
Automatic height adjustment of V wedge.
High production quality with automation system.
Programming memory controlled by computer for different series of wedge and profiles.
Corner jointing machine, corner jointing press, corner jointing press, corner jointing machine.
Pneumatic corner jointing machine (press) for window construction for connecting aluminum profiles. The German quality brand Schüco windows.
Nominal pressure of 8 bar.
Please contact us via mail.
Pressure 6 t
throat 70 mm
Table size L x W 200 x 120 mm
Air pressure, adjustable 6-7 bar
Dimensions L x W x H 400 x 400 x 1250 mm
Weight approx. 50 kg
Siegfried Volz Machine Tools
Rüschebrinkstr. 151 -153
D - 44143 Dortmund - Wambel
Hydro Pneumatic Corner Crimper
Hydro-pneumatic press operation
Press Strength 2 x 3.500 KP at 8 Bar
Press Depth 30 mm
Back centring positioner with
Pneumatic work piece clamping
3 sets standard crimping knives 3/5/7 mm
Air service unit
Profile support arms with Perdinax
Corner crimping machine FOM INDUSTRIE BAIHA L, new
- Max. profile height 200 mm
- Hydro-pneumatic drive
- Three pneumatic clamps
- Min/max height of blade position from 0 to 180 mm
- Kit for profile support
- Digital counters for profile positioning
Specification in PDF file
Machine on stock
