14
SPECIFICATIONS:
Weld Capacity: Solid Interface (Bar-to-Bar) 0.25” (6 mm)
Weld Capacity: Tubular Interface (Weld Area) 0.05”2 (32 mm2)
Maximum Thrust 550 lb (2.4 kN)
Maximum WK2 0.0064 lb–ft2 (0.0003 kg-m2)
Minimum WK2 0.0022 lb–ft2 (0.00009 kg-m2)
Maximum Spindle Speed 60,000 rpm
Spindle Drawbar Travel 0.2” (5 mm)
Tailstock Travel Distance 12” (305 mm)
Tailstock Drawbar Travel .50” (13 mm)
B7whkboarf
Main Pump Motor 3 hp (2.2 kw)
Spindle Drive Motor 1 hp (0.75 kw)
Electrical Full Load Amps 11...
6
Welding rotary table Protec KT 1200 Kg
Motor infinitely variable swivel and speed adjustable
Xlbcqlree
Motor 0,75 KW
with remote control
Foot switch
Table diameter 1200mm
height 1000mm
length 1400mm
width 1500mm
Speed from 0,05 to 0,5 rpm
6
table length 2400 mm
table width 1200 mm
3D welding table - 3D clamping devices - 3D precision welding table
Our welding tables are milled out of HT 300 cast iron pipes and then nitrided.
The thermochemical treatment process of nitriding offers a wear-resistant and
corrosion-resistant surface.
Compared to other products, the nitriding treatment can double the wear
resistance.
This precision welding table D 28 made of HT 300 cast iron is designed in such
a way
that it can withstand the ...
3
table length 2000 mm
table width 1000 mm
table height (lateral area) 100 mm
weight 354 kg
** SIEGMUND authorized dealer - all items available! **
Product description
- high quality steel S355J2 + N + plasma nitriding
- Material thickness approx. 11.5 - 13 mm
- Hole Ø 16 mm
- Holes surface 50x50 mm grid
- Rounded corners, edges and holes
- Height of side wall 100 mm
- Distance between holes in side wall 25 mm
- Including scaling on the surface
- Construction reinforced by ribs
- Grid lines en...
2
table length 2400 mm
table width 1200 mm
table height 200 mm
weight of the machine ca. 1,0 t
The table Professional 750 Article no. 2400x1200x200 mm has a diagonal hole arrangement on the table top and a parallel hole arrangement in 50 mm grid on the sides.
The holes have a diameter of 28 mm. The table has a material thickness of about 24.5-27 mm and is made of high quality steel S355J2 + N.
Grid lines at a distance of 100 mm make it easier for you to set up your device.
Crrchyr
The welding ...
5
Load capacity : 300kg
Bwn2pqiu
Four jaw chuck : 450mm
The machine is fully functional and ready for use. Please refer to the photos for the optical condition and other details.
1
Dimensions LxWxH: 2400x1200x150
Net weight: 740kg
Qi99f
payload: 4000kg
Table size 2400x1200x150 Load capacity 400 kg Weight 740kg Surface hardness up to 750 Vickers Hole arrangement in a 100 mm grid on the table top and a parallel arrangement of holes in a 50 mm grid on the sides The holes have a diameter of 22 mm The table is made of high quality steel S355J2+N, plasma nitrided and BAR coated The welding tables are provided with a scale as standard Protection against rust, scratches and spatte...
8
Welding rotary table Protarc Zaar 2.0 tons load capacity
table diameter 1,0 M
Height horizontal 0,9 M
Height tilted to center 0,73 M
Length 1,25 M
Width 1,25 M
Speed infinitely variable from 0.01 to approx. 1.1 rpm
Double foot remote control
Speed display
Machine is overhauled, new drive motor, newer control system
Bh2iudn
6
table length 4000 mm
Cbvvyv8v0g
table width 2000 mm
3D welding table - 3D clamping devices - 3D precision welding table
Our welding tables are milled out of HT 300 cast iron pipes and then nitrided.
The thermochemical treatment process of nitriding offers a wear-resistant and
corrosion-resistant surface.
Compared to other products, the nitriding treatment can double the wear
resistance.
This precision welding table D 28 made of HT 300 cast iron is designed in such
a way
that it can wit...
3
table length 2400 mm
Ben9uuw7jd
table width 1200 mm
table height (lateral area) 100 mm
weight 537 kg
** SIEGMUND authorized dealer - all items available! **
Product description
- high quality steel S355J2 + N + plasma nitriding
- Material thickness approx. 11.5 - 13 mm
- Hole Ø 16 mm
- Holes surface 50x50 mm grid
- Rounded corners, edges and holes
- Height of side wall 100 mm
- Distance between holes in side wall 25 mm
- Including scaling on the surface
- Construction reinforced by ribs
- Gr...
1
282 kg
-- mm
-- mm

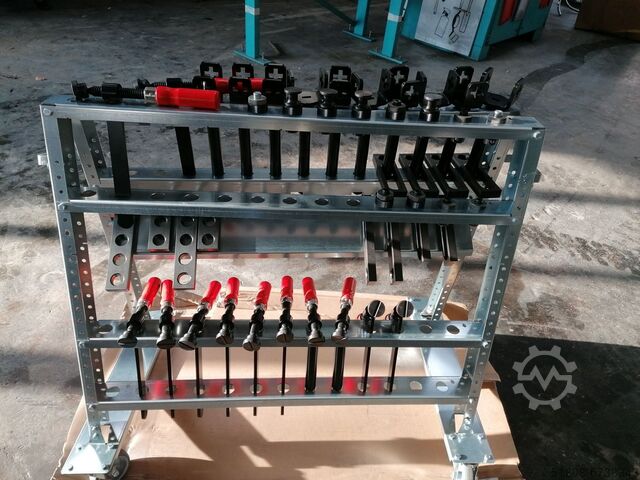

consisting of:
14 pieces Professional screw clamp 280610.N
10 pieces Professional screw clamp 280630.N
6 pieces Vario prism Ø 50 135 ° 280648.1.N
30 quick release bolts 280511
8 magnetic clamping bolts 60 280 740
10 pieces universal stop 150 L 280410.N
10 pieces universal stop 225 L 280420.N
4 pieces universal stop 500 S 280430.N
8 stop and clamping angles 175 L 280110.N
Pna77
2 stop and clamping angles 300 G 280152.N
2 stop and clamping angles 500 G 280162.N
1 piece stop...
2
More technical data on request
T9y0ilmx
5
table diameter 800 mm
table load 2 t
swivelling range --> 95 Grad
max. torque 1250 Nm
table rotation speed 2 U/min
Working height from to 550 - 1300 vertikal mm
Working height from to 650 - 1400 horiz. mm
total power requirement 2,53 kW
weight of the machine ca. 930 kg
dimensions of the machine ca. 1,85 x 1,66 m
Video available on our website.
Beodme8nju
Electric 400 Volt
Hand control panel
Hydraulic-device
Hydraulic positioner for permanent turning right + left, tilting...
10
5000 Kg load capacity
Rotating fixture cantilever and with counter bearing,
B792qq7e9k
braked for jig making, tool making
for assembly, welding, painting etc.
on request with foot remote control
right / left switchable
at activity with warning light
machine is technically in new condition, almost unused
weight 1200 Kg
dimensions:
Height to axle center 1580mm
mounting plate 400 x 400 mm
hole spacing approx. 240 x 240 mm
there are more machines of this type in different sizes in stock. Load capaci...
5
floor-plate length 2500 mm
floor-plate width 1300 mm
floor-plate height 300 mm
weight of the machine ca. 2800 kg
Dzm33val
Details:
Table length 2500 mm
Table width 1300 mm
Table height 300 mm
Machine weight approx. 2800 kg
Space requirement approx. 3 X 2 with underframe approx. 800 mm
4
table length 2400 mm
table width 1200 mm
table height (lateral area) 200 mm
weight 1069 kg
dimensions of the machine ca. 2400 x 1200 mm
** SIEGMUND authorized dealer - all items available! **
The welding tables are provided with a scale as standard.
Special set - including 28 tool set 3
Product description
- Through hardened tool steel X8.7 + plasma nitriding
- Material thickness approx. 24.5 - 27 mm
- Sidewall made of high quality steel S355J2 + N + plasma nitriding
Ben9u8ic7e
- Hole Ø 28 ...
2
table length 2400 mm
table width 1200 mm
table height 200 mm
weight of the machine ca. 1,0 t
Bu0nxqyg3o
The table Professional 750 Article no. 4-280030.P 2400x1200x200 mm has a hole arrangement in the 100 mm grid on the table top and a parallel hole arrangement in the 50 mm grid on the sides.
The holes have a diameter of 28 mm. The table has a material thickness of about 24.5-27 mm and is made of high quality steel S355J2 + N.
Grid lines at a distance of 100 mm make it easier for you to set u...
5
table length 810 mm
Gxza8w
table width 710 mm
weight of the machine ca. 110 kg
7
The price is for 2 pieces
Cbtk9ilxth
6
Welding rotary table KT 500, with 100mm through hole
Load horizontal 500 KG, tilted 250 KG
Power consumption AC 380V, 50 Hz
rotary motor AC 400W
table diameter 700mm
height 700mm, width 800mm, length 800mm
weight 155 KG
Tilt range stepless electric 0 - 90°.
Thcafi2v2
speed 0,3 - 2,5 rpm
Welding current transmission max. 500 A
Incl. hand remote control foot remote control
Surcharge:
Quick clamping - jaw chuck
diameter 400mm, 550.-€
CE mark/approval
9
table length 2400 mm
table width 1200 mm
table height 850 mm
Bp3hnwszof
Vertikal stroke 50 mm
weight of the machine ca. 0,74 t
dimensions 2,4 x 1,2 x 0,9 m
Welding table "SIEGMUND Professional 750 + plasma nitrided"
is made of high quality steel S355J2+N and is plasma nitrided.
Surface hardness max. 750 Vickers.
The table has a material thickness of approx. 17 - 19.0 mm.
The holes have a diameter of 16mm.
Hole arrangement in a 50 mm grid on the table top,
Side panels 150mm with parallel hole ...
table length 3000 mm
table width 1500 mm
table height (lateral area) 100 mm
weight 753 kg
** SIEGMUND authorized dealer - all items available! **
Product description
- Through hardened tool steel X8.7 + plasma nitriding
- Material thickness approx. 11.5 - 13 mm
- Sidewall made of high quality steel S355J2 + N + plasma nitriding
- Hole Ø 16 mm
- Holes surface 50x50 mm grid
- Rounded corners, edges and holes
- Height of side wall 100 mm
Ben9yhfazp
- Drill holes in the side wall in a diagonal g...
1
325 kg
-- mm
-- mm
consisting of:
14 pieces professional screw clamp
10 pieces Professional screw clamp 45 ° / 90 °
8 pieces Vario prism Ø 50 135 °
36 quick release bolts without groove, double
8 magnetic clamping bolts 60
12 pieces universal stop 150 L
12 pieces universal stop 225 L
4 pieces universal stop 500 S
12 stop and clamping angles 175 L
2 stop and clamping angles 300 G
2 pieces of stop and clamping angle 500 G
1 stop and clamping bracket 500 G with
Bualbnka
1 stop and clamping br...
3
serial number 210
Yuddj8
table load max. 500 kg
9
Welding rotary table Mecome 6 tons
6000 Kg load capacity
Gknvbmqh
with hand and foot remote control
Speed and inclination infinitely variable
0,02 rpm to 1,1 rpm
diameter 1500mm
height to center tilted 1000mm
height horizontal 1180mm
length 2000mm
width 1500mm
condition optically and technically perfect, runs very quietly
10
number 57 Positionen
22 mm
condition neu
weight 66 kg
Set 2 57 pieces, 22mm system, consisting of:
Clamps: 6 x 220610.1
Clamps 4 x 220630.1
Prism 4 x 220645.1
Bolt: 18 x 220511
Magnetic bolt 4 x 220740
Stop: 6 x 220410.N
Stop: 6 x 220420.N
Stop: 2 x 220426.N
Angle: 4 x 220110.N
Bp3hqmnmco
Angle: 2 x 220152.N
Accessory set. 1 x 223999
Price plus packaging and transport.
2
table length 2400 mm
table width 1200 mm
table height (lateral area) 100 mm
weight 466 kg
** SIEGMUND authorized dealer - all items available! **
Product description
Nlobh
- high quality steel S355J2 + N + plasma nitriding
- Material thickness approx. 11.5 - 13 mm
- Hole Ø 16 mm
- Holes surface 50x50 mm grid
- Rounded corners, edges and holes
- Height of side wall 100 mm
- Distance between holes in side wall 25 mm
- Including scaling on the surface
- Construction reinforced by ribs
- Grid li...
2
table length 2400 mm
table width 1200 mm
table height 200 mm
weight of the machine ca. 1,0 t
The table Professional Extreme Article no. 4-280030.X7 2400x1200x200 mm has a hole arrangement in the 100 mm grid on the table top and a parallel hole arrangement in the 50 mm grid on the sides.
The holes have a diameter of 28 mm and the table has a material thickness of about 24.5-27 mm. The table top is made of hardened tool steel.
The low-loaded sidewalls are still made of steel S355J2 + N for cost...
15
3 axis height adjustable welding turntable 10 tons load capacity
Hydraulically infinitely variable height adjustment
with hand and foot remote control
Function faultless, overhauled and tested
Diameter of the disc 1.8 meters
B2eqiwef0r
Height min horizontal 1,3 meter
Height max horizontal 2,5 meters
Height min to center tilted 1,0 meter
Height max to center tilted 2.2 meters
Length 3.5 meters, width 2.0 meters
table length 2400 mm
table width 1200 mm
table height (lateral area) 100 mm
weight 499 kg
** SIEGMUND authorized dealer - all items available! **
Product description
- Through hardened tool steel X8.7 + plasma nitriding
- Material thickness approx. 11.5 - 13 mm
- Sidewall made of high quality steel S355J2 + N + plasma nitriding
- Hole Ø 16 mm
- Holes surface 50x50 mm grid
- Rounded corners, edges and holes
- Height of side wall 100 mm
- Drill holes in the side wall in a diagonal grid
- Inclu...
2
table length 2400 mm
table width 1200 mm
Bu0n0gszqx
table height 200 mm
weight of the machine ca. 1,0 t
The Professional Extreme table Article no. 7 has 2400x1200x200 mm
a diagonal arrangement of holes on the table top and a parallel one
Hole arrangement in 50 mm grid on the sides.
The holes have a diameter of 28 mm and the table one
Material thickness of approx. 24.5-27 mm. The table top is made of hardened
Tool steel manufactured.
The little stressed side walls are still off for reasons of ...
table length 2000 mm
table width 1000 mm
table height (lateral area) 100 mm
weight 351 kg
** SIEGMUND authorized dealer - all items available! **
Product description
- Through hardened tool steel X8.7 + plasma nitriding
- Material thickness approx. 11.5 - 13 mm
- Sidewall made of high quality steel S355J2 + N + plasma nitriding
Ben9yqwgnq
- Hole Ø 16 mm
- Holes surface 50x50 mm grid
- Rounded corners, edges and holes
- Height of side wall 100 mm
- Drill holes in the side wall in a diagonal g...
1
145 kg
-- mm
-- mm
consisting of:
10x screw clamp standard 280610.N
6x screw clamp 45 ° / 90 ° 280630.N
4x prism Ø 50 mm 280648.1.N
24x quick release bolts 280511
Byphkg39zw
4x magnetic clamping bolts 280740
8x universal stop 150 L 280410.N
8x universal stop 225 L 280420.N
6x stop and clamping angle 175 L 280110.N
2x stop and clamping angle 300 G 280152.N
2x stop and clamping angle 500 G 280162.N
1x angle 280166 + 67.N
1x accessory set 283999
table length 3000 mm
table width 1500 mm
table height (lateral area) 200 mm
weight 1374 kg
** SIEGMUND authorized dealer - all items available! **
Product description
- Through hardened tool steel X8.7 + plasma nitriding
- Material thickness approx. 24.5 - 27 mm
- Sidewall made of high quality steel S355J2 + N + plasma nitriding
- Hole Ø 28 mm
- Surface holes in a diagonal grid
- Rounded corners, edges and holes
- Height of side wall 200 mm
- Drill holes in the side wall in a diagonal grid
-...
2
table length 3000 mm
table width 1500 mm
table height 200 mm
weight of the machine ca. 1,6 t
Bu0nikmh82
The Professional 750 3000x1500x200 mm table has a diagonal hole arrangement on the table top and a parallel hole arrangement in the 50 mm grid on the sides.
The holes have a diameter of 28 mm. The table has a material thickness of about 24.5-27 mm and is made of high quality steel S355J2 + N.
Grid lines at intervals of 100 mm make it easier for you to set up your device.
The welding tables...
table length 2000 mm
table width 1000 mm
Gvuefs
table height (lateral area) 200 mm
weight 699 kg
** SIEGMUND authorized dealer - all items available! **
Product description
- Through hardened tool steel X8.7 + plasma nitriding
- Material thickness approx. 24.5 - 27 mm
- Sidewall made of high quality steel S355J2 + N + plasma nitriding
- Hole Ø 28 mm
- Surface holes in a diagonal grid
- Rounded corners, edges and holes
- Height of side wall 200 mm
- Drill holes in the side wall in a diagonal ...
2
table length 3000 mm
table width 1500 mm
table height 200 mm
weight of the machine ca. 1,6 t
Gxld08
The table Professional Extreme Article no. 4-280040.X7 2400x1200x200 mm has a hole arrangement in the 100 mm grid on the table top and a parallel hole arrangement in the 50 mm grid on the sides.
The holes have a diameter of 28 mm and the table has a material thickness of about 24.5-27 mm. The table top is made of hardened tool steel.
The low-loaded sidewalls are still made of steel S355J2 + N f...
table length 1500 mm
table width 1000 mm
table height (lateral area) 100 mm
weight 255 kg
** SIEGMUND authorized dealer - all items available! **
Product description
B07dxcrv
- Through hardened tool steel X8.7 + plasma nitriding
- Material thickness approx. 11.5 - 13 mm
- Sidewall made of high quality steel S355J2 + N + plasma nitriding
- Hole Ø 16 mm
- Holes surface 50x50 mm grid
- Rounded corners, edges and holes
- Height of side wall 100 mm
- Drill holes in the side wall in a diagonal gri...
2
table length 3000 mm
table width 1500 mm
table height 200 mm
weight of the machine ca. 1,6 t
The table Professional Extreme Article no. 7 3000x1500x200 mm has a diagonal hole arrangement on the table top and a parallel hole arrangement in 50 mm grid on the sides.
The holes have a diameter of 28 mm and the table has a material thickness of about 24.5-27 mm. The table top is made of hardened tool steel.
The low-loaded sidewalls are still made of steel S355J2 + N for cost reasons. Grid lines at ...
2
table length 2000 mm
table width 1000 mm
table height (lateral area) 100 mm
weight 354 kg
** SIEGMUND authorized dealer - all items available! **
Product description
Ben9vrkofg
- high quality steel S355J2 + N + plasma nitriding
- Material thickness approx. 11.5 - 13 mm
- Hole Ø 16 mm
- Holes surface 50x50 mm grid
- Rounded corners, edges and holes
- Height of side wall 100 mm
- Distance between holes in side wall 25 mm
- Including scaling on the surface
- Construction reinforced by ribs
- Gr...
9
table diameter 560 mm
table load 0,3 t
swivelling range 0-90 Grad
table turning speeds 0,25 - 4 U/min
Torque max. 360 N/m
centre of gravity max. 150 mm
total power requirement 0,4 kW
C0pfqrp
The D-HB tilt and turn tables are very stable due to their heavy construction
and therefore particularly suitable for heavy and precise
Positioning activities and circular welding work.
Characteristics:
- Easy installation
- Increase in production is made possible
- Improvement of the welding quality thr...
10
table diameter 340 mm
table load 160 horizontal kg.
table load 100 vertikal kg.
turning speeds 0,6 - 6,0 U/min
swivelling range 0 - 90 Grad
bore 60,0 mm
motor 230 Volt
weight of the machine ca. 56 kg.
range L-W-H 385 x 340 x 375 mm
Furnishing:
- The table can be adjusted at an angle of 0 to 90 degrees
tilt and jam
- Start / stop via a location-independent foot switch.
- Direction of rotation can be selected right / left.
- Adjustable rotation time
- The turntable has a 60 mm hollow shaft
- T...
5
table diameter 350 mm
table load 0,1 t
swivelling range 0-90 Grad
Pcn32
table load horiz. 100 kg
table load vert. 50 kg
boring diameter 30 mm
table turning speeds 0,5 - 5 U/min
voltage 230 V
total power requirement 0,2 kW
weight of the machine ca. 0,2 t
dimensions of the machine ca. 0,5 x 0,5 x 0,5 m
Welding table with hollow shaft D-DWP
Tilt and turn tables with bore for turning, tilting and welding small workpieces
from 100 kg.
- Rotation and tilt axis
- Infinitely variable speed
- Compact...
10
total power requirement 230 Volt
table diameter 300 mm
table load 100 Horizontal kg
swivelling range 0 - 90 Grad
turning speeds 0,2 - 2,0 U/min
turning speeds 1,2 - 12,0 U/min
bore 20,0 mm
weight of the machine ca. 50 kg
dimensions of the machine ca. 480 x 325 x 470 mm
Furnishing:
- Precise drive unit with face plate, on a stable floor stand.
- clockwise / counterclockwise
- 2 speed series, stepless
- Swivel range from 0 ° - 90 °. Manual tilt
- DC gear motor with worm gear, infinitely variabl...
1
51 kg
-- mm
-- mm
Mwc0a0
consisting of:
4x clamp 280610.N
2x clamp 280630.N
2x prism 280648.1.N
12x bolts 280511
4x stop 280410.N
4x stop 280420.N
2x angle 280110.N
2x angle 280152.N
1x accessory set 283999
10
table diameter 340 mm
table load 290 horizontal kg
table load capacity 190 vertikal kg
turning speeds 0,6 - 6,0 U/min
spindle bore 60,0 mm
swivelling range 0 - 90 Grad
Djkjkcr
weight of the machine ca. 62 kg
dimensions of the machine ca. 380 x 340 x 425 mm
Furnishing:
- The table can be tilted and clamped at an angle of 0 to 90
- Start / stop via a location-independent foot switch.
- Direction of rotation can be selected right / left.
- Adjustable rotation time.
- The turntable has a 60 mm ho...
1
92 kg
-- mm
-- mm
Ecz7di37
consisting of:
6x clamp 280610.N
4x clamp 280630.N
4x prism 280648.1.N
18x bolts 280511
4x magnetic bolts 280740
6x stop 280410.N
6x stop 280420.N
4x angle 280110.N
2x angle 280152.N
2x angle 280162.N
1x accessory set 283999
