Used Fibro Rotary Table for sale (12)

Condition: like new (used), Year of construction: 2020, FIBRO FIBROTOR EM12 Rotary Indexing Table 6+ units available Manufacturer: FIBRO Model: FIBROTOR EM12 Type: Rotary Indexing Table / Indexing Drive Condition: Installed in IMA line that was never commissioned. Almost new condition Application: Automated production, assembly, machining, handling and indexing systems EM.12.0220.9.152.08.0.0.3 0008143150-010-01 Lhjdpfx Aez Nahbodcen Description FIBRO FIBROTOR EM12 rotary indexing table, designed for high-precision intermittent rotary positioning in automated manufacturing and production machinery. The FIBROTOR range is widely used in industrial automation applications where accurate, repeatable indexing and positioning of workpieces or tooling is required. The EM12 provides a robust mechanical indexing solution and is suitable for integration into automated assembly lines, machining systems, transfer machines, packaging equipment and other special-purpose machinery. Key Features: FIBRO FIBROTOR EM12 rotary indexing table Precision intermittent rotary indexing Robust industrial construction Suitable for automated production machinery Repeatable positioning Designed for continuous industrial operation Suitable for assembly, machining, handling and transfer applications Compact mechanical indexing solution FIBRO quality engineering Keywords: FIBRO, FIBROTOR, EM12, rotary indexing table, indexing table, rotary indexer, indexing unit, rotary table, indexing drive, automation, industrial automation, machine tool, assembly machine, transfer machine, CNC, manufacturing, production line, industrial machinery, precision indexing, mechanical indexer.

Condition: ready for operation (used), functionality: fully functional, No minimum price – guaranteed sale to the highest bidder! Loading: December 1st to December 10th. TECHNICAL DETAILS Rotary table Lhedpj Adz Ufefx Adcon Table diameter: 500 mm Number of grooves: 7 MACHINE DETAILS Manufacturer: Fibro Dimensions (L × W × H): 500 × 500 × 400 mm Weight: 150 kg

Condition: used, Year of construction: 2001, functionality: fully functional, NC rotary table Fibro 10.36.8 with face gear, year 2001 well maintained, very good condition, little used Ljdpfxoyg N Hrs Adcshn Pitch 120 teeth +/- 1" With hydraulic locking via face gearing, table top does not lift off Rotary table height 380 mm with substructure height 245 mm (total height 625 mm) Table size Ø 1180 mm Top table plate Ø 1300 mm, Table load approx. 5000 kg Table surface smooth, with dirt grooves with Siemens servo drive 1FT6105-8WF71-4EG2 and bevel gearbox Table speed max. 20 rpm with bevel gearboxes itot = 72 Tangential torque with motor operation 7200 Nm Total weight 3.800 kg without fixators, without installation and commissioning

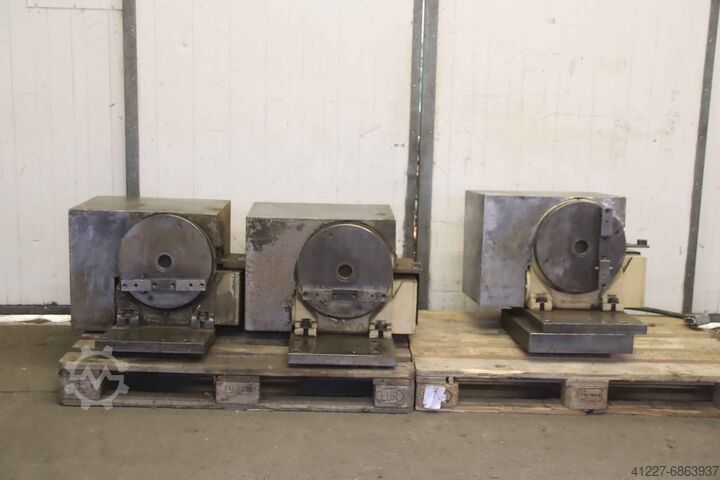

Condition: good (used), Reversible clamping device, 4th axis, rotary table, rotary indexing table, controlled rotary table, dividing head, dividing head, rotary indexing table, rotary coupling -Manufacturer: Fibro, Fibroplan rotary table with drive -Type: NC1.03.0340.1.1.04.04 -Table diameter: 340 mm -Clamping: hydraulic -Drive: Indramat servomotor type 112B-0-LD-4-C/180-A-0/Wi533LX/S011 -Number: 2x round table available (one of which has a base plate) -Price: per piece -Dimensions: 660/640/H550 mm (with base plate) -Weight: 420 kg (with base plate) /pc. Ledpfohvtcbsx Adcshn

Condition: like new (used), Year of construction: 2013, functionality: fully functional, overall weight: 50 kg, In very good condition, includes an aluminum round table. Tabletop dimensions: 220 mm. Drive motor: standard brake motor. Lhodozgvwcspfx Adcsn Weight: 50 kg.

Condition: used, Year of construction: 2005, functionality: unexamined, overall weight: 1,500 kg, total length: 1,250 mm, total width: 1,250 mm, plate height: 150 mm, plate width: 1,250 mm, plate length: 1,250 mm, Equipment: type plate available, FIBRO 4x Precision Changeable Pallet 1250x1250 mm / 1,500 kg / Pallet Changing System Description Manufacturer: FIBRO GmbH, Rotary Table Division Type: Precision Changeable Pallet 1,250 × 1,250 mm Year of Manufacture: 2005 Quantity: 4 pieces Package consisting of 4 solid FIBRO precision changeable pallets from an industrial pallet changing/rotary table system. The pallets were used as a machine interface and as a carrier for large workpiece clamping devices. These are not simple clamping plates, but precisely manufactured changeable pallets with indexing, pallet clamping, and integrated pneumatic transfer. Each pallet has a clamping surface of 1,250 × 1,250 mm and a weight of approximately 1,500 kg. The top surfaces have different, customer-specific hole patterns. The pallets are equipped on the underside with two mounted and aligned indexing rings each. The clamping slots have hardened strips as running and contact surfaces. In addition, each pallet has a pneumatic connection with one line. Technical Data - Quantity: 4 pieces - Dimensions per pallet: 1,250 × 1,250 mm - Height: approx. 150–160 mm - Weight: approx. 1,500 kg per pallet - Total weight of 4 pallets: approx. 6,000 kg Lodpozxz Azsfx Adcjhn - Pneumatic connection: 1 line per pallet - Indexing: P1 / P2 - Underside: 2 indexing rings per pallet - Clamping slots with hardened strips - Thread/hole patterns including M12, M20 and M30 - Customer-specific hole patterns - Original drawings or technical FIBRO documents available According to the manufacturer's data, the documented plan parallelism of the pallet top to the bearing surface is 0.025 mm, and the flatness is 0.040 mm. These are explicitly the original manufacturer's values and not a current measurement of the used pallets. Factory/Serial Numbers 1817739 / 002 1817739 / 003 1817739 / 004 1817739 / 005 The pallets have partially different article numbers and different customer-specific hole patterns. Accessories: The offer also includes the mechanical guide and rail set of the pallet changing system shown in the pictures, consisting of roller/guide rails, solid guide and support strips, stop and guide elements, and the existing fastening parts. Condition: Used condition from industrial application. The clamping surfaces show corresponding machining, clamping and wear marks, as well as some discoloration and superficial corrosion marks. The existing hole patterns originate from the original application. A current metrological check of the geometric accuracy has not been carried out. Sold in the existing condition and scope of delivery as shown in the pictures.

Condition: ready for operation (used), Fibro EM 13.0280.8.122.08.0.0.3 rotary indexing table, serial number: 1656041/1 + Rehfuss FG691 planetary gearbox, serial number: 519035, used, normal signs of wear, 100% functional, scope of supply as shown in the photos. Lhedsi D U Nyopfx Adcon

Condition: ready for operation (used), Year of construction: 1973, machine/vehicle number: 22123, functionality: fully functional, pressing force: 315 t, table width: 1,500 mm, table length: 2,500 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Pressing force: 315 t Table width: 1,500 mm Table length: 2,500 mm Maximum working area: 883 mm MACHINE DETAILS Lhsdpsz Izcwsfx Adcon Dimensions: 3.0 m x 1.6 m x 4.5 m EQUIPMENT Separate hydraulic unit Control panel

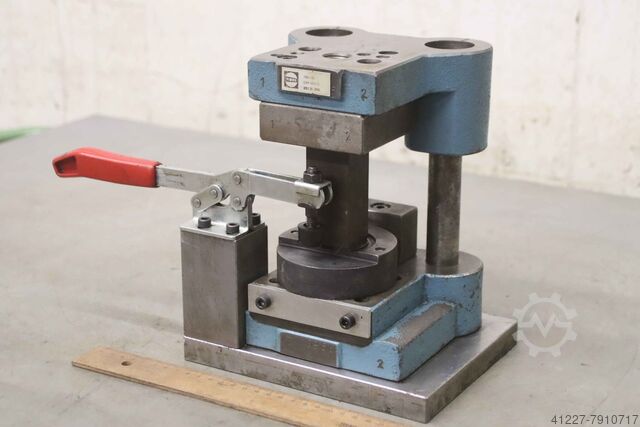

Condition: good (used), 2-column punching tool, separating tool, punching tool, punch, punching die, punching stamp, column frame -Manufacturer: Fibro stamping tool column frame -Type: 201.31.056. DIN 9822 C 100x80 -Die stamp: see photos Lhedjivql Sepfx Adcsn -Dimensions: 340/160/H235 mm -Weight: 23 kg

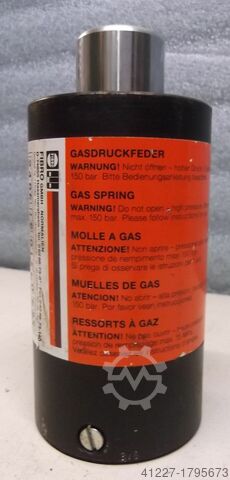

Condition: good (used), Shock absorber, gas spring, shock absorber Lsdpfxeb A Hw Ro Adcjhn -Shaft: Ø 50 mm -Shaft length: 28 mm -Bore: M8 -Quantity: 5 pieces available Price: per piece -Dimensions: 95/170 mm -Weight: 6.6 kg/piece

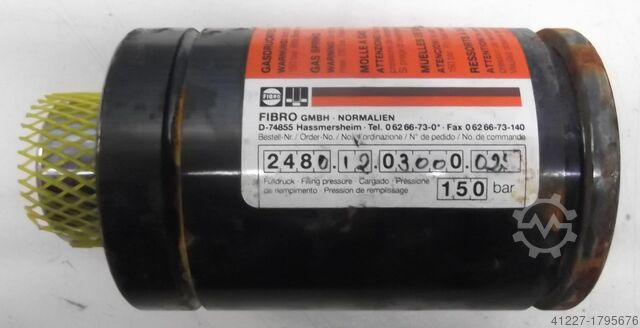

Condition: good (used), Shock absorber, gas spring, shock absorber -Shaft: Ø 35 mm -Shaft length: 28 mm -Bore: M8 -Quantity: 8 pieces available Price: per piece -Dimensions: 75/160 mm -Weight: 3.8 kg/piece Lhjdpfx Adeb A Hw Hocon

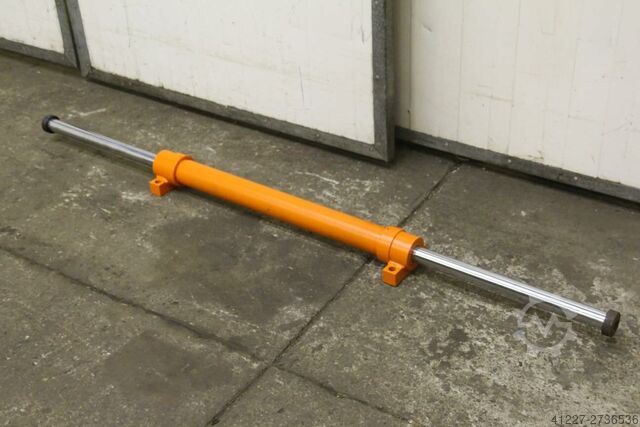

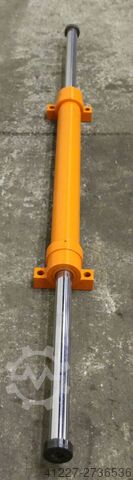

Condition: used, Shock absorbers, gas pressure springs, shock absorbers, start-up dampers, impact absorbers -Shaft: Ø 39 mm -Shaft length: 470 mm -Recording hole: Ø 17 mm -Number: 4 pieces of shock absorbers available -Price: per piece -Dimensions: 1755/140/H100 mm -Weight: 24 kg/piece Lodocxup Eopfx Adcjhn
