High-speed radial drill

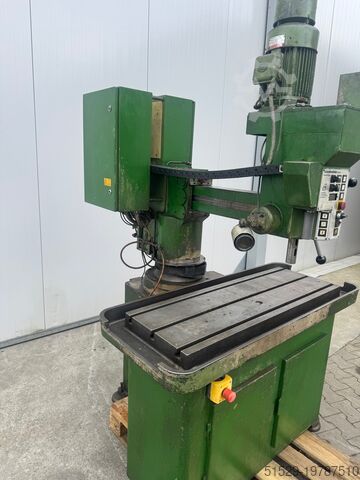

Otto Müller SR 28

Condition: good (used), Work table 54 cm x 135 cm Shipping dimensions: Width: 135 cm Length: 160 cm Hodpfx Ajw N N D Asf Uji Height: 230 cm

Condition: good (used), Year of construction: 2000, functionality: fully functional, drilling capacity: 40 mm, quill stroke: 200 mm, quill diameter: 80 mm, Machine design - Work table 1800 x 600 mm with 4T-slots - Boom travel 1050 mm - SK 40 drilling spindle with tool clamping device - Infinitely variable speed programming - Infinitely variable quill feed via three-phase servo motor - 2 T-slots 18 mm on the machine base at the rear - 2 T-slots 18 mm on the left machine base frame - Thread cutting device - Central lubrication - Coolant device - Machine light - CE marking - Safety device - USB interface Dimensions and travels Tool holder SK 40 Column diameter mm 195 Table dimensions mm 1800 x 600 Number of T-slots 4 Distance between T-slots mm 125 Quill stroke (Z-axis) mm 200 Column stroke (W-axis) mm 410 Distance spindle bottom edge - min mm 70 Table top edge max. mm 680 Distance spindle bottom edge - min mm 970 Floor max. mm 1580 Drilling radius mm 540 - 1590 Worktable height mm 900 Cutting values Drilling capacity into solid St 60  40 GG 22  50 Thread cutting St 60 M 36 GG 22 M 42 Main spindle drive AC motor, frequency-controlled kW 5.5 at 100 % duty cycle. Speed range: min -1 15 - 2800 Torque Nm max. 250 constant from min -1 15 - 2000 Feed drives X-axis - AC - servo motor kW 0.25 Y-axis - AC - servo motor kW 0.25 Z-axis - AC - servo motor kW 4.50 W-axis - AC - servo motor kW 2.50 Rapid traverse speeds (X/Y/Z): m/min. 7.5 / 7.5 / 5 Hedpfx Aeu Aa I Sof Uji Rapid traverse speeds (W): m/min. 3 Feed rates stepless mm/min 5 - 2000 Accuracy Positioning accuracy X-, Y-axis to 1200 mm mm ± 0.075 Electrical data Operating voltage / frequency V / Hz 400 / 50 Control voltage V 24 Hydraulic unit for clamping kW 0.75 Total connected load kVA 13.0 Weight Danumeric 440 (without packaging) with table 1800 x 600 mm kg 2800 CNC control Axes: 4 (X, Y, Z, W), expandable Processor: 32-bit CPU Screen: TFT flat screen, backlit, easy to read from all sides legible from all sides, 215 x 160 mm Position information: Cartesian or polar, absolute or incremental measurements, Unit of measurement: mm or inch or in degrees Interpolation: 2 axes (X, Y) Technology database: tool management, tool suggestions according to machining type, material-dependent cutting data suggestions Tool management: max. 500 tools Subroutine technology: yes Machining cycles Standard software options: Programming in dialog, 38 zero offsets, rotation and mirroring, teach-in for X, Y, Z, restart in program with selection functions for targeted entry Zero point determination: Cycles for determining zero points by manually probing the workpiece for by manually probing the workpiece for: - any clamped rectangular parts - any clamped round parts - Mediation of cast and flame-cut parts - Angular position detection for round parts by touching reference edges or surfaces Test graphics Graphic display of drilling patterns Data interfaces USB

Condition: used, Year of construction: 1976, Technical details: bore capacity in steel (diameter): 32 mm arm length: ./x. . 400 / 50 mm drill head horizontal traverse: 400 mm drilling head vertical adjustable: 400 mm bore spindle stroke: 150 mm spindle taper MT: 4 grinding spindle speed: 100 - 2000 U/min Arm length: Spindel: min./max: ca. 400 / 50 mm cantilever adjustment vertical: 850 mm cantilever adjustment horizontal: 400 mm arm: Länge: 1360 arm horizontal: schwenkbar mm/min number of revolutions per minute of drill spindle:: 100...2 step U/min. feed steps: 0,1 / 0,2 / - step mm/U Table dimensions: 00 x 510 mm distance table - lower edge spindle: min./max.: 350 / 800 mm total power requirement: 2,4 kW weight of the machine ca.: 1,8 t dimension machine xH: 1,3 x 1,3 x 2,25 m Equipment: 2x foot rail Hjdpfxowi Iqvo Af Uoi Attachment option for a vertical table Accessories: Various clamping devices *

Condition: good (used), Year of construction: 1992, machine/vehicle number: 2355-2, Offer 24416 Technical data: - Drilling capacity into solid steel ST 60 28 mm - Drilling capacity GG 25 40 mm - Thread cutting ST 60 M 30 - Thread cutting GG 25 M 40 Hedpfx Afeufw S Re Uei - Drill spindle holder MK 3 - Spindle diameter 50 mm - Quill stroke 150 mm - 18 drilling spindle speeds 45 - 2240 rpm - 4 drilling feeds 0.1 - 0.45 mm - min. / max. distance spindle - table 300 / 700 mm - Drilling radius min / max 305 / 1005 mm - Table height 820 mm - Table size 1200 x 600 mm - Drive 400 V / 6 kW - Space requirement approx. W 1300 x H 2500 x D 2300 mm - Weight approx. 1500 kg - with: - thread cutting device - hydr. columns + boom clamping - Coolant device - Vertical T-slots on the left side of the machine
