Gear Shaping Machine

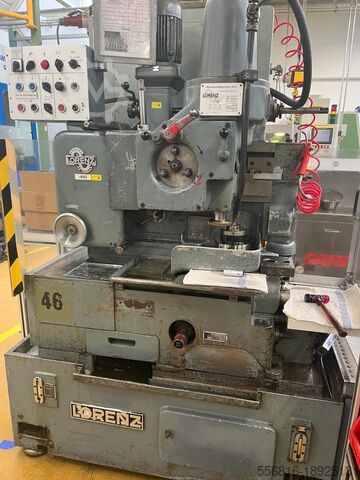

LORENZ SN 4

Condition: used, max. wheel diameter 180 mm gear width 45 mm max. module 4 min. module 0,5 stroke length max. 0 - 52 mm spindle taper innen MK 4 table diameter 160 mm table bore diameter 75 mm no. of strokes 355 - 630 Hub/min feed range 0,008 - 0,4 mm/Hub dimensions of the machine ca. 2,30 x 1,50 x 2,36 m power capacity 6 kW weight of the machine ca. 2.500 kg With rack and pinion unit Change gear set Year of construction: Approx. 1981 Podstycg Sepfx Al Hegk

Condition: used, Year of construction: 1974, max. wheel diameter 400 mm gear width 75 mm total power requirement 25 kW weight of the machine ca. 7 t L O R E N Z (Germany) High Performance Automatic Gear Shaper Model LS 400 Year 1975 Serial No. 12 592 _____ External gear, max. Ø 400 mm (possibly larger) Internal gear dia. 350 mm Gear width, max. 75 mm Module range 0.5 - 6 Length of stroke 82 mm Adjustment of stroke position 0 - 100 mm Distance between shaper spindle and machine body 250 mm Spindle taper MK 5 No. of strokes, roughing/finishing process 118 - 1,000 per min Pgsdpfxjt Hww Dj Al Hok Table size 400 mm Table bore 125 mm Mounting height between table and shaper head 190 / 290 mm Axial travel of tool slide, approx. 295 mm No. of teeth, approx. 12-150 Feed range, tooth depth 0.01 - 0.063 mm/stroke Feed range, rotary feed by Tool-Ø 125 0.125 - 3.15 mm/stroke Spindle drive, approx. 19 kW Total electrical load, approx. 25 kW - 380 V - 50 Hz Weight 7,000 kg Accessories / Special Features * Hydrostatic straight guides with separate hydraulic aggregate. * Built-in raiser plate approx. 100 mm to increase height of shaper head. * Hydraulic universal workpiece clamping device built by RINGSPANN to clamp ring shaped workpieces on the inner diameter with various inserts to accommodate different workpiece diameters. * Stepless Regulation of number of strokes for improving roughing and finishing process * Automatic changeover of number of strokes, and automatic feed changeover for roughing and finishing work in up to 3 cuts. * Automatic and motor-driven fixing of shaping stroke in the upper position after work is finished. * Separate switch and control cabinet. Two-hand start. * Coolant equipment with magnetic chip conveyor and chip collection container. * Various change gears, shaping tool holders, etc. Condition : Satisfactory to Good. Machine can be inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract. Thank you for your interest. We always have a good selection of gear machines on stock. Please let us know what you need.

Condition: ready for operation (used), functionality: fully functional, Used gear grinding machine Niles ZSTZ 630i. The machine is fully functional; a video can be provided upon request. Podpfxexzfugs Al Hjgk

Condition: new, Year of construction: 2022, functionality: fully functional, turning height: 2,000 mm, workpiece weight (max.): 12,000 kg, turning diameter over cross slide: 2,500 mm, turning diameter: 2,500 mm, faceplate diameter: 2,000 mm, total height: 7,260 mm, total width: 6,280 mm, total length: 4,500 mm, rotational speed (max.): 200 rpm, rotational speed (min.): 1 rpm, torque: 40,400 Nm, spindle speed (min.): 1 rpm, warranty duration: 24 months, overall weight: 45,000 kg, faceplate torque: 40,400 Nm, Equipment: documentation/manual, rotational speed infinitely variable, Vertical turret lathe in flat-guided design with extensive full equipment: WITH MILLING FUNCTION - Milling spindle 2000rpm SK50 22 KW - C - axis 0.001 degrees - Complete housing - Chip conveyor - Internal coolant supply - Fanuc control - 24 tools - 12 milling tools - Manual Guide I - Tool holder package Pjdpfx Aovtytxol Hjgk - Electronic handwheel - Signal light - Manual 3-jaw faceplate 2000mm - Renishaw tool measurement - Renishaw workpiece measurement - Glass scales in X and Z axes - 24 month guarantee

Condition: excellent (used), Year of construction: 1999, max. width of grinding wheel 15 mm max. dia. of grinding wheel 110 mm max. module 0,5 - 10 Pjdpfx Alovibc He Hsgk pressure angle 15 - 25 ° turning speeds 2800 U/min total power requirement 0,4 kW weight of the machine ca. 0,02 t dimensions of the machine ca. 0,4 x 0,2 x 0,2 m For profiling grinding snails for tooth flank grinding machines. Finished and after-profile on the following models: NZA, AZA, RZ 300 E, RZ 301 S, Rz 362 A, AM, ... Adjustment plate on the right with micrometer screw adjustment axial Radial adjustment plate with micrometer screw adjustment 2 precision motor spindles to absorb the diamond discs.

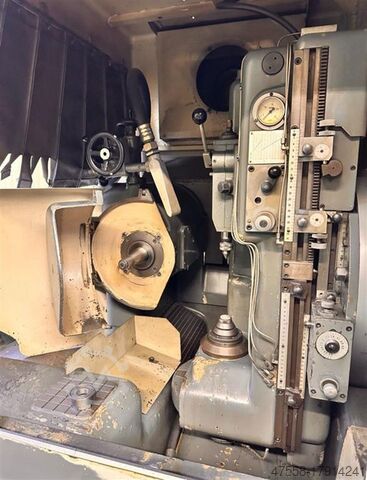

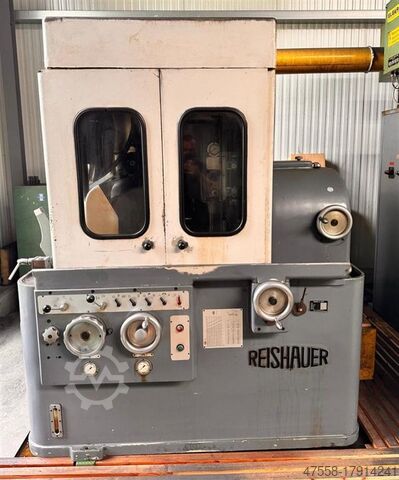

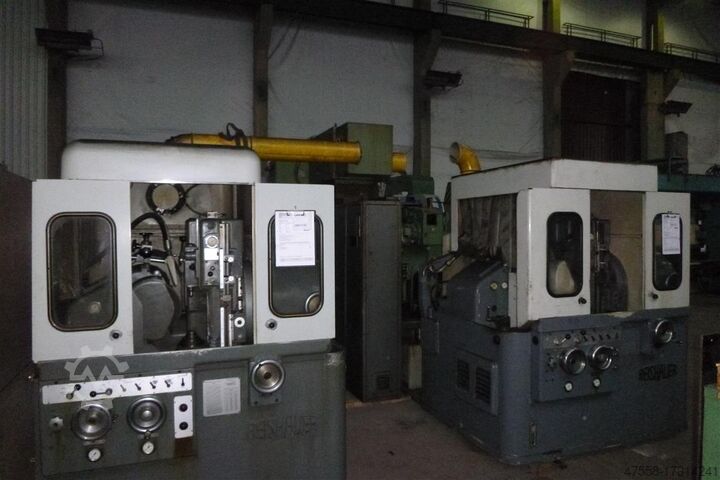

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t dimensions of machine: 1800x1850x2500 mm dimensions electric cabinet: Nr. 1: 1930x400x1920 mm dimensions electric cabinet: Nr. 2: 800x230x1950 mm dimensions:: Abluftanlage: 1400x700x560 mm dimension cooling device LxWxH: 1,2 x 1,0 x 0,45 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` Podpfx Aovc Apbsl Hsgk max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 77x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Condition: good (used), Year of construction: 1975, max. wheel diameter 630 mm y-travel 560 mm gear width 180 mm max. module 8 min. module 1 workpiece dia. 750 mm table diameter 450 mm draw-in arbor diameter 58 mm spindle stroke 200 mm adjustment range 230 mm distance between table/spindle 225-450 mm taper Morse 4 down feeds 0,03 mm/Hub roll feed 10n: 0,18-0,74 mm/Hub no. of strokes 12n: 47-300 Hub/min electrics - voltage/frequency 380/50 V/Hz Podpfxsyb Sx Ts Al Hegk weight of the machine ca. 5500 kg The machine was raised by 100 mm.

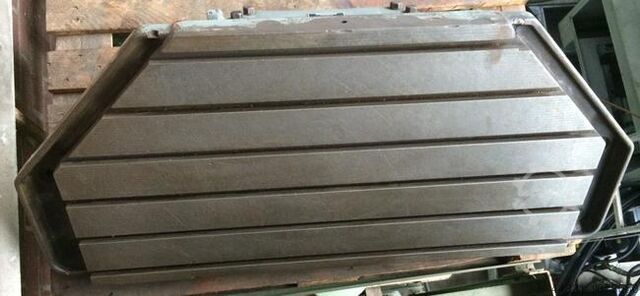

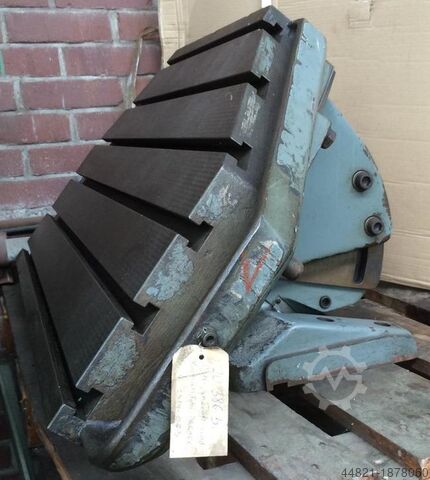

Condition: used, machine/vehicle number: 2414-0075 bzw. 2314-0703, table clamping surface: 520 x 1000 mm 6 clamping grooves: 16 mm groove spacing: 90 mm Clamping plate horizontally rotatable to the right and left by: 45° each tiltable from/to the machine by: 15° each swivelling to the right and left: 15° each permissible load movable approx.: 1000 kg permissible load rigid table approx.: 1500 kg Pgodpfxjb Hmbpe Al Hjk weight: 376 kg Suitable for milling machines DECKEL: FP 3 L; FP 3 LG; FP 3 LV

Condition: as good as new (ex-display), Year of construction: 2025, Offered is a conventional cylindrical grinding machine EMAG W 11 Evolution. The conventional external-internal face cylindrical grinding machine fits perfect for single parts, prototypes and small batches. Pjdpfx Alotmrlhs Hjgk The basis of the EMAG W 11 Evolution machines is the established KARSTENS cylindrical grinder concept. No hydraulics, axis drives with servo motors and screw spindle drive, technology entry of the grinding parameters via touchscreen, automatic dressing with compensation, automatic axis release. TECHNICAL DATA Workpiece lenght: max. 1,500 mm Center height: 200 mm | Ooption 320 mm Workpiece weight: 250 kg External grinding wheel diameter: max. 500 x 80 mm Workpiece headstock: MK4 | Option MK5 / MK6 Tailstock: MK 4 Price, delivery time and equipment of the machine according to agreement.

Condition: used, Year of construction: 1983, Technical details: internal diameter: 140 mm total power requirement: 5,5 kW weight of the machine ca.: 1,8 t dimensions of the machine ca.: 2,8 x 2,5 m max. workpiece weight: 15 kg Pgedpor R Elhefx Al Hek clamping dia. max.: 140 mm clamping length: 250 mm max. bore diameter to be ground: 0,8-90 mm min./max. hole to grind: 160 mm centre height: 90 mm workpiece spindle stepless: 112-1000 U/min
