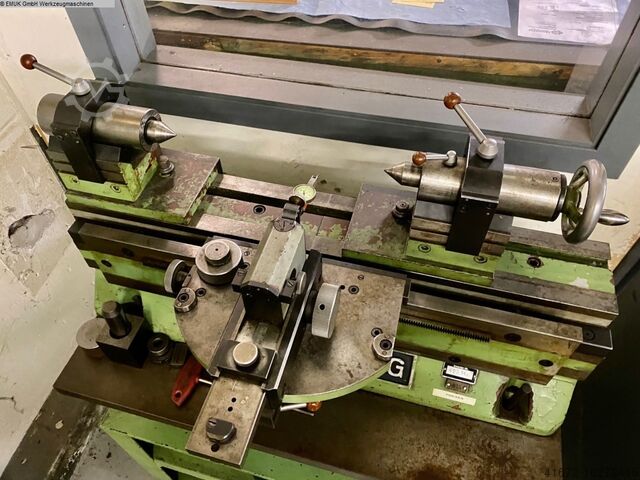

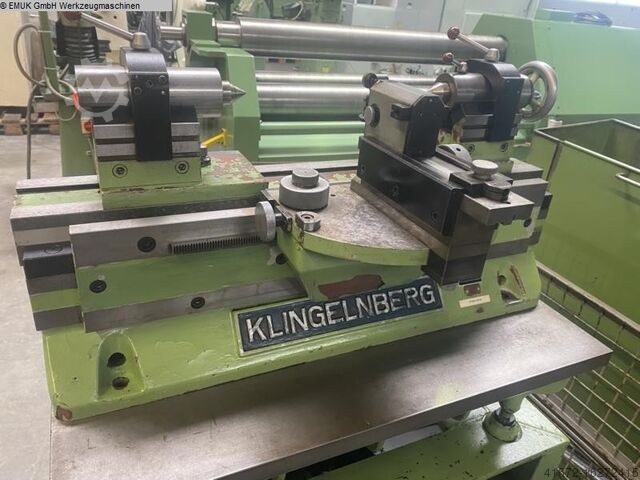

Bevel Gear Testing Machine

KLINGELNBERG PS 750

Condition: used, max. wheel diameter 0-200 mm max. module 25 min. module 0,5 Ledpfxstuxa Uo Ahwjhc

Condition: excellent (used), Year of construction: 2014, workpiece weight (max.): 16 kg, input voltage: 230 V, year of last overhaul: 2025, SCHENCK TBsonio High Speed Balancing machine for turbocharger core assemblies Lhodpsq Nin Uofx Ahwsc

Condition: used, Year of construction: 2008, ratio of transmission 10:1 min. number of teeth 3 max. number of teeth 200 Lsdovxwmtspfx Ahwehc range of tooth size 20 mm tooth width max. 58 mm spindle speeds (infinitely variable) 6000 U/min work piece spindle speed 1200 U/min diameter of tools max. 230 mm diameter of tools min 69,85 mm x-axis 325 mm y-axis 350 mm z-axis 470 mm b-axis + 90,1 / - 1 ° work piece table - Ø 212,71 mm Control SIN 840 D SIEMENS total power requirement 75 kW weight of the machine ca. 10.000 Kg dimensions of the machine ca. 6,10 x 4,40 x 3,30 m Internal probe Renishaw LP2 (axis X2;Y2) Hoffmann coolant filter system HSF 100SE/K (built in 2008) Tank capacity 2500L VT oil mist filter system

Condition: excellent (used), Year of construction: 2014, max. wheel diameter 400 mm gear width 600 mm max. module 20 min. module 0,1 Control Frenco weight of the machine ca. 1,2 t Lhedpfx Ahount Uzjwjc Originally a Klingelnberg measuring machine, rebuilt and modernized in 2014 by Frenco. Windows 10, Frenco FGI-Pro software, current maintenance Double flank rolling test.

Condition: used, Year of construction: 1998, max. wheel diameter 200 mm gear width 140 mm max. module 5 workpiece length - max. 400 mm external diameter min. 20 mm control Siemens Sinumerik max. tool diameter 270 mm Max. mould width 50,8 mm Distance of shafts min/max. 120/230 mm axial cross angle -18 / -21 ° shaving wheel spindle turning speeds max. 400 U/min Ledpfxjvtgq Rj Ahwshc weight of the machine ca. 5,5 t dimensions of the machine ca. 3,6 x 2,6 x 3,3 m The ZSE 150 scraping machine is used in small and medium series production as a universal scraping machine with a deburring unit on the back. Compact and easily accessible, all operating elements and the work area are easy to reach from the operator's location. A large operator door provides unhindered access to the work area. This enables simple and quick conversion and tool changing processes. This machine is equipped with a pallet ring magazine. Regardless of whether it is for plunge, diagonal or parallel feed or for corrections such as conicity or crowning, all feeds and correction movements are carried out by the scraping head. The simple automatic loading due to the stationary workpiece is also the result of this machine concept and enables the construction of an extremely stable machine bed. This in turn is a basic requirement for achieving the highest gearing qualities. The CNC control controls the axes according to the attached sketch. Machine dealer with own stock of 1600 m².

Condition: used, Year of construction: 2007, functionality: fully functional, machine/vehicle number: 10034352, Hommel measuring machine in good condition Ledpeualwkofx Ahwjhc

Year of construction: 2016, condition: excellent (used), Indexable insert milling cutter - Face milling cutter Lhedpfx Aefc Tq Eohwoc Make Mitsubishi Type AHX 640 W 160 C 22 R Multicorner Face milling cutter for high feed rates for 22 heptagonal inserts Cutter diameter 160 mm

Year of construction: 2016, condition: as good as new (ex-display), Face milling cutter Make Mitsubishi Type AHX 640 W-315 CA28 R Diameter 315 mm Ljdpfxofmxh Tj Ahwehc Weight 31 kg

Condition: used, Year of construction: 1980, max. wheel diameter 400 mm gear width NA mm max. module 5 min. module total power requirement kW weight of the machine ca. t Lhsdpfst Hw Ebjx Ahwsc dimensions of the machine ca. m Manual Two Flank Gear Tester

Condition: new, Year of construction: 2025, functionality: fully functional, Extol - coordinate measuring machine from Aberlink Lhedpfx Ahovwa Scowoc Extol is the coordinate measuring machine from Aberlink, developed for precise measuring processes in industrial applications. The machine impresses with precise measurement results and a robust design, which makes it ideal for demanding manufacturing and quality control processes. Key features: High precision: extol delivers precise measurement results that support reliable quality assurance. Robust construction: Thanks to its robust construction, extol is ideal for long-term industrial use. Easy integration: The machine can be seamlessly integrated into existing production processes, thus optimizing your manufacturing processes. Rely on Extol from Aberlink - for precise, reliable and efficient measuring technology in your production.
