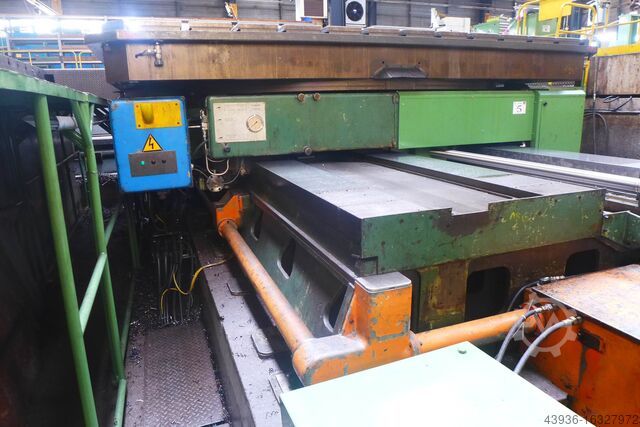

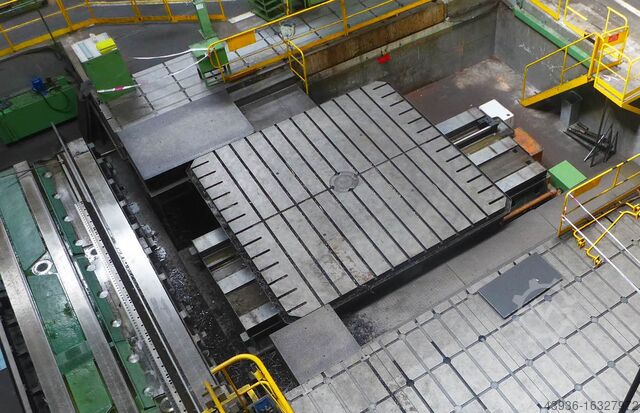

CNC boring machine table 4250 x 4250 x 130 Ton

INNOCENTI PM 325 FT

Condition: good (used), travel distance X-axis: 3,500 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 800 mm, table load: 12,000 kg, total height: 3,900 mm, total length: 7,200 mm, total width: 5,200 mm, table length: 1,800 mm, table width: 1,600 mm, feed rate X-axis: 8,000 m/min, feed rate Y-axis: 8,000 m/min, feed rate Z-axis: 8,000 m/min, rotational speed (max.): 2,000 rpm, Table type boring mill TOS VARNSDORF - WHN 13 CNC MACH-ID 9612 Make: TOS VARNSDORF Type: WHN 13 CNC Control: Heidenhain TNC415 X - Travel: 3500mm Y - Travel: 2000mm Z - Travel: 800mm W - Travel: 1000mm Table Length: 1800mm Table Width: 1600mm Table load: 12 Speeds / ranges:2000Rpm Power: 37kW Spindle Taper: ISO50ISO/Bt/Mk Feed rate X-Axis:8000mm/min. Feed rate Y-Axis:8000mm/min. Feed rate Z-Axis:8000mm/min. Feed rate W-Axis:8000mm/min. Kjdpey H Dahjfx Ab Nedr Length: 7200mm Width: 5200mm Height: 3900mm Weight: 34500kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, WEBSTER & BENNETT EV 36” HIGH SPEED VERTICAL BORER Kdjdoxp Na Nopfx Ab Ner MAKE WEBSTER & BENNETT, MADE IN ENGLAND MODEL EV 36” TABLE DIA 915 mm SWING 1168 mm HEIGHT UNDER RAIL 533 - 1016 mm SPEED 13.5 - 300 rpm FEED RATE 0.005-0.250 inch/min MAIN SPEED 40 HP PLUS HIGH SPEED TAABLE EV SERIES MACHINE ELEVATING RAIL SAFETY GAURDING SET OF JAWS FULLY FUNCTIONAL GOOD SLIDES

Condition: used, Year of construction: 1987, faceplate diameter 3600 mm swing diameter 4500 mm turning height 1850 mm turning speed range 0,6- 50 U/min weight of the machine ca. 72 t Kodpfx Aoyz Db Uob Njdr verticale turning machine double coloumn - digital scale - double coloumn - 2x ram - movable cross slide - extra toolholder (four station) on the side of facing plate

Condition: used, Year of construction: 1984, functionality: fully functional, travel distance X-axis: 1,800 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 2,000 mm, table load: 5,000 kg, spindle diameter: 110 mm, total height: 3,800 mm, total length: 5,000 mm, total width: 3,000 mm, table length: 1,520 mm, table width: 1,225 mm, feed length X-axis: 1,800 mm, feed length Y-axis: 1,500 mm, feed length Z-axis: 2,000 mm, Tool holder SK50, Heidenhain control, machine is ready for collection and immediately operational. Kdodpfoxga Tnjx Ab Njr

Condition: excellent (used), functionality: fully functional, I would be happy to insert the technical data into the document for you. Gear Hobbing Machine WMW MODUL ZFWZ 500 x 5 conventional Country of origin: Germany Technical specifications Kdjdpfx Abjy Rh Hye Nor Details max. wheel diameter 500 mm gear width 250 mm max. module 5 min. module 12 mm total power requirement 2.2 kW weight of the machine approx. 1920 kg dimensions of the machine approx. 2500 x 1600 x 1900 mm cutter diameter max. 250 - 285 mm clamping table diameter 460 mm table hole 70 mm accessories: various Control unit conventional Additional information Documents

Condition: excellent (used), Year of construction: 2014, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,800 mm, spindle diameter: 130 mm, overall weight: 32,450 kg, year of last overhaul: 2014, The machine is in very good technical condition, equipped with a Heidenhain iTNC 530 CNC control system. Specifications: Kodpfx Aox Hfk Iob Nsdr Spindle diameter: 130 mm X-axis travel: 3000 mm Y-axis travel: 1800 mm Taper in spindle: ISO 50 Spindle extension: 1120 mm Horizontal spindle head extension: 450 mm Total installed motor power: 50 KVA Dimensions (L x W x H): 10100 x 4380 x 5250 mm Weight: 32,450 kg

Condition: used, Year of construction: 1995, faceplate diameter 4000 mm Kodjyquyfjpfx Ab Nsdr swing diameter 4300 mm turning height 1750 mm slide adjustment 1000 mm table load 18 t turning speeds 1-92 U/min Control Siemens type 840 D mm Rest 2 ram head dimension 250x250 mm Feed 1-4000 mm/min main gear-box motor 55 kW total power requirement 85 KVA weight of the machine ca. 64 t dimensions of the machine ca. 8x5,8x8 m The machine was overhauled in 2007. The machine is currently designed to machine rings, but can be converted again for machining large parts. Additional information Chip conveyor The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 1985, spindle diameter 130 mm x-travel 3500 mm y-travel 2000 mm z-travel 1250 mm Kdjdpfsyqvx Nex Ab Nor w-axis 800 mm b-axis 360 ° spindle turning speed range 12,5-900 U/min Control Heidenhain type 155 table surface area 1800x1600 mm Table load 12000 kg spindle taper ISO 50 width of T-slots 22 mm T-slot - distance 160 mm Feed 1-6000 mm/min table rotating 360 ° total power requirement 80 KVA weight of the machine ca. 36 t dimensions of the machine ca. 7,7x7,2x4,9 m Refurbished 2005 Head extension Tool kit can be purchased optionally The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: defective spare-parts repository (used), Year of construction: 1980, Machine: Type: BFT 90/3at Manufacturer: UNION Year of manufacture: 1980 Control: NC control, HEIDENHAIN TNC 131 Electrical cabinet: by Reliance Machine group: Table-type boring mill Customs tariff number: 84592100 Kdsdpfsygarlsx Ab Nor Technical data: Spindle diameter: 102 mm X-axis travel: 1000 mm Y-axis travel: 1250 mm Z-axis travel: 1600 mm Tool holder: ISO 50 DIN 2048 Spindle stroke: 710 mm Spindle speeds: 8 – 1600 rpm Table size: 1000 x 1120 mm Table rotation: 360° Max. workpiece weight: 2,500 kg Feed ranges: 0.8 – 2,000 mm/min Rapid traverse: 3.15 m/min Feed force: 16,000 N Spindle motor: 11 kW Total power requirement: 23 kW Machine weight: approx. 9.3 t Space requirement: approx. 5.3 x 3.8 x 3.14 m Special features and notes: Electronic issue: There is an electronic problem (control board needs to be replaced). The price has been adjusted accordingly (€10,500.00) to account for the necessary repair work. The HEIDENHAIN contouring control and the mechanical components of the machine are in good condition. Inspection is possible by appointment to assess the machine's condition and the extent of the electronic issue. For further technical details, please refer to the attached data sheet. Important information: All information is subject to confirmation, prior sale, errors, and availability. Technical data and all information provided are non-binding and only for orientation purposes. Contact: If interested or to arrange a viewing, please send a message or make an appointment. Disclaimer: The item is sold as described. Returns, warranty, and guarantee are excluded. The buyer agrees that the item is purchased in its current condition, "as seen," with no right of return. No liability is assumed for the accuracy of the information provided in the text or photos. By purchasing this item, you agree to the above-mentioned terms and conditions.

Condition: used, Year of construction: 1980, turning height: 3,050 mm, workpiece weight (max.): 40,000 kg, turning diameter: 5,200 mm, Technical specifications Faceplate diameter: 4750 mm Swing diameter: 5200 mm Max. height under cross rail: 3250 mm Max. height under tool post: 3050 mm Chuck speed: up to 32 rpm Max. table load capacity: 40,000 kg Ram travel (vertical): 1400 mm Machine weight: approx. 110 tons Ksdpfx Abszlynvj Nsdr
