CNC Lathe with Drill/Mill Tool

INDEX GU 1500 - Siemens

Condition: ready for operation (used), Year of construction: 1988, SARATOV 5C280P Spiral Bevel Gear Generator - 2 machines Max gear diameter: 800 mm Max module: 16 Max gear ring width: 125 mm Number of teeth: 5-150 Spindle speed range: 20-125 rpm Main motor power: 7.5 kW Overall dimensions (LxWxH): 3170x2180x2200 mm Weight: 15 t SARATOV 5C276 Straight Bevel Gear Generators Module (mm): 10 Max. gear wheel diameter: 500 mm Max. bevel gear cone distance: 250 mm Max. gear ring width: 80 mm Min. angle of dividing cone (pitch): 5 degrees Number of gear teeth: 10 – 150 Bjdpfx Aoum Ez Rjdqslk Distance between spindle and machine center: max. (stock angle 5°): 375 mm; min. (stock angle 90°): 75 mm Stroke: 100 mm Slider double stroke: 48 – 400 spm Motor capacity: 4.0 kW Machine weight: 8750 kg

Condition: good (used), Coordinate grinding machine Jig grinding machine Brand: Henri Hauser SA. Model: 3.S.M.O. Serial No.: 76 No.: 218···600 FAGOR 2-axis height display. Machine Type: Jig Grinding Machine Control Type: Conventional X-axis travel: 400 mm Y-axis travel: 250 mm Workpiece height: 500 mm Blodpfjktkmvjx Adqjk Grinding diameter: 220 mm Table top: 600 x 320mm Neckline: 310mm Angle Range: 12° Grinding carriage adjustment - vertical: 110 mm Lifting speeds: 0 - 6 m/min. Grinding spindle speed: max. 50,000rpm Peripheral speed: max. 35m/sec Maximum weight of the piece on the table: 80 kg.

Condition: used, functionality: fully functional, table diameter: 430 mm, The price is for both machines – only sold as a set. Blsdpfxsxfub Do Adqek Make: STAEHELY SH 500 Accessories: change gears, arbors, and one machine with tangential milling head (see photos)!!!!! Table diameter = 430 mm Max. gear diameter = 500 mm Gear width = 240 mm Module = 6

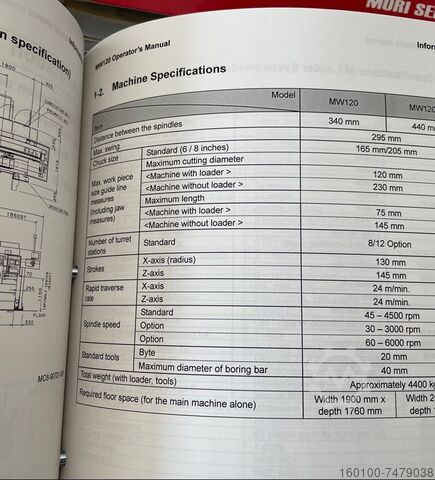

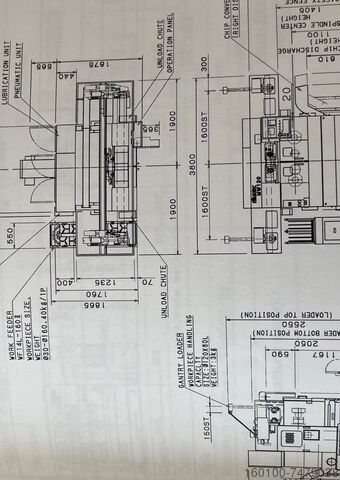

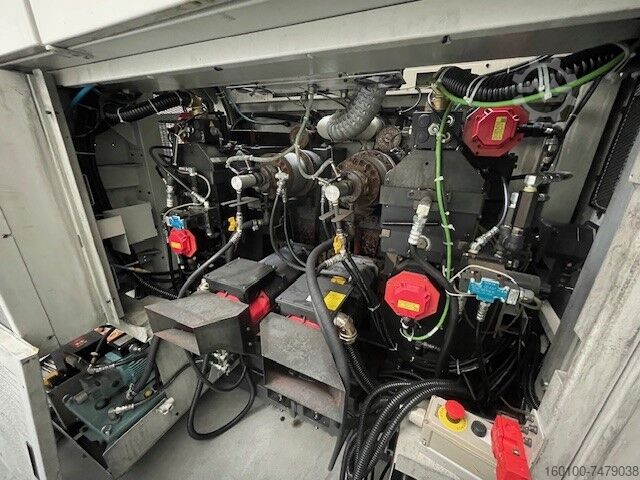

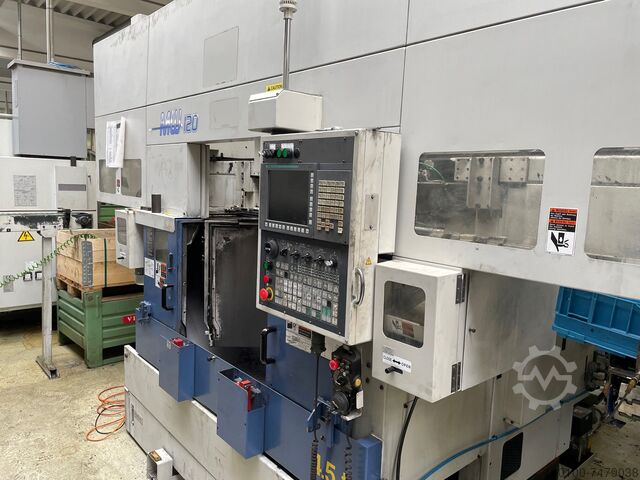

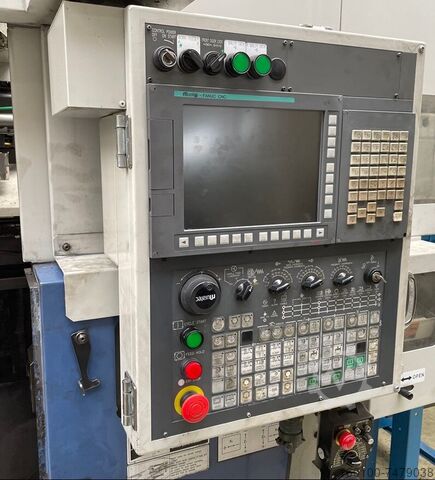

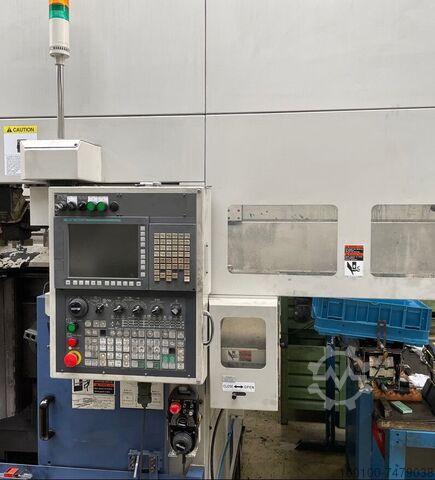

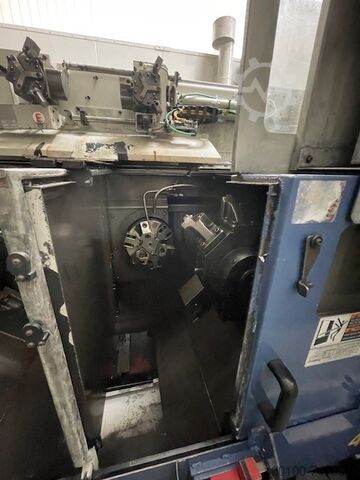

Condition: used, TECHNICAL DETAILS - Number of axes : 4 - Number of spindles : 2 - Number of turrets : 2 MAIN SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 45 - 4.500 [rpm] - Max. chuck diameter : 135 [mm] MAIN SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 45 - 4.500 [rpm] Bedjuhadnjpfx Adqolk - Max. chuck diameter : 135 [mm] TURRET 1 - Number of positions : 8 - X/Z stroke : 130 / 145 [mm] TURRET 2 - Number of positions : 8 - X/Z stroke : 130 / 145 [mm] POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 32 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3.800 x 1.875 [mm] - Machine height : 2.420 [mm] - Machine weight : 4.600 [kg] MACHINE HOURS - Number of hours under power : 15.692 [h] EQUIPMENT - CNC : Fanuc - 3 colors status lamp - Coolant tank * with high-pressure pump * with paper filtering unit - Chips conveyor : Gauche - Oil mist extractor - Parts catcher - Workpiece loading robot * Max. chuck diameter : 165 [mm]

Condition: used, Year of construction: 1990, x-travel 400 mm y-travel 250 mm workpiece height mm Control CNC 314 ELESTA total power requirement 15 kW Bsdpfxst Hxcne Adqolk weight of the machine ca. 5500 kg dimensions of the machine ca. m H A U S E R (Switzerland) CNC - Controlled High Precision Jig Grinding Machine Model S 3 – CNC 314 Year approx.. 1990 S/N 32086 _____ Table size, approx. 600 x 380 mm Max. load on table, approx. 300 kg Table travel, longitudinal, max. (X Axis) 400 mm Table travel, cross, max. (Y Axis) 250 mm Vertical adjustment of grinding head max. (W Axis) 450 mm Stroke of grinding spindle, max. (Z Axis) 120 mm Table Longitudinal and cross feeds (X/Y-Axis) 0 – 1.500 mm/min Speed of grinding head stroke 15 – 12.000 mm/min Vertical distance between table and grinding spindle, max. 0 – 485 mm Distance between grinding spindle and column 350 mm Conical grinding, up to max. 16 ° Grinding Ø bore approx. 230 mm Planetary speeds (C-Axis) 5 – 250 rpm U Axis, radial infeed 6 mm Total electrical load, approx. 15 kW - 400 V - 50 Hz Weight/Total weight approx. 4.000/5.500 kg Accessories / Special Features: • CNC Continuous Path Control, Model CNC 314, (ELESTA-POLESTA II) with new monitor,for 4 axes (XYC+U) in 2 1/2 dimension (XY+C) Interpolation with a free and easy programming for Linear and circle interpolation. Direct Input of data on keyboard, also loading data on RS 232 connection. There is also a handwheel control device for setting – up purposes. Manual feed correction during the working cycle possible. • Digital Read-out for the Z-Axis, Z-Axis as high speed stroke, also good for blind holes. • W Axis for vertical positioning of grinding head slide, • U Axis for the infeed cycles during bore grinding, grinds different bore-Ø automatically. • C Axis Feed for the of the Planetary Head, grinds radii and contours • 2 grinding motors HAUSER approx.. 22.500 to 60.000 rpm, with some collets and arbors • Built-on Acoustic Grinding Contact Display Device Model KSV 5. • Separate coolant unit with band filter. * Built-on fire extinguishing system. • Separate switch cabinet and control unit, Separate hydraulic unit with oilchiller, • Central lubrication, service tools, collets and grinding arbors/tools. Condition : Very good - Machine can be inspected under power commissioned by a Specialist. Delivery : Ex stock - as inspected under power. Payment : Net, after conclusion of contract

Condition: good (used), I am selling this machine, equipped, already disconnected, stored in stock. Video of the machine can be sent. max. wheel diameter 710 mm Bodpfxetuipmo Adqjlk max. module 10 Spindle speed : 700-2800 1/ min. Machine weight : 13,500 kg

Condition: good (used), Year of construction: 2005, Machine type: Cylindrical grinding machine Manufacturer: Junker Model: Jumat 5340/s Serial number: 2328 Year of manufacture: 2005 Available immediately Ex works, for self-disassembly We can optionally offer disassembly and loading services. Bsdskyrqijpfx Adqslk

Condition: good (used), Year of construction: 2013, control Siemens 840D sl turning length 2000 mm turning speeds max. 3100 1/min Torque 1200 Nm diameter of quill 140 mm quill power 5-30 kN total power requirement 125 kW weight of the machine ca. 20 t The machine can still be inspected under power at the seller's factory. It is in good condition, the precision of the turning operation is Blodpfev Nw Npsx Adqek very good. The milling drive is not functional. An offer from Niles for the repair of the milling drive is available on request. Hydraulic steady rest included. Technical details: Turning length 2000 mm Control Siemens 840 D sl Main spindle: Speed max.3800 1/min Main spindle: Torque max. 1200 Nm Pinole diameter 140 mm Center point MK6 Quill force 5 - 30 kN Feed speed Z-axis mm/min Rapid traverse Z-axis 40 m/min Feed rate X-axis - mm/min Rapid traverse X-axis 25 m/min Total power requirement 125 kW Machine weight approx. 20 tons

Condition: used, Year of construction: 1969, max. wheel diameter 265 mm gear width 45 mm max. module 4 min. module 0,3 max. workpiece diameter 300 mm stroke length max. 0-50 mm stroke position adjustment 25 mm distance work spindle /surface of the table 170/245 mm spindle taper innen MK 4 table-size 180 mm table hole 95/75 mm strokes per minute 450 - 840 total power requirement 10 kW weight of the machine ca. 5200 kg dimensions of the machine ca. m Max. gear Æ (external) approx. 265 mm Max. workpiece Æ for internal gears 300 mm Bjdpfx Adst Hwrujqolk Max. gear width 45 mm Module range 0.3 - 4 Length of stroke 0 - 50 mm Adjustment of length of stroke 25 mm Distance between table and spindle, min./max. 170/245 mm Spindle taper (external 90 / internal 50) MT 4 Table size 180 mm Table bore 95 / 75 mm Table travel, cross, approx. 175 mm Number of strokes, infinitely variable 450 - 840 /min Feed range 0.09 - 0.6 mm/stroke Rotary feed, strokes per cutter revolution 2,722 - 681 Total electrical load 10 kW - 380 V - 50 Hz Weight 5,200 kg Accessories / Special Features * Selection switch for various working programmes, and for manual control. * Multi-cut device for roughing, finishing and sparkout, via presettable micrometer screws. * Hydraulic workpiece external clamping device mounted on table, for internal gears (a sort of collet chuck). * Separate switch cabinet. * Separate hydraulic unit. * Hydrostatic straight guide, with cooling aggregate for the hydrostatic pressure oil, separate. * Lateral table adjustment ensures optimal ram lift from workpiece. * Infinitely variable number of strokes via DC motor. * Built-on coolant device. * Presettable impulse counter for switching off table after every cut. With digital display. * Various change gears.

Year of construction: 2015, condition: used, diameter / mm Cutting (quantity) / weight 15000 kg Control Siemens 840D Production line - Modular Special Machine (MSM) with clamping device 1 double spindle machining centre Make: GROB Bodpfx Ajphu D Todqjlk Type: Special machine GM4650 Year: 2015 Control: Siemens, type 840D sl CO2 fire extinguishing system, air filter LTA, oil treatment, make: Ruez, type MBF-1000 AS, year 2015 - Operating hours 43,774, spindle hours 1,598 Technical data Machine length: 8400mm Machine width: 2500mm Machine height incl. LIP: 2150mm Machine weight: 15.000kg
