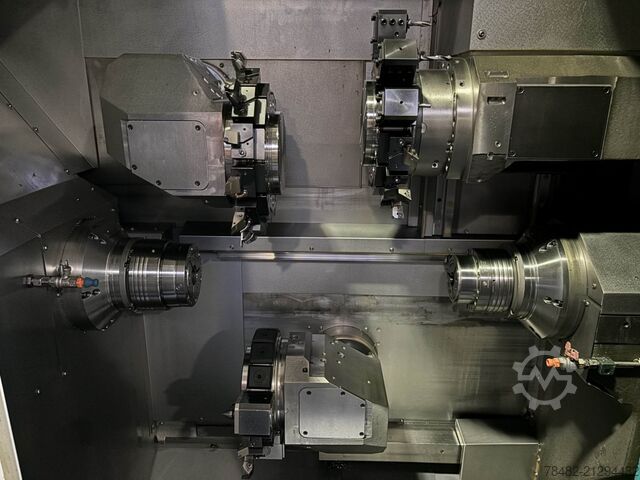

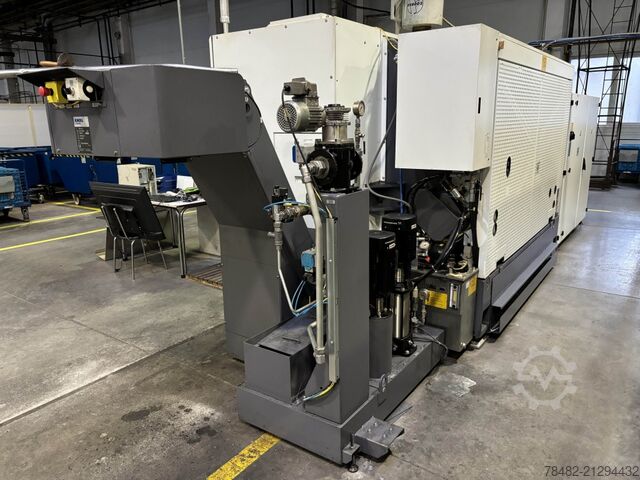

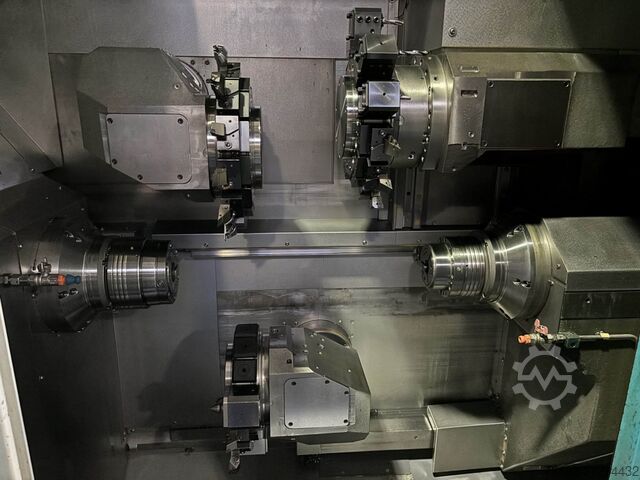

INDEX C200

INDEX C200

Condition: ready for operation (used), Year of construction: 2023, spindle speed (max.): 6,000 rpm, travel distance Z-axis: 700 mm, spindle motor power: 32,000 W, controller manufacturer: SIEMENS, controller model: C200-sl, number of axes: 5, This 5-axis Index C200 was manufactured in 2023, offering advanced capabilities for horizontal turning. Ideal for precision and efficiency in metalworking, this machine represents a significant asset for enhancing production quality. Consider the opportunity to buy this Index C200 horizontal turning machine. Contact us for more information. Additional equipment • Software options: OPC UA for master computer connection (max. 200 variables). ChipMaster cycle for chip breakage control. • Environmental data: Noise level: 73.8 dB(A) Machine Benefits Technical Machine Benefits • Control system: based on sinumerik 840d solutionline (sl) with sinamics s120 drives. 18. 5" tft color display with pct-touch (ip65). Siemens operate user interface in german. • Interfaces: 4x usb 2. 0 (2 on the control panel, 2 in the control panel). Network-capable for nc data transfer (logical drives). • Safety: siemens safety-integrated (profisafe). • Turret mechanics: hydraulic locking, ac motor with face gearing. Drive power per tool carrier: 10 kw (25 % ed), max. 8,000 rpm. • Tool holder: cylindrical shank d25x48 (din69880) with w-slots for higher repeat accuracy. Driven tools possible in every station (only rotating in working position). • Cooling unit: 13 kw for hydraulics, spindles and control cabinet. Connection for cooling water (20°c ±2°c, 30 l/min, glycol 25 %). • Chip conveyor: hinged belt conveyor (made by knoll) with 180-liter container, discharge height 840 mm. Cooling lubricant system: 750-liter container, 8-bar/20-80-bar pumps. • Bar loader interface: unimag4-compatible (external loaders require specific cover). Maximum bar length: 1,035 mm (short bar operation). Gantry pick-up device: pneumatic gripper (Ø 10-90 mm, max. 3. 5 kg). Conveyor belt with switch for finished parts/remaining parts. Extra Information Control Unit Operating voltage: 400V Control voltage: 24V DC Frequency: 50Hz Rated power: 54kW Connected load: 65kVA Rated current: 94A Max. back-up fuse: 100A Main Drive Main spindle and counter-spindle Spindle head mounting: OD 140mm, ID 85mm Front bearing diameter: 110mm Torque max. (100%/40%): 125/170 Nm Clamping pressure min./max.: 8/80 bar Piston area pressure: 57cm² Piston area tension: 57cm² Compressive force max.: 45600 N Tensile force max.: 45600 N C-axis: Drive: Hollow shaft motor of the spindle; angle measuring system directly on the spindle Position spread (VDI/DGQ 3441): Psmax = 0.01 degrees Turret Tool carrier 1 X-axis working path: 110mm X-axis rapid traverse: 30m/min X-axis acceleration: 9m/s² X-axis feed force: 5000N Z-axis working path: 320mm Z-axis rapid traverse: 50m/min Z-axis acceleration: 9m/s² Z-axis feed force: 5000N Lsdpoyyuvtofx Ad Esaa Y-axis working path: 100mm Y-axis rapid traverse: 15m/min Y-axis acceleration: 9m/s² Y-axis feed force: 5000N Stations: 14 with cylindrical shank holder D25x48 Tool carrier 2 X-axis working path: 110mm X-axis rapid traverse: 30m/min X-axis acceleration: 9m/s² X-axis feed force: 5000N Z-axis working path: 550mm Z-axis rapid traverse: 50m/min Z-axis acceleration: 9m/s² Z-axis feed force: 5000N Y-axis working path: 100mm Y-axis rapid traverse: 15m/min Y-axis acceleration: 9m/s² Y-axis feed force: 5000N Stations: 14 with cylindrical shank holder D25x48 Tool carrier 3 X-axis working path: 180mm X-axis rapid traverse: 30m/min X-axis acceleration: 9m/s² X-axis feed force: 5000N Stations: 14 with cylindrical shank holder D25x48

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 10 [mm] - Travel : 66 [mm] - Spindle speeds : 16000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 10 [mm] - Spindle speeds : 12000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] GUIDE BUSH HOLDER 1 - Number of positions : 4 GUIDE BUSH HOLDER 2 - Number of positions : 4 - Number of motorized positions : 3 - Live tools speed : 12000 [rpm] END ATTACHMENT - Number of positions : 3 - Number of motorized positions : 3 - Live tools speed : 12000 [rpm] SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 9000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 1700 X 1010 [mm] - Machine height : 2000 [mm] - Machine weight : 1500 [kg] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2,S3,S5 - Fixed guide bush - Parts catcher - Ejection of workpiece - Coolant tank Laodpfx Adsuhbado Eja - Number of turning tool holders : 4 - Number of fixed tool holders : 5 - Number of turning tool holders : 6

Condition: used, Year of construction: 2017, INDEX - C200 - 2017 Lajdpsyzkp Esfx Ad Eea - system Sinumerik 840D SolutionLine - spindle bore 65 mm - cooling through cooling water - working hours between photos - used condition as shown on photos - under power, can be tested

Condition: excellent (used), Year of construction: 2009, operating hours: 28,742 h, functionality: fully functional, bar passage: 65 mm, FANUC Series 31i-Model A Laodpfx Adjydmbue Eea 3 turrets Parts conveyor Magazine Further details on request

Condition: ready for operation (used), Year of construction: 2011, Main Drive Number of axis 3 Spindle Speed 5000 RPM Spindle motor power 22 kW Movement X-Axis Movement 260 mm Z-Axis Movement 1010 mm Y-Axis Movement 120 mm Technical Specification Driven Tools yes Laodsx Imqfspfx Ad Eea This 3-axis Okuma LB 3000 EX turn-mill centre was manufactured in 2011. It features a maximum turning diameter of 340 mm, a turning length of 950 mm, and a spindle speed up to 5,000 rpm. The machine includes a 12-position tool turret and supports driven tool speeds up to 6,000 rpm. If you are looking to get high-quality turning and milling capabilities, consider the Okuma LB 3000 EX machine we have for sale. Contact us for more information. Application Types Turning

Condition: ready for operation (used), Year of construction: 2000, spindle motor power: 22,000 W, total height: 2,050 mm, overall weight: 4,000 kg, controller manufacturer: INDEX, controller model: C200-4 / C200-8, This 5-axis Index G200 C turn-mill centre was manufactured in 2000. Consider the opportunity to buy this Index G200 C turn-mill centre. Contact us for more information. Additional equipment • Synchronous device for counter spindle machining Ledoyailzepfx Ad Ejaa • Tool carrier 3 for synchronous spindle (rear end machining) • Additional milling spindle • Thread milling and polygon turning device • Gripperless tool changer (6 tools, HKS-50 B, KM40) • Workpiece handling WHU100 • with c-axis • no driven tools Machine Benefits Technical Machine Benefits • Space requirement (without material guide): 3580 x 3108 mm • Control unit: resolution: 0. 001 mm (input/output/correction) • Comprehensive movement range with multiple axes configuration • High precision with 0. 001 mm resolution in numerical control • Versatile expansion stages and additional equipment for enhanced functionality Extra Information Movement Cross slide 1 (top) - XYZB axes: X-axis: Slide path 155 mm, feed force 5000 N, rapid traverse 20 m/min, resolution 0.0005 mm Y-axis: Slide travel 120 mm, feed force 10000 N, rapid traverse 7.5 m/min, resolution 0.0005 mm Z-axis: Slide path 590 mm, feed force 5000 N, rapid traverse 30 m/min, resolution 0.001 mm B-axis (rotating): 360° swivel range, angular steps 5° (with locking), resolution 0.001° (with clamping), switching time for 180°: 1 s Cross slide 2 (bottom) - XZ axes: X-axis: Slide travel 105 mm, feed force 5000 N, rapid traverse 20 m/min, resolution 0.0005 mm Z-axis: Slide path 307 mm, feed force 5000 N, rapid traverse 30 m/min, resolution 0.001 mm Turret Turret right: X-axis: Slide path 120 mm Z-axis: Slide travel 400 mm Tail Stock Center distance: 400 mm Pressure force (max): 5500 N Drive: Hydraulic or electric Media Power supply: 400 V, 50/60 Hz Connected load: 20-45 kVA Current consumption: 35-80 A Hydraulic system: Delivery rate: 18 l/min System pressure: 90 bar Filling capacity: 70 liters Cooling lubricant system: Pump capacity (switchable): 20 l/min at 18 bar / 50 l/min at 3 bar / 60 l/min at 5-7 bar Filling quantity: Approx. 230 liters Chip conveyor: Hinged belt or scraper Workpiece holder: Main spindle: DB5 internal mount / D140 external mount, optional short taper Counter spindle: D140 external mount (only tensile clamping permitted for collet and chuck clamping) 1st spindle data (main/counter spindle): Spindle clearance (collet clamping): Variants: 30 mm / 42 mm / 60 mm / 65 mm Spindle Ø in front bearing: 75 mm (with 30 mm clearance) / 85 mm (42 mm) / 100 mm (60+65 mm) Speed (max): 7500 rpm (30 mm) / 6300 rpm (42 mm) / 5000 rpm (60 mm) Spindle nose: ISO 702/1 (size 4 or 5) Chip diameter (workpiece Ø): 110-130 mm (30 mm) / 140-160 mm (42 mm) / 165 mm (60 mm) Torque (Md max 100%): 33-62 Nm (30 mm) / 35-95 Nm (42 mm) Power (P max 100%): 7-13 kW (30 mm) / 7.5-20 kW (42 mm) Dimensions Machine Depth 3580 mm

Condition: used, Year of construction: 2011, turning diameter 160 mm Lsdoyuzfpjpfx Ad Eoaa turning length 550 mm control Siemens weight of the machine ca. 9000 kg

Condition: ready for operation (used), Year of construction: 2007, spindle motor power: 45,000 W, spindle speed (max.): 3,500 rpm, total height: 2,110 mm, overall weight: 7,600 kg, controller manufacturer: OKUMA, controller model: OSP -P200L, product length (max.): 5,330 mm, number of axes: 2, This Okuma LB400-M was manufactured in 2007. A robust turn-mill centre featuring a swing diameter over bed of 620 mm and over saddle of 420 mm. It offers a bar capacity of 80 mm and a chuck size of 400 mm. The spindle operates at speeds up to 3,500 rpm, powered by a 45 Kw motor. Includes a 12-position motorized turret. Contact us for more information about this machine. • Number of axes: 2 + C • Swing diameter over bed: 620 mm • Swing diameter over saddle: 420 mm • Distance between centers: 1,270 mm • Chuck size: 400 mm • Bar capacity: 80 mm • Turret type: Motorized Ljdpjygxccjfx Ad Esaa • Tool stations: 12 positions • X rapid traverse: 20 m/min • Z rapid traverse: 25 m/min • Tailstock spindle taper: MT #5

Condition: used, Year of construction: 2014, INDEX C200 CNC Lathe 3 Turrets 2 spindles Fanuc Control: 31i-Model B Axial Motorized Switches: 6 pcs Radial Motorized Switches: 13 pcs Tool Holders: 11 pcs Boring Bar Holders: 21 pcs Pin: 1 pcs Loader Bushings + Sleeves: Ø51/Ø46/Ø41 New MBL loader bushings: 2 sets 2 optical scales overhauled by HEIDENHAIN 1 Balluff Socket Gantry Arms Box with various sensors and proximity switches and cables Motorized Belts: 6 pcs Set of anti-vibration bushings for MBL loaders Start-up time: Laedpfjxxm Hfex Ad Esa On time: 37946 Hydraulic hours: 37,500 Production time: 26,500 With MBL Bar Feed

Year of construction: 1997, condition: ready for operation (used), Turning diameter: 200mm, turning length: 400mm, turning diameter: 420mm, bar diameter: 60mm, max. spindle chuck diameter: 160mm, speed: 5000rpm, turret: 2, positions: 2x14, rapid traverse X/Z: 20m/min/30m/min. Machine dimensions X/Y/Z: approx. 7500mm/2100mm/2100mm, weight: approx. 4500kg. Documentation available. On-site inspection is possible. Laodpfsu T Rgkjx Ad Eja
