Used chain mortising machines for sale (23)

Call

Listing

Chain cutter Hoffmann Dübelfix PP - 0021

Bitburg

7,719 km

Chain cutter
Hoffmann DübelfixPP - 0021

€690

Sell chain mortising machines now

Call

Listing

Germany

7,694 km

Wigo chain trencher
WigoKettenfräse

Call

List now from €4.49*
11 million buyers are waiting for you

Get information now
+49 201 857 86 180

List now

*per listing / month

Listing

Wien

8,408 km

Chain cutter
RGAbispecial

€1,300

EXW Fixed price plus VAT

Call

Listing

Chain mortising machine MASTERWOOD OMS 4MM

Cantù

8,148 km

Chain mortising machine
MASTERWOODOMS 4MM

Call

Condition: good (used), Code: 0100 Brand: MASTERWOOD Model: OMS 4MM - CE Standard Chain and lock mortising machine for all types of lock housing, for wooden doors, window frames , furniture, shelves - CE Standard Dwodewd Rwbepfx Adujf Aggregate with 2 horizontal milling cutters for simultaneous execution of key slot and handle hole Max depth of cut mm 150 Max length of cut mm 330 Transversal stroke mm 80 Max working height for doors mm 1000 Vertical worktable stroke mm 250 Mortising machine motor power output Kw 3 Vertical unit motor power output Kw 0,55 Horizontal unit motor power output Kw 1,84 Suction port diameter mm 120 Overall dimensions mm 1400 x 950 x 2100 h Weight kg 850

spindle moulders / table mills

Discover more used machines

tilting spindle moulders

Listing

Chain mortiser Festo PP Schlosskastenfräse

Wiefelstede

7,607 km

Chain mortiser
FestoPP Schlosskastenfräse

€750

Call

Listing

Lambsborn

7,809 km

Door lock mortiser
HAFFNERSL100

€980

Call

Listing

Lock case milling machine Framar MC 60 Framar MC 60

Tauberbischofsheim

7,924 km

Lock case milling machine Framar MC 60
FramarMC 60

€3,900

Call

Condition: used, chain width: 17 mm Dwsdpfx Aetunbujduof engine: 2,2 kW Rotatable: + - 45 ° Table swivel: + - 45 ° Further data: See PDF Lock case milling machine, door lock milling machine or chain milling machine / chain mortiser Framar type MC 60 for simultaneous milling of lock cases and drilling of door holes on doors and windows as well as many other possible uses. Chain width: 17 mm Motor: 2.2 kW

Listing

Germany

7,829 km

Chain cutter
HaffnerKF 20

€250

Call

Listing

Mönchengladbach

7,637 km

Door lock cutter
HaffnerSL 100

€1,490

Call

Condition: used, Haffner SL100 Door Lock Mortising Machine Used, function tested Technical Data: - Includes 16 mm chain set - Includes guide bar 9 - 11 mm x 150 mm - Includes guide bar 12 - 17 mm x 150 mm - Includes guide bar 12 - 17 mm x 175 mm Dwsdpfx Adjwzkgkeusf - Includes chain lubrication device - Includes 2 manual workpiece clamps - Chain mortising motor: 1.7 kW / 2800 rpm - Faceplate milling motor: 0.6 kW / 25000 rpm - Drilling motor: 0.4 kW / 2800 rpm - Milling length / slot length, chain: 20 - 450 mm - Milling length, faceplate cutter: 315 mm - Max. drilling hole spacing: 365 mm - Milling depth / slot depth, chain: 150 mm - Max. faceplate cutter depth: 35 mm - Depth for handle and keyhole drilling: 65 mm - Milling width / slot width, chain: 6-40 mm - Max. faceplate cutter Ø: 35 mm - Max. handle and keyhole drill Ø: 40 mm - Clamping capacity - Door thickness: 80 mm - Max. door width: 1050 mm - Min. door width: 550 mm - Max. door width with spacer: 1250 mm - Min. door width with spacer: 750 mm - Weight: 165 kg

Listing

Schwanberg

8,445 km

Chain chisel
HAFFNERSL 402

Call

Condition: excellent (used), Year of construction: 1994, Chain chisel / chain cutter with pusher drilling unit a complete lock case can be milled/drilled within 30 seconds no reclamping for the entire process quick change from left to right doors Can also be used as a normal chain cutter 3 motors Motor power 1 x 2.2 kW & 2 x 0.5 kW, 400 V, 50 Hz mortising length 320 mm Grooving depth 150 mm mortising width 6 - 40 mm Door thickness 40 - 80 mm Door width 400 - 1050 mm Weight 192 kg Dsdpfxeul U Iwj Aduowf incl. clamping device Oil lubrication device 1 stop drum 2 side stops 1500 mm incl. various spare drill bits including spare chain including all documents

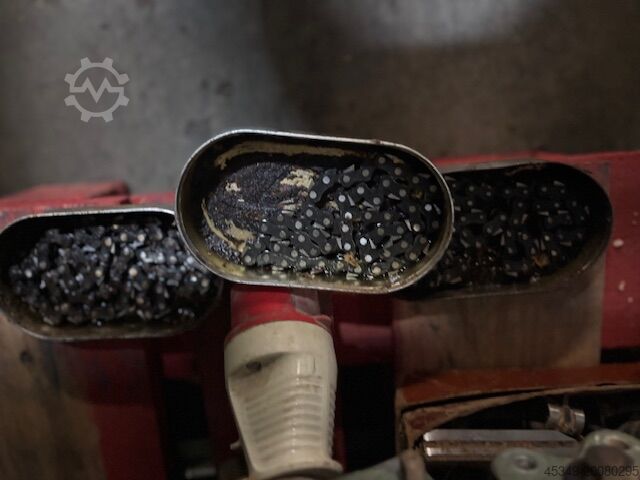

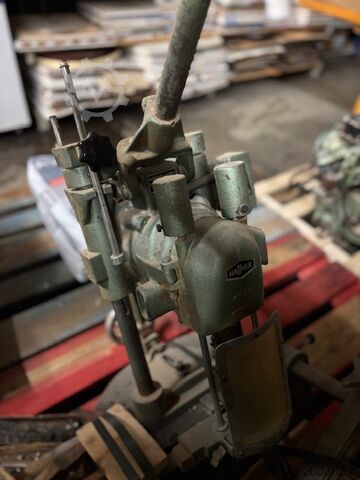

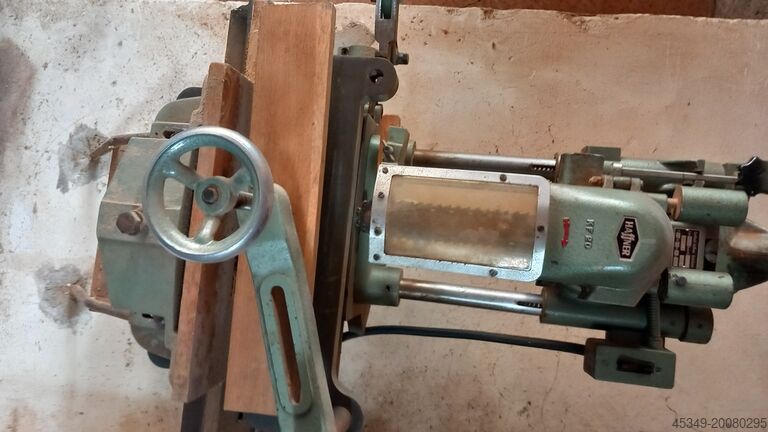

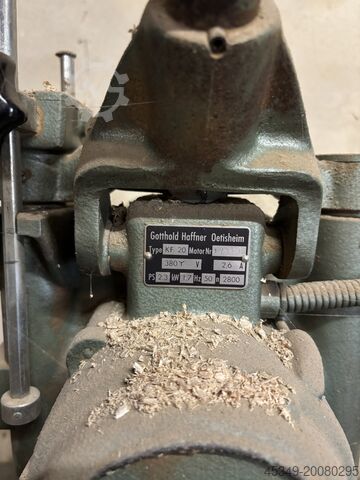

Listing

Gebhardshain

7,746 km

Chain cutter
HAFFNERKF20

Call

Condition: good (used), Technical Specifications: Motor: 1.5 kW Dwodpfswm Dlkox Aduef Three-phase voltage: 220/380 V / 50 Hz Speed: 2800 rpm Max. mortising depth: 150 mm Max. slot length: approx. 170 mm Max. chain width: 40 mm Max. longitudinal table travel: 160 mm Max. transverse table travel: 90 mm Incline: 5 degrees Weight, machine: 72 kg Weight, stand: 35 kg Approx. dimensions: (HxWxL): 190 x 54 x 60 cm

Listing

Würzburg

7,931 km

Chain cutter
RAPIDMSK

Call

Listing

Tauberbischofsheim

7,924 km

Chain mortiser Fezer KF 50
FezerKF 50

€890

Call

Listing

Gerolzhofen

7,947 km

Mortising machine
HaffnerTyp KF 20

€550

Call

Condition: used, used, good condition, hardly runmanufactured by Haffnertype KF 20stand machinechain set 40 x 150workpiece restlubricant unit1 x mechanical workpiece clampingrequired space ca. l x w x h mm600 x 800 x 2000total connected power 1,7 kWlocated in 97447 Gerolzhofensale in current condition as seen- free on truck - Dsdpfx Adevwgaysuowf

Listing

Schwanberg

8,445 km

Chain mortiser
MASTERWOODOMS 5 MM

Call

Condition: excellent (used), Year of construction: 2004, chain mortising machine with additional unit made up of two horizontal routers for the execution of the handle and the key holes and two adjustable and motorised swinging units for the execution of slots vertical working unit: max work piece thickness 230 mm max work piece height 710/ 1050 mm vertical stroke length 150 mm horizontal stroke length 300 mm traverse head stroke 80 mm head tilting +/- 45 deg. vertical stroke of head stock bracket 250 mm Dodpfxelpcffe Aduswf headstock bracket tilting +/- 45 deg. max. workpiece height 1000 mm chain motor 2,2 kW, 400V, 50 Hz horizontal working unit: swinging unit no. 2 min/ max. longitudinal stroke 80/ 130 mm manual traversal stroke 140 mm pneumatic transversal stroke 140 mm swinging unit motor 0,18 kW, 400 V, 50 Hz router motor 1,8 kW, 400V, 50 Hz weight approx. 650 kg incl. pump for automatic chain lubrication incl. tools incl. manual Advise used machines: • Technical data without obligation, mistake and intermediate sale reserve. • Price is considered ex-location price • All articles or machines are bought as seen without any entitlement on warranty. • It is left to the choice of the buyer to view the machines before at its location. • Special arrangements are possible but only valid in written form. (We answer your inquiries only with stated address + telephone number!)

Listing

Tauberbischofsheim

7,924 km

Chain mortiser Bäuerle
Bäuerle

€1,290

Call

How can I spot good Chain mortising machines?

Check the Condition of the Machine

When assessing the quality of a used chain mortising machine, closely inspect the physical condition of the equipment. Look for signs of excessive wear and tear, such as rust, damage to the chain or the housing, and ensure that the moving parts operate smoothly without unnecessary noise or vibration.

Assess the Manufacturer and Model

Research the reputation of the manufacturer and the specific model of the chain mortising machine. Well-known and respected brands often offer better quality and reliability. Check for any reviews or feedback from other users to gauge the machine's performance and durability over time.

Evaluate Operational Efficiency

Test the machine to verify its operational efficiency. Ensure that it can perform the tasks you need effectively, such as cutting precise and clean mortises. The alignment and sharpness of the chain are critical for good quality work.

Confirm Availability of Parts and Service

Before making a purchase, ensure that you can easily obtain spare parts and service for the machine. Accessibility to support and parts is crucial for maintaining the machine in the long term, especially with older models.

Consider the Machine’s Age and Usage History

Understanding the age and how heavily the machine has been used can provide valuable insights into its expected lifespan and potential future issues. Ask for the machine’s maintenance and use history to better assess its condition.

Check the Condition of the Machine

Assess the Manufacturer and Model

Evaluate Operational Efficiency

Confirm Availability of Parts and Service

Consider the Machine’s Age and Usage History

Listing

Gerolzhofen

7,947 km

Mortising machine
HaffnerTyp SL 100

€1,800

Call

Condition: used, Door lock mortiserused, good conditionmanufactured by Haffnertype SL 100stand machinechain set 12 - 17 / 50 x 150 mmworkpiece resthandle hole motorface-plate motorlubricant unitmechanical workpiece clampingrequired space ca. l x w x h mm1500 x 900 x 2010located in 97447 Gerolzhofensale in current condition as seen- free on truck - Dodpfevwfv Tex Aduswf

Listing

Gerolzhofen

7,947 km

Mortising machine
HaffnerSL 100

€1,800

Call

Condition: used, Door lock milling machineused, good conditionmake Haffnertype SL 100machineNo. 2269upright machinechain setdoor supportworkpiece supportpusher hole motorforend motorlubricatorsuction connection D 80/100 mmspace requirement approx. 1200 mm x 700 mm x 2000 mmweight approx. 300 kgstorage location 97447 Gerolzhofen, free loaded, unpackedhandover in actual condition as inspected,without guarantee and warranty Dwodpfx Asvwfmfjduof

Listing

Gerolzhofen

7,947 km

Mortising machine
Bäuerle

€800

Call

Condition: used, with rotatable mortizing unit /- 90 ° and inclinable supportincl. many chain setsused, top conditionmake Bäuerlewall machinechain set 12-17 50 x 175milling unit rotatable 90° / -90°space requirement approx. 800 mm x 1000 mm x 1300 mmweight approx. 300 kgstorage location 97447 Gerolzhofen, free loaded, unpackedhandover in as-is condition as inspected,without guarantee and warranty Dodpfovwfhvox Aduewf

Listing

Germany

7,947 km

Mortising machine
HaffnerKF20

€850

Call

Trust Seal

Dealers certified through Werktuigen

Listing

Germany

7,947 km

Mortising machine
FestoTyp KF

€850

Call

Condition: used, cleaned, function checked, test run with face-plate motor used manufactured by Festo type KF stand machine door rest base face-plate motor exhaust connection D 50 mm required space ca. l x w x h mm Dodpfx Ajvwfr Usduowf 1200 x 800 x 2000 weight ca. 200 kg total connected power 1 kW located in 97447 Gerolzhofen sale in current condition as seen - free on truck -

Listing

Gerolzhofen

7,947 km

Mortising machine
WIGOUnbekannt

Call

Condition: used, incl. 7 chain sets pneum. air suspension used, top condition, lots of accessories Dedpfjvvnmlex Aduowf Wigo brand Stand machine Chain set 7 pieces Door support Workpiece support can be swiveled down - tilted for wedge-conical holes Suction connection D 60 mm Space requirement approx. 1100 mm x 700 mm x 2000 mm Weight approx. 350 kg Storage location 97447 Gerolzhofen, free loading, unpacked Handed over in the current condition as viewed without guarantee or warranty
