Used Cylindrical grinding machines 600-1099mm grinding length for sale (185)

Condition: new, Machine Specifications 600R T7 Maximum distance between centres 630mm Maximum grinding length 630mm Height of centres over table 160mm Swing over table 315mm 1000R T7 Maximum distance between centres 1030mm Maximum grinding length 1030mm Height of centres over table 160mm Swing over table 315mm High positioning accuracy with the possibility to apply on request linear encoders on one or both axis. The Robbi Omicron T7 PLC is built around the SIEMENS operating system, and provides a CNC machine experience, controlled via the T7 PLC control. This provides the same performance available on the CNC plus the great versatility of the T versions, thanks to the: New software developed on the last SIEMENS CNC 840 D SL Folikyonzicie Amepg TP 700 comfort panel. The smart interface fully developed by ROBBI gives the possibility to program even multiple and complex components without the needs of CNC programming skills. The auto teach of the first diameter and all the table positions permits a quick pre-set of the component reducing the programming time. The auto compensation of the dressing wear permits to maintain sharp and stable the grinding wheel along the process. Factory build machine

Condition: ready for operation (used), Year of construction: 2001, Main technical characteristics according to manufacturer's specifications: CNC control Siemens 840 D 12" TFT monitor color and handheld control unit Center distance: 600mm Folikyjvw R Ale Amepg Center height: 140-180mm Machine weight: approx. 5300kg Documenation Accessories

Condition: good (used), Year of construction: 2001, Functionality: fully functional, machine/vehicle number: 01149890083, Make: STUDER Model: S 40 CNC Serial No.: 01149890083 Year of manufacture: 2001 Control: CNC control FANUC 16 TB Condition rating: 8 (scale: 1 = bad, .., 10 = unused) Delivery date: immediately WORKING AREA CYLINDRICAL GRINDING Swing diameter (max) 340 mm Workpiece weight between. Centers (max) 150 kg EXTERNAL GRINDING WORKING AREA Grinding diameter (max) 340 mm Grinding length 1050 mm GRINDING HEADSTOCK X-axis travel 275 mm Z-axis travel 1050 mm Pivoting (B direction) from -15 ° B-axis rotation range up to 225 ° - Positioning ability 1 ° - Fine adjustment available but deselected because overhaul due GRINDING BODY Grinding body type disc Diameter (max) 500 mm Bore: diameter 203 mm Width 63 mm ELECTRICAL CONNECTION DATA Connected load 30 kVA Connected voltage 400 V Mains frequency 50 Hz DIMENSIONS / WEIGHTS Space required -left/right- 3700 mm Space requirement -front/rear- 2000 mm Total height 2100 mm Total weight approx. 5100 kg ADDITIONAL EQUIPMENT (GRINDING) Grinding wheel flanges yes Internal grinding spindle yes Foliky Asvt Alqsmopg Equipment: - 1x external grinding spindle - 2x internal grinding spindles - Granitan S103 machine bed - Fischer internal grinding spindle 24,000 rpm - Fischer internal grinding spindle 45,000 rpm Technical specifications are given by us to the best of our knowledge and belief. However, liability or guarantee is excluded. The following applies: "Buy as seen." Prospective buyers are asked to check all important technical data during an inspection. Collection only.

Condition: good (used), cylindrical grinding machine Fpsletrgn Teiky Amog

Condition: ready for operation (used), Year of construction: 2005, Functionality: fully functional, center height: 150 mm, grinding length: 600 mm, grinding wheel diameter: 152 mm, grinding diameter: 300 mm, grinding wheel width: 50 mm, spindle speed (max.): 1,545 rpm, TECHNICAL DETAILS Control system: Fanuc 18i-TA Sanding diameter: 300 mm Sanding length: 600 mm Center height: 150 mm Workpiece data Maximum workpiece weight: 150 kg Grinding wheel Dimensions: 405 x 152.4 mm Grinding wheel width: 25 - 50 mm Grinding spindle speed: infinitely variable 1,545 rpm Grinding spindle motor: 3.7 kW Fpjlsvhbumsiky Ameg MACHINE DETAILS Machine weight: approx. 3.1 t Space requirement: approx. 4 x 3 x 2.5 m

Condition: like new (used), Year of construction: 2025, We will overhaul your existing Karstens and Bahmüller brand cylindrical grinding machine. The overhaul for Bahmüller and Karstens cylindrical grinding machines includes the following: 1. Housing/full space paneling new paint in RAL 7035, RAL 7011 new polycarbonate safety screen 10 mm new bearings for workpiece change door 2. Grinding headstock complete cleaning and painting check bearings, grind in plain bearings if necessary, replace if necessary check and clean the lubrication system revise the grinding spindle new coolant hoses, taps and KM nozzles made of aluminum install new belts 3. Tailstock complete cleaning and painting revise the quill check bearings, grind in plain bearings if necessary, replace if necessary disassembly and cleaning of the fine adjustment, replace any defective parts if necessary 4. Workpiece headstock complete cleaning and painting check bearings, replace if necessary check and clean the Lubrication system Revision of the workpiece spindle Install new belts 5. Hydraulics Complete cleaning and painting Storage of the hydraulic motor Revision of the pump, replace if necessary Fpoljvrdxieiky Ameg Complete renewal of the hoses Filter replacement Hydraulic plan 6. Pneumatics New maintenance unit New sealing air unit for length measuring systems New pneumatic lines/connectors/distributors and small parts Pneumatic plan 7. Lubrication for spindles Complete cleaning and painting Storage of the lubrication motor Revision of the pump, replace if necessary Check and clean the lubrication system Check and renew the lubrication monitoring if necessary 8. Central lubrication Complete cleaning and painting Storage of the lubrication motor Revision of the pump, replace if necessary Check and clean the lubrication system Check and renew the lubrication monitoring if necessary 9. Machine bed Completely clean inside and out Sand down and repaint V- and re-scrape and measure flat tracks Installation of a new control panel (rotatable) 10. X, Z axis New bearings on the X axis New ball screws New axial bearings Surface grinding, scraping if necessary Revision of the coarse adjustment of the X axis 11. Geometry Grinding and adjusting the complete geometry on the Grinding headstock, workpiece headstock, tailstock, X and Z axis Creation of a geometric protocol 12. Electrical system Construction of a new Rittal control cabinet with Siemens components, contactors, motor protection switches, Finder relays, Siemens drives, NCU, supply, Siemens PLC, etc. if necessary MPM, Jenoptik and other optional control devices Creation of a new E-Plan 8 circuit diagram Completely new cabling with PUR cables New control devices, switches, buttons (Siemens, Eaton) 13. CNC control Siemens control SINUMERIK ONE Siemens axis drives and frequency converters with CU Siemens asynchronous motor (grinding spindle) Siemens synchronous motors in X, Z, workpiece spindle 14. Length measuring systems absolute length measuring systems Heidenhain 15. Other CE marking and protocol Risk assessment Siemens Safety with acceptance protocol new operating instructions and supplier documents in paper or digital form Noise protocol VDE protocol Control version also possible with Fanuc 0i TF Plus.

Condition: good (used), Contion: funtional Fpjlikyou Dyk Ne Amsg Loading agreement EXW

Condition: ready for operation (used), Year of construction: 1990, Available immediately from location : Cylindrical grinding machine TOS Type BUAJ 28 Year of construction 1990 Center height 140 mm Circulation 280 mm Center distance 750 mm Workpiece headstock MK 4 Drive 12 kw Workhead swivels plus / minus 90 degrees Grinding wheel 400 x 40x127 mm Grinding wheel speed 2560 rpm Fpslisuw Ricjky Ameg Drive power sanding block 9.3 kw Working speed 0.05 - 7 m / min Max. workpiece weight 120 kg Sanding headstock swivels plus / minus 45 degrees Wet grinding device Internal grinding device Weight 2.200 kg At a price of Euro 3,750 plus VAT ex location

Condition: refurbished (used), Year of construction: 2015, Retrofit 2015 Karstens K 52 cylindrical grinding machine, CNC control Eckelmann ENC 66, Workpiece length 650 mm, Weiss Schleiftechnik retrofit 2015, Expansion through automation 2023, Spindle power 7.5 KW, Center height 180 mm, Ø grinding wheel 500 mm, straight / angular grooving, filter system, Fpolieuc Uttjky Amjg Auto. Loading between the centers, Prismatic belt blank / finished part

Condition: good (used), Distance between points 1000 mm Stitch height 230 mm Main motor power 9.2 Kw Working wheel dimensions (h x w x d x w) 500x80x203.2 mm Ø max to grind 460 mm Tailstock cone MORSE 4 MORSE 5 tailstock nose cone Max. Z-axis travel 1115 mm Max. X-axis travel 260 mm Approx dimensions (length x width) 440x370 cm Fslotrgnzeiky Amopg Approx. weight 4700 Kg

Condition: good (used), WMW SA5x630 cylindrical grinding machine with plenty of accessories -center height 140mm -center width 650mm -Measuring device -tailstock -grinding wheel extractor -Coolant device -Extensive range of grinding wheels and mounting flanges -Complete documentation Dimensions: LxWxH 3x2x2meters / weight 4000Kg Fpolikyou Rp Rlj Ameg Errors / input errors excepted

Condition: new, Year of construction: 2025, We are your competent and experienced partner when it comes to spare parts supply for Karstens and Bahmüller cylindrical grinding machines with the best price/performance ratio! Our spare parts supply includes electrical and mechanical components. We look forward to your inquiry and will deal with your request as quickly as possible. PS: We are happy to try to undercut the offer of another supplier, an inquiry will be worthwhile. Spare parts such as: - Ball screws - Spare parts for your assemblies such as tailstock, workpiece headstock, grinding headstock - Control exchange Fpjlikyovq Nxfs Amog - Measuring systems (Heidenhain) - Tailstock quills - Bellows - Grinding wheel flanges and much more.

Condition: as good as new (ex-display), Year of construction: 2017, Functionality: fully functional, MILLING MACHINE CHETO ix 2000 year 2017 CNC FAGOR X 2000 Y vertical 1200 Z transverse 700 W drilling stroke 1620mm B table rotation 360.000 pos. A inclination +25°/ - 15° drilling cycle stroke 1630 + 700 drilling capacity 40mm tapping M32 . milling 500 cm3 /min spindle ISO 50 - Speed 4500rpm - 15/22KW Torque 191/287 Nm table 1600 x 1300 - admissible weight 20t - 360.000 pos. ATC 20 pos. chip conveyor high-pressure coolant paper filtration machine weight 28t overall dimensions 5970 x 6010 Fslsutgzloiky Amopg

Year of construction: 2022, Condition: refurbished (used), Details according to PDF available Fpjlikyeittaue Amog center width 650 mm

Condition: used, Year of construction: 1982, grinding diameter:250 mm grinding length:650 mm centre height:125 mm Fpeliky Ajcxxubomeg internal grinding spindle rev.-stepless:9500-50000 U/min workpiece speeds -stepless:50-10000 mm/min grinding head swivelling:90 Grad max. dia. of grinding wheel:400 mm spindle bore:30 mm grinding length - plunge feed:80 (100) mm max. grinding depth by internal grinding:ca. 170 mm max. bore diameter to be ground:90 mm feed speeds:240 mm/min max. workpiece weight:80 kg required cooling water:36 l/min centre distance:650 mm distance of workpiece spindle-taper cone:960 mm drive capacity - spindle motor:6,25 kW connected load:ca. 10 kW total power requirement:8,5 kW weight of the machine ca.:3,4 t dimensions of the machine ca.:3,9 x 2,5 x 1,85 m with Studer control, electric/hydraulic drive, variable speed, tailstock with fine adjustment and hydraulic back feed, work piece headstock with increased precision, table air , hydraulic removable dressing device, radius-dressing device, Hydro-Cyclone filter, automatic grinding wheel-balancing device, automatic dressing cycle with speed compensation

Condition: good (used), cylindrical grinding machine Fsliky Astrgukjmepg

Condition: like new (used), Year of construction: 2024, K11-1000 cylindrical grinding machine Also available in grinding length 650mm Make Karstens Technical data: Center width: 1100 mm Center height: 180 mm / (250 mm = option) Workpiece weight: 100 kg flying, 300 kg between centers Grinding wheel diameter: 400 mm or 500 mm (external grinding wheel) Workpiece spindle: MK 4, infinitely variable speed 30-450 rpm, swivel range 0 - 90 ° Tailstock: MK4, quill stroke 45 mm Quill force: 200-600 N manual, (up to 2500 N possible, adjustable = option) Table inclination: 10 degrees Feed spindle travel: 80 mm Rapid traverse: 50 mm Fpelikyotudipj Amjg Coarse adjustment air cushion: 280 mm External grinding spindle motor: 4 KW / (5.5 KW = option) Stepless speed adjustment of the grinding wheel with potentiometer Internal grinding spindle motor: 2.2 KW Workpiece spindle motor: 1.1 KW Hydraulic motor 1.5 KW Lubrication motor 0.1 KW Hydraulic tank 80 liters Machine weight: Net 3800 kg Infeed drive via DC motor Air cushion-supported quick adjustment of the grinding headstock for quick and safe approach to the sanding position. Separate drive for the spindles for external and internal internal grinding. Fully automatic work sequence, infeed movement via wind rose switch: Rapid feed, rapid return, sanding mode, infeed stop, mym infeed. Automatic longitudinal sanding cycle Central coolant supply for all grinding points Workhead with infinitely variable drive with traveling and lockable spindle. Digital infeed control with Siemens panel and Siemens PLC for longitudinal grinding and plunge-cut grinding, input for the return, infeed amounts, feeds, burnout times, empty strokes, compatible with the old old Karstens infeed control, with colored Siemens touch panel comparable to Studer/Kellenberger/Schaudt/Tschudin/Tacchella/Dannobat

Condition: good (used), cylindrical grinding machine Fpsletrgndjiky Amjg

Condition: as good as new (ex-display), Year of construction: 2024, GP CNC-1000 cylindrical grinding machine (Fanuc) Also available in grinding length 650mm and 1500mm Make Karstens Technical data: Center width: 1100 mm Center height: 180 mm, with electric B-axis 200 mm, optionally other center height possible Max. Workpiece weight between centers: 300 kg Max. Workpiece weight on the fly including clamping device: 100 kg Workpiece headstock: MK 4, optionally other taper possible Tailstock: MK 4 Grinding wheel diameter with electrical or mechanical B-axis up to 500 mm; 600 mm diameter only for version Grinding machine with one grinding wheel Wheel arrangement: left for straight stitching machine, right for angled stitching machine 30 degrees Total connected load: approx. 30 KW Machine weight: approx. 4700 kg Basic equipment of the machine: Axes: X-, Z-, C-axis Grinding headstock: Asyncron motor 7.5 KW Constant grinding wheel peripheral speed: up to 50 m/s, preselectable cutting speed, automatic readjustment after dressing readjustment after dressing Workhead: with Fanuc servo motor 2.3 KW, Speed range: 0-560 rpm Fpslikyetudg Hj Amsg Tailstock quill stroke: 45 mm Tailstock: MK4 with fine adjustment CNC control: Fanuc, 19.0" PC system with touch, Windows 10 IoT Enterprise GP grinding software Axis drives: Fanuc Servo Fanuc manual control unit Full enclosure with generous workpiece change door and maintenance door 2-color paint finish CE comparable to Studer/Kellenberger/Schaudt/Tschudin/Tacchella/Dannobat

Condition: good (used), Year of construction: 2007, Height of points 150 mm Distance between points 1000 mm Grinding wheel dimensions (h x id x w) Ø400xØ127x50mm Internal head 4 pcs Center height 150mm Max. workpiece weight 80Kg Fjlerakimoiky Amjpg X-axis travel (transverse) 350mm X axis speed 10 meters per minute Z axis travel (longitudinal) 1000mm Z-axis speed 12 meters per minute Z-axis resolution 0.00004" B-axis turning range 210° B-axis resolution 0.00004 B-axis resolution 0.0001° B-axis resolution 0.0001 Drive capacity 10 HP Grinding wheel diameter 400mm Max. width Grinding wheel width 63mm Spindle Speed Range 0-1000 RPM Spindle turning range 0° - 90° Tailstock stroke 30mm Tailstock stroke 30mm Equipped with Fanuc 21i-TB CNC Control Dimensions 3350x 2130x 2130 Weight 4535Kg Accessories: Steady rests, magnetic chuck, 3-jaw chuck, balancer, sensitron 6, coolant with paper and magnetic filter, fume extractor, etc.

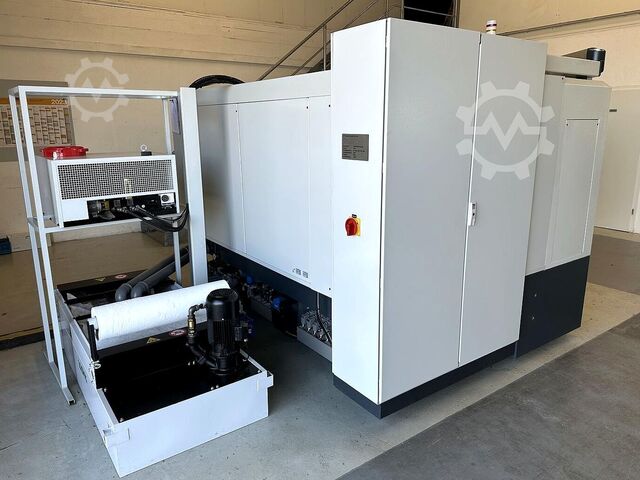

Condition: new, Year of construction: 2025, Functionality: fully functional, Produktionsrundschleifmaschine P60 (Lieferzeit: sofort verfügbar) Fpjlikslziwmjy Amog

Condition: good (used), GENERAL CHARACTERISTICS Max. Ø to be ground 120 mm Grinding wheel width 250 mm Fpelsrpnf Aoiky Amsg Minimum Ø to be ground 1 mm Ø drive grinding wheel 304 mm Ø working wheel 508 mm DIMENSIONS AND WEIGHT Height 1,700 mm Width 1,500 mm Length 2,750 mm Weight 4,000kg ELECTRICAL CHARACTERISTICS Grinding head motor power 15 Kw Spindle head motor power 1,8kw Hydraulic motor power 1,1kw Total power 20 kW Voltage 220/380 V

Condition: as good as new (ex-display), Year of construction: 2024, GP CNC-1000 cylindrical grinding machine Also available in grinding length 650mm and 1500mm Make Karstens Technical data: Center width: GP CNC 1000: 1000mm Center height: 180 mm optionally other center height possible Max. Workpiece weight between centers: 300 kg Max. Workpiece weight on the fly including clamping device: 100 kg Workpiece headstock: MK 4, optionally other mounting cone possible Grinding wheel diameter with electrical or mechanical mechanical B-axis up to 500 mm; 600 mm diameter only for version Grinding machine with one grinding wheel Wheel arrangement: left for straight stitching machine, right for angled stitching machine 30 degrees Total connected load: approx. 30 KW Machine weight: approx. 4400 kg Basic equipment of the machine: Axes: X-, Z-, C-axis Grinding headstock: Asynchronous motor 7.5 KW, optionally Fsliky Aett Rtzjmepg higher motor power possible Constant grinding wheel peripheral speed: up to 50 m/s, preselectable cutting speed, automatic readjustment after dressing readjustment after dressing Workhead: with Siemens servo motor 2.2 KW, Speed range: 0-560 rpm CNC control: Siemens 840Dsl Software modules included as standard: 1) External grooving 3) External longitudinal grinding 4) Internal longitudinal grinding 5) External surface grinding 6) Face grinding inside 7) Inclined grooving 8) Wheel magazine for 8 wheels Further optional modules: Oscillating, phases, external and internal taper grinding Axis drives: Siemens Servo Full enclosure with generous workpiece workpiece change door and maintenance door 2-color paint finish CE comparable to Studer/Kellenberger/Schaudt/Tschudin/Tacchella/Dannobat

Condition: good (used), STUDER Favorit S35 Rondslijp Cylindrical Grinding Machine Fpjlijrakibjky Amjg

Condition: refurbished (used), Your competent service partner for overhauling assemblies! Our service includes the overhaul of assemblies such as workhead, grinding headstock and tailstock of the Karstens and Bahmüller brands. Our service also includes the repair of the friction gear of Karstens workpiece headstocks. Cylindrical grinding machines are too heavy and too large to be easily transported. Their individual assemblies can usually be easily dismantled and shipped by a forwarding agent. We can dismantle, clean and measure these assemblies and replace parts. Fpslikeuu Enaoy Amog Or they can be upgraded and expanded with new technology. After completion, the assemblies are then sent back and the cylindrical grinding machine can resume its work after assembly.
