Used cylindrical grinding machines 600-1099mm grinding length for sale (200)

Condition: refurbished (used), Year of construction: 2024, functionality: fully functional, center height: 180 mm, workpiece weight (max.): 70 kg, center width: 650 mm, grinding wheel diameter: 400 mm, Equipment: rotational speed infinitely variable, Fully overhauled cylindrical grinding machine, year of manufacture 2024! No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Centre distance: 650 mm Centre height: 180 mm Workpiece weight: 70 kg (unsupported), 250 kg (between centres) Grinding wheel diameter: 400 mm Workpiece Spindle and Tailstock Workpiece spindle: Morse taper 4 Spindle speed: steplessly variable, 30–450 rpm Swivel range: 0–90° Tailstock: Morse taper 4 Quill stroke: 45 mm Quill force: 200–600 N Axes and Adjustments Table swivel: 10° Infeed spindle travel: 80 mm Rapid traverse distance: 50 mm Coarse adjustment, air cushion: 280 mm MACHINE DETAILS Motor External grinding spindle motor: 4 kW Internal grinding spindle motor: 2.2 kW Workpiece spindle motor: 0.55 kW Machine weight: 3,600 kg FEATURES Infeed drive via DC motor Air-cushioned rapid adjustment of grinding spindle headstock Separate drive for external and internal grinding spindles Fully automatic operation: rapid advance, rapid return, grinding cycle, infeed stop, mym infeed Automatic longitudinal grinding cycle Ksdpfxswy Ufue Ag Ajdw Central coolant supply Infeed control for longitudinal and plunge grinding

Condition: good (used), Year of construction: 1981, operating hours: 16,769 h, Center height 175 , Center width 700 , Angled position of turntable 10° , Workhead swiveling 90° , Speed range 30-675 rpm , Kedpotz T H Djfx Ag Asdw Morse 5 , Grinding headstock _ grinding wheel diameter 400 , largest width 50 , drive power 6,25kW

Condition: new, Year of construction: 2025, functionality: fully functional, center height: 155 mm, workpiece weight (max.): 150 kg, grinding length: 1,000 mm, center width: 1,000 mm, grinding wheel diameter: 400 mm, total length: 1,000 mm, grinding diameter: 300 mm, quill stroke: 25 mm, workpiece weight between centers: 150 g, type of input current: three-phase, workpiece diameter between centers: 300 mm, workpiece length between centers: 1,000 mm, grinding wheel width: 50 mm, spindle speed (max.): 3,000 rpm, spindle speed (min.): 5 rpm, feed rate X-axis: 4,000 m/min, feed rate Z-axis: 6,000 m/min, grinding spindle motor power: 5,700 W, warranty duration: 12 months, rapid traverse X-axis: 4 m/min, rapid traverse Z-axis: 6 m/min, workpiece spindle speed (max.): 600 rpm, space requirement height: 2,290 mm, Equipment: rotational speed infinitely variable,  Easy-to-use Z-Control system with high levels of comfort  Automatic infeed with dressing amount compensation  Fully automatic grinding cycle with dressing cycles  Grinding cycles: • Cylindrical grinding • Roughing / finishing / sparking  Simple operation via touchscreen  Large, clearly arranged 12.4" color screen  Electronic handwheel, effective on the X and Z axes, switchable in four steps to 0.0002; 0.001; 0.01; and 0.1 mm  Robust cast construction of all machine components  High machine weight for maximum rigidity  Preloaded linear guide system in the X-axis (Bosch Rexroth) for outstanding precision  Ground sliding guides in the Z-axis as V-shaped flat guides ensure excellent damping properties and high-quality grinding pattern  Electromechanical longitudinal and transverse movement  Direct measuring system on the X-axis (Heidenhain) for precise positioning  Rotary encoder on the Z-axis  Maintenance-free belt filter system with a 270-liter tank capacity and a 3.5-bar pressure pump for effective cooling and rinsing  Upstream magnetic separator for pre-filtration  Power supply: 400 volts, 3-phase, 50 Hz  Continuously variable grinding spindle motor  Grinding spindle motor with constant cutting speed across the entire working range of the grinding wheel (vconstant)  Roller-bearing mounted grinding spindle guarantees a long service life  2 machine lights (LED)  Holder for dresser on the machine table for high accuracy and a permanently mounted dresser with the option of holding 3 dressing diamonds  Automatic Central lubrication in the Z-axis (slideway oil) and the X-axis (grease)  Fully enclosed machine with service and maintenance doors Kdedpewax Rbjfx Ag Ajw  Effective splash protection with easy accessibility  Pneumatically controlled tailstock Standard accessories consisting of:  Grinding wheel holder  Grinding wheel 400 x 50 x 127 mm  Complete documentation  CE declaration of conformity  Acceptance report according to DIN 8630  Leveling elements  Balancing mandrel  Roller support  Adapter flange for workhead  MT 4 center (tailstock)  MT 5 center (workhead)  1 set of turning centers

Condition: good (used), Year of construction: 2002, functionality: fully functional, center height: 180 mm, grinding length: 1,000 mm, center width: 1,000 mm, grinding wheel diameter: 400 mm, grinding diameter: 360 mm, controller model: Steuerung Siemens 840 D, TECHNICAL DETAILS Grinding length: 1,000 mm Center height: 180 mm Center width: 1,000 mm Grinding diameter: 360 mm Grinding wheel diameter: 400 mm Control: Siemens 840 D Kdjdpfx Agsv Rfz Ao Aew EQUIPMENT - Grinding detection - Coolant system - Internal grinding spindle - Flanges

Condition: used, Year of construction: 1982, grinding diameter:250 mm grinding length:650 mm centre height:125 mm internal grinding spindle rev.-stepless:9500-50000 U/min workpiece speeds -stepless:50-10000 mm/min grinding head swivelling:90 Grad max. dia. of grinding wheel:400 mm spindle bore:30 mm grinding length - plunge feed:80 (100) mm max. grinding depth by internal grinding:ca. 170 mm max. bore diameter to be ground:90 mm Kodpfjcxxubjx Ag Ajdw feed speeds:240 mm/min max. workpiece weight:80 kg required cooling water:36 l/min centre distance:650 mm distance of workpiece spindle-taper cone:960 mm drive capacity - spindle motor:6,25 kW connected load:ca. 10 kW total power requirement:8,5 kW weight of the machine ca.:3,4 t dimensions of the machine ca.:3,9 x 2,5 x 1,85 m with Studer control, electric/hydraulic drive, variable speed, tailstock with fine adjustment and hydraulic back feed, work piece headstock with increased precision, table air , hydraulic removable dressing device, radius-dressing device, Hydro-Cyclone filter, automatic grinding wheel-balancing device, automatic dressing cycle with speed compensation

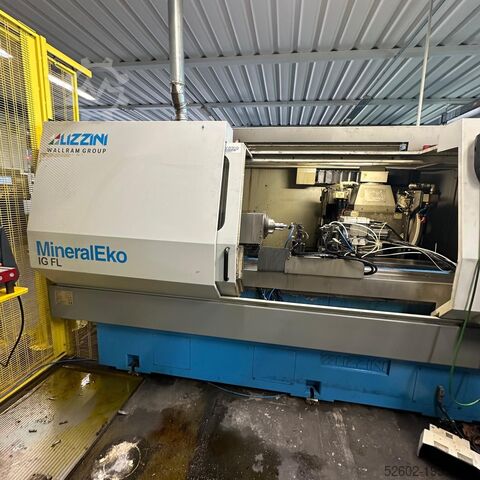

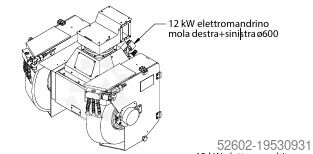

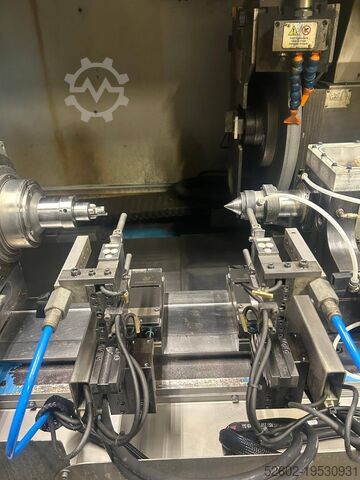

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, center height: 200 mm, workpiece weight (max.): 140 kg, grinding length: 1,000 mm, distance between centers: 1,000 mm, Equipped with B-axis and a wheelhead featuring two grinding wheels mounted on the same spindle (Right/Left configuration). Accessories and Features: Gap control, External Wheel Profiling Unit , Multiple External Grinding Cycles, Dressing Cycles with Automatic Wheel Wear Compensation, Marposs Axial Touch Probe, Marposs In-Process Diameter Gauging on Both Wheels, Magnetic Separator with Settling Tank and Paper Filter. TECHNICAL DATA: Centre Height Over Table: 200 mm Maximum Workpiece Length: 1000 mm Maximum Workpiece Weight Between Centres: 140 kg LONGITUDINAL AXIS – Z (Table) Longitudinal Stroke: 1200 mm Maximum Traverse Speed: 12,000 mm/min Minimum Feed Resolution: 0.0001 mm CROSS AXIS – X (Wheelhead) Cross Stroke: 300 mm Maximum Traverse Speed: 10,000 mm/min Kjdpfx Agjwybgxs Aedw Minimum Feed Resolution: 0.00005 mm Grinding Wheels Dimensions: Right and Left Wheel Dimensions (DX and SX1): 610 x 120 x 203.2 mm Maximum Wheel Speed: 50 m/s Maximum Spindle Power: 24 kW Compressed Air Supply: Required Pressure: 5.5 bar WORKHEAD: Variable Spindle Speed Range: 10 – 800 rpm Morse/ASA Taper: 4 / 5 TAILSTOCK: Maximum Quill Stroke: 40 mm Micrometric Adjustment: ± 0.07 mm Morse Taper: 4 Total Machine Weight: 7500 kg

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, center height: 180 mm, workpiece weight (max.): 70 kg, center width: 650 mm, grinding wheel diameter: 400 mm, workpiece weight between centers: 250,000 g, The machine has been fully repaired and inspected by the seller! TECHNICAL DETAILS Working Area - Distance between centers: 650 mm - Center height: 180 mm - Workpiece weight: max. 70 kg (overhung) / max. 250 kg (between centers) - Grinding wheel diameter: 400 mm Workpiece Spindle - Mount: MK4 (Morse taper 4) - Speed: 30 - 450 rpm - Swivel range: 0 - 90° - Motor power: 0.55 kW Tailstock - Mount: MK4 (Morse taper 4) - Quill stroke: 45 mm - Quill force: 200 - 600 N Adjustment Travels and Settings - Table swivel angle: 10° - Infeed spindle travel: 80 mm - Rapid traverse: 50 mm - Coarse adjustment with air cushion: 280 mm MACHINE DETAILS Drives - External grinding spindle motor: 4 kW - Internal grinding spindle motor: 2.2 kW Weight - Machine weight: 3,600 kg EQUIPMENT - Air-cushion supported rapid adjustment of grinding spindle headstock - Separate drive for external and internal grinding spindles - Fully automatic operation with rotary switch - Automatic longitudinal grinding cycle - Central coolant supply for all grinding positions Kodpfxjwy Rnfe Ag Asdw - Workpiece spindle stock with stepless drive control - Infeed control for longitudinal and plunge grinding

Condition: good (used), functionality: fully functional, BUA 25/1000 Kdjdpfx Aswug A Iog Ajw

Year of construction: 1979, condition: refurbished (used), functionality: fully functional, TECHNICAL DETAILS Height of centers: 125 mm + heights of 50 mm distance between centers: 1.000 mm Grinding wheel ' diameter: 400 mm ' width: 50 mm ' Bore: 127.0 mm angular displacement: 270 ° workpiece spindle head: 20 - 400 rpm taper of the spindle: 5 MT Taper in the tailstock: 3 MT table angular displacement: 8 ° Table speed: infinitely variable up to 6.0 m/min Internal grinding spindle with 60 000 rpm Kdodpfsk H Hp Nsx Ag Asw External grinding wheel motor: 4,0 kW Workpiece spindle motor: 1,5 kW Weight machine: 3.100 kg Overall machine dimensions: 2,860 × 1,680 × 1,670 mm (L × W × H) EQUIPMENT & SCOPE OF DELIVERY - Machine was completely retrofitted - New control cabinet & new wiring diagram - New motor & frequency converter for the working head - 2 axes DRO - Cooling tank with paper filtering - Geometry made according to the Kellenberger protocol - Internal grinding spindle - Many accessories Please refer to the attachment below for a test report on the machine.

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, center height: 175 mm, workpiece weight (max.): 180 kg, grinding length: 1,000 mm, grinding wheel diameter: 400 mm, total length: 1,150 mm, grinding diameter: 349 mm, The machine is in working and usable condition in our workplace. There are 2 outer diameter and 2 inner grinding machines, it has a C axis. Kdedpfov Uxrijx Ag Ajw

Condition: used, Year of construction: 1987, machine/vehicle number: 6004.01, grinding diameter:350 mm Kdedpsdmppqjfx Ag Ajw grinding length:1000 mm centre height:175 mm workpiece weight:120 kg power capacity:5,5 kW turning speeds:max. 25000 U/min control:FMS 5-88 weight of the machine ca.:3,5 t precision grinding machine with SONY digital display, coolant system, electronic hand wheel, separate electrical cabinet, emergency cut-off

Condition: used, Year of construction: 1989, functionality: fully functional, workpiece weight (max.): 20 kg, grinding length: 650 mm, grinding wheel diameter: 350 mm, total width: 3,400 mm, total length: 3,450 mm, total height: 2,000 mm, grinding diameter: 80 mm, grinding spindle motor power: 12 W, overall weight: 1,900 kg, For sale Studer S 20-4 CNC slab grinder Technical data: Range of motion: Kedpjvdyg Tefx Ag Ajdw X: 80 mm Z: 650 mm Table stroke length: 1-650mm Grinding disc diameter max 350mm, Disc bore 127mm Speed: 1600, 1975, 2000 /min Maximum workpiece weight: 20kg Controller: Siemens Sinumerik 3 Power: 12 kW Year of manufacture: 1989 Dimensions: Machine weight: 1900 kg Machine dimensions (H, W, D): 3400x3450x2000

Condition: as good as new (ex-display), Year of construction: 2025, functionality: fully functional, center height: 200 mm, workpiece weight (max.): 500 kg, grinding length: 1,000 mm, center width: 1,100 mm, grinding wheel diameter: 500 mm, As-new cylindrical grinding machine, year of manufacture 2025! TECHNICAL DETAILS Working Area Centre distance: 1,100 mm Grinding length: 1,000 mm Centre height: 200 mm Workpiece weight: max. 500 kg Grinding wheel diameter: 500 mm Kdsdpswy N Udofx Ag Asw Grinding wheel width: 110 mm Peripheral speed: 50 m/s X-Axis Travel: max. 400 mm Speed: 0.001 - 12,000 mm/min Measuring system resolution: 0.0001 mm Z-Axis Travel: max. 1,070 mm Speed: 0.001 - 12,000 mm/min Measuring system resolution: 0.0001 mm Grinding Spindle Headstock Grinding spindle motor: 7.5 kW Automatic regulation of grinding wheel peripheral speed Workpiece Spindle Headstock Speed range: 0 - 500 rpm Spindle bore: 30 mm Tailstock Stroke: 50 mm Fine adjustment: ±1.5 mm Control System Control: Siemens 840 D sl MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 2,800 x 2,050 x 1,950 mm Machine weight: 8,300 kg Total connected load: 30 kW Air pressure: 6 bar

Condition: excellent (used), Year of construction: 1983, functionality: fully functional, machine/vehicle number: 1404, total width: 1,690 mm, total length: 3,410 mm, total height: 1,915 mm, overall weight: 3,000 kg, TECHNICAL DATA Capacity - Height of centres: 125/175mm - Distance between centers: 400mm; 700mm; 1025mm - Max.travel of longitudinal slide: 400mm; 700mm; 1025mm Table - Table speed steplessly adjustable: 0.5 - 5.5 m/min. - Reversal dwell of table: 0-6 sec. - Minimum automatic stroke approx.: 1.5mm Kedpfx Aeupiycog Ajdw - Maximum swivel of table: 400 deg.- 12 ; 700 deg. -10; 1025 deg.- 8 - Travel per revolution of handwheel: 25mm Workhead - Swivel towards grinding wheel: 90 deg. - Spindle speed, steplessly variable: 30 - 675 RPM - Spindle nose taper: Morse 5 - Collet shank diameter: 25mm - Diameter of 3-jaw chuck: 160mm Wheelhead - Grinding wheel L.H. or R.H.: - Diameter (special exec. 6.25kW/8.4 HP): 400 (450) mm - Maximum width: 50 (80) mm - Bore: 127 (203) mm - Spindle speeds (3-step Vee-belt pulley) - Grinding wheel dia 400: 1500/1625/1800/2000/2200/2400 RPM - Grinding wheel dia 450 (8.4HP): 1340/1500/1625/1800/2000/2200 RPM - Grinding wheel motor approx.: 3kW - Grinding wheel motor, special for 450 dia wheel approx.: 6.25kW - Rapid travel of wheelhead: - Hydr.approach and retraction: 40 mm - Additional adjustment with hand leveler: 210 mm - Swivel of the whole cross slide L.H. and R.H.: 45 deg. - Interminent feed, steplessly adjustable (on dia) at left or right hand table reversal, or both: 0.001 - 0.05 mm/sec. - Plunge feed, steplessly adjustable (on dia): 0.0002 - 0.1 mm/sec. - Maximum depth of plunge on dia: 1.7 mm Motor rating - Wheel spindle, standard: 3 kW - Wheel spindle special rating: 6.25 kW - Workhead: 0.55 kW - Hydraulics: 0.55 kW - Coolant pump, standard: 0.17 kW - Coolant pump, inteclon: 1.1 kW Workpiece weight - Maximum between centers: 80 kg Extras: grinding wheels, coilets, other additional equipment, user manuals

Condition: used, Technical details: Kjdpfx Agerkr U Ee Aedw grinding length: 600 mm centre height: 180 mm swing dia.: 360 mm workpiece weight: 80 kg max. dia. of grinding wheel: 500 mm grinding wheel width: 80 mm grinding wheel hole diameter: 203,2 mm peripheral speed: 45 m/sec There is also a 3200 liter coolant tank including cooling unit + fire extinguishing system. *

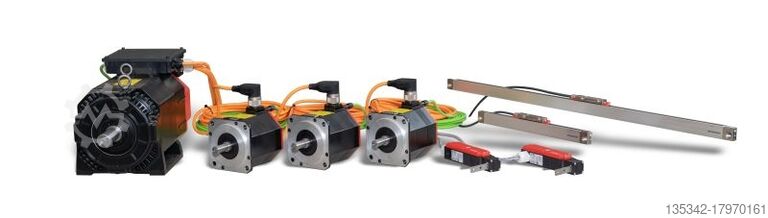

Condition: new, Year of construction: 2025, New cylindrical grinding machine – or save around 70% with FlexiGrind? Simple control replacement on your old CNC cylindrical grinding machine with FlexiGrind! Modernizing existing cylindrical grinding machines has never been easier. FlexiGrind offers a cost-effective and efficient solution: Instead of a complete overhaul of the old machine, the FlexiGrind control kit replaces only the outdated electronic and electrical components. This is done directly on-site, minimizing downtime and avoiding the high costs of a complete new machine investment. Thanks to easy-to-understand installation instructions, the replacement can be performed either by your own maintenance team or our installation team. The FlexiGrind kit replaces all outdated, critical components of your cylindrical grinding machine, such as the control system, control cabinet, motors, linear encoders, and cables – in a single step. It includes the following hardware components: • Modern control system for precise grinding and easier operation from FANUC and SIEMENS • New control cabinet with a clear layout • Three new servo motors for the indexable insert, X, and Z axes • Adapters for the new servo motors • New grinding spindle motor for precise spindle speeds • New absolute length measuring systems for maximum precision • New Euchner safety switches for maximum safety • Completely new cabling for reliable operation The kit also includes user-friendly software that enables simple operation and a quick return to operation. All necessary documentation for installation and programming is included. The FlexiGrind kit complies with the latest safety standards and is CE-certified. Simply replace your old control system and defective components with our new FlexiGrind control system kit. Control system conversion made easy - feasible for any maintenance thanks to the clear assembly instructions! Kjdpfevfp Uvjx Ag Aodw Versatility and Compatibility The FlexiGrind kit is specifically designed for Karstens and Bahmüller CNC cylindrical grinding machines. However, it is also available for machines from other manufacturers such as Studer, Tacchella, Kellenberger, Junker, and EMAG upon request. Request a control system replacement today to get your defective or outdated cylindrical grinding machine running smoothly again!

Condition: used, Year of construction: 1989, Technical details: Kdedpfx Agjr R Elpj Ajw grinding diameter: 300 mm grinding length: 540 mm centre height: 175 mm total power requirement: 20 kVA centre distance: 1000 mm

Condition: like new (used), Year of construction: 2025, We will overhaul your existing Karstens and Bahmüller brand cylindrical grinding machine. The overhaul for Bahmüller and Karstens cylindrical grinding machines includes the following: 1. Housing/full space paneling new paint in RAL 7035, RAL 7011 new polycarbonate safety screen 10 mm new bearings for workpiece change door 2. Grinding headstock complete cleaning and painting check bearings, grind in plain bearings if necessary, replace if necessary check and clean the lubrication system revise the grinding spindle new coolant hoses, taps and KM nozzles made of aluminum install new belts 3. Tailstock complete cleaning and painting revise the quill check bearings, grind in plain bearings if necessary, replace if necessary disassembly and cleaning of the fine adjustment, replace any defective parts if necessary 4. Workpiece headstock complete cleaning and painting check bearings, replace if necessary check and clean the Lubrication system Revision of the workpiece spindle Install new belts 5. Hydraulics Complete cleaning and painting Storage of the hydraulic motor Revision of the pump, replace if necessary Complete renewal of the hoses Filter replacement Hydraulic plan 6. Pneumatics New maintenance unit New sealing air unit for length measuring systems New pneumatic lines/connectors/distributors and small parts Pneumatic plan 7. Lubrication for spindles Complete cleaning and painting Storage of the lubrication motor Revision of the pump, replace if necessary Check and clean the lubrication system Check and renew the lubrication monitoring if necessary 8. Central lubrication Complete cleaning and painting Storage of the lubrication motor Revision of the pump, replace if necessary Check and clean the lubrication system Check and renew the lubrication monitoring if necessary 9. Machine bed Completely clean inside and out Sand down and repaint V- and re-scrape and measure flat tracks Installation of a new control panel (rotatable) 10. X, Z axis New bearings on the X axis New ball screws New axial bearings Surface grinding, scraping if necessary Revision of the coarse adjustment of the X axis 11. Geometry Grinding and adjusting the complete geometry on the Grinding headstock, workpiece headstock, tailstock, X and Z axis Creation of a geometric protocol 12. Electrical system Construction of a new Rittal control cabinet with Siemens components, contactors, motor protection switches, Finder relays, Siemens drives, NCU, supply, Siemens PLC, etc. if necessary MPM, Jenoptik and other optional control devices Creation of a new E-Plan 8 circuit diagram Completely new cabling with PUR cables New control devices, switches, buttons (Siemens, Eaton) 13. CNC control Siemens control SINUMERIK ONE Siemens axis drives and frequency converters with CU Siemens asynchronous motor (grinding spindle) Siemens synchronous motors in X, Z, workpiece spindle 14. Length measuring systems absolute length measuring systems Heidenhain 15. Other Kedpfxevrdxij Ag Aedw CE marking and protocol Risk assessment Siemens Safety with acceptance protocol new operating instructions and supplier documents in paper or digital form Noise protocol VDE protocol Control version also possible with Fanuc 0i TF Plus.

Condition: new, Year of construction: 2025, We are your competent and experienced partner when it comes to spare parts supply for Karstens and Bahmüller cylindrical grinding machines with the best price/performance ratio! Our spare parts supply includes electrical and mechanical components. We look forward to your inquiry and will deal with your request as quickly as possible. PS: We are happy to try to undercut the offer of another supplier, an inquiry will be worthwhile. Spare parts such as: - Ball screws - Spare parts for your assemblies such as tailstock, workpiece headstock, grinding headstock Kjdpfx Agjvq Nxfo Ajdw - Control exchange - Measuring systems (Heidenhain) - Tailstock quills - Bellows - Grinding wheel flanges and much more.

Condition: like new (used), Year of construction: 2024, K11-1000 cylindrical grinding machine Also available in grinding length 650mm Make Karstens Technical data: Center width: 1100 mm Center height: 180 mm / (250 mm = option) Workpiece weight: 100 kg flying, 300 kg between centers Grinding wheel diameter: 400 mm or 500 mm (external grinding wheel) Workpiece spindle: MK 4, infinitely variable speed 30-450 rpm, swivel range 0 - 90 ° Tailstock: MK4, quill stroke 45 mm Quill force: 200-600 N manual, (up to 2500 N possible, adjustable = option) Table inclination: 10 degrees Feed spindle travel: 80 mm Rapid traverse: 50 mm Coarse adjustment air cushion: 280 mm External grinding spindle motor: 4 KW / (5.5 KW = option) Stepless speed adjustment of the grinding wheel with potentiometer Internal grinding spindle motor: 2.2 KW Workpiece spindle motor: 1.1 KW Hydraulic motor 1.5 KW Lubrication motor 0.1 KW Hydraulic tank 80 liters Machine weight: Net 3800 kg Infeed drive via DC motor Air cushion-supported quick adjustment of the grinding headstock for quick and safe approach to the sanding position. Separate drive for the spindles for external and internal internal grinding. Fully automatic work sequence, infeed movement via wind rose switch: Rapid feed, rapid return, sanding mode, infeed stop, mym infeed. Automatic longitudinal sanding cycle Central coolant supply for all grinding points Workhead with infinitely variable drive with traveling and lockable spindle. Digital infeed control with Siemens panel and Siemens PLC for longitudinal grinding and plunge-cut grinding, input for the return, infeed amounts, feeds, burnout times, empty strokes, compatible with the old old Karstens infeed control, Ksdpfx Agjtudips Ajdw with colored Siemens touch panel comparable to Studer/Kellenberger/Schaudt/Tschudin/Tacchella/Dannobat

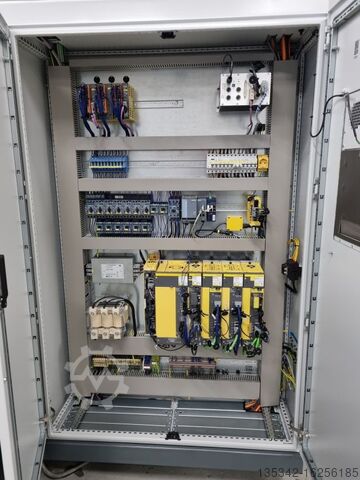

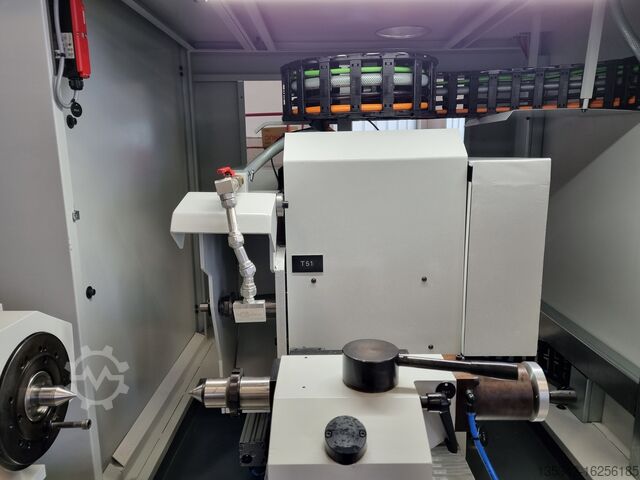

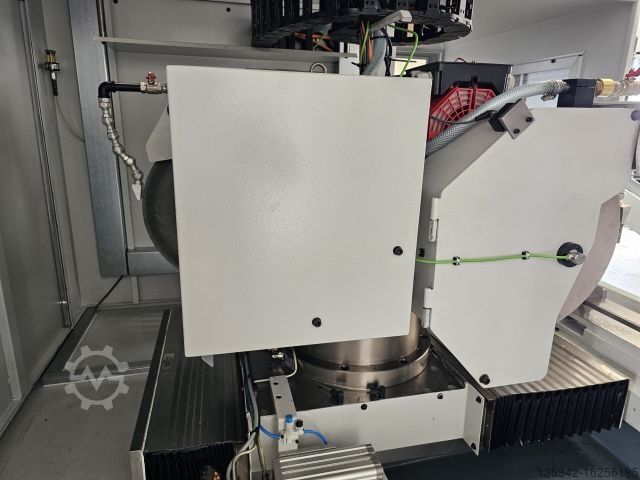

Condition: as good as new (ex-display), Year of construction: 2024, GP CNC-1000 cylindrical grinding machine (Fanuc) Also available in grinding length 650mm and 1500mm Make Karstens Technical data: Center width: 1100 mm Center height: 180 mm, with electric B-axis 200 mm, Kjdpjtudg Hsfx Ag Asdw optionally other center height possible Max. Workpiece weight between centers: 300 kg Max. Workpiece weight on the fly including clamping device: 100 kg Workpiece headstock: MK 4, optionally other taper possible Tailstock: MK 4 Grinding wheel diameter with electrical or mechanical B-axis up to 500 mm; 600 mm diameter only for version Grinding machine with one grinding wheel Wheel arrangement: left for straight stitching machine, right for angled stitching machine 30 degrees Total connected load: approx. 30 KW Machine weight: approx. 4700 kg Basic equipment of the machine: Axes: X-, Z-, C-axis Grinding headstock: Asyncron motor 7.5 KW Constant grinding wheel peripheral speed: up to 50 m/s, preselectable cutting speed, automatic readjustment after dressing readjustment after dressing Workhead: with Fanuc servo motor 2.3 KW, Speed range: 0-560 rpm Tailstock quill stroke: 45 mm Tailstock: MK4 with fine adjustment CNC control: Fanuc, 19.0" PC system with touch, Windows 10 IoT Enterprise GP grinding software Axis drives: Fanuc Servo Fanuc manual control unit Full enclosure with generous workpiece change door and maintenance door 2-color paint finish CE comparable to Studer/Kellenberger/Schaudt/Tschudin/Tacchella/Dannobat

Condition: as good as new (ex-display), Year of construction: 2024, GP CNC-1000 cylindrical grinding machine Also available in grinding length 650mm and 1500mm Make Karstens Technical data: Center width: GP CNC 1000: 1000mm Center height: 180 mm optionally other center height possible Max. Workpiece weight between centers: 300 kg Max. Workpiece weight on the fly including clamping device: 100 kg Workpiece headstock: MK 4, optionally other mounting cone possible Grinding wheel diameter with electrical or mechanical mechanical B-axis up to 500 mm; 600 mm diameter only for version Grinding machine with one grinding wheel Wheel arrangement: left for straight stitching machine, right for angled stitching machine 30 degrees Total connected load: approx. 30 KW Machine weight: approx. 4400 kg Basic equipment of the machine: Axes: X-, Z-, C-axis Grinding headstock: Asynchronous motor 7.5 KW, optionally higher motor power possible Constant grinding wheel peripheral speed: up to 50 m/s, preselectable cutting speed, automatic readjustment after dressing readjustment after dressing Workhead: with Siemens servo motor 2.2 KW, Speed range: 0-560 rpm CNC control: Siemens 840Dsl Software modules included as standard: 1) External grooving 3) External longitudinal grinding 4) Internal longitudinal grinding 5) External surface grinding 6) Face grinding inside 7) Inclined grooving 8) Wheel magazine for 8 wheels Kdsdpfott Rtzex Ag Aow Further optional modules: Oscillating, phases, external and internal taper grinding Axis drives: Siemens Servo Full enclosure with generous workpiece workpiece change door and maintenance door 2-color paint finish CE comparable to Studer/Kellenberger/Schaudt/Tschudin/Tacchella/Dannobat

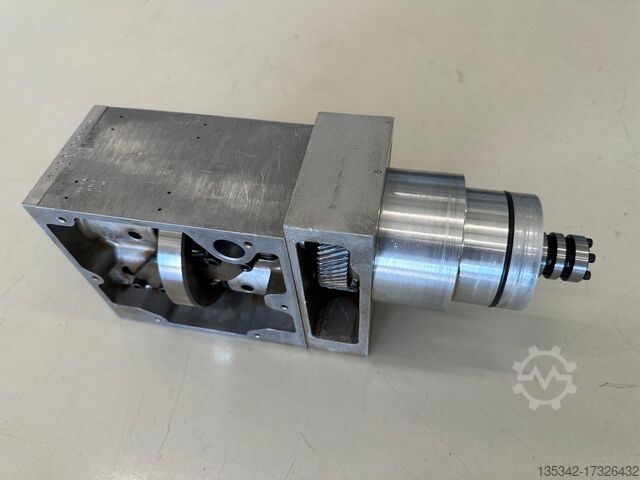

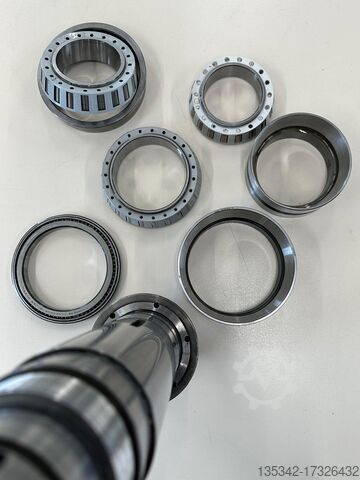

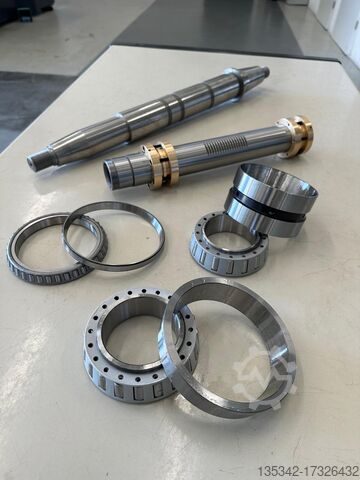

Condition: refurbished (used), Your competent service partner for overhauling assemblies! Kjdpfx Ajuu Enasg Ajdw Our service includes the overhaul of assemblies such as workhead, grinding headstock and tailstock of the Karstens and Bahmüller brands. Our service also includes the repair of the friction gear of Karstens workpiece headstocks. Cylindrical grinding machines are too heavy and too large to be easily transported. Their individual assemblies can usually be easily dismantled and shipped by a forwarding agent. We can dismantle, clean and measure these assemblies and replace parts. Or they can be upgraded and expanded with new technology. After completion, the assemblies are then sent back and the cylindrical grinding machine can resume its work after assembly.

Condition: refurbished (used), TECHNICAL DETAILS - distance between centers : 1000 [mm] - centers height : 175 [mm] - max grinding diamater: 350 [mm] - table orientation : -/+ 8 [°] - universal wheelhead - grinding wheels dimensions : 400 x 50 x 127 [mm] - motor power : 3 [kW] - spindle speed : 1500 / 1700 / 2200 - boring for internal spindle : 90 [mm] - orientation of part holder headstock : 180 [°] - spindle speed : 20 - 400 [Rpm] - spindle internal cone : Morse 5 - motor power : 0,9 [kW] - inner cone tailstock : Morse 4 - tailstock sleeve travel: 30 [mm] - dimensions : 2860 x 1680 x 1670 [mm] - weight : 2 500 [kg] Accessories/options: - automatic cycle works - tailstock - lubricating tank with pump - 1 internal grinding spindle Kedpfx Ajwu Afreg Aodw - external grinding wheels - wheel dresser - documentations The machine is partly overhauled, included: - new geometry - new electrical cabinet - bearings replaced - new painting - etc....

Condition: reconditioned (used), functionality: fully functional, center height: 175 mm, center width: 1,000 mm, grinding diameter: 350 mm, tailstock quill stroke: 30 mm, Equipment: documentation/manual, The machine has been partially overhauled and features, among other things, new geometry and a new control cabinet. The bearing has been replaced. TECHNICAL DETAILS Working Area - Centre distance: 1,000 mm - Centre height: 175 mm - Max. grinding diameter: 350 mm - Table swivel: -/+ 8° Grinding Head - Universal grinding head: available - Grinding wheel dimensions: 400 x 50 x 127 mm - Spindle speed: 1,500 / 1,700 / 2,200 rpm - Bore for internal spindle: 90 mm Spindle - Spindle speed: 20 - 400 rpm - Spindle taper: Morse 5 Tailstock Kodexgq U Aopfx Ag Asdw - Tailstock head rotation: 180 ° - Internal tailstock taper: Morse 4 - Tailstock quill stroke: 30 mm MACHINE DETAILS Drives - Grinding head motor power: 3 kW - Tailstock motor power: 0.9 kW Machine Data - Dimensions: 2,860 x 1,680 x 1,670 mm - Weight: 2,500 kg EQUIPMENT - Automatic work cycle - Tailstock - Coolant tank with pump - 1 internal grinding spindle - External grinding wheels - Dressing device - Documentation Note: A digital display can be purchased optionally for €2,500.
