Used injection molding machines with a clamping force of 5000 - 9999 kN for sale (81)

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: X66609, clamping force: 6,600 kN, screw diameter: 84 mm, injection pressure: 1,650 bar, ejector stroke: 300 mm, controller model: CDS700, TECHNICAL DETAILS Clamping unit Clamping force: 6,600 kN Platen size (H x W): 1,370 x 1,370 mm Tie bar spacing (H x W): 900 x 900 mm Minimum/maximum mold height: 300 - 900 mm Maximum opening stroke: 1,840 mm Centering ring diameter: 200 mm Ejector stroke: 300 mm Injection unit Screw diameter: 84 mm Shot volume: 2,575 cm³ Shot weight (PS): 2,369 g Injection pressure: 1,650 bar Maximum injection speed: 500 mm/s MACHINE DETAILS Control system: CDS700 Clamping unit weight: 25,400 kg Godpjx A Awzefx Ad Asuk Injection unit weight: 7,000 kg EQUIPMENT Pneumatic valves (6 pcs.) Core pull (1 pcs.)

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, clamping force: 6,500 kN, screw diameter: 130 mm, displacement volume: 6,172 cm³, injection pressure: 1.296 bar, plate width: 1,700 mm, plate height: 1,704 mm, TECHNICAL DETAILS Clamping force: 6,500 kN Tool opening force, max.: 346 kN Moving platen opening force: 169 kN Moving platen closing force: 144 kN Clamping plate (h x v): 1,704 x 1,700 mm Clear width (h x v): 930 x 930 mm Tool opening stroke: 1,150 mm Tool installation height, min.: 600 mm Opening width: 1,750 mm Ejector stroke: 250 mm Ejector force forward/backward: 226 kN Injection unit Screw diameter: 130 mm L/D ratio: 20 Injection pressure: 1,296 bar Displacement: 6,172 cc Shot weight (PS): 5,617 g Injection flow: 1,540 cc/s Screw speed: 138 rpm Plasticizing flow: 238 g/s Nozzle contact force: 246 kN Electrohydraulic equipment Nominal pump motor power: 132 kW Installed heating power: 70 kW Cylinder heating control zones: 7 MACHINE DETAILS Space requirement approx.: 12.00 x 2.80 x 2.70 m Total weight: 43,000 kg EQUIPMENT Godjx Dbtwjpfx Ad Asuk - Oscillating elements - 1 x air valve - 2 x hydraulic core pull on BFAP - 2 x hydraulic core pull on FFAP - 8 x hot runner control points - Robot interface according to Euromap 67

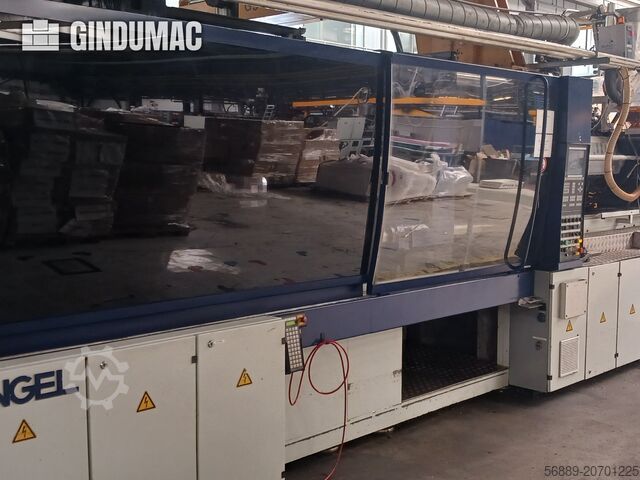

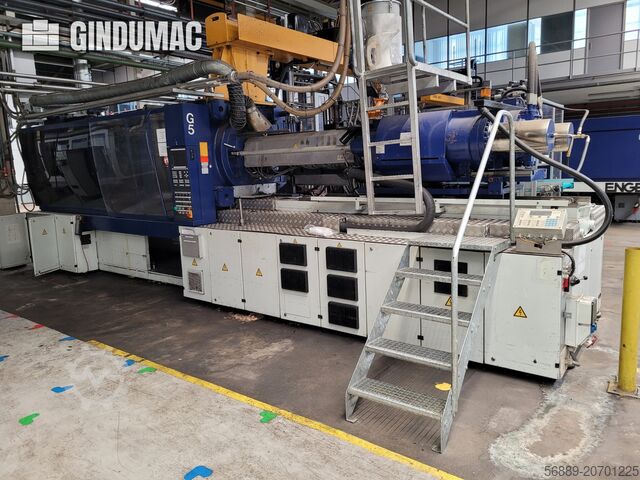

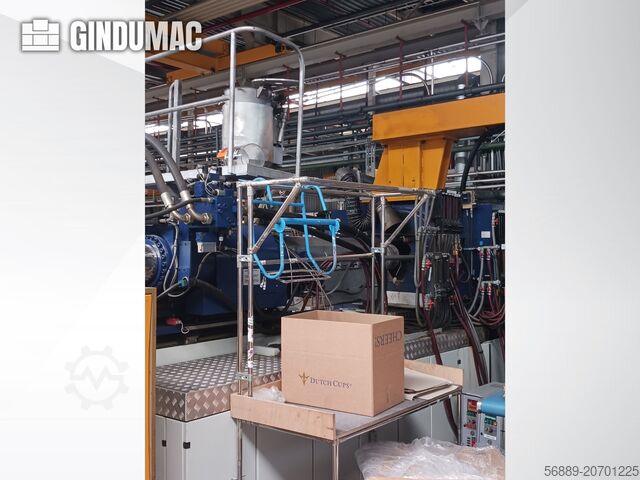

Condition: ready for operation (used), Year of construction: 2003, operating hours: 72,069 h, Injection Unit Godpfjx D Eblsx Ad Ajuk Screw diameter 90 mm Clamping Unit Clamping force 5500 kN This Engel CL 4550/550 was manufactured in 2003. It features a screw diameter of 90mm, a closing force of 5500kN, and an opening distance of 700mm. Mold installation height ranges from 250mm to 850mm, and the plant size is 1200x1200mm. Includes a robot but excludes water temperature control equipment and conveyor belt. Contact us for more information about this machine. Application Types Injection Moulding

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, clamping force: 8,000 kN, screw diameter: 135 mm, displacement volume: 8,870 cm³, injection pressure: 1,640 bar, mold height (min.): 500 mm, ejector force: 180 N, ejector stroke: 300 mm, opening stroke: 1,600 mm, plate width: 1,550 mm, plate height: 1,470 mm, installation height: 1,100 mm, total length: 1,181 mm, total width: 3,200 mm, total height: 2,900 mm, overall weight: 51,000 kg, Equipment: documentation/manual, warehouse no.: 503583 manufacturer: ENGEL type: ES 16050-800 DUO controller: CC 100 year of construction: 2007 operation hours: 91691 h clamping force: 8000 kN distance between tie-bars h x v: 1170 x 1000 mm size of mould plates h x v: 1550 x 1470 mm min. mould height: 500 mm max. mould height: 1100 mm max. open daylight: 2100 mm opening stroke: 1600 mm screw diameter: 135 mm swept volume: 8870 ccm injection pressure: 1640 bar measures of machine l x w x h: 11.81m x 3.2m x 2.9m total weight: 51000KG technical data robot-system handling type: Linear manufacture: ENGEL controller: ERC 64/1-F year of construction: 2007 handling weight: 25 kg X axis: 1300 mm Y axis: 2200 mm Gedpfjx Eyvvjx Ad Aeuk Z axis: 4760 mm

Condition: used, Year of construction: 2017, clamping force: 550 kN, displacement volume: 1,239 cm³, injection pressure: 1,990 bar, overall weight: 21,000 kg, load hours: 21,636 h, screw conveyor diameter: 70 mm, terms of delivery: EXW (ex Works) delivery time: on request terms of payment: 100% prior to delivery Gsdpsx E A Tqsfx Ad Asuk

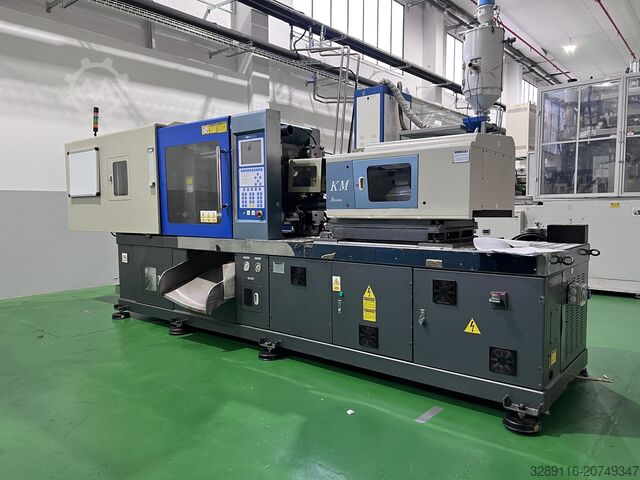

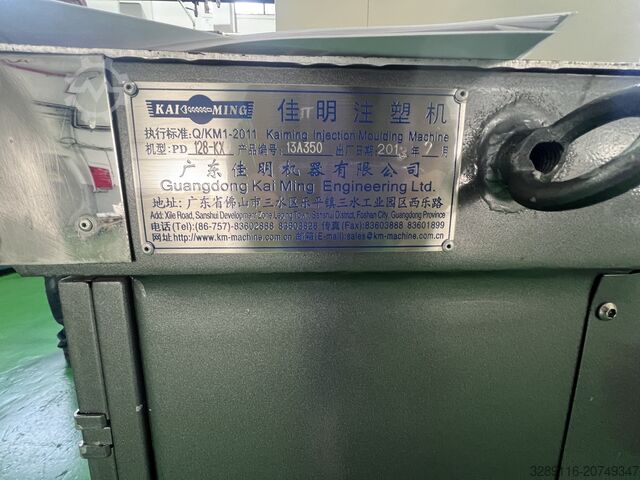

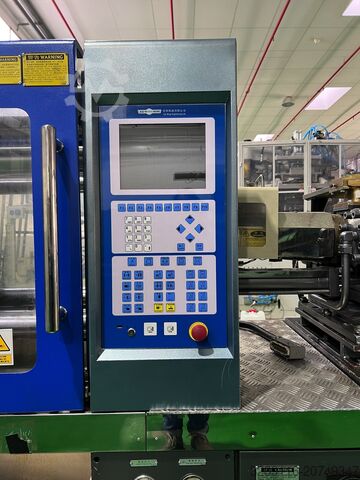

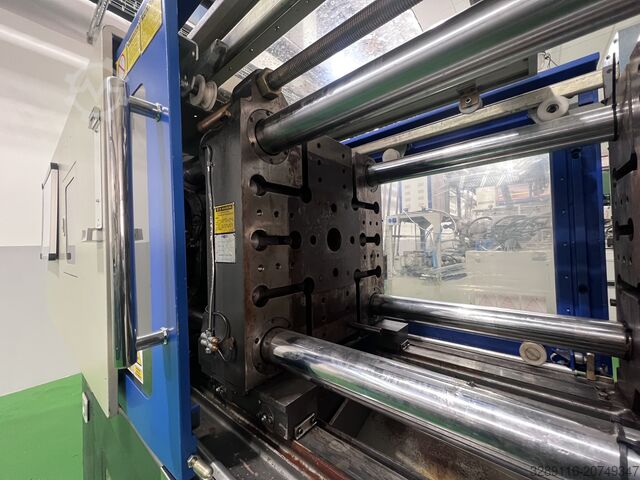

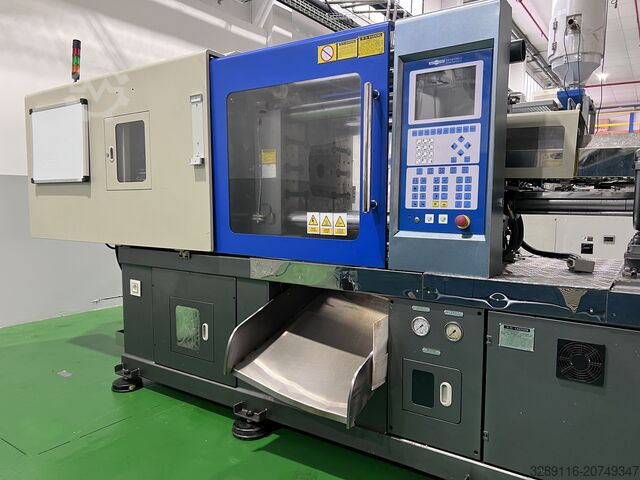

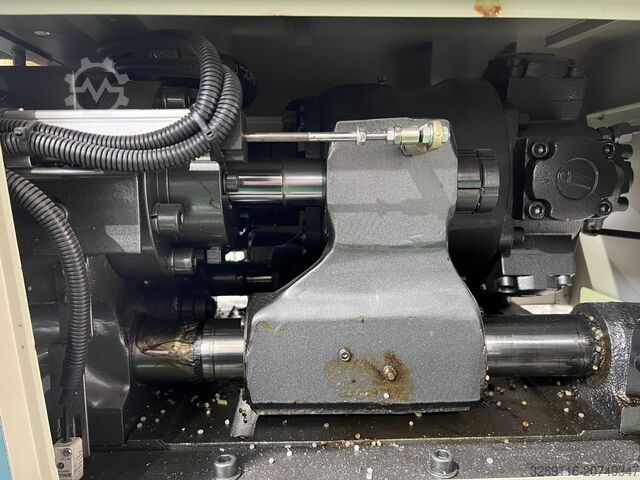

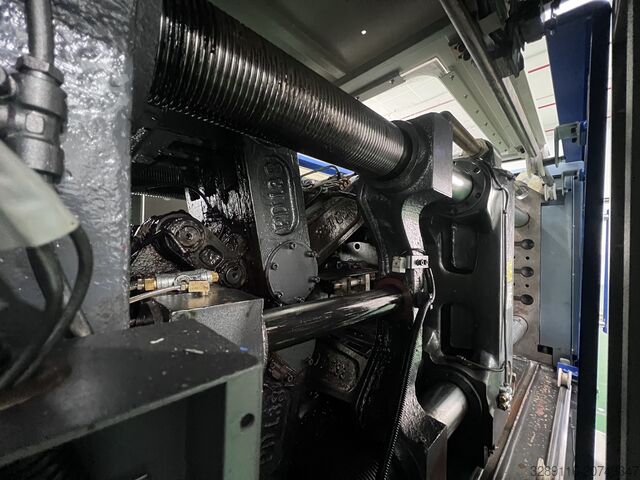

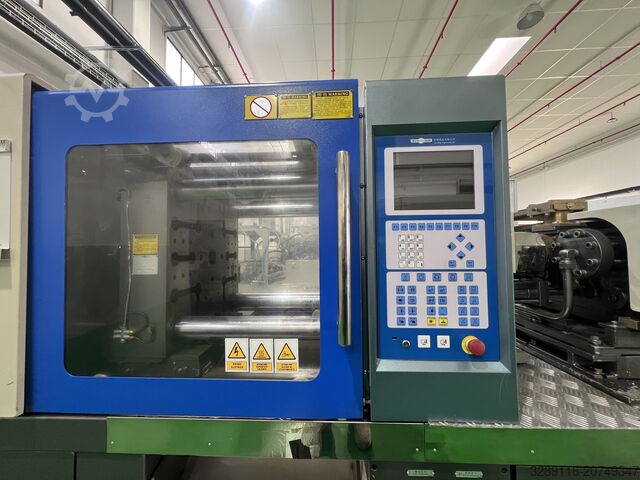

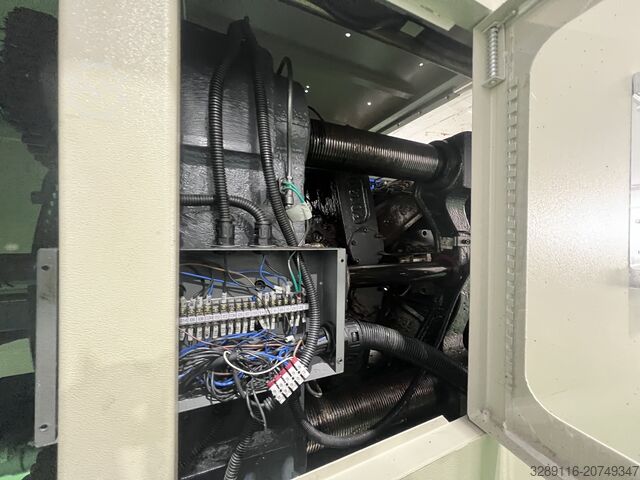

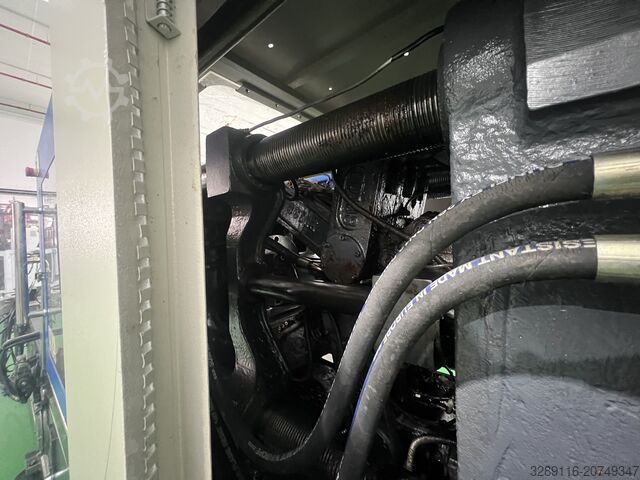

Condition: good (used), Year of construction: 2013, functionality: fully functional, Clamping force: 128 t. Tie-bar spacing: 410 × 410 mm. Machine no. 13A350 Platen size: 650 × 652 mm Mold height (min–max): 140–440 mm. Opening stroke: 360 mm. Ejector stroke: 95 mm. Ejector force: 4 t. Screw diameter: 42 / 47 / 53 mm. L/D ratio: 21.9 / 19.6 / 17.4 Injection weight (PS): Diam. 42: 216 g. Diam.47: 271 g. Diam.53: 344 g. Injection volume: 235 / 295 / 375 cm3. Injection pressure: 2005 / 1600 / 1260 kg/cm2. Injection stroke: 170 mm. Screw rotation speed: 0–200 rpm. Machine dimensions (L × W × H): 5.0 × 1.2 × 1.88 m Gusdpfx Aox Hibded Aok Machine weight: 4500 kg.

Condition: ready for operation (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: X88628, clamping force: 6,600 kN, screw diameter: 84 mm, injection pressure: 1,650 bar, ejector stroke: 300 mm, controller model: CDS700, The cylinder, screw, and screw tip of the injection system were replaced a year ago! TECHNICAL DETAILS Clamping Unit Clamping force: 6,600 kN Platen size (H x W): 1,370 x 1,370 mm Tie bar spacing (H x W): 900 x 900 mm Minimum mold height: 400 mm Maximum mold height: 1,125 mm Maximum opening stroke: 2,065 mm Centering ring diameter: 200 mm Ejector stroke: 300 mm Injection Unit Screw diameter: 84 mm Injection volume: 2,575 cm³ Shot weight (PS): 2,369 g Injection pressure: 1,650 bar Maximum injection speed: 500 mm/s MACHINE DETAILS Control system: CDS700 Gujdpfx Adjx A Avqe Ask Weight of clamping unit: 29,300 kg Weight of injection unit: 7,700 kg EQUIPMENT Pneumatic valves (4 pcs) Cores: (1 pc)

Condition: ready for operation (used), Year of construction: 2020, operating hours: 10,000 h, functionality: fully functional, clamping force: 9,000 kN, screw diameter: 100 mm, displacement volume: 3,691 cm³, Clamping force 9000 kN Distance between tie bars (h x v) 1180 x 1000 mm Mould opening stroke 1600 / 1000 mm Gedpfxexcakro Ad Aeuk Mould height min 500 / 1400 mm Max. daylight 2400 mm Hydraulic ejector - stroke 300 mm Ejector force 195 kN Injection unit: Screw diameter 100 mm Ls/D ratio 22 Injection pressure 1800 bar Stroke volume 3691 ccm Shot weight (PS) 3359 gr. Screw speed 135 1/min Plasticising rate max. 793 g/s Electric and Hydraulic Equipment: Nominal capacity of pump motor 85 kW Installed heating capacity 71 kW Reservoir capacity 780 ltr. Dimensions and weights: Dimensions of the machine ca. 9,24 x 3,21 x 2,88 m Total machine weight 38000 kg Accessories: - Anti vibration pads - 4 x 8-fold water flower Additional Options: - 2 x Air valves - 2 x hydr. Core pulls on movable plate - 2 x hydr. core pulls on fix plate - 1 x pneum. Core pull on movable plate - 1 x pneum. Core pull on fix plate - Robot interface according to Euromap 67

Condition: ready for operation (used), Year of construction: 2011, Injection Unit Screw diameter 90 mm Screw speed 180 r/min Clamping Unit Clamping force 6500 kN Opening stroke 1650 mm Max open daylight 3650 mm Distance between bars 1160 × 960 mm Mould height min 400 mm Mould height max 2000 mm Ejector stroke 210 mm Ejector force for / back 150 kN This Engel DUO 4550/650 was manufactured in 2011. It features a clamping force of 6500 kN and a maximum opening stroke of 1650 mm. The machine supports a mold height ranging from 400 mm to 2000 mm and a platen size of 1510 × 1440 mm. The screw diameter is 90 mm, enhancing its injection capabilities. Consider the opportunity to buy this Engel DUO 4550/650 hydraulic injection moulding machine. Contact us for more information about this machine. Guodpfx Asx D Sxqod Aek Application Types Injection Moulding

Condition: excellent (used), Year of construction: 2011, operating hours: 51,000 h, 1,0 St. gebr. Spritzgießmaschine Hersteller: KRAUSS MAFFEI Typ: KM300-2000CX Baujahr: 2011 Schließkraft: 300 Tonnen Holmabstand 630 x 630 mm Schnecken DN: 60 mm Max. Hubvolumen: 769 cm³ Spritzteilgewicht: 692 g/PS Steuerung: MC6 Ausstattung: 3 St. Kernzug Schnittstelle Roboter 45- Fach Heisszonenkanalregelung Schnittstelle Temperiergerät Gsdpoxyrc Isfx Ad Asuk Ca. 51.000 Betriebsstunden

Condition: used, Year of construction: 2001, Technical details: screw size: 105 mm injection shot weight in Polysterol: 4.940 g/PS closing pressure: 9000 kN weight of the machine ca.: 19 t Out of serial production Machine and Robot condition regularly checked by EngelCare program Linear robot on machine was fully refurbished in 2021 Gujdpfxotuncvo Ad Aek *

Condition: excellent (used), Haitian Type: Mars3 5300WM/2400-720 Overall dimensions: WxHxD mm (8700 x 2800 x 2500) Gjdpfxevvlv Re Ad Aeuk Screw diameter 2400: 70 mm 720: 45 mm Injection volume 2400: 1239 cm³ 720: 334 cm³ Injection capacity 2400: 1127 g  720:  304 g Injection rate 2400: 300 g/s 720: 142 g/s Injection pressure 2400: 198 MPa 720: 222 MPa Screw speed 2400: 0-184 r/min 720: 0-180 r/min Diameter of turntable : 1250 mm Max load on turntable: 3.3 t Power connection: AC 400V 3P/N/PE 50 Hz 25 kA 227 A Injection unit: Single and double cylinder control 3 modes for injection retraction Closing unit: Closing force 5300 kN Connection for Euro 18 robot Safety door Condition: used Scope of delivery: (See picture) Sale from location! Weight: approx. 31000 kg (Changes and errors in the technical data, information is subject to change!) We will be happy to answer any further questions you may have over the phone.

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: X81559, clamping force: 9,000 kN, screw diameter: 115 mm, injection pressure: 1,740 bar, ejector stroke: 300 mm, controller model: CDS700, TECHNICAL DETAILS Clamping Unit Clamping force: 9,000 kN Platen size (H x W): 1,570 x 1,560 mm Tie bar spacing (H x W): 1,010 x 1,010 mm Min. mold height: 300 mm Max. mold height: 1,190 mm Max. opening stroke: 2,290 mm Centerring diameter: 250 mm Ejector stroke: 300 mm Injection Unit Screw diameter: 115 mm Shot volume: 6,232 cm³ Shot weight (PS): 5,733 g Injection pressure: 1,740 bar Max. injection speed: 300 mm/s MACHINE DETAILS Control system: CDS700 Weight of clamping unit: 44,500 kg Weight of injection unit: 20,000 kg EQUIPMENT Pneumatic valves (6 pcs.) Core pulls (1 pc.) Gsdex A At Nopfx Ad Ajuk

Condition: excellent (used), Year of construction: 2004, Engel ES 3550/600 HL Gujdpfoxu Hnbex Ad Aok Technical Data Year of manufacture: 2004 Clamping Unit: Clamping force: 6000 kN Platen size (W x H): 1480 x 1300 mm Minimum mould height: 500 mm Maximum mould height: 1700 mm Opening stroke: 1200 mm Ejector stroke: 250 mm Ejector force: 110 kN Injection Unit: Screw diameter: 80 mm Shot volume: 1960 ccm Specific injection pressure: 1730 bar Screw length: 22 l/d Dosing stroke: 390 mm Number of heating zones: 6 Nozzle stroke: 700 mm

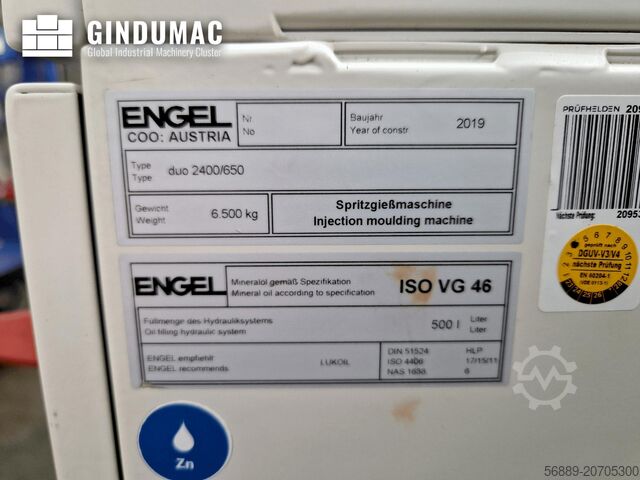

Condition: ready for operation (used), Year of construction: 2019, operating hours: 20,000 h, General Data Machine weight 6500 kg Control Unit Brand ENGEL Main Drive Spindle motor power 92 kW Injection Unit Screw diameter 60 mm Stroke volume 315 mm Injection pressure 2400 bar Screw speed 220 min-1 Nozzle pressure 2400 bar Gedpfx Adsx D Rayo Asuk Clamping Unit Clamping force 6500 kN Opening stroke 1400 mm Distance between bars 1100x960 mm Mould height min 350 mm Mould height max 850 mm Size of mold platens 1510x1440 mm Ejector stroke 250 mm Ejector force for / back 95 kN Additional Equipment Oil Reservoir Capacity - Injection Unit: 500 l Maximum Cooling Power (32°C Water Inlet): 29.40 kWcool Water Consumption (32°C): 4.80 m3/h This Engel duo 2400/650 electrical injection moulding machine was manufactured in 2019. It features a screw diameter of 60/70/80 mm, a screw stroke of 315 mm, and a maximum injection capacity of 890 cm³. The clamping force reaches up to 6500 kN with a maximum mold weight of 11000 kg. Consider the opportunity to buy this Engel duo 2400/650 electrical injection moulding machine. Contact us for more information about this machine. Application Types Injection Moulding

Condition: excellent (used), Year of construction: 2011, operating hours: 76,000 h, 1,0 St. gebr. Spritzgießmaschine Hersteller: KRAUSS MAFFEI Typ: KM300-1900C2 Baujahr: 2005 Schließkraft: 300 Tonnen Holmabstand 630 x 630 mm Schnecken DN: 60 mm Max. Hubvolumen: 754 cm³ Spritzteilgewicht: 679 g/PS Steuerung: MC5 Ausstattung: 2 St. Kernzug Schnittstelle Roboter Werkzeuginnendruckmessung 24- Fach Heisszonenkanalregelung Gusdpfsxyq S Uox Ad Ask Schnittstelle Temperiergerät Ca. 76.000 Betriebsstunden

Condition: like new (used), Year of construction: 2017, Machine: ENGEL VICTORY 500T / 7050 (Year 2017) Year of manufacture: 2017 Control unit: CC300 Operating hours: 565 h Availability: Immediate Clamping Unit: Clamping force: 500 tons Opening stroke: 1100 mm Distance between tie bars: 1500 × 1285 mm Platen size: 1500 × 1285 mm Minimum mould height: 500 mm Maximum daylight (open distance): 1600 mm Injection Unit: Screw diameter: 120 mm Screw length (L/D): 22 D Injection volume: 5430 cm³ Maximum injection pressure: 1600 bar General Data: Motor power: 98 kW Heating power: 30 kW Clamping unit weight: 31 tons Injection unit weight: 15 tons Gusdpfoxvingsx Ad Aok Machine dimensions (L × W × H): 10.50 m × 2.30 m × 2.30 m Options: Core pullers: 3 Robot interface: No Bi-metallic screw/barrel: Yes Other equipment: STAUBLI magnetic platens, 24 hot runner heating zones Note: The machine has very low operating hours (565 h) and belongs to the modern ENGEL Victory tie-bar-less series, ideal for large moulds and high-precision production.

Condition: good (used), Year of construction: 2014, operating hours: 29,646 h, clamping force: 900 kN, screw diameter: 100 mm, injection weight: 3,691 g, opening stroke: 1,120 mm, We are offering a HAITIAN MA 9000 injection molding machine in excellent condition, ideal for high-volume plastic production. This machine has been carefully maintained and has very low operating hours ( Guodpfx Adexc U Hzo Ajk

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: X81456, clamping force: 9,000 kN, screw diameter: 98 mm, injection pressure: 1,650 bar, ejector stroke: 300 mm, controller model: CDS700, Injection molding machine including Sytrama robot! TECHNICAL DETAILS Clamping Unit Clamping force: 9,000 kN Platen size (H × W): 1,570 × 1,560 mm Tie bar spacing (H × W): 1,010 × 1,010 mm Min. mold height: 300 mm Max. mold height: 1,190 mm Max. daylight: 2,290 mm Locating ring diameter: 250 mm Ejector stroke: 300 mm Injection Unit Screw diameter: 98 mm Shot volume: 4,010 cm³ Shot weight (PS): 3,690 g Injection pressure: 1,650 bar Max. injection speed: 400 mm/s MACHINE DETAILS Control system: CDS700 Clamping unit weight: 44,500 kg Injection unit weight: 12,500 kg EQUIPMENT Pneumatic valves: 4 units Core pulls: 1 fixed / 1 movable Sytrama 101 GL robot Guedpfsx A Ar Eox Ad Ajk

Condition: new, Engel bimetallic screw cylinder, new and unused Diameter: 105 mm Gedpfjxpu I Sox Ad Aeuk LD 22 Unit 4550: 3380 cm3 Unit 5550: 3700 cm3

Condition: ready for operation (used), Year of construction: 2017, operating hours: 42,177 h, General Data Measurements width 2300 mm Measurements depth 9700 mm Measurements height 290 mm Machine weight 4052 kg Injection Unit Screw diameter 70 mm Clamping Unit Clamping force 5800 kN This SUMITOMO SHI DEMAG El-Exis SP 580/1020-3000 was manufactured in 2017. A robust electrical injection moulding machine featuring a screw diameter of 70 mm, clamping force of 5,800 kN, and tiebar spacing of 1,020 mm. With 42,177 operating hours and 48,627,617 cycles, it's a proven performer. Consider the opportunity to buy this SUMITOMO SHI DEMAG El-Exis SP 580/1020-3000 electrical injection moulding machine. Contact us for more information. Gusdpfx Aex D Nv Hjd Aok Application Types Injection Moulding

Condition: good (used), Year of construction: 2004, clamping force: 5,000 kN, Machine Specifications – ENGEL ES2550/500HL-V Gedpownqkpofx Ad Ajuk 1. Machine Type: ENGEL ES2550/500HL-V 2. Clamping Force: 5000 kN 3. Platen Size - Horizontal: 1320 mm 4. Platen Size - Vertical: 1480 mm 5. Minimum Mold Height: 495 mm 6. Daylight Opening: 1100 mm 7. Ejector Stroke: 250 mm 8. Ejector Force: 95 kN 9. Injection Unit Type: ES2550 10. Screw Diameter: 80 mm 11. Shot volume: 1558 cm3 12. Year of Manufacture: 2004 1. Brand: ENGEL 2. Core Pulls – Fixed Side: 2 3. Core Pulls – Moving Side: 2 4. Total Core Pulls: 4 5. Injection Units: 2 6. Heating Zones: 16 7. Control Unit: CC100 8. Cascades (Hydraulic): 2 9. Cascades (Air): 4

Condition: ready for operation (used), Year of construction: 2017, operating hours: 3,871 h, General Data Measurements width 2500 mm Measurements depth 8500 mm Measurements height 2500 mm Machine weight 20000 kg Injection Unit Screw diameter 40 mm Injection pressure 2400 bar Screw speed 300 r/min Adjustable heating zones 5 Nozzle pressure 68 kN Clamping Unit Clamping force 7000 kN Guodox D E Dtepfx Ad Aek Opening stroke 1250 mm Max open daylight 1700 mm Mould height min 450 mm Mould height max 1150 mm Ejector stroke 300 mm Ejector force for / back 180 kN This Engel E-Duo 740H-740L-700 combi was manufactured in 2017. A robust hydraulic injection moulding machine, it features a system size of 8.5 m x 2.5 m x 2.5 m and a total weight of approximately 20,000 kg. It includes dual 3-zone screws and 32 hot runner control circuits. Consider the opportunity to buy this Engel E-Duo 740H-740L-700 combi. Contact us for more information. Application Types Injection Moulding

Condition: excellent (used), Year of construction: 2006, Clamping force: 500 t Screw diameter: 80 mm Platten dimensions: 1300 x 1200 mm Distance between tie bars V: 900 mm Distance between tie bars H: 900 mm Gjdpfeva H Amox Ad Ajuk Shot volume: 1779 cm3 Shot weight: 1620 g Injection pressure: 1855 bar Working hours: 46.511 Type: Horizontal Drive: Hydraulic

Condition: excellent (used), Year of construction: 2014, HAITIAN MARS MA9000II (2014) Clamping force: 900 t Screw diameter: 100 mm Shot volume: 3691 cm3 Shot weight: 3359 g Mold oppening stroke: 1120 mm Mold height min. / max. : 450 x 1080 mm Mold platen dimensions: 1580 x 1600 mm Distance between tie bars HxV (mm): 1080 x 1080 mm Injection stroke: 470 mm Gedsw N Rdwspfx Ad Ajuk Type: Horizontal Drive: Hydraulic
