Used Extruder & extrusion lines for sale
Dr. Collin extruder suitable for laboratory film extrusion
Cavejk8ads
Wide slot die - calender / rolling mill / haul-off
- Single screw extruder / laboratory extruder
- Screw 25/30 LD
- Wide slot die 1,0 x 120 mm
- With chill rolls (200 mm wide)
- Winder / haul-off
- New control cabinet
6
Re-Granulieranlage CDM Omp Prealpina ES.130.
Bymw79ir99
3
Catalog No. : 2405
Type: ELEX 125
Producer: Chodos Chodov
Made in: 1975
Characteristic:
Output approx 100 kg / hr
Screw diameter: 125 mm
Power consumption: 160 kW / 440V / 1500 rpm
Icri82a3q
With Worm shaft
8

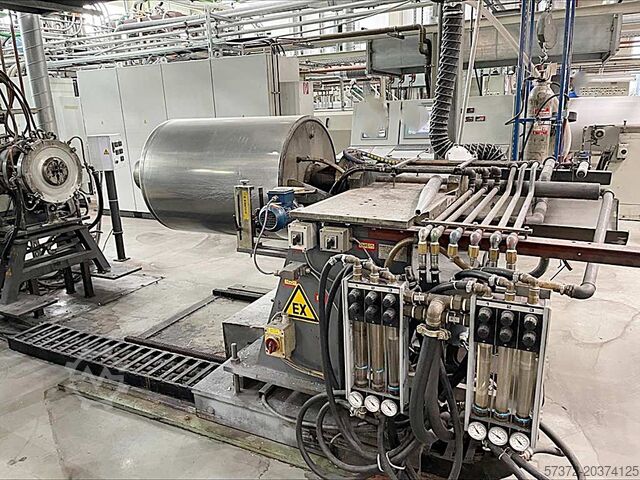

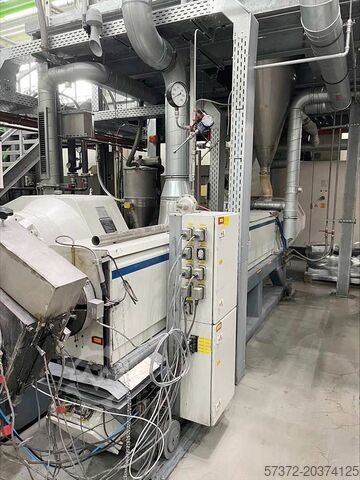

Make: Battenfeld Gloenco (Single Screw)
Type: Complete Mono Layer Extrusion Line
Year: 1995
Refurbished: 2013
Materials: PP/PS
Max Output: 500kg/hour (100% recycled material possible)
Max Sheet Width: 800mm
Thickness Range: 200-1500 micron
Comes with:
- Mixer
- Single Screw Extruder with Double Screen changer
- Extrusion Die
Jscw7gyb
- Calendar Rolls and Heat Exchanger
- Edge Trimming unit
- Edge Trim Granulator
- Silicone Bath
- Double Winder
Almost all electronics replaced in 2013.
15
Year of construction of the extruder: 2006, overhauled in 2016,
Year of construction: 2018,
Plant consisting of:
1 feed table, line: 600 kg/h,
1 tube chain conveyor, capacity: 600 kg/h,
1 mixer, capacity: 600 kg/h,
1 water feeder,
1 extruder, capacity: 600 kg/h,
1 supply air blower,
1 cyclone, capacity: 600 kg/h,
1 rotary feeder,
1 distributor,
1 belt dryer, capacity: 600 kg/h,
1 product hopper,
1 tube chain conveyor,
1 fine grain hopper,
1...
2
Make:KRAUSS-MAFFEI
Description: used
type: KMD-2-50-KK
output capacity: max. approx. 140-180 kg/h for H-PVC pipes, depending on material and product this can vary
year of construction:1996
Screw diameter:50-103 mm (conical)
Screw length:1300 mm
Screw speed: max. 43 m/min.
Zju2t22x
Drive motor: DC motor 25 kW
Cylinder heating/cooling zones: 4/3 (oil cooling)
inlet piece heating zone: 1
tool heating zones: 5
Equipment: dosing unit with hopper, vacuum pump for barrel degassing, barrel coo...
Extrusion Screen Changers - Continuous Screen Changers
Double Piston Filter
- - Immediately available, on request also with control, hydraulic unit.
Qlu77
When making your request, please let us know your desired capacity and the material so that we can offer you the right filter.
5
Screen changer for extruder. Allows to change the filters without stopping the production. Some elements in the table have been removed but the specific parts for its good functioning are present. Worked with a Kuhne K45 extruder, available on this site. It was used to make multiskin plumbing tubes.
Mxlx3o
10
Complete extrusion line for PVC profiles with a capacity of 100-200 kg / h
> Cincinnati extruder KONOS 72P-40-24-UT / twin screw with a conical system with a capacity of 100-200 kg (flexible for small and larger profiles)
> GRUBER EXTRUSION calibration table, length ~ 12m (2 vacuum pumps and 2 cyclone units)
B9yrw2s78y
> Haul-off combi with cutting unit GRUBER EXTRUSION / in 2020 modernized by GREINER EXTRUSION (saw replacement with a hot knife + general haul-off service)
> Tilting table, lengt...
HDPE AND PP PIPE LINE
Line component
Extruder -Battenfeld 1989
145KW motor
DC
4 Heating zones-Cylinder
5-mold heating zones
COOLING CALIBRATION VALVE
Double- 1m + 5m
Vane vacuum pump 1
Valve water pump 1
Vane vacuum pump 2
Valve water pump 2
front and rear displacement with screw motor.
Air cooling valves -water-2 pieces
No electric motors
STAINLESS STEEL material
Length 3 m each
No Spray
puller
AMUT-ITALY
2 SHOOTING TRACKS
Contact length 1.5m
Cutting length encoder
Pipe roller
CALINI -ITALY
P...
15
Production plant consisting of Battenfeld and various systems as shown in the pictures. The plants were refurbished and commissioned in 2018. The plant is currently dismantled and can be inspected on site including the available documentation. All parts as shown in the pictures are for sale.
Vvm7sq
8
Extrusion line BARMAG
Main components of the production line are:
1x extruder BARMAG BA KEP 90-26,3-S
1x transmission gear BARMAG 9E4-11-103/Z
1x drive motor AEG G 16.04 with forced ventilation 460V, 112A, 46,7KW, 3150U/min, Err. 330V 2,21A
1x dosing unit SCHOLZ
1x control unit
Plant features:
- Single shaft extruder year approx. 1970
- Throughput 200kg/h
- Conversion to new screw geometry 2016
- Screw diameter 90 mm
- Screw length 2769.5 mm
- Process length 26.3 D
- Geometry: feed, barrier, ...
3

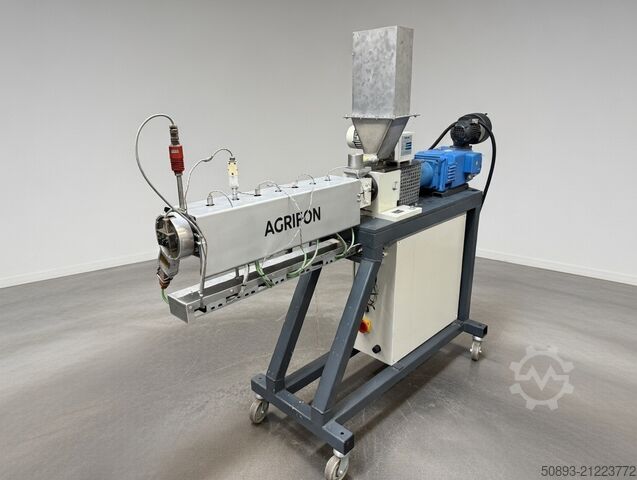

Single screw extruder 35 / 30 LD
Suitable as a laboratory extruder.
- Motor: 5,5 kW
- Heaters: 6 kW
- Compact control cabinet
- Frame on rollers
- Die / nozzle , can be adapted as required.
Fpyeh9l2o
- Suitable as laboratory extruder
Weight of the line: 350 kg
Dimensions of the plant: 1900x1400x1100 mm
Test and inspection possible by arrangement.
Machine is available for immediate delivery.
12
Extrusion Line for production of HDPE-pipes (max. 110 mm), consisting of:
1 Single screw extruder
Manufacturer: Tecnomatic (Italy)
Type: LC 1.75.30
Year: 1999
P2e8t
Screw diameter: 75 mm
Screw length: 30 x D
Motor power: 118 kW
Output capacity: max. 300 kg/h
Including Inoex-Gravimetric (Saveomat), year 2015
1 Granulate suction system
Manufacturer: Labotek
Type: Con Evator SF 2/2
Year: 1995
1 Pipe head, incl. trolley
Manufacturer: Cincinnati
Type: PO-110 (Spiral divide...
6
Complete extrusion line for PVC profiles with a capacity of 100-200 kg / h
> Cincinnati extruder KONOS 72P-40-24-UT / twin screw with a conical system with a capacity of 100-200 kg (flexible for small and larger profiles)
> GRUBER EXTRUSION calibration table, length ~ 12m (2 vacuum pumps and 2 cyclone units)
> Haul-off combi with cutting unit GRUBER EXTRUSION / in 2020 modernized by GREINER EXTRUSION (saw replacement with a hot knife + general haul-off service)
> Tilting table, length ~ 6m, ada...
9
This Weber extruder has been in machine storage at Plastima Used Machinery since 2022. The machine is from 1983 and has a normal number of working hours for its age.
– Brand : Hans Weber GmbH
– Model : DS 8.22
– Year of construction : 1983
– Screw : 87mm
Caep2bxvm9
– Working hours : 87,618
6
The extruder was used in production until recently.
Ca3nmsdmvx
The machine is ready for use.
For sale is only the extruder.
Data about the extruder on the type plate
-> if you have any questions, please feel free to contact us
8
Extrusion line BARMAG D
Main components of the production line are:
1x extruder BARMAG KEP 200-26,3-S
1x transmission gear KNÖDLER FZ 6000 2-Z-ED 200 year 2016
1x drive motor SIEMENS 1GG6208 with forced ventilation 470V, 468A, 206KW, 2600U/min, Err. 310V 6,8A, year 2015
1x dosing unit SCHOLZ
1x control unit
Plant features:
- Single screw extruder year approx. 1973
- Throughput approx. 800kg/h
- Conversion to new drive + gearbox 2016
- Screw diameter 200 mm
- Screw length 5266 mm
- Process len...
Single Screw Extruder
LD 1:36
DC Motor 7 kW
Degasing
Die Head available
Feeding system available
waterbath and pelletizer available
Bocxfk0
Visit and Trial possible.
6
Screw diameter: 67mm, screw rotational speed: 4-42/min, torque: 2x 1600Nm, drive power: 15kW, length: 3200mm, width: 620mm, height: 1900mm, weight: 2t, including documentation.
Qlre9
9
Complete extrusion line for PVC profiles with a capacity of 100-200 kg / h
> Cincinnati extruder KONOS 72P-40-24-UT / twin screw with a conical system with a capacity of 100-200 kg (flexible for small and larger profiles)
Di0oxmjx
> GRUBER EXTRUSION calibration table, length ~ 12m (2 vacuum pumps and 2 cyclone units)
> Haul-off combi with cutting unit GRUBER EXTRUSION / in 2020 modernized by GREINER EXTRUSION (saw replacement with a hot knife + general haul-off service)
> Tilting table, length ...
9
This Weber extruder has been in machine storage at Plastima Used Machinery since 2022. The machine is from 2001 and has a normal number of working hours for its age.
– Brand : Hans Weber GmbH
– Model : DS 8.22
– Construction year : 2001
– ScrewØ : 87mm
Zzsfk
– Working hours : 81,389
3
One first-class In 2016 completely technically overhauled and expanded extrusion recycling machine brand EREMA Vacurema Advanced 120T with downstream MEAF unit for PET flat-films will be sold. The machine has traces of use, was used for production until May 2022.
Capacity max. 650 kg/h, film with max. 920 mm, film thickness 200 my – 1.200 my.
Qkt3n
Space for the machine: Length 27,91 m, width 6,51 m, height 7,31 m.
The machine is in running condition.
Year of construction: 2001.
History:
• ...
15
BEYER extrusion line which is used for the production of PE films.
For more details please call or ask. Details will come later.
- Year of manufacture 2005
- Power 40 kW
- Conveying capacity n1 1525/min n2 110/min
- Digital control by touch display
- Ready for use and fully functional
- Retrofitted filter screen with easy change of the filter
- With water bath for cooling of technical films
Inspection and test drive possible until 13.04.22. Latest dismantling of the plant 14.04.2022
Iqa8k7338
New and never used machine.
Iwfspyf
- Berstorff Twin screw Extruder ZE 130A
-Extruder Screw 2x140 mm
L/D 30:1
Building Year: 1988 (never used)
Engine: DC Motor - 250 kW
Screw-Rotation: 300 Rpm
Extruder-Heating: 70 kW
With two degassing.
1
the production machine
Capacity (tons p.a.) - 1 shift : 12 – 35 to/a – eff. 0.83
Key capabilities:
Chipsdryer external (optional)
Volumetric high precision dosing system of each extruder
3 Extruder D30x25D hydraulic split to spin pack
Rectangular spinneret
2 Positions
Quench active cooled 2x150x1400mm
Rolls
production:
1 Mono SR – 1 Mono parallel – 1 Mono SR
2x3 DUO‘s heated 160°C
1 DUO active cooled
string up:
……
1 Mono SR – 1 Mono SR – 1 Mono SR
….
1 winder automatic parallel
3 wi...
9
Bausano / Battenfeld - complete PVC granulation line with a capacity of ~ 300 kg / h
Bausano granulator - year of production 2019
Battenfeld extruder - year of production 2005
Qd8cr
Machinery purchased and assembled in 2019. It worked continuously for about a year. From the end of 2020, the tooling is practically not used, as can be seen in the photos. Very good condition.
During the operation of the line, practically no repairs or other service activities were performed.
Complete technical d...
11
This Weber extruder has been in the machine storage at Plastima Used Machinery since May 2022. The machine is from 1996.
Ulc9d3y
– Brand : Hans Weber GmbH
– Model : ES100
– Year of manufacture : 1996
– Single screw extruder
– Screw Ø: 100 mm
– Working hours : 65,516
2
Machine Type: Extruder - Sheet line
Brand: Dupatech
Model: HIPS/PP
Year: NEW
Tkj9j20
Output (Kg/hr): 250 - 1050
Energy consumption: 0.18 - 0.2 Kwh/Kg.hr
Sheet width: 400 mm - 1500 mm
Sheet thickness: 0.25 mm - 2.0 mm
Manufacturer: MITSUBA MFG. CO., LTD. LTD.
Type: 65V-25D-HB
Manufacture date: 2002
Snail and snail chamber diameter : 65mm
L / D ratio: 1635/65 mm.
Motor power: 30 kW
(3x200V /115 AC) 125 A
Production capacity kg / hour?
Snail 60 at rpm: 22 kg / h
B8xeirxjoj
Not suitable for hard PVC !
PVC pipe : 2-36mm
The line consists of:
1. extruder
2. cooling line
3. diameter tester
4. rewinder
we offer the equipment for sale with the spare parts shown in the picture
1
noris- Extruder MINI ESE 20/28 D
Technical data
Screw diameter [mm] 20
Screw length [L/D] 28
Screw speed [min-1] 20-200 min -1
Screw axial pressure [bar] 300 Continuous load 350 maximum
Drive Three-phase drive with frequency converter
Drive power [kW] max. 2.5
Reduction gear with integrated axial bearing
Weight [kg] approx. 160
Dimensions [Lx Wx H] [mm] approx. 1050 x 600x 1590 *)
Electrical connection values 3 / N / PE
Supply voltage [V] 400 at 50 Hz
Control voltage [V] 230
Temperature control ...
4
No.: 2590k
1 used compounding-pelletizing line – output up to 1200 kg/h depending material, equipped with:
1x gravimetric ( loss-in-weight ) blending unit 5-Components SITECOM incl. control board
1x Extruder Twin-screw THEYSOHN Type TSK 90
Screws 2x Ø 90 mm – 36 LD co-rotating intermeshing
Segmented screws-and Cylinder, Water / Medium cooled **
Extruder Motor 255 kW-DC / Screw speed up to 300 r.p.m.
1x Side feeding extruder TSD 75 twin-screw with 3 kW
3vhkot2w
3x venting ports **
1x Melt-Fi...
6
Extruder Cincinnati KONOS 72P-40-24-UT
> twin-screw with a conical system with a capacity of 100-200 kg (flexible for small and larger profiles)
> worked on pure PVC until April 2022
> year of production - 2010
Qhetz
> technical documentation
More information by e-mail / phone
Single Screw Extruder
Blyy0saelf
Motor 2,2 kW
Die Head available
Feeding system available
waterbath and pelletizer available
Visit and Trial possible.
2
Machine Type: Extruder - Sheet line
Brand: Dupatech
Model: PP PE
Year: NEW
Swbulo
Output (Kg/hr): 200 - 1000
Sheet width: 1000 mm - 2000 mm
Sheet thickness: 0.5 mm - 40 mm
7
Gear box for twin screw extruder
I0tymxnl0
Screw diameter : 140 mm
Cylinder parts : 1 part 970 mm & 1 part 640 mm
Motor : 740 kw
6
SOCKET MACHINE IPM / ITCA BA 20-125
With various TOOLS for ADHESIVE SLEEVES
Year of construction 1992
Pd9r7
Condition: Very good, ready for use
4
complete EREMA
pelletizing line for film/foils
Qjzxh
Type 50 T
ready for trial runs in our workshop Wuppertal Germany,
you´re welcome
See our actual machine-stock list on our website
14
Hello,
The subject of sale is a technological line for the production of full plastic plates, like: PP, PE, MPS, ABS from the original form of granules. The range of plate thicknesses is from 0.5 to 14mm, the maximum width is 2100mm.
The technological line consists of basic working teams which include:
1) Granulate preparation unit, sieve and degassing unit with the following parameters:
screw diameter / pitch - 115/120 mm
Pvxjge
hopper capacity - 150 liters
operating temperature range ...
Extruder AC motor - 5,5kW
Wide slot die - 160 mm
Control
Bhqfjeevsw
3
DUPATECH R/A/PET SHEET LINE - New. You can find further specifications below.
Machine Type: Extruder - Sheet line
Brand: Dupatech
Casyxy20gc
Model: R/A PET (Mono or Multilayer)
Year: NEW
Output (Kg/hr):200 -1000
Energy consumption: 0.33 Kwh/Kg.hr
Sheet width: 500 mm - 1500 mm
Sheet thickness: 0.2 mm - 1.5 mm
If you have any questions about the machine you can always contact us.
6
Main Extruder (#B)
Manufacturer : Er-We-Pa
Model : 4 1/2″-32D
Year : 1989
Screw ø : 115 mm , L/D = 32
Motor : 149 kW DC
Output : 60 – 400 kg/h (depends on screw)
Granulate supply : Gravimetric inline blending system, K-Tron, 1997
Co-Extruder (#A)
Manufacturer : Er-We-Pa
Model : 2 1/2″-32D
Year : 1993
Screw ø : 63,5 mm , L/D = 32
Motor : ? kW DC
Output : 30 – 180 kg/h
Granulate supply : Single hopper
Co-Extruder (#C)
Manufacturer : Er-We-Pa
Phdbb
Model :2 1/2″-32D
Year : 1993
Screw ø : 115 mm , L...
15
Complete Compounding and Masterbatch Extrusion Line
Werner ZSK70W
70/32D
Year : 1988
Fourwheels and vises changed in 2012
Bvel89jwqi
Without gravimetric doser
With side drawer
5
No.: 2587k
1 used, functionally tested pelletizing-extrusion line,
output approx. up to 600 kg/h depending materials, equipped with:
1 volumetric material blender ( Dosing unit )
Extruder Plastmachines Type PME 100
Single-screw Ø 100 mm – 35 L/D
Motor 134 kW – DC
1x venting port
Melt-Filter BKG Type K-SWE 121 RS – back-flush self-cleaning incl.
Hydraulic pack 3 kW
Strand die-head with holes 20 x Ø 3,5 mm
Strand cooling bath 00 x 4000 mm incl. strand guiding rollers
Strand blower
Strand ...
2
EXTRUSION LINE for production of filaments for 3D printers, welding wires, strings for garden equipment etc.
• Line speed up to: 100 m/min
• Compensator capacity: 140 m
• Extruder output: 5 -20 kg/hr
• Extruder screw and barrel diameter: 45 mm
• Working lenght of the screw: 30 L/D
• Main drive power output: 9,2 kW
EXTRUSION LINE CONSISTS OF:
1. Single-screw extruder BOCOMATIC
2. Cooling stainless tank, drying the strings
3. Haul-off device
4. Triaxial measurement
5. Compensator
Bs9uohl3l3
6. Wi...
3
