Plasma cutting machine

Swift Swiftcut pro 3000

Condition: good (used), Year of construction: 2015, VOORTMAN V320C CNC PLATE PROCESSING MACHINE Fsdpfx Acsuibris Hsgi INFEED SYSTEM • Infeed roller conveyor (length 6m, width 2.050mm, roll diameter 159mm, roll distance 800mm, capacity 1.250kg/m, including liftable datum line) PLATE PROCESSING MACHINE 1 • V320-2000 Plate processing system (base frame with vertical drilling unit, automatic tool changer and automatic discharge table) • Feeder trucks (servo driven, master truck with 3 hydraulic clamps, support truck with 2 hydraulic clamps) • Swarf brush (automatic swarf removal after drilling operations) • Oxy-fuel cutting torch • Plasma cutting unit Hypertherm HPR260XD (1 pcs, automatic gas console, complete with cutting parameter database) • Donaldson fume extraction unit DFPRO6 • Product conveyor belt • Hardware and software (including VACAM ‘Machine Edition’, VACAM ‘Office Edition’) • Safety devices (light curtain, safety fencing, light curtain muting) • Working direction from right to left OUTFEED SYSTEM • Outfeed roller conveyor (length 1,5m, width 2.050mm, roll diameter 159mm, capacity 1.250kg/m.

Condition: good (used), Year of construction: 2008, machine/vehicle number: 0834530, Offer 24480 Handling column jib crane - manipulator Technical data: - Load capacity approx. 80 kg - Gripper arm for round material - Gripper arm rotatable + swiveling - Radius approx. 4000 mm - Pneumatic connection 6 - 8 bar - Total height approx. 3500 mm - Base plate - base plate 800 x 800 mm - Dead weight approx. 1500 kg Fgsdpsvy D Tcofx Ac Hoi

Condition: new, functionality: fully functional, Year of construction: 2025, control type: NC control, degree of automation: automatic, laser type: fiber laser, laser source manufacturer: Max, laser power: 3,000 W, sheet thickness (max.): 20 mm, sheet thickness steel (max.): 20 mm, sheet thickness stainless steel (max.): 10 mm, sheet thickness aluminum (max.): 8 mm, sheet thickness copper (max.): 6 mm, table height: 1,464 mm, working length: 3,000 mm, working width: 1,500 mm, repeat accuracy: 0.02 mm, power: 15 kW (20.39 HP), input voltage: 380 V, input frequency: 50 Hz, type of cooling: water, total length: 6,000 mm, total width: 1,850 mm, Equipment: centralized greasing system, cooling unit, documentation/manual, emergency stop, nozzle changer, safety light barrier, Fiber Laser Gantry Cover CE- Industrial fiber laser. Laser power: 1500/2000/3000/4000/6000W. Dimensions: 3000x1500mm Required floor space: 4600x2450x1700mm Laser head: automatic focus Automatic nozzle control - Touch pad safety (NEW) Fiber laser source: Fiber Source Laser power: 1000W 1500W 2000W 3000W 4000W 6000W Water chiller: S&A Control system: FASTCUT / FSCUT Cypcut Linear guideway: HIWIN Fgedpfewgxq Uex Ac Hoi Rack & pinion: YYC M2 precision Total power: 15Kw Repeat positioning accuracy: 0.03mm Maximum speed: 120m/min Maximum acceleration: 1.5G Contact us without obligation for more information.

Condition: reconditioned (used), Year of construction: 2007, functionality: fully functional, cutting length (max.): 5,750 mm, cutting height (max.): 120 mm, cutting width (max.): 2,600 mm, main saw diameter: 460 mm, power: 27 kW (36.71 HP), Machine type: fh6 580 HT260 ERB-L / MCS-Evolution / Win 10 Cutting length: 5.750 mm Cutting width: 2.600 mm Year of construction: 2007 Saw blade projection max .: 135 mm Saw blade diameter max .: 460 mm Main saw motor: 27 kW Scorer aggregate Scorer saw blade diameter max .: 200 mm Package height max .: 120 mm Package height min .: 3 mm Saw aggregate forward: 6 up to 150 m / min Saw aggregate backward: up to 150 m / min Feeder: up to 80 m / min (Europe: forward 25 m/min acc. EN 1870-13) Number of clamps: 8 pcs grip push clamp Clamp opening: 125 mm Lifting / lowering device for clamps Strip aligner before and after the pressure beam Air cushion tables: 1 pcs. (2100 x 700 mm) Turn table: 1 pcs. (5800 x 2200 mm) 90° turnable Machine table: heavy-duty steel construction „Closed Frame Construction“ machine table surface is precision machined Machine table lips Automatic cutting length adjustment Lift table, max. panel width: 2600 mm Feeding roller conveyor: 7100 x 2600 mm Recesses for forklift trucks: 2 pcs Frequency converter for feeding roller conveyor Positioning stop: 2 pcs Push-off trolley Push-off device: 3 pcs Book aligning device for longitudinal board edges: 3 pcs Retaining device: 3 pcs Roller table Cross alignment stop at the roller table Fodpfxovx Ru Dj Ac Hsgi This machine is in very good conditions and works very well. The machine is reconditioned, checked and tested in our company. Errors and alterations in the technical datas and informations excepted! (displayed photos are symbol photos)

Year of construction: 2014, condition: ready for operation (used), A complete CNC double gantry plasma cutting system Microstep with oxyfuel torch for nesting, bevel cutting and tube processing is available. 1) Plasma cutting system, max. processing length: 16500mm, max. processing width: 2500mm, max. processing width including shaft: 3700mm, max. material thickness VA/structural steel: 20mm/40mm, number of gantries: 2. Gantry 1: with a plasma rotator and a Kjellberg HiFocus 280i neo plasma cutting source. Gantry 2: fully automatic oxy-acetylene torch for possible equipment of a second torch carriage. Pipe cutting device: pipe diameter range: 30mm-700mm, max. pipe length: 16500mm, operating hours: approx. 15000h. 2) Filter system Donaldson Cyclopeel DFPRO 16, volume flow: 16000m³/h, filter elements: 16. Documentation available. On-site inspection is possible. Expected to be available from the end of 2025/beginning of 2026. Pictures are from commissioning in 2014. Fedewmqwyopfx Ac Hegi

Condition: excellent (used), Numerical Control Power Control + Software Cadmatic 4 Professional No. 1 Infeed roller tracks (ca.) 32,000 mm Lifting table (mm) 5600 x 2200 VAC loader (sliding bridge) with fan suction for loading special or delicate panels 1° Rear-pusher, with No. 6 clamps/grippers Turning device (rotating unit) at 90° 1° Panel Saw - Max cutting width mm 5600 (cutting line with air cushion) Max blade projection (mm) 190 Scoring Unit (max. diameter saw / power) mm 200 (Kw 2,2) Main Sawing Unit (max. diameter saw / power) mm 600 ( Kw 36) Adjustable speed of the saw carriage (QS) (m/min) 1 - 130 m/min 2° Rear-pusher, with No. 14 clamps/grippers 2° Panel Saw - Max cutting width mm 2200 (cutting line with air cushion) Max blade projection (mm) 190 Scoring Unit (max. diameter saw / power) mm 200 (Kw 2,2) Main Sawing Unit (max. diameter saw / power) mm 600 (Kw 36) Fedpsvnq H Eefx Ac Hegi Adjustable speed of the saw carriage (QS) (m/min) 1 - 130 m/min Waste evacuation system with grinder (Kw 19.5) No. 2 Front supporting tables with Air blowing system (mm 800 x 2160) Plastic wheels coated with special material to avoid scratching delicate panels Automatic unloading System of the cut panels: N° 2 x Liftomat HAU-A 25/12 Automatic Stacking System with 8 stations

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, type of input current: three-phase, input voltage: 400 V, total width: 4,780 mm, total length: 8,200 mm, table length: 6,400 mm, table width: 2,167 mm, travel distance X-axis: 2,000 mm, travel distance Y-axis: 6,000 mm, space requirement width: 6,380 mm, Number of cutting heads: 1 Number of drilling heads: 1 Table length: L [m] 6 Table width: WT [m] 2 Channel width: WCH [m] 0.8 Cutting machine with cutting table and sectional extraction: 1 USB flash drive (USB 2.0): 1 Basic tool station type R (A, B-axis for MG): 1 Remote diagnostics: 1 AsperWin – Basic module: 1 AsperWin – Nesting module: 1 AsperWin – Bevel cutting module: 1 AsperWin – Pipe cutting module: 1 AsperWin – Bevel cutting module (SolidSel): 1 Remote control for filter unit: 1 Connection of the filter unit to the power distribution unit: 1 Power distribution unit for the system: 1 Integration of the plasma source into the CNC system HPR, HD, HT, HF FF: 1 MG-22 drilling head, max. drill bit 22 mm, max. tap bit 16 mm, 5.5 kW, Y- and Z-axis 1 Cooling system – ecological cooling system for the drill bit 1 ISO 40 6-tool clamping magazine for automatic tool change linear PMB6 1 RSV 100-500 HHP pipe cutting device 1 880 mm grating for duct cover, 1 m long 6 RSV 100-500 HHP support rollers on rails 2 1 m rails for support rollers with 2 rails 7 Chuck for square pipes up to 500 mm in diameter, 4 jaws 1 Signal light 1 Fgjdpfswhk E Hex Ac Hei DFPRO 8; ART501/9 kW; 6000 m3/h [15-3x3.5-2 m - 1x] [15x1.5 m - 2x] 1 HPR260 Automatic 1

Condition: good (used), Year of construction: 2005, Panel saw Schelling FMH580 Year 2005 Without lifting table Saw blade diameter 450 mm Scoring saw blade diameter 200 mm Saw blade over table max 125 mm Clamping opening max 113 mm Fsdpfx Asq Apigec Hjgi max package height 110 mm min package height 15 mm Motor power main saw 50 Hz, 19 kW Working height 970 mm Overall height 2070 mm Panel lengths / widths: Fiber cement board max 2500 / max 1250 mm Plywood/ chipboard/ OS boards 2400- 5600 / 1200 - 2600 mm

Condition: excellent (used), Year of construction: 2005, Industrial manipulators (2 units) Mounting: ceiling-mounted Ceiling guide length: approx. 15 meters Number of axes: 4 Fgjdpfewvi Upox Ac Hji Load capacity: Manipulator 1: 30 kg Manipulator 2: 35 kg Gripper: pneumatic part gripper (for each manipulator) Year of manufacture: 2005

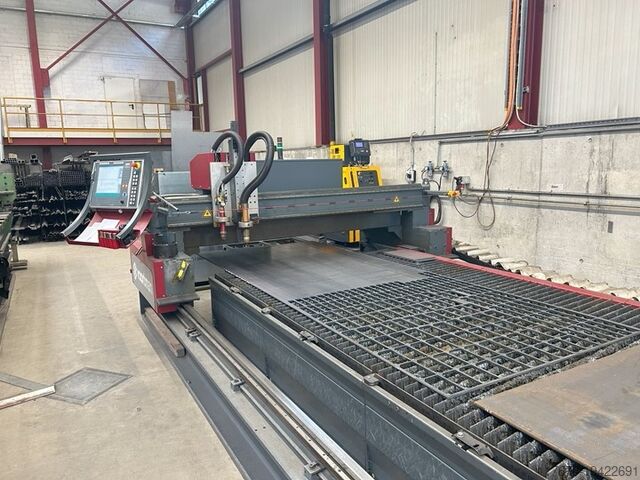

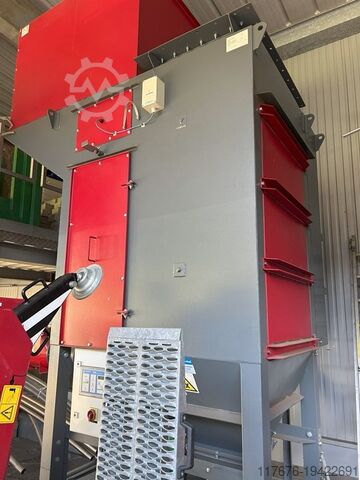

Condition: excellent (used), Year of construction: 2019, V302 CNC PLASMA MACHINE. 6000mm x 2000mm KJELLBERG SMARTFOCUS 300 PLASMA SOURCE. Fgsdpfx Acewu Dtdo Hsi 80mm CAPACITY PLASMA. 100mm CAPACITY OXY FUEL. DONALDSON EXTRACTION UNIT VACAM CNC CONTROL
