CNC lathe

STYLE 510

Condition: used, Year of construction: 1979, turning diameter over bed:480 mm turning diameter over slide rest:200 mm turning length:650 mm swing diameter max. over bed cover:200 mm Hnsdpfodmbrxox Ah Seu centre distance:750 mm spindle head:Gr.6 spindle bore:58 mm total power requirement:18 kW weight of the machine ca.:2,7 t dimensions of the machine ca.:2,70x1,58x1,68 m

Condition: used, Year of construction: 2001, - Fagor 8055 CNC control - Operating modes: manual/cycle-controlled - 8-fold tool turret VDI30 - Overhauled 2023 - Year of construction 2001 Technical data Capacity: - Center height: 200 mm - Center width: 1000 mm - Permissible Ø over guide bed: 400 mm - Permissible Ø over longitudinal slide: 370 mm - Permissible Ø over cross slide: 210 mm - Bed width: 300 mm Headstock: - Bore of main spindle: 65 mm - Main spindle nose: Camlock-n°6 / DIN 55027-n°6 - Morse taper of the main spindle: MK5 - Spindle speeds: 2 - Constant cutting speed: 0-750 / 750-3000 rpm Feed rates: - Working feed Z/X: 0 - 7000 mm/min - Rapid traverse Z/X: 10 m/min Tailstock: - Tailstock shank Ø: 58 mm - Tailstock shank travel: 155 mm - Morse taper tailstock: 4 Motors: - Main motor power: 7.5 kW - DC motor Z-axis power: 6.8 Nm - DC motor X-axis power: 3.4 Nm - Motor pump power: 0.57 kW Dimensions: Hnsdpfx Asvf I Dish Sou - Machine weight: approx. 2300 kg - Dimensions WxHxD: 2980 x 1730 x 1610 mm

Year of construction: 1981, condition: used, Manufacturer: Deckel Hodpfx Ahsihp U Ds Sonu Type: FP 4 Table: Dimensions: 1000 x 470 mm Longitudinal movement (X-axis): 700 mm Transverse movement (Y-axis): 400 mm Vertical movement (Z-axis): 450 mm Spindle overhang: 50 - 450 mm Spindle mount: ISO 40 Number of spindle speeds: 18 Spindle speed range: 31.5 - 1600 rpm Number of horizontal spindle speeds: 18 Horizontal spindle speed range: 31.5 - 1600 rpm Machine weight: 2000 kg Feeds (X, Y, Z axes): 18, 10 - 500 mm/min Accessories: Milling head with quill Table: 1000 x 470 mm

Condition: excellent (used), Year of construction: 2015, grinding length 500 mm Hnjdpfexy S Dxjx Ah Seu grinding width 250 mm

Condition: good (used), Year of construction: 1999, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, space requirement width: 1,975 mm, space requirement length: 1,800 mm, space requirement height: 1,900 mm, Equipment: documentation/manual, Machine is in very good condition - used as a training machine until 2018; since then, the machine has hardly been in operation. Operating voltage 400 V Spindle mount ISO 40 Quill stroke 100 mm Spindle speeds 63 – 3150 rpm Fixed table Hnsdpfx Ahew U Aahe Sju

Condition: reconditioned (used), Year of construction: 1988, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 50 rpm, quill stroke: 60 mm, total height: 1,935 mm, total length: 2,000 mm, total width: 200 mm, rotational speed (max.): 2,500 rpm, rotational speed (min.): 50 rpm, type of input current: three-phase, overall weight: 1,445 kg, table length: 460 mm, workpiece weight (max.): 400 kg, table load: 400 kg, table width: 800 mm, year of last overhaul: 2013, warranty duration: 6 months, The machine was completely and professionally overhauled by us in 2013. We were able to repurchase the machine from a customer who had used it very little, and we fully serviced and inspected it. Hjdsyitxqjpfx Ah Senu Control 3-axis - Active - Digital display HEIDENHAIN TNC 113 Speed 50 - 2500 rpm, geometrically stepped direct drive with 18 speed stages for maximum torque / milling performance Feed 6.3 to 630 mm/min, steplessly adjustable Rapid Traverse 1.3 m/min Quill Extendable quill, vertical 60 mm, SK40 with M16 drawbar thread, optionally: with DECKEL - saw thread S20 x 2 Extendable quill, horizontal approx. 100 mm Axes X/Y/Z 500/400/400 mm Table Rigid angle table 800x460 mm Equipment • Vertical and horizontal spindle • Milling head manually swivels +/- 90° • Central lubrication Options • Z-axis bellows • Chip tray • Machine lamp • Universal table • Rotary table • Slotting head • Dividing attachment • Counter-holder • etc.

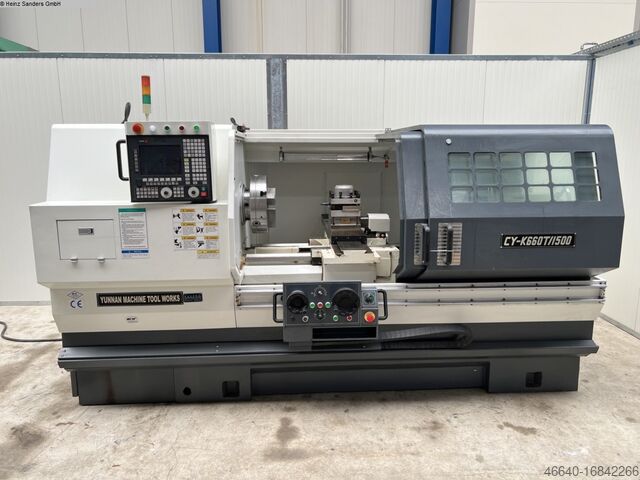

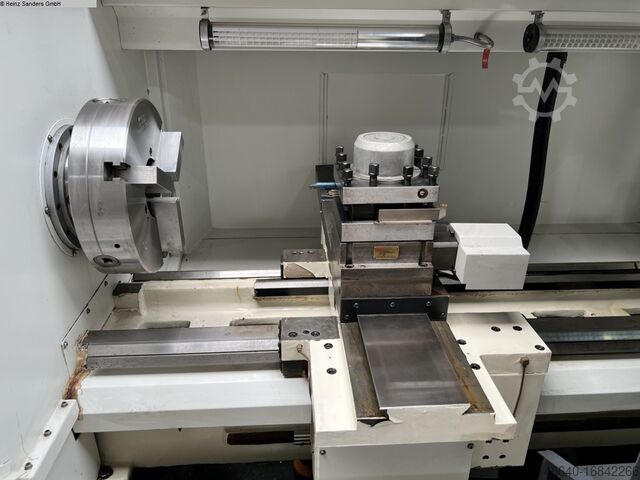

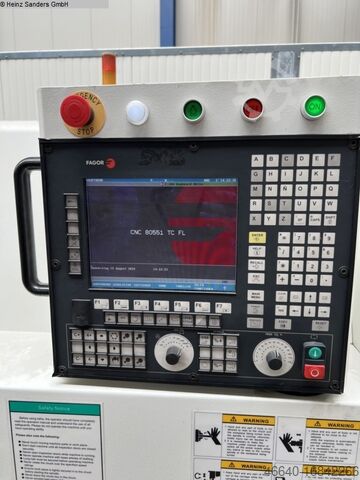

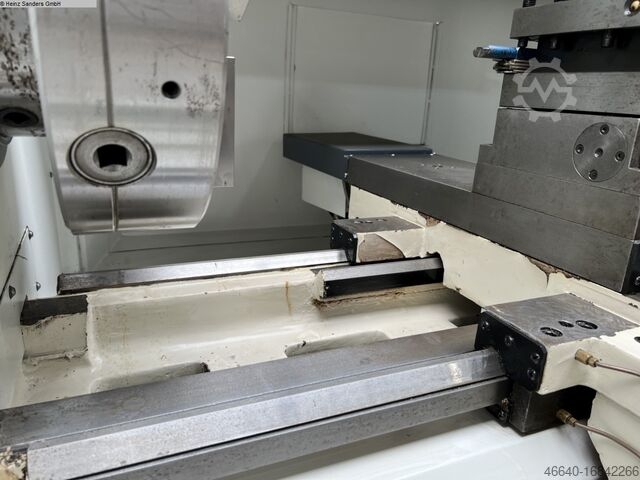

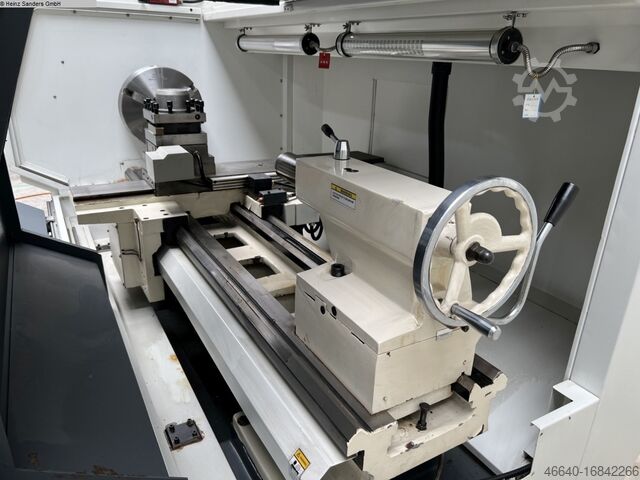

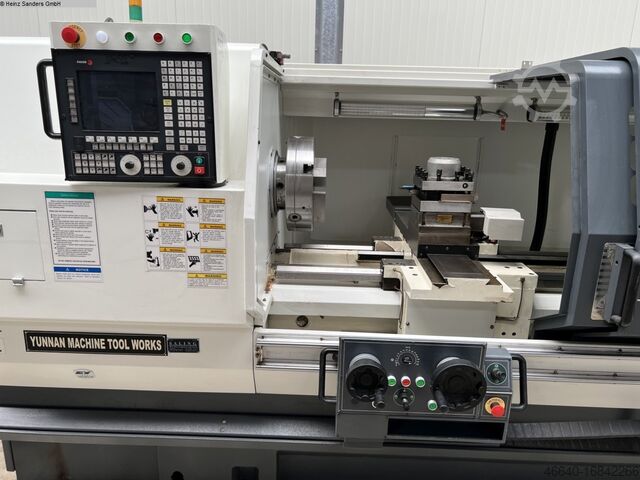

Condition: used, Year of construction: 2013, turning diameter 660 mm turning length 1500 mm control FAGOR centre height 330 mm Hnjdpfx Asub Uu Ioh Sou spindle passage 82 mm number of spindle speeds 30-2000 U/min bed width 390 mm rapid speed X/Z 4 - 8 m/min tailstock quill diameter 75 mm Main spindle capacity 15 kW weight of the machine ca. 3200 kg dimensions of the machine ca. 3800 x 1800 x 2150 m First commissioned in 2015, very good condition - FANUC Series 18i TB Control, Manual Guide i Function - Central control panel for machine and CNC control on the pedal arm 45 ° swiveling - 12-fold tool turret - Fanuc drive with 30 kW (50% ED) - Chip conveyor - Bezel - 3 jaw chucks

Condition: used, Year of construction: 2008, Wagner WDE500 Lathe, Year 2008 Used lathe from Wagner Wagner WDE 500 cycle-controlled lathe Only approx. 1,700 operating hours Turning diameter: 500 mm Turning length: 1,500 mm Control: Siemens 802 C Swing diameter over cross slide: 280 mm Spindle bore diameter: 82 mm Number of controlled axes: 2 Speed range: 20-3,000 rpm Rapid traverse speed: 5 m/min Number of tool stations in turret: 1 Multifix "C" Tailstock: Yes, MT 5 Drive power: 7.5 kW Machine weight: approx. 3.0 t Dimensions (L x W x H): 3.3 x 1.7 x 1.7 m Cycle-controlled CNC lathe in good condition. Accessories: - Coolant system - Base holder - 3-jaw chuck - Various PARAT tool holders With original operating manual Fully functional, good condition as shown in the photos Viewing, collection and delivery available for a fee Hsdpfxjxlz Rxo Ah Sjnu

Condition: refurbished (used), functionality: fully functional, grinding length: 630 mm, grinding width: 230 mm, total height: 1,650 mm, total length: 1,535 mm, total width: 1,770 mm, grinding height: 360 mm, feed rate X-axis: 2 m/min, feed rate Z-axis: 20 m/min, grinding wheel diameter: 400 mm, table load: 180 kg, rotational speed (max.): 3,220 rpm, power: 1.5 kW (2.04 HP), disc diameter: 250 mm, Retrofit of Surface Grinding Machine TOS BSKF 20 NC with SCHNEIDER Control System - Machine is fully dismantled and retrofitted Standard Accessories: - 2-axis cycle control, manufactured by Schneider-Electric Functions: Infeed, Spark-Out, Dressing, and Compensation - Grinding wheel 250 x 20 x 76 mm - Grinding wheel flange - Electro-magnetic chuck 600 x 200 mm - Automatic feed on Y and Z axes - Diamond dresser holder (without diamond) - Coolant system with settling tank - Machine lamp - Centralized lubrication Hnjdsxf Ez Uspfx Ah Sju - Operating tools - Operating manual - CE declaration - Inspection report Included: Transport and packaging On-site relocation with crane/forklift Commissioning Travel and accommodation expenses Accessories: - Partial enclosure - Single-point diamond, 0.75 ct - Balancing arbor with nut and wrench - Grinding wheel balancing stand - Set of levelling elements - Oil filling

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, grinding length: 1,800 mm, grinding width: 850 mm, total height: 2,955 mm, total length: 6,650 mm, total width: 3,645 mm, grinding height: 750 mm, feed rate X-axis: 40 m/min, feed rate Y-axis: 5 m/min, grinding wheel diameter: 457 mm, table load: 2,160 kg, grinding wheel width: 203 mm, spindle speed (max.): 1,400 rpm, overall weight: 13,000 kg, grinding spindle motor power: 30 W, travel distance X-axis: 1,820 mm, travel distance Y-axis: 750 mm, travel distance Z-axis: 820 mm, rotational speed (max.): 1,400 rpm, WORKING CAPACITY: Max. grinding length: mm 1.800 Max. grinding width: mm 850 Max. grinding height: mm 750 GRINDING WHEEL HEAD: Power: kW/HP 30/22 Grinding wheel dimensions: mm 457 x 203.2 x 100 Grinding wheel speed: rpm 1.400 LONGITUDINAL TABLE AXIS: Speed: m/min 1 ÷ 40 Maximum load (with magnetic table): kg 2.160 Hodpfxjztzyvj Ah Sjnu Grinding table dimensions: mm 1.800 x 600 Working stroke: mm 1.820 TRANSVERSE GRINDING HEAD AXIS: Rapid traverse speed: m/min 5 Adjustable incremental feed: mm 1 ÷ 50 Continuously adjustable feed rate: mm/min 0 ÷ 2.000 Minimum working increment: mm 0.001 Working stroke: mm 750 VERTICAL GRINDING HEAD AXIS: Rapid traverse speed: m/min 1.5 Minimum working increment: mm 0,001 Working stroke: mm 820 OVERALL DIMENSIONS: Length: mm 6.650 Width: mm 3.645 Height: mm 2.955 Total weight: kg 13.000 Machine complete with: • Instruction manuals and CE Declaration of Conformity
