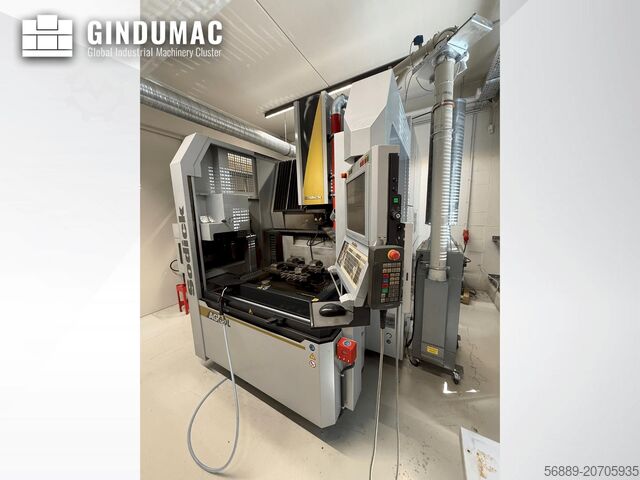

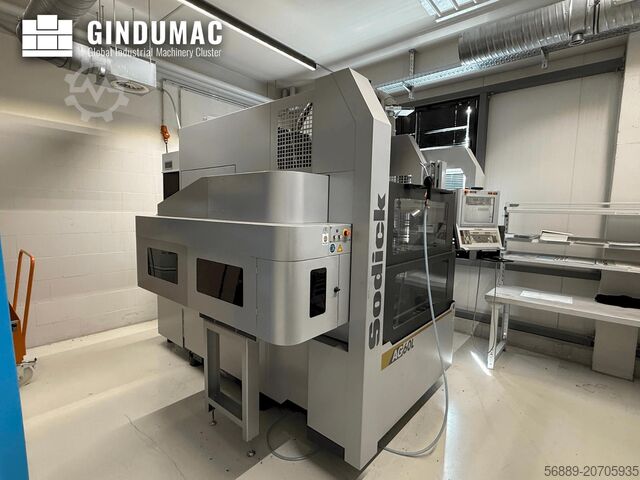

Die-sinking EDM machineSodick
AG60L
Machine data
- Machine type:
- Die-sinking EDM machine
- Manufacturer:
- Sodick
- Model:
- AG60L
- Machine number:
- T1284
- Year of construction:
- 2019
- Condition:
- excellent (used)
- Functionality:
- fully functional
- Operating hours:
- 4,247 h
Price & Location
- Location:
- Kraków, Poland
Technical details
- Workpiece weight (max.):
- 1,500 kg
- Travel distance X-axis:
- 600 mm
- Travel distance Y-axis:
- 420 mm
- Travel distance Z-axis:
- 370 mm
- Total height:
- 2,570 mm
- Total length:
- 1,852 mm
- Total width:
- 2,825 mm
- Workpiece height (max.):
- 400 mm
- Workpiece width (max.):
- 750 mm
- Workpiece length (max.):
- 550 mm
- Type of input current:
- three-phase
- Table width:
- 750 mm
- Overall weight:
- 5,350 kg
- Table length:
- 550 mm
- Table height:
- 400 mm
- Empty load weight:
- 5,350 kg
- Table load:
- 1,500 kg
- Input voltage:
- 400 V
- Input frequency:
- 50 Hz
Details about the offer
- Listing ID:
- A207-17627
- Update:
- 14.04.2026
Description
Axis travel (X/Y/Z): 600 / 420 / 370 mm

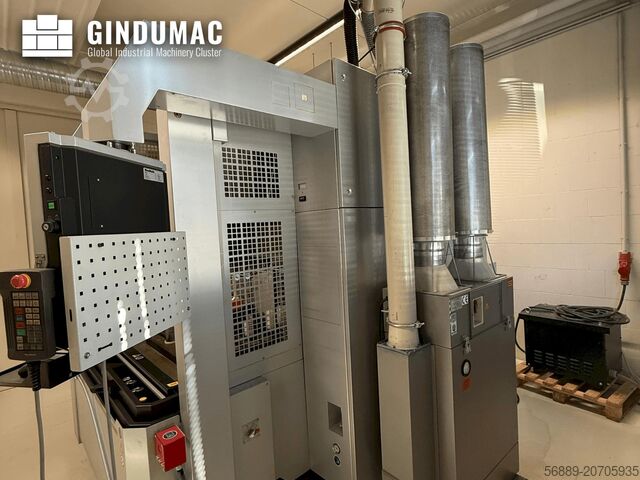

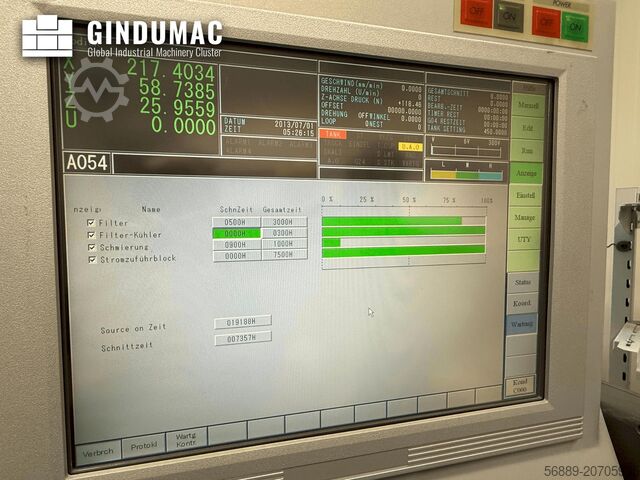

Equipment includes: replaceable paper filter, SEC-10 (C-axis), SGF2 Nano Wear Unit, fire extinguisher, TMM3 Power Generator, dielectric cooling unit, 15" TFT touchscreen, linear motors (X, Y, Z axes), glass scales (X, Y, Z axes), ceramic work area, remote control.
Machine dimensions (LxWxH): 1852 x 2825 x 2570 mm / Machine weight: 5,350 kg

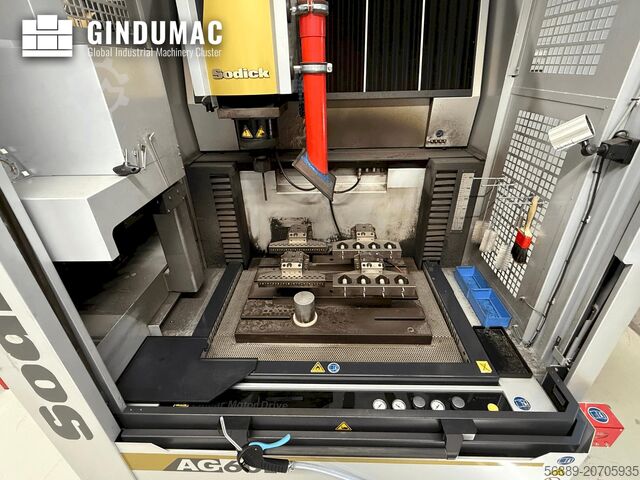

Max. workpiece weight: 1,500 kg / Ceramic table size (W x D): 750 x 550 mm
Lhsdpfex Ekb Nsx Am Tsh
Distance floor-to-table: 850 mm / Max. electrode weight: 50 kg
Dielectric fluid level (min-max): 150 – 400 mm / Dielectric capacity: 465 liters
The listing was translated automatically. Translation errors are possible.
