Cnc horizontal transfer machine

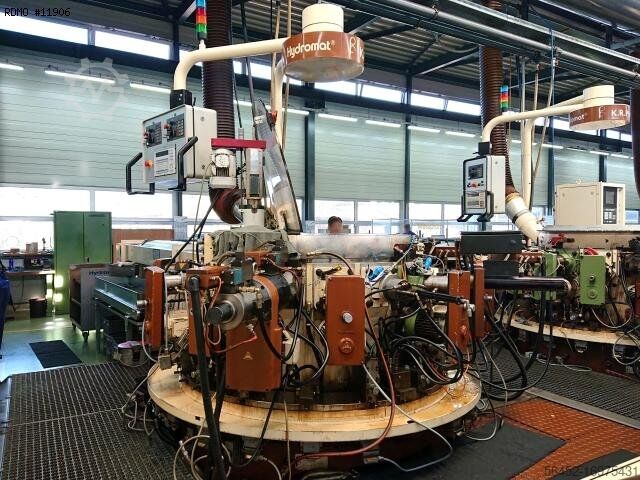

PFIFFNER - HYDROMAT HB 32/16

Condition: used, Year of construction: 2013, Article: Rotary transfer machine Manufacturer: Pfiffner Type: Hydromat HB 32-45/16 CNC Yob: 2013 Electro-hydraulically controlled, fully automatic Extract from offer: Coolant system with chip conveyor and Knoll vacuum rotation filter High pressure pump 50 bar Second coolant ring Water cooler type 1600 Collets type B32-45 UP Control: Siemens Sinumerik 840D - CNC / S7-PLC incl. modem (for teleservice) 1 bar loading magazine type IEMCA: bundle loader (yob. 2011) 1 Sawing unit: Saw blade D250mm 2 Feed unit VE 26/80-HSK: Spindle stroke max. 80mm; spindle speed max. 7200 rpm; drive power up to 2.2kW; HSK 32 2 Vertical support 26/80 with 36° angular position 2 drilling head 26/80-HSK: HSK 32 1 feed unit VE 36/100-HSK: spindle stroke max. 100mm; spindle speed max. 5430 rpm; drive power up to 2.2kW; HSK 40 4 Feed unit VE 36/100-HSK internal cooling: Spindle stroke max. 100mm; spindle speed max. 5430 rpm; drive power up to 2.2kW; HSK 40; central coolant supply 6 Drilling head 36/1000-HSK: HSK 40 2 CNC X-Y-Z turning device outside the collet disc: NC 26/100 pick-up unit; 2 deburring spindles 1 CNC horizontal cross slide 26100-HSK: X/Y stroke 1 CNC feed unit VE 36/100-HSK internal cooling: spindle stroke max. 100mm; spindle speed max. 5430 rpm; drive power up to 2.2kW; HSK 40; central coolant supply 2 CNC turning unit 50/100-PSK: with ES-PDK-12 facing head (slide-in 2 tool holders); Z-axis 100mm; X-axis 12mm; n max. 5000 rpm; 4kW 1 turning unit WDE 30/60 1 turning tube with insertion bar 3 chip breaker valve SBV-100 Tool monitoring Please, contact us for getting more information and pictures on mail(at) or * Codpferuvaqox Abmegl

Year of construction: 2001, condition: excellent (used), Multispindle lathe Schütte AG20 Csdpfjhrihyex Abmjgl

Year of construction: 1996, condition: good (used), Mehrspindel Schütte SG18 Codpfxjg S Tx Ie Abmjgl

Year of construction: 2008, condition: refurbished (used), AGIECUT Challenge V3, Year of manufacture 2008 travels: X= 500 mm, Y= 350 mm, Z= 256 mm travels U/V-axis: +/- 70 mm Maximum taper: 30° at 100 mm height Maximum workpiece dimensions: 1050 x 650 x 250 mm Maximum workpiece weight: 400/800 kg Achievable surface quality: Ra: 0.2 µm Available wire diameters: 0.10 - 0.33 mm Water bath machine with automatic wire threading With automatically lowerable tank (accessible from 2 sides) Incl. AGIEJOGGER- hand box for comfortable set-up Incl. AGIESETUP 3D AGIEVISION 5 control system AGIE IPG-V generator Dimensions (length x width x height): 2800 x 2400 x 2220 mm Net weight: 4500 kg The machine is cleaned, overhauled and extensively tested by us after receipt of order. Cgedom Amf Djpfx Abmol Incl. user training at Techma on your overhauled machine Optional: transport, commissioning, training, cooler

Condition: not inspected (used), Hydromat HB32-636 Manufacturer: Pfiffner serial number: 6.07.043-7 (4,0m) Number of pieces produced so far: 8,960,881 pcs. Csdpfxei Ewr Tj Abmjgl footprint: 11m x 5m

Condition: used, Year of construction: 2019, number of spindles 8 Cgodpjwgi D Ejfx Abmjl bar capacity 36 mm control FANUC 30i-B Subspindle speed 7.500 U/min Bar Automatic Lathe - Multi Spindle | DMG GILDEMEISTER - MULTISPRINT 36 equipped with bar feeder and a coolant system. The machine only has 15.666h spindle hours. The machine is in a well-maintained condition and can be inspected under power. For additional equipment information please refer to the original order confirmation which is included in the offer of this machine. The machine works with a EGS loading system -> This can be purchased separately An extensive tool package is included. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: MULTISPRINT36 | MULTISPRINT-36

Condition: used, TECHNICAL DETAILS - number of spindles : 6 independent - bar clearance : 32 [mm] - maxi spindle speed : 6 300 [rpm] - machine equipped with 32 numerical axes - slide unity 1.1 : X and Z axes controlled by CNC - slide unity 1.2 : fixed X axis, Z axis controlled by CNC - slide unity 2.1 : fixed X axis, Z axis controlled by CNC - slide unity 2.2 : X and Z axes controlled by CNC - slide unity 3.1 : X and Z axes controlled by CNC - slide unity 3.2 : fixed X axis, Z axis controlled by CNC - slide unity 4.1 : X and Z axes controlled by CNC - slide unity 4.2 : fixed X axis, Z axis controlled by CNC - slide unity 5.1 : fixed X axis, Z axis controlled by CNC - slide unity 5.2 : X and Z axes controlled by CNC - slide unity 6.1 : X and Z axes controlled by CNC - slide unity 6.2 : X and Z axes controlled by CNC - counter-spindle position 6.1 Codpfsuhaxljx Abmogl EQUIPMENT - INDEX C200-4 control (Siemens SINUMERIK 840D) - Simple NCU - IEMCA SIR MS32/33/P bar loader - Coolant tank with HP pump - KNOLL chips conveyor - Parts catcher with conveyor in position 6 - Cross drilling device in position 3.1 et 4.1

Condition: used, TECHNICAL DETAILS - number of axes : 18 - number of spindles : 6 - max round bar diameter : 32 [mm] - max clearance in hexagonal bar : 28 [mm] - spindle speed : 400 - 5 000 [rpm] - capacity of the sub-spindle : 32 [mm] - number of the cross slides : 5 - strokes of the cross slides in position 2 and 3, X x Z : 60 x 80 [mm] - strokes of the cross slides in position 1, 4 and 5 , X x Z : 60 x 100 [mm] - size : 8 300 x 2 300 x 2 240 [mm] - weight : 11 500 [kg] - number of working hours : 52066 [h] EQUIPMENT - numerical control TORNOS PNC DECO - spindle stop pos 4 - numerical sub-spindle Cedpsuhaqujfx Abmjgl with counter operation device - parts catcher with conveying strip - 5 turning tool-holders GOLTENBODT with collar - 1 cutting-off tool-holder GOLTENBODT - 4 fixed drillers - 1 driven driller - chips conveyor - high pressure pump - integrated bar feeder TORNOS MSF 832/6 - lamp

Condition: used, Year of construction: 2005, FANUC 160 I-MB control KNOLL chip conveyor, type 1200 S-2, made in 2012 Codpfx Ajfxgiyobmjgl 4 workstations

Condition: used, TECHNICAL DETAILS - Number of spindles : 6 - Max. bar diameter : 32 [mm] - Spindle speed : 6300 [rpm] - slide unity 1.1 : X and Z axes controlled by CNC - slide unity 1.2 : X and Z axes controlled by CNC - slide unity 2.1 : X and Z axes controlled by CNC - slide unity 2.2 : X and Z axes controlled by CNC - slide unity 3.1 : X and Z axes controlled by CNC - slide unity 3.2 : X and Z axes controlled by CNC - slide unity 4.1 : X and Z axes controlled by CNC - slide unity 4.2 : X and Z axes controlled by CNC - slide unity 5.1 : X and Z axes controlled by CNC - slide unity 5.2 : X and Z axes controlled by CNC - slide unity 6.1 : X and Z axes controlled by CNC - slide unity 6.2 : X and Z axes controlled by CNC - synchronous unit, spindle position 6.1 EQUIPMENT - CN SIEMENS 840D - Counter spindle - Polygonal milling device : 5.1 carriage unit - Bar loader : IEMCA SIR MS32/33 P - coolant tank KNOLL * with high-pressure pump - chip conveyor KNOLL Cgsdpfx Ajuhar Sobmsl - Cooling unit - Parts catcher - Ejection of workpiece - Fire extinguisher : KRAFT UND BAUER * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer
