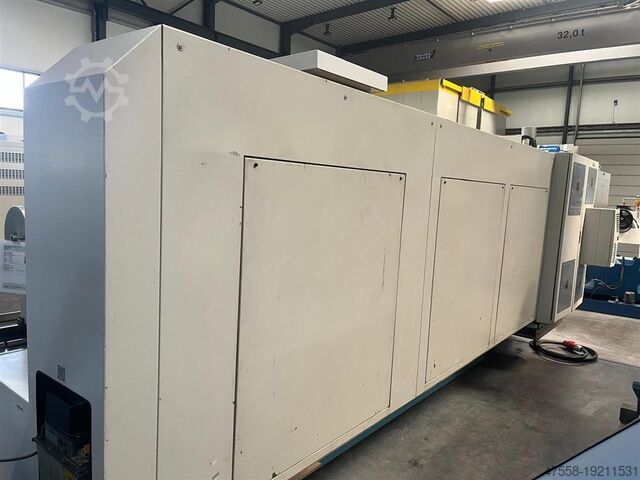

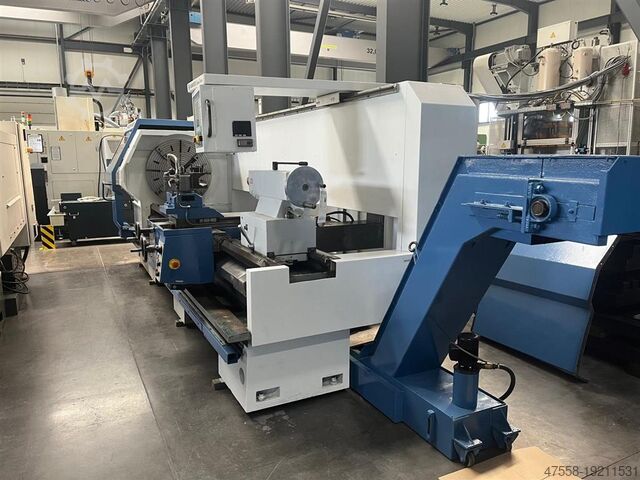

CNC Lathe

MONFORTS KNC 8

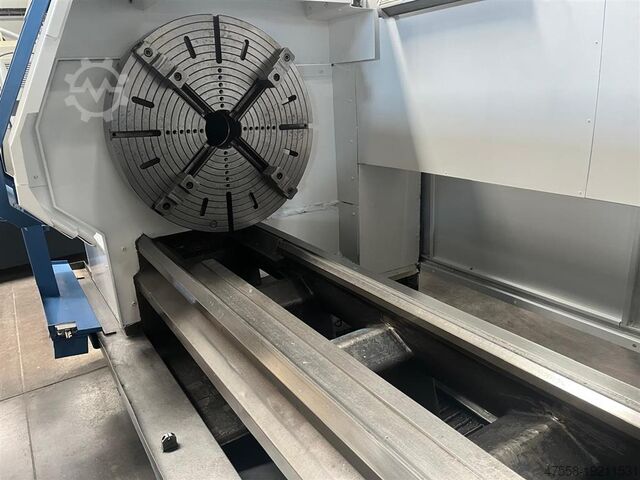

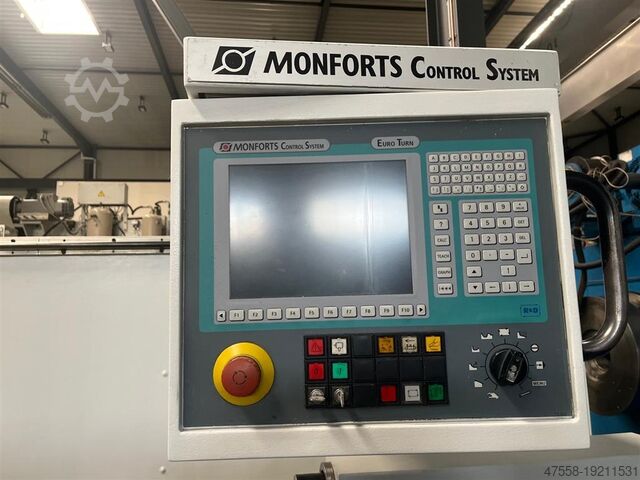

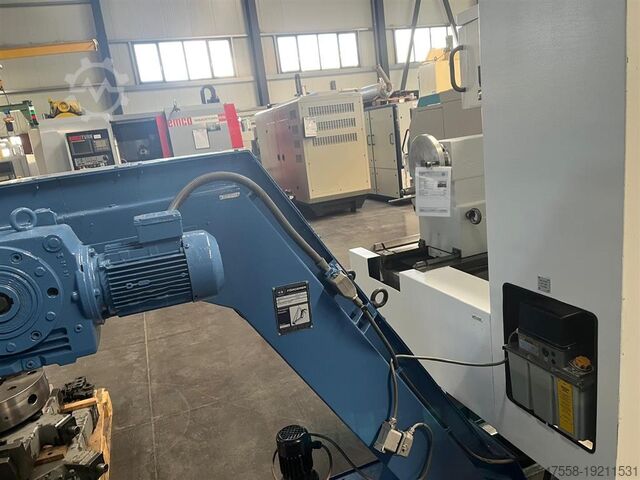

Condition: used, Technical details: turning diameter over bed: 830 mm turning dia. over face-slide: 540 mm turning length: 3000 mm turning diameter over support: 540 mm centre distance: 3000 mm faceplate diameter: 800 mm Rapid feed X axis: 4 m/min. control: MTC K (Monforts) range of revolution per miute: 2 -1.600 U/min spindle passage: 88 mm tailstock taper ISO: MK6 tailstock quill stroke: 200 mm max. workpiece weight between centers: 1250 kg max. workpiece weight -without tailstock: 3000 kg turning dia. in gap: 1.200 mm length of gap: 310 mm Giodowmlknjpfx Ah Sjp Weight approx.: ca. 6.85 (ohne Späneförderer und Kühlmittelbehälter) t dimension machine xH: 2,55 x 1,1 x 1,29 m Cycle lathe Machine overhauled in 2010 Operation via control panel Thread cutting by calculation Interpolator of NC control Chip conveyor manufacturer Cable drag Three-jaw chuck D=500mm without clamping jaws Various accessories *

Condition: used, TECHNICAL DETAILS TABLE - Table dimensions : 3100/800 [mm] - Maximum weight upon table : 7000 [kg] - Travels on X/Y/Z axes : 3000/1000/1200 [mm] - Rapid traverses rates (X/Y/Z) : 15000/15000/15000 [mm/min] MILLING HEAD Manual head MILLING SPINDLE Gisdpow Tnhbofx Ah Ssp - Tool holder type : ISO50 * Spindle speeds : 4000 [rpm] * Spindle power : 27 [kW] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 24 WEIGHT & DIMENSIONS - Machine floor space : 7913/5043 [mm] - Machine height : 3440 [mm] - Machine weight : 13410 [kg] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 38 [kW] MACHINE HOURS - Number of hours under power : 24689 [h] - Number of working hours : 23809 [h] - Number of spindle hours : 7658 [h] EQUIPMENT - CNC : Heidenhain iTNC530 - Electronic handwheel Interface : RS232/RJ45/USB - Interactive programming - Coolant tank - Tool-holders

Condition: good (used), Year of construction: 1999, Ref. -No.: 10365 Manufacturer: MONFORTS Type: KNC 8 S - 3000 Year of construction: 1999 Type of control: CNC Control: MTC K Storage location: Halberstadt Country of origin: Deutschland Machine-No.: 178.05 X stroke: 455 mm Z - stroke: 2850 mm Chuck diameter: 315/400/500 mm Centre Distance: 3000 mm Feed Capacity - Z: 23,9 kN Feed Capacity - X: 11,3 kN Rapid Travel Speed X-Axis: 6,8 m / min Rapid Travel Speed Z-Axis: 4 m / min Circumferential diameter over radial slide: 540 mm Max swing diameter: 830 mm travel of the cross slide: 450 mm Spindle head max. passage for violent material: 88 mm Spindle head max. passage for bare material: 90 mm Tailstock outside diameter of the quill: 125 mm Tailstock maximum quill stroke: 200 mm Tailstock inner cone: MK6 Type hydraulic tank: 15 L. coolant reservoir: 220 L. Coolant tank at chip conveyor: 160 L. Machine length: 5200 mm Machine width: 2110 mm Machine Height: 1995 mm Weight Of The Machine Ca.: 6,850 (Ohne Späneförderer und Kühlmittelbehäter) t Headstock Gedpfxoym Nalo Ah Seip Spindle Head: DIN 55027 - 11x290 Further information: Additional lubricating oil tank approx. 6l incl. tools Machine is under power and can be inspected by arrangement.

Condition: used, Year of construction: 1998, turning diameter 555 mm turning length 4000 mm control Monforts Control System type MTC-K CCUO turning diameter over slide rest 290 mm cross movement . mm spindle passage . mm turning speeds 1600 U/min transmission ratio . quill stroke . mm rapid traverse . m/min main drive motor . kW 3-jaw chuck Rotha-S Plus 3-jaw-chuck diameter . mm total power requirement . kW weight of the machine ca. . t dimensions of the machine ca. . m Serial number: 262/01 Machine number: Quick-change tool post Coolant system Monitor Chip conveyor The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop Gisdpfx Asyqv N Uoh Ssp If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 2002, turning diameter 1000 mm swing diameter 1250 mm Giodpfx Ahsxfwgpe Sop turning height 1000 mm Control Siemens 840D total power requirement 110 kW weight of the machine ca. 25 t

Condition: used, Year of construction: 1998, Technical details: turning diameter: 830 mm turning length: 4000 mm turning diameter over bed slide: 540 mm spindle bore: 130 mm turning speed range: 2 - 1600 U/min Gisdowwlt Rjpfx Ah Sjp rapid speed: 4 / 5 m/min feed speeds: 1 - 2000 mm/min total power requirement: 55 kW weight of the machine ca.: 7,5 t dimensions of the machine ca.: 7 x 2,2 x 2 m with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment *

Condition: used, Year of construction: 2000, Technical details: turning diameter: 800 mm turning length: 2965 mm max. turning dia. over saddle: 520 mm spindle bore: 92 mm turning speed range: 3 - 1800 U/min spindle head: Größe 11 total power requirement: 37 kW Godoxxig Uopfx Ah Sjip weight of the machine ca.: 6,5 t dimensions of the machine ca.: 5,2 x 2,2 x 1,9 m Teach In Control MTC-K 3-jaw chuck ROTAS Dia. 400 mm face plate RÖHM Dia. 630 mm 4-station toolholder system PARAT 1 fixed steady coolant attachment and chip conveyor *

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 20194, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,500 mm, power: 49 kW (66.62 HP), Features Gijdpox S Hgzofx Ah Sop High rigidity for heavy-duty machining Large table for oversized workpieces CNC control with HEIDENHAIN TNC 530 for precision operations Automatic tool changer with 50 positions Centralized lubrication and hydraulic system

Condition: ready for operation (used), Turning diameter over bed/cross slide: 530mm/280mm, center height: 264mm, center width: 2000mm, bed width: 370mm, speed: 2000rpm, spindle bore: 80mm, tool shank dimensions X/Y: 25mm/25mm, cross slide travel: 300mm, quill diameter: 65mm, quill stroke: 180mm, repeat accuracy: mm. The machine has an electrical problem on the tool head. Documentation available. On-site inspection is possible. Gedev Amrtjpfx Ah Soip
